AmericanPumpkins LS405-B User manual

FCC ID: OU9LS405-B01
AMERICAN PUMPKINS, INC
6724 Perimeter Loop Rd # 175
Dublin, Ohio 43017
www.AmericanPumpkins.com
version:1.0
User Manual
Bluetooth Pedometer LS405-B
Thank you very much for selecting the AmericanPumpkins Bluetooth
Pedometer LS405-B.
Please do read the user manual carefully and thoroughly so as to ensure
the safe usage of this product, and keep the manual well for further
reference in case you have problems.
AmericanPumpkins

Table of Contents
Table of Contents
Symbol Meaning
Symbol Meaning
..........................................................................................
.......................
2
Overview
General Instructions
..........................................................................................
.......................
3
Device Components
.................................................................................................................
3
OLED Display
..........................................................................................
.......................
4
Initial Start-Up
How to Turn on the Pedometer for Your First Use............................................................ 5
How to Charge the Power.......................................................................................................... 5
Install the App and Pair-up ........................................................................................................ 6
How to Wear the Pedometer .................................................................................................... 7
Start Measuring
How to Use
..........................................................................................
.........................
8
View the Data
How to View the Data .............................................................................................................. 9-10
Special Function
Tracking Sleep on Your.....................................................................................MobileDevice 11
Alarm Clock Reminder................................................................................................Function 11
Troubleshooting............................................................................................................................
12-13
Specifications............................................................................................................................ 14
Maintenance...............................................................................................................................
15
Warranty......................................................................................................................................
15
Warning...................................................................................................................................... 16
Pedometer Care .........................................................................................................................
16
Built-in Battery Care ..................................................................................................................
16
Health Disclaimer.........................................................................................................................
16
Other Notes .................................................................................................................................
17
FCC Statement ..........................................................................................................................
17
1
Table of Contents
1

Symbol Meaning
Symbol Meaning
The warning signs and symbols are essential to ensure your correct and safe use of
this product and protect you and others from injury. Please kindly find the meanings of
the warning signs and symbols, which you may encounter in the label and user manual,
as follows:
Symbol for “THE OPERATION Symbol for “MANUFACTURER”
GUIDE MUST BE READ”
Symbol for “MANUFACTURE Symbol for “COMPLIES WITH EU
DATE” REQUIREMENTS”
Symbol for “DIRECT CURRENT” Symbol for “ENVIRONMENT
PROTECTION
–
Waste electrical
products should not be disposed of with
The Bluetooth Combination Mark
household waste. Please recycle where
facilities exist. Check with your local
authority or retailer for recycling advice”
Symbol for “Including RF
transmitter”
2
Overview
General Instructions
AmericanPumpkins Bluetooth Pedometer LS405-B is used for
measuring the walking steps, distance and the consumed
calories.
This device has bluetooth 4.0 technology; the user can set the time
and unit etc. through the bluetooth, and then download the information
to the pedometer. The data in the pedometer also can be uploaded to
the device which supports the Bluetooth 4.0 technology. So the user
can check it at anytime.
Main Features:
a. support the Bluetooth 4.0 technology
b. OLED display
c. keep a record of the measuring data during 7 days, keep a record
for every 5 minutes if there has some changes
d. display walking steps, walking distance, the consumed calories
and the current time
e. alarm clock vibration reminder function (this function can be tracked on the app)
f. track the quality of sleeping (this function can be tracked on the app)
Device Components
2865
OLED Display
Button
Charging Icon
Wristband
USB Interface
Metal Buckle
Wristband
List
1. Bluetooth Pedometer LS405-B (including Polymer Lithium Battery)
2. User Manual
3
3

Overview
OLED Display
0
Steps
17:00
The Current Time
The Consumed Calorie (kcal)
0.0
The Walking Distance(km)
0.00
Free Alarm Clock
17:00
Press the Button Can Stop the Alarm Clock
Sleeping Mode
0
The Moon Icon Blinks
How to Turn on the Pedometer for Your First Use
If it’s the first time for you to use it, you press the button
shortly,and there is no display on OLED , this because the
device didn’t logout the shipping mode. Please press and hold
the button for 5 seconds, then the device will recover to the
normal mode.
CAUTION
Note:
(1) When the device is in the shipping mode, if you charge the
power, it will divert to the normal mode, then you can start
your measurement.
(2) When the shipping mode is removed, the pedometer
will display the initial time: 0:00.
(3) After pairing up with the mobile phone, the pedometer will
download the time from the mobile phone, and it will display
the current time.
4
Initial Start-Up
How to Charge the Power
When the OLED displays the following symbol, it reminds you
to charge the power at once.
Connect the USB interface with the computer to finish the
charging.
When the device is charging the power, the OLED will display as
the following picture. The power symbol blinks.
The OLED displays as the following picture, it means
the charging is complete.
CAUTION
The Mini USB port is only used for charging the power, but
can not be used for transmitting the data to the computer.
Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
5
5

Initial Start-Up
Install the App and Pair-Up
Download and install the app in your device which supports
Bluetooth 4.0 technology.
Turn on Bluetooth and the App. Make sure both are ON when
pair-up is proceeding.
When the OLED is on, press and hold the button on the pedometer
about 6 seconds to start pair-up.
Symbol and symbol will be shown on the
OLED alternatively, indicating pair-up is
proceeding.
If SUCCEED, symbol “ Success!” will be shown on the
Success!
OLED.
If FAIL, symbol “Fail!” will be shown on the OLED. Fail!
The measuring data will be transmitted to your device which
supports Bluetooth 4.0 technology when the pair-up is successful.
6
TransHealth
App available on
Apple App Store and Google Play Store.
Recommended App
Initial Start-
Up
How to Wear the Pedometer
1. For first wear, use the tape measurement to measure your wrist.
2. Pull the wristband out of the metal buckle.
3. Select the suitable length of the wristband and cut off it .
4. Use the metal buckle to buckle up the wristband or adjust its
length.
5. For daily wear, insert the wristband which has the USB icon into
the USB interface of the device.
6. Wear the pedometer just like wearing a watch. Remember
the wristband which has USB icon on it must face to you.
7. Connect the other side of the wristband with the device.
8. Then you can start your measurement.
3 4
0
1
CAUTION
Note: If you wear the pedometer on the left hand, the button on
the pedometer must be towards to your arm. If you wear it on the
right hand, the button on the pedometer must be towards to the
fingertip.
7
Up
7

Start Measuring

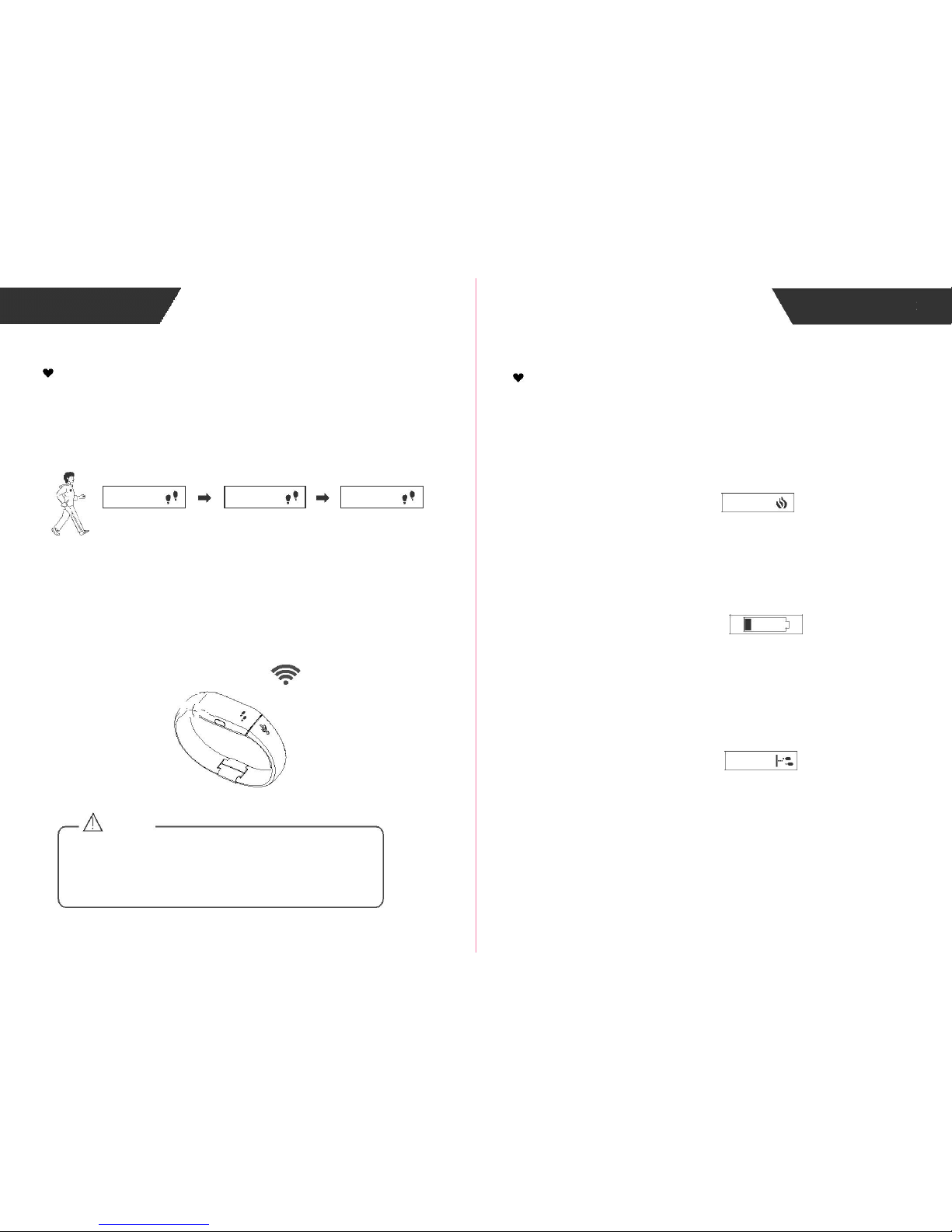

How to Use
Follow the hints in the manual to wear the pedometer. Then it
can start the measurement.
0 10 11
Start Walking 10 Steps More than 10 steps
(within 10 steps) (the numeral increases)
The measuring data will be transmitted to your device which
supports Bluetooth 4.0 technology if you have paired up with it.
2865
CAUTION
Note: The data will be transmitted to the APP with every 100
steps walked when the pedometer is near the smartphone.
Or press the pedometer button to sync the measurement data to
the APP when it is near the smartphone.
8
View the Data
How to View the Data
When the OLED is off, and there is enough power, press the
button on the pedometer, it will display the picture which the
pedometer turn off at the last time shown.
For example, last time, the OLED displayed the calories you
have consumed before it turned off . If you press the button now,
the OLED will display the calories you have consumed.
5.2
Note：If the battery is low, when the OLED is off , press the button on the
pedometer, the OLED will display the battery first.
Then press the button again, the OLED will display the
distance you have walked.
0.36
9
View the Data

View the Data
After that, press the button again, the OLED will display the
steps you have walked.
541
Then press the button again, the OLED will display the time.
17:00
If there is no operation, the OLED will turn off after several
seconds.
CAUTION
Note: The data of the day will be cleared to zero automatically
when the time is 0:00. The data cannot be cleared to zero
manually.
10
Special Function
Tracking Sleep on Your Mobile Device
The pedometer can track the hours you sleep and your movement
during sleep to help you understand your sleep quality. You can track
your sleep using the app on your mobile device.
To enter sleep mode, press and hold the button on the side of
the pedometer. You will feel a vibration and a moon icon will
flash on the display, indicating that sleep mode has begun.
541 541
When you wake up, exit sleep mode by pressing and holding
the button until it vibrates. The moon icon will disappear from the
display.
541 541
Alarm Clock Reminder Function
The pedometer has the Alarm Clock Reminder Function . You
can set the alarm clock through the app on your mobile device.
Then press the button of the pedometer to finish the setting.
When the setting time is coming, the pedometer vibrates,
displays the current time, and the alarm clock icon blinks.
The intensity of vibration will increase gradually.
Press the button on the side of the pedometer to stop the
vibration in five minutes. Otherwise, it will stop vibration five
minutes later automatically. At this moment, the pedometer will
display the current time and the unblinking alarm clock icon.
11
Special Function
11

Troubleshooting
Troubleshooting
Problem Root Cause Solution
Please check below items:
-Bluetooth is ON.
Fail!
Failure of pairing up -App Collector is ON.
-Both devices are within the
transmission distance of Bluetooth.
Incorrect portable fashion Use the correct portable fashion,
make the device avoid that the pedometer has
has irregular shaking irregular shaking
Abnormal
measuring results:
Huge difference Less than 10 steps Continue to walk more than
between two recent 10 steps
measurement.
Slide or wearing Walk in a normal way
the slippers to walk
The setting of the Make sure the setting of
Distance is distance unit is not distance unit on the APP is the
wrong. right. one the user needs. (The
selectable distance units on the
APP are km/mile)
12
Troubleshooting
Problem Root Cause Solution
No display on The power is not enough. Charge power in time.
OLED when the
device powers on.
The device didn’t logout Long press button for
the shipping mode for the first 5 seconds, the device will recover
measurement. to the normal mode.
The device
Low battery.powers off. Please charge power in time.
Data
transmission failed.
Bluetooth is OFF. Turn ON the Bluetooth via
“Setting >> General >> Bluetooth”.
The App is OFF. Press the icon to turn ON your
app.
Out of range of Bluetooth
Place your device which supports
the Bluetooth 4.0 technology closer
transmission. to the pedometer.
13
Troubleshooting
13

Specifications
Specifications
Product Name Bluetooth Pedometer (LS405-B)
Dimension Whole size:233x20x10 mm (Approximately)
Weight Approximately 22 g ( including the dry cells)
Display Blue OLED
V.A.:22.4mm x 5.6mm
Steps 0-120000 steps, division 1 step
Calories 0-12000.0 kcal, division 0.1 kcal
Distance 65.36km
Accuracy of Steps 500±15 steps
Exercise Time 0-23 hours and 59 minutes, division 1 minute
Battery Grade 1-7 grade, division 1 grade
Battery Life ≥7 days when fully charged
and doing sports for 8 hours per day
Power Source
3.7V / 70mAh polymer lithium battery,Input:5V 60mA
Working Environment
Temperature: 0
℃
to 40
℃
Humidity: ≤90% RH
Pressure: 80 kPa ~ 106 kPa
Storage Environment Temperature: -20
℃
to 60
℃
Humidity: ≤90% RH
Pressure: 50 kPa ~ 106 kPa
Accessories 1. One Wrist Band
2. User Manual
Protection against IP65
ingress of water
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer.
1
4
Please refer to the above table for the descriptions on accuracy.
WARNING: No modification of this equipment is allowed.
Maintenance
Maintenance
When carrying out usual maintenance, please ensure practice of the following Do’s and
Don’ts:
DO use a dry soft cloth to wipe the dust.
DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use
a dry soft cloth to dry up the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of
discolor or malfunction.
DON’T disassemble this device. If you have any problems, please contact
AmericanPumpkins. (Please refer to Warranty for contact information)
Charge the power once for every 3 months, or at least once for half a year, if the
device is not likely to be used for a long time.
Warranty
AmericanPumpkins warrants its products free of defects in materials and
workmanship in normal use for a period of ONE year from the date of retail purchase.
This warranty does NOT cover damages caused by misuse or abuse, including but
not limited to:
Failure caused by unauthorized repairs or modifications;
Damage caused by shock or drop during transportation;
Failure caused by improper operation inconsistent with the instructions stated in this
user manual;
Malfunction or damage from failure to provide the recommended maintenance;
Damage caused by improper use of power supply.
Should this device require maintenance (or replacement at our option) under warranty,
please deliver the original package to GUANGDONG AMERICANPUMPKINS MEDICAL
ELECTRONICS CO., LTD prepaid. Please return the store receipt (with the
retail purchase date) and a note with reasons to return on it as well.
AMERICAN PUMPKINS, INC
6724 Perimeter Loop Rd # 175
Dublin, Ohio 43017
www.AmericanPumpkins.com
15
When carrying out usual maintenance, please ensure practice of the following Do’s and
15

Warning
Warning
While your pedometer is designed to be worn 24/7, its components are electronic
and susceptible to damage if used improperly. Please read the safety guidelines
on the following pages to ensure proper use and care.
Pedometer Care
• Do not expose your pedometer to liquid, moisture, humidity, or rain while charging.
Exposure of the pedometer to moisture while charging could result in electric shock.
• Do not tamper with or abuse the pedometer. For example, without limitation, do not drop,
disassemble, open, crush, excessively bend, deform, puncture, shred, microwave,
incinerate, paint, or insert foreign objects into the pedometer.
• Do not use abrasive cleaners to clean your pedometer.
• Do not expose your pedometer to extremely high or low temperatures.
• Do not leave your pedometer near open flames such as cooking burners, candles,
or fireplaces.
•
Do not bring your pedometer into contact with any sharp objects. This could cause scratches
and damage.
• Do not insert anything into your pedometer unless otherwise specified in the user instructions.
This may damage the internal components.
• Do not attempt to repair, modify, or disassemble your pedometer; it does not contain any
user-serviceable components.
Built-in Battery Care
• Do not attempt to replace your pedometer’s battery. It is built-in and not changeable.
• Only charge the batter
y in accordance with the user instructions supplied with the pedometer.
• Avoid charging your pedometer in extremely high or low temperatures.
• Do not wear your pedometer while you are charging it.
• Do not attempt to disassemble the pedometer or force open the built-in battery.
• Do not clean the pedometer when it is being charged. Always unplug the charger first before
cleaning the pedometer.
•
Do not dispose of your pedometer in a fire. The battery could explode causing injury or death.
Health Disclaimer
WARNING: THIS PEDOMETER IS NOT A MEDICAL DEVICE. The pedometer and its
associated applications should not be used to diagnose, treat, or prevent any disease
or medical condition. Always seek the advice of a qualified medical professional before
making any changes to your exercise, sleep or nutrition, as doing so may cause severe
harm or death.
16
Do not bring your pedometer into contact with any sharp objects. This could cause scratches
y in accordance with the user instructions supplied with the pedometer.
Do not dispose of your pedometer in a fire. The battery could explode causing injury or death.
FCC Statement
Other Notes
•
Dispose of the pedometer, the pedometer’s battery in accordance with local regulations.
Do not dispose of the battery with regular household waste.
• Recycle your package in accordance with local regulations.
FCC Statement
FCC ID: OU9LS405-B01
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
• Caution: The user is cautioned that changes or modifications not express
ly approved by the
party responsible for compliance could void the user's authority to operate the equipment.
•
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installati
on. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
• If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
--
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
•
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
• This transmitter must not be co-
located or operating in conjunction with any other antenna
or transmitter.
17
FCC Statement
Dispose of the pedometer, the pedometer’s battery in accordance with local regulations.
ly approved by the
party responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
on. This equipment generates, uses
Connect the equipment into an outlet on a circuit different from that to which the receiver
This equipment complies with FCC radiation exposure limits set forth for an
located or operating in conjunction with any other antenna
17
