AMERICH VSM User manual

CAREFULLY READ AND FOLLOW ALL INSTRUCTIONS before attempting to operate your whirlpool or Airbath® Bathtub.
Always check www.americh.com for the most updated operating instructions.
operator’s manual
Vibro Sonic Massage (VSM)®
INSTALLER: To be removed for use by the occupant

Vibro Sonic Massage On/O
1st Press: The module starts at 50% in vibration mode
2nd Press: The modules stops.
Pulsation Control
Press up or down arrows to increase or decrease
pulsation power. The Vibro Sonic System has ve
levels of pulsation control.
Vibration Control
Press up or down arrows to increase or decrease
vibration speed. The Vibro Sonic System has ve
levels of vibration control.
Sequence Modes
The Vibro Sonic System oers 3 dierent Shiatsu
massage sequences. Push the Sequence Mode
button to cycle through patterns.

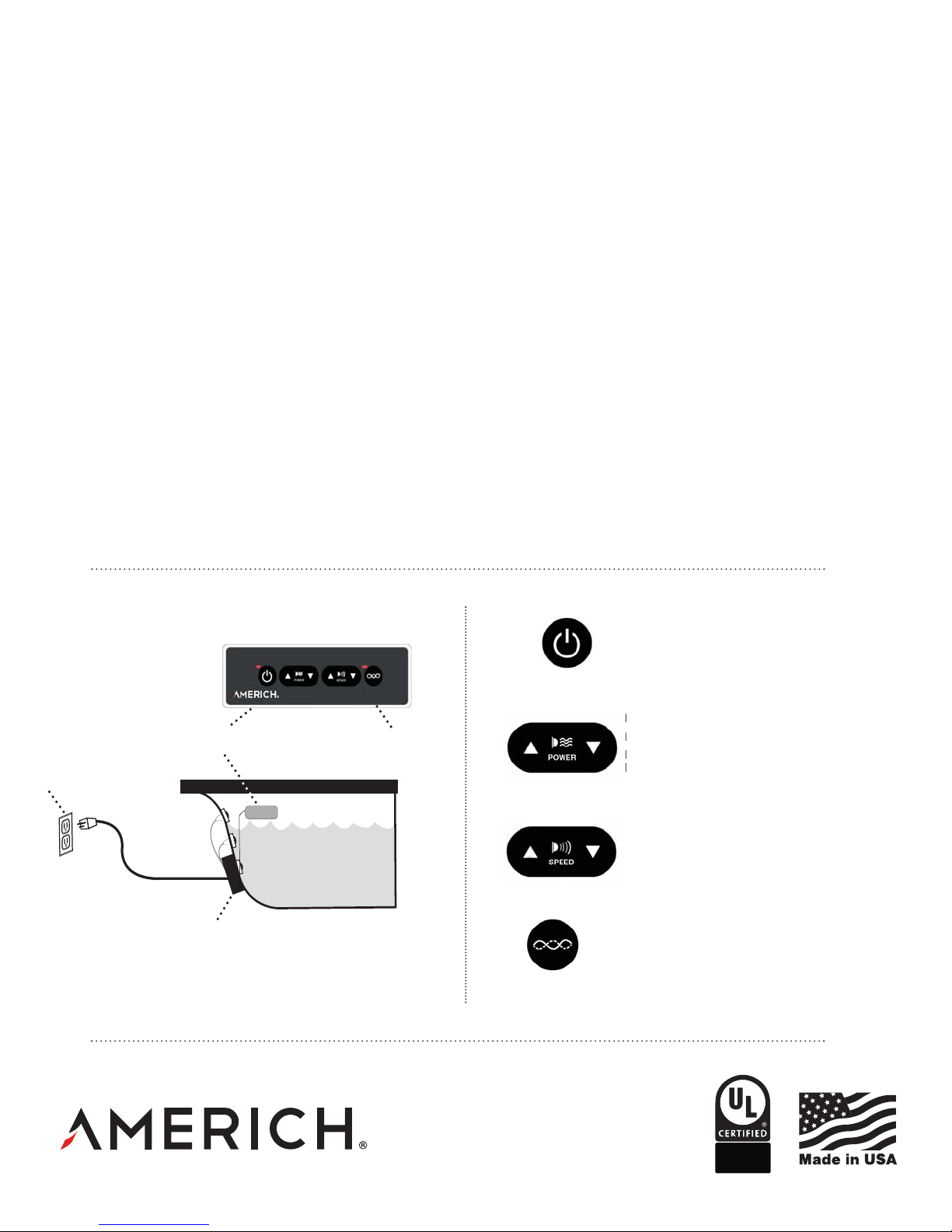

GFCI
outlet
power supply
control
keypad
red LED visable when
buon is activated or active
P
P
p
l
ELECTRICAL REQUIREMENTS
Manufacturer recommends a dedicated 20 amp circuit breaker for each
power cord supplied on your whirlpool bathtub. WARNING - When
using electrical products, basic precautions should always be followed,
including the following:
1. DANGER: Risk of electric shock. Connect only to a supply circuit
protected by a Class A ground-fault circuit-interrupter (GFCI). Test
on a routine basis.
2. Grounding is required. The unit should be installed by a qualied
service representative and grounded.
3. (For built-in and custom units) install to permit access for servicing.
4. Supply 110 Volt electrical outlet. This circuit must be protected by a
ground fault circuit interrupter (GFCI.)
5. Plug supply cord(s) into electrical outlet.
6. To test the GFCI, do the following:
a. Push the test button;
b. Check to see that power has been interrupted;
c. Push the reset button;
d. Check to see that power has been restored.
If the GFCI does not operate properly during the test, there is a ground
current owing indicating the risk of electric shock. Do not use this
unit. Disconnect the unit and have the problem corrected by a qualied
service representative before using.
Refer to Operating Instructions for system operations and wiring
diagrams.
PERFORMANCE
US•CA
E87277
IMPORTANT SAFETY INSTRUCTIONS: pertaining to a risk of fire, electric shock, or injury to persons
Warning: Whirlpool bathtubs utilize acrylic and fiberglass materials (which are inherently slippery surfaces), electricity, water, air pressure and suction. The following basic
safety precautions should always be followed when using your bathtub.
READ AND SAVE THESE INSTRUCTIONS
©03/18
VIBRO SONIC MASSAGE (VSM)®
operating instructions

©03/18
VIBRO SONIC MASSAGE (VSM)®
operating instructions
COLOR OPTIONS FOR TRIM RING:
WH - White
BK - Black
PC - Chrome
VIBRO SONIC MASSAGE SYSTEM:
The standard VSM system includes a tub
side mounted control pad (gure 2). An
optional remote control can be ordered
if desired (gure 3)
CLEANING:
The silcone massage module can be
cleaned using liquid soap and hot water.
Rinse thoroughly with warm water and
dry with a soft cloth.
The VSM system can be used with or
without water in the tub.
figure 1. Massage Module
figure 2 - Keypad
figure 3 - Optional Remote Control
White (WH) Black (BK) Chrome/Black (PC)
Red LED light illuminates when
button is activated

©03/18
VIBRO SONIC MASSAGE (VSM)®
operating instructions
6 Module VSM (BACK ONLY)
VSM Systems
8 Module VSM (BACK & FOOT)
Please note that if an 8 module VSM system is ordered on a tub with
a whirlpool system that has jets on the same end as the VSM foot jets,
the whirlpool jets will be removed in order to accommodate the VSM
foot jets.
