Ametek Land Landmark Graphic AE User manual

Signal Processor
Copyright © 2016 Land Instruments International
User Guide
Issue 4
29 November 2016
Publication Nº 198.234
Language: English
LMG AE

Health and Safety Information
Read all of the instructions in this booklet - including all the WARNINGS and CAUTIONS
- before using this product. If there is any instruction which you do not understand, DO
NOT USE THE PRODUCT.
Safety Signs
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or
personal injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury to the user or users, or result in damage to the product or to property.
NOTE
Indicates a potentially hazardous situation which, if not avoided, could result in damage or the loss of
data.
Signs and Symbols used on equipment and Documentation
Caution, risk of electric shock.
Caution, attention to possibility of risk of damage to the product, process or surroundings. Refer
to instruction manual.
Caution, hot surface.
Protective Conductor Terminal.
Observe precautions for handling electrostatic discharge sensitive devices.
Equipment Operation
Use of this instrument in a manner not specied by Land Instruments International may be hazardous.
Read and understand the user documentation supplied before installing and operating the equipment.
The safety of any system incorporating this equipment is the responsibility of the assembler.
Protective Clothing, Face and Eye Protection
It is possible that this equipment is to be installed on, or near to, machinery or equipment operating at
high temperatures and high pressures. Suitable protective clothing, along with face and eye protection
must be worn. Refer to the health and safety guidelines for the machinery/equipment before installing
this product. If in doubt, contact Land Instruments International.
Electrical Power Supply
Before working on the electrical connections, all of the electrical power lines to the equipment must
be isolated. All the electrical cables and signal cables must be connected exactly as indicated in these
operating instructions. If in doubt, contact Land Instruments International.
Storage
The instrument should be stored in its packaging, in a dry sheltered area.
Unpacking
Check all packages for external signs of damage. Check the contents against the packing note.
Lifting Instructions
Where items are too heavy to be lifted manually, use suitably rated lifting equipment. Refer to the
Technical Specication for weights. All lifting should be done as stated in local regulations.
IMPORTANT INFORMATION - PLEASE READ

Health and Safety Information
Read all of the instructions in this booklet - including all the WARNINGS and CAUTIONS
- before using this product. If there is any instruction which you do not understand, DO
NOT USE THE PRODUCT.
Safety Signs
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or
personal injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury to the user or users, or result in damage to the product or to property.
NOTE
Indicates a potentially hazardous situation which, if not avoided, could result in damage or the loss of
data.
Signs and Symbols used on equipment and Documentation
Caution, risk of electric shock.
Caution, attention to possibility of risk of damage to the product, process or surroundings. Refer
to instruction manual.
Caution, hot surface.
Protective Conductor Terminal.
Observe precautions for handling electrostatic discharge sensitive devices.
Equipment Operation
Use of this instrument in a manner not specied by Land Instruments International may be hazardous.
Read and understand the user documentation supplied before installing and operating the equipment.
The safety of any system incorporating this equipment is the responsibility of the assembler.
Protective Clothing, Face and Eye Protection
It is possible that this equipment is to be installed on, or near to, machinery or equipment operating at
high temperatures and high pressures. Suitable protective clothing, along with face and eye protection
must be worn. Refer to the health and safety guidelines for the machinery/equipment before installing
this product. If in doubt, contact Land Instruments International.
Electrical Power Supply
Before working on the electrical connections, all of the electrical power lines to the equipment must
be isolated. All the electrical cables and signal cables must be connected exactly as indicated in these
operating instructions. If in doubt, contact Land Instruments International.
Storage
The instrument should be stored in its packaging, in a dry sheltered area.
Unpacking
Check all packages for external signs of damage. Check the contents against the packing note.
Lifting Instructions
Where items are too heavy to be lifted manually, use suitably rated lifting equipment. Refer to the
Technical Specication for weights. All lifting should be done as stated in local regulations.
IMPORTANT INFORMATION - PLEASE READ
Contact Us
UK - Droneld
Land Instruments International
Tel: [phone]
Email: [email protected]
Web: www.landinst.com
USA - Pittsburgh
AMETEK Land, Inc.
Tel: [phone]
Email: [email protected]
Web: www.ametek-land.com
China
AMETEK Land China Service
Tel: [phone] ext 122
Email: [email protected]
Web: www.landinst.com
India
AMETEK Land India Service
Tel: +91 - 80 67823240
Email: [email protected]
Web: www.landinst.com
For further details on all AMETEK Land oces, distributors and representatives, please visit
our websites.
Return of Damaged Goods
IMPORTANT If any item has been damaged in transit, this should be reported to the carrier and to the
supplier immediately. Damage caused in transit is the responsibility of the carrier not the supplier.
DO NOT RETURN a damaged instrument to the sender as the carrier will not then consider a claim. Save
the packing with the damaged article for inspection by the carrier.
Return of Goods for Repair
If you need to return goods for repair please contact our Customer Service Department. They will be able
to advise you on the correct returns procedure.
Any item returned to Land Instruments International should be adequately packaged to prevent damage
during transit.
You must include a written report of the problem together with your own name and contact information,
address, telephone number, email address etc.
Design and Manufacturing Standards
The Quality Management System of Land Instruments International is approved to BS EN ISO 9001 for
the design, manufacture and on-site servicing of combustion, environmental monitoring and non-contact
temperature measuring instrumentation.
Approvals apply in the USA
Operation of radio transmitters, telephones or other electrical/electronic devices in close proximity
to the equipment while the enclosure doors of the instrument or its peripherals are open, may cause
interference and possible failure where the radiated emissions exceed the EMC directive.
The protection provided by this product may be invalidated if alterations or additions are made to the
structural, electrical, mechanical or pneumatic parts of this system. Such changes may also invalidate the
standard terms of warranty.
Copyright
This manual is provided as an aid to owners of Land Instruments International’s products and contains
information proprietary to Land Instruments International. This manual may not, in whole or part, be
copied, or reproduced without the expressed written consent of Land Instruments International Ltd.
Copyright © 2016 Land Instruments International.
MARCOM0311, Issue 7, 01 November 2016
Approvals apply in India

Contents
1 Introduction 1
1.1 About this Guide 1
1.2 About the Processor 2
1.3 Specications 3
1.4 Unpacking the Processor 5
2 Installing the Processor 6
2.1 Installing the Processor Into a Panel 6
2.2 Electrical Connections 9
2.2.1 Alarm output connection schedule 11
2.2.2 CMD (Command) input connection schedule 11
2.2.3 Output (Retransmission output) connection schedule 13
2.2.4 Thermometer input/output connection schedule 16
2.2.5 Serial communications and maths function options 17
2.3 System 4 and ABT/S Thermometer Cable Connector Assembly 18
2.4 AET/AQT Thermometer Cable Connector Assembly 19
2.5 a.c. Power Input Plug 21
3 Using the Processor 22
3.1 Getting Started (accessing the menu system) 25
3.2 About the Menu System 29
3.3 Conguring Items in the Menu System 31
3.4 Conguring Constants for AET/AQT Thermometers 33
3.4.1 Constant ranges for AET/AQT 35
3.4.2 Explanation of Constants 35
3.5 Conguring for ABT/S Thermometers 37
3.5.1 Guidance on Snapshot Setup for ABT/S 39
3.5.2 New parameter limits and defaults 41
3.5.3 Serial parameters 41
3.6 Using the ‘Quick’ Keys 43
3.6.1 Emissivity Quick key 43
3.6.2 Alarm Quick key 44
3.6.3 Display Quick key 45
4 Time Functioning Processing 46
4.1 Peak Picker (not available on AET/AQT channels) 46
4.2 Track and Hold 48
4.3 Averager 49
4.4 Valley Picker (not available on AET/AQT channels) 50
4.5 Quench Rate Operation (Requires AET/AQT) 52
4.5.1 Introduction 52
4.5.2 Quench Rate 53
4.5.3 New parameters 54
4.5.4 Pre-Conguration Notes 55
4.5.5 Conguration of Automatic Mode (Quench A) 56
4.5.6 Quench Rate Manual Mode (Quench M) 58
4.5.7 System Response 60
4.5.8 Application Examples 61
5 Language Selection 67
6 Maintenance 69
Appendix A - Display Modes 71

Page 1
User Guide Signal Processor
LMG AE
1 Introduction
1.1 About this Guide
This guide gives you the information necessary for you to operate a LAND
Landmark Graphic AE processor. Basic information regarding installation
of the processor is also contained in the Installation Guide. More detailed
information regarding servicing, repair and calibration of the processor is
contained in the Service Manual.

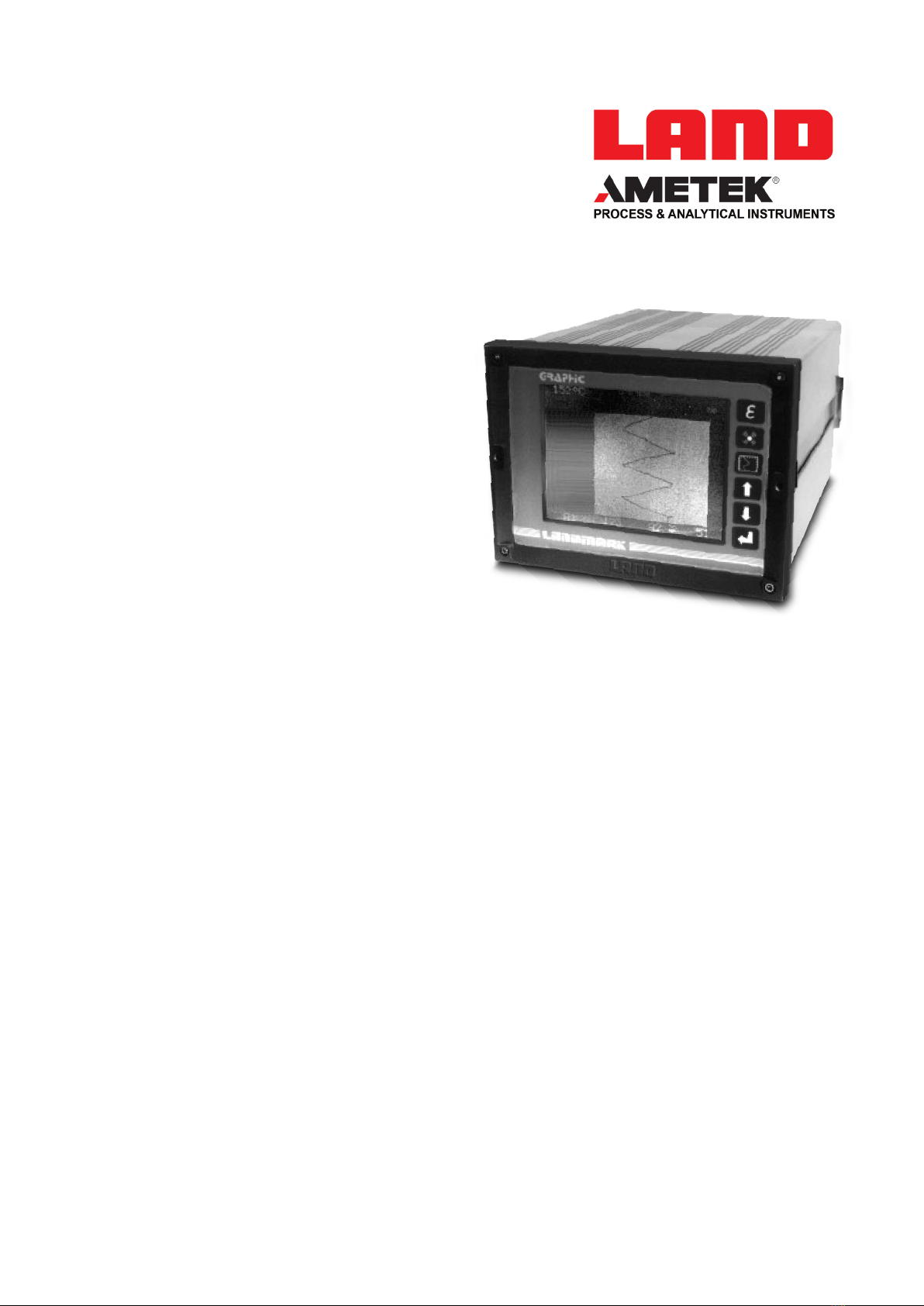

Fig.1 - Landmark Graphic AE Signal Processor 234001

Page 2
Signal Processor User Guide
LMG AE
1.2 About the Processor
The Landmark Graphic AE Signal Processor is designed to be used in
conjunction with any LAND System 4 thermometer and ABT/S, AET and AQT
application dedicated thermometers.
The processor features include:
• Large, clear LCD panel.
• Easy to use conguration menu system, with security code, context
sensitive help display and ‘Quick Key’ selection of the most commonly
changed parameters.
• Multi-channel version for up to four thermometers.
• A choice of time function processing options for each thermometer input.
• Current and voltage retransmission outputs.
• Power supply for processor and thermometer(s).
The processor’s capabilities can be enhanced with several optional extras.
• Serial communications in either RS 232C or RS 485 format.
• Maths function option etc.
• A front panel cover which provides sealing up to IP65 standards.
NOTE
The LMG AE processor supercedes the LMG AS (‘Aluminium Snapshot’)
processor for ABT/S. All LMG AS functionality is available within LMG AE.
The AET input card is compatible with both AET and AETS thermometers.
The AQT input card is compatible with both AQT and AQTS thermometers.
ABT/S and ABTS/S thermometers are completely interchangeable in
all respects.

Page 3
User Guide Signal Processor
LMG AE
Processor Specications
Display:
Display update:
Screens:
Line/Deviation chart ranges:
Bar graph ranges:
Time span:
Cold cathode, back lit, 320 x 240 pixels
0.5s
Numeric, line chart, deviation chart, mixed, Snapshot (S4), 4 channel
numeric, 4 channel bar graph, 4 channel deviation bar graph
5° steps , 200° min span, setable
5° steps , 200° min span, setable
3, 12, 30, 90, 270 mins
Power requirement: 100 to 120V a.c. or 220 to 240V a.c.
48 to 63 Hz, 35VA (290VA max. with 4 thermometers)
Ambient operating temp: 5 to 50°C/40 to 120°F (specied)
5 to 60°C/40 to 140°F (max. operating)
Sealing: To IP65/NEMA 4 with protection cover tted
Humidity: 0 to 99% non condensing
Vibration: 1g Any axis 10 to 300Hz
System 4 Input Card Specications (for System 4 and ABT/S thermometers)
Accuracy: ±0.12% of reading
Stability (Temp.): 0.01% of span/°
Discrimination: 0.015% of full scale
Input update:
User label:
2.5ms
Up to 10 characters
Outputs: 1mV/° and 0 to 20 or 4 to 20mA
selectable 5° steps, 100° min span
Output update: 10ms
Emissivity: 0.050 to 1.000 in 0.001steps (Note: below 0.200, system
operation is unspecied and is not guaranteed)
Non greyness: 0.800 to 1.250 in 0.001 steps
Peak Picker:
Threshold:
On delay:
Off delay:
Decay rate:
Acquisition time:
Interval:
Reset, hold or peak sample, selectable
1°steps, setable
0 to 10s in 0.1s steps
0 to 10s in 0.1s steps
0, 0.25, 0.5, 1, 2, 4, 8, 16, 32, 64, 128, 256, 512°/s
10ms
10 to 250s in 1s steps
Valley Picker:
Threshold:
On delay:
Off delay:
Recovery rate:
Acquisition time:
Interval:
Reset, hold or valley sample, selec table
1° steps, setable
0 to 10s in 0.1s steps
0 to 10s in 0.1s steps
0, 0.25, 0.5, 1, 2, 4, 8, 16, 32, 64, 128, 256, 512°/s
10ms
10 to 250s in 1s steps
Averager:
Response Time:
0, 0.05, 0.1, 0.15, 0.25, 0.5, 1, 2, 4, 8, 16, 32, 64, 128, 256, 512s
Track and Hold:
Control signal:
Response time:
5 to 24V d.c. or switch/relay contacts
10ms
Alarms:
Trip level:
Relay contact rating:
Update:
Hysteresis:
High or low, setable
1° steps, setable
50V a.c. or d.c. at 0.5A
10ms
3°
1.3 Specifications
Landmark Graphic
AE

Page 4
Signal Processor User Guide
LMG AE
NOTE
The following functions are not available when utilising the AET and AQT
Input Cards:
1. mV/° output
2. Peak picking
3. Valley picking
Landmark Graphic AE
AET / AQT Input Card Specications
Inputs: 2 x +10 volt inputs (AET, AQT)
Accuracy: + 0.3% of FSR
Discrimination: 0.003% of FSR
Stability: 0.004% of span/°
Input Update: 7.5ms
Output Update: 30ms

Page 5
User Guide Signal Processor
LMG AE
1.4 Unpacking the Processor
The package containing the processor will contain the following items:
1) Landmark Graphic AE Processor.
2) 7-way plug and cover (10-way plug (cover not supplied) on AET/AQT
Input Card)*, (includes 2 screws and a clamp bar) for connection to
the thermometer.
3) 6-way plug* for alarm output connection.
4) 5-way plug* and cover (including 2 screws and a clamp bar) for
Retransmission output connection.
5) 2-way plug* for command input connection.
6) 3 way appliance connector (rewireable) for power input cable.
7) One 2.5mm at bladed screwdriver and one 2.5mm hexagonal
screwdriver to aid installation and set up.
8) User Guide. (A binder for your user documentation is supplied
with the thermometer.)
* One of these connectors is supplied for each thermometer channel tted to
the processor.
If you have ordered any optional serial communications boards, these will be
supplied pre-tted. Check that you have been supplied with all ordered items.

Page 6
Signal Processor User Guide
LMG AE
Fig. 2 - Processor installation dimensions 234002
2 Installing the Processor
2.1 Installing the Processor into a Panel
The Landmark Graphic AE processor is designed to be mounted into an
instrument panel. The overall installation dimensions of the processor are
given in Fig. 2.
Processor front bezel
144mm/5.7in
Processor front bezel 192mm/7.6in
Protection cover 206mm/8.1in
Approximately 400mm/15.8in required for card removal
Protection cover 158mm/6.2in
Maximum panel thickness = 13mm/0.5in
186 (+1.1,-0)mm
/7.3 (+.04,-0)in
138 (+1, -0)mm/
5.4 (+0.04, -0)in
Cut-Out
Mounting
panel
16mm
/0.6in

Page 7
User Guide Signal Processor
LMG AE
NOTE
The Landmark Graphic AE processor can be set up to display text in
either English, German, Italian, French, Spanish or Japanese. The
processor is supplied set up to display in English. Changing the language
setting involves removal of the back panel, therefore it is recommended
that the language is selected before installing the processor in a panel. If
you wish to change the language setting, refer to Section 5.0.
When the processor is used in conjunction with a System 4 Ratio
thermometer, the retransmission outputs of the processor can be
congured to indicate an abnormal condition (e.g. loss of target signal) by
either rising to the top of the signal range (i.e. ‘up scale’) or falling to the
bottom of the signal range (i.e. ‘down scale’). The processor is supplied
tted for ‘up scale’ operation. The mode of operation is set by means of a
link on each input board tted. To gain access to the link, the back panel
of the processor must be removed. Therefore, it is recommended that the
required mode of operation is selected before installing the processor in a
panel. Refer to Section 2.2.3.
Mounting the processor in a panel is best achieved by two people, one on
the viewing side and one at the rear of the mounting panel.
1) Refer to Fig. 2. Choose an area of your mounting panel of sufcient size
to contain the processor.
2) Carefully cut a rectangular area out of the panel 186mm/7.3in wide, by
138mm/5.4in high.
3) Refer to Fig. 3. Unscrew the four retaining screws on the rear of the
processor and slide out the two clamp bars.
4) From the viewing side, insert the processor in the mounting panel.

Page 8
Signal Processor User Guide
LMG AE
Fig. 3 - Mounting the processor into a panel 234003
5) From the rear, re-insert the clamp bars into their channels and push
them up to touch the mounting panel.
6) Insert and tighten the retaining screws until the mounting panel is rmly
gripped between the processor front panel and the clamp bar.
Viewing side
Retaining screw
Clamp bar Mounting panel
CAUTION
Do not overtighten the screws as this will deform the clamp bar.

Page 9
User Guide Signal Processor
LMG AE
WARNING
Risk of electric shock. Refer to the processor Service Manual
before removing the rear panel screws.
Ensure that the a.c. mains input is disconnected before
removing the rear panel of the processor.
2.2 Electrical Connections
The electrical connections to and from the processor are all made via
connectors on the rear panel of the processor. Fig. 4 shows the location of
the connectors.

Page 10
Signal Processor User Guide
LMG AE
Fig. 4 - Rear panel electrical connections 234004
12 3 456
9 8 7
THERMOMETER ALARMS
100 - 120V
200 - 240V
50-60Hz
35VA MAX. T 1A 250V
RS 232C
RS 485
1
2
3
4
5
OUTPUT CMD
1
2
3
4
5
6
1
2
1
2
3
4
5
1
2
3
4
5
6
7
1
2
3
4
5
6
1
2
1
2
3
4
5
1
2
3
4
5
6
7
9
10
1
2
3
4
5
6
1
2
1
2
3
4
5
1
2
3
4
5
6
7
9
10
1
2
3
4
5
6
1
2
1
2
3
4
5
1
2
3
4
5
6
7
9
10
A B C D
1 Alarm output 7 AC power input
2 Command input 8RS 232C serial comms input
3 Retransmission output 9Channel A* terminal block
(* Channels B,C & D may not
be identical to A, dependent on
types of thermometers to be
connected)
4 Thermometer connector
5 RS 485 serial comms output
6 Supply voltage selector switch

Page 11
User Guide Signal Processor
LMG AE
2.2.1 Alarm output connection schedule
The alarm output connection schedule is given in Fig. 5. The alarm relay
contact rating is 50V a.c. or d.c. at 0.5A.
2.2.2 CMD (Command) input connection schedule
The CMD (Command) input connection schedule is given in Fig. 6.
The command signal is inactive when the voltage is >3.0V or open circuit
(i.e. track). The command signal is active when the voltage is <1.5V or short
circuit (i.e. hold).
The command input can be controlled via a remote switch, as shown in Fig.7,
or via potential-free contacts, as shown in Fig. 8.
NOTE
Each alarm is designed to be ‘fail-safe’. i.e. if there is a loss of power to
the processor, the alarms will remain in an activated state until the power
supply is restored.
Fig. 5 - ‘Alarm’ cable connection schedule 234005
Fig. 6 - ‘CMD’ (command) cable connection schedule 234006
Pin Nº
Alarm Output
CMD (Command) input
C
NO
NC
C
NO
NC
1
2
3
4
5
6
Common
Normally Open
Normally Closed
Common
Normally Open
Normally Closed
Alarms
Function Description
Alarm 1
Alarm 2
Pin Nº Function Description
CMD+1 Command input drive
Command input
return
CMD-2
CMD

Page 12
Signal Processor User Guide
LMG AE
Fig. 7 - ‘CMD’ (command) input control via a remote switch 234007
Fig. 8 - ‘CMD’ (command) input control via potential-free contacts 234008
Vin
Vin
Remote switch
Potential-free
contacts
CMD
CMD
1
2
1
2
NOTE
Remote switch can be replaced by voltage Vin. Where:
>+3.0V = Switch Open
<+1.5V = Switch Closed
NOTE
Potential-free contacts can be replaced by voltage Vin. Where:
>+3.0V = Open Circuit
<+1.5V = Closed Circuit
Function Peak Picker Track & Hold Valley Picker
Switch Open Peak Pick Track Valley Pick
Switch Closed Reset Hold Reset
Card Type System 4 Card All Cards System 4 Card
Function Peak Picker Track & Hold Valley Picker
Open Circuit Peak Pick Track Valley Pick
Short Circuit Reset Hold Reset
Card Type System 4 Card All Cards System 4 Card

Page 13
User Guide Signal Processor
LMG AE
Fig. 9a - System 4 and ABT/S thermometer retransmission
output cable connection schedule
2.2.3 Output (Retransmission output) connection schedule
The output (retransmission output) connection schedule for System 4 and
ABT/S thermometers is given in Fig. 9a and the output (retransmission
output) connection schedule for AET and AQT application dedicated
thermometers is given in Fig. 9b.
The processor is supplied tted for ‘up scale’ operation. The mode of
operation is set by means of a link on the input/output (I/O) board. To gain
access to the link, the back panel of the processor must be removed.
1) Refer to Fig. 10, unscrew the four screws (A) on the back panel of
the processor.
2) Slide the I/O board out of the rear of the processor. The location of the
‘up scale/down scale’ selector link is shown in Fig. 11.
3) Set the link to the required mode of operation.
4) Slide the I/O board into it’s slot in the processor.
5) Tighten the four screws (A) on the back panel of the processor
(Refer to Fig. 10).
234009
Pin Nº
Output (Retransmission output)
I +
I -
Screen
V +
V -
1
2
3
4
5
Maximum loop
resistance: 500Ω
Minimum load
resistance: 10kΩ
(Not available on AET or
AQT I/O cards)
Current output drive
Current output return
Screen
Voltage output drive
Voltage output return
OUTPUT
Function LoadDescription

Page 14
Signal Processor User Guide
LMG AE
Fig. 9b - AET and AQT thermometer retransmission output
cable connection schedule 234049
Pin Nº
Output (Retransmission output)
I +
I -
Screen
E +
E -
1
2
3
4
5
Maximum loop
resistance: 500Ω
0-20mA max loop
resistance: 500Ω
Current output drive
Current output return
Screen
Emissivity output drive
Emissivity output
return
OUTPUT
Function LoadDescription
THERMOMETER ALARMS
100 - 120V
200 - 240V
50-60Hz
35VA MAX. T 1A 250VRS 232C
RS 485
1
2
3
4
5
OUTPUT CMD
1
2
3
4
5
6
1
2
1
2
3
4
5
1
2
3
4
5
6
7
1
2
3
4
5
6
1
2
1
2
3
4
5
1
2
3
4
5
6
7
9
10
1
2
3
4
5
6
1
2
1
2
3
4
5
1
2
3
4
5
6
7
9
10
1
2
3
4
5
6
1
2
1
2
3
4
5
1
2
3
4
5
6
7
9
10
A B C D
Fig. 10 - Location of screws on back panel 234010
A A B
AAB
