AMG AMG5804A966G-DF User manual

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 1 of 12
AMG5804A966G-DF Instruction Sheet
D17400-00.doc
AMG5804A966G-DF
Instruction Manual
Data Receive Unit with 2 Bi-directional Data Channels, 6 Bi-
directional Audio Channels, 2 Echelon FTT-10A Data
Channels and 8 Bi-directional Alarms plus Ethernet for a
Dual Multimode Fibre Link
The AMG5804A966G-DF is a rackmount data transmit unit designed to transmit and receive 2 data
channels, 6 audio channels, 2 Echelon FTT-10A data channels and 8 bi-directional alarms over two
Multimode optical fibres. It also provides full duplex 100Base-T Ethernet connectivity.
The AMG5804A966G-DF is designed to be powered using an AMG2003 standalone or equivalent
power supply. The G suffix in the partno. indicates a 3rd party subrack mounting configuration.
The AMG5804A966G-DF is designed to operate with an AMG5803A966-DF standalone or
AMG5803A966G-DF rackmount data receive unit in a point to point configuration.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 2 of 12
AMG5804A966G-DF Instruction Sheet
D17400-00.doc
Contents
Introduction 3
Unit Functional Schematic.................................................................................................................. 3
Optical Connection ............................................................................................................................. 3
Connections 4
Optical Connection Singlemode......................................................................................................... 4
Power Connection .............................................................................................................................. 4
Data and Alarm Channel Connections............................................................................................... 4
Audio Connections ............................................................................................................................. 4
Echelon FTT-10A Data Channel Connection..................................................................................... 4
Ethernet Connection........................................................................................................................... 5
Front Panel Indicators 6
Power LED.......................................................................................................................................... 6
Low Speed Data LEDs ....................................................................................................................... 6
Audio LEDs......................................................................................................................................... 6
Alarm LEDs......................................................................................................................................... 7
Echelon FTT-10A Data LEDs............................................................................................................. 7
Ethernet Data LEDs............................................................................................................................ 7
Ethernet Operation 7
Data and Alarm Channel Configuration 8
Data Channel Configuration ............................................................................................................... 8
Data Interface Connections................................................................................................................ 8
Data Channel Termination.................................................................................................................. 8
Alarm Channel Configuration ............................................................................................................. 9
Alarm Channel Circuit......................................................................................................................... 9
Alarm Interface Connections............................................................................................................ 10
Audio Channel Connections............................................................................................................. 10
Echelon FTT-10A Data Channel Configuration................................................................................ 10
Data and Audio Connections............................................................................................................ 11
Physical Information 12
Dimensions....................................................................................................................................... 12
Mounting Details............................................................................................................................... 12
Safety 12
Maintenance and Repair 12

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 3 of 12
AMG5804A966G-DF Instruction Sheet
D17400-00.doc
Introduction
Unit Functional Schematic
The AMG5804A966G-DF transmits and
receives 2 data channels, 2 Echelon FTT-
10A data channels, 6 bi-directional audio
signals and 8 bi-directional alarm signals
to/from the AMG5803A966G-DF receive
unit.
Ethernet connectivity is also provided
between the two units.
Optical Connection
The AMG5804A966G-DF connections are illustrated in the following example which shows an
AMG5804A966G-DF data transmit unit together with an AMG5803A966G-DF rackmount data receive
unit configured as a point to point system.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 4 of 12
AMG5804A966G-DF Instruction Sheet
D17400-00.doc
Connections
Optical Connection Singlemode
Optical Fibre ........................................Multimode
Connector ............................................SC/PC
Optical Launch Power..........................-10dBm
Transmit Wavelength...........................1310nm
Optical Sensitivity ................................-30dBm
Receive Wavelength............................1310nm
Minimum Optical Dynamic Range .......20dB.
Power Connection
Connector Type ...................................Removable 2-pin, 3.81mm, Screw Terminal
Connector Partno.................................Phoenix 1803578
Supply Voltage.....................................+12 to +15 Volts DC
Maximum Power..................................10 Watts
Data and Alarm Channel Connections
No. of Data Channels ..........................2
No. of Alarms.......................................8
Connectors ..........................................Removable 5-pin, 3.5mm, Spring Terminal
Connector Partnos...............................Phoenix 1952296
Data Interfaces ....................................RS-232 / 422 / 485. Selected by external slide switches D1-D2
RS-232 –Switch Position - Top
RS-422 –Switch Position - Middle
RS-485 –Switch Position - Bottom
Internal 120Ω termination resistors may be applied to RS-422 or RS-485 inputs as required by internal
DIL switches inside the enclosure. *See appropriate section on how to remove the case for access to
the DIL switches.
Alarm inputs.........................................Input is via a series 10k resister with 47kΩ pull-up to +3V3.
Alarm outputs.......................................Output is NPN open collector, maximum load 500mA @ 24Vdc
.
Audio Connections
Data/Audio Channels –BANK A .........6 Audio channels
Data/Audio Channels –BANK B .........Not Used
Connector ............................................37-way D-Type female connector - shielded.
Connections.........................................See below for connection and configuration
Input level ............................................-40dBm to 0dBm
Input overload level..............................+6dBm
Input impedance ..................................56kΩ / 600Ω. Each channel individually selected using DIL
switch on front panel
Output impedance ...............................600Ω
Frequency response ...........................10Hz to 20KHz
Echelon FTT-10A Data Channel Connection
No. of Echelon FTT-10A Data Channels 2

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 5 of 12
AMG5804A966G-DF Instruction Sheet
D17400-00.doc
Echelon FTT-10A –BANK A..............Channels 7 and 8
Echelon FTT-10A –BANK B..............None
Connector............................................37-way D-Type female connectors - shielded.
Connections.........................................See appropriate section for full details
Ethernet Connection
Ethernet Data Connector ....................RJ45
Interface...............................................Auto MDI/MDIX 100BASE-TX
Ethernet Data Rate..............................Maximum 100Mb/s full duplex

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 6 of 12
AMG5804A966G-DF Instruction Sheet
D17400-00.doc
Front Panel Indicators
Power LED
POWER ...............................................Green - Power is present
Off - Power is not present
VIDEO ................................................Off - Not used
OPTO TX.............................................Green - Tx opto. present
Off - Tx opto. is not present
OPTO RX.............................................Green - Rx opto. sync.
Off - Rx opto. is not sync.
Low Speed Data LEDs
Data Present IN (RS485 or RS422) ....Green - logic zero (+V, -V) present on IN+, IN-
Red - logic one (-V,V+) present on IN+, IN-
Off - tri-state off or no connection on IN+, IN-
Data Present IN (RS232).....................Green - logic zero (+V) present on input IN+
Red - logic transitions present on input IN+
Off - logic one (-V) present on input IN+
IN corresponds to the data signals being transmitted onto the optical fibre.
Data Present OUT (RS485 or RS422) Green - logic zero (+V,-V) present on OUT+, OUT-
Red - logic one (-V,+V) present on OUT+, OUT-
Off - tri-state off or no connection on OUT+, OUT-
Data Present OUT (RS232).................Green - logic zero (+V) present on OUT+
Red - logic transitions present on OUT+
Off - logic one (-V) present on OUT+
OUT corresponds to the data signals being received from the optical fibre.
Audio LEDs
Channels 1-6
Audio Present TX.................................Green - audio present > -40dBm
Red - audio present > 0dBm (overload at +6dBm)
Off - audio not present or < -40dBm
This represents the audio signals being transmitted on the optical fibre
Audio Present RX ................................Green - audio present > -40dBm
Red - audio present > 0dBm (overload at +6dBm)
Off - audio not present or < -40dBm
This represents the audio signals being received from the optical fibre.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 7 of 12
AMG5804A966G-DF Instruction Sheet
D17400-00.doc
Alarm LEDs
Channels 1-8
ALARM IN............................................Green - Alarm ON / Contacts closed.
Off - Alarm OFF / Contacts open.
ALARM OUT........................................Green - Alarm ON / Contacts closed.
Off - Alarm OFF / Contacts open.
Echelon FTT-10A Data LEDs
Data type depends on AMG system: RS-232, RS-422, RS-485, 20mA,TTL, or FTT-10A
Data Present IN ..................................Green - Data channel present but not transmitting
R/G - Data channel transmitting
Off - Data channel not present or no connection
IN corresponds to the data signals being transmitted onto the optical fibre.
Data Present OUT...............................Green - Data channel present but not transmitting
R/G - Data channel receiving
Off - Data channel not present or no connection
OUT corresponds to the data signals being received from the optical fibre.
Ethernet Data LEDs
Link not Present ..................................Yellow - Link not present
Off - Link is present
Link Integrity........................................Green - Link integrity is good, Idle state
GBlink - Data transfer
Off - Link not present
Ethernet Operation
The Ethernet interface supports 100Mbit/s full duplex operation only. Data is transmitted from one port
the other port with minimum delay or buffering.
The port implements "Auto MDI/MDIX" i.e. it may be connected with either a straight-though or cross-
over cable to an appropriate device such as external switch, PC or other DCE/DTE.
Two LED indicators are provided adjacent to the RJ-45 port: Green indicates Link / Data transfer and
Yellow indicates no Ethernet connection.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 8 of 12
AMG5804A966G-DF Instruction Sheet
D17400-00.doc
Data and Alarm Channel Configuration
The AMG5804A966G-DF transmit unit sends and receives data to/from an AMG5803A966-DF or
rackmount equivalent AMG5803A966G-DF receive unit. The 2 physical data interfaces RS-485, RS-
422 or RS-232 are individually selectable by the user with the slide switch mounted from the rear
panel.

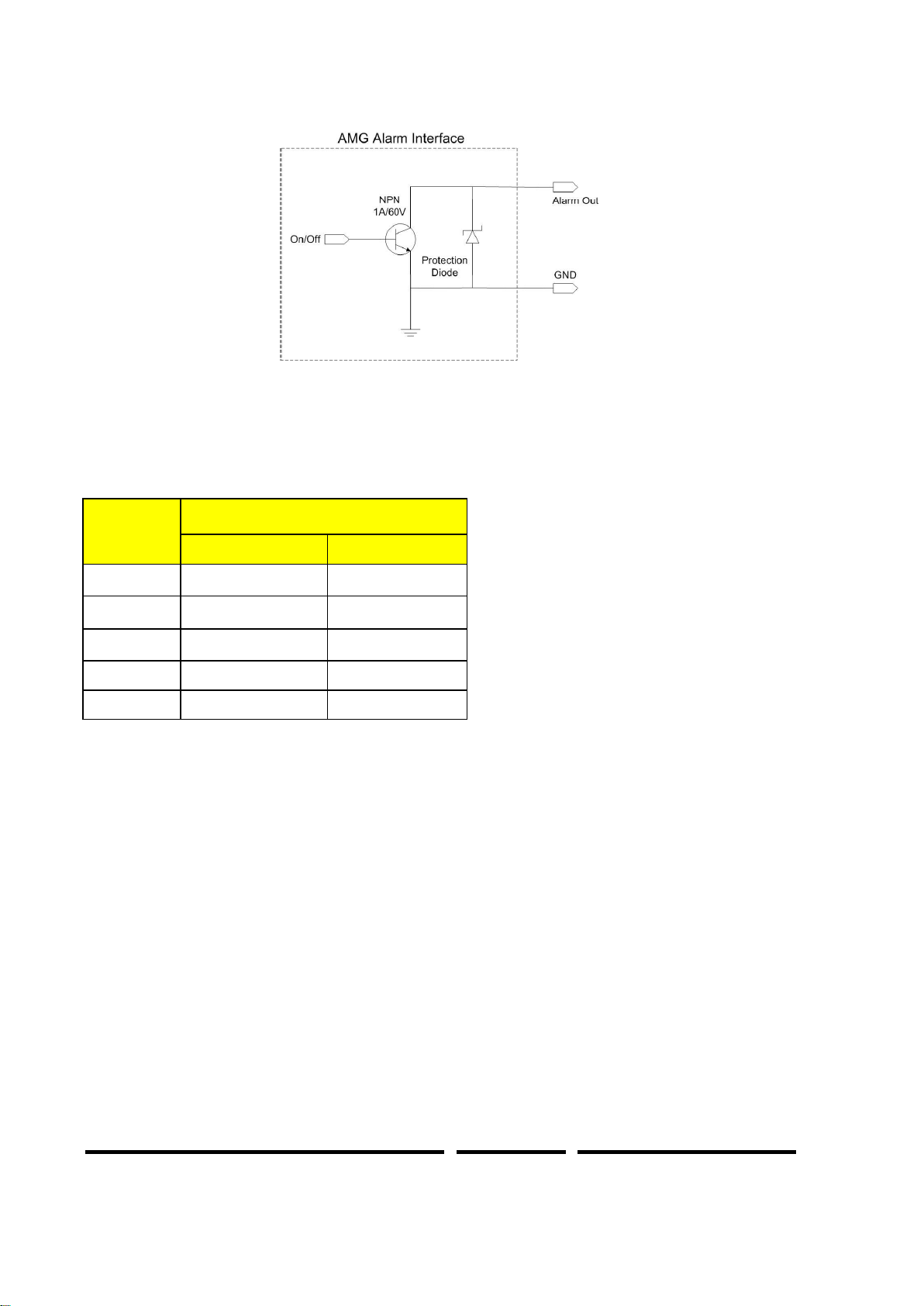

There are also 8 bi-directional alarm inputs provided, each alarm input is typically connected to a
contact closure switch. Each alarm output can receive an on/off signal from an AMG5803A966-DF
and is typically used to convey contact closure status.
Data Channel Configuration
Each low speed data channel provides an RS-232, RS-422 (full duplex, four wire) or RS-485 (half
duplex, two wire) interface defined by the corresponding mode switch inside the enclosure. Every data
channel as shipped from the factory is set up for RS-485 operation unless otherwise requested.
The data input for both the RS-485 and the RS-422 modes detects a tri-state input condition by
monitoring the differential voltage level across the input. A differential level below 600mV positive or
negative will be detected as a tri-state condition. A level above 600mV positive or negative will be
detected as a logic 1 or logic 0 respectively. It is important therefore to terminate the RS-485 bus or
the RS-422 input bus using 120Ω if a pre-bias is present on the RS-485 or RS-422 bus.
A large number of third party equipment manufacturers apply a pre-bias on their RS-485 bus. This pre-
bias is applied by pulling one arm of the RS-485 bus high (+5 volts) and the other arm low (0 volts)
using high value resistors within the third party equipment. In order to ensure that the AMG equipment
detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party
bias resistors are less the 750Ω the bus can be multiple terminated as required to ensure that a tri-
state level is detected.
The system detects a tri-state input condition on the data channel bus when in RS-485 or RS-422
mode.
Data Interface Connections
Connector
Pin No.
Data Channel
RS-485
[switch bottom]
RS-422
[switch middle]
RS-232
[switch top]
1
IN/OUT - (B)
OUT - (B)
OUT
2
IN/OUT + (A)
OUT + (A)
3
GND
GND
GND
4
IN - (B)
5
IN + (A)
IN
Note: (A) or (B) in brackets in the above table refers to RS-485 / RS-422 data specification.
Data Channel Termination
The interface mode RS-232, RS-422 or RS-485 of each data port Data 1-4, is selected with the
corresponding external slide switch D1-D4. The actual number of data channels provided on the unit
depends upon the AMG model.
Internal 120Ω termination resistors across IN+ and IN- inputs may also be applied when in RS-422 or
RS-485 mode using internal DIP switches P0-P3 on the main PCB inside the enclosure. P0-P3 may

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 9 of 12
AMG5804A966G-DF Instruction Sheet
D17400-00.doc
be accessed by removing the 2 fixing screws in the rear panel and sliding the PCB out of the
enclosure.
For clarity, in the 3 examples shown below all 4 data ports D1-D4 are terminated the same, but each
data channel may be configured & terminated independently as required. The 3 examples shown are
RS-232 (no termination), RS-422 (120Ω) or RS-485 (120Ω).
Alarm Channel Configuration
The AMG5804A966G-DF provides 8 bi-directional contact closure inputs / alarm outputs. Each
ALARM IN input is via an internal 10kΩ series resistor with a 47kΩ pull-up resistor to the internal +3V3
supply.
Each ALARM OUT output can receive an on/off signal from an AMG5803A966-DF and is typically
used to convey contact closure status. Each alarm output is NPN open collector, maximum load 50mA
/ 24Vdc.
Alarm Channel Circuit
The output of each alarm channel is an NPN open collector transistor circuit, with an absolute
maximum rating of 1A / 60V. There is a common GND for all alarm channels.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 10 of 12
AMG5804A966G-DF Instruction Sheet
D17400-00.doc
The alarm output circuit is designed for low dc voltage / low current operation and has minimal internal
protection. If an alarm output is used to drive an external relay circuit, the external crcuit MUST include
a protection (flyback) diode connected across the relay to prevent the high voltage generated from a
back EMF causing damage due to the AMG output transistor.
Alarm Interface Connections
Connector Pin
No.
Alarm Interfaces
Alarm IN
1-4, 5-8
Alarm OUT
1-4 , 5-8
1
ALARM 1/5 IN
ALARM 1/5 OUT
2
ALARM 2/6 IN
ALARM 2/6 OUT
3
GND
GND
4
ALARM 3/7 IN
ALARM 3/7 OUT
5
ALARM 4/8 IN
ALARM 4/8 OUT
Audio Channel Connections
The AMG5804A966G-DF provides six bi-directional audio channels.
Each audio channel input is a balanced pair and the impedance can be configured as 56kΩ or 600Ω.
The input impedance of each audio channel is individually selected using the DIL switch on the front
panel.
If an audio input is single ended or ground referenced input rather than a differential (balanced) input
pair, the Audio IN- signal should be connected to one of the GND pins available on the 37way D-type
connector. These GND inputs are common to all audio channels.
Echelon FTT-10A Data Channel Configuration
The AMG5804A966G-DF provides 2 Echelon FTT-10A Data channels.
The GND connection associated with any Data signal signal should be connected to one of the GND
pins available on the 37way D-type connector. These GND inputs are common to all audio / data
channels.
