I. PRODUCT FEATRUES AND SPECIFICATIONS
Professional Alignment Scissors Lift
Model AX-16A
· Electric- air control system, safety self-lock mechanism
· 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms
· Non-skid diamond runway
· Integrated rear slip-plates
· Heavy duty design, fit for a wide range of vehicle car to van and light truck.
· Optional Jack (with hand pump/air-operated hydraulic pump)
· Optional Turnplate
MODEL AX-16A SPECIFICATIONS
Model
Lifting
Capacity
Lifting
Height
Min.
Height
Lifting
Time
Overall
Length
(Inc.Ramps)
Overall
Width
Runway
Width
Distance
Between
Runway
Motor
AX-16A
16000 lbs
73-5/8”
13”
82S
274 1/8”
94-1/8”
24 5/8”
41-1/2”
2.0HP
Fig. 1

2
II.INSTALLATION REQUIREMENT
A. TOOLS REQUIRED
Rotary Hammer Drill (Φ19, Φ10, Φ4,)
Hammer
Level Bar
English Spanner (12")
Ratchet Spanner With Socket (28#)
Wrench Set (8#, 14#, 15#, 17#, 19#)
Carpenter’s Chalk
Screw Sets
Tape Measure (7.5m)
Pliers
Lock Wrench
Grease gun
Fig. 2

3
B. Equipment storage and installation requirements.
The equipment should be stored or installed in a shady, normal
temperature, ventilated and dry place.
C．SPECIFICATIONS OF CONCRETE
Specifications of concrete must be adhered to the specification as following.
Failure to do so may result in lift and/or vehicle falling.
1．Concrete must be thickness 4’’ mm minimum and without reinforcing steel bars，
and must be dried completely before the installation.
2．Concrete must be in good condition and must be of test strength 3,000psi
(210kg/cm²) minimum.
3．Floors must be level and no cracks.
D．POWER SUPPLY
The electrical source must be 2.0HP minimum. The source cable size must be
2.5mm² and in good condition of contacting with floor.
III. STEPS OF INSTALLATION
A. Location of Installation
Check and insure the installation location (concrete, layout, space size etc.) is
suitable for lift installation.
1. For Standard Installation: On surface installation
1.1 On surface installation foundation (See Fig. 3).
Fig. 3

4
1.2 Illustration for on surface installation (See Fig.4).
Fig. 4
The control cabinet is installed
at the left of car in direction,
the oil hose cover is put to right
angle. (The control cabinet can
also be installed to the right of
car in direction.)
The control cabinet is installed at
the left of car in direction. The oil
hose cover is put to straight line.
(The control cabinet can also be
installed to the right of car in
direction）

5
2. For Optional Installation: Flush mount installation
2.1 Flush mount installation foundation (Fig.5).
2.3 Illustration for flush mount installation (Fig.6).
Fig. 5
Fig. 6
47
46
45
44A
44B
44C
A
A
Φ100 PVC Tube
Hydraulic system, limit switch ,
Air source input
Φ100 PVC Tube
Φ4” PVC Tube
Hydraulic system, limit switch , Air
source input
Φ4” PVC Tube

6
B. Check the parts before assembly.
1. Received package (Packaged lift , control cabinet and Guide Ramp. Etc.)(See
Fig. 7).
2. Move aside the lift with fork lift or hoist, and open the outer packing carefully.
2.1 Parts for on surface installation (See Fig.8)
2.2 Parts for flush mount installation (See Fig.9)
Noted: Need guide ramp for flush mount installation
Fig. 8
Fig. 7
PI
PII
91
Fig. 9
92
Guide ramp
（510018）

7
3. Open the parts box, check the parts according to the part list (See Fig.10).
4. Check the parts of the parts bag according to the parts bag list.
4.1 Parts bag for on surface installation (See Fig.11)
4.2 Parts bag for flush mount installation (See Fig.12)
Fig. 11
Fig. 10
Fig. 12

8
Connect to
the Aof Air
solenoid valve

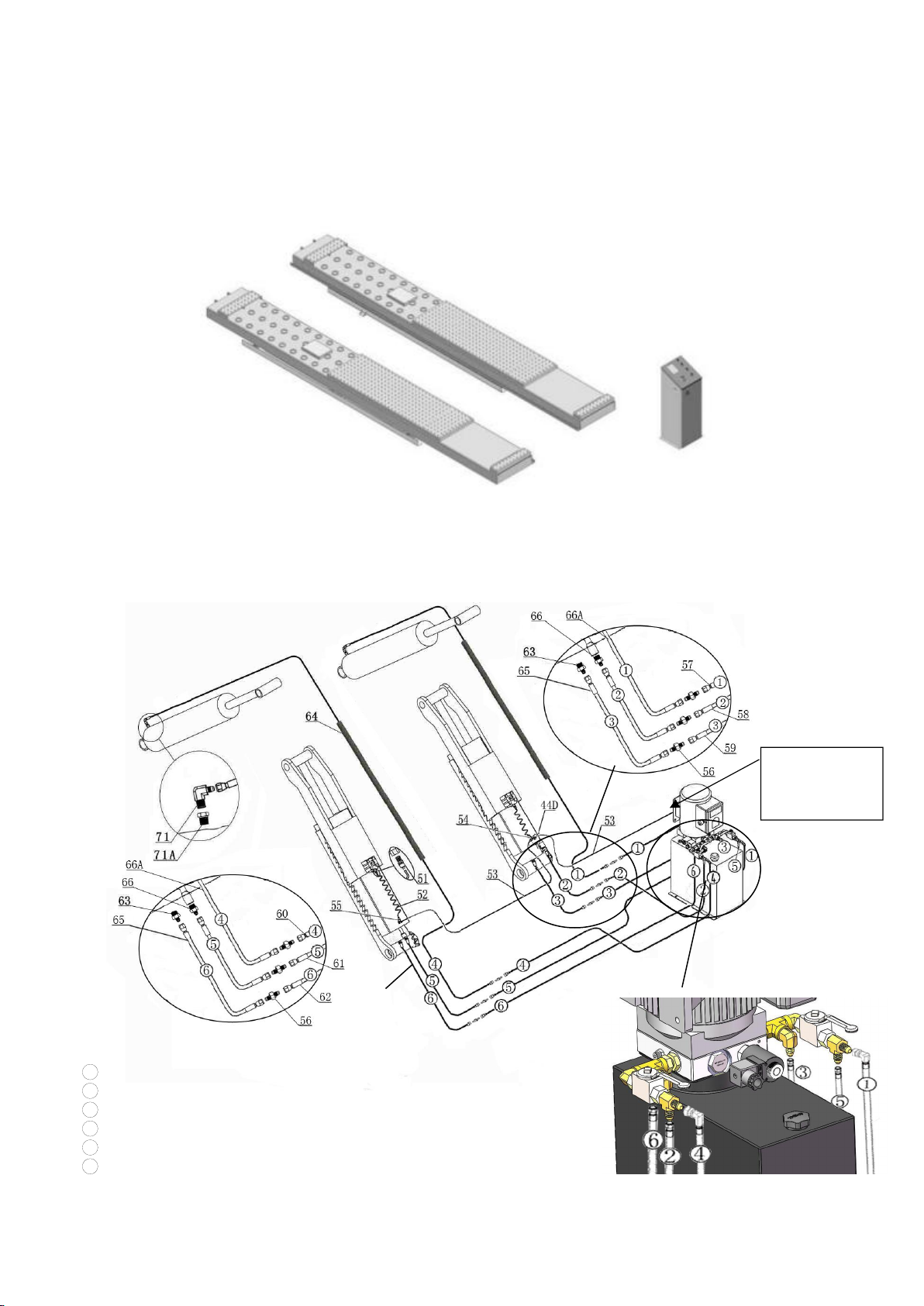

C. Layout the machine and install oil system and air line system.
1. Select a location and layout the equipment according to steps A(See Fig. 13).
The control cabinet can be installed on the left or right according to the site.
2. Connecting the oil hose and air line.
2.1 Control cabinet installed in the left of the car in direction (See Fig. 14)
PII
PI
Fig. 13
Fig. 14
Oil hose length for Control Cabinet
1Oil Hose 1/4*4450mm
2Oil Hose 1/46*4200mm
3Oil Hose 1/4*4500mm
4Oil Hose 1/4*5960mm
5Oil Hose 1/4*6100mm
6Oil Hose 1/4*6300mm
PI
PII

9
2.2 Control cabinet installed in the right of the car in direction (See Fig. 15).
3. Install the oil-water separator (See Fig. 16).
Connect to
the Aof Air
solenoid valve
Fig. 15
Fig.16
Connecting the air source by the
oil-water separator
69
12-11
12-8
70
67
83
68
96
97
95
64
Install the bellows according
to the drawing

10
4. Connect the air source (air pressure 5kg/cm2-8kg/cm2), Adjust the air pressure to
0.8MPa (See Fig. 17).
D. Install electric system
1. Wire connection for hydraulic power unit (220V)
1.1 Connect the power wire and limit switch wire according to the Wiring diagram
(See Fig. 18)
Clockwise to increase the air pressure
Counter-clockwise to reduce the air pressure
Adjust the air pressure to 0.8MPa
Adjust the air pressure
to 0.8MPa
Fig. 17
Ground
Wire
Power Wire
Hydraulic
Solenoid
Valve
High Limit
Switch
Motor Wire
Fig. 18
Connect air
source
Low Limit
Switch
When the input power supply are two fire wires, these two fire wires con
nect terminal L1 and N in separate.

11
1.2 Circuit Diagram (See Fig. 19).
220V Electric Component
Item
Name
Code
Specification
Item
Name
Code
Specificatio
n
1
Power switch
QS
380V AC
11
Push button
UP
Duplex
2
Breaker
FU1
2P
12
Push button
LOCK
Duplex
3
Breaker
FU2
1P
13
Push button
Down
Triple
4
Breaker
FU3
1P
14
Lower Alarm
button
Pass
Duplex
5
AC contactor
KM
24V AC
15
Buzzer
H
24VAC
6
Time relay
KT
24V AC
16
Transformer
TC
24VAC
7
Low Limit
Switch
SQ1
10A
17
Intermediate
relay
KA
24VAC
8
High Limit
Switch
SQ2
10A
18
Power
indicator
R
24VAC
9
Hydraulic
solenoid valve
Y1
24V AC
10
Air solenoid
valve
Y2
AC 24V
Single phase
Fig. 19

12

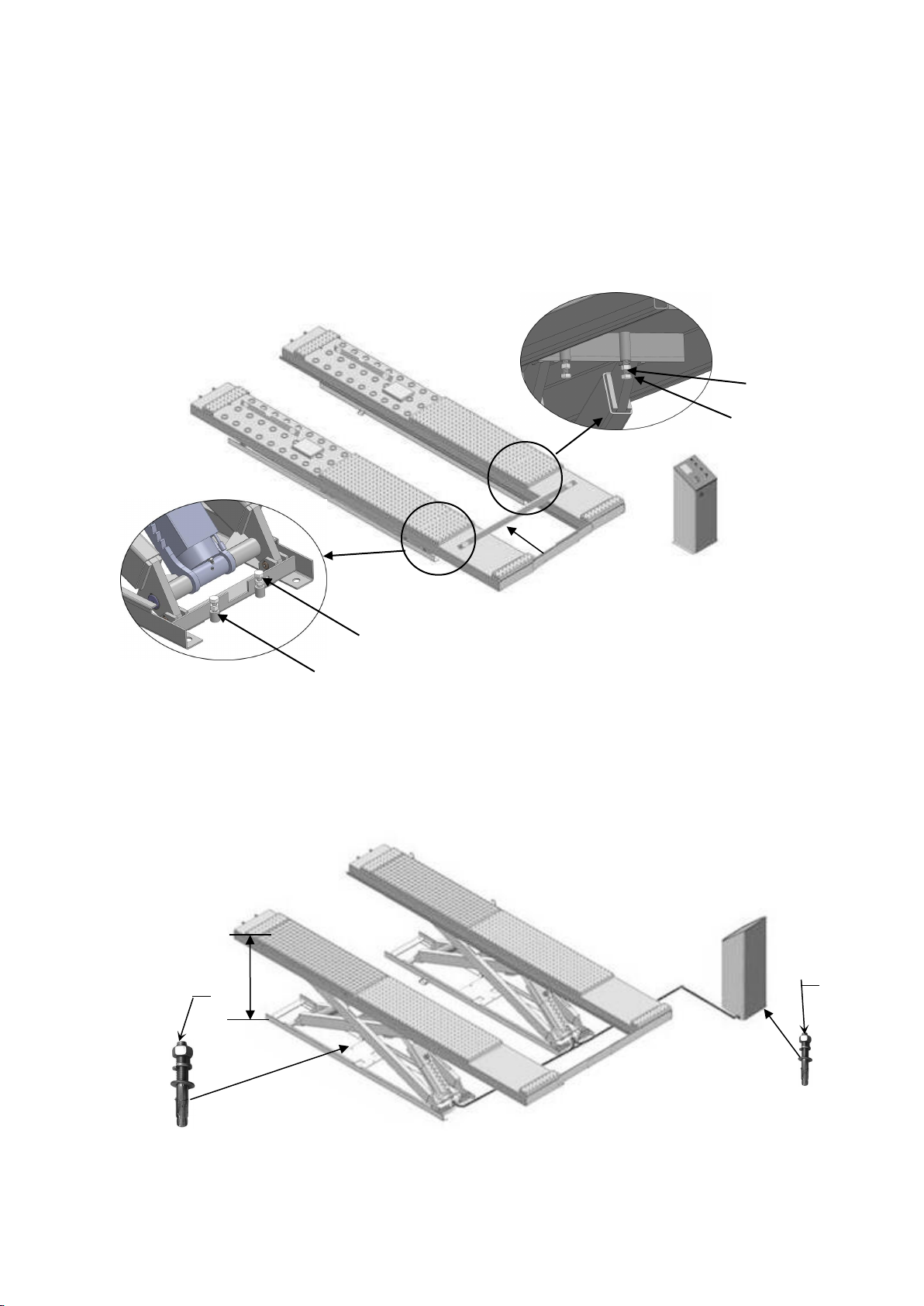

E. Level two platforms and install anchor bolts.
1. Check by level bar, adjust downward screw(see Fig 20) ,level adjustment until two
platforms to both side, then adjust upward screw(see Fig 21) and make it to touch
with downward screw when lower to the lowest position, tighten nut finally.
2. Install anchor bolts.
2.1 Raise the lift to 1000mm then drill holes to install the anchor bolts (See Fig.22).
Using the anchor bolt
to fix the machine
1000mm
Fig. 22
Using the Level Bar for
the measurement
PI
PII
PI
PII
49
Using the anchor
bolt to fix the
control cabinet
50
Tighten nut
Upper lever screw
Lower lever screw
Tighten nut
Fig. 20
Fig. 21

13
2.2 Fix the anchor bolts.
Drilling the hole for the anchor bolt with the rotary hammer drill, type the anchor
bolt into the ground, and then fasten it with ratchet spanner (See Fig. 23).Note:
The torque of anchor bolt is 150N.m, the length inside ground of anchor bolt must
be over 3-1/2”.
F. Install platform runway connecting bar,Install Limit rod.(See Fig. 24).
Drilling
Clearing
Bolting
Tighten
88/88A
Fig. 23
For the lifts：use 19 driller to drill hole
For the control cabinet：use 10 driller to drill hole
Fig. 24
3-1/2”
39

14
G. Install oil hose cover for on surface installation.
1. Tidy up the oil hose and air line, cover the oil hose cover (See Fig. 25).
2. Install the oil hose cover (See Fig. 26).
Fig. 26
Fig. 25
90
89
Type the expansion
colloidal screw
Fastening by Install
the steel screw
Cleaning
Drilling with
4 driller
Using the colloidal
screw to fasten the
oil hose cover
85
PI
PII
84
84
86
86A
87
86
110
Install Limit rod

15
H.Install optional parts of air line kit(see Fig.27)
Fig.27
90air line Fitting
Connect Air Source
12-30

16
1.Install air line kit
1.1. Connect the air line fittings with 8*6 black air line as following photo. The length
of air line can be cut accordingly. (See Fig.28)
Fig 28
A
B
C
D
E
F


G
a

17
View A
Ø8*Ø6 Air line
View C
View D
1.2. Replace 90˚ air line fitting to
two-way fitting from oil-water
separator, then pass through black air
line (8*6) to control cabinet and
connect with screw fitting.
1.3. Through black air line (8*6) to
the hole at the base and fixing slot of
outer scissor
96
95
Connect air
Source
φ8*φ6 air line
Oil-water
separator
View B

18
a
101
100
99
98
97
99
100
98
97
Air line
Ø8*Ø6Air line
102
Air line
View a
View b
1.4. With Two-way valve separate the air source into two ways and connect with rolling
jack separately
1.5.Install quick female fitting, then
connect it with male air line 
1.6. Install quick female fitting, then
connect it with male air line
View E
Ø8*Ø6Air line
View F
b
101
