AMGO Hydraulics EM06 Manual

MID-RISED SCISSORS LIFT
Model: EM06
Original

CONTENTS
Product Features and Specifications …………………………………………………………………… 1
Installation Requirement ……………………………………………………………………………………… 2
Steps of Installation……………………………………………………………………………………………… 3
Exploded View ……………………………………………………………………………………………………… 9
Operation Instructions ………………………………………………………………………………………… 16
Maintenance Schedule………………………………………………………………………………………… 17
Trouble Shooting…………………………………………………………………………………………………… 18
Lift Disposal…………………………………………………………………………………………………………… 18

1
I. PRODUCT FEATURES AND SPECIFICATIONS
MID-RISED MODEL EM06
· Low voltage(24V) electric control system, refinement control cabinet.
·Dual oil circuit design and hydraulic self-lock system
· Dual hydraulic cylinders to make the operation more stable.
· Movable drive–in ramps and extended platforms accommodate varying
wheelbase vehicles.
· Stop switch and alarm tone when coming down from 300mm to ground
· Non-skid diamond runway.
MODEL EM06 SPECIFICATIONS
Model
Lifting
Capacity
Lifting
Time
Raised
Height
Lowered
Height
Overall
Width
Overall
Length
Motor
EM06
6,000 lbs
22S
41 3/4”
4 1/8”
80 3/8'”
80”
2.0HP

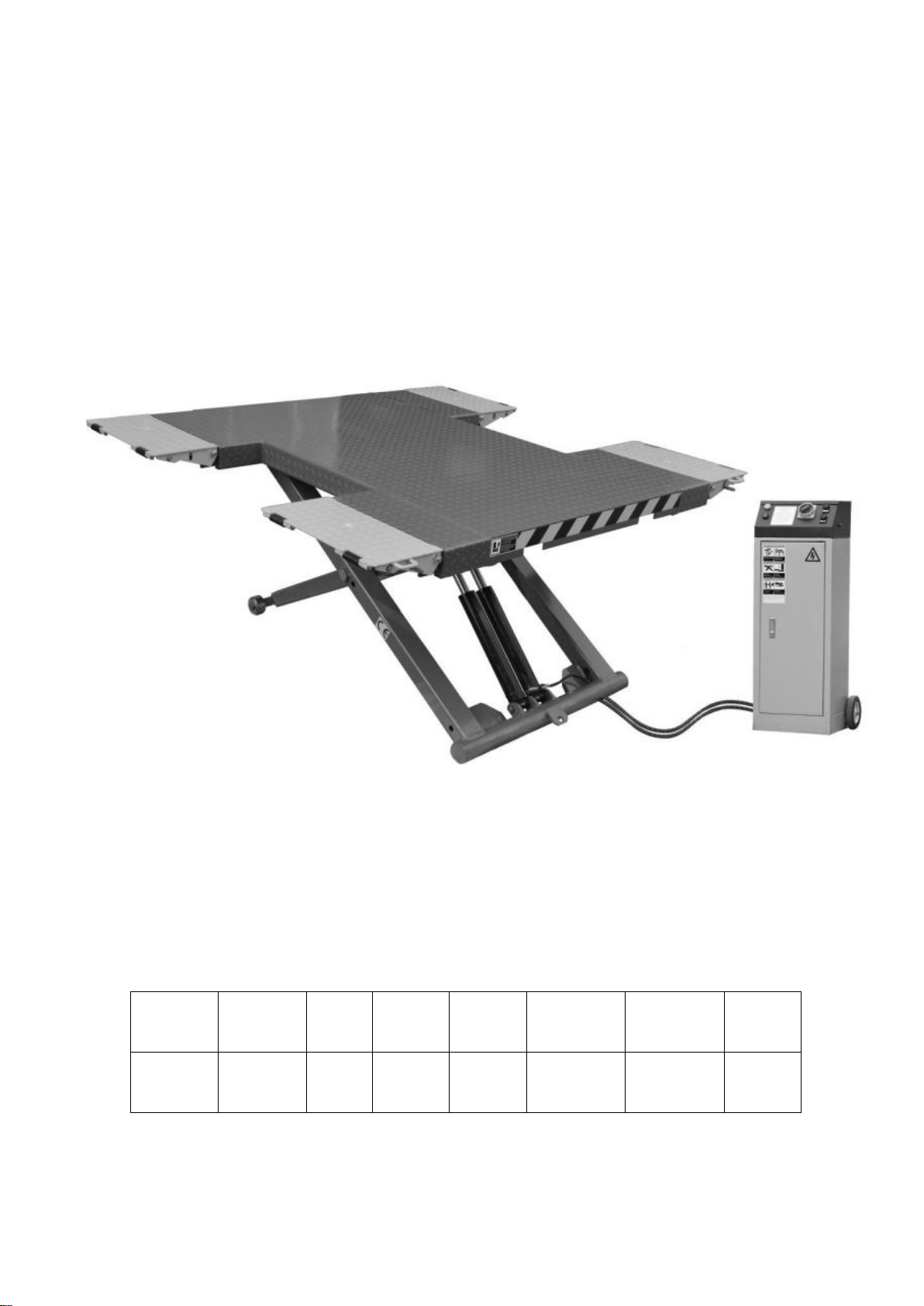

Fig.1

2
II. INSTALLATION REQUIREMENT
A. TOOLS REQUIREMENT
Screw Set
English Spanner (12″)
Wrench sets (13＃、15＃、17＃、19＃)
B. Equipment storage and installation requirements.
The equipment should be stored or installed in a shady, normal temperature,
ventilated and dry place.
Fig. 2
Hook Spanner (40~42mm)
Grease Gun
Pliers

3
C. The equipment should be unload and transfer by forklift.
Fig.3
D. POWER SUPPLY
The electrical source must be 2.0HP minimum. The source cable size must be
2.5mm² and in good condition of contacting with floor.
III. STEPS OF INSTALLATION
A. Location of installation
Check the installation location (concrete, layout, space size etc.) is
suitable for lift installation (See Fig. 4).
Fig. 4

4
B. Check the parts before assembly, make sure all the parts are completed.
1. Packaged lift, Parts box, Control cabinet and the optional wheel dolly.
Move the parts aside, open the outer packing and check the parts according to the
shipment list (See Fig. 5).

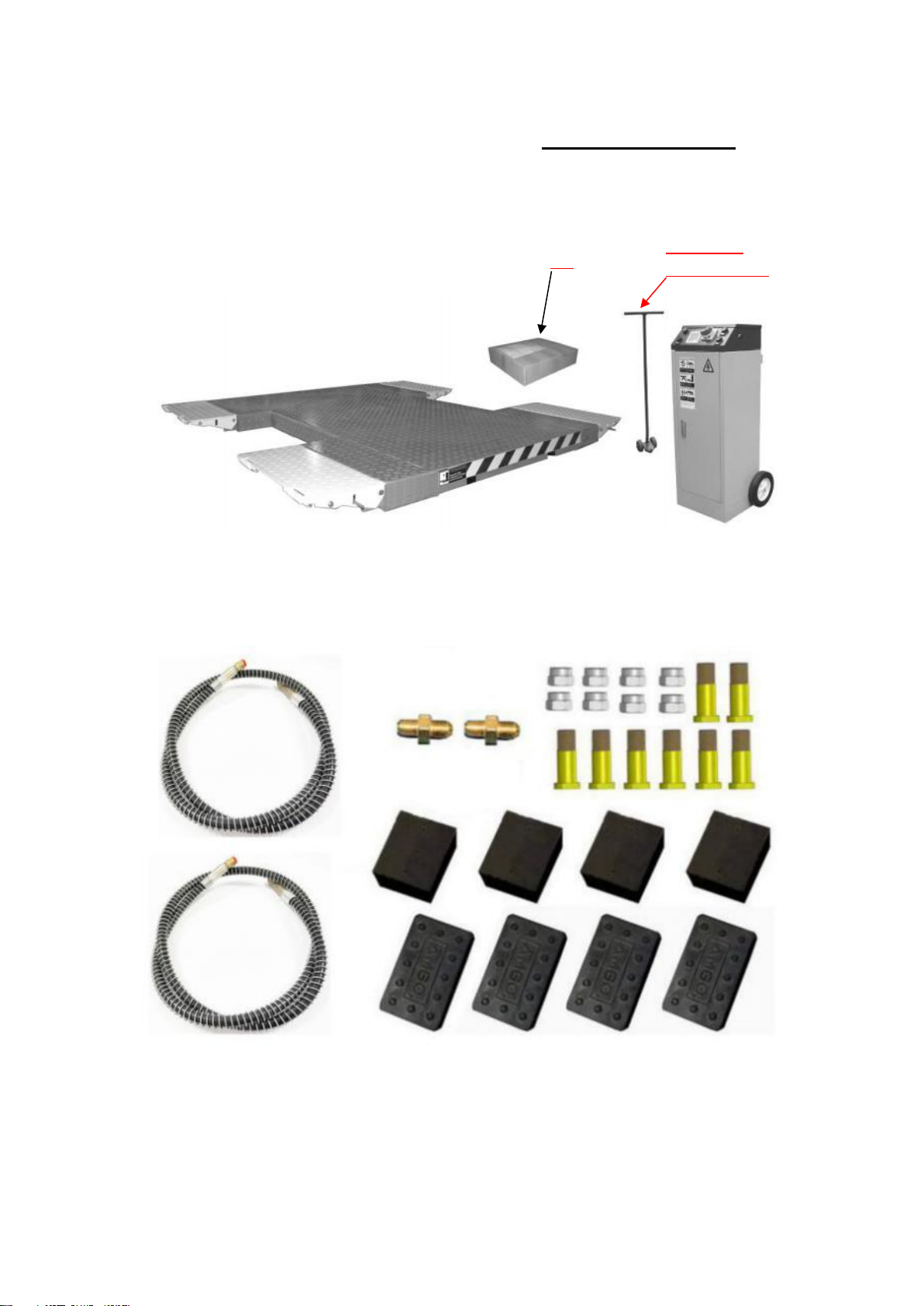

2. Open the parts box, check the parts according to the part list (See Fig. 6).
Fig. 5
Fig. 6
41
Optional
wheel dolly

5

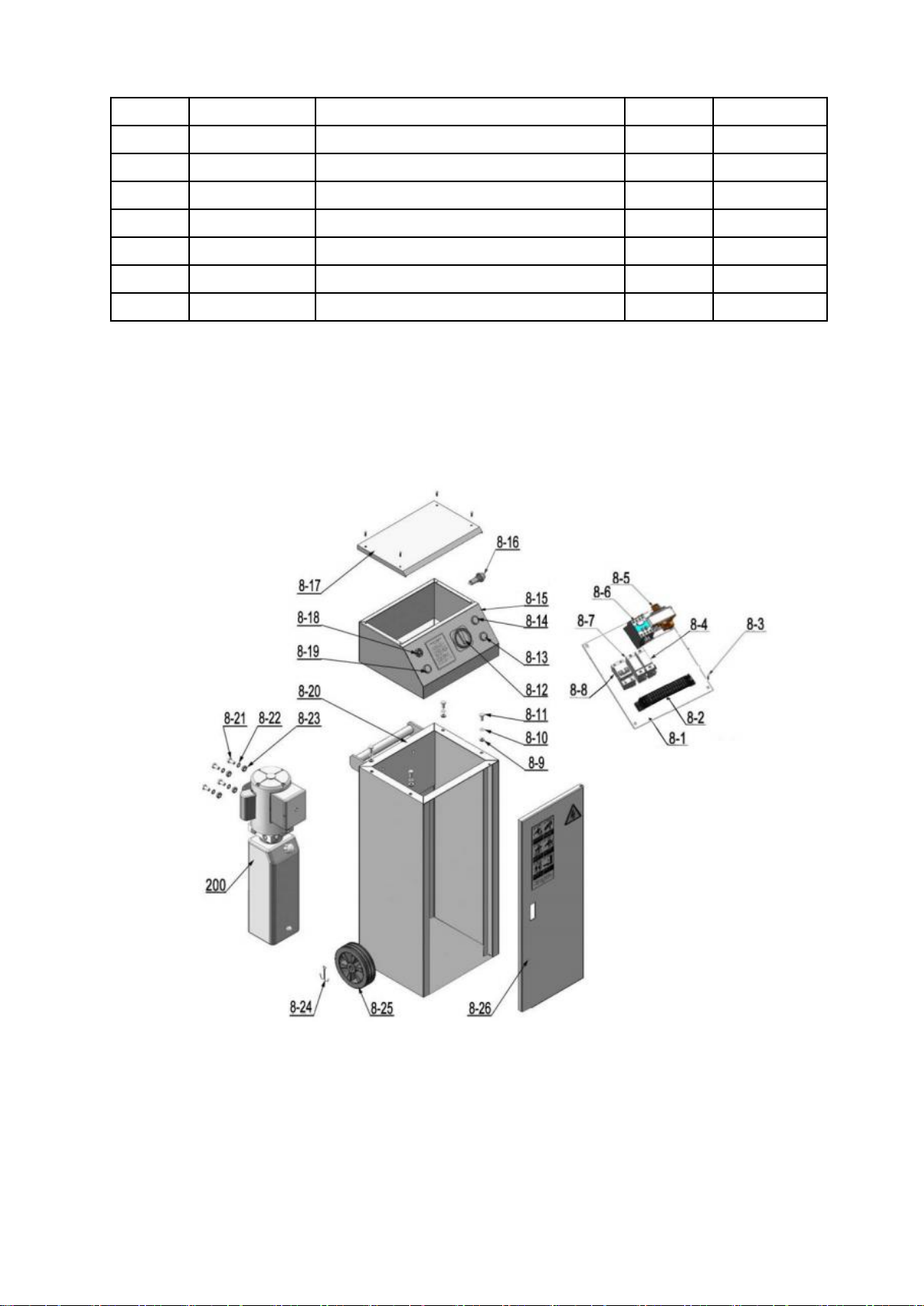

C. Lay out the lift and control cabinet according to step A and connect oil
hoses (See Fig. 7).
Fig.7
12
37
13
11

6
D. Hydraulic system (See Fig.8)
Fig. 8
33
40
40
13
11
39
12
43
42

7
E. Install Circuit System
1. 220V Circuit connection
1.1 Connect the power source wire and limit switch according to the Wiring diagram
(See Fig.9).
1.2 Circuit Diagram (See Fig.10)
1.3 Electric Component
Item
Name
Code
Specification
Item
Name
Code
Specification
1
Power switch
QS
220V AC
8
Hydraulic
solenoid valve
Y
AC 24V
2
Breaker
FU1
2P
9
Push button
UP
Single
3
Breaker
FU2
1P
10
Push button
Down
Single
4
Breaker
FU3
1P
11
Push button
Pass
Duplex
5
AC contactor
KM
24V AC
12
Motor
M
Single Phase
6
High Limit switch
SQ1
10A
13
Transformer
TC
24V AC
7
Low Limit switch
SQ2
10A
14
Power
indicator
R
24V AC
Fig.9
Earth Wire
Power Wire
Hydraulic
solenoid
valve
Low Limit
switch wire B
High Limit
switch wire A
Motor Wire
Fig.10
Single Phase

8
2. Limit switch installation illustration
2.1 Higher limit switch illustration (See Fig.11)
2.2 Lower alarm device instruction (See Fig.12)
Platform
High Limit
Switch
Slider
Fig.11
When the lift reaches to 1010mm
height, the sliders will access to the
drive lever of limit switch and stop
lifting.
When the lift is lowered to 300 mm
from ground, the platform will
access the limit switch lever and
stop lowering. Push the two down
buttons, the lift would be lowered to
ground with tone of alarm
Fig.12
Limit switch
300mm
1010mm
