Amica 507EE1.30HPFG User manual

INSTRUCTION MANUAL
IOAK-2420/ 8054080
(01.2014./1)
507EE1.30HPFG(W)
ELECTRIC COOKER

2
DEAR CUSTOMER,
The cooker is exceptionally easy to use and extremely efcient. After reading the instruction
manual, operating the cooker will be easy.
Before being packaged and leaving the manufacturer, the cooker was thoroughly checked
with regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the cooker until you have read this instruction manual.
The cooker is intended for household use only.
The manufacturer reserves the right to introduce changes which do not affect the
operation of the appliance.

3
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 9
Installation..........................................................................................................................11
Operation........................................................................................................................... 13
Baking in the oven – practical hints ............................................................................... 17
Cleaning and maintenance.............................................................................................. 19
Technical data................................................................................................................... 24
TABLE OF CONTENTS

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements. Children less than 8
years of age shall be kept away unless continuously
supervised.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Warning: Unattended cooking on a hob with fat or
oil can be dangerous and may result in re.
NEVER try to extinguish a re with water, but switch
off the appliance and then cover ame e.g. with a lid
or a re blanket.
Warning: Danger of re: do not store items on the
cooking surfaces.

5
SAFETY INSTRUCTIONS
During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside
the oven.
Accessible parts may become hot during use. Young
children should be kept away.
Warning: Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result
in shattering of the glass.
Warning: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibillity of
electric shock.
Before opening the cover, cleaning it of any dirt is
recommended. The cooker hob surface should be
cooled down before closing the cover.
You should not use steam cleaning devices to clean
the appliance.

6
SAFETY INSTRUCTIONS
The appliance becomes hot during operation. Take care not to touch the hot parts inside
the oven.
Always keep children away from the cooker.
While in operation direct contact with the cooker may cause burns!
Ensure that small items of household equipment, including connection leads, do not touch
the hot oven or the hob as the insulation material of this equipment is usually not resistant
to high temperatures.
 Do not leave the cooker unattended when frying. Oils and fats may catch re due to
overheating or boiling over.
Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25
kg on the hob.
Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.
 Do not use the cooker in the event of a technical fault. Any faults must be xed by an
appropriately qualied and authorised person.
In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the cooker.
The appliance has been designed only for cooking. Any other use (for example for heat-
ing) does not comply with its operating prole and may cause danger.

7
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Use proper pans for cooking.
Pans with thick, at bases can save up to 1/3
on electric energy. Remember to cover pans
if possible otherwise you will use four times
as much energy!
Match the size of the saucepan to the
surface of the heating plate.
A saucepan should never be smaller than a
heating plate.
Ensure heating plates and pan bases
are clean.
Soils can prevent heat transfer – and repeat-
edly burnt–on spillages can often only be
removed by products which cause damage
to the environment.
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
Switch off the oven in good time and make
use of residual heat.
For long cooking times, switch off heating
plates 5 to 10 minutes before nishing cook-
ing. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
HOW TO SAVE ENERGY
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch off the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.

8
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpacking,
please dispose of all elements
of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the in-
struction manual or the packaging shows that
it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
a signicant contribution to the protection of
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

9
DESCRIPTION OF THE APPLIANCE
1
6
2, 3 4, 5
7
9
8
1Temperature control knob / Oven function selection knob
2, 3, 4, 5 Heating plate control knobs
6Temperatureregulatorsignal light L
7Cooker operation signal light yellow R
8 Electric hob
9 Oven door handle

10
SPECIFICATIONS OF THE APPLIANCE

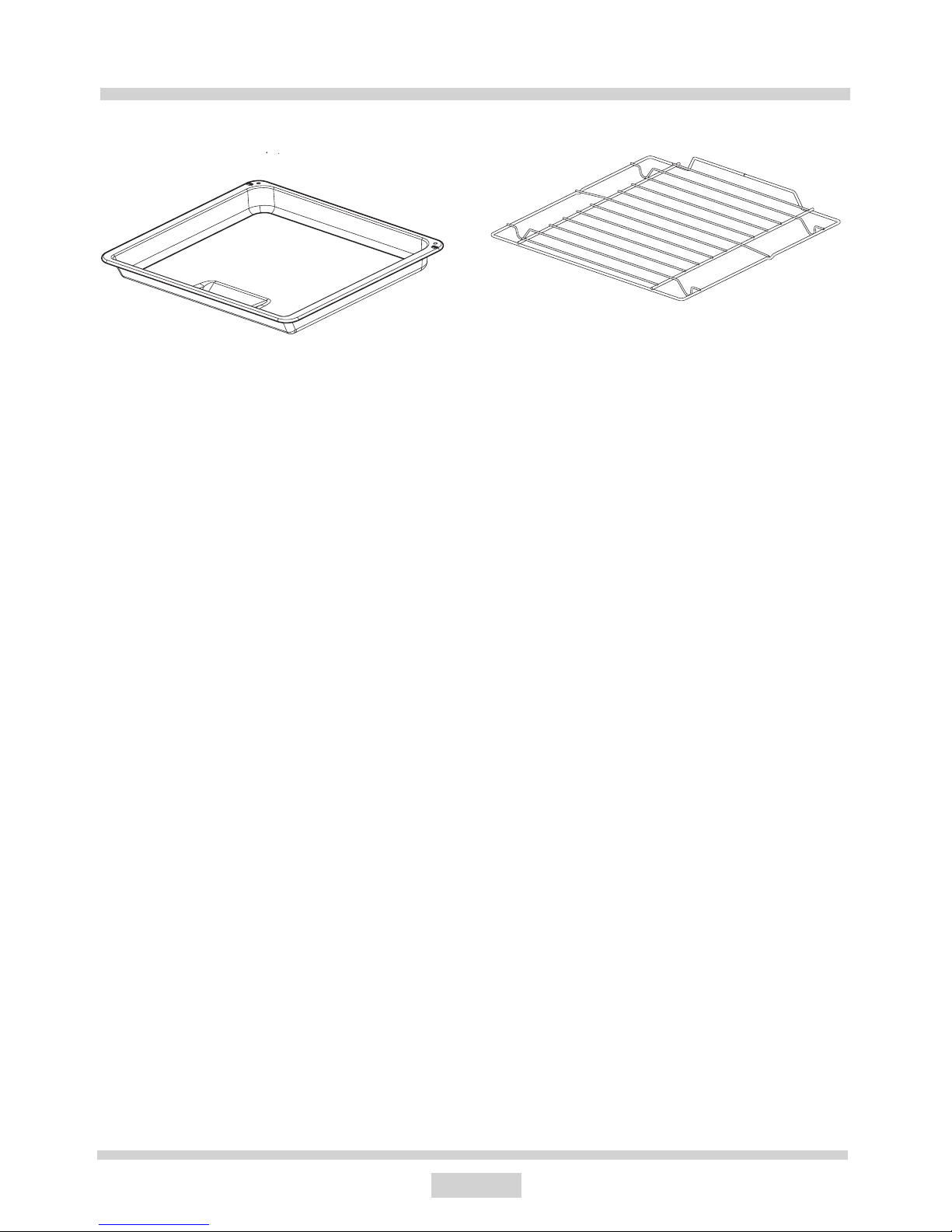

Oven ttings:
Grill grate
(drying rack)
Roasting tray

11
INSTALLATION
Installing the cooker
The kitchen should be dry and airy and
have effective ventilation according to the
existing technical provisions.
The room should be equipped with a ven-
tilation system that pipes away exhaust
fumes created during combustion. This
system should consist of a ventilation
grid or hood. Hoods should be installed
according to the manufacturer’s instruc-
tions. The cooker should be placed so
as to ensure free access to all control
elements.
 Coating or veneer used on tted furniture
must be applied with a heat resistant
adhesive (100°C). This prevents surface
deformation or detachment of the coat-
ing. If you are unsure of your furniture’s
heat resistance, you should leave ap-
proximately 2 cm of free space around
the cooker. The wall behind the cooker
should be resistant to high temperatures.
During operation, its back side can warm
up to around 50°C above the ambient
temperature.
The cooker should stand on a hard, even
oor (do not put it on a base).
Before you start using the cooker it should
be leveled, which is particularly important
for fat distribution in a frying pan. To this
purpose, adjustable feet are accessible
after removal of the drawer. The adjust-
ment range is +/- 5 mm.
Mounting the overturning prevention
bracket.
The bracket is mounted to prevent overtur-
ning of the cooker. When the overturning
prevention bracket is installed, a child who
climbs on the oven door will not overturn the
appliance.
Cooker width W 500 mm, height 850 mm
X1=Y+30 mm
X2=Y+65 mm
Y=25 mm
Cooker width W 500 mm, height 900 mm
X1=Y+30 mm
X2=Y+65 mm
Y=70 mm
X - distance to wall mounting
Y - distance from the oor
Y
X1
X2
Cooker
Floor
Wall

12
1
2
3
3
4
5
230V 1N~
INSTALLATION
Electrical connection
Warning: This appliance must be earthed.
The appliance must be installed by a com-
petent electrician using a double pole control
unit of 32 ampere minimum capacity with
3mm minimum contact separation at all
poles.
We recommend that the appliance is con-
nected by a qualied electrician who is mem-
ber of the N.C.E.I.C. and who will comply with
the I.E.E. and local regulation.
Access to the main terminal is gained by
opening the terminal block cover at the
rear of the appliance (use a small at-
bladed screwdriver).
Connection shuld be made with 6mm2
twin and earth cable.
First strip the wires, then push the cab-
lethrough the cable clamp in the terminal
block cover.
Connect the cable to the terminal block
and tighten the cable clamp screw (see
diagram).
Close the terminal box, ensuring that the
cover is engaged on the locking tabs.
Live
(Red or Brown)
Neutral
(Black or Blue)
Earth
(Green / Yellow
or sleeving)
Cable clamp
2
1

13
Remove packaging, clean the interior of the
oven and the hob.
Take out and wash the oven ttings with
warm water and a little washing–up liquid.
Switch on the ventillation in the room or
open a window.
Heat the oven (to a temperature of 250°C,
for approx. 30 min.), remove any stains and
wash carefully; the heating plates of the hob
should be heated for around 4 min. without
a pan.
Before rst use
OPERATION

14
How to use the heating plate
OPERATION
An appropriately selected pan saves energy. A pan should have a thick, at base with a di-
ameter equal to the plate diameter, as in that case heat is transferred most efciently.
The level of heat can be adjusted gradually by turning the appropriate knob to the right or left.
Switching on the plate results in a yellow signal light on the control panel turning on.
Caution!
Ensure the plate is clean – a soiled
zone does not transfer all of the
heat.
Protect the plate against corrosion.
Switch off the plate before a pan is
removed.
Do not leave pans with prepared
dishes based on fats and oils unat-
tended on the switched – on plate; hot
fat can spontaneously catch re.
0Switch off
● MIN. Warming up
1Stewing vegetables, slow cooking
● Cooking soups, larger dishes
2Slow frying
●Grilling meat, sh
3MAX. Fast heating up, fast cooking, frying
0
1
2
3
Do not switch on heating plate until the pan has been placed on it.

15
Separate oven lighting
By setting the knob to this position, the
lighting inside the oven is switched on.
Use, for example, when washing the
oven chamber.
Bottom and top heaters on
The thermostat enables the user to set
the temperature within a range from
50°C to 250°C. Use for baking.
Bottom heater on
When the knob is set to this position,
the oven is heated using only the bot-
tom heater. Use for, e.g. nal baking
from the bottom.
OPERATION

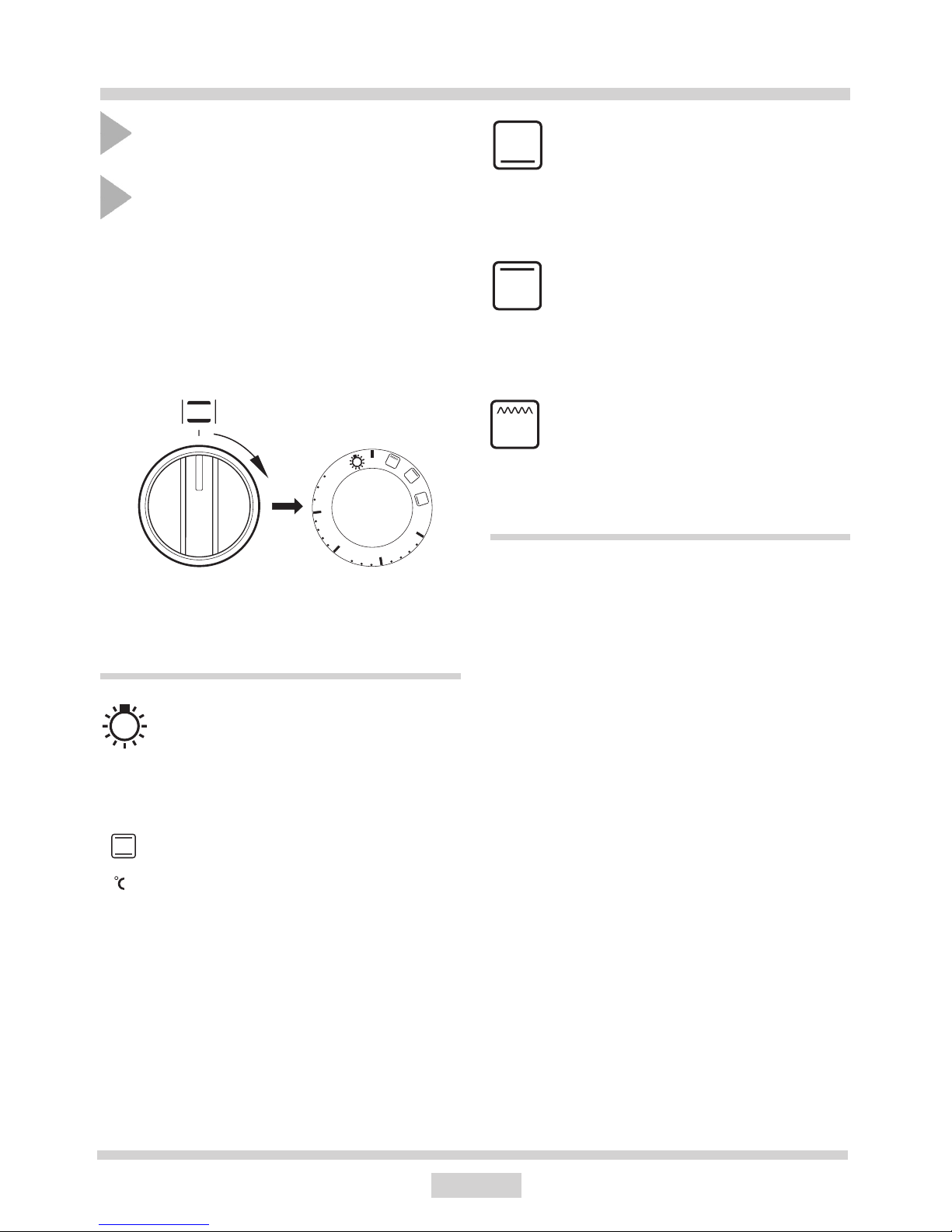

Oven functions and operation.
The oven can be heated up using the bottom
and top heaters, and the grill (if any). The
oven is controlled by one knob handling,
serving as a work type switch integrated with
a temperature regulator.
Natural convection oven
(conventional)
Possible knob positions
Oven on and off
In order to switch on the oven you need to:
set required working conditions of the
oven, its temperature and a mode of
heating,
set the knob to the required position, turn-
ing it right.
Switching on the oven is indicated by two
signal lights, yellow and red, turning on. The
yellow light turned on means the oven is work-
ing. If the red light goes out, it means the oven
has reached the set temperature. If a recipe
recommends placing dishes in a warmed-up
oven, this should be not done before the red
light goes out for the rst time. When baking,
the red light will temporarily come on and go
out (to maintain the temperature inside the
oven). The yellow signal light may also turn
on at the knob position of “oven chamber
lighting”.
Switching off the oven – in order to switch off
the oven, set the knob to the “0” knob position,
turning it left. The signal light should go out.
Top heater on
When the knob is set to this position,
the oven is heated using only the
top heater, e.g. use for, nal baking
from above.
50-250
Grill heater on
Setting the knob to this position
allows dishes to be grilled on the
grate.
100
150
200
250

16
OPERATION
Use of the grill
The grilling process operates through infrared
rays emitted onto the dish by the incandes-
cent grill heater.
In order to switch on the grill you need to:
Set the oven knob to the position marked
grill ,
Heat the oven for approx. 5 minutes (with
the oven door shut).
Insert a tray with a dish onto the appropri-
ate cooking level; and if you are grilling
on the grate insert a tray for dripping on
the level immediately below (under the
grate).
Close the oven door.
Warning!
When using function grill it is rec-
ommended that the oven door is
closed.
When the grill is in use accessible
parts can become hot.
It is best to keep children away from
the oven.

17
BAKING IN THE OVEN – PRACTICAL HINTS
Baking
we recommend using the baking trays which were provided with your cooker;
it is also possible to bake in cake tins and trays bought elsewhere which should be
put on the drying rack; for baking it is better to use black trays which conduct heat
better and shorten the baking time;
shapes and trays with bright or shiny surfaces are not recommended when using the
conventional heating method (top and bottom heaters), use of such tins can result in
undercooking the base of cakes;
before the cake is taken out of the oven, check if it is ready using a wooden stick (if
the cake is ready the stick should come out dry and clean after being inserted into
the cake);
after switching off the oven it is advisable to leave the cake inside for about 5 min.;
the baking parameters given in Table are approximate and can be corrected based
on your own experience and cooking preferences;
 if information given in recipe books is signicantly different from the values included
in this instruction manual, please apply the instructions from the manual.
Roasting meat
cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on
the gas burners.
use heatproof ovenware for roasting, with handles that are also resistant to high
temperatures;
when roasting on the drying rack or the grate we recommend that you place a baking
tray with a small amount of water on the lowest level of the oven;
it is advisable to turn the meat over at least once during the roasting time and during
roasting you should also baste the meat with its juices or with hot salty water – do
not pour cold water over the meat.

18
BAKING IN THE OVEN – PRACTICAL HINTS
Caution!
The gures given in Tables are approximate and can be adapted based on your own
experience and cooking preferences.
* Baking smaller items
Type
of
dish
Oven
functions
Temperature Level Time
in minutes
160 - 200 2 - 3 30 - 50
160 - 180 2 20 - 40*
220 - 240 3 10 - 15
210 - 220 2 45 - 60
210 4 14 - 18
225 - 250 2 120 - 150
160 - 230 2 90 - 120
160 - 180 2 45 - 60
190 - 210 2 40 - 50
Natural convection oven (conventional)

19
CLEANING AND MAINTENANCE
By ensuring proper cleaning and mainte-
nance of your cooker you can have a sig-
nicant inuence on the continuing fault-free
operation of your appliance.
Before you start cleaning, the cooker must
be switched off and you should ensure
that all knobs are set to the “”/“0” posi-
tion. Do not start cleaning until the cooker
has completely cooled.
Electric hob
From time to time a lukewarm heating plate
should be covered with a thin layer of an avail-
able lubricating agent,. It is recommended to
use engine oil applied for sewing machines or
bicycles. Do not apply edible oil, because its
salt contents may damage the plates. Dried
up spillage on the surface or rim of the plates
should be removed with a dry pad or brush.
Do not use abrasives, because they may
cause the forming of rust on the plates. By no
means rub the plates with abrasive paper.
Take care not to let salt drop on the plates. It
dissolves in water poducing ugly rust spots.
Use only dry pots and do not put wet lids on
the plates. The enamel parts of the cooker
can be wiped with a gentle rinsing solution
and dried with a soft cloth. Spillage can be
wiped during cooking with a dry cloth, to
prevent building up of hard to clean burnt
deposits.
Chrome plated parts (e.g. rings around heat-
ing plates can be easily polished with a soft
cloth).

20
CLEANING AND MAINTENANCE
Replacement of the oven light bulb
In order to avoid the possibility of an
electric shock ensure that the appliance is
switched off before replacing the bulb.
Set all control knobs to the position “”/“0”
and disconnect the mains plug,
unscrew and wash the lamp cover and
then wipe it dry.
unscrew the light bulb from the socket,
replace the bulb with a new one – a high
temperature bulb (300°C) with the follow-
ing parameters:
- voltage 230 V
- power 25 W
- thread E14.
Screw the bulb in, making sure it is prop-
erly inserted into the ceramic socket.
Screw in the lamp cover.
Oven light bulb
Oven
The oven should be cleaned after every
use. When cleaning the oven the lighting
should be switched on to enable you to
see the surfaces better.
The oven chamber should only be washed
with warm water and a small amount of
washing-up liquid.
Caution!
Do not use cleaning products contain-
ing abrasive materials for the cleaning
and maintenance of the glass front
panel.
