Amica KHF 685 650 S User manual

IO-HOO-0848
(09.2020)
Kitchen extractor hood / kaminhaube /
kuchyňského odsavače / kuchynského odsávača
/ Hotte aspirante / Afzuigkap / Kuhinjska napa /
Kuhinjska napa
KHF 685 650 S / KHF 665 650 S
OPERATING INSTRUCTIONS EN
GEBRAUCHSANWEISUNG DE
NÁVOD K OBSLUZE CS
NÁVOD NA OBSLUHU SK
NOTICE D’UTILISATION FR
GEBRUIKSAANWIJZING NL
UPUTE ZA UPORABU HR
NAVODILA ZA UPORABO SL

- 2 -
NOTES ON SAFETY 6
UNPACKING 9
DISPOSAL OF OLD APPLIANCE 9
OPERATION 10
KITCHEN HOOD CONTROLS 10
OFF-TIMER 10
RGB DECORATIVE LIGHTING 10
OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 11
CLEANING AND MAINTENANCE 12
MAINTENANCE 12
GREASE FILTER 12
ACTIVATED CHARCOAL FILTER 12
LIGHT 12
WARRANTY AND AFTER SALES SERVICE 13
WARRANTY 13
SICHERHEITSHINWEISE 15
AUSPACKEN 19
ENTSORGUNG VON ALTGERÄTEN 19
BEDIENUNG 20
STEUERUNG DER DUNSTABZUGSHAUBE 20
TIMER (AUSSCHALTVERZÖGERUNG DER DUNSTABZUGSHAUBE) 20
DEKORATIVE RGB-BELEUCHTUNG 21
ANDERE WICHTIGE INFORMATIONEN ZUR BEDIENUNG DER DUNSTABZUGSHAUBE 22
REINIGUNG UND WARTUNG 22
WARTUNG 22
FETTFILTER 23
AKTIVKOHLEFILTER 23
BELEUCHTUNG 23
GARANTIE, NACHVERKAUF-SERVICE 24
GARANTIE 24
EN- Table of contents
DE- Inhaltsverzeichnis
BEZPEČNOSTNÍ POKYNY 26
VYBALENÍ 29
LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ 29
OBSLUHA 30
OVLÁDÁNÍ ODSAVAČE 30
ČASOVAČ (OPOŽDĚNÉ VYPNUTÍ ODSAVAČE) 30
OZDOBNÉ RGB OSVĚTLENÍ 31
JINÉ DŮLEŽITÉ INFORMACE O OBSLUZE ODSAVAČE 32
ČIŠTĚNÍ A ÚDRŽBA 33
ÚDRŽBA 33
PROTITUKOVÝ FILTR 33
UHLÍKOVÝ FILTR 33
OSVĚTLENÍ 33
ZÁRUKA, POPRODEJNÍ SERVIS 34
ZÁRUKA 34
CS- Obsah

- 3 -
BEZPEČNOSTNÉ POKYNY POUŽÍVANIA 36
ROZBALENIE 40
LIKVIDÁCIA ZARIADENÍ 40
OBSLUHA 41
OVLÁDANIE ODSÁVAČA 41
ČASOVAČ (ONESKORENÉ VYPNUTIE ODSÁVANIA) 41
DEKORAČNÉ OSVETLENIE RGB 42
INÉ DÔLEŽITÉ INFORMÁCIE TÝKAJÚCE SA POUŽÍVANIA ODSÁVAČA 43
ČISTENIE A ÚDRŽBA 44
KONZERVÁCIA 44
PROTITUKOVÝ FILTER 44
UHLÍKOVÝ FILTER 44
OSVETLENIE 44
ZÁRUKA, POPREDAJNÝ SERVIS 45
ZÁRUKA 45
INDICATIONS CONCERNANT LA SÉCURITÉ D'UTILISATION 47
DÉBALLAGE 51
ÉLIMINATION DES APPAREILS USAGÉS 51
EXPLOITATION 52
COMMANDE DE LA HOTTE 52
MINUTERIE (ARRÊT DIFFÉRÉ DE LA HOTTE) 52
ÉCLAIRAGE DÉCORATIF RGB 53
AUTRES INFORMATIONS IMPORTANTES RELATIVES À L’UTILISATION DE LA HOTTE 54
NETTOYAGE ET ENTRETIEN 55
ENTRETIEN 55
FILTRE À GRAISSE 55
FILTRE À CHARBON 55
ÉCLAIRAGE 55
GARANTIE, SERVICE APRÈS-VENTE 56
GARANTIE 56
AANWIJZINGEN VOOR VEILIG GEBRUIK 58
UITPAKKEN 62
VERWIJDERING VAN GEBRUIKTE APPARATUUR 62
BEDIENING 63
BEDIENING AFZUIGKAP 63
TIMER (UITGESTELD UITSCHAKELEN VAN DE AFZUIGKAP) 63
DECORATIEVE RGB-VERLICHTING 64
ANDERE BELANGRIJK INFORMATIE OVER DE BEDIENING VAN DE AFZUIGKAP 65
REINIGING EN ONDERHOUD 66
ONDERHOUD 66
ANTIVETFILTER 66
ACTIEVE KOOLFILTER 66
VERLICHTING 66
GARANTIE, SERVICE 67
GARANTIE 67
SK- Obsah
FR- Table des matières
NL- Inhoudsopgave

- 4 -
HR- Kazalo
SL- Sadržaj
SIGURNOSNE NAPOMENE 69
UKLANJANJE PAKIRANJA 72
ZBRINJAVANJE POTROŠENIH UREĐAJA 72
UPORABA 73
UPRAVLJANJE NAPOM 73
TIMER (ODGODA ISKLJUČENJA NAPE) 73
UKRASNA RASVJETA RGB 74
OSTALE VAŽNE INFORMACIJE O UPORABI NAPE 75
ČIŠĆENJE I ODRŽAVANJE 76
ODRŽAVANJE 76
FILTER PROTIV MASNOĆE 76
UGLJENI FILTER 76
RASVJETA 76
JAMSTVO, POSLIJEPRODAJNE AKTIVNOSTI 77
JAMSTVO 77
NAVODILA ZA ZAGOTAVLJANJE VARNOSTI UPORABE 79
RAZPAKIRANJE 82
ODSTRANJEVANJE IZRABLJENIH NAPRAV 82
UPORABA 83
UPRAVLJANJE S KUHINJSKO NAPO 83
ŠTOPARICA (ZAKASNJENA IZKLJUČITEV NAPE) 83
DEKORATIVNA OSVETLITEV RGB 84
DRUGE POMEMBNE INFORMACIJE GLEDE NAVODIL ZA UPORABO NAPE 85
ČIŠČENJE IN VZDRŽEVANJE 86
VZDRŽEVANJE 86
MAŠČOBNI FILTER 86
OGLENI FILTER 86
OSVETLITEV 86
GARANCIJA, POPRODAJNE STORITVE 87
GARANCIJA 87

- 5 -
Dear customer,
From now on, your daily housework will be easier
than ever before. Your appliance is excepon-
ally easy to use and extremely ecient. Aer reading
these Operang Instrucons, operang the appliance
will be easy.
Before being packaged and leaving the manufacturer,
the appliance was thoroughly checked with regard to
safety and funconality.
Before using the appliance, please carefully read
these Operang Instrucons. By following these
instrucons carefully you will be able to avoid any
problems in using the appliance. It is important to
keep these Operang Instrucons and store them in a
safe place so that they can be consulted at any me.
Follow these instrucons carefully in order to avoid
possible accidents.
Sincerely,

- 6 -
NOTES ON SAFETY
• Before using the appliance, please carefully read
this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce
changes, which do not aect operation of the ap-
pliance.
• The manufacturer shall not be liable for any dam-
age or re caused by the appliance resulting from
failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking
odours. Do not use cooker hood for other pur-
poses.
• Connect the cooker hood operating in extraction
mode to a suitable ventilation duct (do NOT con-
nect the cooker to smoke or ue gas ducts, which
are in use). It requires installation of the air ex-
traction duct to the outside. The length of the
duct (usually a pipe of Ø 120 or 150 mm) should
not be longer than 4-5 m. An air extraction duct
is also required for telescopic and furniture hoods
in absorption mode.
• Cooker hood operating in air recirculation mode
requires the installation of an activated charcoal
lter. In this case, installing an extractor duct is
not required, however it is recommended to in-
stall an air guide vane (Mainly in chimney cooker
hoods).
• The cooker hood features independent lighting
and exhaust fan that can be operated at one of
several speeds.
• Depending on the type, the hood is designed to
be permanently attached to a vertical wall over
a gas or electric stove (chimney and universal
hoods); on the ceiling over a gas or electric stove
(island hoods); on the vertical built in furniture
over a gas or electric stove (telescopic and built-
in hoods). Before installing, make sure that the

- 7 -
wall/ceiling structure is strong enough to suspend
the hood. Some hoods are very heavy.
• For details of the installation distance above an
electric hob please refer to product technical
sheet If the installation instructions of the gas
cooker specify a greater distance, this must be
taken into account (Fig. 1).
• Do not leave an open ame under the hood.
When the pots are removed from the burner, set
the minimum ame. Always make sure that the
ame does not extend outside the pot, because it
causes unwanted loss of energy and a dangerous
concentration of heat.
• When cooking on fat, supervise the pans con-
stantly, because overheated fat can ignite.
• Unplug the appliance before any cleaning, replac-
ing the lter or repair work.
• Cooker hood grease lter should be cleaned at
least once a month, because the lter saturated
with fat is ammable.
• Ensure adequate ventilation (air ow) if other
equipment such as liquid fuel stoves or heaters
are operated in the room in addition the cooker
hood. When the cooker hood is simultaneously
operated with burning appliances requiring ade-
quate fresh air from the room to work properly,
their safe operation is possible if under pressure
around these appliances is a maximum of 0.004
mbar (this does not apply when the cooker hood
is used as an odour lter)
• Do not lean on the hood.
• The hood should be cleaned regularly both inside
and out (AT LEAST ONCE A MONTH, following the
indications concerning maintenance provided in
this manual)..Failure to adhere to the rules con-
cerning cleaning the hood and replacing lters
results in a re risk.
• If the power cord is damaged it should be re-
placed by a specialised service centre.
• Ensure that it is possible to disconnect the ap-

- 8 -
pliance from the mains by removing the plug or
switching o the bi-polar switch.
• This appliance is not intended for use by persons
(including children) with physical, mental or sen-
sory handicaps, or by persons inexperienced or
unfamiliar with the appliance, unless under su-
pervision or in accordance with the instructions
as communicated to them by persons responsible
for their safety.
• Particular attention should be paid not to allow
unaccompanied children to use the appliance.
• Make sure voltage indicated on the nameplate
corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, poly-
styrene, etc.) should be kept away from children
during unpacking.
• Before connecting the hood to the mains power
supply always check that the power cord is prop-
erly installed and is not trapped by the appliance.
Do not connect the appliance to the mains until
assembly is complete.
• Do not operate your kitchen hood without the al-
uminium grease lters.
• It is strictly forbidden to cook dishes under on an
open ame (ambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the
competent local authorities regarding the techni-
cal and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accord-
ance with these instructions may endanger life
and health.
• Hanging kitchen hoods operate only in air circu-
lation / odour absorber mode
• WARNING! Failure to install the screws or xing
device in accordance with these instructions may
result in electrical hazards.

- 9 -

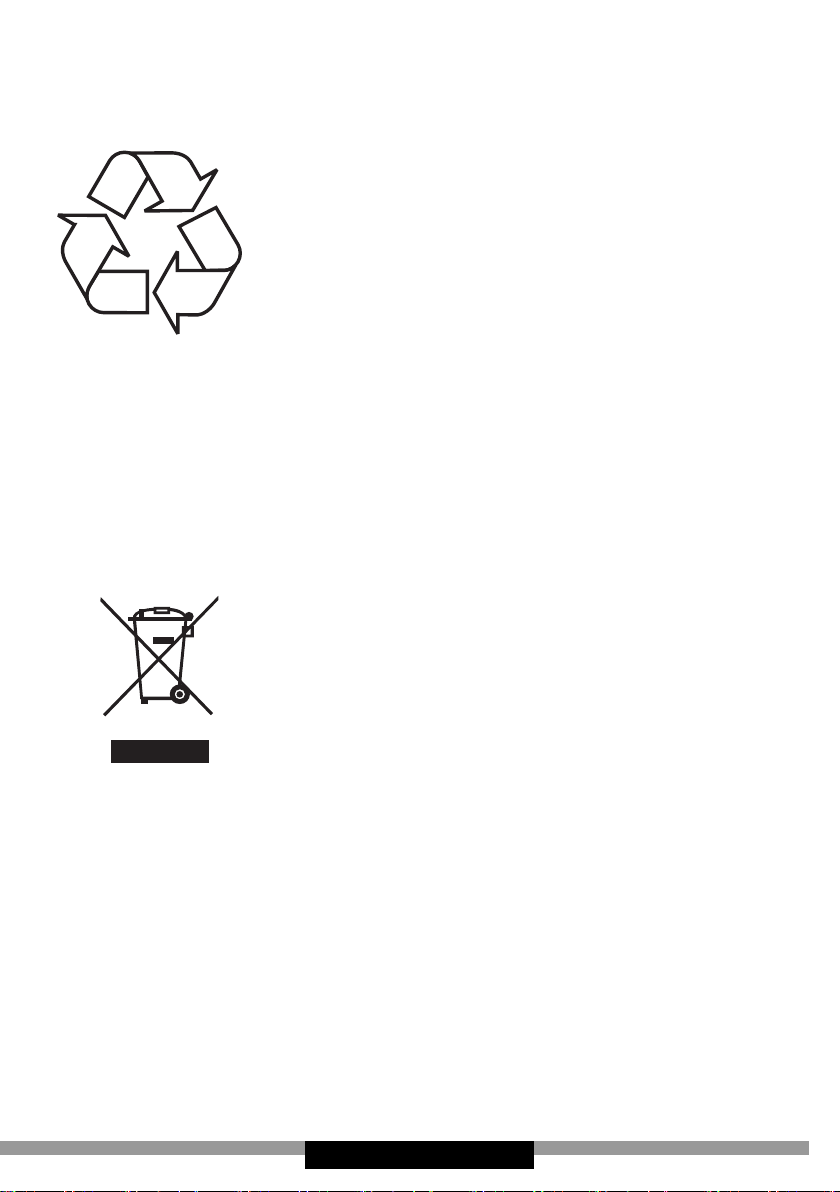

UNPACKING
During transportation, protective
packaging was used to protect the
appliance against any damage. Af-
ter unpacking, please dispose of all
elements of packaging in a way that
will not cause damage to the environ-
ment.
All materials used for packaging the
appliance are environmentally friendly; they are
100% recyclable and are marked with the appropri-
ate symbol.
Important! Packaging materials (bags, polyethyl-
ene, polystyrene, etc.) should be kept away from
children during unpacking.
DISPOSAL OF OLD APPLIANCE
In accordance with European Directive
2012/19/EU and local legislation re-
garding used electrical and electronic
goods, this appliance is marked with
the symbol of the crossed-out waste
container. This marking indicates that
the appliance must not be disposed of
together with other household waste
after it has been used.
The user is obliged to hand it over to waste collec-
tion centre collecting used electrical and electron-
ic goods. The collectors, including local collection
points, shops and local authority departments pro-
vide recycling schemes.
Proper handling of used electrical and electronic
goods helps avoid environmental and health haz-
ards resulting from the presence of dangerous com-
ponents and the inappropriate storage and process-
ing of such goods.

- 10 -
OPERATION
Kitchen hood controls
Control Panel is shown in Figure 4, for reference it is also shown below:
13
5 2
4
6
The control panel is equipped with touch controls: Control functions are
described below:
1- Use to turn Standby mode on/o When you turn on Standby
mode, you will hear a beep.
2- Touch to activate RGB decorative lighting.
3- Slide you nger across the sensor to adjust fan speed.
4- O-Timer (see below for details).
5- Touch to turn light on/o
6- Fan speed indicators. When you slide your nger across the sensor
to adjust fan speed, individual LEDs of the indicator will turn on or
o.
O-Timer
Use O-Timer to turn o the hood after a specied time. Use O-Timer
to lter the fumes out of the air after cooking. The delay time is about
15 minutes. Touch to activate the O-Timer at any time. Sensor
ashes. Flashing indicates that O-Timer has been enabled. Touch
again to cancel the O-Timer. When you use O-Timer the light turns
o.
RGB decorative lighting
Touch to activate RGB decorative lighting. The lighting will activate
and smoothly cycle though available colours. Touch again to deacti-
vate colour cycling and display a selected colour. Touch and hold to
deactivate RGB decorative lighting. Decorative lighting operates inde-
pendently of other appliance functions.
Note:
• If you are not going to use your kitchen hood for an extended
period of time, turn o the standby mode. Touch and hold for 3
seconds to do this.
• When you touch any sensor you will hear a beep.
• To turn o the fan, touch once.
