Amiko STHD8820 CI CX E User manual

USER`S MANUAL
Felhasználói Kézikönyv
Návod na Použitie
Uživatelská Príručka
Manual de Utilizare
Felhasználói Kézikönyv
Návod na Použitie
Uživatelská Príručka
Manual de Utilizare
En CzSkHu Ro
www.amikostb.com
Návod na PoužitieNávod na PoužitieNávod na Použitie
Uživatelská PríručkaUživatelská PríručkaUživatelská Príručka
Manual de UtilizareManual de UtilizareManual de Utilizare
STHD8820 CI CX E PVR Ready
MULTIMEDIA
PLAYBACK
■MPEG-Fully DVB-S / DVB-S2 HD compliant
■MPEG-Fully DVB-T compliant
■Conax embedded card reader
■Common Interface slot
■RSS Reader & Weather Forecast functions
■Ethernet connection
■High Speed USB 2.0 Connection Support
■Multimedia playback (MKV, AVI, MPG, MP4, TS, VOB, MOV, MP3, JPEG)
■Alphanumeric VFD Display
■Dolby Digital Bitstream out via S/PDIF
■Full HD (1080p) output via HDMI
■Software Upgrade support via Network, USB & RS232
■<1W power consumption in stand-by mode
■Fully RoHS compliant
RSS READER

1
CONTENTS
1. SAFETY.............................................................................................................................................................3
2. INTRODUCTION.............................................................................................................................................3
3. FEATURES........................................................................................................................................................4
4. REMOTE CONTROL......................................................................................................................................5
5. FRONT PANEL ................................................................................................................................................7
6. REAR PANEL...................................................................................................................................................7
7. CONNECTING YOUR SYSTEM ...................................................................................................................7
8. BASIC OPERATIONS .....................................................................................................................................9
8.1 T URN ON STB...................................................................................................................................................9
8.2 P OWER ..............................................................................................................................................................9
8.3 C HANNEL U P /C HANNEL D OWN ........................................................................................................................9
8.4 V OLUME U P /V OLUME D OWN -..........................................................................................................................9
8.5 N UMBER ...........................................................................................................................................................9
8.6 M UTE ...............................................................................................................................................................9
8.7 P AUSE ...............................................................................................................................................................9
8.8 R ECALL ............................................................................................................................................................9
8.9 F AVORITE .........................................................................................................................................................9
8.10 A UDIO .........................................................................................................................................................10
8.11 I NFORMATION .............................................................................................................................................10

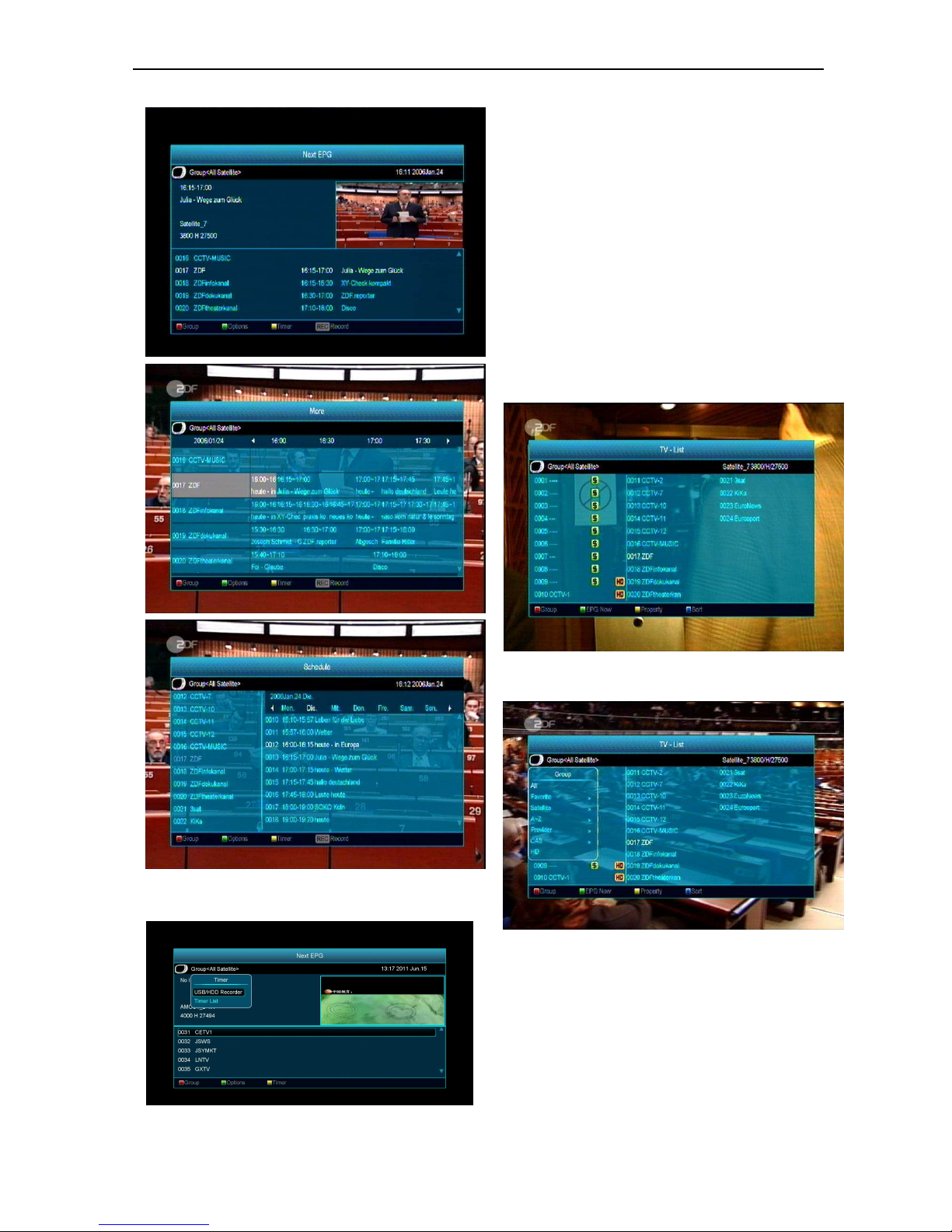

8.12 EPG............................................................................................................................................................10
8.13 TV/RADIO.................................................................................................................................................11

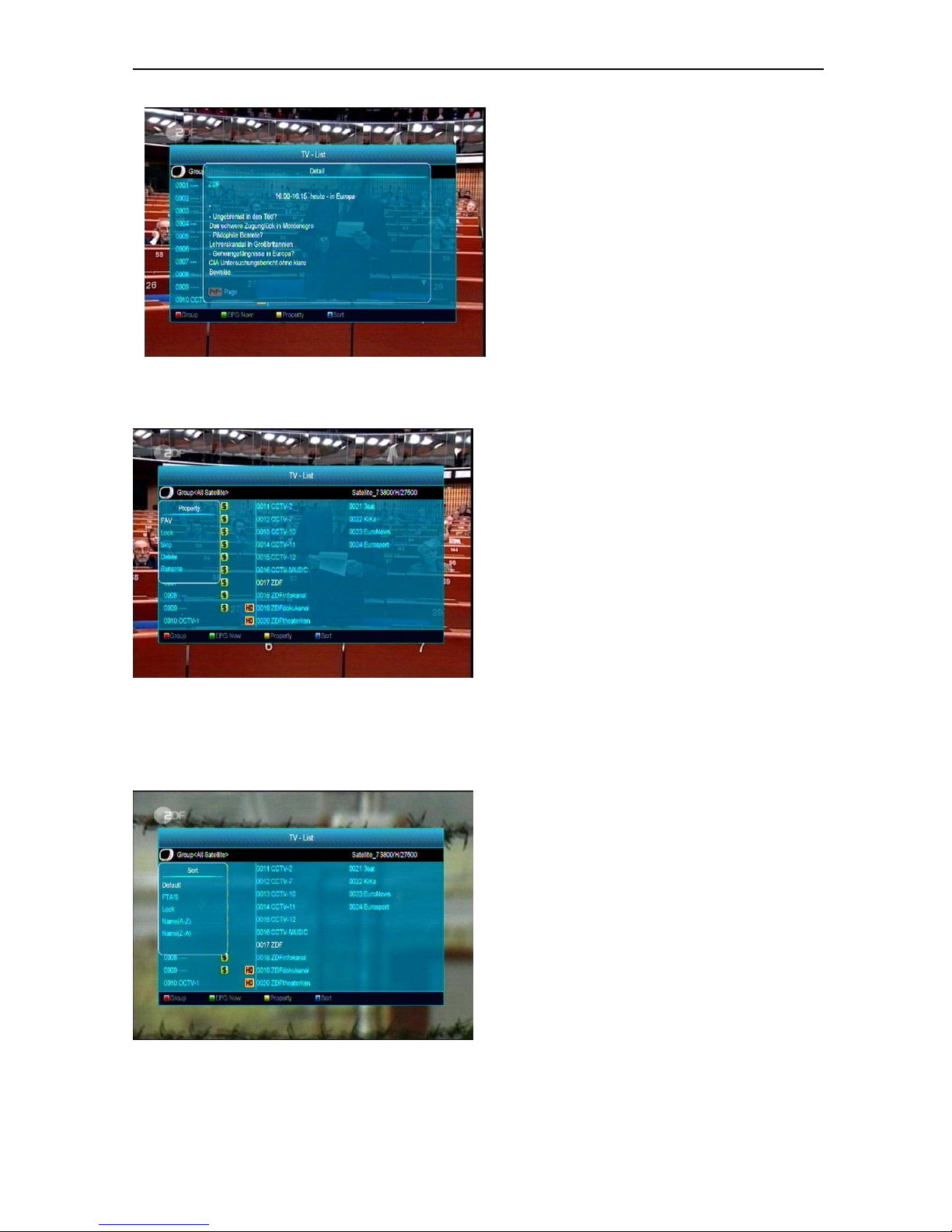

8.14 C HANNEL L IST ............................................................................................................................................11
8.15 S LEEP ..........................................................................................................................................................12
8.16 P AGE U P /P AGE D OWN ................................................................................................................................12
8.17 TEXT .........................................................................................................................................................12
8.18 S UBTITLE ....................................................................................................................................................12
8.19 F IND ............................................................................................................................................................13
8.20 Z OOM ..........................................................................................................................................................13
8.21 TV/RCV.....................................................................................................................................................13
8.22 M ENU ..........................................................................................................................................................13
8.23 V IDEO F ORMAT ...........................................................................................................................................13
8.24 E XIT ............................................................................................................................................................13
9. SERVICE.........................................................................................................................................................13
9.1 O RGANIZING S ERVICE ....................................................................................................................................14
9.2 O RGANIZING F AVOURITES ..............................................................................................................................15
10. INSTALLATION ............................................................................................................................................17
10.1 S ATELLITE I NSTALLATION ..........................................................................................................................17
10.2 A UTO INSTALLATION ..................................................................................................................................19
10.3 S ATELLITE G UIDE .......................................................................................................................................19
10.4 T ERRESTRIAL I NSTALLATION 󶁘O PTIONAL 󶁙.............................................................................................20
10.5 C ABLE I NSTALLATION (O PTIONAL ).............................................................................................................20
11. PREFERENCE................................................................................................................................................20
11.1 L ANGUAGE .................................................................................................................................................21
11.2 P ARENTAL C ONTROL ..................................................................................................................................21
11.3 A/V C ONTROL ............................................................................................................................................22
11.4 T IME S ETTING .............................................................................................................................................23
11.5 T IMER .........................................................................................................................................................23
11.6 M ISCELLANEOUS S ETTINGS ........................................................................................................................24
11.7 OSD S ETTING .............................................................................................................................................25
12. SYSTEM ..........................................................................................................................................................25

2
12.1 I NFORMATION .............................................................................................................................................26
12.2 D EFAULT S ETTING ......................................................................................................................................26
12.2.1 Default Value:.........................................................................................................................................26
12.2.2 Delete All Channel: ................................................................................................................................26
12.2.3 Save default value...................................................................................................................................27
12.3 S OFTWARE U PGRADE ..................................................................................................................................27
12.4 U PGRADE B Y USB......................................................................................................................................28
12.5 B ACKUP TO USB.........................................................................................................................................28
13. CONDITIONAL ACCESS.............................................................................................................................29
13.1 CA S ETTING ................................................................................................................................................29
14. USB...................................................................................................................................................................29
14.1 F ILE L IST ....................................................................................................................................................29
14.1.1 Record Files...............................................................................................................................................30
14.1.2 MP3 Files...................................................................................................................................................30
14.1.3 Image Files.................................................................................................................................................31
14.1.4.Software.....................................................................................................................................................33
14.1.5 All ...........................................................................................................................................................33
14.2 S TORAGE I NFORMATION .............................................................................................................................33
14.3 PVR S ETTING .............................................................................................................................................34
14.4 USB S PEED T EST ........................................................................................................................................35
14.5 R EMOVE USB D EVICE SAFELY !..................................................................................................................35
15. INTERNET󶁘
󶁘󶁘
󶁘OPTIONAL󶁙
󶁙󶁙
󶁙.........................................................................................................................35
15.1 N ETWORK L OCAL S ETTING .........................................................................................................................35
15.2 H TTP U PGRADE ...........................................................................................................................................36
15.3 FTP U PGRADE ............................................................................................................................................36
15.4 FTP.............................................................................................................................................................36
15.5 W EATHER F ORECAST ..................................................................................................................................37
15.6 RSS R EADER ..............................................................................................................................................37
16. GAME ..............................................................................................................................................................38
16.1 T ETRIS ........................................................................................................................................................38
16.2 S NAKE .........................................................................................................................................................38
16.3 O THELLO ....................................................................................................................................................38
17. NEW FEATURES...........................................................................................................................................39
17.1 E QUALIZER .................................................................................................................................................39
17.2 T IME S HIFT .................................................................................................................................................39
17.3 R ECORD ......................................................................................................................................................39
18. TROUBLE SHOOTING.................................................................................................................................41
19. SPECIFICATIONS.........................................................................................................................................42

3
1. SAFETY
This HD Receiver has been manufactured to satisfy the international safety standards.
Please read the following safety precautions carefully.
MAINS SUPPLY:
100 - 240V AC 50/60Hz
OVERLOADING
: Do not overload wall outlet, extension cord or adapter as this may result in fire or
electric shock.
LIQUIDS:
Keep liquids away from the HD Receiver. The apparatus shall not be exposed to dripping
or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
CLEANING:
Disconnect the HD Receiver fr
om the wall outlet before cleaning .Use a light damp cloth
(no solvents) to dust the HD Receiver.
VENTILATION:
The slots on top of the HD Receiver
must be left uncovered to allow proper airflow to
the unit. Do not stand the HD Receiver on soft furnishings or carpets. Do not expose the HD Receiver
to direct sunlight or do not place it near a heater. Do not stack electronic equipments on top of the
HD
Receiver.
ATTACHMENTS:
Do not use any attachments that are not recommended as these may cause
hazard or damage the HD Receiver.
CONNECTION TO THE SATELLITE DISH LNB:
Disconnect the HD Receiver
from the mains before
connecting or disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE LNB.
CONNECTION TO THE TV:
Disconnect the HD Receiver from the mains before connecting or
disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE TV.
EARTHING:
The LNB cable MUST BE EARTHED to the system earth for the satellite dish.
LOCATION:
Place the HD Receiver indoor in order not to expose to lightening, rain or sunlight.
2. INTRODUCTION
Thank you for purchasing the HD Receiver.
This HD Receiver is fully compliant with the international DVB standard and thus transmits digital
images, sounds, information guides and teletext directly to your TV through the satellite broadcasting.
Now you can comfortably see and receive digitally transmitted music, news, movie and sports satellite
broadcasts in your office or at your home. You can enjoy interesting games embedded in HD
Receiver.
In service search section, both the automatic service search method and the manual search mode
are provided. Also it supports DiSEqC 1.0, 1.2 and USALS, enabling you to move your antenna in
order to focus preferred satellite. You can save up to 8000 TV and Radio services and work around
with the favorite, Lock, Delete, Move and Sort functions.
The menu is very modern and supports multiple languages. All functions can be carried out using the
remote control and some of the functions can also be carried out using the front panel. The HD
Receiver is easy to use and adaptable for future advances. Please be aware that new software may
change the functions of the HD Receiver.

4
If you have any difficulties concerning the operation of your HD Receiver, please refer to the relevant
section of this manual, including the ‘Troubleshooting’. This Manual will provide you with useful
information on using the HD Receiver.
3. FEATURES
MPEG-Fully DVB-S / DVB-S2 (H.264) HD compliant
8000 channels (TV and Radio) programmable
Multilingual menu text support
Channel switching time less than 1 second
Channel list editing
Favorite channel list editing
True-color On-Screen Display (OSD)
Full Picture In Graphic (PIG) function
Electronic Program Guide (EPG) for on screen channel information
Subtitle supported
Teletext supported by VBI insertion and software emulation
Parental lock facility by channel and program event
Program and Channel information transfer from receiver to receiver
Exciting games embedded
S/PDIF for digital audio or Dolby digital bitstream output
DiSEqC 1.0, 1.1, 1.2 and USALS
HDMI HD Video/Audio Output
USB 2.0 Host
VFD Display for service information
RTC (Real-Time-Clock)
Time Shift
Video Recording
Recording one channel and Time Shifting another channel (optional)

5
4. Remote Control
You can power on/off the receiver, operate on screen menu, and
use a variety of hot key function.
POWER
To switch your receiver on from standby or standby to on.
MUTE
Used to enable or disable the audio
NUMERIC KEYS
Used to select channels or enter programming parameters
TV / RADIO
Receiver switches between TV and Radio mode.
(ZOOM)
Press key select zoom times, from X1 to X16.
RECALL
Return to the previous menu or status.
TV/SAT
Receiver switches between TV and receive mode.
INFO
To display channel status or various program information of current service.
EPG(Electronic Program Guide)
Display the Programs guide on screen when available.
MENU
Displays the Main Menu on the screen, or return to the previous menu or
status.
EXIT
Cancel the user selection and return to the viewing mode from a menu.
OK
To select menu option, or to updated on entry.
<,> KEY
To adjust volume level, or to move cursor left or right in the menu.
^,v KEY
To change channels, or to move cursor up or down in the menu.
P AGE /P AGE
To move up the cursor to the next or previous page
in the menu or channel list.
REC
Has different functions per menu.
Teletext
Shows teletext information of the current channel supports.
Subtitle
Subtitle Display.
UHF
In case your TV is connected through RF Modulator (UHF), select output
channel number between CH21 and CH69 with up and down key.

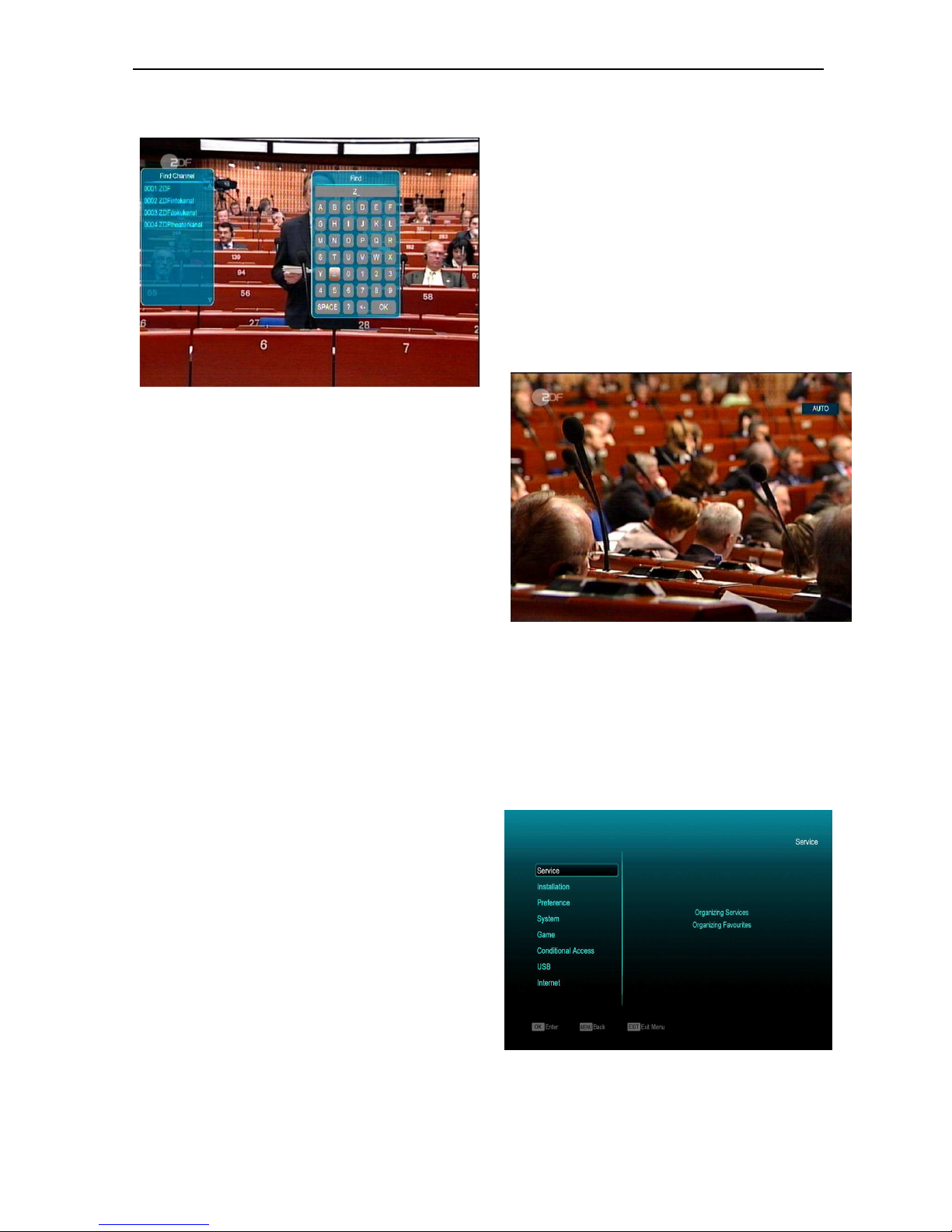

(FIND)
Use to prompt find channels sort by character.
TIMER
Press timer key you can setup up the Standby time.
V 

 FORMAT
Press P/N button to switch the display mode among "By source", "By native
TV ", "480i", "480P”,”576i”,”576p",”720P” ,"1080i" and”1080p”.
FAV(FAVORITE)
To set receiver to the favorite server mode,
display the favorite channel.
FOLDER
Press this button to enter the Record Manager menu directly.
AUDIO(Red Key)
Audio channels setup, to select audio mode; Left, Right , Stereo, Mono.
OPTION(GREEN KEY)
Shows NVOD information of the current channel supports.
SAT
Display the satellite list at normal picture.
Play Mode
Select the play mode in MP3 or JPEG player.

6
USB
To remove the USB Hard Disk safely.
TMS(Time Shift)
Press this button to display Time Shift info bar.
Play
To play the MP3, JPEG, or Record files.
Stop
To stop the Time Shift, recording, or MP3/JPEG player.
PAUSE
Used to select the freeze function.
Press once to freeze the screen picture.
FB
To start Fast Backward function.
FF
To start Fast Forward function.
SB
To start Slow Backward function.
SF
To start Slow Forward function
/ PREV/NEXT
Switch to preview or next file in play mode

7
5. Front panel
POWER KEY: To switch the receiver power on/stand by
MENU KEY

To enter into the main menu.
<,> KEY: To adjust volume level, or to move cursor left or right in the menu.
^, v KEY : To change channels, or to move cursor up or down in the menu
OK KEY: To see TV/Radio channel list, or to confirm in the menu.
Remote Sensor: Detects infrared signal from remote control unit
POWER Indicator: while the receiver is power on and at standby mode.
Signal Indicator: When receiving signal is strong, the signal indicator is lighted.
Card Slot: One or two (optional) slots CA Interface for Conax,
Common Interface: One socket for Conditional Access Modules CAM (optional).
USB A: USB 2.0 Host, connect to USB hard disk, or flash disk
Display: (VFD type) Indicates operating status of receiver
6. Rear Panel
Please refer to the diagram above for all possible connections of your receiver
Do not connect the unit to the mains socket until all other connections have been made and checked.
Your configuration can vary depending on model
AERIAL OUT: This enables the connection of another receiver. (Optional)
AERIAL IN : This port is to connect the coaxial cable from terrestrial antenna. (Optional)
POWER ON/OFF SWITCH: To switch ON/OFF the receiver power supply.
LOOP: This enables the connection of another receiver. (Optional)
LNB IN 13/18V 500mA MAX: This port is to connect the coaxial cable from LNB of your Dish.
(Optional)
TV : This is used to connect your TV through SCART cable.
VIDEO : This RCA connector is used to connect any external video.
0/12V 50mA:This is used to Connect 12V to an external 0V/12V switch.
AUDIO R/L : These RCA connectors are used to connect any external audio amp or system.
S/PDIF: Digital Audio interface, connect to AV amplifier S/PDIF input terminal.
HDMI: Audio and Video output socket for TV set with HDMI Input Jack only.
RS 232C SERIAL PORT: This is used to connect your receiver to a computer through a serial cable.
Ethernet: (optional) Network port, you can get a new software updates from this port.
USB B: USB 2.0 Host, connect to USB hard disk, or flash disk
7. Connecting Your System
There are four ways to connect the receiver to your existing TV system. We recommend using one of
the following cases for the best result:
1. If you have a high definition television set, you should use a HDMI cable for best result, Plug one
end of the cable into the HDMI socket on the receiver, and the other end into the matching socket on

8
your television. In this case, you do not have to make audio connections because the HDMI connector
can output stereo audio or Dolby digital audio.
2. Connect one end of SCART cable to the TV (SCART) jack on the back of the receiver and the other
end to a SCART jack on your TV.
3. Connect one end of RCA cable to the RCA jack on the back of the receiver and the other end to a
RCA jack on your TV.
4. You will need to obtain a component video Cable (RCA cable) to use the component video
connector, Plug one end of the Cables into the Y(Green), P b (Blue) and P r (Red) Sockets on the digital
receiver, and the other end into the matching sockets on your television.
Finally connect the coaxial cable from the LNB to the LNB IN jack on the receiver.
With External Audio / Hi-Fi System
To connect any external Audio Hi-Fi system, the receiver has been provided with two RCA connectors
at the back of the receiver marked with Audio L and R.
Connect an RCA stereo cable from the AUDIO L, R jacks on the back of the receiver to the LINE,
AUX, SPARE OR EXTRA input jacks on your Hi-Fi System.
7.1 TV with Motorized System (DiSEqC 1.2)
Connect one end of your coaxial cable to the LNB IN connector on the receiver and the other end to
the REC or Receiver connector on the DiSEqC 1.2 motor.
Connect the coaxial cable from the LNB to the LNB connector on the DiSEqC 1.2 motor.
All our receivers are designed to be DiSEqC 1.0 and DiSEqC 1.2 compatible.
This allows multiple antennas to be connected to the receiver at the same time.
If you have two or more fixed antennas or LNBs, then we recommend you use a DiSEqC 1.0
switch.
Connect the coaxial cable from the first LNB to the LNB 1 or LNB A input connector of the DiSEqC
switch.
Do the same for any other LNBs that you have.
Connect one end of a coaxial cable to the RF output connector of the DiSEqC switch,
connect the other end to the LNB IN socket on the receiver.
To the digital receiver, you can connect either a single satellite antenna directly or LNB of
multi-feed equipment.

9
8. Basic Operations
8.1Turn on STB
First, press the [Device’s Main Power] to turn on the unit.
When the STB is first used, there will play the first
channel from the default Channel List. If the STB is not
first used, STB will play the same channel as last time
before turning off.
? Frequently Asked Question
Q: The power of my STB has been turned on and not
in Standby mode, but the TV screen showed
nothing:
A: Make sure the TV set has been set to the correct
video input (not the TV channels). For example, if you
have connected the unit with the Video1 input of the TV
set, the TV set has to be switched to Video1.
Q: The power of my STB has been turn on and not in
Standby mode, but the TV screen showed
nothing except one box with “No Signal” image.
A: That means the channel, which you select, is no
signal. It could be several causes:
1 The channel which you select is not in your
allocate satellite. The simply solution is to change
channel.
2 The signal of current TV channel is too weak. You
can try to change channel to other strong signal
channels. If the problems still exist, please consult
your local dealer or other professionals for
technical service.
3 You use the Dual LNB, and you need Modify LNB
Type
8.2Power
1 Press [Power] Key can enter the Standby state
2 In Standby state, press [Power] Key again can call
back the unit and go on play the previous channel
3 User can also disconnect the device’s main power
to end the Standby state.
8.3Channel Up/Channel Down
In full screen, press [CH+/CH-] to change channel.
8.4Volume Up/Volume Down-
In full screen, press [VOL+/VOL-] to adjust volume.
8.5 Number
In full screen, use number key and press [OK] on the
Remote Control Unit to change channel.
8.6 Mute
1 Press [MUTE] key to mute the sound and the
screen will show up mute OSD.
2 Press [MUTE] key again to restore sound.
8.7 Pause
1 In playing mode, press [Pause] key, the picture will
be paused, but the sound of the channel will still
continues.
2 Press [PLAY] key again, the screen’s picture will
skip over to the current playing picture, and the
sound of the channel will corresponding playing.
8.8 Recall
Press [RETURN] key will directly switch to the previous
channel that you played before current channel.
8.9 Favorite
1 In full screen, press [FAV] key, it will display a
window of “Favorite list” on the left of the screen,
which you can watch like below.
2 In the window of " Favorite list ", you can move
highlight by press [Channel Up/Channel Down]
key to select favorite Channels.
3 In the window of ” Favorite list ", you can press
[Left/Right] key to select favorite groups Pressing
[P-/P+] keys can implement the “Page up/Page
down” function
