AMMO AMMO630 Guide

ASSEMBLY, CARE AND USE
INSTRUCTIONS FOR
AMMO630
SPECIAL EDITION
IMPORTANT: RETAIN THESE
INSTRUCTIONS AND ATTACH RECEIPT
TO MANUAL FOR FUTURE REFERENCE.
READ CAREFULLY
Questions, problems, missing parts?
Before returning to your retailer, call our customer service department at
1-866-235-5112, 8 a.m. - 5:00 p.m., CST, Monday - Friday.
www.ammonyc.com

2
Important Notice
Winterizing or long time storage: Drain all water out of pump. Flush pressure
washer with a 50/50 mix of RV antifreeze and water. Relieve system pressure by
squeezing gun trigger. When ready to use again, ush pressure washer with clean
water to remove antifreeze.
WARNING: This product can expose you
to chemicals including lead, DEHP, DINP
which is known to the State of
California to cause cancer and or lead to
birth defects. For more information go to
www.P65Warnings.ca.gov
PRECAUCIÓN: Este producto puede
exponerle a los productos químicos
incluyendo el plomo, DEHP, y DINP, que se
saben al estado de California para causar el
cáncer y/o defectos de nacimiento. Para más
información, vaya a www.P65warnings.gov
Technical Specications: 1,900 Max PSI | 2.1 Max GPM | 19 Amps
120V 60Hz Induction Motor | Brass Manifold | 3.5 Nozzle
Safety Instructions 3-4
Included in the Box 5
Operating Instructions 6-10
Maintenance 11
Storing the Pressure Washer 12
Starting after Period of Non-Use 12
Troubleshooting 13

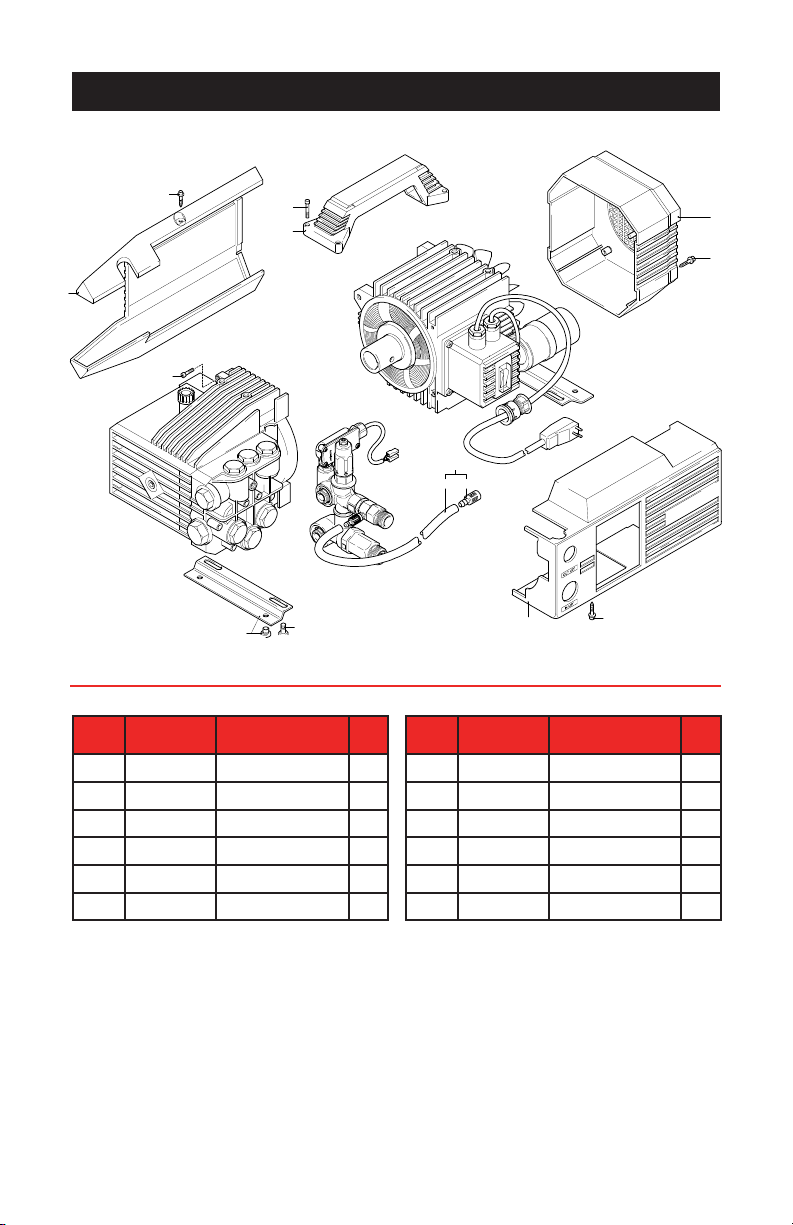

Pump/Motor Parts 14
Motor Parts 15
Pump Parts 16-17
Unloader Parts 18-19
Pressure Washer Limited Warranty 20
Warranty Returns 21
Notes 22-23
Table of ConTenTs

3
safeTy InsTruCTIons
Read and understand these instructions as they pertain to safety.
Pay special attention to the safety symbol throughout this manual.
Failure to comply with these instructions may result in personal
injury or property damage. DO NOT allow children to operate or
play on or around this equipment.
WARNING: Improper grounding can result in electrical shock.
The power outlet must be 3-prong, properly grounded, and
rated for 20 Amps or greater with a Ground Fault Circuit
Interrupter (GCFI).
WARNING: High pressure spray can be extremely dangerous.
Always point the nozzle away from people and animals.
WARNING: Always turn the power switch on the Pump Unit to
the “OFF”position when not in use.
Seek emergency medical assistance immediately if any uid
penetrates the skin. The cut may be deeper and more serious
than it appears.
Always wear eye protection and appropriate clothing when
operating the unit.
Never spray any part of this pressure washer or any other
electrical machine.
Do not alter the machine from the manufacturer’s design.
Keep all safety devices active on the machine.
Do not make alterations to the unloader relief valve.
Never operate the unit with broken or missing parts.
Never use an undersized discharge nozzle.
Keep the pressure hose connected to the machine and wand
while unit is pressurized.
Never leave the wand unattended while the machine is running.
Do not secure the wand in the squeezed“ON” position.
Follow the chemical manufacturer’s recommendations when
using chemicals in the soap injector.
Understand all safety precautions and rst aid for chemicals
being used
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.

4
safeTy InsTruCTIons
Never spray ammable liquids.
Do not operate this machine in or around an explosive
environment.
Position the machine in an area that is protected from external
damage.
Always place the machine on a level surface.
Do not move the unit by pulling on the hose or electrical cord.
Never use the unit when under the inuence of drugs, alcohol,
or medication.
No smoking while operating the machine.
Only operate the machine with sucient water supply to the
pump.
Always use water that is clear and free from particles.
Always check and maintain proper oil levels described in the
Maintenance section on pg. 13 of this manual.
Protect your machine from damage due to freezing during
storage. Follow the winterizing instructions in the Storing the
Pressure Washer section on pg. 14 of this manual.
Always follow all other guidelines and Safety Instructions
described on pg. 3-4 of this manual.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
Tighten all connections and replace worn parts before
starting the machine. Sudden release of high pressure
streams may result if connections detach during use.
This can cause serious injury. Never disconnect any part
of the unit while the machine is running or before relieving
system pressure, it is dangerous. Seek medical attention if
an injury ever occurs.

5
InCluded In The box
AL557-B
M22 x 3/8 QC Plug
AMMO630 Manual AR2605B G.H.A. Swivel 3/4”Brass w/Filter
AMMO630 Pump/Motor
Box Weight: 63lbs | Box Dimensions: 24x16x16”

6
operaTIng InsTruCTIons
Read all safety instructions throughout the manual.
Place unit on dry, rm ground for optimum lubrication of pump.
The pressure washer should be as close as possible to the water
supply.
Tighten all hoses and connections. Check parts and replace if
needed.
Check oil levels prior to each use. Oil should cover the indicator
line on the dipstick.
To prevent damage and excessive hose wear, position the pres-
sure washer so the hose does NOT extend across trac areas.
Make sure there are no kinks or twists in the hose.
Check to determine if the water supply to the pressure washer
exceeds the output of the pump. The output of this unit is 2.1
gpm (gallons per minute), so the water supply must deliver at
least 2.5 gpm.
Note: This unit is supplied with a“Total Stop System” (TSS) that
allows the pump to run only when the gun trigger is squeezed.
Releasing the trigger will temporarily stop the machine.
Squeeze the trigger on the gun to restart the machine.
Avoid rapidly squeezing the trigger to prevent damage to
the TSS.
1.
2.
3.
4.
5.
6.
7.
Calculate gpm ow rate by running the water supply into a
pail for one minute. Measure the gallons in the pail. If it is at
least 2.5 gallons in the minute, your supply is adequate. Your
water supply must be clean and free of debris. Use water
with a temperature of less than 140°F.
before sTarTIng The pressure Washer

7
Position the unit so the operator has easy access to the pressure
washer and its controls.
Do not use the pressure washer outdoors if it is raining, and do
not spray the motor or any of its connections.
Do not use chemicals or agents which are not compatible with
Buna-N, PVC (polyvinyl) or neoprene covering of the hose.
Do not use acids or caustic material with this unit. Damage due
to use with incompatible material will not be considered for
warranty.
Always test a small area to avoid possible damage to surfaces.
1.
2.
3.
4.
5.
operaTIng InsTruCTIons
durIng operaTIon
Turn on water supply to pump inlet.
Plug the power cord into a properly grounded 20 Amp, 120 volt
outlet.
Purge air from system by removing nozzle and squeezing gun
trigger before starting machine. Let water run until there is a
steady stream of water coming out of the nozzle.
Turn power switch on Pump Unit to “on” ( I ) position.
Squeeze trigger on gun to start machine.
1.
2.
3.
4.
5.
sTarTIng The pressure Washer

8
operaTIng InsTruCTIons
Your pressure washer Pump Unit is supplied with a downstream
low pressure soap/chemical injector. This is used for adding soap/
chemical to the water after it has owed through the pump.
Note: The injector works only with the supplied black soap nozzle.
To draw soap/chemical into the water stream, insert the lter end
of the detergent hose into the soap/chemical. Do Not use powders,
granular, high viscosity detergents or acidic based detergents/
chemicals in the injector.
Note: Follow the soap/chemical manufacturer’s instructions for
correct dilution ratios.
To ush the injector, remove the detergent hose and lter from the
detergent/chemical tank and place it in a container of clear
water. Run water through the entire system to ush out the
soap/chemical you were using.
usIng soap InjeCTor

9
operaTIng InsTruCTIons
Chemicals: Cleaning agents are most eective when the surface is
rinsed rst to loosen dirt. After pre-rinsing to loosen dirt, then clean
with the detergent.
Detergent should be applied from the bottom to the top of the
washing area. Apply detergent and allow the detergent to react
with the dirt, then rinse from the top to the bottom. This detergent
applying and rinsing technique will help to avoid streaks and skips
in the washing area.
Never use more detergent than is necessary to clean the surface.
Always follow directions supplied by the detergent manufacturer on
the container.
Cleaning: For best results, hold the nozzle 6 – 12”away from the
washing surface and use long, slow deliberate side to side strokes,
similar to using a paint sprayer. This technique will provide the most
eective cleaning impact and minimize streaks and skips in the
cleaning process.
Wax: If the pressure washer is used to apply wax, the gun should be
held further from the surface to optimize the“misting”eect during
application. For best results, follow the directions supplied by the
wax manufacturer.
CleanIng TIps

10
sToppIng pressure Washer
operaTIng InsTruCTIons
If the chemical/soap injector was used, rinse with clean water.
Note: Flush chemical line with new container and clean water
until discharge is clear.
Turn Pump Unit power switch to the “OFF”position.
Turn o the water supply.
Squeeze the trigger on the wand to relieve the system water
pressure and drain as much water as possible.
1.
2.
3.
4.
Follow this procedure each time the machine is stopped.5.
Note: Squeezing the trigger on the gun when you restart the unit
will reduce the startup load of the motor.

11
rouTIne CheCks before every use
Check the water inlet screens for debris. Clean as needed using
water and a toothbrush.
Note: Damage can occur if run without lter.
Check the nozzle for debris and signs of extensive wear. A worn
nozzle will result in poor performance. Only check the nozzle
with the motor turned to the“OFF”position and the pressure
relieved from the system!
Check all ttings and connections for leaks and worn sealing
areas. Replace worn components.
1.
2.
3.
MaInTenanCe
Changing oil is one of the most important and least expensive
maintenance items. It will prolong the life of your pressure washer.
Change oil after rst 50 hours of break-in period, and then every 200
hours or once per year. Demanding environments may require oil
changes more frequently.
To change oil: Remove the 17mm oil drain plug on the bottom
of the Pump Unit. Rell with 10 ounces of SAE20 or 30W
Non-Detergent oil.
Winterizing or long time storage: Drain all water out of pump. Flush
pressure washer with a 50/50 mix of RV antifreeze and water. Relieve
system pressure by squeezing gun trigger. When ready to use again,
ush pressure washer with clean water to remove antifreeze.
Note: See pg.12“Storing the Pressure Washer”

12
sTorIng The pressure Washer
Severe damage could occur by water freezing inside the
components. To prevent costly repairs, follow these steps:
Make sure the unit is“OFF,” water supply is disconnected, and
system pressure has been relieved by squeezing the trigger on
the gun.
Install a suction hose from the pump inlet (garden hose tting)
into a gallon of NON-TOXIC RV anti-freeze. Following operating
instructions start the machine and squeeze trigger on the spray
gun allowing the pump to draw anti-freeze though the entire
system. Once the anti-freeze appears at the end of the wand,
turn the machine “OFF”.
Squeeze gun trigger to relieve pressure from system.
Disconnect the high pressure hose from the high pressure outlet
and put the hose, gun/wand and owners manual in a secure
place to prevent unauthorized people from using the machine.
When ready to use the pressure washer again, reinstall the
high pressure hose and water supply hose. Turn the water on
and squeeze the trigger on the gun to send water through the
system. Dispose of the anti-freeze/water solution safely where it
will not be harmful to the environment, people or animals.
Power o machine before starting.
1.
2.
3.
4.
sTarTIng The MaChIne afTer aperIod of non-use
Long periods of non-use can cause calcium and iron
deposits inside the pump. Starting the machine could
cause damage to the pump. Insert a at blade screw
driver through the hole in the motor end housing and
rotate the motor one revolution clockwise and
counter-clockwise. Remove screwdriver and start the
motor. It should start up easily.

13
loW pressure
surgIng pressure
soap InjeCTor noT WorkIng
TroubleshooTIng
Causes soluTIons
Plugged Nozzle. Clean and check for blockage.
Insucient ow of water to
the pump. Increase water ow to the pump.
Plugged inlet screen. Pull out and clean screen carefully.
Using restrictive supply hose. Use larger diameter supply hose.
Debris in pump valves. Worn or
damaged pump valves.
Remove valve caps. Inspect valves for
debris, wear, or damage. Replace if
needed. Torque valve caps to 300 in/lbs.
Causes soluTIons
Restricted supply by under-sized
ttings or inlet.
Use larger ttings and clean the inlet
screen.
Insucient ow of water to the
pump. Increase water ow to the pump.
Air trapped in the pump head.
Squeeze the gun trigger before
starting the machine. Start the engine
and run water until air is purged out of
the system.
Debris in pump valves. Worn or
damaged pump valves.
Remove valve caps. Inspect valves for
debris, wear, or damage. Replace if
needed. Torque valve caps to 300 in/lbs.
Causes soluTIons
Using a high pressure nozzle instead
of the soap nozzle.
Install the correct soap nozzle (black
nozzle included in kit)
Back pressure from the addition of
extra hose.
Do not use additional high pressure
hose.
Detergent adjustment knob turned
o.
Turn detergent adjustment knob
counter-clockwise to open.
Plugged injector valve. Check and clean the injector.

14
aMMo630 - puMp/MoTor parTs
10
8
9
2
3
4
6
2
2
5
1
11
7
12
Pos. Code Description Q
1 1260273 Casing Black 1
2 1261551 Screw 8
3 180030 Screw 4
4 1260710 Handle 1
5 1261760 Fan Cowling 1
6 1341030 Filter 1
Pos. Code Description Q
7 1272811 Casing Black 1
8 1260470 Screw 4
9 1260830 Base 2
10 1269115 Hose Assembly 1
11 1260780 Screw 4
12 1262790 Detergent Hose 1

15
aMMo630 - MoTor parTs
10
15
4
5
3
8 11
12
13
16
1
2
9
19
17
18
14
7
6
Pos. Code Description Q
1 1260300 Fan 1
2 1260970 Seal 1
3 1260360 Stud Bolt 4
4 126960 Water Shield 1
5 1260950 Bearing 1
6 1269100 Ground Terminal 1
7 1260400 Gasket 1
8 1261560 Screw 4
9 1260341 Box 1
10 - - -
11 1272030 Switch 1
12 1271950 Cable Retainer 1
Pos. Code Description Q
13 1269090 Ring Nut 1
14 1263550 Capacitor 1
15 1340280 Clamp Ø50 1
16 1271880 Screw 1
17 1262370 Nut 1
18 1261820 Cable 1
19 1345610 Clamp Ø55 1

16
aMMo630 - puMp
UN_CE_1730-JQ
6
5
357
34
29
15
14
12
13
17
16
18 19 20
21
8
9
10
11
4
1
3 2
32 26 30
25
24
31 23 22
33
34
35
27
38
28
37
36
25
24
23
22
39

17
aMMo630 - puMp parTs
Pos. Code Description Q
1 1260760 Screw (48 in/lbs)* 6
2 1269101 Cover 1
3 1260040 Oil Seal 1
4 1260480 Dipstick 1
5 1260010 Pump Body 1
6 1269306 Head Assembly 1
7 1260050 Bushing 1
8 1260190 Shaft 1
9 1320370 Bearing 1
10 1260770 Ring 1
11 1260790 Ring 1
12 1260750 Ring 1
13 1380520 Key 1
14 1260080 Pin 3
15 1260070 Piston 3
16 1260091 Plate 3
17 480480 O-ring 3
18 1260120 Piston 3
19 1260100 Washer 3
20 1260110 Nut (106 in/lbs)* 3
21 1260060 Connecting-rod 3
22 1260162 Valve Cap
(300 in/lbs)*
6
Pos. Code Description Q
23 960191 O-ring 6
24 1269050 Complete Valve 6
25 880831 O-ring 6
26 1230023 Head 1
27 1260421 O-ring 3
28 1260441 Water Seal 3
29 1260460 Oil seal 3
30 1381550 Washer 6
31 680570 Screw (137 in/lbs)* 6
32 180102 O-ring 1
33 820361 Plug 1
34 1980740 Plug 2
35 740291 O-ring 2
36 1520120 Ring 3
37 1260131 Water Seal 3
38 1260151 Piston Guide 3
39 620301 Plug 1
A 1864 Valve Kit 1
B 2628 Piston Kit 1
C 1865 Oil Seal Kit 1
E 2520 Cold Water Seal Kit 1
E 2029 Hot Water Seal Kit 1
* - Torque Specications in/lbs

18
aMMo630 - unloader
49
40
1
2
3
4
5
6
5
8
11
7
9
10
12
24
42 41
46
47
34
35 36 37
23
22
52
13
14
15
16
17
18
19
20
21 25
26
27
28
39
38
22
45
50
44
43
32
29
31
30
57
53
51
59
17
54
58
55
17
56
33
48
60
61

19
aMMo630 - unloader parTs
Pos. Code Description Q
1 43359 Complete TSS Kit 1
2 392840 Screw 1
3 1980300 Nut 1
4 2500540 Insert 1
5 1980220 Plate 2
6 1271070 Spring 1
7 1080041 Piston 1
8 1080070 Pin 1
9 1080401 Ring 1
10 1080250 O-ring 1
11 2500550 Split Pin 1
12 1980210 Piston Guide 1
13 740290 O-ring 1
14 800560 O-ring 1
15 880830 O-ring 1
16 1271770 Ring 1
17 1080192 O-ring 3
18 1271160 Piston 1
19 2460420 Seat 1
20 1080250 O-ring 1
21 1540272 Screw 1
22 390080 O-ring 2
23 1540660 Valve Body 1
24 1140450 O-ring 1
25 1460430 O-ring 1
26 1540170 Shutter 1
27 1080091 Spring 1
28 394280 O-ring 1
29 1560660 Ring 1
30 1560680 Knob 1
31 480560 O-ring Knob 1
Pos. Code Description Q
32 800560 O-ring 1
33 1120681 O-ring 1
34 1560650 Hose Tail 1
35 480480 O-ring 1
36 1250280 Ball 1
37 1560520 Spring 1
38 1540570 Fitting 1
39 1540300 Nut 1
40 1569206 Chemical Injector 1
41 1540280 Suction Fitting 1
42 1540630 O-ring 1
43 1122260 Fitting 1
44 880270 O-ring 1
45 2260420 Screw 1
46 480440 O-ring 1
47 1560900 Fitting 1
48 - - -
49 22620 Complete Valve 1
50 1340260 Filter 1
51 1540870 Plug 1
52 1981190 Screw 1
53 1260820 O-ring 1
54 1540881 Piston 1
55 1981320 Spring 1
56 2022201 Fork 1
57 2029787 TSS Box Assembly 1
58 660190 O-ring 1
59 880840 O-ring 1
60 - - -
61 230760 Knob 1
F 42451 Gasket Kit 1

20
pressure Washer lIMITed WarranTy
☑ AMMO Electric Pressure Washers come with a 1 Year Commercial Warranty.
☑ AMMO Electric Pressure Washer Accessories come with a 90 Day Warranty.
☑ Warranty is to the original purchaser and is non-transferrable.
☑ Warranty Claim may require product inspection by the Manufacturer.
(See Liability)
Warranty Conditions:
• Warranty does not apply to normal wear (such as but not limited to: seals/
packings, valves, plungers and sealing O-rings), freight damage, freezing
damage.
• Warranty does not apply to misuse when pump or accessories are altered
operated above recommended speeds, pressures, or temperatures.
• Warranty does not apply to damage caused by aftermarket accessories
not included with original unit.
• Warranty is void when failure to follow recommended operating and
maintenance procedures, or failure to use OEM replacement parts.
• Warranty is void when pump is damaged by:
1) The use of caustic (corrosive) liquids
2) Pump was operated under abrasive or corrosive environments where
conditions could cause pump cavitation.
Liability of manufacturer:
☑ Warranty is limited to repair or replacement of parts only.
☑ Warranty Products must be inspected by the manufacturer.
☑ Returned Product will be Repaired or Replaced Free of
Charge if found to be defective and subject to warranty.
After a completed inspection by the manufacturer, warranty is
granted/ denied at the sole discretion of the manufacturer when
such products are found to be of original defect or workmanship at
the time it was shipped from factory.
This warranty is in lieu of all other warranties, expressed or implied, including any
warranty of merchantability of any and all other obligations or liabilities on the
part of the manufacturers or equipment.
