Operator'siVlanual
®
3000 PSi MAX
2.7 GPMMAX
Model No. 580.752270
WARem
Before usingthis product, readthis
manualand follow all SafetyRules
and Operating Instructions.
I_ J7ADVERTENCJA
Antes de utilizar el producto, lea este
manualy siga todas las Reglasde
Seguridade Instrucciones de Uso.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Visit nut Craftsman website: www.craftsman.cnm
Part No. 205745GS Draft A (01/14/2008)
•Safety
•Assembly
•Operation
,, Maintenance
,, Parts
,, Espafiol, p. 32
ol[I,

WARRANTY.......................................... 2
SAFETYRULES...................................... 2-5
FEATURESANDCONTROLS.............................. 6
ASSEMBLY........................................ 7-10
OPERATION....................................... 11-15
SPECIFICATIONS..................................... 16
MAINTENANCE.................................... 17-21
STORAGE........................................... 22
TROUBLESHOOTING.................................. 23
REPLACEMENTPARTS.............................. 24-29
EMISSIONCONTROLWARRANTY..................... 30-31
ESPANOL......................................... 32-55
HOWTO ORDERPARTS........................ BACKPAGE
ONE-YEARFULLWARRAHTYONCRAFTSMAHPRESSUREWASHER
If this pressurewasher fails dueto a defectin material or workmanship within one year from the dateof purchase,return it to
any Searsstore, other Craftsman outlet, or SearsParts & RepairCenterin the UnitedStates or Canadafor free repair (or
replacementif repair proves impossible).
All warranty coverageapplies for only 90 days from dateof purchaseif this pressure washeris ever usedfor commercial or
rentalpurposes.
This warranty gives you specific legal rights, and you mayalso haveother rights which vary from stateto state.
Sears, Roebuck and Co., Hoffman Estates, IL 60178
Sears Canada Inc., Toronto, Ontario, Canada M5B 288
,_ Thisisthe safetyalert symbol.It isusedto alert youtopotentialpersonalinjuryhazards.Obeyall safetymessages
thatfollow thissymboltoavoid possibleinjuryor death.
_Read this manualcarefully and becomefamiliar
with yourpressurewasher. Knowits applications,
its limitations, and any hazardsinvolved.
Hazard Symbolsand Meaninos
ToxicFumes HazardousChemical ElectricalShock
2 5-
SlipperySurface Fall FluidInjection
Thesafety alert symbol (_.) is usedwith a signal word
(DANGER,CAUTION,WARNING),a pictorial and/or a safety
messageto alert you to hazards.BANGERindicatesa hazard
which, if not avoided, willresult in deathor serious injury.
WARNINGindicates a hazardwhich, if not avoided, could
result in deathor serious injury. CAUTIONindicatesa hazard
which, if not avoided, might result in minor or moderate
injury. NOTICEindicatesa situation that could result in
equipment damage. Follow safety messagesto avoid or
reducethe risk of injury or death. Fire Explosion Operator'sManual
MovingParts FlyingObjects Kickback HotSurface
© SearsBrands, LLC

WARHJNG
Theengineexhaustfromthisproductcontains
chemicalsknowntotheState of California tocause
cancer,birthdefects,or otherreproductiveharm.
DANGER
Contentsare harmful or fatal if swallowed. Avoid
contact to eyes,skin or clothing. DONOTtake
internally. Avoid breathing the mist or vapor.
Overexposureto eyes or skin cancause irritation.
Keepstabilizer out of the reachof children.
Fuelstabilizer is a hazardouschemical.**
.FreshStartTM fuelcapisdesignedto holda cartridgewhich
containsfuelstabilizer.
.If SWALLOWED,callphysicianimmediately.DONOTinduce
vomiting.If inhaled,removetofreshair.In caseofeyeor skin
contact,flushwith waterfor 15minutes.
.Storeunopenedcartridgesin acool,dry,wellventilatedarea.
Keepopencartridgein fuelcap,andfuelcapclosedonfueltank
whennotin use.
.Inthecaseof anemergency,contacta physicianimmediately
andcall1-800-424-9300for materialsafetyinformation.
**Fuel stabilizer contains: 2,6-di-tret-butylpbenol (128-39-2) and aliphatic petroleum
distillate (64742-47-8).
WARHJHG
Runningengine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathingcarbon monoxide can cause headache,
_ atigue, dizziness,vomiting, confusion, seizures,
nausea,fainting or death.
Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea,
fainting, or poisoning.
.OperatepressurewasherONLYoutdoors.
•Keepexhaustgasfromenteringaconfinedareathrough
windows,doors,ventilationintakes,or otheropenings.
•DONOTstartor runengineindoorsor in anenclosedarea,
evenif windowsanddoorsareopen.
.Usea respiratoror maskwheneverthereisa chancethat
vaporsmaybeinhaled.
.Readall instructionswith masksoyouarecertainthemaskwill
providethenecessaryprotectionagainstinhalingharmful
vapors.
WARHJHG
_ uel and its vapors are extremely flammable and
explosive.
Fireor explosion cancause severe burns or
death.
WHENADDINGORDRAININGFUEL
•TurnpressurewasherOFFandletit coolatleast2 minutes
beforeremovingfuelcap.Loosencapslowlyto relievepressure
in tank.
•Fillor drainfueltankoutdoors.
.DONOToverfilltank.Allowspaceforfuelexpansion.
•Iffuelspills,waituntilit evaporatesbeforestartingengine.
.Keepfuelawayfromsparks,openflames,pilotlights,heat,and
otherignitionsources.
.DONOTlighta cigaretteorsmoke.
WHENSTARTINGEQUIPMENT
.Ensuresparkplug,muffler,fuelcap,andair cleanerarein
place.
•DONOTcrankenginewith sparkplugremoved.
WHENOPERATINGEQUIPMENT
•DONOTtip engineor equipmentat anglewhichcausesfuelto
spill.
.DONOTsprayflammableliquids.
WHENTRANSPORTINGORREPAIRINGEQUIPMENT
•Transport/repairwithfueltank EMPTYor withfuelshutoffvalve
OFF.
•Disconnectsparkplugwire.
WHENSTORINGFUELOBEQUIPMEHTWITH FUELIN TAHK
•Storeawayfromfurnaces,stoves,waterheaters,clothes
dryers,or otherappliancesthathavepilotlightor otherignition
sourcebecausetheycanignitefuelvapors.
WARHJHG
_¢ iskof electrocution.
Contactwith power source can causeelectric
shock or burn.
•NEVERspraynearpowersource.

WARHJHG

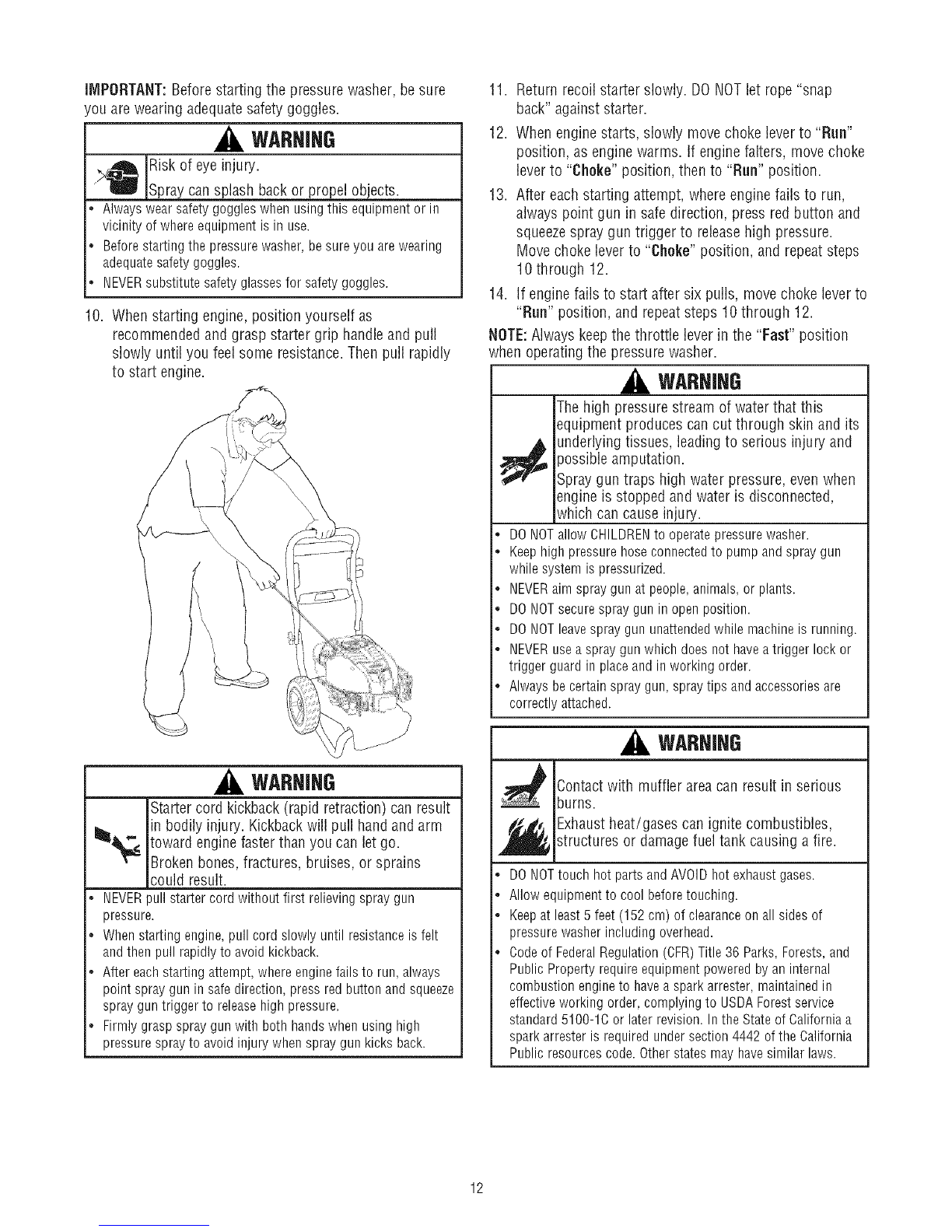

Startercord kickback(rapid retraction) can result
in bodily injury. Kickbackwill pull handand arm
_,_.< toward engine faster than you can let go.
Brokenbones, fractures, bruises, or sprains
could result.
•NEVERpull starter cord without first relieving spray gun
pressure.
.When starting engine, pull cord slowly until resistanceis felt
and then pull rapidly to avoid kickback.
•After eachstarting attempt, where enginefails to run, always
point spray gun in safe direction, press red button and squeeze
spray guntrigger to releasehigh pressure.
•Firmly grasp spray gun with both handswhen using high
pressure spray to avoid injury when spray gun kicks back.
%
WARHIHG
Useof pressure washer cancreate puddles and
slippery surfaces.
Kickbackfrom spray gun cancause you to fall.
.Operatepressure washer from astable surface.
•The cleaningarea should haveadequate slopes and drainageto
reducethe possibility of afall due to slippery surfaces.
.Be extremelycareful if you must usethe pressure washer from
a ladder,scaffolding, or any other similar location.
•Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
WARHIHG
_ Contact with muffler result in serious
area can
burns.
_ Exhaustheat/gases can ignite combustibles,structures or damagefuel tank causing a fire.
•DO NOTtouch hot parts andAVOID hot exhaust gases.
.Allow equipment to cool before touching.
•Keepat least 5feet (152 cm) of clearanceon all sides of
pressure washer including overhead.
•Codeof FederalRegulation (CFR)Title 36 Parks, Forests,and
Public Property require equipment powered by an internal
combustion engine to have aspark arrester, maintained in
effective working order, complying to USDAForestservice
standard 5100-1C or later revision. Inthe State of California a
spark arrester is required under section 4442 of the California
Public resources code. Other states may havesimilar laws.
WARHIHG
The high pressure stream of water that this
equipment produces can cut through skin and its
_ nderlying tissues, leading to serious injury and
)ossible amputation.
Spray gun traps high water pressure, even when
engine is stopped and water is disconnected,
which can cause injury.
•DONOTallow CHILDRENto operate pressure washer.
.NEVERrepair high pressure hose. Replaceit.
•NEVERrepair leaking connections with sealantof any kind.
Replaceo-ring or seal.
•NEVERconnect high pressure hoseto nozzle extension.
.Keephigh pressure hoseconnectedto pump and spray gun
while system is pressurized.
•ALWAYSpoint spray gun in safe direction, pressred button
and squeezespray gun trigger to releasehigh pressure, every
time you stop engine.
•NEVERaim spray gun at people, animals, or plants.
.DONOTsecure spray gun in open position.
•DO NOTleavespray gun unattendedwhile machine is running.
.NEVERusea spray gun which does not haveatrigger lock or
trigger guard in place andin working order.
.Always be certain spray gun, spray tips and accessories are
correctly attached.
WARHIHG
_ Unintentionalsparking can result in fire or
_¢ electric shock.
WHENADJUSTINGORMAKINGREPAIRSTOYOUR
PRESSUREWASHER
.Disconnectthe sparkplug wire from the spark plug and place
the wire where it cannot contact spark plug.
WHENTESTINGFORENGINESPARK
.Use approved spark plug tester.
•DONOTcheck for sparkwith spark plug removed.

WARHJHG
Starter and other rotating parts canentangle
hands, hair, clothing, or accessories.
*NEVERoperate pressure washer without protective housing or
covers.
*DO NOTwear loose clothing, jewelry or anythingthat may be
caught in the starter or other rotating parts.
*Tie up long hair and remove jewelry.
WARNING
Risk of eye injury.
"_JSpraycan splash back or propel objects.
Always wear safetygoggles when using this equipment or in
vicinity of where equipment is in use.
Beforestarting the pressure washer, be sureyou are wearing
adequatesafetygoggles.
NEVERsubstitute safety glasses for safety goggles.
[ NOTICE
High pressure spray may damage fragile items including
[g ass.
L O NOTpoint spray gun at glasswhen using MAX (0°) nozzle.
NEVERaim spray gun at plants.
NOTICE
Improper treatment of pressure washer can damage it and
shorten its life.
If you have questions about intended use, ask dealer or contact
Sears.
NEVERoperate units with broken or missing parts, or without
protective housing or covers.
DONOT by-pass any safetydevice on this machine.
DONOTtamper with governed speed.
DONOToperate pressure washer above rated pressure.
DONOT modify pressure washer in any way.
Before starting pressure washer in cold weather, check all parts
of the equipment to besure ice has not formed there.
NEVERmove machine by pulling on hoses. Use handle
provided on unit.
Checkfuel system for leaksor signs of deterioration, such as
chafed or spongy hose,loose or missing clamps, or damaged
tank or cap. Correct all defects beforeoperating pressure
washer.
This equipment is designed to be usedwith Searsauthorized
parts ONLY.If equipment is usedwith parts that DO NOT
comply with minimum specifications, userassumes all risks
and liabilities.

KNOWYOURPRESSUREWASHER
_Head the Operator'sManual and safety rulesbeforeoperatingyourpressurewasher.
Comparethe illustrations with your pressurewasher to familiarizeyourself with the locations of various controls and
adjustments. Savethis manualfor future reference.
A-Spray Gun-- Controlsthe application of water onto
cleaningsurfacewith trigger device.Includestrigger lock.
B- PrecisionSprayTM Nozzles -- Max, General,Flush,Jet
Soap and DetergentNozzles:for various cleaning
applications.
C- Accessory Tray-- Providesconvenient storage for
accessories, such as gun, nozzles,etc.
O-Recoil Starter -- Used for starting the engine manually.
E-FuelTank-- Filltank with regular unleadedfuel. Always
leaveroom for fuel expansion.
F- Air Filter -- Protects engine by filtering dust and debris
out of intake air.
6- ThrottleLever-- Setsengine in starting mode for recoil
starter and stops a running engine.
H-ChokeLever -- Preparesa cold engine for starting.
J - Pump -- Developshigh pressure.
I{ - Automatic CoolDownSystem -- Cycleswater through
pump when water reaches125°-155°F. Warm water will
dischargefrom pump onto ground. This system prevents
internal pump damage.
L - High Pressure Outlet -- Connectionfor high pressure
hose.
M - Water Inlet -- Connectionfor garden hose.
N-Bottle Bracket -- Cleaningsolution bottle fits in wire
form bracket here.
P-NozzleExtensionwith QuickConnect-- Allows you to
switch betweenfive different PrecisionSprayTM nozzles.
R- Oil Fill/Dipstick -- Check,add and drain engine oil here.
S-HoseWrap and High PressureHose-- Hosewrap
provides easy transport and handling of the high pressure
hose. Connectone end of hoseto water pump and the
other end to spray gun.
T - FoldDownHandle-- Handleand accessorytray fold flat
atop cold engine for space-savingstorage.
U-ProjectPro@PerfectlVlWMSiphon -- Mixes concentrate
with pressure washer spray.
Items Not Shown:
DataTag (near rear of base plate} -- Provides model and
serial number of pressure washer. Pleasehavethese readily
availableif calling for assistance.
Safety Goggles-- Always usethe enclosedsafety goggles
when running your pressure washer.
Warning/Operating instructionsTag-- identifies hazards
and proper procedureto start/stop pressure washer.

Your pressure washer requires some assembly and is ready
for useonly after it has been properly servicedwith the
recommendedoil and fuel.
If you haveany problemswith the assemblyof your
pressurewasher, please call the pressurewasher heipline
at 1-800-222-3135.
UNPACKTHEPRESSUREWASHER
1. Removeeverything from carton exceptpressure washer.
2. Opencarton completely bycutting eachcorner from top
to bottom.
3. Removepressure washer from carton.
CARTONCONTENTS
Checkall contents. If any parts are missing or damaged,call
the pressure washer helpline at 1-800-222-3136.
•Main Unit
•Handle
•AccessoryTray
•High PressureHose
•Spray Gun
•NozzleExtensionwith Quick ConnectFitting
•Oil Bottle
•HoseWrap
•Parts Bag (which includes the following):
•Operator's Manual
•Owner's Registration Card
•SafetyGoggles
•Bottle BracketWirdorm (2)
•PerfectMixTM Siphoning Unit/Hose
•DetergentSiphoning Hose/Filter
•Bagcontaining 5 PrecisionSprayTM Nozzles
•FreshStart FuelCartridge
•HandleFasteningHardwareKit (whichincludes):
•HandleBolts (2)
•CarriageBolt (2)
•Plastic Knobsfor Handle(2)
•RopeGuide (1)
•Plastic Knob (3)
• TreeClips (4)
Becomefamiliar with eachpiecebefore assemblingthe
pressure washer. Identify all contents with the illustration on
page 6. If any parts are missing or damaged,callthe
pressure washer helpline at 1-800-222-3136.
4. Add oil to engine crankcase.
5. Add fuelto fuel tank and FreshStart fuel cartridge to fuel
cap.
6. Connectpressure hoseto spray gun and pump.
7. Connectwater supply to pump.
8. Attach nozzleextension to spray gun.
9. Select/attachquick connect PrecisionSprayTM nozzleto
nozzleextension.
Attach Handle and Accessory Tray
1. Placehandle (A) onto handlesupports (B) connectedto
main unit. Make sure holes (C) in handlealign with holes
(C) on handle supports. ,
....is
2. Insert handle carriagebolts (D)through holes from
inside of unit and attacha plastic knob (E)from outside
of unit. Tighten by hand. Byloosening both knobs to the
middle section of the attachment bolt, the upper handle
can fold forward to store flat atop the cold engine.
NOTE:DONOTfold the handle down while the engine is hot.
Placeaccessorytray (F) over holes (6) on handle
(viewing from back of unit). Pushthe tree clips (H) into
the holes until they sit flat againstthe accessorytray.
ASSEMBLINGPRESSUREWASHER
Your Craftsmanpressure washer will need assembly before
operation:
1. Fill out and send in registration card.
2. Attachhandle,accessorytray, rope guide and hose wrap.
3. Connectdetergent siphon hoseto pump.
, L I I
Insert multi-colored PrecisionSprayTM nozzlesand other
supplied accessories in spaces provided in accessory
tray. SeeHow to UseAccessory Tray.

,
,
,
Attach rope guide (A) through handlewith plastic knob
(B). Tighten by hand. Routeengine recoil rope through
guide.
Align hosewrap (C)to the back side of accessorytray.
Locate notch with "unlock" icon (D) on hosewrap.
Position notch attop with hosewrap in vertical position.
Clips in the back of accessorytray should slide into the
grooves on the inside surface of hose wrap. Slide hose
wrap on back of accessorytray and rotate 1/8 turn until
"locked"icon (E) is in vertical position. Hosewrap is
easily removed from the accessorytray for wrapping and
unwrapping ofthe high pressure hose. A clip to secure
the hose on the reelmakesit easyto wrap the hose
while it is detachedfrom the accessorytray.
-% \
Attach bottle brackets (F) to handle supports with
carriage bolt (G) and black plastic knob (H). Tighten by
hand. Xo
2-1N-1 Soap System
Thepressure washer is equipped with two detergent
siphoning hoses.
TM
Project ProPerfectMix Siphon
Bluetube with blue bottle cap: TM
When usingthe blue PerfectMix siphon, use
, the PerfectMixTM ExtremeConcentratestraight
i from the bottle
StandardSiphon Tube
Cleartube with filter:
When usingthe clear siphon tube, dilute
1 part PerfectMixTM ExtremeConcentrate
to 16 parts water (4 oz of concentrate
makes1/2 gallon of mix.)
Attach Project Pro@ PerfectMix TM Siphon to
Pump
Attach the hose end of the blue PerfectMWMSiphon (J) to
the barbed hosefitting (K) on the pump.
© ©
Attach PerfectMix TM Detergent Siphon to
Concentrate Bottle
PlacePerfectMixTM bottle (not included) in the wire-form
bracketon the handle. Removecap from bottle and insert the
PerfectMixTM Siphon (L). Screwthe siphon unit to the top of
the bottle (M). Usethe clip on the cap (L) to snapsiphon to
wire form bracketwhen siphon is not in a concentrate bottle.
©
Add Enoine Oil
1. Placepressure washer on a flat, ]eve]surface.
2. Cleanareaaround oil fill and removeyellow oil fill
cap/dipstick.
3. Using oil funnel (optional), slowly pour contents of
provided oil bottle into oil fill opening.
NOTICE
Improper treatment of pressure washer can damageit and
shorten its life.
DONOTattemptto crankor starttheenginebeforeit hasbeen
properlyservicedwiththerecommendedoil.Thismayresultin
anenginefailure.
4. Replaceoil fill cap/dipstick and fully tighten.

Add FueJ
Fuel must meet these requirements:
*Clean,fresh, unleadedgasoline.
. A minimum of 87 octane/87 AKI (91 RON).Highaltitude
use, see HighAltitude.
* Gasolinewith upto 10% ethanol (gasohol) or up to 15%
MTBE (methyltertiary butyl ether) is acceptable.
HOTJCE
Avoid pressure washer damage.
Failureto follow Operator's Manualfor fuel
recommendations voids warranty.
DONOTuseunapprovedgasolinesuchasE85.
DONOTmixoil in gasoline.
DONOTmodifyengineto runon alternatefuels.
Toprotectthe fuelsystemfrom gum formation, mix in a fuel
stabilizerwhenaddingfuel. SeeStorage.All fuel is notthe
same.If you experiencestarting or performanceproblemsafter
usingfuel, switch to a differentfuel provideror changebrands.
This engineis certifiedto operateon gasoline.Theemission
control systemfor this engineis EM(EngineModifications).
WARHJHG
f_ Fueland its vapors are extremely flammable and
explosive.
Fireor explosion can causesevere burns or
death.
WHEHADDINGFUEL
*TurnpressurewasherOFFandletit coolatleast2 minutes
beforeremovingfuelcap.Loosencapslowlyto relievepressure
in tank.
Fillfueltank outdoors.
DONOToverfilltank.Allowspacefor fuelexpansion.
.If fuelspills,waituntilit evaporatesbeforestartingengine.
*Keepfuelawayfromsparks,openflames,pilotlights,heat,and
otherignitionsources.
DONOTlighta cigaretteor smoke.
1. Cleanarea around fuel fill cap, remove cap.
2. Slowly add regular unleadedfuel (A) to fuel tank (U). Be
careful notto overfill. Allow about 1.5" (4 cm) (C) of tank
spacefor fuel expansion.
3. Installfuel capand wait for any spilled fuel to evaporate.
CAUTION!Alcohol-blended fuels (calledgasohol, ethanol or
methanol) can attract moisture, which leadsto separation and
formation of acids during storage.Acidic gascan damagethe
fuel system of an enginewhile in storage.
To avoid engine problems, the fuel systemshould be treated
with a fuel preserver or emptied beforestorage of 30 days or
longer. If adding a fuel preserver,fill the fuel tank with fresh
fuel. if only partially filled, air in the tank will promote fuel
deterioration during storage, if fuel preserver is not used,
drain the fuel tank, start the engineand let it run until the fuel
linesand carburetor are empty. Usefresh fuel next season.
SeeStoragefor additional information.
NEVERuse engine or carburetor cleaner products in the fuel
tank as permanent damagemay occur.
FreshStart FuelCap
Adding fuel preserver helps keepfuel fresh and carburetors
clean for easier starting, all season long. This new fuel cap
automatically drips concentrated fuel preserverinto your fuel
tank.
, DANGER
Contentsare harmful or fatal if swallowed. Avoid
_ ontactto eyes,skin or clothing. DONOTtake
internally.Avoid breathingthe mist or vapor.
Overexposureto eyes or skin can causeirritation.
Keepstabilizer out of the reachof children.
Fuelstabilizer is a hazardouschemical.**
o If SWALLOWED,callphysicianimmediately.
o Inthecaseof anemergency,contactaphysicianimmediately
andcall1-800-424-9380for materialsafetyinformation.
**Fuel stabilizer contains: 2,6-di-tret-butylphenol (128-39-2) and alipbatie petroleum
distillate (64742-47-8).
Placecartridge into fuel cap.
,
3.
/
Pushto "snap" cartridge into place.
Removetab to expose membrane.
IMPORTANT:DONOTremovethe silver foil sealon the
opposite side.
4. Reinstallfuel cap on fueltank.
5. Periodically checkthe cartridge to ensurethere is still
fuel stabilizer inside. If it is empty, removecartridge and
replace.

HighAltitude
Ataltitudesover5,000feet (1524meters),a minimum85 octane
/85 AKI(89 RON)gasolineis acceptable.Toremainemissions
compliant,high altitudeadjustmentis required.Operationwithout
this adjustmentwill causedecreasedperformance,increasedfuel
consumption,and increasedemissions.Seea qualifiedSears
dealerfor highaltitudeadjustmentinformation.Operationofthe
engineataltitudesbelow2,500feet(762 meters)with thehigh
altitudekit isnot recommended.
Connect Hose and Water Supply to Pump
NOTE:Removeand discardthe shippingcaps from the pump's
high pressureoutlet andwater inlet beforeattachinghoses.
NOTICE
DONOTrun the pump without the water supply connected
and turned on.
Damageto equipmentresultingfrom failuretofollowthis
instructionwillvoidwarranty.
Uncoil high pressure hoseand attach one end of hoseto
baseof spray gun. Tighten by hand.
WARHIHG
The high pressure stream of water that this
_ quipment produces cancut through skin and its
underlyingtissues, leadingto serious injury and
_ossibleamputation.
*NEVERconnecthighpressurehoseto spraytip extension.
*Keephighpressurehoseconnectedto pumpandspraygun
whilesystemispressurized.
*Alwaysbecertainspraygun,spraytips andaccessoriesare
correctlyattached.
2. Attach other end of high pressurehoseto high pressure
outlet on pump. Tighten by hand.
,Beforeconnectinggarden hoseto water inlet, inspect
inlet screen (A). Cleanscreen if it contains debris or have
it replacedif damaged.DONOTrunpressurewasher if
inlet screenis damagedor missing.
4. Runwater through garden hosefor 30 secondsto flush
it of debris. Turn off water.
IMPORTANT:DONOTsiphon standing water for the water
supply. Use ONLYcold water (less than I O0°F).
HOTICE
Using a OneWay Valve(vacuum breakeror checkvalve) at
pump inlet cancause pump or inlet connector damage.
ThereMUSTbeatleasttenfeetof unrestrictedgardenhose
betweenthepressurewasherinletandanydevice,suchasa
vacuumbreakeror checkvalve.
Damageto equipmentresultingfrom failureto followthis
instructionwillvoidwarranty.
5. Connectgarden hose (notto exceed50 feet in length) to
water inlet. Tighten by hand.
WARHIHG
,_ Riskof eyeinjury.
_Spray cansplash back or propel objects.
Alwayswearsafetygoggleswhenusingthis equipmentor in
vicinityof whereequipmentisin use.
Beforestartingthepressurewasher,besureyouarewearing
adequatesafetygoggles.
NEVERsubstitutesafetyglassesfor safetygoggles.
6. Turn ONthe water, press red button (B) on the gun and
squeezethe trigger to purge the pump system of air and
impurities.
Checklist Before Starting Engine
Reviewthe unit to ensureyou have performed all of the
following:
1. Besure to read SafetyRules and Operationsections
before usingthe pressure washer.
2. Makesure handle is in placeand secure.
3. Checkthat oil has beenadded to proper levelin engine
crankcase.
4. Add proper fuelto fuel tank.
5. Checkfor proper hoseconnections (high pressure and
water supply) and that there are no kinks, cuts, or
damageto the high pressure hose.
6. Provideproper water supply (not to exceedIO0°F).
10
