AMP FSR1 User manual

For Technical Support, Contact AMP
at [phone] (9 am - 5 pm PST)
or [e-mail]
Advanced Microwave Products
PO Box 1437
2465 Old Highway 40 West, Suite 200
Verdi, NV 89439
Connect antenna to SMA connector
Connect power, data, communications inputs to
the supplied Hirose DF13 mating connector
*see reverse side
Set conguration *see reverse side
STEP
STEP
STEP
Note When setting up your system, the transmit and receive
antennas should be greater than 25 feet apart to
prevent serious damage to or destruction of the
receiver’s front end
FSR1 Receiver Quick Start Guide

AQS-FSR1-D
How to Set Your Receiver Conguration
The FSR1 receiver has 15 pre-set congurations available for local selection via the rotary switch
located on the lid. Receivers ship from the factory with the 15 pre-sets congured with all options
“ON”and set to their max settings with the frequencies set per the table below. Pre-sets may be
changed as outlined in the ICD (Interface Control Document) via the communications port. Pre-sets are
reprogrammable using Remote Mode, selected when the rotary switch is set to zero.“Remote Only”
FSR1 receivers do not have a rotary switch installed. See the product manual for more details.
Frequency Band
“Cong Select” Preset
Preset 43 86 91 S2
1433.0 MHz 868.0 MHz 902 MHz 2400 MHz
2433.1 MHz 868.1 MHz 904 MHz 2407 MHz
3433.3 MHz 868.3 MHz 906 MHz 2414 MHz
4433.4 MHz 868.4 MHz 908 MHz 2421 MHz
5433.5 MHz 868.6 MHz 909 MHz 2428 MHz
6433.6 MHz 868.7 MHz 911 MHz 2435 MHz
7433.8 MHz 868.9 MHz 913 MHz 2442 MHz
8433.9 MHz 869.0 MHz 915 MHz 2450 MHz
9434.0 MHz 869.1 MHz 917 MHz 2457 MHz
A434.2 MHz 869.3 MHz 919 MHz 2464 MHz
B434.3 MHz 869.4 MHz 921 MHz 2471 MHz
C434.4 MHz 869.6 MHz 922 MHz 2478 MHz
D434.5 MHz 869.7 MHz 924 MHz 2485 MHz
E434.7 MHz 869.9 MHz 926 MHz 2492 MHz
F434.8 MHz 870.0 MHz 928 MHz 2499 MHz

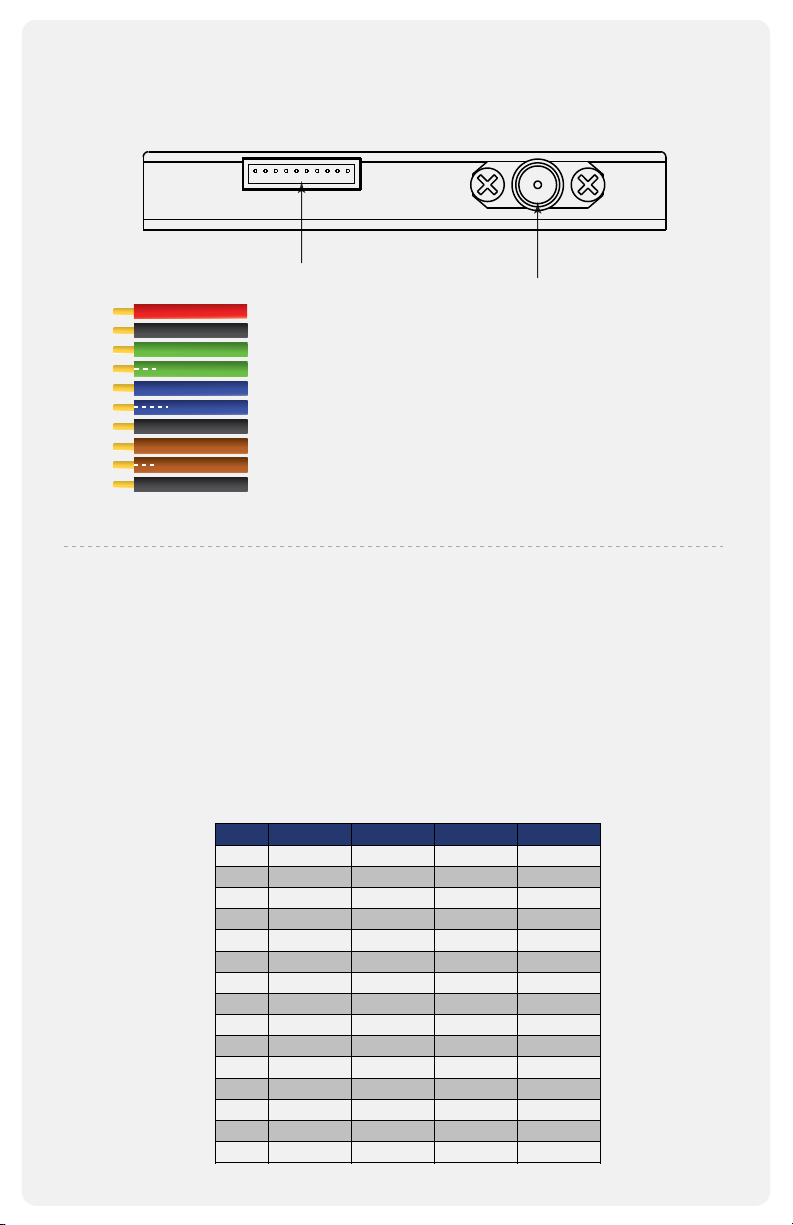

SMA Female
RF Input
(Connect to Antenna)
Hirose DF13:
Power/Data/Programming
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
+9 to 16 VDC Input
Ground
TX Comm +
NC/TX Comm-
RX Comm +
NC/RX Comm -
Ground
TTL Data
RS232 Data
Ground
Wiring Your FSR1 Receiver
Red
Black
Green
Green/White
Blue
Blue/White
Black
Brown
Brown/White
Black NC = No Connection
