Introduction
Welcome Thank you for choosing Amphion.
Your new speaker is based on the same advanced acoustical engineering,
which world's top sound engineers trust and enjoy daily. We have made our
products as room friendly and natural as possible, so that you can be touched
by the beauty of sound regardless of what you listen to. Kindly do not hesitate to
get in touch with us or your dealer in order to get most of investment. Timeless
design, best possible materials and the skilled hands of experienced Finnish
craftsmen are used in order to ensure years of daily pleasure.
Joy is best when shared. Please let us know via email or social media how you
or those close to you enjoy your Amphions.
Now unpack, connect, sit back, and experience them. Enjoy!
Anssi Hyvönen
Founder & Managing Director, Amphion Loudspeakers Ltd.
21

Please do not return/ship any product to amphion nor its resellers without prior
authorisation.
Amphion Loudspeakers Ltd. is awarded the right to use the
Association for Finnish Work’s Key Flag Symbol mark of origin.
This mark is granted to Finland-based organizations that
manufacture their products in Finland, having a minimum domestic
content of 50 percent.
Warranty
Handmade in Finland
Warranty and support
Amphion Enjoy products come with a five-year
warranty against defects in materials and our
workmanship. For warranty or out-of-warranty
service, in the first instance please contact your
original dealer, and provide a copy of the original
sales receipt. If you require additional assistance,
please contact your local country distributor. If
you have difficulty making contact with either of the
above, please contact our headquarters. For proper
unpacking, installation, positioning, and maintenance
instructions, please first check this manual thoroughly.
About us
Follow us
Amphion Loudspeakers Ltd. was established in 1998.
We design and build loudspeakers that are characterised by high-resolution,
unstrained low-level reproduction and pure driver integration. Our affordable
solutions are rather insensitive to room acoustics and fill any space with a wide
and even dispersion. A timeless yet flexible approach with regard to aesthetics
and application make Amphion products easy to match with individual styles
and preferences.
All products are handmade in Finland to ensure enduring listening quality.
amphion.
Social media
www.facebook.com/AmphionLoudspeakers
twitter.com/amphion_fi
www.youtube.com/user/AmphionLoudspeakers
www.instagram.com/amphion_loudspeakers
Amphion Sounds, corporate newsletter
www.amphion.fi/en/enjoy/signup
Company prole
43

Superb sound in any space
Helium is your first step on the road to a truly rewarding
audio experience. Whether you’re listening to music, using
streaming services, or watching a movie with family or
friends, the clear, natural sound quality brings it all to life.
Regardless of where a Helium speaker is placed in the
room, its controlled dispersion delivers pleasing, neutral
audio – even at low volumes.
Story
Helium line
Helium510 Helium520Helium410 Helium520C
Full white
White with black grids
Standard white
Black
Walnut
Stone grey
Beige brown
Turquoise blue
Sky blue
Heather violet
Trafc red
Sulfur yellow
Yellow green
RAL colour of choice
Helium speakers are
available in Full White,
Standard White, Black
and Walnut veneer.
Grids available in the
RAL-colours of your
choice.
Monochrome
Wood veneers
Colour grid options
65

This is either between the end of the waveguide and driver (single-woofer
product) or tweeter centre (two-woofer product).
For correct stereo imaging do not place speakers too far apart. Use a vocal
track where the singer is in the centre. Move speakers wider apart to hear the
“hole” developing in the middle of the soundstage, then move them closer until
channels integrate.
Start by aiming a direct line from the acoustic centre-point to outside your
shoulder line. Then “fine-tune” the sound to your liking. Note that highest treble
is always directive. Adding higher treble may actually smoothen the audio in
the upper-midrange.
Small wedges at either front or back edges of speaker help to align/aim the
acoustic centre to the listeners ear. It is not overly critical but helps achieve the
required sound.
Speaker placement
Acoustic centre-point
of the speakers
Phantom Centre
3D | Depth Information
Tilting - If Needed
for
Amphion
Loudspeakers
Ceiling and Wall
applications
Wall/Ceiling brackets
1 2 3
87

What is a Waveguide?
Waveguide: A generic term to describe a structure that directs sound waves,
with minimal loss of energy, by restricting their expansion to one or two
dimensions. It helps create a wide, even sweet spot - though highest treble is
always directive. It solves cabinet diffraction issues, aligns drivers, and makes
dispersion-patterns between drivers more even across a wide frequency-band.
Amphion's proprietary waveguide: Amphion is a frontrunner in waveguide
technology, and is widely recognised for their use of tweeter waveguides in
front of the driver to control directionality - incorporating a technology called
U/D/D (Uniformly Directive Diffusion).
Perfecting driver integration: The result is purer, more natural sound that is
less interrupted by room acoustics, and helps speakers deliver clarity and
naturalness - even when placed close to boundaries eg. walls, bookshelves,
desktops, or highly-reflective surfaces. It creates a large, broad sweet spot
suitable for busy modern living, where one cannot always sit in the sweet spot.
Time-adjusted drivers
All products use time-adjusted drivers and a 1600 Hz tweeter crossover.
This leads into point-source-like behavior and seamless driver integration.
Rock-solid “phantom” centre, life-like 3D imaging, and an extremely wide and
deep sweet-spot are characteristic of all Amphion products.
Technologies
109

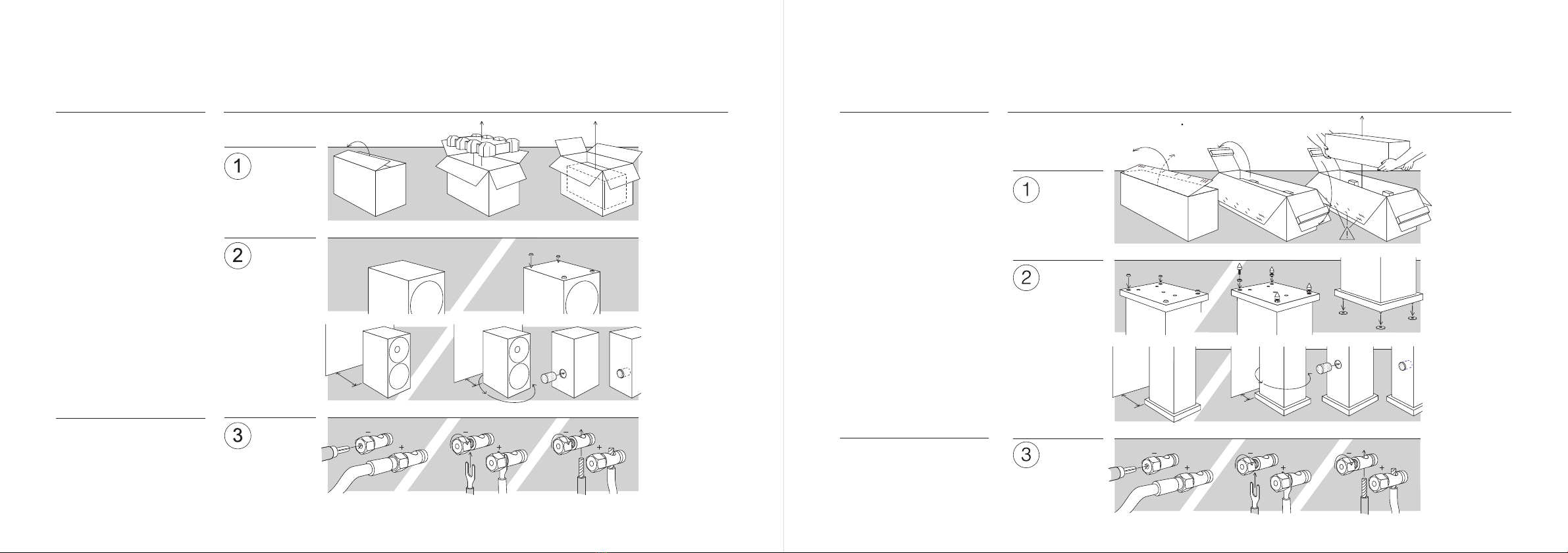

Instructions
Helium410 / Helium510 / Helium 520C
Unpacking
Connecting
Helium520
Unpacking
Connecting
1211

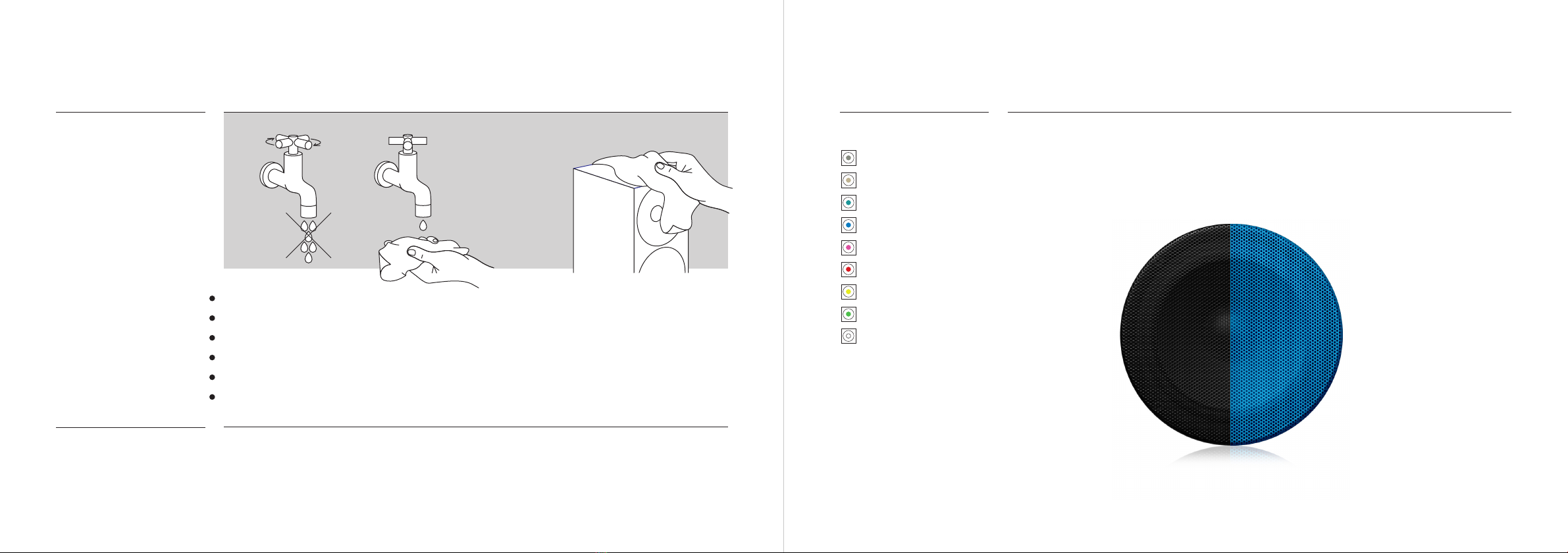

When setting or re-positioning speakers, wear soft cotton gloves.
To clean, use a soft cotton or microfiber cloth. Do not use excess rubbing-force.
Use water or CIF Multi-surface Window Cleaner (e.g. JIF, HANDY ANDY, VIM, VISS).
Spray cleaner onto the cloth first, rather than directly onto the cabinet.
Test-clean a small area on the back or under the cabinet to check surface reaction.
When cleaning the walnut-finish, wipe in the direction of the wood-grain.
Individual support
Cleaning Amphion loudspeakers come with grids of your colour of choice. Do you want
to change the looks later on?
Just pick another colour and replace the grids.
Care
Typically, a wide variety of factors influence loudspeakers’ performance. Please
contact your local Amphion dealer or sales representative for specification,
connectivity and positioning recommendations for your specific system. For
more information, you can also be in touch with Amphion headquarters.
Loudspeaker grids
Stone grey
Beige brown
Turquoise blue
Sky blue
Heather violet
Trafc red
Sulfur yellow
Yellow green
RAL colour of choice
Colour grid options
1413

Technical specications
Helium410
259 mm (10¼")
134 mm (5¼")
220 mm (8¾")
Two-way, vented
1” titanium tweeter
4½” paper woofer
259 x 132 x 220 mm
4 kg (9 lbs)
1600 Hz
8 Ω
86 dB
52 – 25.000 Hz -6dB
20 – 80 W
Physics
Operating principle
Tweeter
Mid / woofer
Measurements
Weight
Performance
Crossover point
Impedance
Sensitivity
Frequency response
Power recommendation
Variations
Monochrome
Wood veneer
Colour grids
Helium510
Two-way, vented
1” titanium tweeter
5¼” paper woofer
316 x 160 x 265 mm
6 kg (13 lbs)
1600 Hz
8 Ω
86 dB
48 – 25.000 Hz -6dB
20 – 100 W
Physics
Operating principle
Tweeter
Mid / woofer
Measurements
Weight
Performance
Crossover point
Impedance
Sensitivity
Frequency response
Power recommendation
Variations
Monochrome
Wood veneer
Colour grids
316 mm (12½")
160 mm (6½")
265 mm (10½")
1615

Helium520C
Two-way, vented
1” titanium tweeter
2 x 5¼” paper woofer
510 x 160 x 265 mm
9 kg (20 lbs)
1600 Hz
4 Ω
90 dB
48 – 25.000 Hz -6dB
10 – 150 W
Physics
Operating principle
Tweeter
Mid / woofer
Measurements
Weight
Performance
Crossover point
Impedance
Sensitivity
Frequency response
Power recommendation
Variations
Monochrome
Wood veneer
Colour grids
160 mm (6½")
510 mm (20")
265 mm (10½")
Helium520
Two-way, vented
1” titanium tweeter
2 x 5¼” paper woofer
1072 x 218 x 270 mm
17 kg (38 lbs)
1600 Hz
4 Ω
90 dB
40 – 25.000 Hz -6dB
10 – 150 W
Physics
Operating principle
Tweeter
Mid / woofer
Measurements
Weight
Performance
Crossover point
Impedance
Sensitivity
Frequency response
Power recommendation
Variations
Monochrome
Wood veneer
Colour grids
1072 mm (42¼")
1040 mm (41")
218 mm
(8¼")
160 mm
(6¼")
270 mm
(10½")
215 mm
(8½")
Technical specications
1817

Amphion Loudspeakers Ltd.
Kiveläntie 4
70460 Kuopio
Finland
[phone]
[email protected]
amphion.fi
