JBL Control Contractor 60 Series User manual

bvHARMAN

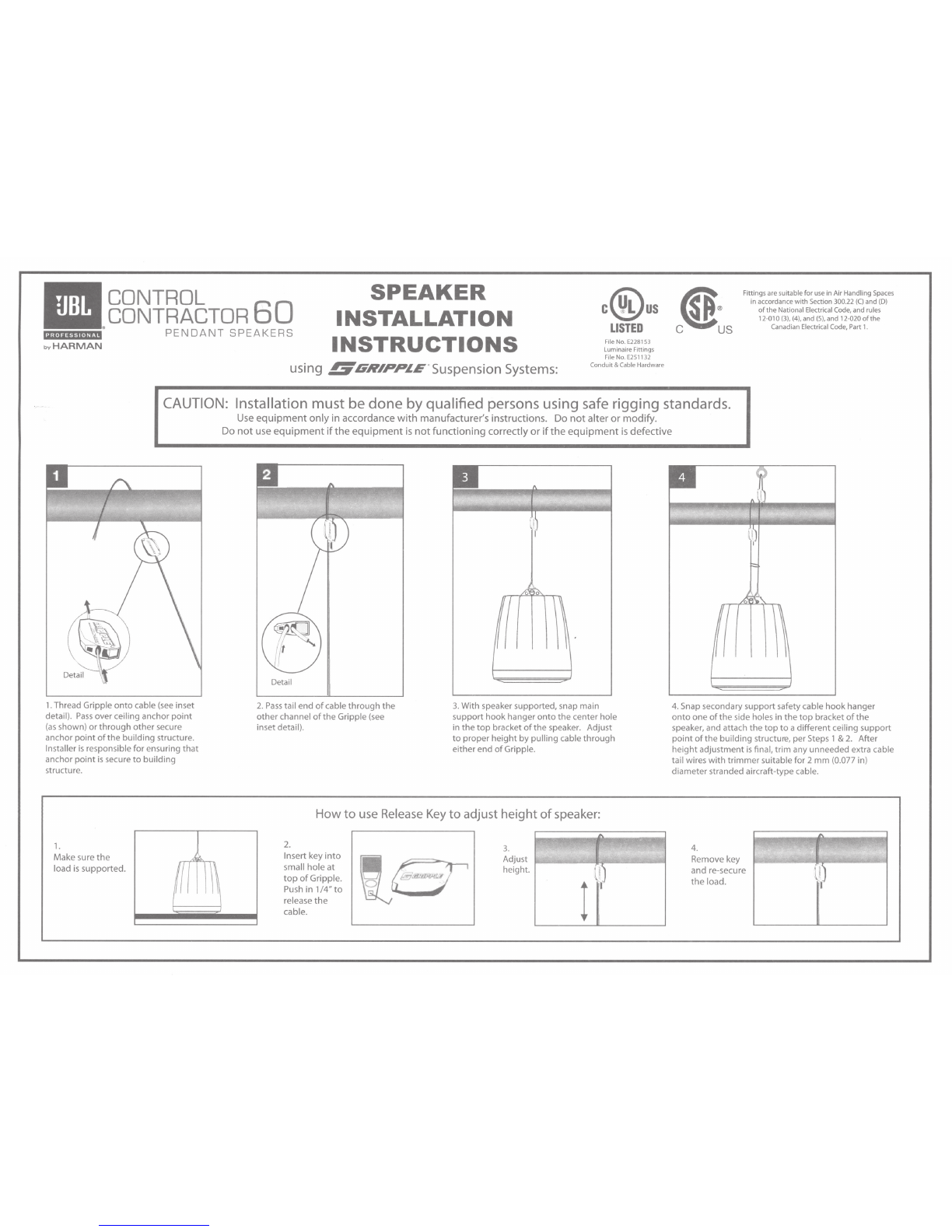

CONTROL
CONTRACTOR 60
PENDANT SPEAKERS
SPEAKER
INSTALLATION
INSTRUCTIONS
using ••uRIPP~E · Suspension Systems:
c@us
LISTED
File No. E228153
Luminaire Fittings
File No.
E25 1132
Conduit& Cable Hardware
c~~s
Fi tt i ngs are suitable for use in A ir Handling Spaces
in accordance with Section 300.22 (C) and (D)
of the Nat ion al Electrical Code, and rules
12 -010 (3), (4), and (S), and 12-020 of the
Canadian Electrical Code , Part 1.
CAUTION: Installation must be done by qualified persons using safe rigging standards.
1. Thread Gripple onto cable (see inset
detail).
Pass overceiling anchor point
(as shown) or through other secure
anchor
point of the building structure.
Installer
is responsible for ensuring that
anchor point is secure to building
structure.
1.
Make sure the
load is supported.
Use equipment only in accordance with manufacturer's instructions. Do not alter or modify.
Do
not use equipment if the equipment is not functioning correctly or if the equipment is defective
Detail
2. Pass tail end of cable through the
other channel ofthe Gripple (see
inset detail).
3. With speaker supported, snap main
support hook hanger onto the center hole
in the top bracket of the speaker. Adjust
to proper height by pulling cable through
either end of Gripple.
How to use Release Key to adjust height of speaker:
2.
Insert key into
small hole at
top of Gripple.
Push in 1 /4" to
release the
cable.
3.
Adjust
height.
.I\.
...,..: ·~··
! :l
4. Snap secondary support safetycable hook hanger
onto one of the side holes in the top bracket of the
speaker, and attach the top to a different ceiling support
point of the building structure, per Steps 1& 2. After
height adjustment isfinal, trim any unneeded extra cable
tail wires
with trimmer suitable for 2 mm (0.077 in )
diameter stranded aircraft-type cable.
4.
Remove key
and re-secure
the load.
[ • y
:)

I
See
OtherSide
for
Speaker Installation tnstructions I

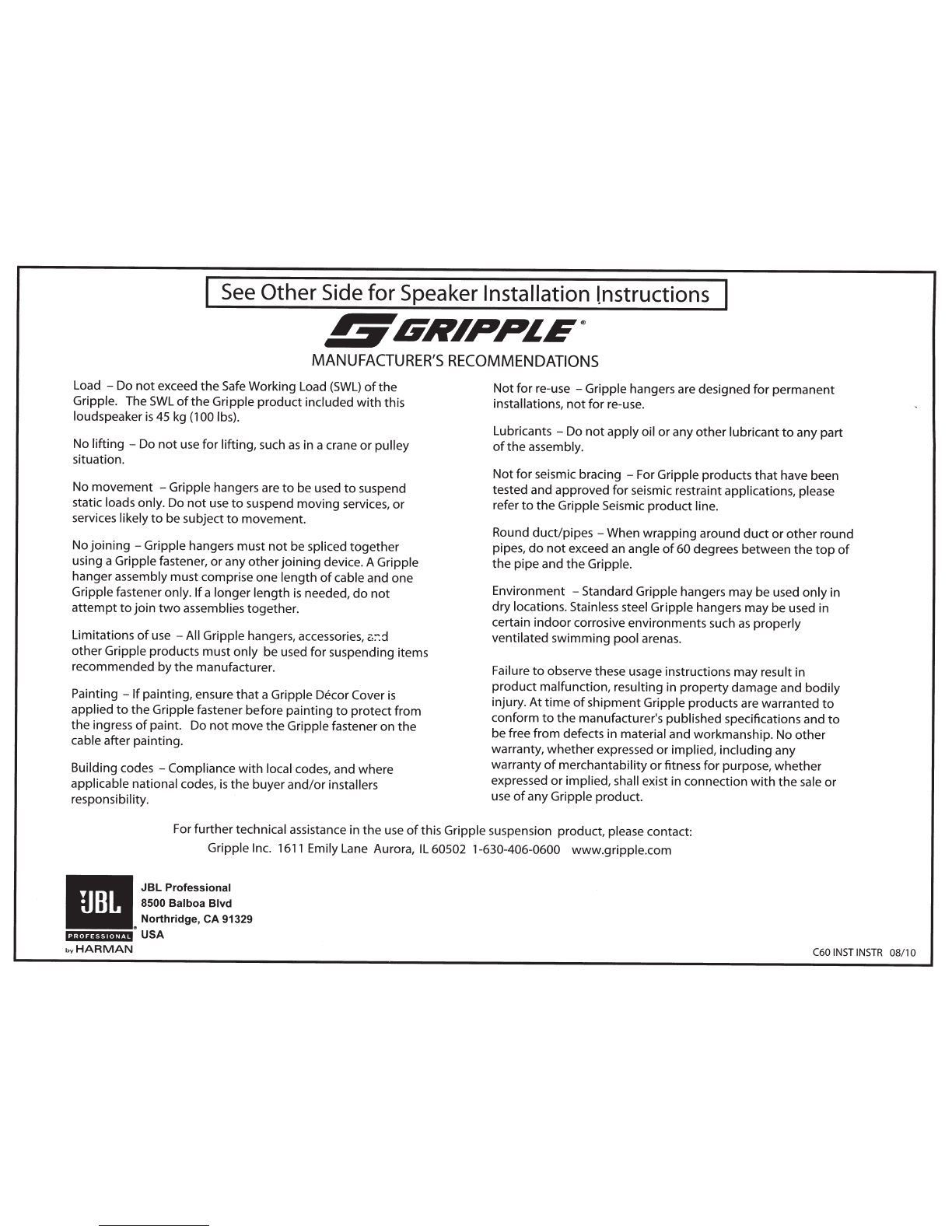

J:rURIPPLE
~
MANUFACTURER'S
RECOMMENDATIONS
Load -Do
not
exceed the
Safe
Working Load
(SWL)
of
the
Gripple. The
SWL
of
the
Gripple productincluded
with
this
loudspeaker
is
45
kg
(1
00 lbs).
No
lifting
-Do
not
use
for
lifting, such
as
in acrane or pulley
situation.
No
movement -Gripple hangers are
to
be used
to
suspend
static loads only. Do
not
use
to
suspend moving services, or
services likely
to
be subject
to
movement.
No
joining
-Gripple hangers must
not
be spliced together
using aGripplefastener, or any other
joining
device. A Gripple
hanger assembly must comprise one length
of
cable and one
Gripple fastener only.
If
a longerlength
is
needed,
do
not
attempt
to
join
two
assemblies together.
Limitations
of
use
-All
Gripple hangers, accessories,
&:-:d
otherGripple products mustonly be used for suspending items
recommended bythe manufacturer.
Painting -
If
painting, ensure thataGripple Decor Cover
is
applied
to
the
Gripple fastener before painting
to
protectfrom
the ingress
of
paint. Do
not
move
the
Gripplefastener on
the
cable after painting.
Building codes
-Compliance
with local codes, and where
applicable national codes,
is
the
buyerand/orinstallers
responsibility.
Notfor re-use -Gripple hangers are designed for permanent
installations,
not
for re-use.
Lubricants -Do
not
applyoil orany otherlubricant
to
any part
of
theassembly.
Notfor seismic bracing -For Gripple products
that
have been
tested and approved forseismic restraint applications, please
refer
to
the
Gripple Seismic product line.
Round duct/pipes
-When
wrapping around
duct
or otherround
pipes,
do
not
exceed
an
angle
of
60
degrees between the
top
of
the
pipe and
the
Gripple.
Environment
-Standard
Gripple hangers may be used
on
ly in
dry
locations. Stainless steel Gripple hangers may be used in
certain indoorcorrosive environments
suc
h
as
properly
ventilated swimming pool arenas.
Failure
to
observe these usage instructionsmay result in
product malfunction, resulting in property damage and bodily
injury. At
time
of
shipmentGripple products are warranted to
conform
to
the
manufacturer's published specifications and
to
be free from defects in material and workmanship. No other
warranty, whetherexpressed
or
implied, including any
warranty
of
merchantability
or
fitness for purpose, whether
expressed
or
implied, shall exist in connection
with
the
sa
le or
use
of
any Gripple product.
For furthertechnical assistance in
the
use
of
this Gripple suspension product, please contact:
Gripple Inc.
1611
Emily
Lane
Aurora,
IL
60502 1-630-406-0600 www.gripple.com
a
JBL
Professional
I
8500
Balboa
Blvd
A
Northridge,
CA
91329
USA
PROFESSIONAL
bvHARMAN
C60 INST
INSTR
08
/10

II
Control®
6SP
IT
Compact
Full-Range
Pendant
Loudspeaker
with
RBI
Professional
Series
Key
Features:
~
JBL's exclusive conical Radiation Boundary
Integrator• (RBI) technology provides
consistent and wide 120° coverage
of
the
li
stening area.
~
Coaxial design featuring 130 mm (5\4 in)
woofer and
20
mm
(%
in) soft-dome tweeter.
~
Hanging hardware with 4.5 m (15 foot)
galvanized steel cable and easy to adjust
clamp.
~
Stylish design, available
in
black
or
white
(-WH).
~
UL
listed (speaker
and
hanging cable system).
~
8
ohm
and 70V/100V operation.
Applications:
The Control 65P/T
is
a compact full-range,
two-way pendant-type loudspeaker that provides
superb
sound reproduction
and
very consistent,
wide coverage for rooms with
open
architecture
ceilings and other locations where a
pendant
form factor
is
desired.
JBL
's patent-pending Radiation Boundary
Integrator• (RBI) technology, adapted from the
groundbreaking
VERTEcTM
Series
of
line array
loudspeakers,
de
li
vers consistent coverage
of
the
li
stening area. Combining a large 200 mm (8 in)
diameter waveguide w
ith
low-frequency
projection apertures, the two coaxia
ll
y-mounted
drivers provide a seamless integration
of
coverage, resulting
in
extremely
even
pattern
control and coverage
whe
re
all
listeners hear a
consistent, high-fidelity
sound
quality. The wide
120° coverage pattern allows for the use
of
fewer speakers, reducing the cost
of
the
installed system without sacrificing performance.
Exce
ll
ent
sound
quality
coup
l
ed
with stylish
design and easy installation makes the Control
65P/T ideal for a wide variety
of
applications
in
cluding reta
il
, restaurants, hotels, casinos,
fitness centers, convention centers, exhibit
spaces, conference rooms, atrium
s,
museums,
transit centers
and
ot
h
er
open-ceiling
applications.
The Control 65P/T includes a single-point
mounting system for easy and secure suspension
in
open-ceiling
app
lications.
Two
complete
hanging cable systems are included, providing
bot
h main and safety suspension cables. Include
are extra-l
ong
4.5 m (15 foot) high tensile
galvanized steel wire rope having spring clips
for the loudspeaker
end
of
the cable and UL
listed cable fasteners for infinitely adjustable
suspension height.
The system's 130 mm (5\4 in) low-frequency
driver features a polypropylene-coated
cone
and
25
mm
(1
in)
copper
voice co
il
with vented
fiberglass resin coil-former for high
power
handling and improved long-term reliability. The
coaxia
ll
y-mounted
20
mm
(3,4
in) textile soft-
dome
high fr
equency
driver features internal
damping for smooth extended response, along
with
an
aluminum voice coil former and
neodymium magnei assembly with ferro-fluid
cooling, for high-fidelity
sound
quality with
enhan
ced
long-term
sound
lev
el
capability.
The Control 65P/T contains a high-quality
60
Watt
multi-tap transformer for use
on
70V
/100V
distributed loudspeaker lines. and
is
switchable
for 8-ohm voice-coil direct operation.
houro-style clip-in connectors allow for easy
wirin
g.
For protected
outdoor
applications.
rubber
bo
ots are included to cover the input
connectors, and an optional terminal cover
is
available for harsher lOcations.
Shown
with
included
grille
removed

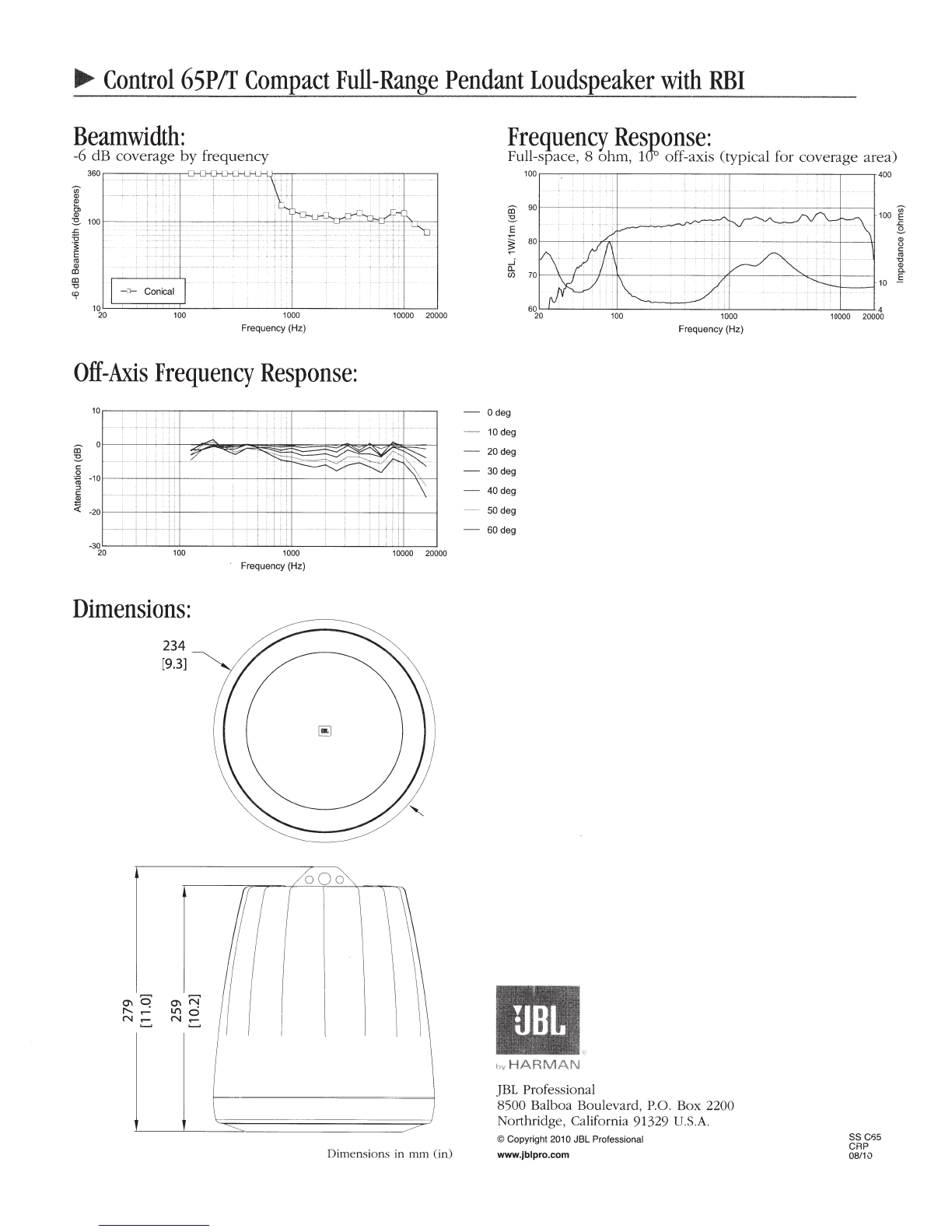

Specifications:
System:
Transducer:
E
nclo
s
ur
e:
Frequency Response (-
10
dB)':
55
Hz-
20kHz
Frequency Range (±3 dB)': 78 Hz -18 kHz
Power Capacity':
75
Watts Continuous Pink Noise Power
(w
it
h 300 Watts peaks)
150
Watts
Continuous Program Power
Nominal Sensitivity: 86 dB
Nominal Coverage Angle': 120° (
+
20°/-10°)
Directivity
(Q)':
5.3
Directivity Index
(
01)
':
7.2 dB
Rated Maximum
SPL
@ lm: 105 dB continuous pink noise,
Ill
dB peak
Rated Impedance: 8 ohms
Transformer Taps:
70V:
60W,
30W,
15W
& 7.5W
IOOV:
60W,
30W,
1
5W
Transformer Insertion
Loss:
0.5
dB@
7.5
W,
0.5
dB@
15
W,
0.6
dB@
30
W,
0.7
dB@
60
W
LF
Driver: 130 mm
(51'4
in) polypropylene-coated
paper
with pure butyl rubber
surround,
25
mm
(1
in)
copper
voice coil, vented fiberglass res
in
voice coil-former
HF Driver:
20
mm
('!'
in) textile soft-dome, n
eodym
ium magnet assembly,
ferro-fluid cooling, aluminum voice co
il
former
Enclosure Material: High impact
po
lystyrene
Gr
ill
e:
Zinc-plated steel grille with powder-coat finish, foam backing
(removable for painting)
Environmental: Exceeds
Mil
Spec 810 for humidity,
sa
lt spray, temperature
&
UV.
IP4
4 capability per I
EC
529 -splashproof rating.
TerminaLion:
Two
removable locking euro-block 2-pin connectors with screw-
down
terminals for
bare
wire. Connectors paralleled for input
and
loop-thru. Max. wire
12
AWG
(2.5 mm2). Rubber terminal covers
included.
Suspension:
Two
identical suspension systems
(o
ne
as
main suspension cable
and
the
other
as safety cable), each consisting
of
4.5 m
(15ft)
long
2 nun (0.077
in
) high-tensile galvanized-steel wire
rope
suspension
cable with spring-clips for clipping
onto
the loudspeaker bracket
and Gri
pp
l
e'"
brand adjustable-height cable fasteners for
infi
nitely
adjustable height. Cables have
SWL
rating
of
45
kg (99 I
b).
Safety Agency Ratings: Spea.ker listed
per
ULJ480, transformer r
eg
istered per
UL1876.
In
accordance with IEC60849/EN60849. Suspension system and
Gripple'-brand cable fastener listed
per
ULI598
and
UL2239,
TUV,
and
CSA
Class 3426-01
&
Class 3426-81
Dimensions:
234
mm (9.3 in) diameter x 259 mm (10.2 in) height to top
of
cabinet.
279
mm (11.0 in)
to
top
of
suspension bracket.
Net Weight (ea): 3.7 kg (8 lbs)
Sh
ipping Weight (pair): 8.7 kg (19 lbs)
llnclud
ed
Accessories: Two suspension cable systems (see "Suspension", above), two 2-pin
removable locking
euro-block
connectors,
two
rubb
er
covers for
euro-b
l
ock
connectors.
Optional Accessories: MTC-PC60 top
pane
l I terminal cover
Color
s:
Available
in
black or white (-WI!). Paintable.
' Full-space (suspended)
l
Continuous Pink Noise ldting
is
IEC-shaped pink noise with a 6 dB p<:ak-to-average
crest
factor for
100
hours
continuously. Continuous Program power is a conservat
iv
e
express
ion
of
the
~ystem's
ability
to
handle normal speech
and
music
program material and
is
defined
as
3 dB
alx>ve
the
Continuous Pink Noise rating.
·1
Full-space (suspend
in
free
air). average 1
kHz
to
10 kHz.
JBL
continually engages
in
re~arch
related
to
product improvement Changes introduced into existing products
vJithout
notice are
an
expression
of
that
philosophy.

.....,
Control65P!f
Compact
Full-Range
Pendant
Loudspeaker
with
RBI
Beamwidth:
-6
dB coverage
by
frequency
360
,-----,--------,---,-,--,-D--LJ-0-LJ-LHJ-<LH..J
--,--,--------,----,
1000
Frequency (Hz)
10000 20000
Off-Axis
Frequency
Response:
in
~
c:
.Q
iO
:::1
c:
:1
<
Dimensions:
q
~
~
234
[9.3]
~~
1./')0
N:::::,
/oo~
f(I
\
~
I
Dimensions
in
mm
(in)
-
-
-
-
-
Frequency
Resoonse:
Full-space, 8 ohm,
1&
off-axis (typical for coverage area)
100,------,--------,-------,----,400
in
go
f--
----+-------+---
- -
--
--+---<
1oo
E!
~
~
E
~
.£.
1l
c:
"'
-o
"
~~~~~-----
-7~
--
-~r---+--
~
~
---1-------l
1
o E
~~--~~======:_~10~00-----~1~00~00~2~00~·
Frequency (Hz)
0
deg
10deg
20deg
30deg
40 deg
50
deg
60
deg
bv
HARMAN
]BL
Professional
8500 Balboa Boulevard, P.O. Box 2200
Northridge, California 91329
U.S.A.
© Copyright 2010
JBL Professional
www.jblpro.com
SSC65
CAP
08/10
