At a glance
Please open this page for “At a glance“ guide to your PowerTel 60 plus

Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)
A T A GLANCE
+60dB

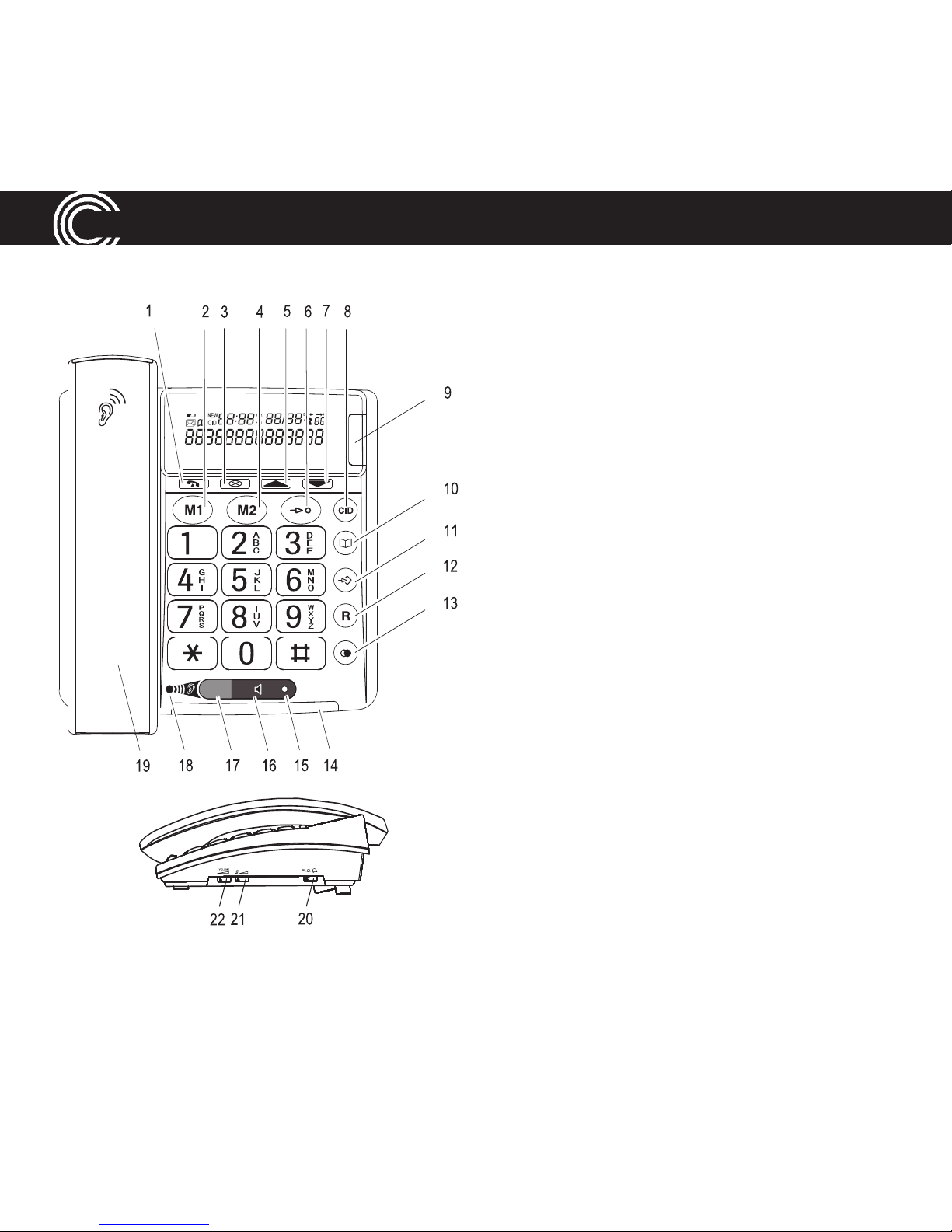

1 Call back button
2 One−touch dialling button M1
3 Delete / Store
4 One−touch dialling button M2
5 Scroll upwards
6 Quick dial button
7 Scroll downwards
8 Calls list (CID) / Cancel
9 New call indication (see page 30)
10 Phone book
11 Save number button
12 R button
13 Redial button
14 LED, telephone is ringing
15 LED, handsfree mode
16 Handsfree mode button
17 Receiver boost button
18 Volume boost on LED
19 Control knob, receiver volume
(hidden under handset)
20 Ring volume slide control
21 Tone slide control
22 Handsfree volume slide control

Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)

Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation) 1
CONTENTS
Getting started...........................................................................................................6
Check box contents ...............................................................................................6
Connecting the telephone.....................................................................................7
Wall mounting........................................................................................................9
Display icons ........................................................................................................11
First use ................................................................................................................12
Making and receiving calls .....................................................................................16
Dialling a telephone number ..............................................................................16
Ending a call.........................................................................................................16
Taking a call..........................................................................................................17
Activating/deactivating handsfree mode...........................................................17
Boost the handset earpiece volume ..................................................................18
Setting the handset receiver volume.................................................................18
Setting the handset receiver tone ......................................................................18
Setting the handsfree volume ............................................................................18
Dialling a telephone number using the redial function ...................................19
Calling back missed calls ...................................................................................19

Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)
22
CONTENTS
2
Dialling a telephone number from the phone book.........................................20
Dialling a telephone number using quick dialling............................................21
One-touch dialling / Emergency call ..................................................................22
Phone settings .........................................................................................................24
Ringer volume......................................................................................................24
Phone book ..........................................................................................................24
Quick dialing ........................................................................................................28
One-touch dialling / Emergency call ..................................................................29
Calls list.................................................................................................................30
To modify the settings.........................................................................................32
Special use ...........................................................................................................34
Appendix...................................................................................................................36
Safety notes .........................................................................................................36
Intended use.........................................................................................................36
Installation location .............................................................................................36
Power supply .......................................................................................................37
Hearing aid compatibility....................................................................................37

Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation) 3
INHALTSVERZEICHNISCONTENTS
Disposal ................................................................................................................38
Help and support / Troubleshooting guide .......................................................39
Maintenance.........................................................................................................40
Guarantee .............................................................................................................40
Declaration of conformity ...................................................................................41
Index..........................................................................................................................44
Notes.........................................................................................................................46

44
INHALTSVERZEICHNIS

Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation) 5
Telefon in
Betrieb nehmen
5
Getting started
Service-Hotline Deutschland 01805 001388
(Kosten bei Drucklegung: 14 ct/Min. aus dem dt. Festnetz, max. 42 ct/Min. aus den Mobilfunknetzen)
Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)

Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)
GETTING STARTED
6
Getting started
Check box contents
You should have:
• 1 corded phone base
• 1 handset
• 1 coiled cord for handset
• 1 power adapter
• 1 telephone line connector cable
• 1 wall−mounting bracket
• 1 user guide
Important: please make sure you’ve read the safety information on page 36
before you set up your phone system.
Important: Your phone can produce very high sound when Boost is
switched on. Please take care if the handset is used by others.

Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)
TELEFON IN BETRIEB NEHMEN
7
TELEFON IN BETRIEB NEHMEN
Connecting the telephone
For using all features e. g. Hands-Free and Amplification it is essential that the
telephone is powered by the power supply and the batteries (not supplied).
1. Insert the batteries in the open battery
compartment.
Only use batteries of the type AA 1.5 V.
Pay attention to the correct polarity.
Close the battery compartment cover.
Pay attention that the telephone is not connected to the telephone line sock-
et and/or mains power connection when the batteries are being inserted or
replaced.
Important:
• Use only the power adapter supplied with your telephone.
• Use only the telephone cable supplied with your telephone otherwise
your phone may not work.
GETTING STARTED

TELEFON IN BETRIEB NEHMEN
2. Connect the telephone as illustrated in the diagram. Only use the telephone
cable supplied because the equipment may not function if another tele-
phone cable is used.
In order to use an approved shaker unit, connect the shaker unit plug to the
“Vibrat.“ socket in the telephone. No other work is necessary.
The shaker unit is ready to operate immediately after connection.
The shaker unit does not belong to the material supplied.
Mains power
wall socket Telephone wall
socket
8
TELEFON IN BETRIEB NEHMEN
Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)
GETTING STARTED
Shaker unit
(Option)

Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)
GETTING STARTED
9
Wall mounting
The telephone can also be installed on a wall. You require two screws in order
to fix the telephone on a wall.

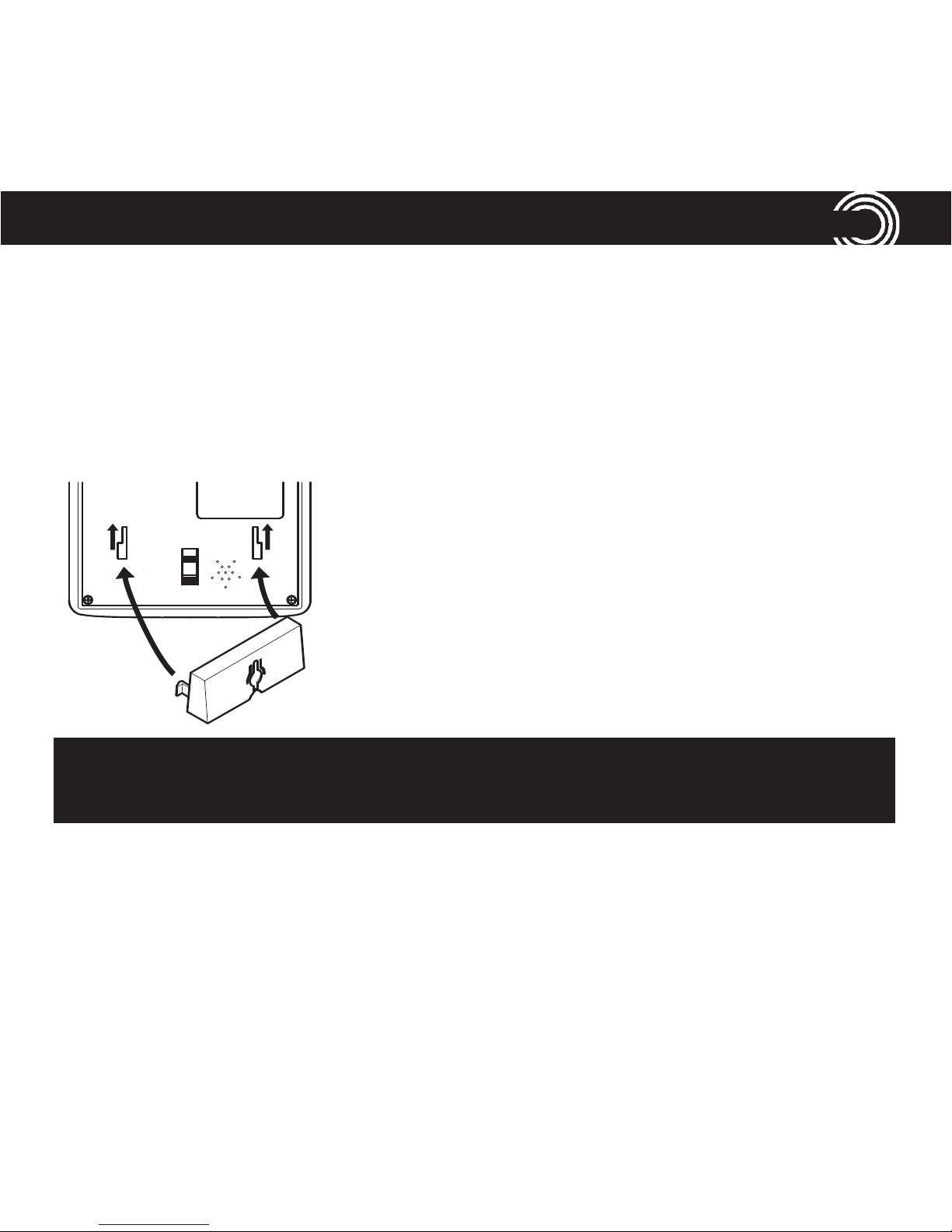

Feed the guide tabs (1) on the wall−mounting bracket (2) in the slots (3) on the
rear side of the telephone. Slide the wall bracket (2) 10 mm upwards until it
audibly snaps into place.
Drill two holes whose distance apart corresponds to the bracket to be used,
insert the screws and allow them to project 5 mm from the wall.
Position the telephone on the bracket, fit the screws in the slots and slide the
telephone downwards a little.
1
33
2
Warning: Ensure that there are no cables or pipes etc. under the surface of
the wall where you want to drill the holes.

GETTING STARTED
10
Turn the receiver hook (4) in the receiver cradle 180° so that the receiver can be
hooked in.
i
4
4
4
4
4
Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)

GETTING STARTED
11
Display icons
Replace the batteries.
14:45 Display of the time.
11/06 Display of the date.
The phone book is open.
CID The calls list is open.
NEW The entry in the calls list is new.
Indicates a repeat call.
Position number in the call list.
TOTAL:XX There are XX entries in the call list.
NEW:XX There are XX new entries in the call list.
Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)

Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)
GETTING STARTED
12
First use
When connecting the telephone to the power supply or after inserting the bat-
teries for the first time you will be asked for some settings.
If this settings procedure is aborted, e. g. by lifting the handset, you can do
these settings later at any time (see page 32).
In the display DEUTSCH is flashing (setting on delivery).
Use or to select the desired language.
Press to confirm the setting.
The display shows LCD CONTRAST.
Use or to change the contrast (
1234).
Press to confirm the setting.
The display shows SET TIME/DATE with the “hours“ flashing.
Set the hours using or and press .
12

Set the minutes using or and press .
Set the day using or and press .
Set the month using or and press .
The display shows TONE flashing.
Use or to select the dialling mode (if necessary). In most situati-
ons the Tone option should be selected. You won’t have to change anything.
Simply press .
The display shows FLASH TIME flashing.
Use or to select the flash time (if necessary). In most situations
100 ms (setting on delivery) should be selected. You won’t have to change any-
thing. Simply press .
GETTING STARTED
13
Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)

Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)
14
Your telephone is ready to use and shows the idle display.
You can change this settings later at any time. For more information please
refer to page 32.
GETTING STARTED

Service-Hotline Deutschland 01805 001388
(Kosten bei Drucklegung: 14 ct/Min. aus dem dt. Festnetz, max. 42 ct/Min. aus den Mobilfunknetzen) 1515
Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)
Making and
receiving calls

TELEFONIEREN
Making and receiving calls
Dialling a telephone number
To start a call you have the following options:
- lift the handset and enter the phone number.
- enter the phone number and lift the handset.
or alternatively
- enter the phone number and press or .
Handsfree mode will be activated and the phone number will be dialled (for
handsfree mode power supply/batteries necessary).
• During a call you can see the call time on the display.
Ending a call
For ending a call you can:
- replace the handset.
or alternatively
- press if the call was made in handsfree mode (the red LED within the
handsfree button is on).
16
TELEFON IN BETRIEB NEHMEN
Helpline UK 0844 800 6503
(See page 39 for costs and hours of operation)
MAKING AND RECEIVING CALLS
