AmTryke 30-1500 User manual

Revise Date: 6/24/09 Page 1 of 4
AmTryke Snappy Seat #30-1500
This seat may be used on the Snappy Tricycle (#50-0150), AM-9 models (#50-0102) and AM-12 (#50-0210 using
special mounting bracket #30-1503)
Carton Contents Tools Required
1-Padded seat back 1-Seat Belt 1-5/32 Allen Wrench
1-Padded head rest 1-Metal seat bracket
1-Padded seat
2-Threaded seat knobs

Revise Date: 6/24/09 Page 2 of 4

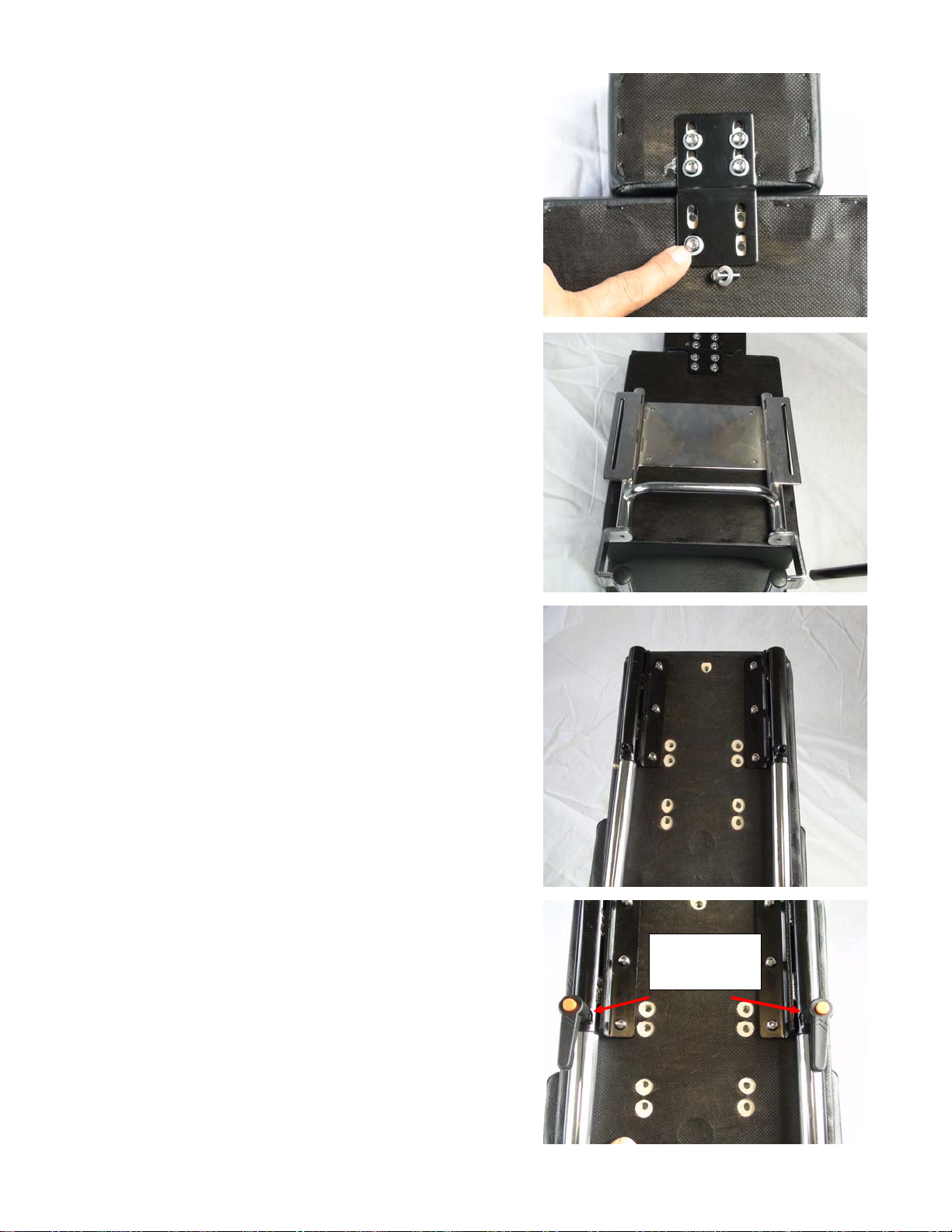

1) Attach the padded head rest to the padded back by
using four Allen screws and four flat washers as
shown. Use a 5/32 Allen wrench to tighten.
2) Attach the metal seat bracket to the back side of the
padded back using four Allen screws and four flat
washers as shown. Use a 5/32 Allen wrench to tighten.
Note: Two round metal rods point towards the front.
3) Slide the padded seat over the metal seat rails as
shown.
4) Insert the two threaded knobs and tighten.
Threaded
Knobs

Revise Date: 6/24/09 Page 3 of 4
5) Attach the seat belt by using one lag bolt and one wing nut on each side as shown.
6) Attach seat belt center strap with one Allen screw
and a flat washer to bottom of padded seat as
shown.
7) Located on the bottom of the
padded seat are eight pre-
drilled and threaded holes
that are used for mounting
the Snappy seat to either the
Snappy, AM-9 or AM-12.
Step 2 Step 3
Pre-Drilled and threaded
holes for mounting.

Revise Date: 6/24/09 Page 4 of 4
Snappy Seat Parts
Additional Accessory Parts used on Snappy Seat
Small Laterals - #30-1501
Large Laterals - #30-1502
H-harness – #30-0336 - 11.5-inch
H-harness - #30-0337 – 8-inch
Adaptor bracket for mounting on AM-12 #30-1503
Padded Head
Rest
Padded seat back
Padded
Seat Metal Seat Bracket
Seat Belt &
Center Strap
Threaded
seat knobs
Mounting
Hardware
