AMX IRX-SM+ User manual

Quick Start Guide
IRX-SM+ Swivel-Mount Remote IR Sensor
Overview
The IRX-SM+ (FIG. 1) is a remote IR sensor that works with the Axcess
AXC-RCVI card, AMX Television Managers, and MX8 / MX16 Relay Receivers to
remotely control IR devices. The IRX-DM+ (FG455-01) is in a swivel-mount
enclosure for use in wall or ceiling installations. The IRX-SM+ works with AMX
38 kHz or 455 kHz IR transmitters.
Note: The IRX-DM+ UniMount version is also available for US-style
single-gang enclosure installations.
Wiring and Installation
Set the receive frequency, AXlink device number and IR validation level before
installing the sensor. FIG. 2 illustrates the location of key components on the
IRX-SM+ circuit board.
Setting the Receive Frequency
Use the jumper pin on the corner of the circuit board to set the receive frequency.
FIG. 3 illustrates the configuration of the jumper.
Note: The unit will not operate until JP1 is configured for either 38 kHz
or 455 kHz.
• To receive 38 kHz, position the JP1 jumper on pins 1 and 2 (closer to
the Phoenix connector).
• To receive 455 kHz (default setting), position the JP1 jumper on pins
2 and 3 (away from the Phoenix connector).
Wiring the IR Sensors
The IRX-SM+ uses a 4-pin Phoenix connector for power and data. If the distance
between the receiver and Central Controller exceeds power consumption limits,
you can connect a local 12 VDC power supply to the Phoenix connector.
Preparing Captive Wires
You will need a wire stripper and a flat-blade screwdriver to prepare the captive
wires:
1. Strip .25 inch (6.35 mm) of wire insulation off all wires.
2. Insert each wire into the appropriate opening on the connector according to
the wiring diagrams in this section.
3. Turn the flat-head screws clockwise to secure the wire in the connector.
Note: Do not over-torque the screw. Doing so can bend the seating pin.
Wiring Guidelines
The IRX-SM+ requires 12 VDC power to operate properly. The power is supplied
by the AMX system's connection cable. The maximum wiring distance
between the Central Controller and the receiver is 200 feet (60.96 m).
Connection and Wiring
Wiring the IRX-DM+ or IRX-SM+ to the AMX IR Receiver
Wire the IR sensor to the AMX IR receiver as shown in FIG. 4.
You can wire up to eight IR sensors in parallel to an AXC-RCVI, AMX Television
Manager, MX8, MX16, or NI-700. For additional information, refer to the reference
guides or instruction manuals for those AMX products.
Checking IR Data Status
Locate the red IR Data LED on the front of the unit. Point the system's AMX
transmitter towards the sensor and press a button. The IR Data LED lights when
the unit receives data.
If the IR Data LED on the unit does not light:
• Verify that the transmit LED on the transmitter lights when you press a but-
ton.
• Check the wiring to the unit.
• Verify that the transmitter frequency is properly configured.

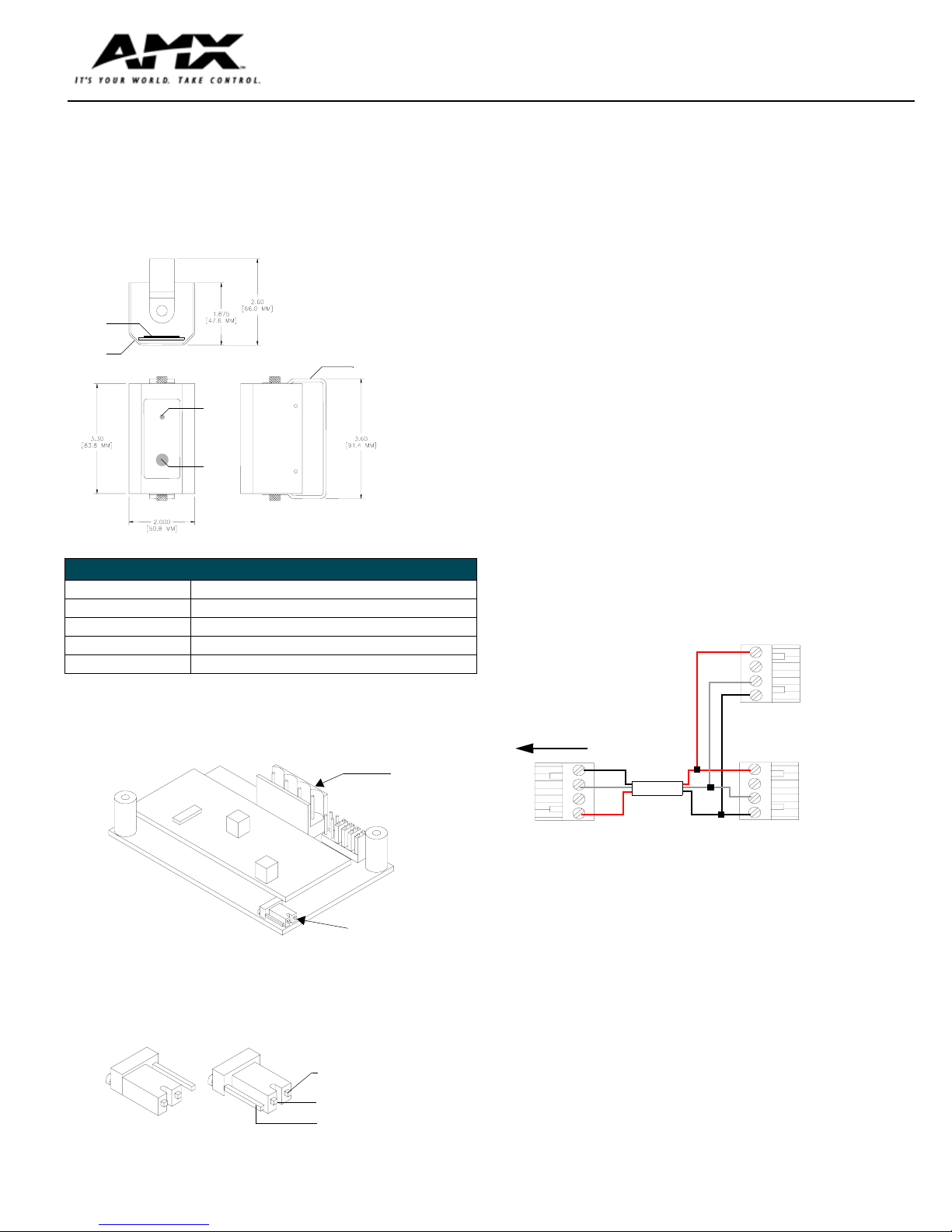

FIG. 1 IRX-SM+ Swivel-mount IR sensor
IRX-SM+ Specifications
Dimensions (HWD): 3.30" x 2.00" x 2.60" (83.80 mm x 50.80 mm x 66.00 mm)
Receive Frequencies: 38 / 455 kHz (user-selectable)
Mounting: Mounts into most US-style single-gang enclosures.
Weight: 6.8 oz. (190.4 grams)
Power Consumption: 25 mA
FIG. 2 Location of key components on the IRX-SM+ circuit board
FIG. 3 Receive frequency jumper settings
IR Sensor
IR Data LED
Swivel mount bracket
Housing
Circuit
assembly
board
IR Data
LED
IR
Sensor
4-pin Phoenix
Connector
Receive Frequency
Jumper Pin (JP1)
Set Jumper JP1 to:
Position 1/2 for 38 kHz
Position 2/3 for 455 kHz
4
1
321
Pin 3
Pin 2
Pin 1
455 kHz 38 kHz
FIG. 4 Wiring the IR sensor
PWR
GND
IN
AUX
IRX-SM+ #2
To the external
Top view
AUX OUT
OUT
GND
+12 VDC
sensor input
connector
AUX OUT
OUT
GND
+12 VDC
Top view
Top view
or
IRX-DM+ #2
IRX-SM+ #1
or
IRX-DM+ #1
