PCS2 DATA SHEET
Control System Accessories
Dual Power
Current Sensor
Is a controlled source really on or off? That’s an important question in many system applications. The
PCS2 Dual Power Current Sensor provides the answer by detecting the 110 VAC current drawn by
equipment plugged into the onboard AC receptacles. The unit features adjustable sensing levels for
high (full-on) and low (standby) power levels.
The PCS2 Dual Power Current Sensor can sense high, low or no power level states for two devices, and
includes a built-in power supply.
• Sensespowercurrentstatusfor110VACpoweredequipment
• Detectsfullon,off,andstandbypowercurrentlevels
• IncludesadjustablelevelsandLEDstatusindicatorsforfull-powerandstandbycurrentlevels
• ProvidesStandbyandPowerOnclosureoutputsforsysteminputsorotherclosure-controlleddevices

PCS2 DATA SHEET
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com
PCS2 (FG427)
POWER
110 VAC @ 250 mA minimum
ENCLOSURE
•Metal with black matte finish
•Mounts in optional AC-RK Accessory Rack Kit
DIMENSIONS (HWD)
1 1/2” x 5 1/2” x 5 1/2” (38 mm x 140 mm x 140 mm)
SENSING
•Standby:
•On:
•Sense Levels:
CONNECTIONS
•On 1, 2:
•Stby 1, 2:
•Com 1, 2:
•AC 1, 2:
•AC Power:
INCLUDES
6-pin captive-screw terminal
WEIGHT
28.8 oz (816 g)
COM
1
ON
STBY COM
AC 1
2
ON STBY
AC 2
CLASS 2 CIRCUIT ONLY
Power Current Sensor
POWER
PCS2
COMBINED OUTPUT 120 VAC 1200W 50/60 Hz
STANDBY
ON
AC 1
120 VAC
50/60 Hz
10 AMP
STANDBYON
AC 2
PCS2 (Top View)
PCS2 (Front Side)
PCS2 (Rear Side)
5 1/2” (140 mm)
5 1/2 “
(140 mm)
1 1/2 “
(38 mm)
AV
Receiver
PCS2
NetLinx I/O Ports
or
Television Controllers
or
Other
Closure-Controlled
Devices
Device
(TV)
AC Power
Input
Relay
Output
I/O
Input
AC Power
Output 1
AC Power
Output 2

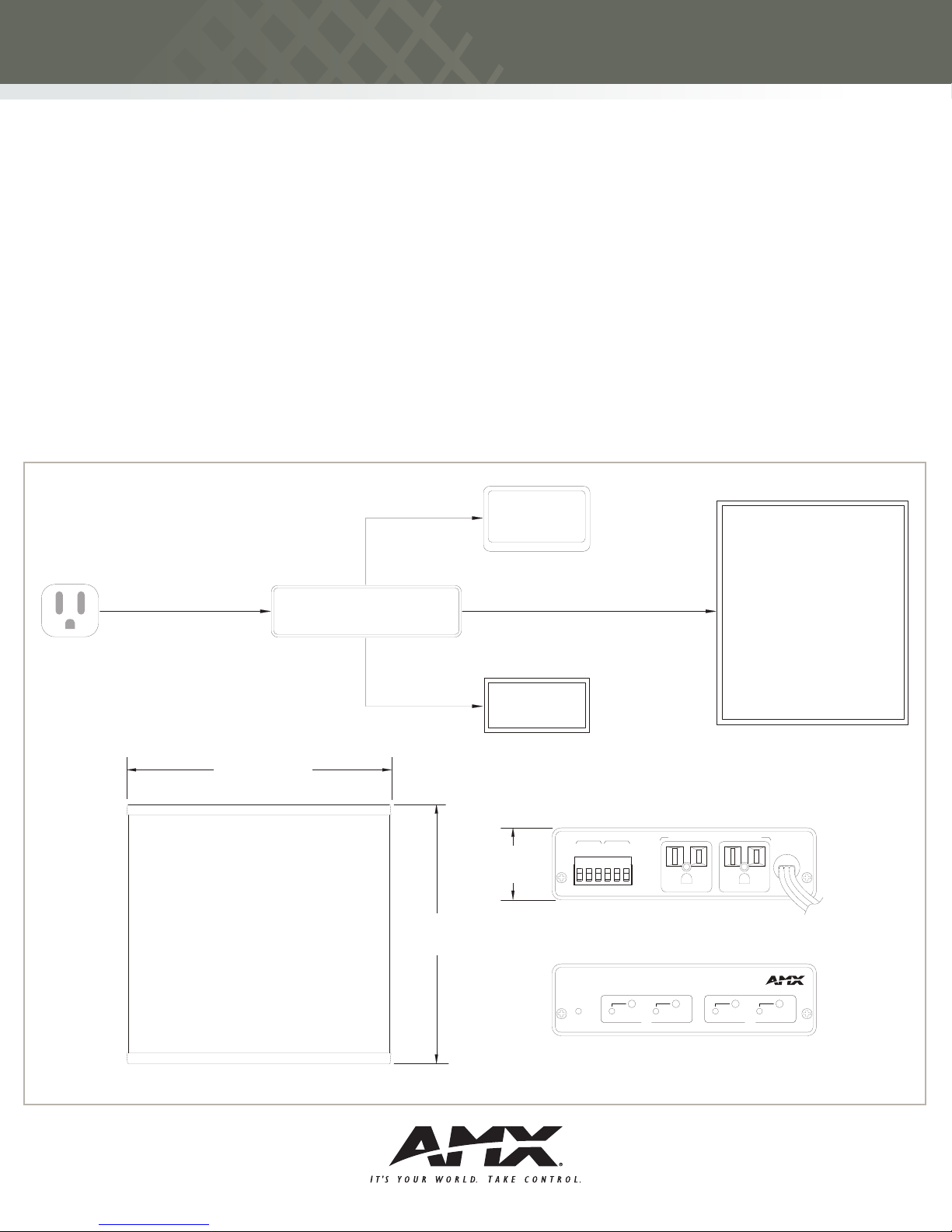

EXAMPLE SYSTEM
On sense relay output, 1 A @ 28 VDC
Standby sense relay output, 1 A @ 28 VDC
Common for sense outputs
Two US style 3-prong 110 VAC receptacles
1,200 W (10A) output power, fuse protected
US style 3-prong 110 VAC power cord
Two Standby status LEDs
Two Standby sense adjustment screws
Two On status LEDs
Two On sense adjustment screws
20 mA–10 A power current
