AMX NetLinx Master Card NXC-ME260-64 User manual

QUICK START GUIDE
NXC-ME260/64 NetLinx®Master Ethernet Card
Overview
The NetLinx NXC-ME260/64 Card (FG2010-64) supplies optimum control system
performance. With the ability to respond 50 times faster than conventional control masters,
the NXC-ME260/64 is propelled by the high-speed 257 MIPS ColdFire processor. The standard
32MB CompactFlash memory is expandable to 1G and beyond and Ethernet networking is built
onboard. The NXC-ME260/64 also features enhanced Username and Password authentication,
HTTPS and SSL certificate interaction, ICSP communication and encryption, and use of a pre-
installed AMX SSL certificate.
ATTENTION!
Verify the Master is using the latest released firmware. Verify you are using the latest version
of NetLinx Studio (available for download from www.amx.com).
Specif ications
For more detailed product specifications, refer to the NXI Instruction Manual at www.amx.com.
Ethernet Ports used by the NXC-ME260-64
Modes and LED Blink Patterns
The following table lists the modes and blink patterns for the front LEDs.
Program Port Connections/Wiring
The NXC-ME260/64 is equipped with two Program ports. One is located on the front panel and
the other is on the rear for easy access. The port on the front panel is an RS232 (male)
connector and the rear port is a 5-pin (male) connector. Use a Programming cable to connect
the Program port to your PC's COM port to communicate with the Master card. Then, you can
download NetLinx programs to the Master card using the NetLinx Studio 2 software program.
Wiring a Power Connection
Use a 12 VDC-compliant power supply to provide power to the Master through the rear 2-pin
3.5 mm mini-Phoenix. Use the power requirements information listed in the Specifications
table to determine the power draw. The incoming PWR and GND cable from the PSN power
supply must be connected to their corresponding locations within the PWR connector. Refer to
the unit’s instruction manual for more detailed wiring connection information.
RS-232/422/485 Wiring Connector Information
The following table shows the pinout and wiring specification information for the front panel
RS-232 (DB9) Program Port.

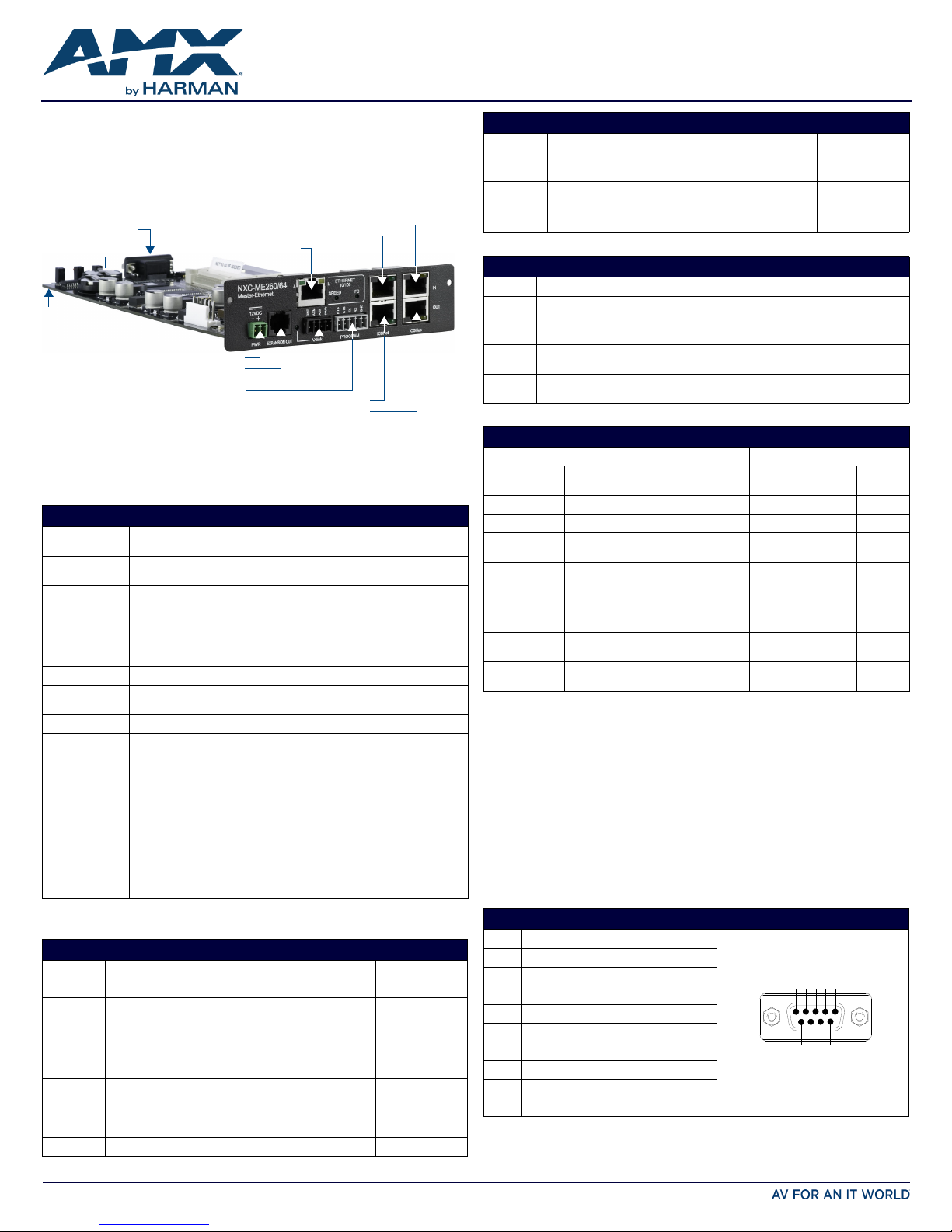

FIG. 1 NXC-ME260/64
NXC-ME260/64 SPECIF ICATIONS
Dimensions
(HWD):
• 1 5/16” x 5” x 8 13/16” (3.4 cm x 12.7 cm x 22.4 cm)
•RU:1
Power
Requirement:
• 750 mA @ 12 VDC
• Power requirements are usage dependant
Memory: • Volatile: 64 MB (SDRAM)
• Non-volatile: 1 MB
• Refer to the NXC-ME260/64 Instruction Manual for more information.
Compact Flash: 2GB or greater (upgradeable to 4GB - see Other AMX Equipment).
Note: AMX may increase Flash size at any time in response to market
availability.
Microprocessor: Coldfire 5407 (32-bit)
Weight: • NXC-ME260/64 only: 0.55 lbs (0.25 kg)
• NXC-ME260/64 with NXS-NMS module: 1.95 lbs (0.88 kg)
Enclosure: Metal with black matte finish
Certifications: FCC Part 15 Class B and CE
Included
Accessories:
• Connector Bag containing:
2-pin 3.5 mm mini-Phoenix connector (female) (41-5025)
4-pin 3.5 mm mini-Phoenix connector (female) (41-5047)
5-pin 3.5 mm mini-Phoenix connector (female) (41-5053)
Back panel (51-2010-61)
• Front plate with screws and washers
Other AMX
Equipment:
• AC-RK Accessory Rack Kit (FG515)
• NXF CardFrame (FG2001)
• NXI Integrated Controller (FG2101)
• NXS-MHS Module (FG2009)
• Upgrade Compact Flash (factory programmed with firmware):
NXA-CFM4G, 4 GB Flash Upgrade (FG2116-06)
ETHERNET PORTS USED
Port type Description Standard Port #
FTP The on-board Master has a built-in FTP server. 21/20 (TCP)
SSH
The SSH port uses SSL as a mechanism to configure and
diagnose a NetLinx system. This port value is used for secure
Telnet communication.
Note: We currently ONLY support SSH version 2.
22 (TCP)
Telnet The NetLinx Telnet server provides a mechanism to configure
and diagnose a NetLinx system. 23 (TCP)
HTTP
The Master has a built-in web server that complies with the
HTTP 1.0 specification and supports all of the required
features of HTTP v1.1.
80 (TCP)
Port type Description Standard Port #
HTTPS/SSL The Master has a built-in SSL protected web server. 443 (TCP)
12 VDC Power Port
Front
Rear
EXPANSION OUT Port
ETHERNET 10/100 Port/LEDs
AxLink Port/LED
PROGRAM Port (5-pin)
ICSNet (OUT) Port
ICSHub (OUT) Port
ICSNet (IN) Port
ICSHub (IN) Port
Panel
Panel
Program Port (DB9)
LEDs
ETHERNET PORTS USED
Port type Description Standard Port #
ICSP Peer-to-peer protocol used for both Master-to-Master and
Master-to-device communications. 1319 (UDP/TCP)
integration!
Solutions
The feature on the Master uses, by default, port 10500 for the
XML based communication protocol. This port is connected to
by the client web browser’s JVM when integration! Solutions
control pages are retrieved from the Master’s web server.
10500 (TCP)
ETHERNET 10/100 REAR PANEL LED PATTERNS
LED Description
•A Activity - lights (yellow) when the Ethernet cables are connected and terminated
correctly, and blinks when receiving Ethernet data packets.
• L Link - lights when the Ethernet cables are connected and terminated correctly
• SPEED Lights (green) when transmitting data at 100 Mbps, and is Off when transmitting at 10
Mbps.
•FD Full Duplex - lights (green) when running in full duplex mode, and is Off when running
half duplex mode.
MODES AND FRONT PANEL LED BLINK PATTERNS
LEDs and Blink Patterns
Mode Description STATUS
(green)
OUTPUT
(red)
INPUT
(yellow)
OS Start Starting the operating system. On On On
Boot Master is booting. On Off On
Contacting
DHCP server
Master is contacting a DHCP server for IP
config. info. On Off Fast Blink
Unknown DHCP
server Master could not find the DHCP server. Fast Blink Off Off
Downloading
Boot firmware
Downloading Boot firmware to the on-
board flash memory.
Do not cycle power during this process!
Fast Blink Fast Blink Fast Blink
No program
running
There is no program loaded, or the
program is disabled. On Off Off
Normal Master is functioning normally. 1 blink per
second
Indicates
activity
Indicates
activity
PROGRAM PORT CONNECTOR PINOUTS (RS232)
Pin Signal Function
1N/ANotused
2RXDReceivedata
3 TXD Transmit data
4DTRNotused
5 GND Signal ground
6DSRNotused
7RTSRequesttosend
8 CTS Clear to send
9N/ANotused
12345
6789

© 2016 Harman. All rights reserved. NetLinx, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered trademarks of
HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax [phone]
AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • [phone] • www.amx.com/eu/
93-0560-01 REV: E
Last Revised: 6/07/2016
RJ-45 Connections
Standard Ethernet cable provides communication between the Master and NetLinx devices.
Ethernet 10/100 Base-T Connector
Standard Ethernet cable provides 10/100 network connectivity between the panel and the
Master.
Baud Rate Settings
The Program Port DIP switch is located on the card’s internal circuit board (FIG. 2).
Note: For cards installed in modules, you must remove the front panel to access the DIP switch.
Refer to the NXC-ME260/64 Hardware Reference Guide for details.
Use this internal DIP switch to set the baud rate used by the Program port for communication.
Use this DIP switch to set the baud rate for the Program Port, according to the settings shown
in the following table. Make sure the baud rate you set matches the baud rate on your PC's
NetLinx COM Settings before programming the unit. The default baud rate = 38,400 (bps).
• The Program Port DIP Switch is also used to set Program Run Disable (PRD) mode. The PRD mode
prevents the NetLinx program stored in the Master from running when you power up the NXC-
ME260/64.
• DIP switch 1 activates/deactivates the Program Run Disable Mode. DIP Switches 2,3, and 4 must
remain OFF at all times.
Setting the Conf iguration (Program Port) DIP Switch
1. Disconnect the power supply from the rear 2-pin PWR (green) connector.
2. Set DIP switch positions according to the Baud Rate Settings table above.
3. Reapply power to the unit.
SPE Port Connection/Wiring
Use an RJ-11 cable to connect the NXC-ME260/64 to an AXB-SPE Slave Port Expander
(FG714). The EXPANSION OUT port on the rear panel connects to the EXPANSION IN port on
the AXB-SPE.
You can daisy chain multiple AXB-SPE's by connecting the EXPANSION OUT on the primary
AXB-SPE to the EXPANSION IN port on the secondary.
• The connecting RJ-11 cable should not exceed 6" in length.
• Repeat this process to connect up to nine AXB-SPE's.
Preparing the ME260-64 for Serial Communication
1. Launch NetLinx Studio.
2. Select Settings > Active System Communication Settings to open the Communications
Settings dialog (FIG. 3):
3. Use the options in the Serial tab to configure the COM port parameters used to
communicate to the NetLinx Master.
4. Click OK.
5. Right-click inside the Online Tree tab and select Refresh System Online Tree.
6. Select Diagnostics > Device Addressing to assign a System Value via the Device
Addressing dialog (FIG. 4):
7. Check the Change System option, and enter the current and New System values.
8. Click the Change Device/System Number button and when finished click Done.
9. Click Reboot Master to restart the Master and incorporate any changes.
10. Once the dialog replies with "Reboot of system complete", click Done and then click the
OnLine Tree tab in the Workspace window to view the devices on the System.
Default System value = 1.
11. Right-click on the Empty Device Tree/System entry and select Refresh System to re-
populate the list.
Conf iguring the ME260-64 for Ethernet Communication
Before continuing, complete the COM port steps above.
1. Connect an Ethernet cable to the rear Ethernet connector.
2. Select Diagnostics > Network Addresses to open the Network Addresses dialog and
press Get IP Information to populate the fields with the current settings (FIG. 5):
3. Enter the System, Device (0 for a Master), and Host Name information:
4. To configure the Address:
• To use a DHCP Address, select Use DHCP, then click GET IP (to obtain a DHCP Address
from the DHCP Server), click SET IP Information (to retain the new address), and then
finish the process by clicking Reboot Master.
• To use a Static IP Address, select Specify IP Address, enter the IP parameters into the
available fields, then click SET IP Information (to retain the pre-reserved IP Address to
the Master), and then click Reboot Master to finish the process.
5. Repeat steps 1 - 5 from the previous section but rather than selecting the Serial option,
choose TCP/IP and edit the settings to match the IP Address you are using (whether
Static or IP).
6. Click Authentication Required (if the Master is secured) and press User Name and
Password to enter a valid username and password for the secured Master.
7. Click OK to return to the main application.
Additional Documentation
For more detailed installation, configuration, programming, file transfer, and operating
instructions, refer to the NXC-ME260-64 Instruction Manual, available online at
www.amx.com.
FIG. 2 LOCATION OF (INTERNAL) PROGRAM PORT DIP SWITCH
BAUD RATE SETTINGS
Baud Rate Position 5 Position 6 Position 7 Position 8
9600 bps OFF ON OFF ON
38,400 bps (default) OFF ON ON ON
57,600 bps ON OFF OFF OFF
115,200 bps ON ON ON ON
Baud rate DIP
switch for the
Program port
Faceplate
securing
screws (2)
Faceplate (rear panel)
(red)
front panel
FIG. 3 NETLINX STUDIO - COMMUNICATIONS SETTINGS DIALOG (SERIAL OPTIONS)
FIG. 4 NETLINX STUDIO - DEVICE ADDRESSING DIALOG
FIG. 5 NETLINX STUDIO - NETWORK ADDRESSES DIALOG
