INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUALE DI ISTRUZIONI
RANGE HOOD
DUNSTABZUGSHAUBE
HOTTE ASPIRANTE
CAMPANA EXTRACTORA
CAPPA ASPIRANTE
S-1001G-A01-M7-600
AC 220-240V 50Hz
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE

EN CONTENTS
SAFETY WARNING ....................................................................................................01
NOTICE OF INSTALLATION ......................................................................................03
INSTALLATION............................................................................................................05
USE .............................................................................................................................11
MAINTENANCE...........................................................................................................11
TROUBLESHOOTING ................................................................................................13
WARRANTY ................................................................................................................15
DE INHALTSVERZEICHNIS
SICHERHEITSWARNUNG .........................................................................................17
HINWEIS ZUR INSTALLATION ................................................................................. 19
INSTALLATION............................................................................................................21
VERWENDEN .............................................................................................................27
INSTANDHALTUNG....................................................................................................27
FEHLERBEHEBUNG ..................................................................................................29
GARANTIE ..................................................................................................................31

FR TABLE DES MATIÈRES
CONSIGNES DE SÉCURITÉ ......................................................................................32
INSTRUCTIONS D'INSTALLATION ............................................................................35
INSTALLATION ...........................................................................................................37
UTILISATION ..............................................................................................................43
ENTRETIEN ................................................................................................................43
DÉPANNAGE ..............................................................................................................45
GARANTIE ..................................................................................................................47
ES CONTENIDOS
ADVERTENCIA DE SEGURIDAD...............................................................................48
ATENCIÓN DE INSTALACIÓN ...................................................................................51
INSTALACIÓN ............................................................................................................53
USO .............................................................................................................................59
MANTENIMIENTO.......................................................................................................59
SOLUCIÓN DE PROBLEMAS............................................................................. .......61
GARANTÍA...................................................................................................................63

IT INDICE
AVVERTENZE DI SICUREZZA....................................................................................64
NOTE PER L'INSTALLAZIONE...................................................................................66
INSTALLAZIONE.........................................................................................................68
ISTRUZIONI PER L'USO ............................................................................................74
MANUTENZIONE.........................................................................................................74
RISOLUZIONE DEI PROBLEMI .................................................................................76
GARANZIA ..................................................................................................................77

1
SAFETY WARNING
Thank you for choosing our cooker hood. Please read the instruction
manual carefully before use.
The cooker hood is used on 220/240V,50Hz.
Never let the children operate the machine.
The cooker hood is for home use only, not suitable for barbecue, roast
shop and other commercial purpose.
The cooker hood and its filter should be clean regularly in order to keep in
good working condition.
Clean the cooker hood according to the instruction manual and keep the
unit from danger of burning.
Forbid the direct baking from the gas cooker.
Please keep the kitchen from a good convection.
Before connecting this appliance,check if the power supply cord is not
damaged. If the supply cord is damaged,it must be replaced by the
manufacturer,it's service agent or similarly qualified persons in order to
avoid a hazard .
There is fire risk if cleaning is not carried out in accordance with the
instructions.
There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels.
The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
Regulations concerning the discharge of air have to be fulfilled.
Do not flame under the range hood.
The range hood is not intended to be installed over a hob having more
than four hob elements.
This appliance is not intended for use by persons(including children)with
reduced physical,sensory or mental capabilities,or lack of experience and
knowledge,
unless they have been given supervision or instruction concerning use of

2
the appliance by a person responsible for their safely.
Children should be supervised to ensure that they do not play with the
appliance.
When the range hood and appliances supplied with energy other than
electricity are simultaneously in operation,the negative pressure in the
room must not exceed 4 Pa (4x10-5 bar)
CAUTION:Accessible parts may become hot when used with cooking
appliance.
The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualified person.
If the external flexible cable or cord of this luminaire is damaged,it shall be
exclusively replaced by the manufacturer or his service agent or a similar
qualified person in order to avoid a hazard.
Electrical Shock Hazard
Only plug this unit into a properly earthed outlet. If in doubt seek advice
from a suitably qualified engineer.
Failure to follow these instructions can result in death, fire,or electrical
shock.
The instructions shall state the substance of the following:
-there shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels(not
applicable to appliances that only discharge the air back into the room);
-the details concerning the method and frequency of cleaning;
-there is fire risk if cleaning is not carried out in a accordance with The
instruction;
-CAUTION:Accessible parts may become hot when used with cooking
appliances;
-The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels(not applicable to
appliances that only discharge the air back into the room);
-the minimum distance between the supporting surface for the cooking

3
vessels on the hob and the lowest part of the range hood.(When the range
vessels on the hob and the lowest part of the range hood.(When the range
hood is located above a gas appliance,this distance shall be at least 65
cm.
-Regulations concerning the discharge of air have to be fulfilled.
NOTICE OF INSTALLATION
1.Before installation, please ensure the area is clean to avoid suction of
the remaining bits of broken wood and dust.
2.It cannot share the same air ventilation tube with other appliance such as
gas tube, warmer tube,and hot wind tube.
3.The bending of ventilation tube should be≥120°, parallel or above the
start point and should be connected to the external wall.

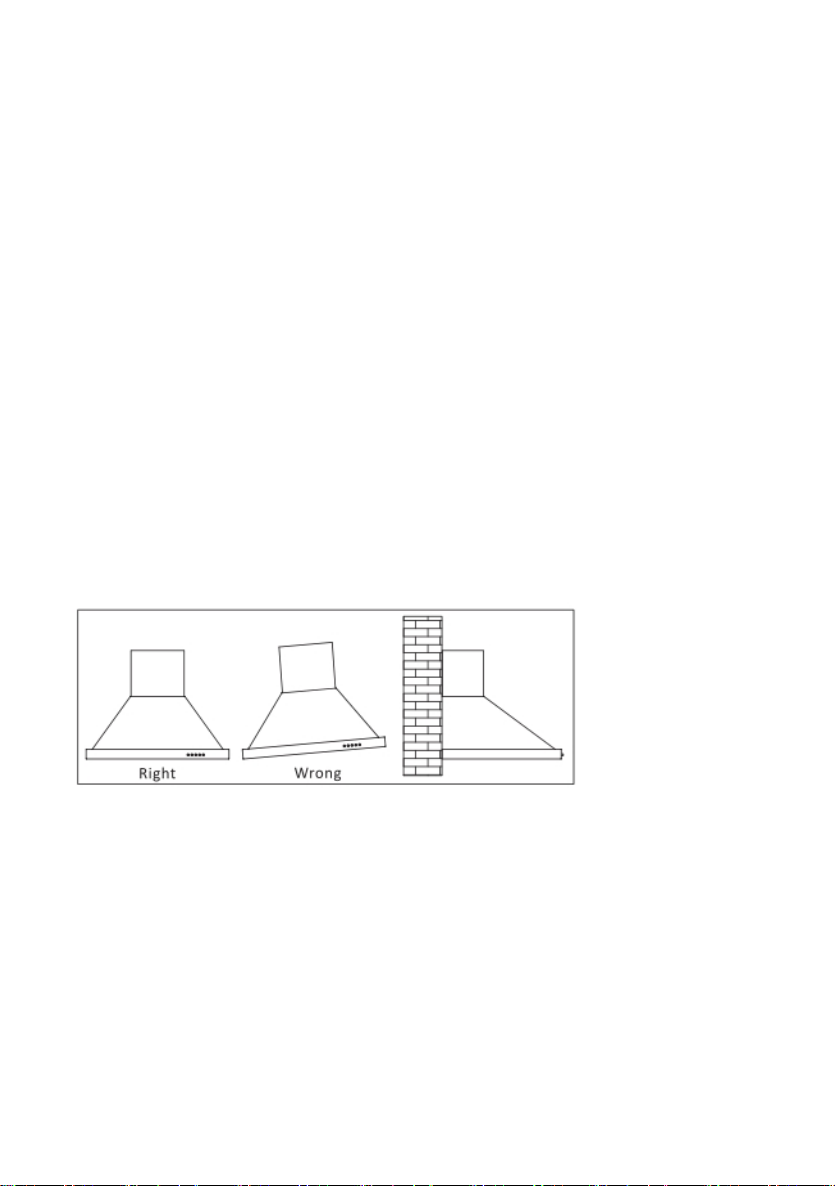

4.After installation,make sure that the extractor is level to avoid grease
collection at one end.

4

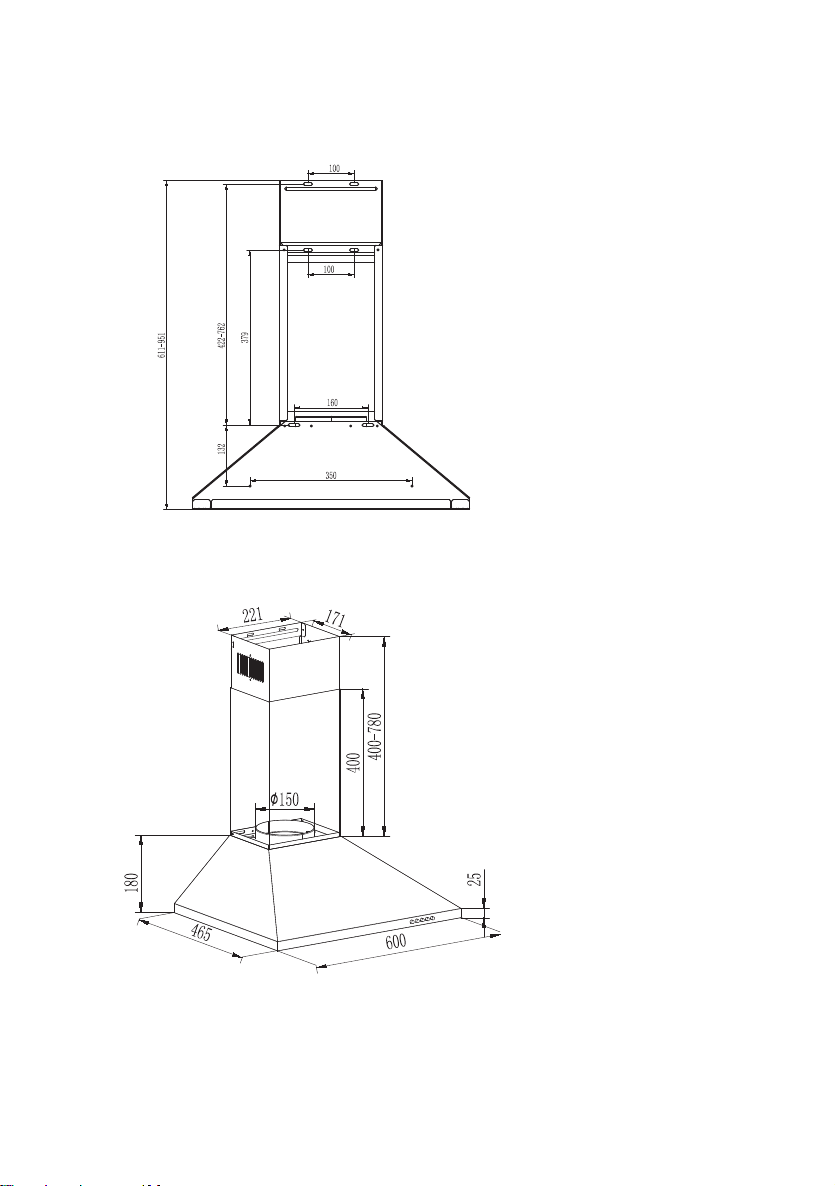

INSTALLATION DIMENSION
PRODUCT DIMENSION
unit: mm
unit: mm

5
INSTALLATION
Tools needed for the installation
Parts included
x2
[02] x 1
[03]x2
[07] x 9 [08] x 1
[09] x 6
(4x40 mm)
[06] x 1[04] x 1 [05] x 1
[01] x 1
[10] x 3
(4x8 mm)
[11] x 6
(4x40 mm)

6
[07]
[07]
[07]
[07]
[10]
[09]
[09]
[09]
[11]
[11]
[11]
[11]
[11]

7
INCLUDED
1x
2
x
(Ø150
mm)

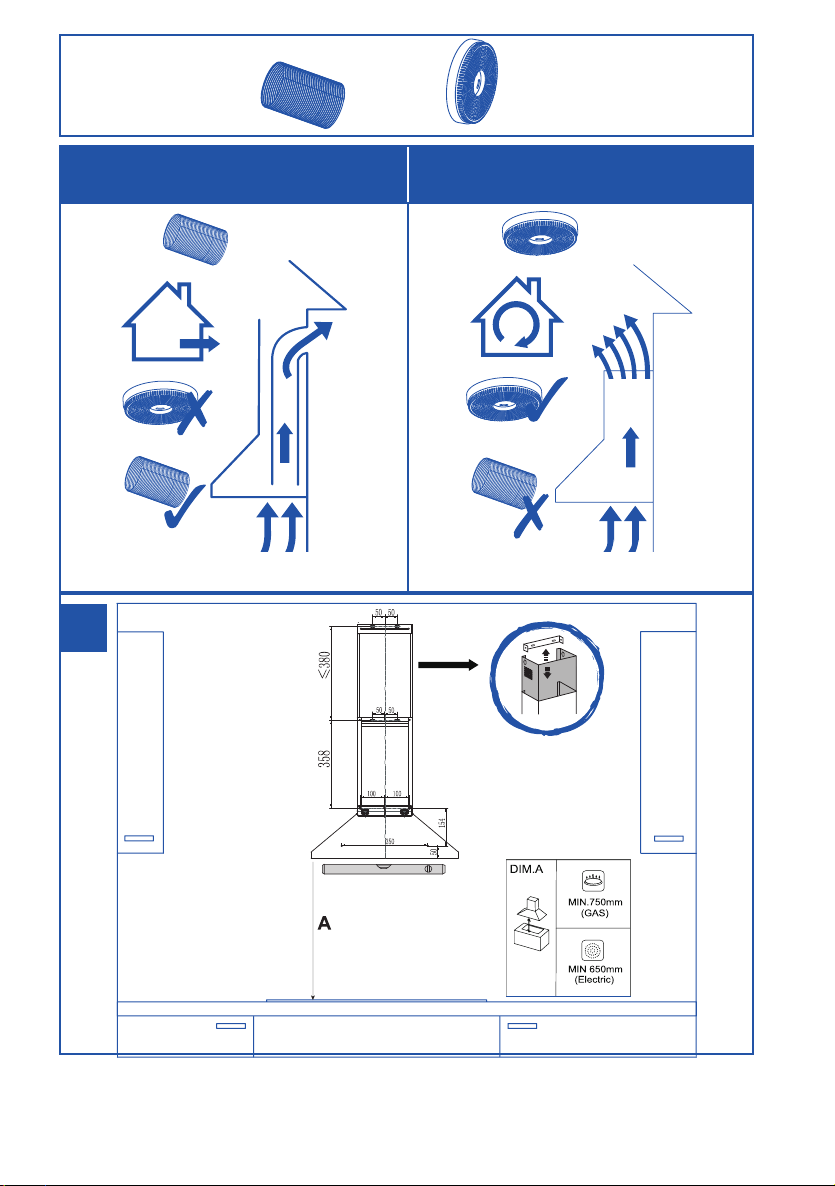

SUCTION
VERSION (extraction to the outside)
FILTERING VERSION (no extraction to the outside)
01

8
[07]×3[07]×3
[10]×3
[06]×1[06]×1
[07]×2[07]×
[09]×2[09]×
[08]×1[08]×1
[09][09]
[09]×2[09]×2
[07]×2[07]×2
[08]×1[08]×1
[05]×1[05]×1
[06][06]
[07][07]
[10]
x2
[09][05]
738mm

9
[11]×4 [4]×1[
SUCTION VERSION

10
22211 2
[07]×2
[09]×2[09]×
[11]

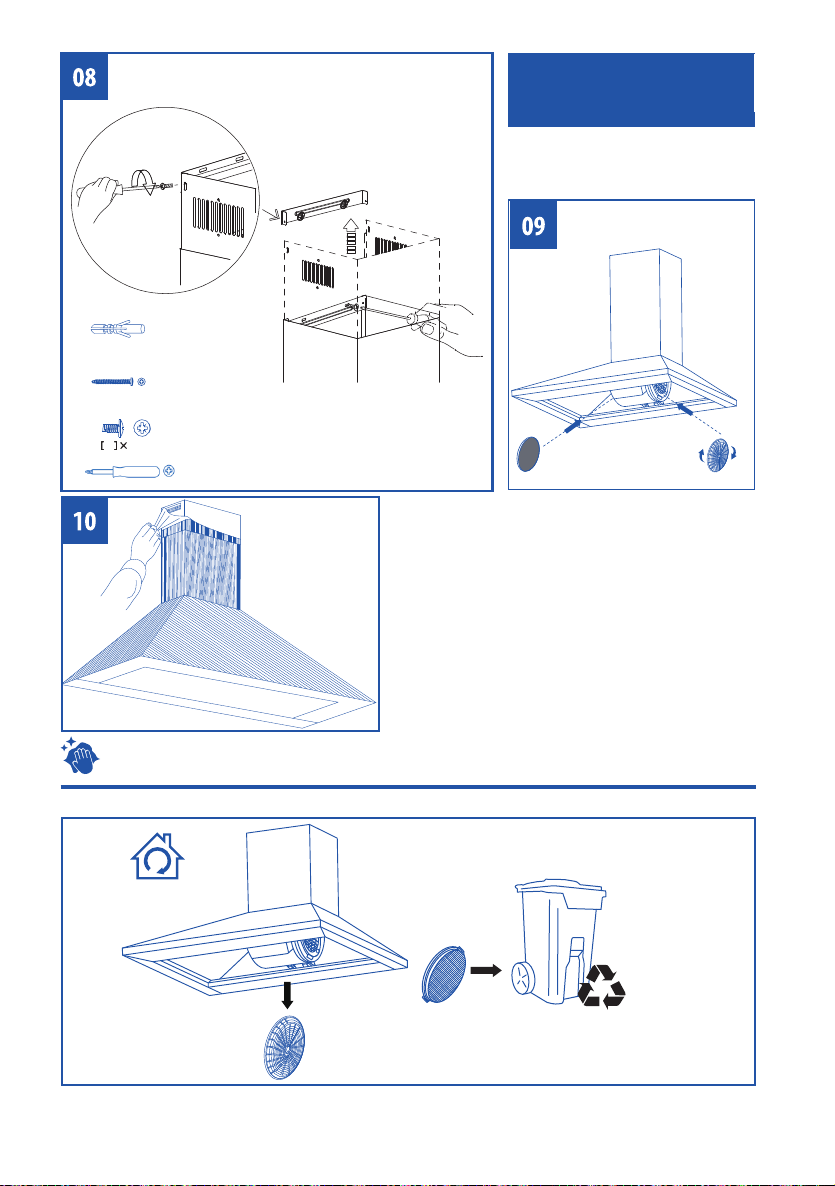

This step is only for the stainless steel model.
Please remember to remove the film after
installation.
FILTERING VERSION
(no extraction to the outside)
3 MONTHS SUGGESTED FOR REPLACEMENT

11
USE
PUSH BUTTON
1.Push Stop button,and the motor will stop.
2.Push the Low button,the buzzer will buzz once,and the motor runs at low
speed.
3.Push the Mid button,the buzzer will buzz once, and the motor runs at mid
speed.
4.Push the High button,the buzzer will buzz once,and the motor runs at high
speed.
5.Push the light button and the lights will come on.Push it again and the light
will turn off.
MAINTENANCE
Disconnect the power cord from the wall outlet before cleaning and
maintenance.
To clean the appliance outside, use a damp cloth, a soft brush or a fine
sponge, and then wipe it dry.Do not use coarse abrasive cleaning agents
or sharp metal scrapers for cleaning of the appliance as this could result in

12
surface scoring.
Never leave aggressive or acidic substances (lemon juice, vinegar) on
enamelled or stainless parts of the appliance.
Cleaning and replacement of filters
Metal grease filters
When the appliance is in common use, the metal grease filters should be
checked or cleaned every month. In case of more frequent frying or deep
frying, shorten this interval.
Do not use the appliance without the metal grease filters properly installed!

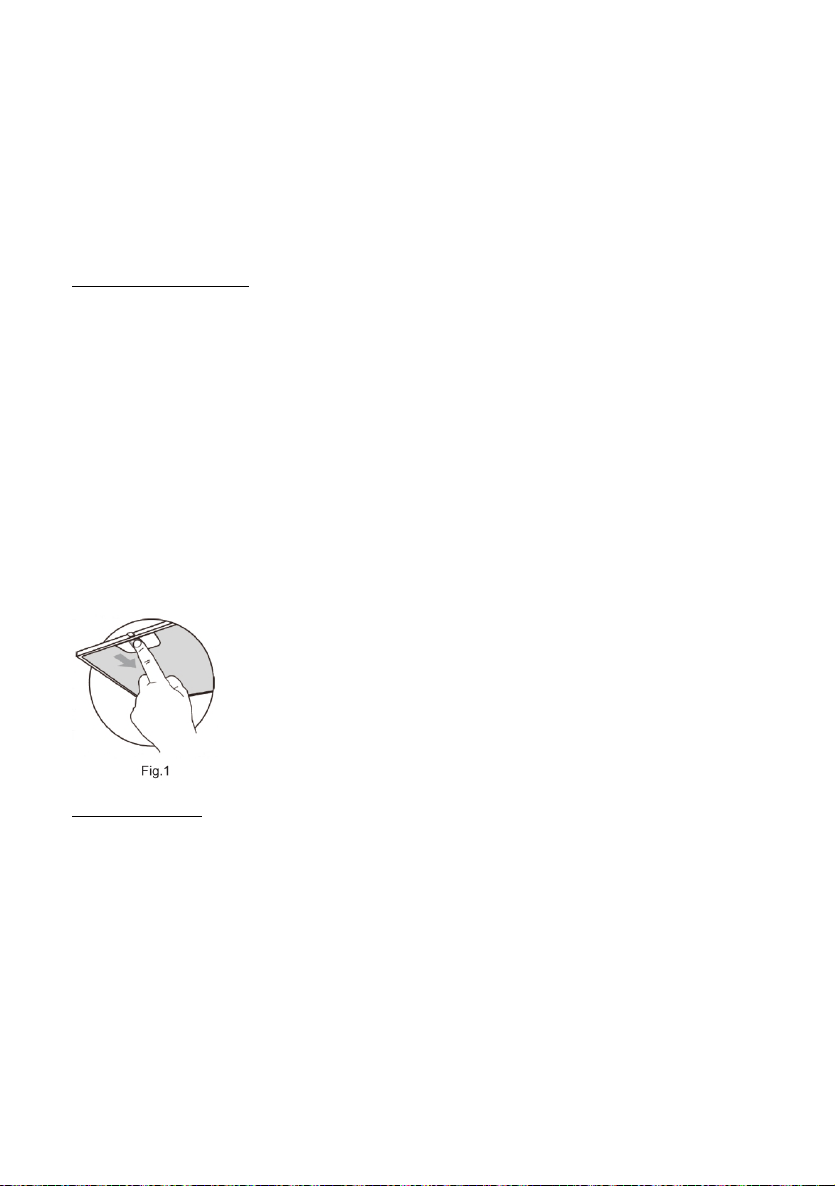

1.Remove the metal filters as shown in Fig. 1.
2.Let the metal filters soak in warm water with addition of a detergent or
put them into a washer with a cleaning agent and set temperature below
60 °C. In case of soaking in warm water, clean the metal filters with a fine
brush, rinse them with clean water and let them dry.
3.Attach the dried filters back.
Charcoal filter
The range hood comes with two charcoal filters installed on the motor.This
filter is only used for the recirculation mode.
The filter contains an active carbon absorbing the smell being discharged.
The active carbon will be saturated after some time, hence the absorption
capacity will be shortened. This filter cannot be washed or cleaned in any
other way.
When the appliance is in common use, the charcoal filter should be
replaced every 2-3 months. In case of more frequent frying or deep frying,

13
shorten this interval.If need to purchase the filter, please contact seller.
1.Remove the metal filters as shown in Fig. 1.

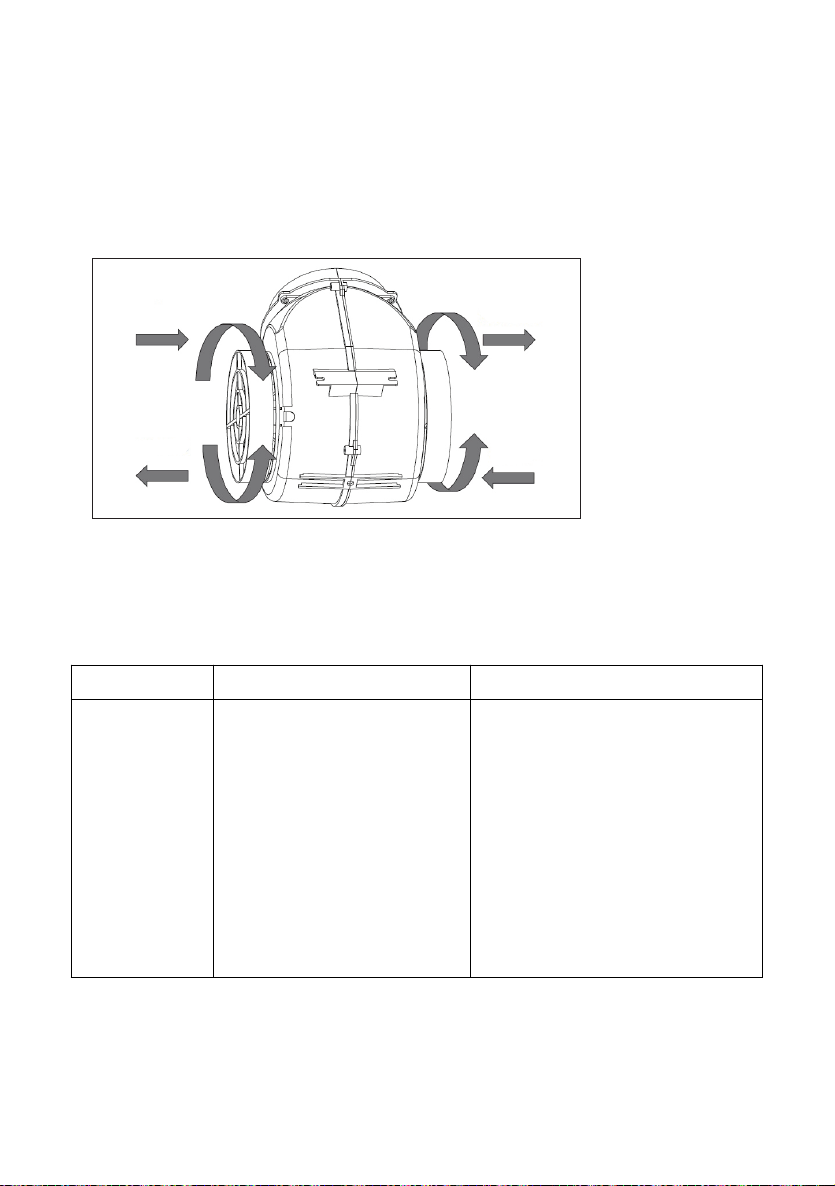

2.The charcoal filters are situated on both sides of the motor. Turn the
filters, until they are secured (see Fig. 2).
3.To replace the charcoal filter, proceed in reverse order.
TROUBLE SHOOTING
Problem
Possible Reasons
Suggested Solution
Light on, but
motor does not
work
-The leaf blocked
-The capacitor damaged
-The motor jammed bearing
damaged
-The internal with of motor off or
a bad smell from the motor
- Get rid of the blocking
- Replace capacitor
- Replace motor
- Replace motor
Closed
ClosedOpened
Opened

14
Light does not
work,motor does
not work
- Light damaged
- Power cord looses
-Replace lights
-Connect the wires as per the
electric diagram.
Oil drops from
the metal grease
filer
Heavily fouled filer.
Immediately clean or replace the
metal grease filer
Shake of the
body
-The leaf damaged and causes
Shaking
-The motor is not tightly hanged
-The body is not tightly hanged
-Replace the leaf
-Lock the motor tightly
-Fixed the body tightly
Insufficient
suction
-The body is not tightly hanged
-Too much ventilation from
open doors or windows
-Readjust the distance
-Choose a new place and resemble
the machine
The machine
inclines
-The fixing screw not tight
enough
-The hanging screw not tight
enough
-Tighten the hanging screw and
make it horizontal
-Tighten the hanging screw and
make it horizontal
The device meets the requirements of Regulation
2014/30/EU as well as the applicable standards EN
55014-1:2006+A1:2009+A2:2011,EN55014-1:2017,
EN55014-2:2015,EN61000-3-2:2014, EN61000-3-3:2013.

15
Manufacturer:
Guangdong Seavy Electrical Appliances Co.,ltd
Add.: Jiyue Industrial Area, Huanglian, Leliu, Shunde District, Foshan
City, Guangdong, China
Name: APEX CE SPECIALISTS LIMITED
Add.:UNIT 3D NORTH POINT HOUSE,NORTH
POINT BUSINESS PARK,NEW MALLOW ROAD,
CORK,T23 AT2P,IRELAND
WEEE-Reg.-Nr.DE 27149312
LUCID-Reg.-Nr.DE4431611231072
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this
product for environmental safe recycling.
WARRANTY
Dear Customer,
Thank you for choosing AMZCHEF product. We sincerely hope that you
are satisfied with it.
The manufacturer's warranty covers the product for a period of 24 months
from the date of purchase against manufacturing faults. All warranties are

16
automatically kept track of in our system, so there is no need to register
your product.
For an extra 1 year's free warranty, please register at our official website
www.iamzchef.com or fill in following Warranty Card, take picture and
send to info@iamzchef.com.
Any help or questions during use, please contact us via
info@iamzchef.com, we will service you within 24 hours. We suggest to
provide a warranty card, a photo or a video if there’s broken spare part or
not working machine so that we can be much more clear about your
problems and offer you the best solution.
Kindly send back the warranty card to us after filling in the information.
Thanks for your effort!
This manual suits for next models
1
Table of contents
Languages:
Other amzchef Ventilation Hood manuals
