amzchef 704A/CF2 User manual

Model: 704A/CF2(75)
AC 120V/60Hz
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE

Table of Contents
3-4
5
7-9
10-13
14
15
16
16
17
5
5
6
6
Warning
Main Parts Name
Installation Instructions
Installation Procedures
Operation instruction
Maintenance
To Replace LED Light
Important Safety Instructions
Trouble shooting
Specifications
Opening size
Parts included
Tools Needed

Warning
1. Installation work and electric wiring (including switch
location) must be done by the qualifed person(s) in
accordance with local applicable codes and standards,
including fre-rated construction.
2. This hood may have sharp edges. Be careful to avoid cuts
and abrasions during installation and cleaning.
3. The hood must be placed at a minimum distance of 28"
from the cook panel.
4. Suffcient air is needed for proper combustion and exhausting
of gases through the chimney to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and
safety standards such as those published by the National
Fire Protection Association, and the American Society for
Heating, Ref rigeration and Air Conditioning Engineer
(ASHRAE), and the local code authorities.
5. Ducted fans must always be vented to the outdoors.
6. This appliance is designed to be operated by adults. Childr en
were not allowed to temper with the controls or play with this
appliance.
7. WARNING: To reduce the risk of fre or electric shock, do not
use this fan with any solid-state speed control device.
8. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden cables.
WARNING： TO REDUCE THE RISK OF FIRE, USE ONLY THE METAL
DUCTWORK
3

WARNING TO REDUCE THE RISK OF INJURY IN THE EVENT OF A
RANGE TOP FIRE, OBSERVE THE FOLLOWING
1. SMOTHER FLAMES with a close-ftting lid, cookie sheet or met al
tray, If the fames do not go out immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN， You may be shock.
3. DO NOT USE WATER, inc luding wet dishcloths or towels a
violent steam explosive will result
4. Use an extinguisher ONLY if:
• You know you have a Class ABC extinguisher, and you
already know how to operate it;
• The fre is small and contained in the area where it started;
• The fre department is being called;
• You can fight the fire with your back to an exit.
WARNING： TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave surface units unattended at high settings. Boil
overs cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when
flaming food.
3. Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or flter.
4. Use proper pan size. Always use cookware appropriate for the
size of the element.
WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSON, KEEP IN MIND THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting, to prevent power
from being switch on accidently. When service disconnecting
means cannot be locked, securely fasten a prominent warning
device, suc h as a tag, t o the front panel.
If you have questions, contact the manufacturer.
4

Specifications:
Model： 704A/CF2(75)
Voltage: 120V/60Hz
Air exit: 6" Duct
Light: 2x2W LED
Motor power: 135W
Total power: 139W
Filter: Steel baffle filters
Control: 3 speed touch control with remote control
Main Parts Name
Hood Body
Baffle filters
Opening Size
5
6"

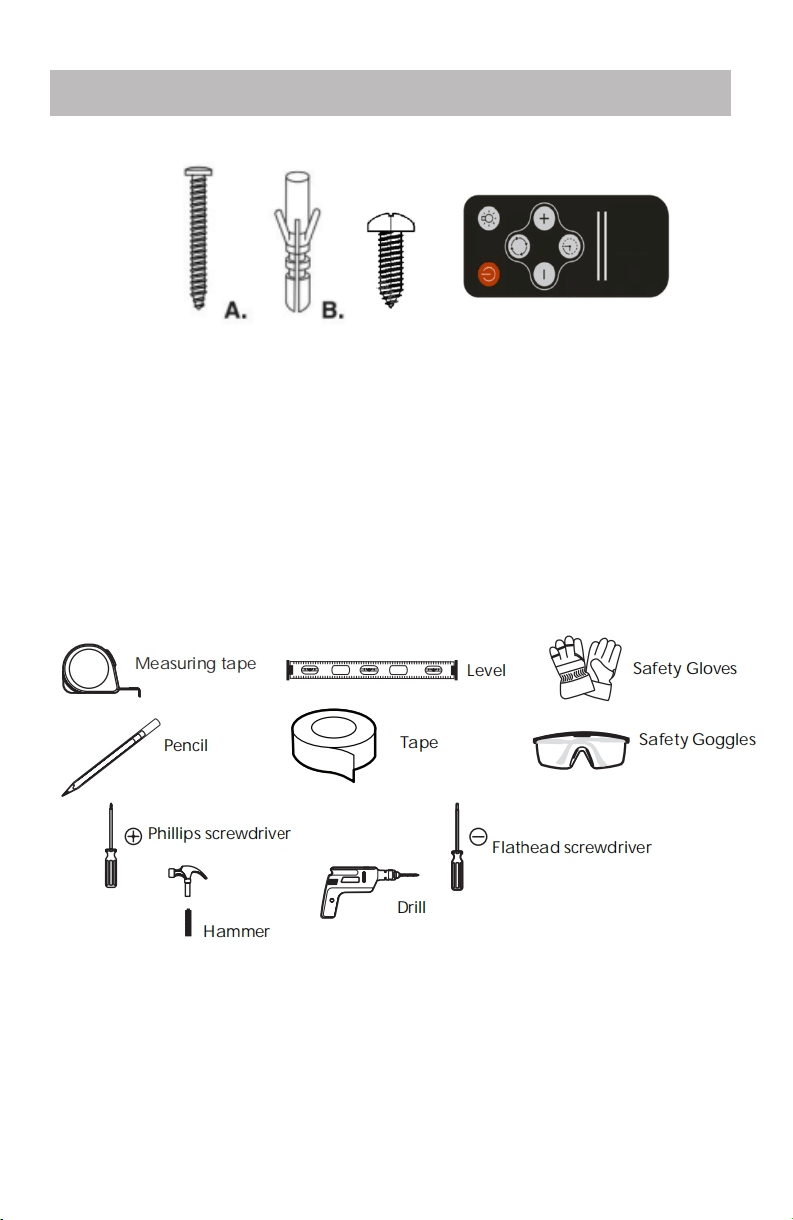

PARTS INCLUDED
PARTS LIST
A. 5pcs-ST5x40 screws
B. 5pcs-Wall anchors
C. 4pcs-ST5x16 screws
D. 1pc-Remote Control
C. D.
6
TOOLS NEEDED

INSTALLATION INSTRUCTIONS
Warning
1. TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCT WORK.
2.. GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing an
escape wire for the electric current. This appliance is equipped with
a cord having a grounding wire with a grounding plug. The plug must
be plugged into an outlet that is properly installed and grounded.
WARNING – Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not
completely understood, or if doubt exists as to whether the appliance
is properly grounded.
Do not use an extension cord. If the power supply cord is too short,
have a qualified electrician install an outlet near the appliance.
CAUTION： To reduce risk of fire and to properly exhaust air, be sure
to duct air outside - Do not vent exhaust air into spaces within walls or
ceilings or into attics, crawl spaces, or garages.
Use only with range hood cord-connection kits that have been
investigated and found acceptable for use with this model range hood.
7

INSTALLATION INSTRUCTIONS
Step 1-3
1. Drill two 8mm holes in position for Wall Anchor (Part B) placement.
2. Tap Wall Anchors securely into each of the drilled holes.
3. After Wall Anchors have been tapped in place, Insert st5 Screws,
but leave 1/4 of the screw sticking out of the wall. (This will give
your Range hood something to hang onto).
Step 4 Step 5
4. Install the 6" round Aluminum duct, secure the round aluminum
duct to the vent hole at the top of the hood unit using HVAC
Aluminum foil tape. (Not available. to be purchased)
If mounting to a cabinet, skip step 5 and proceed with step 6-11.
5. If mounting to the wall only, drill a 6-1/4 round hole on the back wall
above the hood, OR into the ceiling directly above the hood.
5a. Remove baffle filters from underneath the hood and set them aside.
5b. Lift the hood and hang the hood unit on the back wall using the
screws drilled in Step 3. Once the hood is securely hung on the wall,
tighten the screws from the interior of the hood.
5c. Pull round aluminum duct through the newly drilled hole in the wall.
Plug unit into power outlet. Reinstall baffle filters.
+8mm Hole
+8mm Hole
27.56"
+
1/4"
Spacing
Wall
8
BACK OF UNIT
OR

INSTALLATION INSTRUCTIONS
Step 6

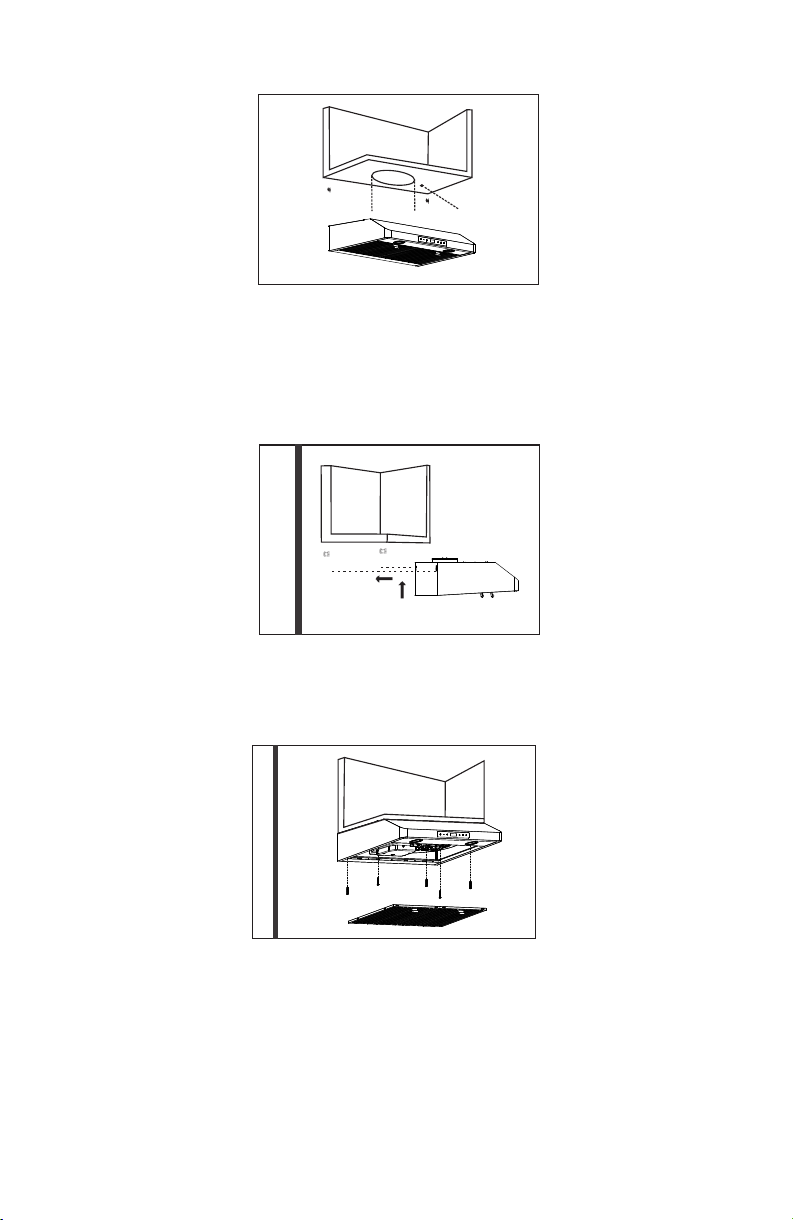

6. Drill a 8" round hole into the bottom of the cabinet. Drill a 1-1/2
hole into the bottom of the cabinet for the Electrical Access hole.
6a. Pull the round duct & power cord through the bottom of the new
cabinet holes.
Step 7
7. Lift the hood and hang the hood unit on the back wall using screws
drilled in Step 3.
Step 8-9
8. Once the hood is hung to the back wall, remove the baffle filters
from underneath the hood.
9. Drill each of the five pieces of St5 screws (Part C) into the bottom
of the cabinet using the five screw holes at top of the hood.
10. Once the hood is secured into the cabinet, tighten the wood screws
located in the back of the hood. Install Baffle filters back into place.
Make sure hood is secured by pressing on it. Plug unit into power outlet.
9
+
+
8" ELECTRICAL
ACCESS HOLE
Wall
st5

Installation Procedures
Safety Warning: Hood may have very sharp edges. Please wear
protective gloves if it is necessary to remove any parts from
installing, c leaning or servicing.
Not level
Level
(C)

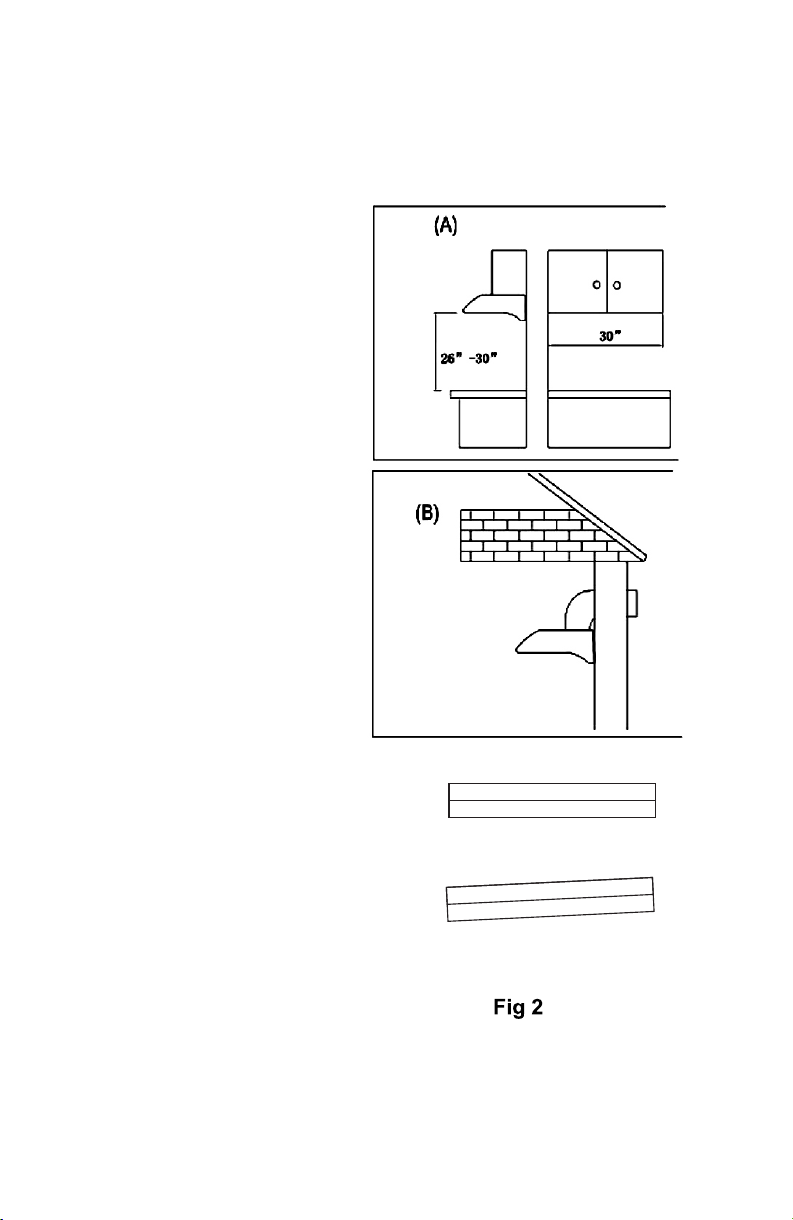

Installation Height
1. The distance between
the stove surface and
the underside of the
range hood must be in
the range of 26"-30"
Fig(2-A).
The duct opening size
is in Fig 2(B)
Vent duct length
2. The length of the
vent duct should be
minimized to avoid air
turbulence inside the
duct. (Fig (2-B).
Balance level:
3. The range hood must
be leveled during the
installation. An unleveled
installation hood may
cause improper operation,
leaks and oil spill over
from oil collectors.
Fig(2-C)
6" 6"
10
4. The air outlet must not be connected to the chimney flues or
combustion gas ducts. The air outlet must not be connected
to ventilation ducts for rooms in which fuel-burming appliances
are installed.

11

B
D
Parts #supplied
Note: The fasteners included may not be suitable to your
cabinet. Please check with the installer on proper fasteners
to be used based on the material makeup of your cabinet.
(A) Range hood
(B) Power cord for hard wiring.
(C) 6" round air vent (attached to top of range hood.)
(D). 2pcs steel baffle filters.
Securing range hood to wall if cabinet bottom is stable
enough to support range hood.
C
12

13

Function Key and Remote control operation
1. When power on, press 3 seconds to enter into time setting
mode. Then press “-” and “+” to set hour, after hour confirmed,
press again to set minute, press “-” and “+” to set minute.
2. In motor working mode, press once to enter into 3 minutes
delay turn off mode, press again to set from 3-59 minutes, no
operation for 5 seconds to start count down delay turn off.
During this time button flashes, can change speeds.
In motor working mode, press “-” to set from speed
3 to 1, press again to stop the motor.
In motor working mode, press “+” to set from speed
1 to 3, max speed 3.
1. In standby mode, press to turn on or turn off the light.
2. In standby mode, press 3 seconds to set 12 or 24 hour.
In standby mode, press once to start all function
buttons. In motor working mode, press once to
start delay turn off for 60 seconds, press again to turn off the hood.
In standby mode, press once to start speed 3.
Remote receiver.
OPERATION INSTRUCTION
14

Maintenance
Caution: Never put your hand into the area housing while the fan
is operating. F or the optimal level of operation, c lean the range
hood surface, fan, and stainless steel flter regularly.
Use only mild soap or detergent solutions to clean the range
hood surface. Dr y surface using soft cloth.
Using a stainless steel cleaner to bring the shadow back into a
stainless steel fnish.
Clean the flter once a week or according to use status. Pr ess the
buckle of the filter slightly, take off the filter and soak it into warm
soapy water.
Clean the motor fan and other inside parts, once every half year or
according to usage status by qualified person.
DO NOT clean motor with water or other liquid.
15

To Replace Light
Caution: LED light can not replace a new bulb, r eplace the whole LED light.
Make sure all the control switches are off, and the r ange hoods unplugged!
Take out the fliters and cut off the wire connection of the light, press the spring
You can replace a new LED light unit no more than rating!
Then put the light unit to the hood in reverse direction. Connect the wire of
Fit on the flters.

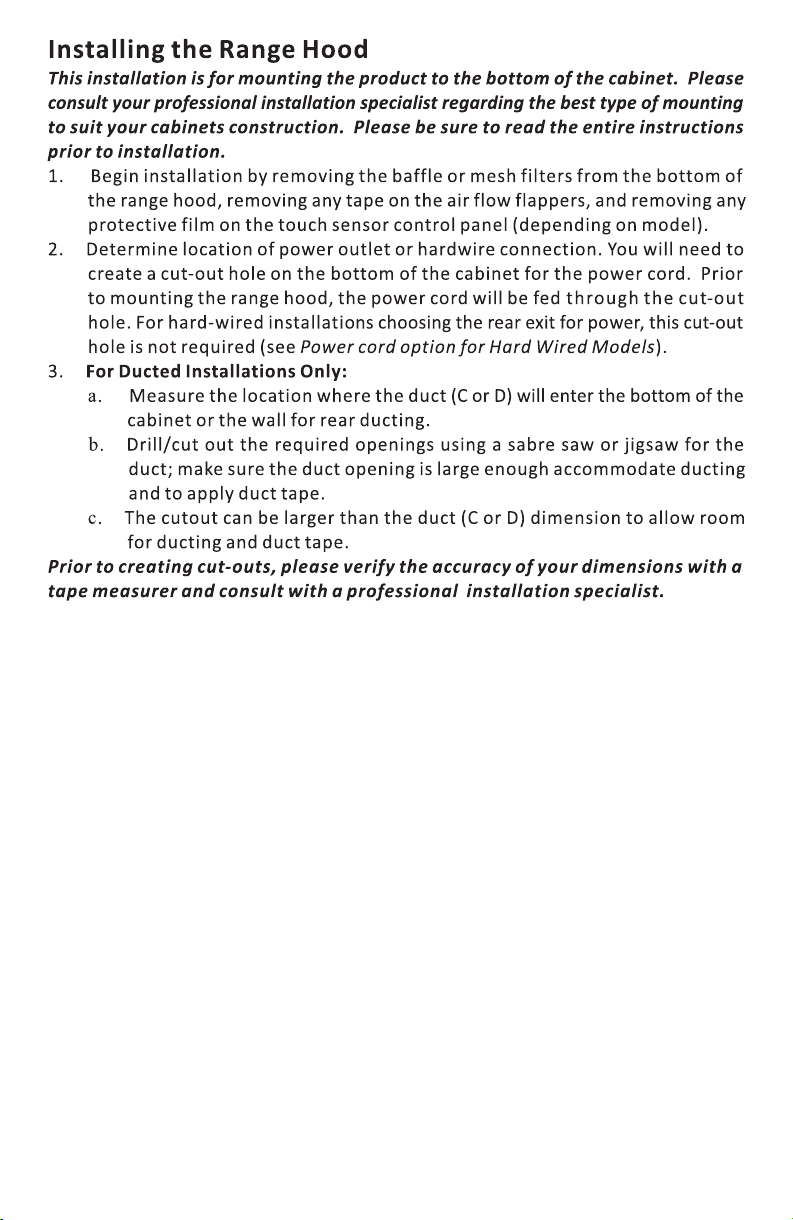

Installation instructions
Preparing the range hood:
1. Open the electrical knockout which is best for your wiring.
2. Fix the shutter to the range hood’s vent; prevent the leakage of oil by
taping the connection with aluminum metal adhesive tape, or duct tape.
3. Attach the ruber support to the back of the range hood.
4. Unscrew and remove the range hood’s bottom cover.
1. Pass the wiring through the electrical knockout hole in the range hood.
2. Put the range hood onto the bottom of the cabinet. Make sure the rear
side is close to the wall, and the hood is equally spaced on each side and
that the top of the range hood is attached to the cabinet. On each side of
the range hood, use 2pcs screws to fix the body to the cabinet.
3. Connect the green wire from power source to the green ground wire on
the range hood. Make the electrical connection by fastening the white wire
line to white and the black wire to black.
4. Reinstall the range hood’s bottom cover and stainless steel baffle filters.
5. Reinstall the oil container.
6. Turn on the power and check the operation of the fans and light.
Important safety instructions
Please follow below instructions:
according to the arrow direction, then you can take off the LED light unit.
the lamp.
16

17
