Anaheim Scientific H300 User manual

INSTRUCTION MANUAL
Models: H300
Humidity/Temp Meter
with DEW Point and Data Logger

Table of Content
1. Product Introduction ………………………………………… 3
1-1 Features ………………….………………………… 3
1-2 Applications ……………………………………...… 3
2. Safety Information …………………………………………… 4
2-1 Cautions ………………………………..………..… 4
2-2 Safety Symbols ………………………..…..……… 4
3. Specifications……………………………………...…………. 5
4. Operation Instructions……………………………………… 6
4-1 Unit Diagram ……………………………………… 6
4-2 Measuring Procedure ……………………….…... 7
4-3 Humidity & Temperature Measurement ..……… 7
4-4 DEW Point Measurement .…………….………… 7
4-5 Data Hold ……………………....………………… 7
4-6 Data Record (MAX/MIN) ………………………… 7
4-7 Auto Data Logger ………………………………… 7
4-8 Manual Data Logger ……………………………... 8
5. Advanced Measuring Procedures ………………………. 9
5-1 Change Unit of Measure from °C to°F …….… 9
5-2 Change Data Logger Sampling Time ………… 9
5-3 Show Memory Balance ………………………… 9
5-4 Clear Memory …………………………………… 10
6. Auto Power Off Disable …………………………………… 10
7. Send Data from RS232 Socket …………..…………………. 11
8. RS232 PC Serial Interface Information ………………… 11
9. Battery Replacement ..…………………………………….. 12
9. Service Information …………………………………..……. 13
10. Warranty Information ………………………………………. 14
To see all available accessories and downloadable software, please visit
www.anaheimscientific.com

1. Product Introduction
1-1 Features
Humidity, Temperature and Dew Point measurements
0.01 Resolution for Temperature and RH measurements
Fast response time
High level of accuracy
Large LCD display
Two year warranty
1-2 Applications
Science Experiments
HVAC
Plant Maintenance
Manufacturing
Agriculture
Quality Control
3

2. Safety Information
Read the following safety information carefully before attemptingto operate or
service the meter. Only qualified personnel should perform repairs or servicing not
covered in this manual.
2-1 Cautions!
DO NOT submerge the products mentioned in this manual in water or any other
types of liquids.
This product is not designed for use in medical applications. The product can only
be used to measure body temperature simply for reference.
2-2 Safety Symbols
Dangerous, referto this manual beforeusing the meter.
Conforms to requirements ofEuropean Union and European Fare Trade
Association (EFTA).
Battery level is low.
Don’t dispose this product as unsorted municipal waste.
This instrument conforms to the following standards:
EN61326: Electrical equipment for measurement, control and laboratory use.
IEC61000-4-2: Electrostatic discharge immunity test.
IEC61000-4-3: Radiated, radio-frequency, electromagnetic field immunity test.
IEC61000-4-8: Power frequency magnetic field immunity test.
4

5. Specifications
Display 5 Digit LCD with bar graph indicator
Unit of Measurement
Humidity: %RH (Relative Humidity)
Temperature: °C or
°
F
Dew Point: °C or °F
Temperature Compensation
Automatic for humidity function
Sampling Time of Data Logger
Manual
Pushing the data logger button once will
save data one time
Auto
1, 2, 10, 30, 60, 600, 1800, 3600 seconds
Humidity / Temperature
Humidity
Range
0% to 95% RH
Resolution
0.01% RH
Accuracy
>70%RH +(3%rdg. + 3% RH)
10% to 70%RH + (3% rdg. +1%RH)
Temperature
Range
32°F to 122°F, (0°C to 50°C)
Resolution
0.01 degree
Accuracy
°C = + 0.8°C / °F= + 1.5°F
Dew Point
°C
Range
-25.3°C to 48.9°C
Resolution
0.01°C
°F Range -13.5°F to 120.1°F
Resolution
0.01°F
Dew Point
Accuracy sum of RH and Temperature accuracies
Data Hold
Display freeze
Memory
Saves MAX. or MIN values with recall
Sampling Time
Approximately 0.8 seconds
Power Off
Auto or manual control
Data Output
RS-232 Serial data output
Operating Environment
32°to 122°F (0° to 50°C), <85% R.H.
Power Supply
6 Pieces of DC 1.5V Batteries (UM4, AAA or equivalent)
Weight (approx.)
0.74lbs. (336g)
Dimensions (approx.)
Main instrument: 6.9 x 2.7 x 1.7"(174 x 68 x 42mm)
Sensor probe length: 7.8" (197mm)
Included Accessories
Instruction manual, battery, carrying case
* = Note : Accuracy applicable in environments with RFI <3V/M with Hz <30MHz, and
temperatures between 20°C to 26°C, after 20 minutes ofacclimation.
Specifications and information are subject to change without notice
Please visit www.anaheimscientific.com for the most current product information.
5

4. Operation Instructions
The H300 could take as long as ten minutes for the display to completely “settle” and display
the actual temperature or relative humidity level if the meter is exposed to two vastly different
environments. The sensors used to make the environmental measurements must have time to
acclimate to the test environment.
4-1 Unit Diagram
Fig. 1
4-1 LCD Display
4-2 Power button
4-3 Hold Button (ESC Button)
4-4 REC Button (Enter Button)
4-5 Function Button (Send Button)
4-6 Set Button (Logger Button)
4-7 Battery Compartment
4-8 Stand
4-9 RS232 Socket
4-10Probe Input Socket
4-11Probe Plug
4-12Probe Head (Humidity & Temp.)
4-13Probe Handle
4-14DC 9V Adapter Input Socket
4-15Battery Cover Screw
4-16Tripod Screw Mount
6

4-2 Measuring Procedure
The H300 default unit of measure is °C. To switch to °F see section 5-1. The sampling time
default for data logging is set at2 seconds. To change this sampling time see section 4-7.
4-3 Humidity & Temperature Measurement
1. Plug the “Probe Plug” (4-11, Fig. 1) into the “Probe Input Socket” (4-10, Fig. 1).
2. Power on the meter by pressing the “Power Button” (4-2, Fig.1) for 2 seconds. The LCD will
show the units of measure on the display after a quick self test. It will displaythe %RH in the
main display and temperature in the bottom section of the LCD.
3. The meter displays temperature in °C by default, t o switch to °F see section 5-1.
4-4 DEW Point Measurement
To measure DEW Point follow the instructions shown in section 4-3 and then press the
“Function Button” (4-5, Fig. 1) momentarily once. The LCD will show the word DEW in the main
display and temperature below.
4-5 Data Hold
While taking measurements you can freeze the displayed value by pressing the “Hold Button”
(4-3, Fig. 1) once. The HOLD symbol will be displayed along with the held measured value on
the LCD. By pressing the “Hold Button” (4-3, Fig. 1) a second time will release the displayed
value and turn off the data hold function.
4-6 Data Record (MAX/MIN)
1. To record the maximum and minimum readings, press the “REC Button”(4-4, Fig. 1). The
REC symbol will be displayed on the LCD. By pressing the “REC Button” (4-4, Fig. 1) you can
toggle through the Max and Min values.
2. To delete the recorded values press and hold the “Hold Button” (4-3, Fig. 1) for about 3
seconds.
3. To stop using the REC function, press and hold the “REC Button” (4-4, Fig. 1) for at least 3
seconds.
4-7 Auto Data Logger
Setup process will be described first because the Auto Data Logger function willnot work if the
sampling seconds is set to 0. If you do not need to setup your meter, skip to step 7.
1. Press and hold the “SET Button” (4-6, Fig.1) for about 3 seconds to enter the settingsmenu
(you will see the word code on the bottom of the LCD).
2. Pressing the “Enter Button” (4-4, Fig. 1) will bring you to the unit of measure for temperature
(see section 5-1 if you wish to change the unit of measure).
3. Press the “Logger Button” (4-6, Fig.1) and SEC will be displayed on the bottom of the LCD.
4. To cycle through the number of seconds you would like meter to wait between loggings,
press the “Function Button” (4-5, Fig. 1). By pressing the “Function Button” (4-5, Fig. 1) the
following number of seconds will be displayed on the top of the LCD: 1, 2, 10, 30, 60, 600,
1800 or 3600.
5. Once the number seconds you require is displayed on the LCD, press the “Logger Button”
(4-6, Fig.1).
6. Press the “Enter Button” (4-4, Fig. 1) to exit the settings menu, then press the “ESC Button”
(4-3, Fig. 1).
7

7. Press the “REC Button” (4-4, Fig.1) momentarily to start the data log function. The REC
symbol will be displayed on the LCD. The data logger function can save up to 1000 values of
measure (either Humidity & Temp. or Dew Point & Temp).
8. Press the “Logger Button” (4-6, Fig.1) and the meter will start logging. You will see the A
flashing on the top of the LCDevery time a logging event has occurred. The A flashing will
match the number of seconds you set in the setup of the data logger function.
9. If the A in the top of the LCD and the lower display are flashing then, it indicates that the
memory is full. Please view the “Clears the existing saving data from the memory” section in
the “Advanced Measuring Procedures” section.
4-8 Manual Data Logger (set sample time to 0 seconds)
1. Press the “REC Button” (4-4, Fig.1) momentarily to start the data log function. The REC
symbol will be displayed on the LCD. The data logger function can save up to 1000 values of
measure (either Humidity & Temp. or Dew Point & Temp).
2. Press the “Logger Button” (4-6, Fig.1) every time you would like the meter to record a value.
You will see an A flash in the top of the LCD. The meter will not record another measurement
until you press the “Logger Button” (4-6, Fig.1) again.
3. If the A in the top of the LCD and the lower display are flashing then, it indicates that the
memory is full. Please view the “Clears the existing saving data from the memory” section in
the “Advanced Measuring Procedures” section.
8

5. Advanced Measuring Procedures
Note: Cancel any Hold or Record functions before trying to perform and advanced measuring
procedures.
1. Press and hold the “SET Button” (4-6, Fig. 1) for about 3 seconds until the LCD displays
“Code”. Once you release the button you should see 1000 in the main display. 1000 Is the
password code to allow advanced measuring procedures. To leave the setting menu press the
“ESC Button” (4-3, Fig.1).
2. Press the “Enter Button” (4-4, Fig. 1).
4. Now you are in the setting area to set or change the temperature unit of measure. Pressing
the “Set Button” (4-6, Fig. 1) will cycle through the following setting sections:
°F…… Change the Temp C or F (section 5-1)
SEC… Change the data logger sampling rate (section 5-2)
Cnt….. To show the balance data in memory (section 5-3)
CLr…. Clear saved data in memory (data logger data) (section 5-4)
OFF… Auto power ON/OFF management (section 5-5)
5-1 Change Unit of Measure from °C to °F
1. Press and hold the “Set Button” (4-6, Fig. 1) for about 3 seconds until you see the word
“COde” in the bottom ofthe LCD.
2. Press the “Enter Button” (4-4, Fig. 1). Now you mayselect between °C & °Fby
pressing the “Function Button” (4-5, Fig. 1). Whena “0” is in themain LCD the unit will
display temperature in°C. When a “1” is in the main LCDthen the unit will display
temperature in °F.
3. Once you have selected either a 0 ora 1, press the “REC Enter” button and then
press the “Hold ESC” button to escape and go back to thenormal testing mode.
5-2 Change Data Logger Sampling Time
1. Press and hold the “Set Button” (4-6, Fig.1) for more than 3 seconds.
2. The main LCD should then display1000. Now press the “Enter Button” (4-4-, Fig. 1)
3. Now press the “Set Button” (4-6, Fig.1). You will see SEC in the bottom left of the LCD.
4. Use the “Function Button” (4-6, Fig. 1) to cycle through the available seconds settings. Stop
on either 0, 1, 2, 10, 30, 60, 600, 1800 or 3600. The value you select will tell the meter how
often to log an event. Note that 0 SEC can only be used in the manual logging function.
5. Press the “Enter Button” (4-4, Fig.1) to confirm your selection and save it to the meters
memory.
6. Press the “ESC Button” (4-3, Fig.1) to go to the normal measurement mode.
5-3 Show Memory Balance
1. Press and hold the “Set Button” (4-6, Fig.1) for about 3 seconds.
2. The main LCD should then display1000. Nowpress the “Enter Button” (4-4-, Fig. 1)
3. Press the “Set Button” (4-6, Fig.1) twice and you will see the Cnt marker in the bottom of the
LCD. The top number is the number of available data points.
4. Press the “ESC Button” (4-3, Fig.1) to go to the normal measurement mode.
9

5-4 Clear Memory
1. Press and hold the “Set Button” (4-6, Fig.1) for about 3 seconds.
2. The main LCD should then display1000. Nowpress the “Enter Button” (4-4-, Fig. 1).
3. Press the “Set Button” (4-6, Fig.1) three times and you will see the CLr marker in the bottom
of the LCD. The top number is the number of stored data points.
4. Press the “Function Button” (4-5, Fig. 1) and the top number will go to zero.
5. Press the “Enter Button” (4-4-, Fig. 1) to clear memory.
6. You can press the “ESC Button” (4-3, Fig. 1) return to the normal measurement mode.
6. Auto Power Off Disable
This instrument has a “Auto Power Off " function that can prolong battery life. The meter will
shut off automatically if none of the buttons are pressed in approx. 10 min.
To disable this function, select the memory record function during a measurement by pressing
the " REC. Button” (4-4, Fig. 1 ).
10

7. Send Data from RS232 Socket
1. Cancel Hold and REC functions.
2. Press and hold the “Send Button” (4-5, Fig. 1) for about 2 seconds. You will see 232 in the
bottom of the LCD.
3. Press the “Send Button” (4-5, Fig. 1) and both the top and bottom display will begin to flash.
At this time the data is being sent out the “RS232 Socket” (4-9, Fig.1).
8. RS232 PC Serial Interface Information
This instrument has RS232 PC serial interface via a 3.5 mm terminal (4-12, Fig. 1).
The data output is a 16 digit stream which can be utilized for user's specific application.

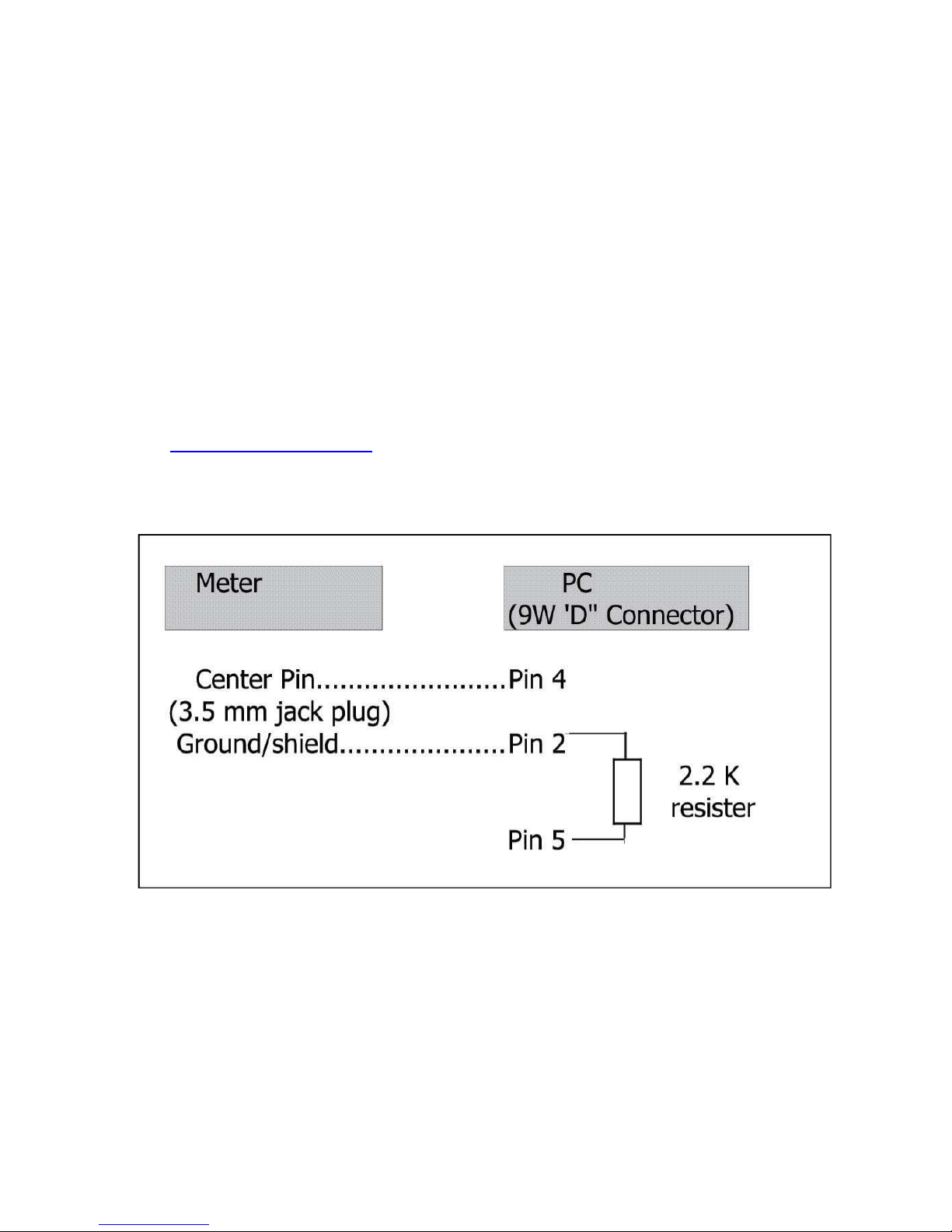

A RS232 lead with the following connection will be required to link the instrument with the PC
serial port.
Visit www.anaheimscientific.com to see any available downloadable software for your
instrument.
11

The 16 digit data stream will be displayed in the following
format:
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1D0
Each digit indicates the following status:
D15
Start Word
D14
4
D12 & D11 Indicator for Display
°C = 01
°F = 02
% RH = 04
D10
Polarity: 0 = Positive / 1 = Negative
D9
Decimal Point (DP), position from right to left
0 = No DP, 1 = 1 DP, 2 = 2 DP, 3 = 3 DP
D8 to D1
Display reading, D1 = LSD, D8 = MSD
Example: If the display reading is 1234,
then D8 to D1 is: 00001234
D0
End Word
RS232 Setting
Baud Rate
9600
Parity
No Parity
Data bit #
8 Data bits
Stop bit
1 Stop bit
9. Battery Replacement
1. When the LCD display shows the “ ” low batterysymbol, Itis necessary to
replace the battery.The specifications listed for this instrument do notapply when the
low battery symbol is displayed.
2. Open the “Battery Compartment” (4-7, Fig. 1)by first loosening the “Battery Cover
Screws” (4-15, Fig. 1).
3. Replace the batteries with “good” batteries noting thecorrect polarity. Replace
“Battery Compartment” (4-7, Fig. 1) and “Battery Cover Screws” (4-15, Fig. 1). Ensure
the cover is securely fastened.
12

10. Service Information
Warranty Service: Please return the product in the original packaging
with proof of purchase to the address below. Clearly state in writing the
performance problem and return any leads, probes, connectors and
accessories that you are using with the device.
Non-Warranty Service: Return the product in the original packaging
to the address below. Clearly state in writing the performance problem
and return any leads, probes, connectors and accessories that you are
using with the device. Customers not on open account must include
payment in the form of a money order or credit card. For the most
current repair charges please visit www.anaheimscientific.com and
click on “service/repair”.
Return all merchandise to Anaheim Scientific with pre-paid shipping.
The flat-rate repair charge for Non-Warranty Service does not include
return shipping. Return shipping to locations in North American is
included for Warranty Service only. For overnight shipments and non-
North American shipping fees please contact Anaheim Scientific.
Anaheim Scientific
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
www.anaheimscientific.com
714-921-9095
Include with the returned instrument your complete return
shipping address, contact name, phone number and description
of problem.
13

11. Limited Two-Year Warranty
Anaheim Scientific warrants to the original purchaser that its products
and the component parts thereof, will be free from defects in
workmanship and materials for a period of two years from date of
purchase from an authorized Anaheim Scientific distributor.
Anaheim Scientific will, without charge, repair or replace, at its option,
defective product or component parts. Returned product must be
accompanied by proof of the purchase date in the form of a sales
receipt.
To obtain warranty coverage in the U.S.A., this product must be
registered by completing the warranty registration form on
www.anaheimscientific.com within fifteen (15) days of purchase.
Exclusions: This warranty does not apply in the event of misuse
or abuse of the product or as a result of unauthorized alterations
or repairs. The warranty is void if the serial number is altered,
defaced or removed.
Anaheim Scientific shall not be liable for any consequential damages,
including without limitation damages resulting from loss of use. Some
states do not allow limitations of incidental or consequential damages.
So the above limitation or exclusion may not apply to you.
This warranty gives you specific rights and you may have other rights,
which vary from state-to-state.
Anaheim Scientific
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
www.anaheimscientific.com
714-921-9095
14

Anaheim Scientific
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
U.S.A.
www.anaheimscientific.com
Printed in Taiwan / Ver. 1.0/0211
©2012 Anaheim Scientific Corporation
