1 Introduction
The P773 is a wide-range, pocket-sized total dissolved solids meter perfect for use in
field environments such as:
Hydroponics
Fish farming
Agriculture
Swimming pools and spas
Waste water systems
Plating industry
Food industry
Pharmaceutical and Medical
Cooling towers
Chemical industry
Having a rugged, waterproof housing, and replaceable electrodes, this meter will give
long durable service. With 10 ppm resolution and ±2% FS accuracy, you will have high
quality results at your fingertips. Automatic temperature compensation (ATC) adjusts for
changes in total dissolved solids due to temperature.

2
anaheimscientific.com
Technical data subject to change without notice
©Anaheim Scientific Corp. 2012 v110912
Features
Resolution: 10 ppm
High accuracy: ±2% Full Scale
Measures 0~19990 ppm
Rugged waterproof housing (meets IP57 standards)
Compact size fits easily into your pocket
Automatic temperature compensation
Replaceable electrodes (not covered under warranty)
Large 21 x 18 mm LCD display
Easy 1-point calibration with included calibration solution
Comes ready-to-go with two long-life 3-V Lithium batteries
2 Safety Summary
Be sure the temperature and humidity are within the limits indicated in the Technical
Specifications section of this manual.
Avoid making measurements in the presence of explosive gas, combustible gas, steam or
excessive dust.
Do not install substitute parts or perform any unauthorized modifications to this
instrument. Return the instrument to Anaheim Scientific for service and repair to ensure
that safety features are maintained.
The following symbols are used in this manual:
This symbol on an instrument indicates that the user should refer to the
operating instructions located in the manual.
The meter is in compliance to the CE mark standards
3 Compliance Statements
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union
and other European countries with separate collection systems)

3
anaheimscientific.com
Technical data subject to change without notice
©Anaheim Scientific Corp. 2012 v110912
This product is subject to Directive 2002/96/EC of the European
Parliament and the Council of the European Union on waste
electrical and electronic equipment (WEEE), and in jurisdictions
adopting that Directive, is marked as being put on the market after
August 13, 2005, and should not be disposed of as unsorted
municipal waste. Please utilize your local WEEE collection
facilities in the disposition of this product and otherwise observe
all applicable requirements.
4 Product Contents and Inspection
This unit is tested prior to shipment. It is therefore ready for immediate use upon receipt.
An initial physical inspection should be made to ensure that no damage has been
sustained during shipment.
Inspect the packing box on receipt for any external damage. If any external damage is
evident, remove the instrument and visually inspect its case and parts for any damage. If
damage to the instrument is evident, a description of the damage should be noted on the
carrier’s receipt and signed by the driver or carrier agent. Save all shipping packaging for
inspection. Forward a report of any damage to the agent through which the unit is
procured.
Retain the original packing in case subsequent repackaging for return is required. Use of
the original packing is essential.
After the mechanical inspection, verify the contents of the shipment. The items included
in this package are:
P773 TDS meter
Instruction manual
Calibration solution
Two 3V Batteries (already installed)
Calibration screwdriver
Gift box

4
anaheimscientific.com
Technical data subject to change without notice
©Anaheim Scientific Corp. 2012 v110912

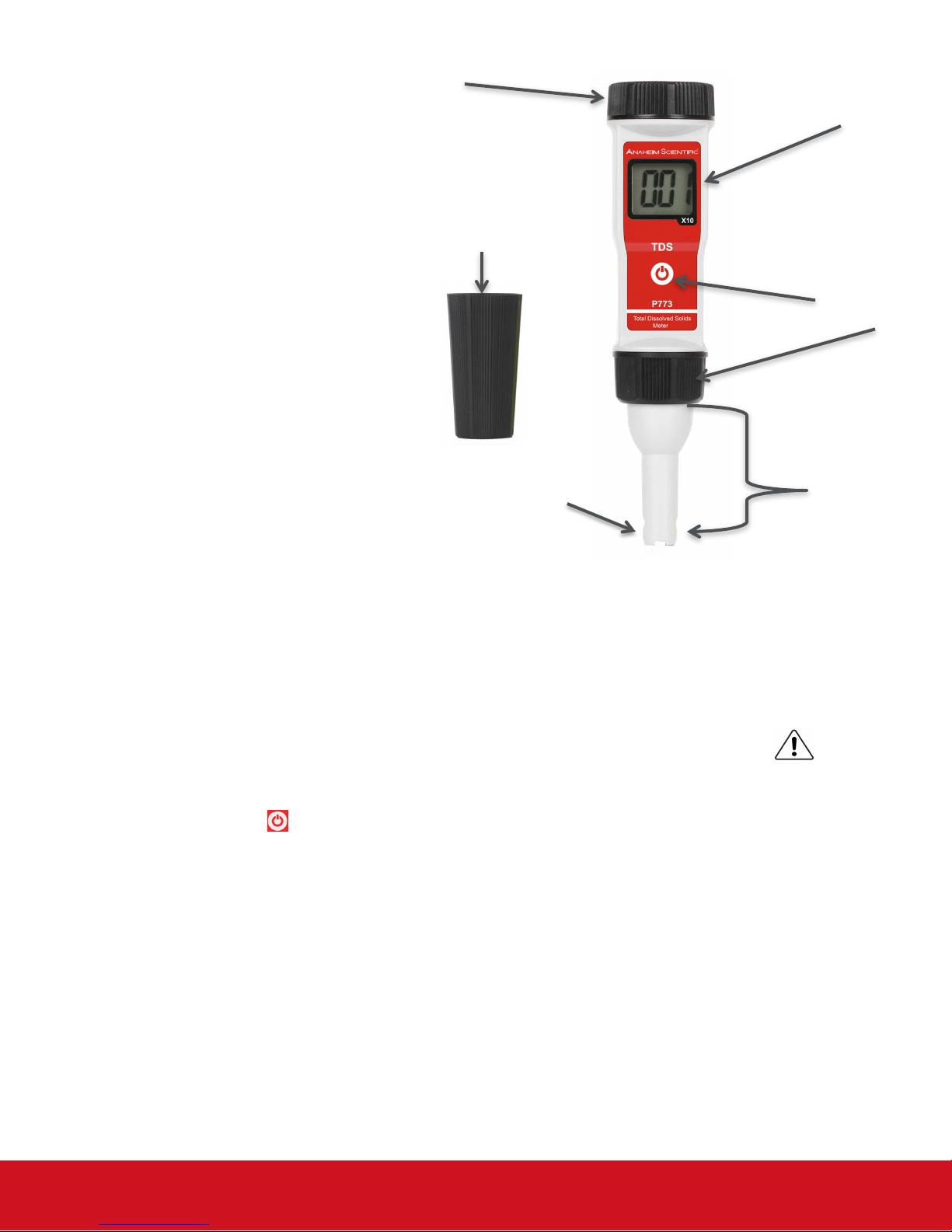

5 Device Description
1) Battery compartment cap
2) Main display
3) Power button
4) Electrode collar
5) Electrode module
6) Electrode
7) Protective cap
6 Operating Instructions
6.1 Preparation
1. Remove the protective cap from the meter to rinse the electrode with clean
water and then wipe it dry. Do not touch or wipe the surface of the inner
black sensor of the electrode.
2. Open the battery compartment to take out the screwdriver.
3. Press the button to turn the meter power on.
6.2 Calibration
1. Dip the electrode into the calibration solution. Stir gently and wait until the
display is stabilized. Adjust the reading to 94 (940 ppm) at 25 ℃by turning the
trimmer (Span) located at left side of battery compartment with the calibration
screwdriver.
2. Calibration is complete.
3. There is no need to calibrate before each usage. Calibration should be performed
every two weeks or after 10 times of usage.
2
1
3
4
5
6
7

5
anaheimscientific.com
Technical data subject to change without notice
©Anaheim Scientific Corp. 2012 v110912
6.3 Measuring with the Conductivity Meter
1. After calibration, rinse the electrode with clean water and wipe it dry. Do not
touch or wipe the surface of the inner black sensor of the
electrode. Dip the electrode into the sample solution to be measured. Stir gently
and wait until a stable reading can be obtained.
2. Read the measurement on the display. The reading should be multiplied by a
factor of 10 to obtain the true conductivity value.
3. After measurement, rinse the electrode with clean water and replace the protective
cap. Do not touch or wipe the surface of the inner black sensor of
the electrode.
6.4 Changing the battery
1. The installed Lithium CR2032 batteries have a typical life span of 100 hours.
Replace the battery when the display begins to fade or flash.
2. Loosen the battery compartment cap.
3. Replace the old batteries with fresh Lithium CR2032 batteries, noting the polarity.
4. Replace the battery compartment cap tightly.
5. Recalibrate the meter after changing the batteries.
6.5 Electrode Replacement
1. As long as the electrode can be calibrated and remains responsive it is still useful.
When either of these begin to fail, you will need to replace the electrode. (This is
not covered under the warranty).
2. Unscrew the electrode collar and remove it completely.
3. Pull the electrode module out from the tester.
4. Plug in a new electrode module into the tester socket carefully.
5. Replace and tighten the electrode collar to make a good seal.
6. Make sure to calibrate the new electrode before usage.

6
anaheimscientific.com
Technical data subject to change without notice
©Anaheim Scientific Corp. 2012 v110912
7 Technical Specifications
Model
P773 Total Dissolved Solids Meter
Range
0 ~ 19990 ppm
Resolution
10 ppm
Accuracy
± 2% F.S.
ATC Range
5°C to 50 °C
Operating
Environment
5 °C to 50 °C
0 to 90% R.H.
Storage
Environment
0 °C to 50 °C
0 to 90% R.H.
Power
Two 3-V Lithium (CR2032) Batteries
Expected Battery Life
100 hours continuous
Display
3 Digit
21 x 18 mm LCD (.8 x .7”)
Dimensions
33.5 mm x 170 mm (1.3 x 6.7”)
Calibration
1 point manual, via trimmer (span)
Weight
85 g (3 oz)
Housing
ABS IP57
To ensure the most current version of this manual, please download the current version
here: http://anaheimscientific.com/images/manuals/P773_manual.pdf
For current up-to-date product information, please visit anaheimscientific.com

7
anaheimscientific.com
Technical data subject to change without notice
©Anaheim Scientific Corp. 2012 v110912
8 Maintenance
This is a precision instrument. To guarantee its performances be sure to use it or keep it
stored within the suitable environmental conditions given in the Technical Specifications.
Be sure to turn it off after use. To store the instrument for an extended period of time,
remove the batteries to avoid any damage to its inner components.
9 Service Information
9.1 Service, Repair, or Calibrations
The following are instructions regarding policies for servicing, repairing or calibrating
Anaheim Scientific products. Turnaround time is usually less than ten (10) working days
unless expedite service is requested and pre-arranged.
Send an email to [email protected] requesting an RMA number specifying
your request for either service/repair and/or calibration with your product's model
number.
Once you receive a reply from [email protected], you will be asked to ship
prepaid to the address below. Package the unit carefully using filler or bubble wrap, and
if possible, ship in original box. Ship each unit separately. (Anaheim Scientific is not
responsible for any shipping damage that may occur.)
Include a packing list with each unit shipped stating what type of service is required and
include the return shipping information: name, address and telephone number.
If the unit is in warranty, please provide the following: proof of purchase or copy of the
original invoice.
If the unit is out of warranty, prepayment is required by Check, Money Order or Credit
Card.
Return all merchandise to Anaheim Scientific with pre-paid shipping. The flat-rate repair
charge for Non-Warranty Service does not include return shipping. Return shipping to
locations in North American is included for Warranty Service. For overnight shipments
and non-North American shipping fees please contact Anaheim Scientific

8
anaheimscientific.com
Technical data subject to change without notice
©Anaheim Scientific Corp. 2012 v110912
Anaheim Scientific
ATTN: Service/Repair
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
anaheimscientific.com
714-921-9095
9.2 Warranty
Limited Two-Year Warranty. Anaheim Scientific warrants to the original purchaser that
its products and the component parts thereof, will be free from defects in workmanship
and materials for a period of two years from date of purchase.
Anaheim Scientific will, without charge, repair or replace, at its option, defective product
or component parts. Returned product must be accompanied by proof of the purchase
date in the form of a sales receipt.
To obtain warranty coverage in the U.S.A., this product must be registered by completing
a warranty registration form on anaheimscientific.com within fifteen (15) days of
purchase.
Exclusions: This warranty does not apply in the event of misuse or abuse of the product
or as a result of unauthorized alterations or repairs. The warranty is void if the serial
number is altered, defaced or removed.
Anaheim Scientific shall not be liable for any consequential damages, including without
limitation damages resulting from loss of use. Some states do not allow limitations of
incidental or consequential damages. So the above limitation or exclusion may not apply
to you.
This warranty gives you specific rights and you may have other rights, which vary from
state-to-state.
Anaheim Scientific
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
anaheimscientific.com
714-921-9095

(Page intentionally left blank)

(Page intentionally left blank)

22820 Savi Ranch Parkway
Yorba Linda, CA 92887
www.anaheimscientific.com
© 2012 Anaheim Scientific
