Evaluation Board User Guide

UG-102

One Technology Way •P. O. Box 9106 •Norwood, MA 02062-9106, U.S.A. •Tel: 781.329.4700 •Fax: 781.461.3113 •www.analog.com

Evaluation Board for Single High Speed Selectable Gain Differential Amplifiers

(16-Lead, 3 mm × 3 mm LFCSP)

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT

WARNING AND LEGAL TERMS AND CONDITIONS.Rev. A | Page 1 of 8

FEATURES

Enables quick breadboarding/prototyping

Selectable gain of 1, 2, or 3

Edge-mounted SMA connector provisions

Easy connection to test equipment and other circuits

GENERAL DESCRIPTION

The 16-lead, 3 mm × 3 mm lead frame chip scale package

(LFCSP) evaluation board is designed to aid in the evaluation of

single, high speed, selectable gain differential amplifiers. It has the

flexibility to choose between a gain of 1, 2, or 3. The evaluation

board is a bare board (that is, there are no components soldered

to the board) that enables users to quickly prototype a variety of

differential amplifier circuits, which minimizes risk and reduces

time to market. The evaluation board supports any of Analog

Devices, Inc., single, high speed differential amplifiers in 3 mm

× 3 mm LFCSP packages.

Figure 1 and Figure 2 show the component side and circuit side

of the evaluation board. Figure 3 shows the evaluation board

schematic.

The 4-layer evaluation board accepts edge-mounted Subminiature

Version A (SMA) connectors on both inputs and outputs, which

allows efficient and quick connection to test equipment or other

circuitry.

The board ground plane, component placement, and power supply

bypassing have been optimized for maximum circuit flexibility

and performance. The evaluation board uses a variety of surface-

mount technology (SMT) component case sizes: 0508, 0603,

and 7343.

Figure 4 and Figure 6 show the evaluation board assembly drawings.

The metal layout pattern for connecting the board to the op amp

and to the supporting circuitry is shown in Figure 5 and Figure 7.

DIGITAL PICTURES OF THE EVALUATION BOARD

08886-001

NOTES

1. THE EVALUATION BOARD SILKSCREEN PART NUMBER

LABELING ON YOUR BOARD MAY BE DIFFERENT FROM

WHAT IS SHOWN HERE.

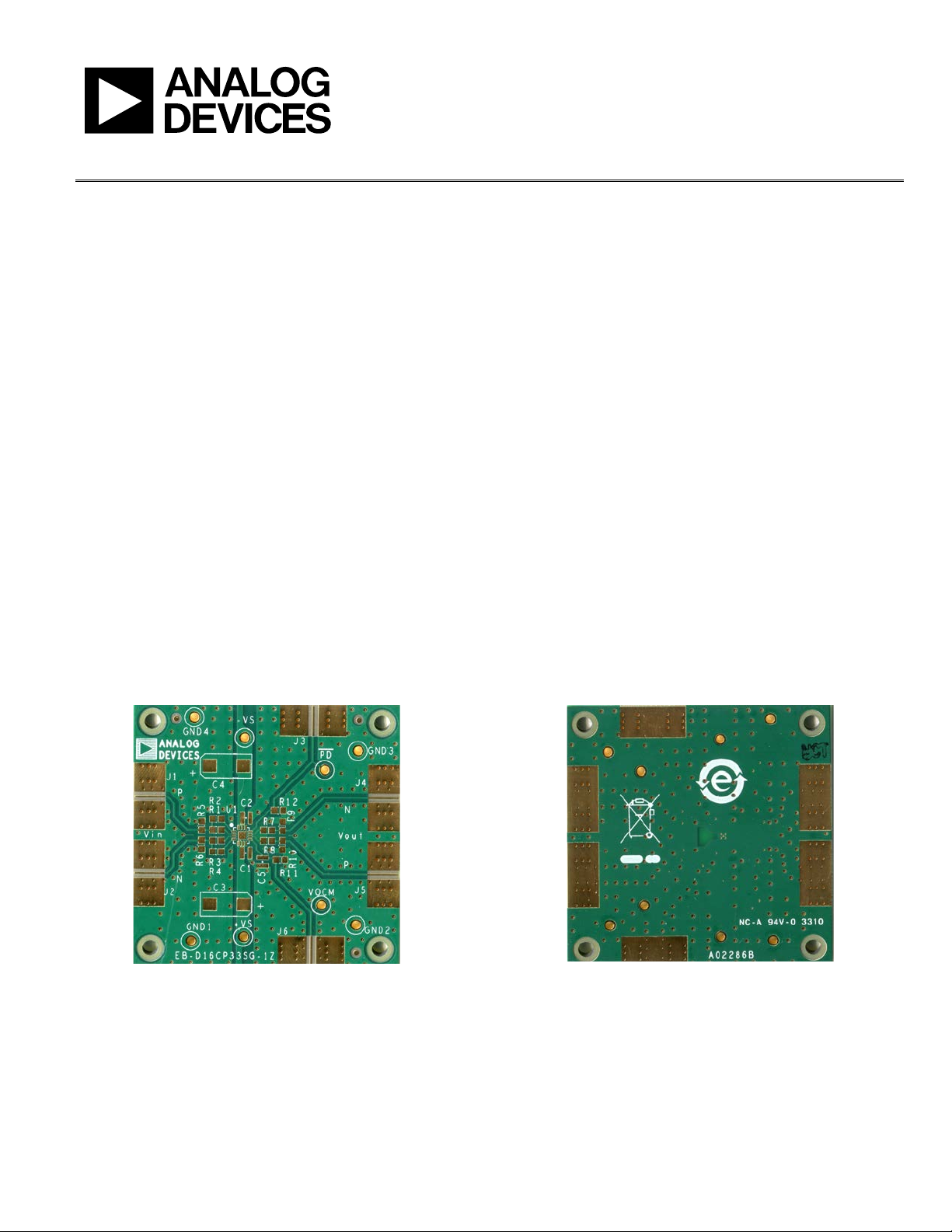

Figure 1. Component Side of the Evaluation Board

08886-007

NOTES

1. THE EVALUATION BOARD SILKSCREEN PART NUMBER

LABELING ON YOUR BOARD MAY BE DIFFERENT FROM

WHAT IS SHOWN HERE.

Figure 2. Circuit Side of the Evaluation Board

UG-102 Evaluation Board User Guide

Rev. A | Page 2 of 8

TABLE OF CONTENTS

Features .............................................................................................. 1

General Description ......................................................................... 1

Digital Pictures of the Evaluation Board ....................................... 1

Revision History ............................................................................... 2

Evaluation Board Schematic ............................................................3

Assembly Drawings and Board Layouts.........................................4

Ordering Information.......................................................................5

Bill of Materials..............................................................................5

REVISION HISTORY

9/12—Rev. 0 to Rev. A

Changes to General Description Section, Figure 1, and Figure 2..... 1

Changes to Figure 3 Caption ..................................................................... 3

Changes to Figure 4, Figure 5, and Figure 7.................................. 4

Added Ordering Information Section and Bill of Materials

Section................................................................................................ 5

4/10—Revision 0: Initial Version

Evaluation Board User Guide UG-102

Rev. A | Page 3 of 8

EVALUATION BOARD SCHEMATIC

+VS

+I NA

+I NB

-VS+VS

- I NB

-VS

+OUT- I NA - OUT

VOCM

+VS

VOCM

5 4 3 2

5432

PAD

R10

5 4 3 2

N P

+VS

5432

- VS

- I NB

10UF

. 1UF

+I NA

- I NA

. 1UF

+I NB

+VS

JOHNSON142- 0701- 851

. 1UF

JOHNSON142- 0701- 851

RED

BLU

- VS

BLU

AGND

AGND AGND

AGND

AGND AGND

AGND

08886-002

* USER-DEFINED VALUES

Figure 3. Single Differential Amplifier Evaluation Board Schematic

UG-102 Evaluation Board User Guide

Rev. A | Page 4 of 8

ASSEMBLY DRAWINGS AND BOARD LAYOUTS

08886-003

Figure 4. Board Assembly Drawing, Component Side

08886-004

Figure 5. Board Layout Pattern, Component Side

08886-005

Figure 6. Board Assembly Drawing, Circuit Side

08886-006

Figure 7. Board Layout Pattern, Circuit Side

Evaluation Board User Guide UG-102

Rev. A | Page 5 of 8

ORDERING INFORMATION

BILL OF MATERIALS

Table 1.

Quantity Reference Designator Description Package

4 +VS, PD, −VS, VOCM CONN-PCB test point blue CNLOOPTP

3 C1, C2, C5 0.1 µF capacitors 0508

2 C3, C4 10 µF capacitors 7343

4 GND1 to GND4 CONN-PCB test point black CNLOOPTP

6 J1 to J6 CONN jack end launch PC gold SMA JOHNSON142-0701-851

12 R1 to R12 User-defined resistors 0603

1 U1 GEN_QFN16_3x3_PAD1_5x1_5 QFN16_3X3_PAD1_5X1_5

1 PCB Printed circuit board
