AP0100AT2L00XUGAH-GEVB
AP0100AT Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor’s image sensors products. This headboard is
intended to plug directly into the Demo 2×system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
•Clock Input
♦Default – 27 MHz Crystal Oscillator
♦Optional Demo 2×Controlled MClk
•Two Wire Serial Interface
•Parallel Interface
•HiSPi (High Speed Serial Pixel) Interface
•ROHS Compliant
Block Diagram
Figure 2. Block Diagram of AP0100AT2L00XUGAH−GEVB
This document, and the information contained herein, is CONFIDENTIAL AND PROPRIETARY and the property of Semiconductor
Components Industries, LLC., dba ON Semiconductor. It shall not be used, published, disclosed or disseminated outside of the Company, in
whole or in part, without the written permission of ON Semiconductor. Reverse engineering of any or all of the information contained herein is
strictly prohibited.
E2015, SCILLC. All Rights Reserved.
www.onsemi.com
EVAL BOARD USER’S MANUAL
Figure 1. AP0100AT Evaluation Board
AP0100AT2L00XUGAH−GEVB
CONFIDENTIAL AND PROPRIETARY
NOT FOR PUBLIC RELEASE
www.onsemi.com
2
Top View
Figure 3. Top View of the Board with Default Jumpers
SEN_RST_OUT P51
Headboard Connector J8
Headboard Connector J7
EEPROM Sel P47, P48, P59
SEN_CLK P30
SEN_DATA P31
SPI_SDI_BAR P5
SPI_SCLK/CS_N P44
SPI Mem. Sel P7
TEST_BAR P3
ON_LED P11
GPIO_DATA16 P37, P40, P41, P42
1OE/2OE P54
OSC/XTAL Sel P22, P23
MCLK_IN P16
VDD P26
Video Filter Sel P56, P57, P58
GPIO1_LED P17
STANDBY P6
RESET Switch SW7
Bottom View
Figure 4. Bottom View of the Board
Baseboard Connector J5
Baseboard Connector J6
HiSPi Connector J2HiSPi Connector J1
+3V3_VDDADAC P21
+SVDDIO P10
+2V8_VDDPHY P20
+HVDDIO P12
+VCC P14
+AVDD P9
AP0100AT2L00XUGAH−GEVB CONFIDENTIAL AND PROPRIETARY
NOT FOR PUBLIC RELEASE
www.onsemi.com
3

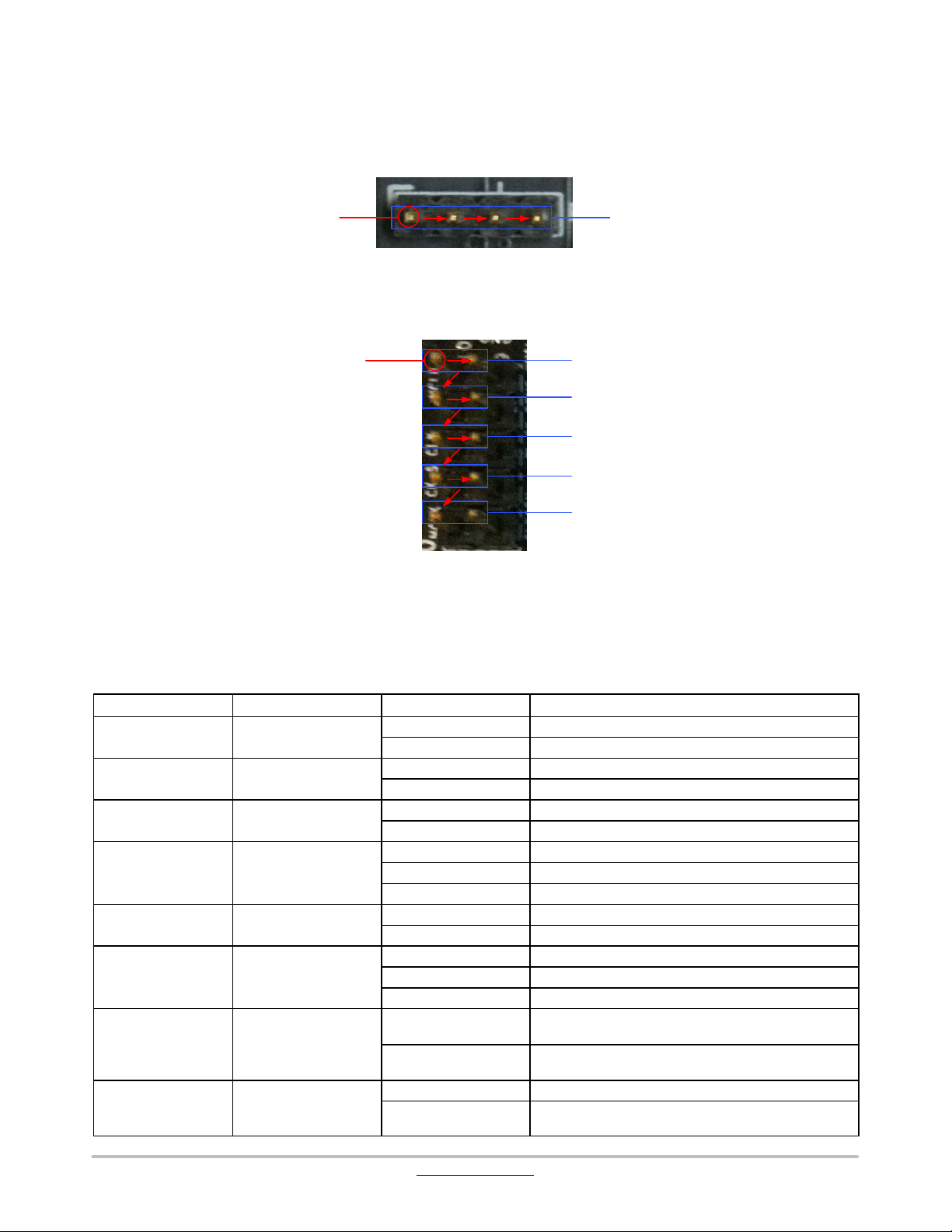

Jumper Pin Location
The jumpers on headboards start with Pin 1 on the
leftmost side of the pin. Grouped jumpers increase in pin
size with each jumper added.
Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side
and Increases as it Moves to the Right
Pins 1−4Pin 1
Figure 6. Pin Locations and Assignments of Grouped Jumpers.
Pin 1 is Located at the Top-Left Corner and Increases in a Zigzag Fashion Shown in the Picture
Pins 1 and 2Pin 1
Pins 3 and 4
Pins 5 and 6
Pins 7 and 8
Pins 9 and 10
Jumper/Header Functions & Default Positions
Table 1. JUMPERS AND HEADERS
Jumper/Header No. Jumper/Header Name Pins Description
P3 TRST_BAR Open OTPM Programming Voltage Not Supplied
2−3 (Default) Set to Normal Mode
P4 SADDR Open Set to Test Mode
Open Analog Test 1 Header
P5 SPI_SDI_BAR 1−2 (Default) GND; AP0100 in Host Mode
Open SPI_SDI_SEL; AP0100 in Flash Mode
P6 STANDBY 2−3 (Default) Active Mode
1−2Standby Mode
Open I2C IO Expander Control
P7 SPI Memory Selection 2−3 (Default) EEPROM Disable/Flash Enable
Open Flash Disable/EEPROM Enable
P8 GPIO_5 Open (Default) Serial IO Expander Control
1−2Set to Normal
2−3Set to Vertical Flip
P9 +AVDD Closed (Default) Connects to On-Board Regulator +1V8, Internal
Regulator Use
Open Disconnects from On-Board Regulator +1V8, External
Regulator Use
P10 +SVDDIO 3−5Select Demo 3 Baseboard Clock
2−4Select Slave Clock (for Slave Sensor in Multi-Camera
Mode)
AP0100AT2L00XUGAH−GEVB
CONFIDENTIAL AND PROPRIETARY
NOT FOR PUBLIC RELEASE
www.onsemi.com
4
Table 1. JUMPERS AND HEADERS (continued)
Jumper/Header No. DescriptionPinsJumper/Header Name
P11 ON_LED 1−2 (Default) Connects to On-Board to Indicate Power On
P12 +HVDDIO 1−2 (Default) Connects to On-Board +HVDDIO Power Supply
2−3External Power Supply Connection
P14 +VCC 1−2 (Default) Connects to On-Board +VCC Power Supply
2−3External Power Supply Connection
P15 +5V0 1−2 (Default) USB +5V0_BUS Power Supply Connection
2−3Connects to On-Board +5V0_EXT Power Supply
P16 MCLK_IN 1−2 (Default) Connects to On-Board Oscillator
2−3Connects to XMCLK (i.e. Clock Signal from Demo2
Baseboard)
P17 GPIO1_LED Open (Default) Off Frame LED
Closed On Frame LED
P19 +AVDD Closed (Default) Connects to On-Board Regulator +1V8, Internal
Regulator Use
Open Disconnects from On-Board Regulator +1V8, External
Regulator Use
P20 +2V8_VDDPHY 1−2 (Default) Connects to On-Board +2V8_VDDPHY Power Supply
2−3External Power Supply Connection
P21 +3V3_VDDADAC 1−2 (Default) Connects to On-Board +3V3_VDDADAC Power Supply
2−3External Power Supply Connection
P22, P23 Oscillator/Xtal
Selection
P22 1−2,
P23 Open (Default)
Selects Oscillator as AP0100 Input Clock
P22 2−3,
P23 Closed
Selects Crystal as AP0100 Input Clock
P24 EXT_REG 1−2 (Default) Internal Regulator
2−3External Regulator
P26 VDD 1−2 (Default) Internal Regulator +1V2_VDD
2−3External On-Board Regulator U2 Set +1V2
P28 UART Transceiver Open (Default) Turn Off UART Transceiver
Closed Turn On UART Transceiver
P30 SEN_CLK Open (Default) Beagle Serial No Access to Demo 2×& Sensor
1−2Beagle Serial Access to Demo 2×& Sensor
P31 SEN_DATA Open (Default) Beagle Serial No Access to Demo 2×& Sensor
1−2Beagle Serial Access to Demo 2×& Sensor
P32 ENLDO 1−2 (Default) Enable Internal Regulator
2−3Disable Internal Regulator
P33 GPIO1_LED 1−2Set to GPI
2−3Set to GPO
P34 GPIO_4 Open (Default) Serial IO Expander Control
1−2Set to Normal
2−3Set to Horizontal Mirror
P35 GPIO_3 Open (Default) Serial IO Expander Control
1−2Set to NTSC
2−3Set to PAL
P36 GPIO_2 Open (Default) Serial IO Expander Control
1−2Set to No Pedestal
2−3Set to Pedestal
P37 GPIO_DATA16 1−2 (Default) Auto-Configuration Access
Open JTAG/UART Access
AP0100AT2L00XUGAH−GEVB CONFIDENTIAL AND PROPRIETARY
NOT FOR PUBLIC RELEASE
www.onsemi.com
5
Table 1. JUMPERS AND HEADERS (continued)
Jumper/Header No. DescriptionPinsJumper/Header Name
P38, P39 IO Expander U38
Setting
P39 Open,
P38 Closed (Default)
EEPROM Address Set to 0x48
P39 Open,
P38 Open
EEPROM Address Set to 0x4C
P39 Closed,
P38 Open
EEPROM Address Set to 0x44
P39 Closed,
P38 Closed
EEPROM Address Set to 0x40
P40 GPIO_DATA16 1−2 (Default) Auto-Configuration Access
Open JTAG/UART Access
P41 GPIO_DATA16 1−2 (Default) Auto-Configuration Access
Open JTAG/UART Access
P42 GPIO_DATA16 1−2 (Default) Auto-Configuration Access
Open JTAG/UART Access
P43 SP1_SDO/SDI 1−2 (Default) Beagle SPI No Access to Sensor SPI
Open Beagle SPI Access to Sensor SPI
P44
P44
SP1_SCLK/CS_N 1−2 (Default) Beagle SPI No Access to Sensor SPI
Open Beagle SPI Access to Sensor SPI
P45 SPI_SDI Open (Default) Data or GND; AP0100 in Flash/Host Mode
1−2High Z; AP0100 in Auto-Config Mode
P47, P48, P59 Serial I2C EEPROM
Address
P47 Closed,
P48 Open,
P59 Open
EEPROM Address Set to 0xAA (Default)
P47 Closed,
P48 Open,
P59 Open
EEPROM Address Set to 0xA2
P47 Open,
P48 Closed,
P59 Open
EEPROM Address Set to 0xA6
P47 Open,
P48 Open,
P59 Open
EEPROM Address Set to 0xAE
P49 SEN_SCLK 2−3 (Default) AP0100 Serial Control
1−2 Demo 2×Serial Control
P50 SEN_SDATA 2−3 (Default) AP0100 Serial Control
1−2 Demo 2×Serial Control
P51 SEN_RST_OUT 2−3 (Default) AP0100 Reset
1−2 Demo 2×Reset
P52 BEAGLE_SCL 1−2 (Default) Demo 2×Accessed
2−3Sensor Accessed
P53 BEAGLE_SDA 1−2 (Default) Demo 2×Accessed
2−3Sensor Accessed
P54 1OE/2OE 1−2 (Default) Enable Level Transistor U9
2−3Disable Level Transistor U9
P56, P57, P58 Video Filter Selection 1−2 (Default) Active Low Pass Filter
2−3Discrete Low Pass Filter
SW7 RESET N/A When Pushed, 240 ms Reset Signal will be Sent to
AP0100 Chip
AP0100AT2L00XUGAH−GEVB
CONFIDENTIAL AND PROPRIETARY
NOT FOR PUBLIC RELEASE
www.onsemi.com
6
Interfacing to ON Semiconductor Demo 3 Baseboard
The ON Semiconductor 2×baseboard has a similar 26-pin
connector and 13-pin connector which mate with J5 and J6
of the headboard. The four mounting holes secure the
baseboard and the headboard with spacers and screws.
