DEMO MANUAL DC3123A
Rev. 0
DESCRIPTION
LTC3315A

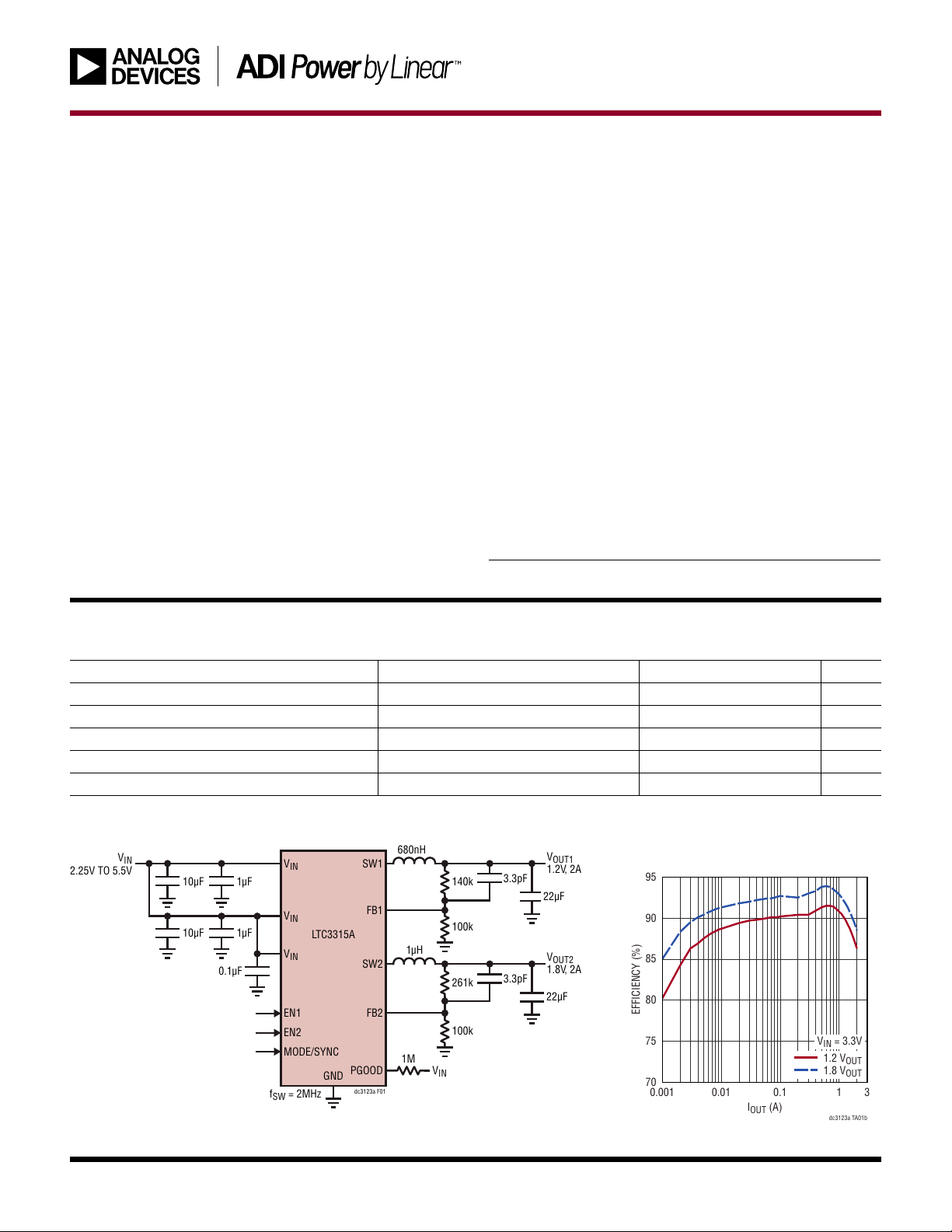

3.3V VIN, Dual 2A, 2MHz Buck Regulators at
1.2V and 1.8V Outputs in a 74mm2Solution
Demonstration Circuit DC3123A features the LTC©3315A
dual 5V, 2A Synchronous Step-Down DC/DC regulators
operating at 2MHz. One regulator provides a 1.2V output
and the other provides 1.8V, both up to a 2A load. The
LTC3315A supports adjustable output voltages from 0.5V
to VIN, operating frequencies from 1MHz up to 3MHz. The
LTC3315A is a compact, high efficiency, and high speed
synchronous monolithic step-down switching regulator.
Fast minimum on-time of 25ns enables high VIN to low
VOUT conversion at high frequency.
The DC3123A operating mode may be selected as Burst
Mode operation, Skip mode or Forced Continuous (FC)
mode. Setting JP1 to the FC/SYNC position will allow
All registered trademarks and trademarks are the property of their respective owners.
PERFORMANCE SUMMARY
the LTC3315A to sync to a clock frequency from 1MHz
to 3MHz. The LTC3315A operates in Forced Continuous
mode when syncing to an external clock.
The LTC3315A data sheet gives a complete description
of the device, operation and application information. The
data sheet must be read in conjunction with this demo.
The LTC3315A is assembled in a 1.6mm × 1.6mm WLCSP
package.
The Efficiency vs Load graph shows the efficiency and
the power loss of the circuit with a 3.3V input in Burst
Mode operation.
Design files for this circuit board are available.
Specifications are at TA= 25°C
Efficiency vs Load Current Burst
Mode Operation
PARAMETER CONDITIONS MIN TYP MAX UNITS
Input Supply Range (VIN) 2.25 5.5 V
Internal Oscillator Frequency (fSW) 1.9 2.0 2.1 MHz
Top Switch On Time 25 ns
VOUT1 0 to 2A 1.2 V
VOUT2 0 to 2A 1.8 V
680nH
22µF
140k
100k
3.3pF
1µF
1µH
1M
261k
100k
1µF
22µF
3.3pF
V
IN
SW1
FB1
SW2
FB2
PGOOD
dc3123a F01
EN2
MODE/SYNC
GND
VIN
V
IN
LTC3315A
VIN
2.25V TO 5.5V
V
OUT1
1.2V, 2A
V
OUT2
1.8V, 2A
fSW = 2MHz
EN1
0.1µF
10µF
10µF
VIN
V
IN
= 3.3V
1.2 V
OUT
1.8 V
OUT
I
OUT
(A)
0.001
0.01
0.1
1
3
70
75
80
85
90
95
EFFICIENCY (%)
dc3123a TA01b

2
DEMO MANUAL DC3123A
Rev. 0
BOARD PERFORMANCE
BOARD PHOTO
VIN = 3.3V
VOUT1 = 1.2V
FORCED CONTINUOUS MODE
I
OUT1
(A)
0.0
0.3
0.7
1.0
1.3
1.7
2.0
1.195
1.196
1.197
1.198
1.199
1.200
1.201
1.202
1.203
1.204
1.205
V
OUT1
(V)
dc3123a G01
VIN = 3.3V
VOUT2 = 1.8V
FORCED CONTINUOUS MODE
I
OUT2
(A)
0.0
0.3
0.7
1.0
1.3
1.7
2.0
1.795
1.796
1.797
1.798
1.799
1.800
1.801
1.802
1.803
1.804
1.805
V
OUT2
(V)
dc3123a G02
LTC3315A Load Regulation LTC3315A Load Regulation

3
DEMO MANUAL DC3123A
Rev. 0
BOARD PERFORMANCE

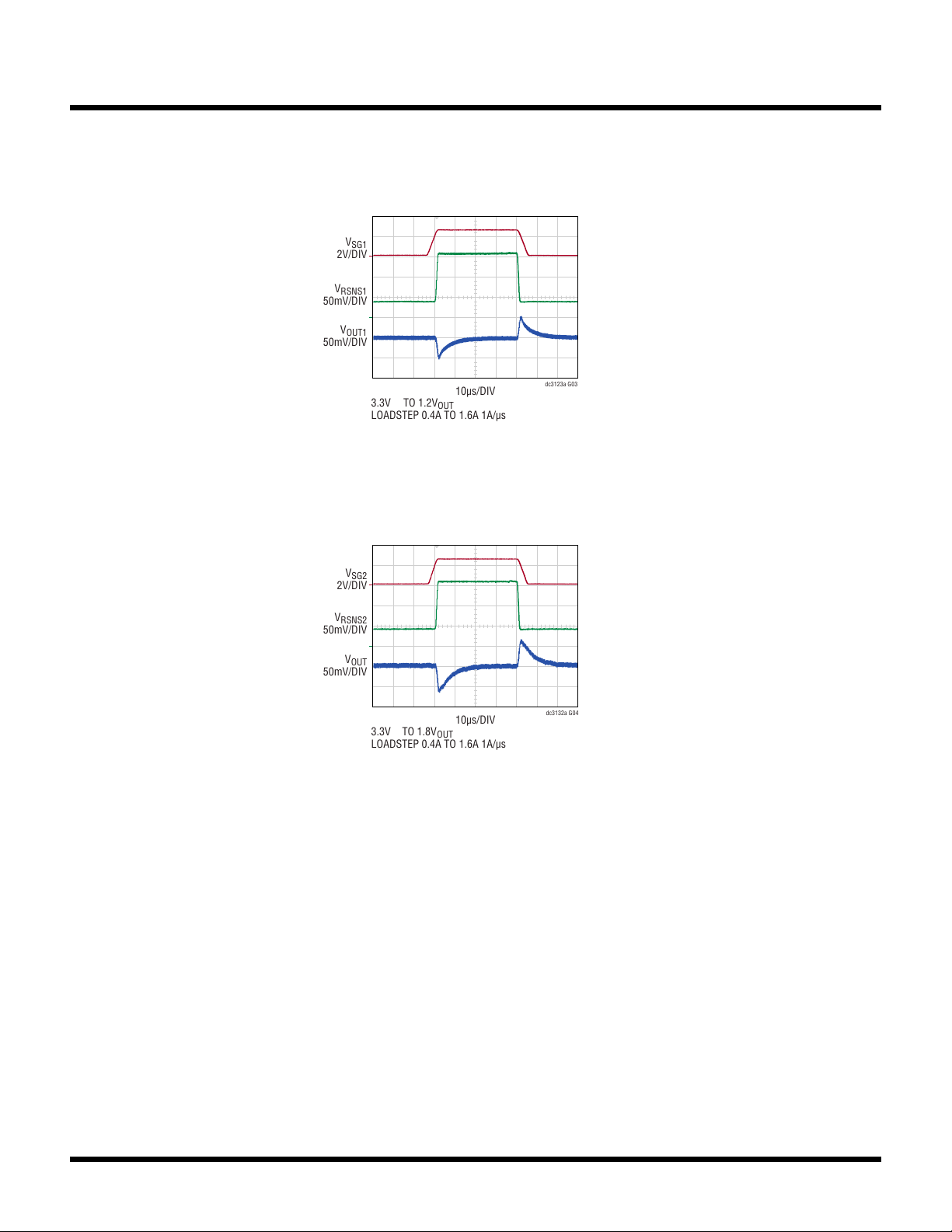

1.2V Load Transient Response
Forced Continuous Mode
1.8V Load Transient Response
Forced Continuous Mode
3.3V
TO 1.2V
OUT
LOADSTEP 0.4A TO 1.6A 1A/µs
10µs/DIV
V
SG1
2V/DIV
V
OUT1
50mV/DIV
V
RSNS1
50mV/DIV
dc3123a G03
IN
3.3V
TO 1.8V
OUT
LOADSTEP 0.4A TO 1.6A 1A/µs
10µs/DIV
V
SG2
2V/DIV
V
OUT
50mV/DIV
V
RSNS2
50mV/DIV
dc3132a G04
IN

4
DEMO MANUAL DC3123A
Rev. 0
QUICK START PROCEDURE
The DC3123A is easy to set up to evaluate the perfor-
mance of the LTC3315A. Refer to Figure1 and Figure2
for proper measurement equipment setup and follow the
evaluation procedure below.
NOTE:For accurate VIN, VOUT and efficiency measure-
ments, measure V
IN
at the V
IN
SNSE and GND SNSE turrets
and VOUT at the VOUT SNSE and GND SNSE turrets as illus-
trated as VM1, VM2 and VM3 in Figure1. When measuring
the input or output voltage ripple, care must be taken to
avoid a long ground lead on the oscilloscope probe.
1. Set the JP2 and JP3 jumpers on the DC3123A board
to the HI position.
2. Set the JP1 jumper on the DC3123A board to the
desired position, BURST for best efficiency, FC/SYNC
for lowest ripple, and PS for a compromise between
the two.
3. With power off, connect 0V to 6V, 5A power supply,
PS1, between VIN and GND with a series ammeter and
a voltmeter as shown in Figure1.
4. Turn on and set the PS1 input power supply to 3.3V
and observe that VOUT1 regulates to 1.2V and VOUT2
regulates to 1.8V.
NOTE:Makesurethattheinputvoltagedoesnotexceed6V.
5. With power off, connect a 0A to 2A load to VOUT1 and
GND with a series ammeter and a voltmeter as shown
in Figure1.
6. Turn on LOAD1 and slowly increase from 0A to 2A
and observe the output voltage. The output ripple may
also be observed using an oscilloscope with the probe
connected as shown in Figure2.
NOTE: Measure the output voltage ripple by touching the
probe tip directly across the output turrets or to TP1 as
shown in Figure2. TP1 is designed for a 50Ω coax cable
to reduce any high frequency noise that might couple into
the oscilloscope probes.
7. Set LOAD1 to 500mA.
8. With power off, connect a second 0A to 2A load to
VOUT2 and GND with a series ammeter and a voltmeter
as shown in Figure1.
9. Turn on LOAD2 and slowly increase the from 0A to 2A
and observe the output voltage. The output ripple may
also be observed using an oscilloscope with the probe
connected as shown in Figure2.
10. Momentarily short VOUT1 to ground with a clip lead
and observe that the voltage on PGOOD drops to 0V.
11. To change the operating frequency of the LTC3315A,
an external clock must be used. To do this set the JP1
jumperontheDC3123AboardtotheFC/SYNCposition.
12. Set a pulse generator to output a 0V to 3.3V pulse at
2MHz, 50% duty cycle and connect it to the MODE/
SYNC terminal and GND.
13. Changethefrequencyofthepulsegeneratorfrom2MHz
to 3MHz and observe how observe how the frequency
of SW1 follows the pulse generator.
14. Set LOAD1 greater than 1.0A. With an oscilloscope
probe on SW1, remove the pulse signal to the MODE/
SYNC terminal and observe how the switch frequency
settles from 3MHz back to 2MHz.
15. To test the transient response with a base load, turn
off LOADx (LOAD1 or LOAD2) and add the desired
resistortoproduceaminimumloadbetweenVOUTx and
RSNSx turrets (RL shown on Figure1). Note that the
total load resistance will be RL plus RSNSx (100mΩ).
16. Adjust a signal generator with a 10ms period, 10%
duty cycle and an amplitude from 1V to 2V to start.
Measure the RSNSx voltage to observe the current,
VRSNSx/100mΩ. Adjust the amplitude of the pulse to
provide the desired transient. Adjust the rising and
falling edge of the pulse to provide the desired ramp
rate. Refer to the following equations, the LTC3315A
DC3123A transient plots and Figure3.
17. IOUTx = VRSNSx/100mΩ
VRSNSx = VSGx − VGSx
Observe load transient effect on VOUTx
18. Refer to the LTC3315A data sheet for more details on
how the LTC3315A operates.
19. When done, turn off all loads, signal generator and
power supplies.

5
DEMO MANUAL DC3123A
Rev. 0
QUICK START PROCEDURE
Figure1. Proper Measurement Equipment Setup
Figure2. Measuring Input or Output Ripple

6
DEMO MANUAL DC3123A
Rev. 0
QUICK START PROCEDURE
Figure3. Optional Transient Response Circuit
THEORY OF OPERATION
Introduction to the DC3123A
The DC3123A demonstration circuit features the
LTC3315A, a 5V Dual 2A Low voltage Synchronous Step-
Down regulator. The LTC3315A is a monolithic, constant
frequency, current mode step-down DC/DC converter.
An internal oscillator turns on the internal top power
switch at the beginning of each clock cycle. Current in the
inductor then increases until the top switch comparator
trips and turns off the top power switch. If the EN pin is
low, the LTC3315A is in shutdown and in a low quiescent
current state. When the EN pin is above its threshold, the
switching regulator will be enabled. Buck 1 and Buck 2
are 180° out of phase with each other.
The MODE/SYNC pin sets the switching mode to pulse
skip, forced continuous, or burst mode. If an external
1MHz to 3MHz clock is connected to the MODE/SYNC
turret while the JP1 is set to the FC/SYNC position, the
LTC3315A switching frequency will sync to the external
clock while operating in forced continuous mode. See
the LTC3315A data sheet for more detailed information.
The maximum allowable operating frequency is influenced
by the minimum on time of the top switch, the ratio of VOUT
to VIN and the available inductor values. The maximum
allowable operating frequency may be calculated using a
minimum Ton of 45ns in the formula below.
f
SWMAX =
V
OUT
V
INMAX •TonMIN
Select an operating switching frequency below fSWMAX.
The LTC3315A has a requirement that the magnitude of
the ripple current in the output inductor be greater than
0.6A peak to peak. This will determine the maximum
inductor value for the application.
Accurately Measuring Output Ripple of the LTC3315A
With the fast edge rates of the circuit, high frequency
noise can be observed when measuring the output voltage
with 1MΩ terminated oscilloscope probes. To better view
the output ripple with oscilloscopes of 400MHz bandwidth
and above a 50Ω coax cable connected as close to
the output caps as possible should be used with the

7
DEMO MANUAL DC3123A
Rev. 0
THEORY OF OPERATION
oscilloscope channel terminated to 50Ω at the scope. This
will help to reduce the noise coupling onto and displaying
on the scope. The demo board is set up to solder an
U.FL,RECEPT,ST SMD,0Hz to 6GHz 50Ω connector (TP1)
near the output cap C3 & C4. These pads can also be
used to solder a coax cable or other oscilloscope probe
connector if desired.
The DC3123A uses 3-terminal capacitors, C9 and C10,
on the output to reduce the high frequency spikes that
can be observed with high bandwidth oscilloscopes.
The high frequency spikes are partially attributed to the
interwinding capacitance of the inductor and the voltage
step is partially attributed to the inductance in the output
capacitors. The step can be reduced by choosing low ESL
capacitors as close to the inductor as possible. The high
frequency spikes are reduced with using a small low ESL
3-terminal capacitor with the self-resonant frequency
close to the high frequency spikes. Below is the output
ripple using a 500MHz scope, 50Ω probe measured at
TP1 without the 3-terminal capacitor populated in C9.
TP1
50Ω PROBE
V
IN
= 3.3V
V
OUT1
= 1.2V
I
OUT1
= 2A
C9 = 1nF 3-TERMINAL CAP
1µs/DIV
V
OUT1
10mV/DIV
dc3132a G05
TP2
50Ω PROBE
V
IN
= 3.3V
V
OUT2
= 1.8V
I
OUT2
= 2A
C10 = 1nF 3-TERMINAL CAP
1µs/DIV
V
OUT2
10mV/DIV
dc3132a G06
TP1
50Ω PROBE
V
IN
= 3.3V
V
OUT1
= 1.2V
I
OUT1
= 2A
C9 = OPEN
1µs/DIV
V
OUT1
10mV/DIV
dc3132a G07

8
DEMO MANUAL DC3123A
Rev. 0
PARTS LIST
ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER
Required Circuit Components
1 2 C1, C2 CAP., 10uF, X5R, 10V, 10%, 0603 MURATA, GRM188R61A106KAALD
2 2 C3, C4 CAP., 22uF, X5R, 10V, 20%, 0603 SAMSUNG, CL10A226MP8NUNE
3 2 C5, C6 CAP., 3.3pF, C0G, 50V, +/-0.25pF, 0402 AVX, 04025A3R3CAT2A
4 2 C7, C11 CAP., 1uF, X7T, 6.3V, 20%, 0201 MURATA, GRM033D70J105ME01D
5 1 C12 CAP., 0.1uF, X5R, 25V, 10%, 0402 AVX, 04023D104KAT2A
6 1 L1 IND., 680nH, FIXED, 20%, 3.5A, 0.033 OHMS, 0806 MURATA, DFE201612E-R68M=P2
7 1 L2 IND., 1uH, POWER, 20%, 2.9A, 48mOHMS, 0806 MURATA, DFE201612E-1R0M=P2
8 1 R1 RES., 140k OHMS, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW0402140KFKED
9 2 R2, R4 RES., 100k OHMS, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW0402100KFKED
10 1 R3 RES., 261k OHMS, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW0402261KFKED
11 1 U1 IC, DUAL 5V, 2A SYNCHRONOUS STEP-DOWN DC/DCs IN 1.6mm x
1.6mm WLCSP
ANALOG DEVICES,
LTC3315AECBZ-R7#PBF
Additional Demo Board Circuit Components
1 1 C8 CAP., 220uF, TANT. POSCAP, 6.3V, 20%, 7343, 18mOHMS, TPE PANASONIC, 6TPE220MI
2 2 C9, C10 CAP., 1000pF, X7R, 50V, 20%, 0402, 3-TERM, X2Y EMI FILTER JOHANSON DIELECTRICS,
500X07W102MV4T
3 2 Q1, Q2 XSTR., MOSFET, N-CH, 40V, 35A, PowerPAK 1212-8 VISHAY, SIS434DN-T1-GE3
4 2 R5, R11 RES., 249k OHMS, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW0402249KFKED
5 2 R6, R7 RES., 20 OHMS, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW040220R0FKED
6 1 R8 RES., 10k OHMS, 5%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW040210K0JNED
7 2 R9, R10 RES., 1M OHM, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW04021M00FKED
8 1 R12 RES., 1M OHM, 5%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW04021M00JNED
9 2 R13, R14 RES., 0.1 OHM, 1%, 1/2W, 1206, SENSE, AEC-Q200 IRC, LRC-LR1206LF-01-R100-F
10 2 R15, R16 RES., 10k OHMS, 5%, 1/10W, 0402, AEC-Q200 PANASONIC, ERJ2GEJ103X
Hardware: For Demo Board Only
1 15 E1, E2, E8, E10-E21 TEST POINT, TURRET, 0.064" MTG. HOLE, PCB 0.062" THK MILL-MAX, 2308-2-00-80-00-00-07-0
2 6 E3-E7, E9 TEST POINT, TURRET, 0.094" MTG. HOLE, PCB 0.062" THK MILL-MAX, 2501-2-00-80-00-00-07-0
3 1 JP1 CONN., HDR, MALE, 1x4, 2mm, VERT, ST, THT WURTH ELEKTRONIK, 62000411121
4 2 JP2, JP3 CONN., HDR, MALE, 1x3, 2mm, VERT, ST, THT WURTH ELEKTRONIK, 62000311121
5 4 MP1-MP4 STANDOFF, NYLON, SNAP-ON, 0.25" (6.4mm) KEYSTONE, 8831
6 0 TP1, TP2 CONN., U.FL, RECEPT, ST SMD, 0Hz to 6GHz 50Ohm HIROSE ELECTRIC, U.FL-R-SMT-1(10)
7 3 XJP1-XJP3 CONN., SHUNT, FEMALE, 2 POS, 2mm WURTH ELEKTRONIK, 60800213421

9
DEMO MANUAL DC3123A
Rev. 0
Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog
Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications
subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
SCHEMATIC DIAGRAM
5
5
4
4
3
3
2
2
1
1
D D C C B B A A
HI
LO
1.2V 2A
2.25V - 5.5V
BURST
FC/SYNC
SKIP
MODE/SYNC
GND
EN1
PGOOD
MODE/SYNC
EN1
VIN
GND
VOUT1
GND
LO
EN2 HI
EN2
1.8V 2A
VOUT2
GND
PCA ADDITIONAL PARTS
NOTES: UNLESS OTHERWISE SPECIFIED 1. RESISTORS: OHMS, 0402, 1%, 1/16W 2. CAPACITORS: 0402, 10V
SG1 20V MAX
SG2 20V MAX
RSNS1 RSNS2
OPTIONAL TRANSIENT RESPONSE CIRCUIT
VOUT1 VOUT2
VOUT1 SNSE
VOUT2 SNSE GND1 SNSE
GND2 SNSE
GND
SNSE
VIN
SNSE
MM
REV APPROVED
-PRODUCTION
ECO DESCRIPTION DATE
REVISION HISTORY
03 3-22-2021
REGULATORS WITH 1.2V AND 1.8V OUTPUTS, IN A 3.3V VIN, DUAL 2A, 2MHz SYNCHRONOUS STEP-DOWN 74mm² SOLUTION
VIN
VIN
VIN VIN
DATE:
SHEET OF
TITLE: SCHEMATIC
APPROVALS
PCB DES. APP ENG.
SIZE:
SCHEMATIC NO. AND REVISION:
CUSTOMER NOTICE
THIS CIRCUIT IS PROPRIETARY TO ANALOG DEVICES AND
SUPPLIED FOR USE WITH ANALOG DEVICES PARTS.
www.analog.com
SKU NO. IC NO.
ANALOG DEVICES HAS MADE A BEST EFFORT TO DESIGN A CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS; HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL APPLICATION. COMPONENT SUBSTITUTION AND PRINTED CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT PERFORMANCE OR RELIABILITY. CONTACT ANALOG DEVICES APPLICATIONS ENGINEERING FOR ASSISTANCE.
11
NC
MM
DC3123A_REV03
N/A
LTC3315A
DC3123A
03-22-2021
DATE:
SHEET OF
TITLE: SCHEMATIC
APPROVALS
PCB DES. APP ENG.
SIZE:
SCHEMATIC NO. AND REVISION:
CUSTOMER NOTICE
THIS CIRCUIT IS PROPRIETARY TO ANALOG DEVICES AND
SUPPLIED FOR USE WITH ANALOG DEVICES PARTS.
www.analog.com
SKU NO. IC NO.
ANALOG DEVICES HAS MADE A BEST EFFORT TO DESIGN A CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS; HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL APPLICATION. COMPONENT SUBSTITUTION AND PRINTED CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT PERFORMANCE OR RELIABILITY. CONTACT ANALOG DEVICES APPLICATIONS ENGINEERING FOR ASSISTANCE.
11
NC
MM
DC3123A_REV03
N/A
LTC3315A
DC3123A
03-22-2021
DATE:
SHEET OF
TITLE: SCHEMATIC
APPROVALS
PCB DES. APP ENG.
SIZE:
SCHEMATIC NO. AND REVISION:
CUSTOMER NOTICE
THIS CIRCUIT IS PROPRIETARY TO ANALOG DEVICES AND
SUPPLIED FOR USE WITH ANALOG DEVICES PARTS.
www.analog.com
SKU NO. IC NO.
ANALOG DEVICES HAS MADE A BEST EFFORT TO DESIGN A CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS; HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL APPLICATION. COMPONENT SUBSTITUTION AND PRINTED CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT PERFORMANCE OR RELIABILITY. CONTACT ANALOG DEVICES APPLICATIONS ENGINEERING FOR ASSISTANCE.
11
NC
MM
DC3123A_REV03
N/A
LTC3315A
DC3123A
03-22-2021
E2
R1 140k
MP3 STANDOFF,NYLON,SNAP-ON,0.25" (6.4mm)
E14
E12
E5
R6
20
R9
1M
R15
10k 5%
R7
20
C3 22uF
0603
PCB1 PCB, DC3123A REV03
JP2
R11
249k
R8
10k
JP1
R13
0.1
1206
1/2W
L2
1uH
DFE201612E-1R0M=P2
E4
C2
10uF 0603
C11
1uF
0201
6.3V
E3
C5
3.3PF
50V
TP2
R4
100k
C9 1000pF 50V
Q2
SIS434DN-T1-GE3
5
6
1
7
4
2
38
E21
C6
3.3PF
50V
C10 1000pF 50V
LB1 LABEL
R5
249k
C4 22uF 0603
JP3
U1
LTC3315AECBZ
EN1
B3
SW1 C3
FB1 A3
MODE/SYNC
A4
FB2 A2
PGOOD
A1
VIN
B1
PGND
B4
EN2
B2
VIN
D1
SW2 C1
PGND
D2
PGND
D3
SW2 C2 SW1 C4
VIN
D4
MP2 STANDOFF,NYLON,SNAP-ON,0.25" (6.4mm)
E1
E11
TPA2
MP4 STANDOFF,NYLON,SNAP-ON,0.25" (6.4mm)
R12
1M
5%
R16
10k
5% R14
0.1
1206
1/2W
Q1
SIS434DN-T1-GE3
5
6
1
7
4
2
38
E19
E9
L1
680nH
DFE201612E-R68M=P2
E6
E16
E17
+
C8 220uF
6TPE220MI
6.3V
C7
1uF 0201 6.3V
E8
TPB1
E15
R10
1M
C12
0.1uF
25V
E10
E13
E20
E7
TPA1
R3 261k
E18
TPB2
R2
100k
TP1
MP1 STANDOFF,NYLON,SNAP-ON,0.25" (6.4mm)
C1
10uF 0603
VOUT1
SW2 VOUT2
VOUT1 VOUT2
SW1

10
DEMO MANUAL DC3123A
Rev. 0
 ANALOG DEVICES, INC. 2022
01/22
www.analog.com
ESD Caution
ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection
circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.
Legal Terms and Conditions
By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and
conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation
Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”)
and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to
Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands and
agrees that the Evaluation Board is provided for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license granted
is expressly made subject to the following additional limitations:Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board;and (ii) permit any Third
Party to access the Evaluation Board. As used herein, the term “Third Party”includes any entity other than ADI, Customer, their employees, affiliates and in-house consultants. The Evaluation Board is
NOT sold to Customer;all rights not expressly granted herein, including ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall all
be considered the confidential and proprietary information of ADI. Customer may not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation of
use of the Evaluation Board or termination of this Agreement, Customer agrees to promptly return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble, decompile
or reverse engineer chips on the Evaluation Board. Customer shall inform ADI of any occurred damages or any modifications or alterations it makes to the Evaluation Board, including but not limited
to soldering or any other activity that affects the material content of the Evaluation Board. Modifications to the Evaluation Board must comply with applicable law, including but not limited to the RoHS
Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice to Customer. Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION OF
LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS”AND ADI MAKES NO WARRANTIES OR REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALLY
DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED TO THE EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS. IN NO EVENT WILL ADI AND ITS
LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF THE EVALUATION BOARD, INCLUDING
BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE AMOUNT OF ONE
HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable United States
federal laws and regulations relating to exports. GOVERNING LAW. This Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of Massachusetts
(excluding conflict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby submits
to the personal jurisdiction and venue of such courts. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement and is expressly disclaimed.
