Evaluates: MAX25460 MAX25460 Evaluation Kit
One Analog Way, Wilmington, MA 01887 U.S.A. | Tel: [phone] | © 2023 Analog Devices, Inc. All rights reserved.
©2023 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners.
Click here to ask an associate for production status of specific part numbers.
General Description
This evaluation kit (EV kit) demonstrates the MAX25460
automotive USB Type-A controller with 1GHz BW USB
2.0 D+/D- protection switches. The MAX25460 features
a high-current, high-e󰀩ciency, host-charger with port-
detection circuitry adhering to the USB 2.0 and the USB-
IF BC1.2 battery charging specications. The step-down
DC-DC converter operates from up to 28V continuous
and protects against load dump transients up to 40V.
The converter switches at 2.2MHz and can deliver 1.5A
continuously and 2.4A for up to 1.1ms. The MAX25460
integrates high-side current sensing and circuitry to auto-
matically adjust the USB voltage to compensate for volt-
age drops in long automotive cables..
The EV kit is populated with a MAX25460ATGA/V+ prod-
uct variant for 2.2MHz operation. The high-speed data
switches of the MAX25460 generally do not require far-
end eye tuning, so the EV kit is populated with 0Ω resis-
tors in place of the LC turning circuits.
The EV kit allows evaluation of the following MAX25460
capabilities:
●Adjustable buck converter precision current limit for
better system performance.
●Adjustable current limit debounce timer for overcur-
rent testing and system flexibility.
●Adjustable gain settings for cable compensation for
low-cost captive cables up to 474mΩ.
●Electromagnetic interference (EMI) mitigation using
spread spectrum switching.
●Detailed interrupt and fault status providing multilayer
protection and recovery to improve system decisions
during faults.
Features
●Configurable Charge Detection Modes
• USB-IF BC1.2 SDP, CDP
●Automatic USB Voltage Adjustment by Integrated
DC-DC Converter
●Proven PCB Layout
●Fully Assembled and Tested
319-100999; Rev 0; 5/23
Ordering Information appears at end of data sheet.
MAX25460 Evaluation Kit Board

www.analog.com Analog Devices
│ 2
MAX25460 Evaluation Kit Evaluates: MAX25460
Quick Start
Required Equipment
●MAX25460 EV kit
●Windows®-based PC
●Two-meter USB-A extension cable
●USB-A to Micro-B cable
● 3.5Ω 10W resistor or electronic load
●USB Type-A plug
●14V/2A DC power supply or car battery (VBAT)
●Digital voltmeter
●USB Type-A flash drive
The following procedure demonstrates the MAX25460’s
high-speed data switches and voltage adjustment capa-
bility.
Procedure
Initial Setup
The EV kit is fully assembled and tested. Follow the steps
to set up the board for evaluation.
1) Install the MAX25460 GUI. See the MAX25460 GUI
section for additional information.
2) Verify that SW1 switch is set to HVEN=L,
ENBUCK=L, SYNC=L, and DATA_MODE=L.
3) Connect the EV kit to the PC with USB Micro-B and
USB-A extension cables (see Figure 1).
4) Verify that the EV kit is recognized in the Windows
Device Manager as USB input device.
5) Set the VBAT power supply to 14V output, 2A current
limit. Turn the output o󰀨. Connect negative lead to
the “GND_1” test loop on the EV kit. Connect posi-
tive lead to “VBAT_FLT” test loop on the EV kit.
6) Plug a USB ash drive into the EV kit USB connector
(J3).
7) Turn on the VBAT power supply output.
8) Start the MAX25460 GUI. Look at the message
bar on the left of the GUI to verify that the EV kit is
detected (see Figure 2).
High-Speed Data Switches
9) In the GUI, click ENBUCK PIN and Conguration
Complete checkboxes.
10) Check that the USB ash drive is recognized on the
host computer by opening the directory. This veries
the high-speed data switches are operating properly.
See Figure 3.
11) Unplug the ash drive from the EV kit.
Figure 1. EV Kit Setup

www.analog.com Analog Devices
│ 3
MAX25460 Evaluation Kit Evaluates: MAX25460
Figure 2. MAX25460 GUI Startup
Figure 3. USB Flash Drive Recognized

www.analog.com Analog Devices
│ 4
MAX25460 Evaluation Kit Evaluates: MAX25460
USB BC1.2 CDP Charging
12) In the GUI, set Cable Comp Gain to 108mΩ and set
Charge Detection to Auto_CDP.
13) Connect a USB cable and a BC1.2 CDP-compatible
smartphone.
14) Check that the smartphone is recognized on the host
computer and that it is charging.
15) VBUS current can be checked by measuring the volt-
age drop across the current-sense resistor R1.
16) Unplug the smartphone and 2m USB-A extension
cable from the EV kit.
Cable Compensation
17) Connect the 2m USB-A extension cable to the EV kit
downstream USB connector (J3).
18) Connect the Type-A plug to the other end of the
extension cable (see Figure 4).
19) Measure the VBUS voltage at the end of cable, it
should be around 5.15V.
• Note: This is the voltage at the portable device.
20) Connect the E-load or resistor bank to the USB
plug’s Ground and VBUS pins.
21) Adjust the Cable Comp Gain in the GUI until the volt-
age at the far-end reaches 5.15V.
22) The voltage at the far-end of the 2m cable is regulated
to approximately 5.15V regardless of the load current.
Figure 4. EV Kit Setup for Cable Compensation

www.analog.com Analog Devices
│ 5
MAX25460 Evaluation Kit Evaluates: MAX25460
Detailed Description
The MAX25460 EV kit comes fully assembled, tested,
and installed with MAX25460ATGA/V+. The stand-alone
variant can also be used on this EV kit by changing the
IC and configuration resistors. See Table 1 for an example
of stand-alone configuration. Refer to the MAX25460 data
sheet for further details on configuration resistors.
When R6 and R7 are changed per Table 1, 3.3V is
sourced from the on-board LDO and the USB Micro-B
connection to the Pico board should not be used.
EV Kit Interface
Header J1 includes input and output test points for con-
trolling the IC and evaluating its functionality. Table 2 lists
the individual pins and their functions.
Switch SW1 allows the user to set the voltage on the
HVEN, ENBUCK, SYNC, and DATA_MODE pins (see
Table 3). Setting a switch to the ON position ties the con-
nected pin high. Setting a switch to the OFF position ties
the pin to ground through a pull-down resistor. To exter-
nally control these pins through the header J1 or the PC
GUI, set all switches to the OFF position.
Table 1. Stand-Alone Configuration Example
Table 2. External Header
PIN NAME RESISTOR VALUE DESCRIPTION
CONFIG1 R2 0Ω Spread Spectrum: On; Sync as Input; Fsw = 2.2MHz
CONFIG2 R4 14.7kΩ GAIN[3:0] = 1100
CONFIG3 R3 2.26kΩ GAIN[4] = 1; ILIM = 1.62A (min)
Note: Gain programmed with this conguration is 28.
SDA/SCL R15/R16 DNP Remove SDA/SCL pull-ups.
3V3 R6 DNP Jumper option, 3.3V from Pico interface board
3V3 R7 0Ω Jumper option, 3.3V from MAX15006 LDO
J1 PIN NAME DESCRIPTION
1 IN 3.3V supply for IN (input/output)
2 SYNC Buck regulator synchronization pin (input/output)
3 DATA_MODE Charge detection conguration pin (input)
4 HVEN IC enable (active high, input)
5 ENBUCK DC-DC enable (active high, input)
6FAULT Fault indicator (active low, open-drain, output)
7INT (ATTACH) I2C interrupt output (active low, open-drain)
Standalone: USB attach output (active low, open-drain)
8 BIAS 4.7V LDO output
9SCL
(CONFIG3)
I2C: clock (input)
Standalone: CONFIG3 (input)
10 SDA
(CONFIG2)
I2C: data (input/output)
Standalone: CONFIG2 (input)
11 GND EV kit ground
12 GND EV kit ground

www.analog.com Analog Devices
│ 6
MAX25460 Evaluation Kit Evaluates: MAX25460
Basic Functionality
Connect a 9V to 16V power source (battery supply)
between VBAT_FLT and GND test loops and USB Micro-B
to a host PC. Connecting the Micro-B to a PC pulls the
HVEN pin to 3.3V and enables the device. The ENBUCK
pin is driven by the GUI and SW1 and must be high for
the DC-DC converter to turn on. The charge mode can be
congured through I2C or using the DATA_MODE switch
or pin. If the DATA_MODE pin is high, it overrides the cur-
rent I2C register setting.
Fault Diagnostics
The FAULT pin is software compatible with ADI Type-A
Automotive USB solutions. More advanced diagnostics
can be performed using the I2C bus and the INT pin. The
IRQ bits have an associated IRQ_MASK bit. When the
IRQ_MASK bit is set to 1, the INT pin asserts and de-
asserts following the IRQ bit. All IRQ bits clear on read.
IRQ bit de-assertion is controlled by the IRQ_AUTOCLR
bit. When IRQ_AUTOCLR = 0 (default), the error bit stays
asserted until the register is read even if the fault condi-
tion is no longer present. When IRQ_AUTOCLR = 1, the
IRQ bit de-asserts without a read as soon as the fault
criteria are no longer met. The EV kit GUI uses a polling
mechanism to read all MAX25460 registers. A read is ini-
tiated when the Read All Registers button is clicked, or
periodically if auto read is enabled. Due to the auto read
polling mechanism, when IRQ_AUTOCLR = 1 it is pos-
sible that the GUI can miss IRQ bit assertions because
the signal de-asserts too quickly after a fault.
PCB Layout Guidelines
A good PCB layout is critical to proper system perfor-
mance. The loop area of the DC/DC conversion circuitry
must be minimized as much as possible. Place the input
capacitor, power inductor, and output capacitor very close
to the IC. Shorter traces should be prioritized over wider
traces.
Table 3. External Switch
SW1 PIN POSITION DESCRIPTION
HVEN 0 Device disabled
1 Device enabled
ENBUCK 0 Buck output disabled
1 Buck output enabled
SYNC
0
SYNC congured as an input:
DC-DC operates in FPWM.
Refer to the MAX25460 data sheet for more information.
SYNC congured as an output:
DC-DC operates in FPWM.
SYNC pin generates clock output for synchronization of other devices.
If enabled, spread spectrum is also present on SYNC output to reduce EMI of the device
synchronized to MAX25460. SYNC output is 180° out of phase with internal clock to further
help reduce EMI.
0 with clock
applied to
SYNC through
J1
SYNC congured as an input:
DC-DC operates in FPWM.
The MAX25460 can be synchronized to an external clock - for example, another MAX25460.
Spread spectrum is not applied to external clock from SYNC pin.
1SYNC congured as an input:
DC-DC operates in skip mode with light/no-load, FPWM otherwise.
DATA_MODE 0 High-speed pass-through mode (SDP)
1 Auto-CDP mode

www.analog.com Analog Devices
│ 7
MAX25460 Evaluation Kit Evaluates: MAX25460
A low-impedance ground connection between the input
and output capacitors is required for reliable operation.
Make this connection through the ground pour on the
exposed pad. Place multiple vias in the pad to connect
to all other ground layers to reduce thermal resistance.
Inadequate thermal performance may cause the IC to
cycle in and out of thermal shutdown. Use a single com-
mon ground with GND vias directly adjacent to all com-
ponents that connect down to an adjacent ground plane.
This arrangement enables high frequency return currents
to ow directly under their respective source traces.
The USB traces must be routed as a 90Ω di󰀨erential pair
with an appropriate keep-out area. Avoid routing USB
traces near high frequency switching nodes or other
sources of noise such as clocks. The length of the rout-
ing should be minimized and avoid 90° turns, excessive
vias, and RF stubs. The MAX25460 has high-bandwidth
data switches. See the IC data sheet for details on tuning
recommendations.
See the Layout Considerations section in the MAX25460
data sheet for additional information.
MAX25460 GUI
The latest GUI can be downloaded from the MAX25460
EV kit webpage: https://www.analog.com/en/design-
center/evaluation-hardware-and-software/evaluation-
boards-kits/max25460evkit.html
The GUI is divided into sections to allow the user easy
access to all settings and direct register read/write.
1) Direct read/write access to all registers
2) Basic setup parameters for the buck converter, cable
compensation, and USB data switch mode
3) Interrupt mask and interrupt ag indicators
4) Control for MAX25460 hardware I/O pins
All GUI setting changes immediately a󰀨ect the MAX25460.
Auto-polling of MAX25460 registers by the GUI can also
be enabled in the GUI Conguration section.

www.analog.com Analog Devices
│ 8
MAX25460 Evaluation Kit Evaluates: MAX25460
Pico Board Firmware Update
The Pico Board comes preprogrammed, however it may
be necessary to update the rmware as new versions are
published on the EV kit webpage.
1) Perform the Initial Setup steps to start the GUI.
2) Check the Pico Board rmware version.
The Pico Board firmware version follows a Year/Month/
Day format from when it is released.
3) If the rmware image from the EV kit webpage has a
later date, follow the Programming Procedure to up-
date the Pico Board’s rmware to the latest version.
This update requires the MAX25460 EV kit, a USB
Micro-B cable, and a PC with USB Write access.
Programming Procedure
1) Download the latest Pico Board rmware on the EV
kit webpage (.bin le).
2) Connect the USB Micro-B cable to the Pico Board.
3) While holding the button down on the Pico Board,
plug the USB Micro-B cable into the PC.
The button is small, it may be helpful to use a pencil
eraser, stylus, or any other non-metallic tool to press
the button.
4) Continue holding the button down for at least 3 sec-
onds after making the connection.
5) A new drive called MAINTENANCE appears on the
PC if Step 4 is successful.
• If the MAINTENANCE drive does not appear,
disconnect the USB cable and repeat steps 3 to 5.
6) Drag and drop the .bin le onto the MAINTENANCE
drive. The Pico Board LED blinks during programming.
7) Wait for the blinking to stop, which takes about 5
seconds.
8) When all is nished, launch the GUI and make sure
that the Pico Board is detected with the expected
rmware version.
#Denotes RoHS compliance.
PART TYPE
MAX25460EVKIT# EV Kit
Ordering Information

www.analog.com Analog Devices
│ 9
MAX25460 Evaluation Kit Evaluates: MAX25460
MAX25460 EV Kit Bill of Materials
QTY REFERENCE DESCRIPTION PART NUMBER MANUFACTURER
1C1 CERAMIC CAPACITOR (0402) 2200PF 10% 50V X7R GRM155R71H222KA01 MURATA
1C2 ALUMINUM-ELECTROLYTIC CAPACITOR 22UF 20% 50V EEE-FT1H220AR PANASONIC
6C3, C4, C12, C16, C18, C20 CERAMIC CAPACITOR (0402) 0.1UF 10% 50V X7R GRM155R71H104KE14 MURATA
1C5 CERAMIC CAPACITOR (1210) 4.7UF 10% 50V X7R GRM32ER71H475KA88 MURATA
1C7 CERAMIC CAPACITOR (1210) 22UF 10% 25V X7R GRM32ER71E226KE15 MURATA
2C8, C17 CERAMIC CAPACITOR (0603) 2.2UF 10% 16V X7R GRM188Z71C225KE43 MURATA
1C15 CERAMIC CAPACITOR (0603) 1UF 10% 16V X7R C0603C105K4RAC KEMET
2D1, D3 SCHOTTKY BARRIER DIODE (SMB) 60V 3A B360B-13-F DIODES INCORPORATED
1D2 SCHOTTKY BARRIER DIODE (SOD-323) 30V 0.5A B0530WS-7-F DIODES INCORPORATED
1DS1 GREEN WATER CLEAR LED APT1608LZGCK KINGBRIGHT
2FB1, FB2 FERRITE-BEAD (0805) 60R 25% 3.5A BLM21PG600SN1 MURATA
5GND_1, GND_2, USB_5V, VBAT, VBAT_FLT TEST POINT 5020 KEYSTONE
1HOST_VBUS TEST POINT 5003 KEYSTONE
1 J1 HEADER 12-PINS TSW-112-07-G-S SAMTEC
1 J2 USB TYPE-A PLUG 1734028-1 TE CONNECTIVITY
1 J3 USB TYPE-A RECEPTACLE AU-Y1006-R ASSMANN
1L5 INDUCTOR 1.5UH 20% 2.7A DFE252012F-1R5M MURATA
1MOD1 MAX32625PICO MODULE MAX32625PICO MAXIM
1R1 RESISTOR (0805) 0.033R 1% +/-50PPM/C 0.5W KRL1220E-M-R033-F SUSUMU CO LTD.
6L1, L2, L4, L6, R2, R6 RESISTOR (0402) 0R 0.2W CRCW04020000Z0EDHP VISHAY DALE
4R8-R11 RESISTOR (0402) 2K 5% 0.063W CRCW04022K00JN VISHAY DALE
4R12, R17, R18, R21 RESISTOR (0402) 1K 5% 0.063W CRCW04021K00JK VISHAY DALE
2R13, R14 RESISTOR (0402) 100K 5% 0.063W CRCW0402100KJN VISHAY DALE
2R15, R16 RESISTOR (0402) 2.2K 5% 0.063W CRCW04022K20JN VISHAY DALE
1R20 RESISTOR (0402) 51K 5% 0.063W CRCW040251K0JN VISHAY
1SW1 QUAD SPST HALF-PITCH DIP SWITCH TDA04H0SB1 C&K COMPONENTS
1U1 MAX25460ATGA/V+ MAX25460ATGA/V+ ANALOG DEVICES
1U2 ULTRA-LOW QUIESCENT-CURRENT LINEAR REGULATOR MAX15006AATT+ ANALOG DEVICES
1PCB MAX25460 REVC MAX25460 REVC ANALOG DEVICES

www.analog.com Analog Devices
│ 10
MAX25460 Evaluation Kit Evaluates: MAX25460

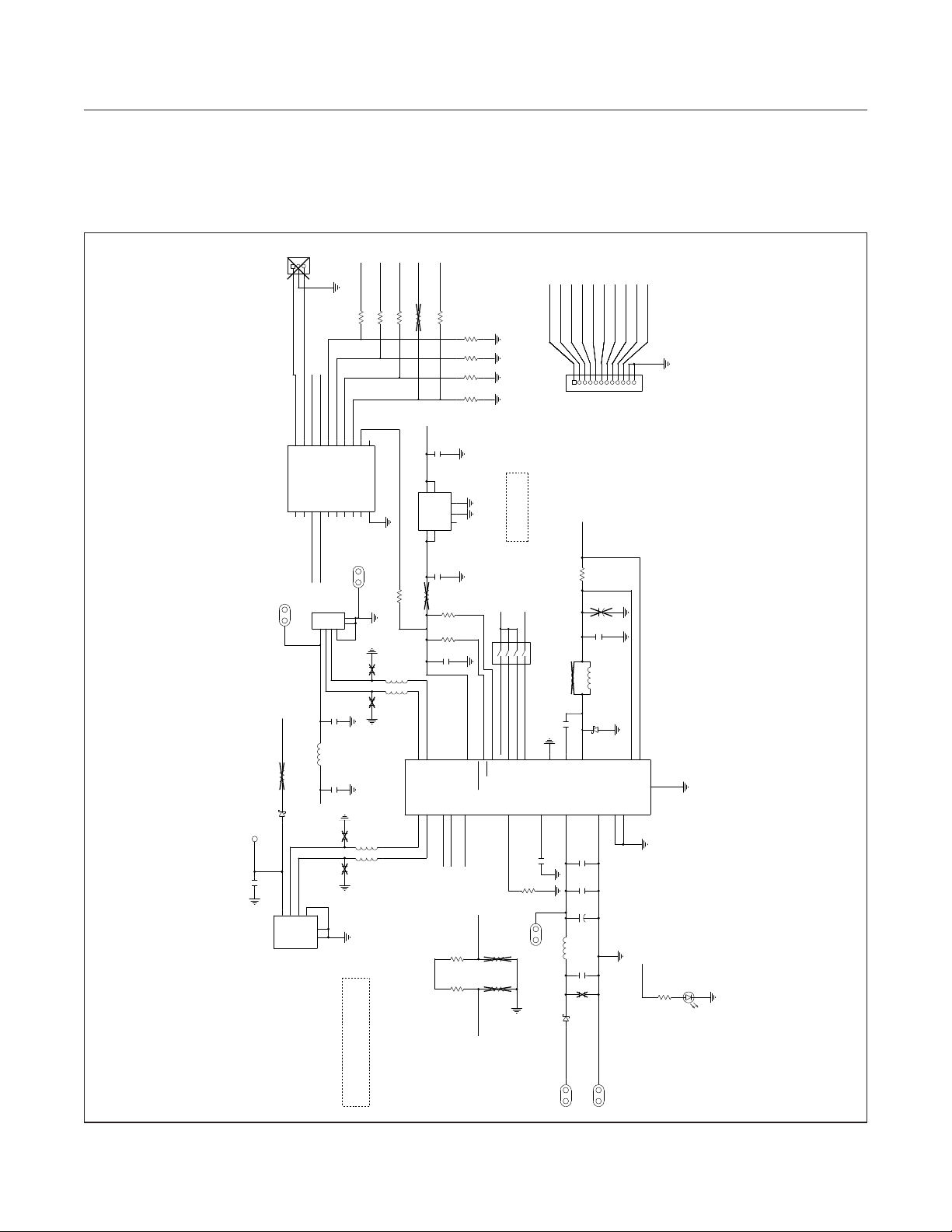

MAX25460 EV Kit Schematic
ADDR=0X30 SS=ON SYNC=IN
LOW = SDP (DEFAULT) HIGH = AUTO-CDP
DIFFERENTIAL
CONFIG1 = 0R
FROM AGND FOR BEST PERFORMANCE
DEFAULT CONFIG
DATA_MODE
LAYOUT NOTE: SEPARATE PGND HIGH FREQUENCY RETURN CURRENTS
0 *
0 *
0 *
0 *
DNI
1734028-1
2PF2PF
B0530WS-7-F 0
DNI
1UF
16V
1K
2.2K
0.033
16V
2.2UF
0
MAX25460ATGA/V+
1.5UH
MAX32625PICO
TSW-112-07-G-S
APT1608LZGCK
51K
0.1UF 50V
B360B-13-F
50V
0.1UF
2.2K
6PF 6PF
50V
22UF
50V
0.1UF
50V
AU-Y1006-R
1K
2K 2K
1K
2K
1K
50V
0.1UF
TSW-103-23-G-S
DNI
25V
68UF
2K
1K
0
DNI
2.2UF
B360B-13-F
MAX15006AATT+
DNI
DNI
14.7K
DNI
3.74K
0
DNI
2.2UF
16V
50V
2200PF
BLM21PG600SN1
60
4.7UF
50V
50V
0.1UF
DNI
DNI
25V
100K
60
DNI
0.1UF 50V
BLM21PG600SN1
DNI
100K
22UF
1.5UH
R21
C1
C14C13
U2
HOST_VBUS
R8
C4
FB2
R20
DS1
R5
R19
R11R10R9
R18 R17 R12
R6
J4
MOD1
D3
C18
U1
C17
VBAT R2
C3
C16
L5
GND_2
USB_5V
GND_1
VBAT_FLT
L4
C11
L2
C10
L6
L1
D2
J2
J3
R3
L3
C9
R7
J1
R1
FB1
C6C7
R13
SW1
R14C15
D1
C2 C5 C20
C12
C8
R4
R15R16
D-
SDA_CONFIG2 SCL_CONFIG3
GND
IN FAULTB
FAULTB
BIAS
SCL_CONFIG3 SDA_CONFIG2
INTB_ATTACHB
BIAS
BIAS
BST
ENBUCK
HVEN SYNC
DATA_MODE
IN
LX
SDA_CONFIG2
DM DP
HVDM
VBAT_FLT
INTB_ATTACHB
HVDP
HVEN ENBUCK
PICO_RX
HVEN BIAS
PICO_TX FAULTB INTB_ATTACHB
ENBUCK SYNC DATA_MODE
SUPSW
DATA_MODE SYNC
SENSP
HVD+ HVD-
USB_5V
D+
IN
VBAT_D
SDA_CONFIG2 SCL_CONFIG3
CONFIG1
SCL_CONFIG3
SUPSW
SENSN
SENSN
ENBUCK
BIAS
IN
DATA_MODE
6 5
3
2 1
4
7
21
K A
3 2 1
8 7 6 5 4 3
13 14 15 16 17 18 19 20
10
2 1 9 12
11
CA
25
24 23 22
21
20
19
18
17
16 15
14 13 12
11 10
9 8
7 6 5
4
3
2 1
21
21
21
21
21
CA
6
5
4 3 2 1
6
5
4 3 2 1
21
12 11 10 9 8 7 6 5 4 3 2 1
21
2 1
8 7 6 5 4
3 2 1
CA
2 1
65
1 4 3 2
4 3 2 1
SHIELD
DATA MODE
EP
IC(G_DMOS)
SENSN
SENSP
SUPSW
HVEN
PGND
LX
CONFIG1
BST
ENBUCK
SDA(CONFIG2) SCL(CONFIG3)
SYNC
IN
DM DP
FAULT
HVDP
HVDM
AGND
INT(ATTACH)
AGND BIAS
GND +1.8V
+3.3V+5V
PIN0_7 PIN0_6 PIN0_5 PIN0_4 PIN0_3 PIN0_2 PIN0_1 PIN0_0
PIN4_4 PIN4_5 PIN4_7 PIN4_6 PIN1_7 PIN1_6
AIN2 AIN0
OUT OUT
NC
IN IN
EP GND
+
8 7
6 54
3
2 1
+

www.analog.com Analog Devices
│ 11
MAX25460 Evaluation Kit Evaluates: MAX25460
MAX25460 EV Kit PCB Layout—Top View MAX25460 EV Kit PCB Layout—Layer 3
MAX25460 EV Kit PCB Layout—Layer 2 MAX25460 EV Kit PCB Layout—Bottom View
MAX25460 EV Kit Layout

MAX25460 Evaluation Kit Evaluates: MAX25460
www.analog.com Analog Devices
│ 12
Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is
assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that
may result from its use.Specifications subject to change without notice. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the
property of their respective owners.
Windows is a registered trademark and registered service mark of Microsoft Corporation.
REVISION
NUMBER
REVISION
DATE DESCRIPTION PAGES CHANGED
0 5/23 Initial release —
Revision History
