Analogue Super Nt User manual

Contents
Important Health Warning About Playing Video Games .............................. 3
Please Read ............................................................ 4
Analogue Nt diagram.....................................................5-6
Hardware Features .....................................................7-11
HDMI Upgrade Features ................................................12-13
Video Options ........................................................14-17
Audio Options ........................................................18-19
Settings ............................................................20-24

Important Health Warning About Playing Video Games
A very small percentage of people may experience
a seizure when exposed to certain visual images,
including flashing lights or patterns that may appear
in video games. Even people who have no history
of seizures or epilepsy may have an undiagnosed
condition that can cause these “photosensitive
epileptic seizures” while watching video games.
These seizures may have a variety of symptoms,
including lightheadedness, altered vision, eye
or face twitching, jerking or shaking of arms or
legs, disorientation, confusion, or momentary loss
of awareness. Seizures may also cause loss of
consciousness or convulsions that can lead to injury
from falling down or striking nearby objects.
Immediately stop playing and consult a doctor if you
experience any of these symptoms. Parents should
watch for or ask their children about the above
symptoms – children and teenagers are more likely
than adults to experience these seizures. The risk of
photosensitive epileptic seizures may be reduce by
taking the following precautions: sit farther from the
screen, use a smaller screen, play in a well-lit room,
and do not play when you are drowsy or fatigued.
If you or any of your relatives have a history
of seizures or epilepsy, consult a doctor
before playing.
3Important Health Warning

Please Read
The Analogue Nt uses a proprietary video pinout: At
risk of damaging your Analogue Nt do not use regular
VGA cables, or any other video cables. Do not insert
two games into the Analogue Nt at once.
The Analogue Nt is a unique device that may require
some reasonable extra attention when inserting
cartridges. Carelessly inserting / removing cartridges
into the slot or dramatically rocking them back and
forth, may scuff your cartridges. Cartridges should
be inserted and removed in a straight, upward and
downward motion to avoid any issues.
If the “ANALOGUE” warranty sticker on the bottom of
your Analogue Nt is removed, the warranty will be void.
4Please Read

A B C D E
J
K
F G H I
L M N O
5Analogue Nt diagram

To start using your Analogue Nt, insert the AC adapter into the power input and plug in the video cable into the
respective input on your TV, monitor or projector. Insert a game and press the red power button.
APower button
BAnalog video output / HDMI output
CPower input
DAudio adjust up/down
EAudio adjust select
FController mode select
GAnalog audio
HMic input
IFamicom expansion port
JFamicom cartridge slot
KNES cartridge slot
LPlayer 1
MPlayer 2
NPlayer 3
0Player 4
6Analogue Nt diagram

Hardware Features
Your Analogue Nt is designed with special
physical and analog features.
Please read this section to understand
everything your Analogue Nt is capable of.
Power Button
Your Analogue Nt can be powered on and
off by pressing the Power Button. While your
Analogue Nt is turned on, quickly press the
Power Button for a soft reset. To turn off your
Analogue Nt hold down the Power Button until
you hear a click and the power LED is off. Yes,
the power button is an NES controller button.
NES Cartridge Slot
Your Analogue Nt is compatible with original
NES games via the NES cartridge slot.
See a list of 826 NES games here.
Famicom Cartridge Slot
Your Analogue Nt is compatible with original
Famicom games via the Famicom cartridge slot.
See a list of 1,054 Famicom games here.
Famicom Disk System
Your Analogue Nt is compatible with the original
Famicom Disk System via the Famicom cartridge slot.
See a list of 229 Famicom Disk System games here.
7Hardware Features

Famicom Expansion Port
Your Analogue Nt is compatible with Famicom
accessorie via the Famicom Expansion
Port. See a list of accessories here.
Four Player Controller Ports
Your Analogue Nt is outfitted with custom designed,
NES controller ports. This means your Analogue
Nt is compatible with original NES controllers and
accessories. See a list of accessories here.
Analog / RCA Audio Output
Your Analogue Nt is designed to output audio
true to the original system. There are no filters, or
alterations from the original audio source – only a
clean and shielded audiophile amplifier circuit.
8Hardware Features

Analog Video Output
(note: analog to digital upscalers and converters
will result in less than ideal upscaling, lag and
other issues. See how to play your Analogue
Nt in HD, with no compromises, on page 12)
Your Analogue Nt outputs the
highest quality analog video:
RGB
RGB is the purist and highest quality analog
video output. You can use European or Japanese
SCART cables direct to your video source, or
with an upscaler or converter. BNC cables are
a suitable choice for pairing with a PVM.
Component
Component is the second highest quality analog
video output, perfect for pairing with a CRT or try
your luck with your HDTV’s internal upscaler.
S-video
S-video is an exceptionally high quality video
output, nearly as good as Component and
perfect for CRTs without Component input.
Composite
Your Analogue Nt outputs composite directly from the
PPU, untouched, exactly the way your original NES or
Famicom did when you first played it. This way, you
can experience identically to the way it was released.
9Hardware Features

HDMI Video Output (*requires HDMI upgrade)
See the HDMI Features section on Page 12.
Your Analogue Nt can be upgraded with an
internally installed daughterboard that provides
unparalleled digital features. If you’re Analogue Nt
does not already have an HDMI upgrade, you can
upgrade at any time by contacting us directly at
[email protected].
Microphone Input
Your Analogue Nt is compatible with Famicom
microphone supported games. Simply plug a
microphone / headset (or headphones with a mic)
with a 3.5mm audio jack into the Mic Input on your
Analogue Nt. You can adjust the microphone’s output
volume with the Audio Adjust up and down buttons.
Audio Adjust Up/Down Buttons
The Audio Adjust UP/DOWN buttons control the Audio
Adjust Select. You can press the up/down buttons
for precision control or hold them down without
individually clicking to move within the controllable
range more quickly.
Controller Mode Select
Your Analogue Nt is compatible with 4 player games.
You can manually select the mode depending on
what region the game you are playing is from (US or
JAPAN). If you are playing a one or two player game in
USA or JAPAN, use the default center position mode:
“2P” mode. If you are playing a four player NES / US
game, use “4P-US” mode. If you are playing a four
player FAMICOM / JP game, use “4P-JP” mode.
10 Hardware Features

Audio Adjust Select
Your Analogue Nt is designed with three audio controls:
MIC: Microphone volume adjust
Adjust the microphone volume by putting the
switch in the “MIC” position and use the Audio
Adjust up and down buttons.
AUX: Auxiliary / Expansion audio
volume adjust
Adjust the auxiliary / expansion audio by puting
the switch in the “AUX” position and use the Audio
Adjust up and down buttons.
MIX: Stereophonic / Mono adjust
Mix and de-mix the original 5 sound channels
directly from the CPU to your preference. If you
would like to adjust the mix, put the switch in
“AUX” mode and use the Audio Adjust up and
down buttons.
11 Hardware Features

HDMI Features
(HDMI upgrade required)
Upgrading your Analogue Nt with HDMI is the highest
quality way to play NES, Famicom and Famicom Disk
System games in HD. The HDMI upgrade not only
offers reference quality video, but an unparalleled
degree of control over the way your games are
formatted on your TV, monitor or projector.
Your Analogue Nt can be upgraded with
an internally installed daughterboard that
provides unparalleled digital features. If you’re
Analogue Nt does not already have an HDMI
upgrade, you can upgrade at any time by
contacting us directly at [email protected].
At a Glance
HDMI Video Features
• 480p, 720p, and 1080p in NTSC/60Hz
• 576p, 720p, and 1080p in PAL/50Hz
• 148.5 million pixels/second, direct conversion of
video, no frame buffer, no lag on the video, zero
signal degradation
• CPU overclocking up to 2.5MHz
HDMI Audio Features
• 48KHz 16 bit stereo audio
• Full panning and volume support for all
audio channels
• Full audio chip support (VRC6, VRC7, MMC5,
sunsoft 5, FDS, N106)
• Overclocking without audio pitch shifting
12 HDMI Upgrade Features

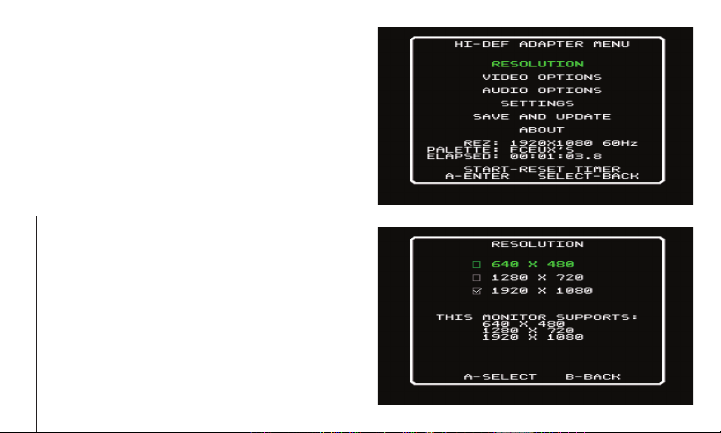

In Game Menu
To access the in game menu press DOWN
and SELECT on your controller. If you would
like to save your settings, make sure to select
“Save and Update” to save your settings
after turning off your Analogue Nt.
Resolution
Your Analogue Nt supports 480p, 720p,
and 1080p in NTSC/60Hz and 576p,
720p, and 1080p in PAL/50Hz. Select the
resolution you would like to display.
13 HDMI Upgrade Features

Video Options

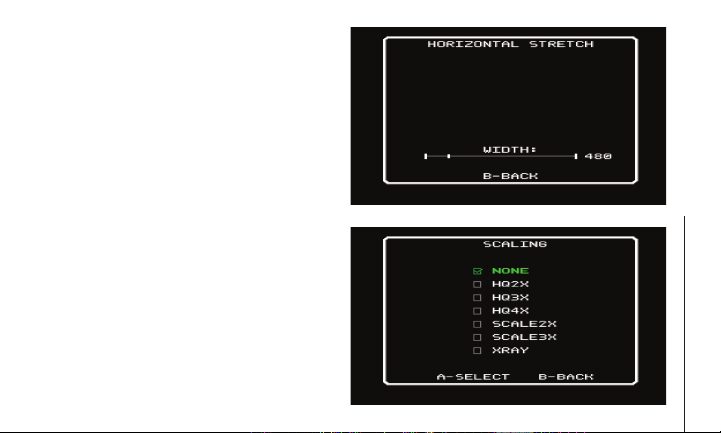

Horizontal Stretch
Use the LEFT and RIGHT D-PAD buttons on your
controller to adjust the horizontal stretch of the
game image. The default setting is 4:3 for 16x9.
Scaling
Choose from a selection of popular pixel art
scalers to alter the way the pixels render.
14 Video Options

Scanlines
Enable scanlines for a CRT feel. Start by selecting
the number of scanlines you would like (we suggest
NES), and use the LEFT and RIGHT D-PAD buttons
on your controller to adjust the scanline depth.
Interpolation
Turn interpolation on and off (we suggest leaving
this off). Use the LEFT and RIGHT D-PAD buttons on
your controller to adjust the interpolation depth.
15 Video Options

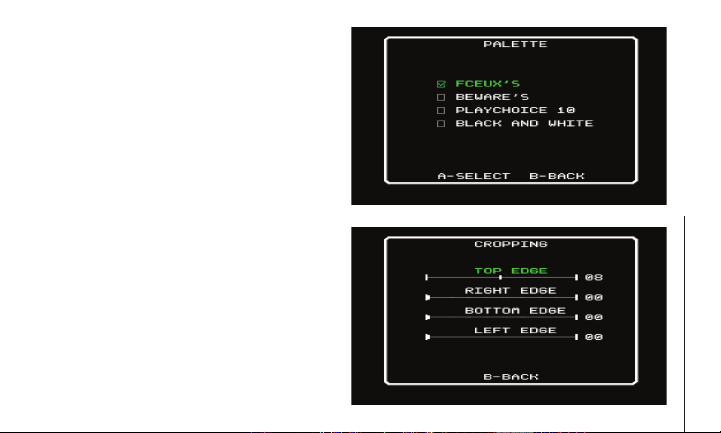

Palette
Choose from a selection of color palette’s that
modify the aesthetics of the way your games look.
Cropping
Crop the game frame to your liking.
Cropping is useful for eliminating inherent
graphical issues in certain games.
16 Video Options

Horizontal Position
Use the LEFT and RIGHT D-PAD buttons
on your controller to adjust the horizontal
position of the game image.
Despeckle
A very small selection of games have pixel
speckling or sparkling. If you do come across a
rare game that has speckles in the video, then
select a different phase until they are eliminated.
17 Video Options

Audio options

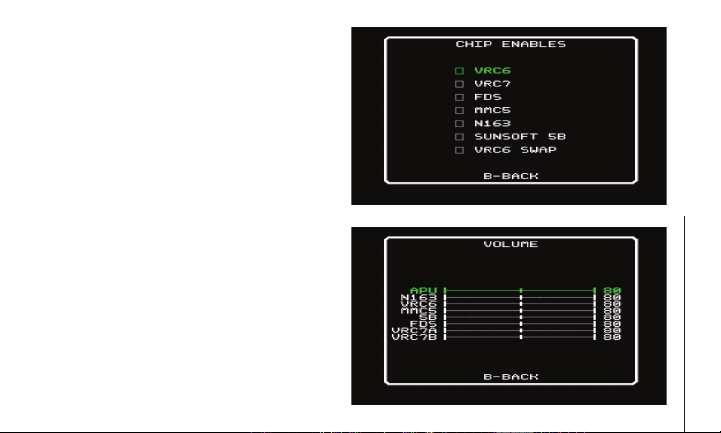

Chip Enables
Your Analogue Nt has full digital support for each
of the unique audio chips used in certain games
that pushed the boundaries of what the NES/
FC/FDS was capable of. Turn on the respective
audio chip for whichever game you are playing to
allow this audio channel to function properly.
Volumes
Use the LEFT and RIGHT D-PAD buttons on your
controller to adjust the volume on each individual audio
channel. The default selections are recommended.
18 Audio Options

Panning
Use the LEFT and RIGHT D-PAD buttons
on your controller to adjust the panning
on each individual audio channel. The
default selections are recommended.
Viewer
The Viewer is an audio visualizer
for your audio selections.
19 Audio Options
