INSTRUCTION MANUAL
Models: H200
Single Channel K, J, T, E, R Thermometer

Table of Content
1. Product Introduction ………………………………………… 3
1-1 Features ………………….………………………… 3
1-2 Applications ……………………………………...… 3
2. Safety Information …………………………………………… 4
2-1 Cautions ………………………………..………..… 4
2-2 Safety Symbols ………………………..…..……… 4
3. Specifications……………………………………...…………. 5
4. Operation Instructions……………………………………… 6
4-1 Unit Diagram ……………………………………… 6
4-2 Measuring Procedure ……………………….…... 7
4-3 Thermocouple Measuring Procedure ……………… 7
4-4 Offset Value Adjustment ……..………….………… 7
4-5 Measuring Considerations ……....………………… 7
4-6 Data Hold Mode …………………………………… 7
4-7 Rec Mode ………………………………………… 7
4-8 REL Mode ……………………………………….. 8
5. Auto Power Off Disable …………………………………… 8
6. RS232 PC Serial Interface Information …………………. 9
7. Battery Replacement ..…………………………………….. 11
8. Service Information …………………………………..……. 12
9. Warranty Information ………………………………………. 13
To see all available accessories and downloadable software, please visit
www.anaheimscientific.com

1. Product Introduction
1-1 Features
Measures temperature fro m five different types of thermocouples
0.1 Resolution
Fast response ti me
High level of accuracy
Large LCD display
Two year warranty
1-2 Applications
Science Experiments
HVAC
Plant Maintenance
Manufacturing
Agriculture
Quality Control

2. Safety Information
Read the follow ing safety information carefully before attempting to operate or
serv ice the meter. Only qualified personnel should perform repairs or serv icing not
cov ered in this manual.
2-1 Cautions!
DO NOT submerge the products mentioned in this manual in w ater or any other
ty pes of liquids.
This product is not designed for use in medical applications. The product can only
be used to measure body temperature simply for reference.
2-2 Safety Symbols
Dangerous, refer to this manual before using the meter.
Conforms to requirements of European Union and European Fare Trade
Association (EFTA).
Battery lev el is low.
Don’t dispose this product as unsorted municipal waste.
This instrument conforms to the follow ing standards:
EN61326: Electrical equipment for measurement, control and laboratory use.
IEC61000-4-2: Electrostatic discharge immunity test.
IEC61000-4-3: Radiated, radio-frequency, electromagnetic field immunity test.
IEC61000-4-8: Power frequency magnetic field immunity test.
3
4

3. Specifications
Unit of Measurement °C or °F
Temperature Compensation Automatic for cold junction on K & J type
Thermocouple Types K, J, T, E & R
Thermocouple Type Resolution Range Accuracy*
-50.0 to 1300.0°C +( 0.2 % + 0.5°C )
0.1°C -50.1 to -100.0°C +( 0.2 % + 1°C )
-58.0 to 2372.0°F +( 0.2 % + 1°F )
Type K
0.1°F -58.1 to -148.0°F +( 0.2 % + 1.8°F )
-50.0 to 1150.0°C +( 0.2 % + 0.5°C )
0.1°C -50.1 to -100.0°C +( 0.2 % + 1°C )
-58.0 to 2102.0°F +( 0.2 % + 1°F )
Type J
0.1°F -58.1 to -148.0°F +( 0.2 % + 1.8°F )
-50.0 to 400.0°C +( 0.2 % + 0.5°C )
0.1°C -50.1 to -100.0°C +( 0.2 % + 1°C )
-58.0 to 752.0°F +( 0.2 % + 1°F )
Type T
0.1°F -58.1 to -148.0°F +( 0.2 % + 1.8°F )
-50.0 to 900.0°C +( 0.2 % + 0.8°C )
0.1°C -50.1 to -100.0°C +( 0.2 % + 1°C )
-58.0 to 1652.0°F +( 0.2 % + 1.5°F )
Type E
0.1°F -58.1 to -148.0°F +( 0.2 % + 1.8°F )
0 to 600°C +( 1 % + 5°C )
1°C 601 to 1700°C +( 1.5 % + 5°C )
32 to 1112°F +( 1 % + 10°F )
Type R
1°F 1113 to 3092°F +( 1.5 % + 10°F )
Data Hold Display freeze
Memory Saves MAX. or MIN values with recall
Sampling Time Approximately 1 second
Over Range Indicator " - - - - "
Data Output RS-232 Serial data output
Operating Environment 32°to 122°F (0° to 50°C), <80% R.H.
Power Supply
6 Pieces of DC 1.5V Batteries (UM4, AAA or
equivalent)
Weight (approx.) 0.62lbs. (280g)
Dimensions (approx.) 6.9 x 2.7 x 1.7" (174 x 68 x 42mm)
Included Accessories Instruction manual, battery, carrying case
* = Note : Accuracy applicable in environments with temperatures between 20°C to
26°C and only applies to the meter itself, not the probe.
Specifications and information are subject to change without notice
Please visit www.anaheimscientific.com for the most current product information.
5

4. Operating Instructions
4-1 Unit Diagram
Fig. 1
4-1 Display
4-2 Power Button
4-3 Hold Button
4-4 REC (MAX/MIN ) Button
4-5 Sensor Button
4-6 REL () Button
4-7 C°/F° () Button
4-8 RS232 Socket
4-9 Battery Compartment
4-10 Thermocouple Input Socket
4-11 Stand
4-13 Tripod Screw Mount
4-12 Battery Cover Screw
6

4-2 Measuring Procedure
4-3 Thermocouple Measuring Procedure
1. Power on the meter by pressing the “ Power Button” (4-2, Fig. 1). The meter will go through a
short self test.
2. Select the sensor type by pressing the “ Sensor Button” (4-5, Fig.1). As you press this button
multiple time the meter will display the sensor type along the bottom of the LCD. You will see it
change between K, J, T, E & R.
3. Once you have set it for the desired sensor type, insert the probe in to the “ Thermocouple
Input Socket” (4-10, Fig. 1).
4. Select the unit of measure by pressing the “ °C/°F Button” (4-7, Fig.1).
5. Insert the Thermocouple in to the environment you wish to measure. The LCD will display
the measured values.
4-4 Offset Value Adjustment
In some environments or applications there may be some need to offset the displayed
temperature value. After following section 4-3 follow these steps to set a offset value.
1. Simultaneously press and hold the “Hold Button” (4-3, Fig. 1) and “ REC Button” (4-4, Fig.1).
2. The LCD will display the starting value in the bottom of the LCD and the value in the middle
section.
3. Using the “ Up Button” (4-7, Fig. 1) to increase the offset value and/or the “ Down Button”
(4-6, Fig.1) to decrease the offset value.
4. Release all buttons to go to the normal measurement screen. The meter will now display
measured values with the offset already calculated in to the reading.
4-5 Measuring Considerations
1. When inserting the measurement probes in to the “ Thermocouple Input Socket”
(4-10, Fig. 1), note the correct polarity usually indicated by the size of the plug blades (negative
usually being the wider of the two).
2. For the most accurate reading allow the probe to stabilize when it is being introduced in to
an environment that is significantly different in temperature from its starting point.
4-6 Data Hold Mode
1. During a measurement, press the “ Hold Button” (4-3, Fig. 1) to hold the displayed value on
the LCD. The “ HOLD” symbol will also be displayed on the LCD.
2. Pressing the “ Hold Button” (4-3, Fig. 1) will release the data hold function.
4-7 REC Mode
1. To record the maximum and minimum readings, press the “ REC Button” (4-4, Fig. 1). The
REC symbol will be displayed on the LCD. By pressing the “ REC Button” (4-4, Fig. 1) you can
toggle through the Max and Min values.
2. To stop using the REC function, press and hold the “ REC Button” (4-4, Fig. 1) for at least 3
seconds.
7

4-8 REL Mode
1. It is recommended that you memorize the value on the LCD display first. Also note that the
REL function does not work when the meter is in Data Hold or Data Record conditions.
2. To remove any displayed value from the LCD you can press the “ REL Button” (4-6, Fig. 1).
The display will then go to zero and you will see the REL marker in the top portion.
3. All subsequent values displayed will be the measured value minus the amount on the display
when the REL button was pressed.
4. To cancel the REL function, simply press the “ REL Button” (4-6, Fig. 1). The REL marker will
then disappear from the LCD.
5. Auto Power Off Disable
This instrument has a “ Auto Power Off " function that can prolong battery life. The meter will
shut off automatically if none of the buttons are pressed in approx. 10 min.
To disable this function, select the memory record function during a measurement by pressing
the " REC. Button” (4-4, Fig. 1 ).
8

6. RS232 PC Serial Interface Information
This instrument has RS232 PC serial interface via a 3.5 mm terminal (4-12, Fig. 1).
The data output is a 16 digit stream which can be utilized for user's specific application.

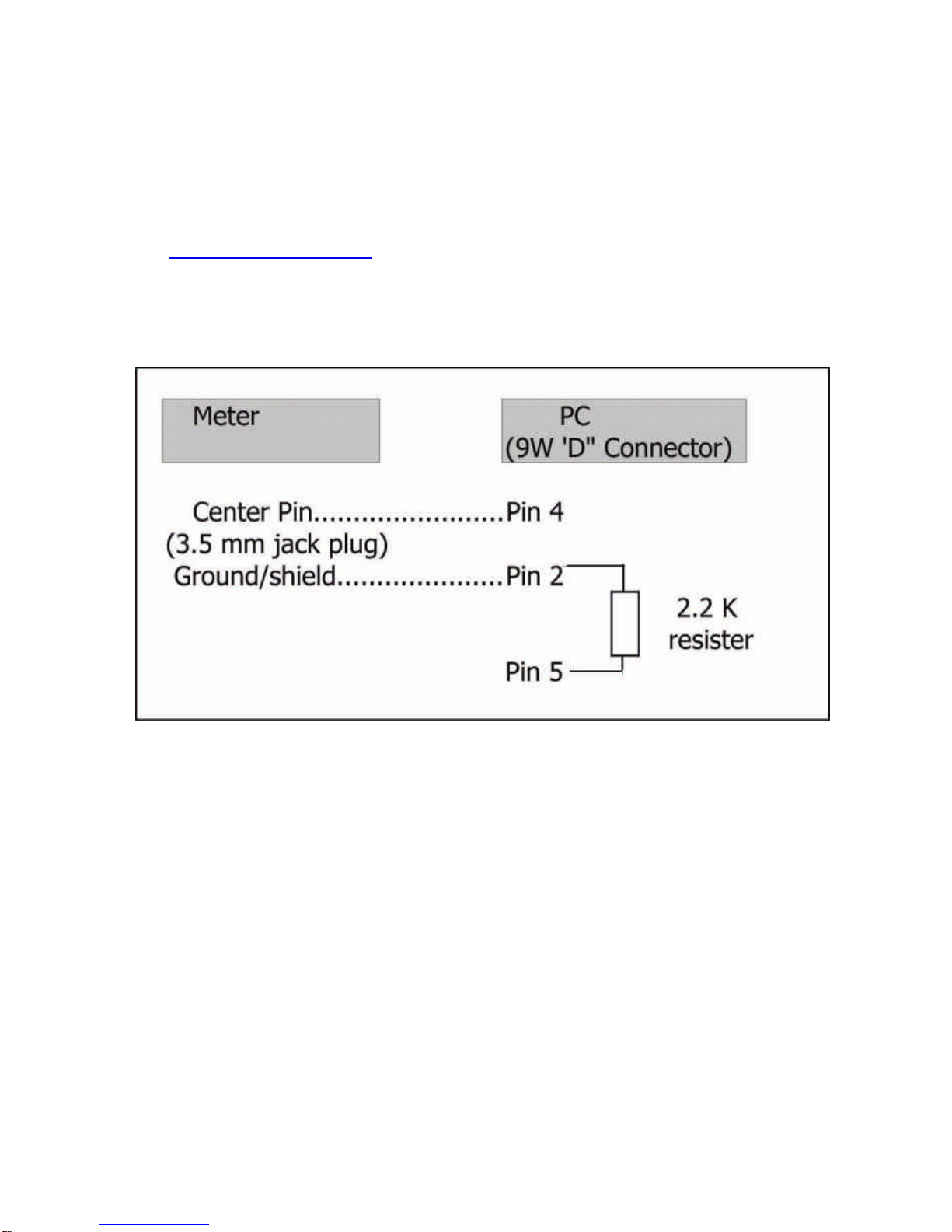

A RS232 lead with the following connection will be required to link the instrument with the PC
serial port.
Visit www.anaheimscientific.com to see any available downloadable software for your
instrument.
9

The 16 digit data stream will be displayed in the following format:
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1D0
Each digit indicates the following status:
D15 Start Word
D14 4
D13 1
D12 & D11 Indicator for Display
°C = 01 °F = 02
D10 Polarity: 0 = Positive / 1 = Negative
D9
Decimal Point (DP), position from right to left
0 = No DP, 1 = 1 DP, 2 = 2 DP, 3 = 3 DP
D8 to D1
Display reading, D1 = LSD, D8 = MSD
Example: If the display reading is 1234,
then D8 to D1 is: 00001234
D0 End Word
RS232 Setting
Baud Rate 9600
Parity No Parity
Data bit # 8 Data bits
Stop bit 1 Stop bit
10

7. Battery Replacement
1. When the LCD display shows the “ ” low battery symbol, It is necessary to
replace the battery. The specifications listed for this instrument do not apply when the
low battery symbol is displayed.
2. Open the “Battery Compartment” (4-9, Fig. 1) by first loosening the “Battery Cover
Screw s” (4-12, Fig. 1).
3. Replace the batteries with “good” batteries noting the correct polarity . Replace
“Battery Compartment” (4-9, Fig. 1) and “Battery Cover Screws” (4-12, Fig. 1). Ensure
the cov er is securely fastened.
11

8. Service Information
Warranty Service: Please return the product in the original packaging
with proof of purchase to the address below. Clearly state in writing the
performance problemand return any leads, probes, connectors and
accessories that you are usingwith the device.
Non-Warranty Service: Return the product in the original packaging
to the address below. Clearly state inwriting the performance problem
and return any leads, probes, connectors and accessories that you are
usingwith the device. Customers not on open account must include
payment in the formof a money order or credit card. For the most
current repair charges please visitwww.anaheimscientific.comand
click on “service/repair”.
Return all merchandise to AnaheimScientific with pre-paid shipping.
The flat-rate repair charge for Non-Warranty Service does not include
return shipping. Return shipping to locations in North American is
included for Warranty Service only. For overnight shipments and non-
North American shipping fees please contact AnaheimScientific.
Anaheim Scientific
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
www.anaheimscientific.com
714-921-9095
Include with the returned instrument your complete return
shipping address, contact name, phone number and description
of problem.
12

9. Limited Two-Year Warranty
Anaheim Scientific warrants to the original purchaser that its products
and the component parts thereof,will be free fromdefects in
workmanship and materials for a period of two years fromdate of
purchasefroman authorized Anaheim Scientific distributor.
Anaheim Scientific will, without charge, repair or replace, at its option,
defective product orcomponent parts. Returned product must be
accompanied by proof of the purchase date in the formof a sales
receipt.
To obtain warranty coverage in the U.S.A., this product must be
registered by completing the warranty registration formon
www.anaheimscientific.comwithin fifteen (15) days of purchase.
Exclusions: This warranty does not apply in the event of misuse
or abuse of the product or as a result of unauthorized alterations
or repairs. The warranty is void if the serial number is altered,
defaced or removed.
Anaheim Scientific shall not be liable for any consequential damages,
including without limitation damages resulting fromloss of use. Some
states do not allow limitations of incidental or consequential damages.
So the above limitation or exclusion may not apply to you.
This warranty gives you specific rights and you may have other rights,
which vary fromstate-to-state.
Anaheim Scientific
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
www.anaheimscientific.com
714-921-9095
13

Anaheim Scientific
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
U.S.A.
www.anaheimscientific.com
Printed in Taiw an / Ver. 1.0/0606
©2006 Anaheim Scientific Corporation
