English 1
Contents
Dear Customers.................................................................... 2
Preliminary Remarks ............................................................. 2
Precautions........................................................................... 2
Contraindications............................................................. 3
Parts Identification................................................................ 4
Symbols................................................................................ 5
Operation Mode.................................................................... 7
Using the Monitor ................................................................. 8
Installing / Changing the Batteries ................................... 8
Connecting the Air Hose .................................................. 9
Connecting the AC Adapter.............................................. 9
Adjusting the Built-in Clock ........................................... 10
Selecting the Correct Cuff Size ....................................... 11
Applying the Arm Cuff ................................................... 11
How to Take Accurate Measurements............................. 12
Measurement................................................................. 12
After Measurement ........................................................ 12
Measurements .................................................................... 13
Normal Measurement..................................................... 13
Measurement with the SET Pressure ............................... 14
Measurement with the Desired Systolic Pressure ............ 14
Notes for Accurate Measurement ................................... 15
TriCheckTM Measurement .................................................... 15
Recalling the Memory Data ................................................. 17
What Is The IHB/AFib Indicator? .......................................... 18
What Is The AFib? ............................................................... 18
Pressure Bar Indicator ......................................................... 18
WHO Classification Indicator ............................................... 18
About Blood Pressure.......................................................... 19
What is Blood Pressure? ................................................. 19
What is Hypertension and How is it Controlled?.............. 19
Why Measure Blood Pressure at Home?........................... 19
WHO Blood Pressure Classification ................................. 19
Blood Pressure Variations............................................... 19
Troubleshooting ................................................................. 20
Maintenance ....................................................................... 21
Technical Data .................................................................... 21

English 2
Dear Customers
Congratulations on purchasing a state-of-the-art A&D blood pressure
monitor. Designed for ease of use and accuracy, this device will facilitate
your daily blood pressure regimen.
We recommend that you read through this manual carefully before
using the device for the first time.
Preliminary Remarks
The device is designed for use on adults, not newborns or infants.
Environment for use. The device is for use to operate by yourself in the
home healthcare environment.
This device is designed to measure blood pressure and pulse rate of
people for diagnosis.
Precautions
Precision components are used in the construction of this device. Extremes
in temperature, humidity, direct sunlight, shock or dust should be avoided.
Clean the device and cuff with a dry, soft cloth or a cloth dampened with
water and a neutral detergent. Never use alcohol, benzene, thinner or other
harsh chemicals to clean the device or cuff.
Avoid tightly folding the cuff or storing the hose tightly twisted for long
periods, as such treatment may shorten the life of the components.
Take care to avoid accidental strangulation of babies or infants with the hose
and cable.
Do not twist the air hose during measurement. This may cause injury due
to continuous cuff pressure.
The device and cuff are not water resistant. Prevent rain, sweat and water
from soiling the device and cuff.
Measurements may be distorted if the device is used close to televisions,
microwave ovens, cellular telephones, X-ray or other devices with strong
electrical fields.
Wireless communication devices, such as home networking devices, mobile
phones, cordless phones and their base stations, walkie-talkies can affect
this blood pressure monitor.
Therefore, a minimum distance of 30 cm should be kept from such devices.
Used equipment, parts and batteries are not treated as ordinary household
waste, and must be disposed of according to the applicable local regulations.
When the AC adapter is used, make sure that the AC adapter can be readily
removed from the electrical outlet when necessary.
When reusing the device, confirm that the device is clean.
Do not modify the device. It may cause accidents or damage to the device.

English 3
To measure blood pressure, the arm must be squeezed by the cuff hard
enough to temporarily stop blood flow through the artery. This may cause
pain, numbness or a temporary red mark to the arm. This condition will
appear especially when measurement is repeated successively.
Any pain, numbness, or red marks will disappear with time.
Measuring blood pressure too frequently may cause harm due to blood flow
interference. Check that the operation of the device does not result in
prolonged impairment of blood circulation, when using the device repeatedly.
Clinical testing has not been conducted on newborn infants and pregnant
woman. Do not use on newborn infants or pregnant woman.
If you have had a mastectomy, please consult a doctor before using the device.
Do not let children use the device by themselves and do not use the device
in a place within the reach of infants. It may cause accidents or damage.
There are small parts that may cause a choking hazard if swallowed by
mistake by infants.
Do not touch the batteries, the DC jack and the patient at the same time.
That may result in electrical shock.
Unplug the AC adapter when not in use during the measurement.
Use of accessories not detailed in this manual may compromise safety.
Should the battery short-circuit, it may become hot and potentially cause burns.
Allow the device to adapt to the surrounding environment before use
(about one hour).
Do not inflate without wrappping the cuff around the upper arm.
Contraindications
The following are precautions for proper use of the device.
Do not apply the cuff to an arm with other medical electrical equipment
attached. The equipment may not function properly.
People who have a severe circulatory deficit in the arm must consult a
doctor before using the device, to avoid medical problems.
Do not self-diagnose the measurement results and start treatment by yourself.
Always consult your doctor for evaluation of the results and treatment.
Do not apply the cuff on an arm with an unhealed wound.
Do not apply the cuff on an arm receiving an intravenous drip or blood
transfusion. It may cause injury or accidents.
Do not use the device where flammable gases such as anesthetic gases
are present. It may cause an explosion.
Do not use the device in highly concentrated oxygen environments, such
as a high-pressure oxygen chamber or an oxygen tent. It may cause a fire
or explosion.

English 4
Parts Identification
Display
WHO Classification Indicato
r
and Pressure Bar Indicato
r
MEMORY
Systolic
Pressure
Diastolic
Pressure
Pulse Rate
Batter
y
Indicator
Heart Mark
Clock Display
IHB/AFib symbol
AM / PM Mar
k
Movement Error Symbol
Cuff Fit Error Symbol
Average Pressure Settings
TriCheckTM Symbol
Battery Cover
Battery Compartment
Air Hose Air Socket
START Button
Display
Air Connector Plug
Arm Cuff
Button
Button
SET Button
1.5V Batteries
(R6P, LR6 or AA)
DC Jack

English 5
Symbols
Symbols that are printed on the device case
Symbols Function / Meaning
Standby and Turn the device on.
Battery installation guide
Direct current
SN Serial number
Manufacturer
Date of manufacture
Type BF: Cuff is designed to provide special protection against
electrical shocks.
Used equipment, parts and batteries are not treated as ordinary
household waste, and must be disposed of according to the
applicable local regulations.
Refer to instruction manual / booklet
Polarity of DC jack
IP International protection symbol
Keep dry
Symbols that appear on the display

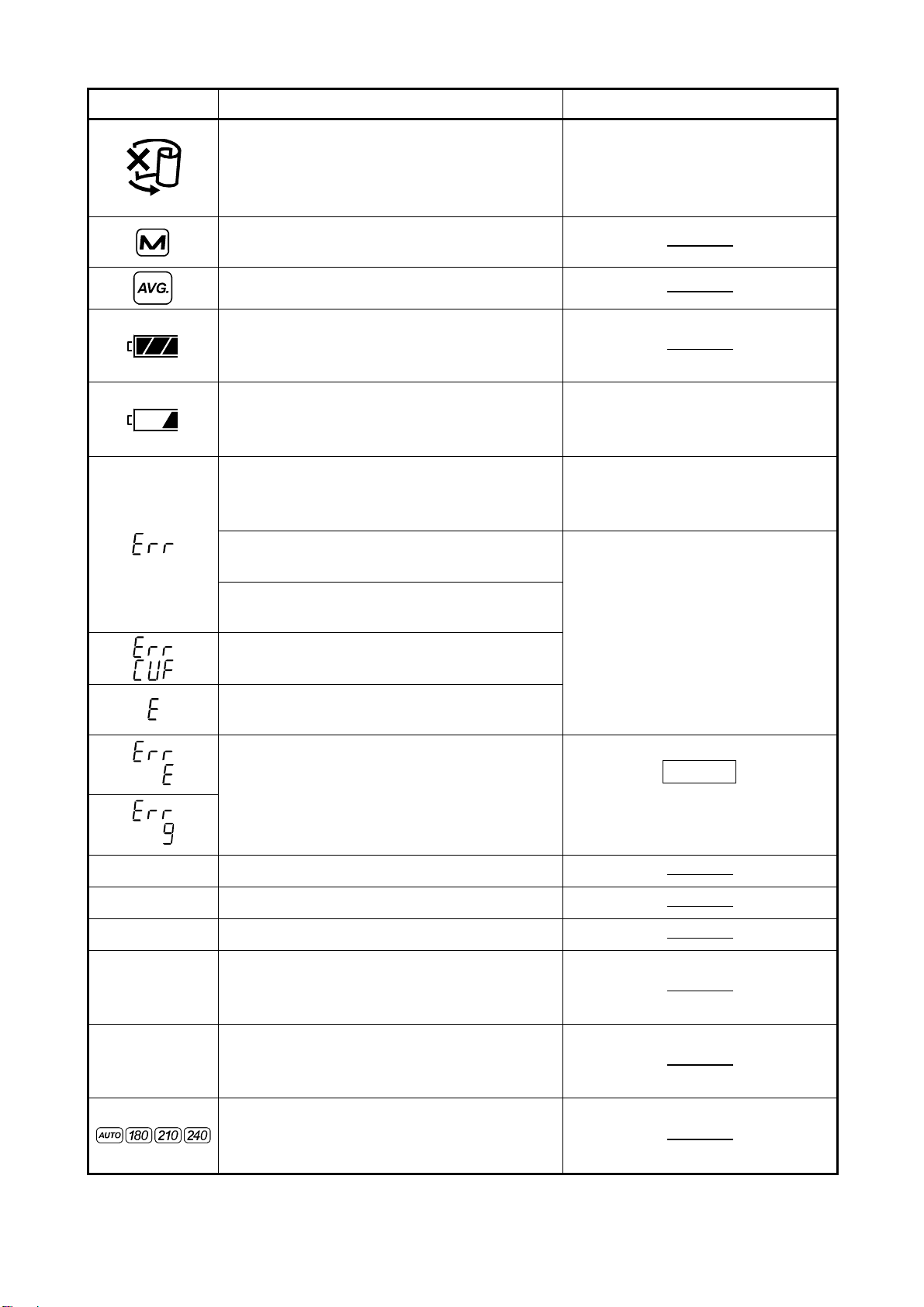

Symbols Function / Meaning Recommended Action
Appears while measurement is in
progress. It blinks when the pulse is
detected.
Measurement is in progress.
Remain as still as possible.
IHB/AFib symbol
Appears when an irregular
heartbeat is detected.
It may light when a very slight
vibration like shivering or shaking is
detected.
TriCheckTM mode
Takes three consecutive
measurements automatically and
displays the average values of the
three measurements.
Appears when a body or arm
movement is detected.
The reading may yield an
incorrect value. Try the
measurement again.
Remain still during
measurement.

English 6
Symbols Function / Meaning Recommended Action
Appears during measurement when
the cuff is applied loosely.
The reading may yield an
incorrect value. Apply the
cuff correctly, and try the
measurement again.
Previous measurements stored in
MEMORY.
Average data
FULL BATTERY
The battery power indicator during
measurement.
LOW BATTERY
The battery power is low when it
blinks.
Replace all batteries with
new ones when the mark
blinks.
Unstable blood pressure due to
movement during measurement.
Try the measurement again.
Remain still during
measurement.
The systolic and diastolic values are
within 10 mmHg of each other.
Apply the cuff correctly, and
try the measurement again.
The pressure value did not increase
during the inflation.
The cuff is not applied correctly.
PUL DISPLAY ERROR
The pulse is not detected correctly.
Blood pressure monitor internal
error
Remove the batteries and
press the START button,
and then install the batteries
again. If the error still
appears, contact the dealer.
SYS Systolic blood pressure in mmHg
DIA Diastolic blood pressure in mmHg
PUL Pulse per minute
AM
Appears when the average data is
displayed.
Data taken between 4:00 and 9:59
PM
Appears when the average data is
displayed.
Data taken between 18:00 and 1:59
Pressure settings
Indicates the pressure value
previously set by the user.

English 7
Operation Mode

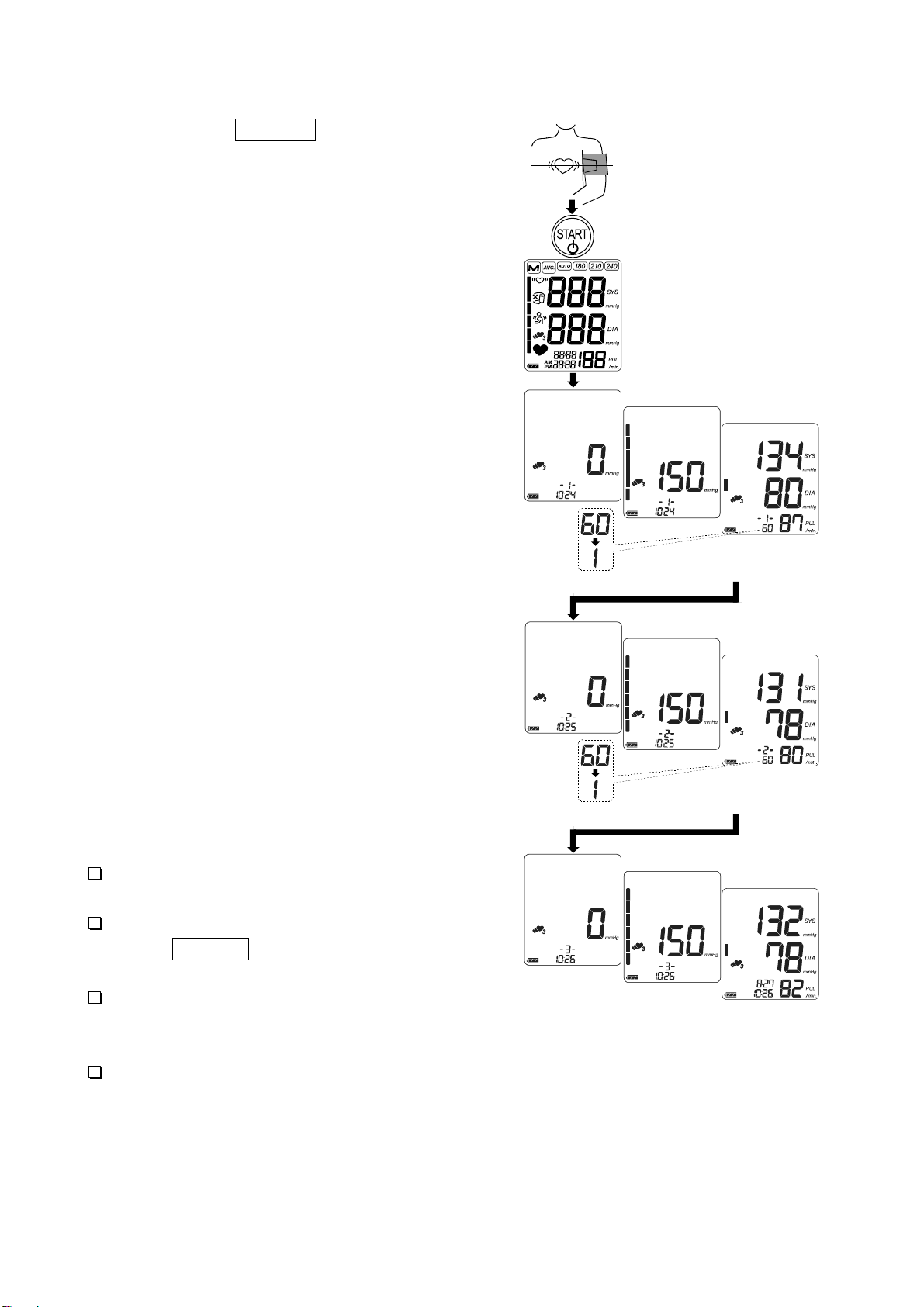

1. Normal Measurement
Press the START button. Blood pressure is measured and the data is stored
in memory. This device can store the last 90 measurements in memory.
2. Recalling the Data
Press the or button to recall the data in
memory. The average of all measurements is
displayed, as indicated in the figure at the right.
Then, each time the button is pressed,
the memory data is displayed as follows.
Average of all AM (morning) measurements
taken between 4:00 and 9:59.
Average of all PM (evening) measurements
taken between 18:00 and 1:59.
Most recent data (No.n, in the example,
No.35)
Last data (No.1)
For details on recalling the data, refer to
“Recalling the Memory Data”.
3. Deleting all Data Stored in Memory
Press both the and buttons. The mark
and the battery indicator appear. Press and hold
both the and buttons until the illuminated
mark starts blinking to delete all data stored in
memory.
4. Measurement with the Desired Systolic Pressure
Refer to page 14 for measurement with the desired systolic pressure.

English 8
Step 3
Step 2
Step 1
Step 1
Using the Monitor
Installing / Changing the Batteries
1. Remove the battery cover.
2. Remove the used batteries and
insert new batteries into the
battery compartment as shown,
taking care that the polarities (+ and -)
are correct.
Use only R6P, LR6 or AA batteries.
3. Attach the battery cover.
CAUTION
Insert the batteries as shown in the battery compartment. If installed
incorrectly, the device will not work.
When (LOW BATTERY mark) blinks on the display, replace all batteries
with new ones. Do not mix old and new batteries. It may shorten the
battery life, or cause the device to malfunction.
Replace the batteries two seconds or more after the device turns off.
If
( LOW BATTERY mark ) appears even after the batteries are replaced,
make a blood pressure measurement. The device may then recognize the
new batteries.
(LOW BATTERY mark) does not appear when the batteries are drained.
The battery life varies with the ambient temperature and may be shorter at
low temperatures. Generally, four new LR6 batteries will last approximately
for one year when used twice for measurement each day.
Use the specified batteries only. The batteries provided with the device are
for testing monitor performance and may have a limited life.
Remove the batteries if the device is not to be used for a long time.
The batteries may leak and cause a malfunction.

English 9
Using the Monitor

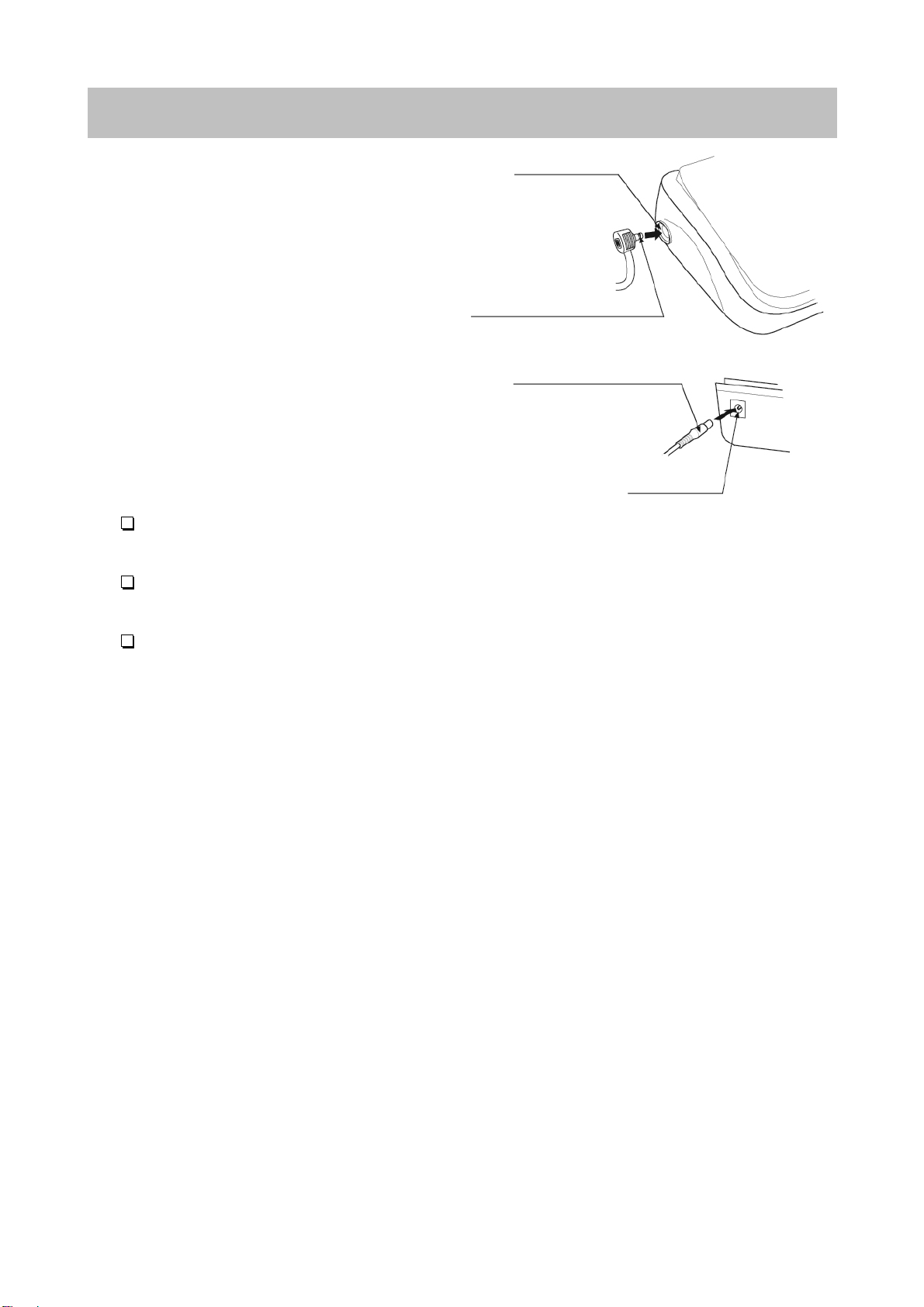

Connecting the Air Hose
Insert the air connector plug into
the air socket firmly.
Connecting the AC Adapter
Insert the AC adapter plug into
the DC jack.
Next, connect the AC adapter to
an electrical outlet.
Use the specified AC adapter.
(Refer to page 22.)
When disconnecting the AC adapter from the electrical outlet, grasp
and pull the AC adapter body out of the outlet.
When disconnecting the AC adapter plug from the blood pressure
monitor, grasp and pull the AC adapter plug out of the monitor.
Air Socket
Air connector plug
AC adapter plug
DC jack

English 10
Using the Monitor
Adjusting the Built-in Clock
Adjust the clock prior to use.
1. Press the
SET button until the year starts
blinking.
2. Select the year using the or button.
Press the
SET button to set the current
year and move to month/day selection. The
date can be set anywhere between the years
2010 and 2059.
3. Select the month using the or button.
Press the
SET button to set the current
month and move to day selection.
4. Select the day using the or button.
Press the
SET button to set the current
day and move to hour/minute selection.
5. Select the hour using the or button.
Press the
SET button to set the current
hour and move to minute selection.
6. Select the minute using the or button.
(Press the
SET button to go to the pressure
setting mode. For details, refer to page 14.)
Press the
START button to turn the device off.
Note: After three minutes of non-operation, the device
will turn off automatically.
When the clock has not been
set, the clock display indicates
dashes as shown to the right.
When using the device for the first time,
the clock is not adjusted.
When the device is disconnected from the power supply for more than 30
seconds, the set date, time and pressure value will be erased.
When the set date, time and pressure value are erased, please adjust again.
Holding down the or button will change the value continuously.
Press
Turn off
Year
Month
Day
Hou
r
Minute
Pressure
settin
g
mode
or
or
or
or
or
Pressing the START
button will turn the
device off anytime.

English 11
Using the Monitor
Selecting the Correct Cuff Size
Using the correct cuff size is important for an accurate reading. If the cuff is
not the proper size, the reading may yield an incorrect blood pressure value.
The arm size is printed on each cuff.
The arm cuff is a consumable. If it becomes worn, purchase a new one.
Arm Size Recommended Cuff Size Catalog Number
31 cm to 45 cm Large Adult cuff CUF-D-LA-ISO
22 cm to 42 cm Wide range cuff CUF-I-ISO
23 cm to 37 cm Semi Large cuff CUF-D-M
A
-ISO
22 cm to 32 cm Adult cuff CUF-F-A-ISO
16 cm to 24 cm Small cuff CUF-D-SA-ISO
17 cm to 32 cm SmoothFit Adult cuff CUF-G-A-ISO
Arm size: The circumference of the biceps.
Applying the Arm Cuff
1. Wrap the cuff around the upper
arm, about 1-2 cm above the
inside of the elbow, as shown.
Place the cuff directly against the
skin, as clothing may cause a faint
pulse, and result in a measurement
error.
2. Constriction of the upper arm,
caused by tightly rolling up a
shirtsleeve, may prevent accurate
readings.
Symbols that are printed on the cuff
Symbols Function/Meaning Recommended Action
Artery Position Mark
Set the mark on the artery of the upper
arm or in line with the ring finger on the inside
of the arm.
Catalog Number
Lot Number
Manufacture
Medical Device
Do not roll up shirtsleeve tightly.
1-2 cm
Secure the fabric fastener
firmly.
A
ir Hose
Cuff
Artery position mark

English 12
Using the Monitor
How to Take Accurate Measurements
For the most accurate blood pressure measurement:
Sit comfortably on a chair. Rest your arm on the table. Do not cross your
legs. Keep your feet flat on the floor and straighten your back.
Relax for about five to ten minutes before measurement.
Place the center of the cuff at the same level as your heart.
Remain still and keep quiet during measurement.
Do not measure immediately after physical exercise or a bath. Rest for
twenty or thirty minutes before taking the measurement.
Try to measure your blood pressure at the same time every day.
Measurement
During measurement, it is normal for the cuff to feel very tight. (Do not be
alarmed).
After Measurement
After measurement, press the START button to turn the device off.
Remove the cuff and record your data.
Note: The device has an automatic power shut-off function, which turns the
device off approximately one minute after measurement.
Allow at least three minutes between measurements on the same person.

English 13
Measurements
Before measurement, refer to “Notes for Accurate Measurement” on page 15.
Normal Measurement
1. Place the cuff on the arm (preferably the left arm).
Sit quietly during measurement.
2. Press the START button.
All of the display segments are displayed.
Zero (0) is displayed blinking briefly.
The display changes, as indicated in the
figure at the right, as the measurement
begins. The cuff starts to inflate. It is normal
for the cuff to feel very tight. A pressure bar
indicator is displayed, on the left edge of the
display, during the inflation.
Note: If you wish to stop inflation at any time,
press the START button again.
3. When inflation is complete, deflation starts
automatically and (heart mark) blinks,
indicating that the measurement is in
progress. Once the pulse is detected, the
mark blinks with each pulse beat.
Note:
If an appropriate pressure is not obtained, the
device starts to inflate again automatically.
To avoid re-inflation, refer to “Measurement
with the SET Pressure” on the next page.
4. When the measurement is complete, the
systolic and diastolic pressure readings and
pulse rate are displayed.
The cuff exhausts the remaining air and
deflates completely.
5. Press the START button to turn the
device off.
After one minute of non-operation,
the device will turn off automatically.
Note: Allow at least three minutes between
measurements on the same person.
At heart level
Measurement
in progress
Systolic pressure
Diastolic pressure
WHO classification
Pulse rate
Exhausts remaining
air automatically
Press
Pressurizing
Zero display
Starts inflation
A
ll of the displa
y
segments displayed

English 14
Measurements
The UA-1020 is designed to detect the pulse and to inflate the cuff to a
systolic pressure level automatically.
If re-inflation occurs repeatedly, use the following methods.
Measurement with the SET Pressure
During the blood pressure measurement, re-inflation may occur.
A fixed pressure value can be set to avoid re-inflation.
1. At step 6 of the clock adjustment procedure
(refer to page 10), press the SET button to
go to the pressure setting mode. The current
setting blinks.
2. Press the or button to select a pressure
value about 30 mmHg or more above your
expected systolic pressure from the following.
AUTO : Automatic pressurization (default value)
180 : Pressure value of 180 mmHg (fixed)
210 : Pressure value of 210 mmHg (fixed)
240 : Pressure value of 240 mmHg (fixed)
3. Press the
SET button to go to the TriCheckTM setting mode.
Press the START button to turn the device off. After three minutes of
non-operation, the device will turn off automatically.
The next measurement will be performed with the new pressure value.
Measurement with the Desired Systolic Pressure
Use this method when re-inflation occurs repeatedly even if the pressure
value is set to 240 in the procedure above or when the results are not
displayed even if the pressure decreases to 20 mmHg or less.
1. Place the cuff on the arm (preferably the left arm).
2. Press and hold the START button
until a number about 30 to 40 mmHg
higher than your expected systolic
pressure appears.
3. When the desired number is reached,
release the START button to start
measurement. Continue to measure
your blood pressure as described on
the previous page.
START
Refer to the previous page
for measurement
Press and hold the button
At heart level
Release the button
at the desired
systolic pressure
or
Turn off TriCheckTM
setting mode

English 15
Notes for Accurate Measurement
Sit down in a comfortable position. Place your arm on a table with your
palm facing upward and the cuff at the same level as your heart.
Relax for about five to ten minutes before taking a measurement. If you
are excited or depressed by emotional stress, the measurement will
reflect this stress as a higher (or lower) than normal blood pressure
reading and the pulse reading will usually be faster than normal.
An individual's blood pressure varies constantly, depending on what you
are doing and what you have eaten. What you drink can have a very
strong and rapid effect on your blood pressure.
This device bases its measurements on the heartbeat. If you have a very
weak or irregular heartbeat, the device may have difficulty determining
your blood pressure.
Should the device detect a condition that is abnormal, it will stop the
measurement and display an error symbol. Refer to page 6 for the
description of symbols.
This device is intended for use by adults. Consult with your physician
before using this device on a child. A child should not use this device
unattended.
The automatic blood pressure monitor's performance may be affected by
excessive temperature or humidity, or altitude.
TriCheckTM Measurement
The TriCheckTM mode takes three consecutive measurements automatically
and displays the average values of the three measurements.
Selecting the TriCheckTM Mode
1. In the pressure setting mode, press
the SET button to enter the
TriCheckTM setting mode. The
current setting blinks.
2. Press the or button to turn the
TriCheckTM mode ON or OFF.
ON: TriCheckTM mode
OFF: Normal measurement mode (default value)
3. Press the START or SET button
to turn the device off. After three
minutes of non-operation, the device
will turn off automatically.
START
In the pressure setting mode,
Press
or
The current setting blinks
Change the setting
or

English 16
Measurement Using the TriCheckTM Mode
1. Press the START button.
All of the display segments are
displayed.
Zero (0) is displayed blinking briefly
and the first measurement starts.
2. When the measurement is complete,
the systolic and diastolic pressure
readings and pulse rate are displayed,
then a one-minute countdown starts
for the second measurement.
3. After one minute, the second
measurement starts.
4. When the measurement is complete,
the average readings of the first and
second measurements are displayed,
then a one-minute countdown starts
for the third measurement.
5. After one minute, the third
measurement starts.
6. When the measurement is complete,
the average readings of the three
measurements are displayed and
stored in memory.
Notes:
During the measurement, the
TriCheckTM symbol is displayed.
To cancel the measurement, press
the START button. In this case, no
data is stored in memory.
When the cuff fit error symbol appears during the
first measurement, cancel the measurement, reapply
the cuff correctly and start a new measurement.
After measurement, the average data of the three measurements is stored
in memory.
No data will be stored, when canceling the measurements, before
completion of the third measurement.
At heart level
Press
A
ll of the display
segments displayed
First measurement
Second measurement
Third measurement
Results of the
first measurement
A
verage of the first and
second measurements
A
verage of the
three measurements
One minute after
One minute after

English 17
Recalling the Memory Data
Note: This device stores the last 90 measurements in memory.
1. Press the or button.
The average of all measurements and
the number of data are displayed.
(If no data, “0” is displayed. Press the
,or START button to turn the
device off.)
2. Each time the button (or the
button to display the data in the
reverse order) is pressed, the memory
data is displayed as follows.
Average of all AM (morning) measurements
taken between 4:00 and 9:59.
(In the example, 10 measurements.
If no data, “--” is displayed.)
Average of all PM (evening) measurements
taken between 18:00 and 1:59.
(In the example, 9 measurements.
If no data, “--” is displayed.)
Most recent data (No.n, in the example,
No.35)
Three seconds after the data number
display, the measurement data is displayed.
Last data (No.1)
Three seconds after the data number
display, the measurement data is displayed.
3. After the last data is displayed, press
the button to return the average
display of all measurements.
4. Press the
START button to turn the
device off. After one minute of
non-operation, the device will turn off
automatically.
A
verage of
all the data
Average systolic
Average diastolic
Average pulse
Press or
Most recent data
Systolic
Diastolic
Pulse
Last data (Oldest)
A
verage of
AM data
A
verage of
PM data
Average systolic
Average diastolic
Average pulse
Systolic
Diastolic
Pulse
Average systolic
Average diastolic
Average pulse

English 18
What Is The IHB/AFib Indicator?
When the monitor detects an irregular rhythm during the measurements,
the IHB/AFib indicator will appear on the display with the measurement
values.
Note: We recommend contacting your physician if you see this
IHB/AFib indicator frequently.
What Is The AFib?
The heart contracts due to electrical signals occurring in heart and sends
blood through the body. Atrial fibrillation (AFib) occurs when the electrical
signal in the atrium becomes confused and leads to disturbances in the
pulse interval. AFib can cause blood to stagnate in the heart, which can
easily create clots of blood, a cause of stroke and heart attack.
Pressure Bar Indicator
The indicator monitors the progress of pressure during measurement.
WHO Classification Indicator
Each segment of the bar indicator
corresponds to the WHO blood pressure
classification described on the next page.
WHO Classification Indicator
Severe hypertension
Moderate hypertension
Mild hypertension
High normal
Normal
O
p
timal
The indicator displays a segment, based
on the current data, corresponding to the
WHO classification.
:
Example:
Moderate hypertension
Mild hypertension
High normal
Inflation complete
Pressurizing
Inflation in progress Measurement in progress
Releasing air
