ANDIG WSP-i450 User manual

WSP-i450
Mobile thermal printer
●Rugged design
●Support text and graphic printing
●Mild (596g)
●UART (RS- 3 C or TTL), Bluetooth Ver3.0, USB, WiFi
●High resolution ( 03dpi : 8 points /mm)
Version 0.1

Summary
Introduction...................................................................................................3
Operating precautions :.................................................................................4
Specifications :..............................................................................................5
Setting up the printer :..................................................................................6
Printer features :............................................................................................7
Dimensions :.................................................................................................8
Replacing the paper roll:...............................................................................9
Control panel :............................................................................................10
Set operation mode :...................................................................................11
Interface :....................................................................................................14
The self-test :..............................................................................................15
Using belt-clip :..........................................................................................15
Consumable parts :......................................................................................16
Doc WSP-i450 2

Introduction
→ The WSP-i450 is the perfect partner in application such as mobile bank
system, retail, point of sales, credit card transaction, other travelling and mobile
computing, etc...
→ General features :
➢Compact size (150 x 136.4 x 63.3 mm)
➢Light weight (596 g)
➢Very silent printing through direct thermal printing method.
➢High speed (110 mm /sec, MAX)
➢High resolution ( 03dpi, 8 dots /mm)
➢UART(RS- 3 C or TTL), Bluetooth Ver3.0, USB [option], Wireless LAN
(IEEE80 .11b/g) [option] interface.
➢Support graphic LCD (1 8 x 3 dots) with blue LED backlight.
➢Support Magnetic Stripe Reader (MSR). [option]
➢Smart card technology.
➢Support text and graphic printing.
➢Intuitive LED’s indicate Power(on/off), Error.
➢Easier paper roll loading by CLAMSHELL design.
➢One touch paper cover.
➢Printer door open & paper out sensor.
➢Easier maintenance with self-diagnostic.
➢Water resistant (IP54).
➢Microsoft Windows XP/VISTA/7/8/CE, Linux, Android OS compatible
➢Free fall: 1.8m drop resistance.
3 Doc WSP-i450

Operating precautions :
→ Please follow the precautions below to enjoy and maintain the full
performance of the printer.
Using the printer :
•Be careful not to drop or bump the printer on a hard surface;
• Do not install the printer in direct sunlight or such areas. Suitable environment
for the use of the printer is as follows:
Operating temperature : -10°c à 50°C
Relative humidity : 30 % et 80 %
•Do not install the printer near devices that generate strong electromagnetic fields
such as a copy machine.
•Do not open platen cover during printing.
•Do not remove or reinstall the communication cable during printing or
transmission.
•Do not touch the connectors of the communication cable during printing.
•Switch the POWER OFF when not in use.
•Do not use other solvent.
•The AC adapter, the battery charger and the battery pack may
become warm when in use. This is normal and is not a malfunction.
•When the battery pack is used at low temperature, the length of time
the printer can be used may be shortened.
Thermal paper handling :
•Store the thermal paper in a cool, dry and dark place.
•Do not rub the paper with hard object.
•Do not allow plastic film, erasers, or adhesive tape to touch the paper for long
periods.
•Do not use chemical glue.
•Always use the clean thermal paper.
Doc WSP-i450 4

Specifications :
Item Specifications
Printing method Direct thermal line printing
Characters per line ont A :69cpl / B:9 cpl / C:104cpl
KOR,CHN,JPN:34cpl
Character size A: 1 x 4 / B : 9x 4 / C : 8x16
KOR: 4x 4(16x 4) / CHN,JPN: 4x 4
Resolution 03dpi, 8 dots /mm
Optional font
Alphanumeric95, extended graphic: 1 8x50 pages,
International 10, Traditional/simplified Chinese, Japanese,
Korean and other upon request
Printing width 4 inches (104mm, 83 dots)
Printing speed 110 mm /sec (MAX)
Dimensions 150 x 136.4 x 63.3 mm
Weight (with battery) 596g / 609g (MSR)
Interface UART (RS- 3 C ou TTL), Bluetooth Ver3.0, USB [option],
Wireless Lan interface (IEEE80 .11b/g) [option]
Paper Thermal roll paper (113mm wide, 50Ø)
Barcodes
1-D : UPC-A, UPC-E, EAN-8, EAN-13, CODE-39, CODE-93,
CODE-1 8, ITF, CODABAR
2-D : PDF417, Micro PDF417, Truncated PDF417, QR CODE,
DATA Matrix, Maxicode
Driver Microsoft Windows XP / VISTA / 7 / 8 /CE
Linux, Android OS driver compatible
H/W spec. MCU : RX-3 Bit, FLASH : 64M bytes,
RAM : 1 8M bytes
Receive buffer size 1M bytes
MSR [option] ISO 7810 / 7811 / 781 1& &3 tracks reading
Module Smart Card ISO 7816 Compliant (EMV level 1 certified)
T=0, T=1 / 1 SAM (Security Application Module)
LCD 1 8 x 3 dots FSTN (Blue LED backlight)
5 Doc WSP-i450

Battery Rechargeable, 7.4V DC, 00 mAh (Li-ion)
Battery duration 1 hour of continuous printing
Battery charger Input (100~ 50V AC, 50~60Hz)
Output (8.4VDC/0.8A), 4 hours full time charge
Environmental
conditions
Temperature : - 0°C ~ 55°C (operating)
- 0°C ~ 70°C (storage)
Humidity : 30 % - 80 % (operating)
10 % - 90 % (storage)
MCBF (Mean Cycle
Before Failure)
Mechanical : 37.000.000 lines
Head : Approximatively 50km
Setting up the printer :
a) Printer & accessories
→ Your printer should include these items. If any items are damaged or missing,
please contact your dealer for assistance.
Box contents :
•Printer WSP-i450 :
•Thermal Roll Paper :
•Communication cable :
•Battery pack :
•Battery charger adaptor :
•Belt-clip:
Doc WSP-i450 6

Optional accessories:
•MSR:
•Shoulder strap:
•Car charger:
•SAM:
•Smart Card:
•Battery external cradle:
Printer features :
7 Doc WSP-i450

Dimensions :
Doc WSP-i450 8

Replacing the paper roll:
Note : → Be sure to use paper rolls that meet the specifications.
→ Do not use paper rolls that have the paper glued to the core because the printer
can not detect the paper end correctly.
Steps to follow: →Make sure that the printer is not receiving data; otherwise, data may
be lost.
→ Remove the used paper roll (if there is one)
→ Install the paper roll as shown below :
1) – Open the paper cover by pressing the open switch:
2) – Insert the paper roll as shown:
3) – Tear the excess paper off using the edge of paper door as a tear bar :
9 Doc WSP-i450

Control panel :
•Buttons :
→ EED : Use FEED button to feed the paper continuously.
→ POWER : This button is used to power ON/OFF. You need to press it around
5 seconds to switch ON or OFF the printer.
•Lamps:
→ POWER (green) : The printer is on and ready to receive data.
→ ERROR (red) : Indicates a fault condition or a printer error (no paper, paper
cover open, etc...).
•LCD:
→ The LCD screen will display most of the printer status (connection type, end
of paper, etc...)
Doc WSP-i450 10

Set operation mode :
→ To switch on operation mode, press the FEED and POWER button
simultaneously. Then from this moment, the ERROR lamp blink. You need to keep
pressing on the FEED and POWER button until the ERROR lamp blink for 5 times. Then
you are now in the operation mode.
→The menu navigation in operation mode is done as:
POWER button: Used for changing OPTION status of a mode.
FEED button: Used to switch from one MODE to another.
11 Doc WSP-i450

→ The WSP i350 present the following modes and options&:
Mode Options
Communication type
UART (RS- 3 C)
Protocol UART (RS- 3 C)
Bluetooth
Protocol Bluetooth
Bluetooth (iAP)
Baud rate
9600 bps
19 00 bps
38400 bps
57600 bps
115 00 bps
Data bit 7 DATA bits
8 DATA bits
Parity bit
No parity
Odd parity
Even parity
Stop bit 1 Stop bit
Stop bit
Density
Low
Medium
High
High +1
High +
Quality Low
High
Doc WSP-i450 12

Mark
No use
Use
Gap/hole
Use (BACK)
Sensor
Low
Medium 1
Medium
High
Power down
No use
1 minutes Sleep
minutes Sleep
3 minutes Sleep
4 minutes Sleep
5 minutes Sleep
1 minutes Off
minutes Off
3 minutes Off
4 minutes Off
5 minutes Off
To leave the operation mode, press simultaneously on the FEED and
POWER button again.
Note & :
→ When you will leave the operation mode, the printer will print a
ticket with her setting on.
13 Doc WSP-i450

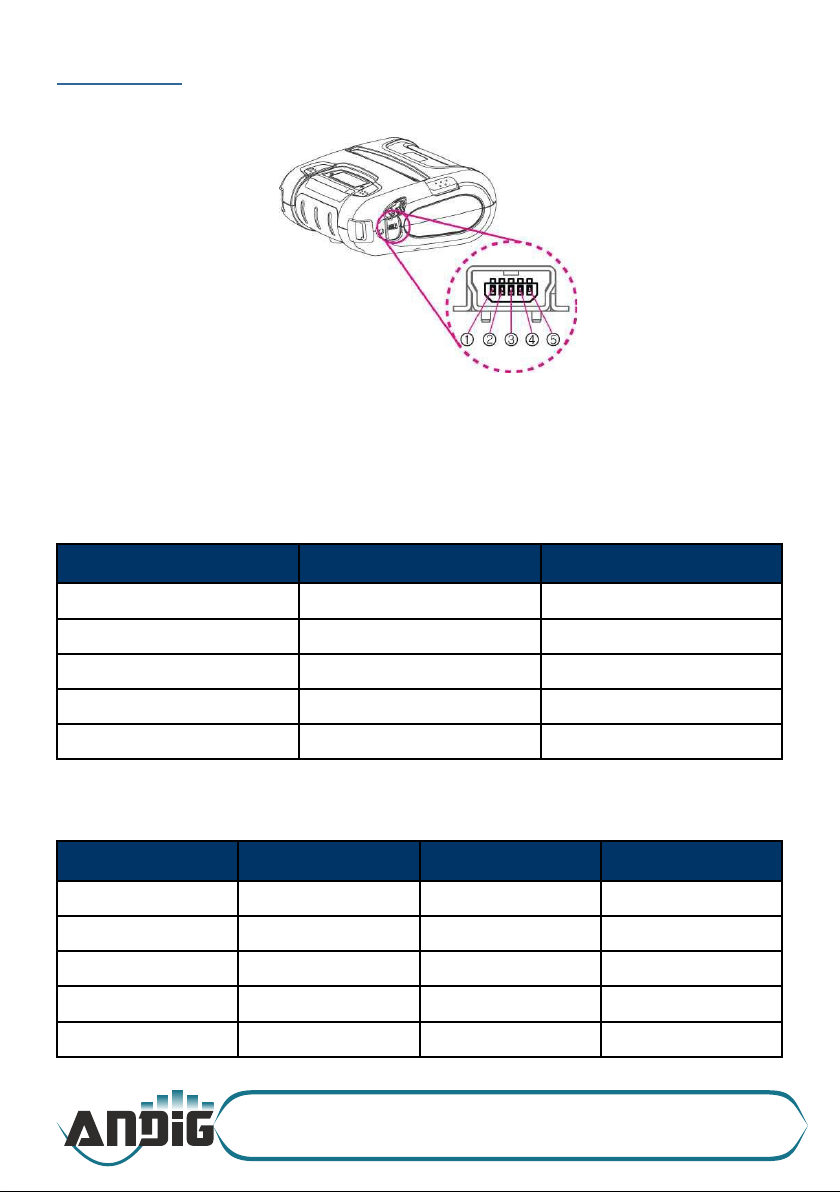

Interface :
a) ART(RS-232C or TTL) / SB interface
→ The WSP-i450 printer has a UART/USB interface and is connected by a
means of 5 pin mini USB socket. In the following table, the signal present on the mini-
USB socket are listed :
SB:
N° pin Name unction
1 VCC +5V
DM DATA « - »
3 DP DATA « + »
4 NC. -
5 GND Ground
ART (RS-232C or TTL):
N° pin Name Direction unction
1 TxD Output Transmit data
RxD Input Receive data
3 CTS - -
4 NC. - -
5 GND - Ground
Doc WSP-i450 14

The self-test :
→ The self-test prints out the current setting value of printer. The way of self-test
is as follows:
1. Insert proper paper into the printer.
. Power on while pressing FEED button to start self-test.
3. The printer will print out her current settings (ROM version and communication
mode).
4. And then a pattern of characters will be printed out.
5. The self-test will be finished automatically and turned to the standby status.
Using belt-clip :
→ Insert belt-clip in the hole and screw it with a screwdriver or a coin.
15 Doc WSP-i450

Consumable parts :
a) Recommended paper
•Type : Thermal paper.
•Paper width : 113mm
•Paper thickness : 60 + 5μm
•Outer diameter : Ø50 mm or less.
•Recording side : Outside of the roll.
Caution
1) – Do not paste the paper to the core, and the roll paper which has near
end mark printing on its near end is recommended.
) – C hemicals or oil may change the color of paper, or printed characters
may fade.
3) – Change of paper color starts from approximatively 70°C.
4) – Color of paper may be changed by being scratched with a nail or
hard metal, etc…
Doc WSP-i450 16

Printing position :
17 Doc WSP-i450

Doc WSP-i450 18

19 Doc WSP-i450
