AneX AG-3040 User manual

AG-3040

Before using your machine
Read these instructions carefully and retain for future reference
Remove all packing and any labels
Safety
The blades and discs are very shape, handle with care
Always hold the knife blade by the finger grip at the top, away from the cutting edge,
both when handling and cleaning
Do not lift or carry the processor by the handle or the handle break resulting in injury.
Always remove the knife blade before pouring contents form the bowl.
Keep hands and utensils out of the processor bowl and liquidizer jug whilst connected to
the power supply
Switch off and unplug
before fitting or removing parts
after use
before cleaning
Never use your fingers to push food down the feed tube. Always use the pusher supplied.
Switch off
Wait until the attachment/blades have completely stopped
Be careful not to unscrew the liquidizer jug or mill form the blade unit
Allow all liquids to cool to room temperature before placing them in the liquidizer
Do not use the lid to operate the processor, always use the on/off speed control
This machine will be damaged and may cause injury if he interlock mechanism is subjected
to excessive force
Never use an unauthorized attachment
Never leave the machine on unauttended
Never use a damaged machine, if break, please get it repaired in the designated machine place
Never use water to wash power unit, cord or plug and let them dry
Don’t let the wire hang over the edge of a table or worktop or touch hot surfaces.
Do not exceed the maximum capacities stated
This appliance is not intended for use by persons (including children) with reduced physical.
Sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Only use the appliance for its intended domestic use
Before plugging in
Make sure your electricity supply is the same as the one shown on the underside of your machine.
If the temperature of motor is too high, the temperature control system will be set up. And the
motor will stop working automatically. After the temperature return to the room temperature, the
motor will work again.
P2

Before using for the first time
1 Remove all packaging，Take care of the knife blades as they are very shape。These covers should be discarded as
they are to protect the blade during manufacture and transit only。
2 Wash the parts see “cleaning”。
Key
Processor Liquidiser Attachments
①power unit ⑨Blendingcap⒂Knife blade
②Drive shaft ⑩Lid ⒃Dough tool
③Bowl ⑾Filter ⒄Thick slicing/coarseshreddingdisc
④Lid ⑿Jug ⒅Thin slicing/fine shredding disc
⑤Feed tube ⒀Sealing ring⒆Fine（Julienne style）chipperdisc
⑥Pushers ⒁Blade unit ⒇Geared citruspress
⑦Safety interlock (21)Spatula
⑧Speed control
Choosing a speed for all functions pSnoitcnuFtnemhcattA/looT eed Maximum capacities
Knife Blade Grind meat
Cut vegetables
Make stuffing:cut meat and vegetables
both(need to put meat first)
2
1-2
2
300g meat
300g meat
ruolfg0032gnikamhguoDloothguoD
Discs-slicing/
Shredding/
Chipping
Slicing/shredding/chipping food and vegetables
such as carrots,cheese 1-2
Mixing components Make soybean milk,jam,milk shake,soup etc 1-2 1000ml
1gniciujstiurfsurtiCstnenopmocsserPsurtiC

To use your food processor
1. fit the detachable shaft onto the power unit (1)
2. then fit the bowl. Place the handle towards the back and turn clockwise until it locks(2)
3. fit an attachment over the drive shaft.
. always fit the bowl and attachment onto the machine before adding ingredients.
4. fit the lid (3)ensuring the top of the drive shaft locates into the centre of the lid.
Do not use the lid to operate the processor ,always use the on/off control.
5. switch on and select a sped.
. the processor won’t work if the bowl and lid are fitted incorrectly.
. use the pulse (p) for short bursts. The pulse will operate for as long as the control is held in
position.
6. reverse the above procedure to remove the lid, attachments and bowl.
Always switch off before removing the lid.
Important
Your processor is not suitable for crushing or grinding coffee beans, or converting granulated
sugar to caster sugar.
When adding almond essence or flavouring to mixtures avoid contact with the plastic as this may
result in permanent marking.
To use your liquidizer
1. fit the sealing ring (13) into the blade unit (14) ensuring the seal is located correctly leaking will
Occur if the seal is damaged or not fitted correctly .
2. screw the jug onto the blade unit.
3. put your ingredients into the jug. (if make soybean milk need to put filter first ).
4. put the blending cap in the lid ,then turn,
5. turn the lid in a clockwise direction to lock onto the jug.
6. place the liquidizer onto the power unit and turn to lock (4)
7. select a speed or use the pulse control.
Allow all liquids to cool to room temperature before placing them in the liquidizer.
Hints
When making mayonnaise, put all the ingredients, except the oil the liquidizer. Then with the
machine running, pour the oil into the lip and let it run through.
Thick mixtures, eg pates and dips ,may need scraping down ,if it’s difficult to process , add
more liquid.
When crushing ice use the pulse in short bursts.
to ensure the long life of your liquidizer, never run it for linger than 30 seconds,
switch off as soon as you’ve got the right consistency.
Don’t process spices – they may damage the plastic..
The machine won’t work if the liquidiser is fitted incorrectly.
Don’t put dry ingredients into the liquidiser before switching on.. if necessary ,cut them into
pieces; remove the filler cap; then with the machine running, drop them through one by one.
Don’t use the liquidiser as a storage container .keep it empty before and after use.
Never blend more than 1 litres – less for frothy liquids like milkshakes. When make soybean milk ,
the capacity of soybean after marinated should be less than half of filter.
( 4)

Using the attachments
knife blade 15 / dough too l6
The knife blade is the most versatile of all the attachments．
The length of the processing time will determine the texture
achieved．For coarser textures use the pulse contr01．
Use the knife blade for cake and pastry ingredients mixing，
chopping raw and cooked meat，vegetables，nuts，pate，dips，
pureeing soups and to also make crumbs from biscuits and
bread．It can also be used for yeasted dough mixes if the
dough tool is not supplied．
Use the dough tool for yeasted mixes．
Hints
knife blade
●Cut food such as meat，bread，vegetables into cubes approximately 2cm／3／4。in．
before processing．
●Biscuits should be broken into pieces and added down the feed tube whilst the
machine is running．
●When making pastry use fat straight from the fridge cut into 2cm／3／。in．cubes．
●Take care not to over—process．
Dough tool
1 Place the dry ingredients in the bowl and add the liquid down the feed tube whilst
the machine is running．Process until a smooth elastic ball of dough is formed this
W…take 30—90 secs．
2 Re—knead by hand only．Re-kneading in the bowl is not recommended as it may
cause the processor to become unstable．
Slicing／shredding discs 17 18 19
reversible slicing，shredding discs．Thick 17，thin18
1 Use the shredding side for cheese，carrots，potatoes
and foods of a similar texture．
2 Use the slicing side for cheese，carrots，potatoes，cabbage，
cucumber，courgette，beetroot and onions．
Fine(julienne style)chipper disc⑩
Use to cut：potatoes for julienne style French fries；
firm ingredients for salads，garnishes，casseroles and
stir fries(eg carrot，swede，courgette，cucumber)．

Safety
Never remove the lld until the cutting disc has completely stopped.
Handle the cutting discs with care-they are extremely sharp.
To use the cutting discs
1) Fit the drive shaft and bowl onto the power unit.
2) Holding by the centre grip@ place the disc onto the
Drive shaft with the appropriate side uppermost @.
3) Fit the lid
4) Choose which size feed tube you want to use The
Pusher contains a smaller feed tube for processing
Individual items or thin ingredients. To use the small
Feed tube –first put the large pusher inside the feed
Tude.To use the large feed tube-use both pushers
Togerthe.
5)Put the food in the feed tube
6)Switch on and push down evenly with the pusher-
never put your fingers in the feed Tube.
Hints
Use fresh ingredients.
Don’t cut food too small. Fill the width of the large feed tube fairly full.
This prevent the food from slipping sideways during processing.
Alternatively use the small feed tube.
When using the chipper disc,place upright@ comes out shorter than
Food placed hortzontally@.
There will always be a small amount of waste on the plate or in the bowl after processing

Citrus press
Use the citrus press to squeeze the juice from citrus fruits (eg oranges, lemons ,limes and
grapefruits).
Cone (1)
Sieve (2)
To use the citrus press
1.filt the drive shaft and bowl onto the power unit.
2 filt the drive shaft and bowl-ensuring the sieve handle is locked into position directly over the
bowl handle (h)
3.place the cone over the drive shaft turning until it drops all the way down (i)
4.cut the fruit in half . then switch on and press the fruit onto the cone.
.the citrus press will not operate if the sieve is not locked correctly.
Care & cleaning
1. always switch off and unplug before cleaning.
2. handle the blades and cutting discs with care- they are extremely sharp.
3. some foods may discolour the plastic. This is perfectly normal and won’t harm the plastic or
affect the flavour of your food. Rub with a cloth dipped in vegetable oil to remove the
discolouration.
Power unit
Wipe with a damp cloth ,then dry. Ensure that the interlock area is clear of food debris
Liquidiser /mill
1. Empty the jug /jar before unscrewing it from the blade unit.
2. wash the jug/jar by hand
3. remove and wash the seals.
4. don’t touch the sharp blades.brush them clean using hot soapy water,then rinse thoroughly
under the tap
5. leave to dry upside down.
All other parts
. wash by hand then dry.
. alternatively they can be washed on the top rack of your dishwasher .a short low temperature
programme is recommended.
Customer care
If the cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.

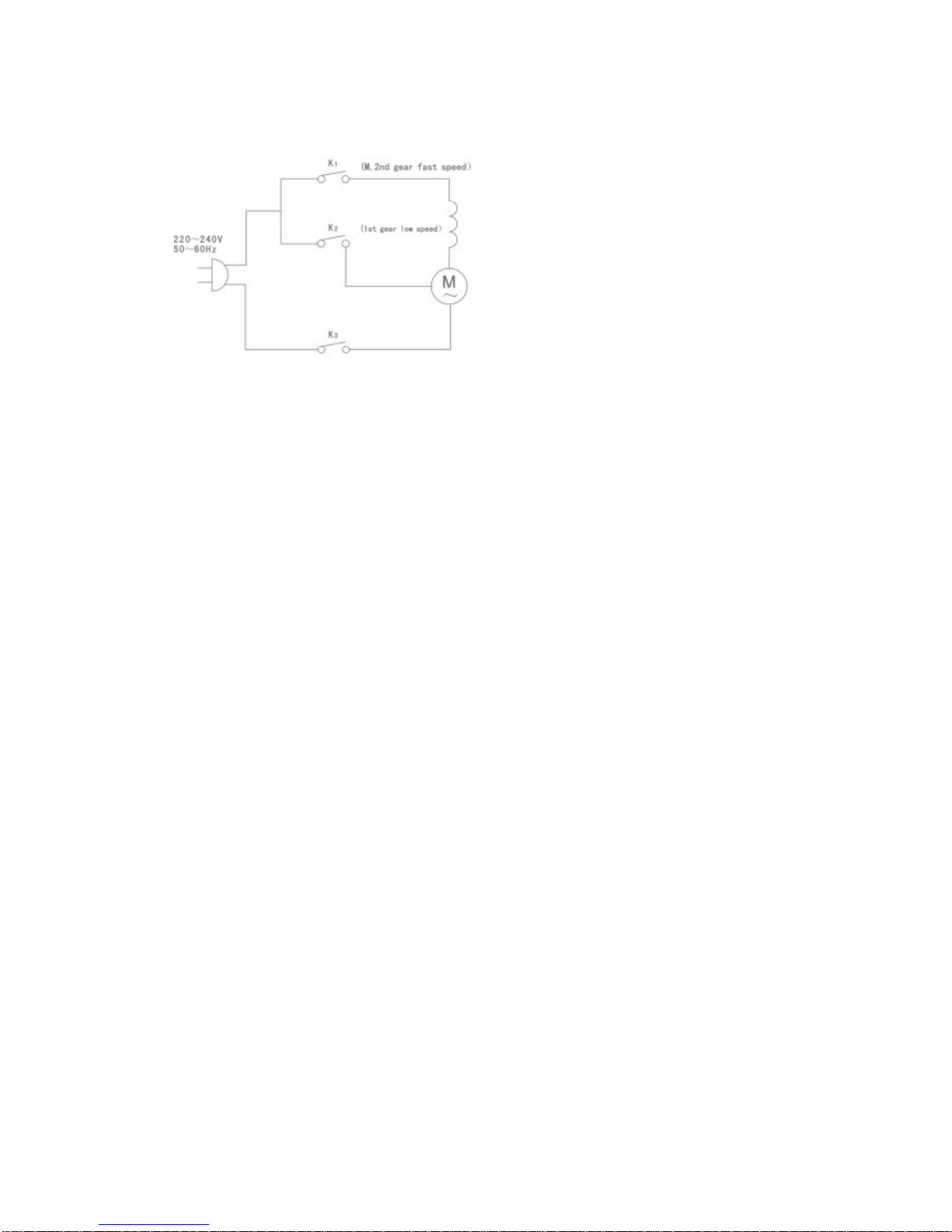

Circuit diagram
Technique parameter
Rated voltage 220-240V~ Rated power 460W
Rating frequency 50-60Hz Rotation speed 18000/Minute
