AngelEye SA700-AE-UK User manual
Drawing No: GN3563
Revision: 1
Drawn By:
Visnu Parmar
Sprue Safety Products Ltd. Artwork Information
Ensure that you are printing / manufacturing from the original artwork file and not a preview
CONFIDENTIAL: The information provided in this document is proprietary to Sprue Aegis Plc/FireAngel Ltd and as
such should only be used/shared for the exclusive manufacture of those products specified.
Title/Description:
User Manual
Material:
60GSM Wood Free Paper
Used On / Used For:
SA700-AE-UK
Size:
W - 120mm / H - 120mm
Supplier:
PACE
Print Colours:
CMYK
User Manual
Optical Smoke Alarm
www.angeleye.com
SA700-AE-UK
2
Features . . . . . . . . . . . . . . 4
Positioning . . . . . . . . . . . . 4
Installation. . . . . . . . . . . . .6
AlarmTest . . . . . . . . . . . . . 7
Alarm Pause . . . . . . . . . . . .8
Note: This user manual is also available in large text and other formats.
further information.
CONTENTS
Technical Support: 0800 141 2561 / EIRE dial 1-800 523171
Email: tec[email protected]
Web: www.sprue.com
Sprue Safety Products Ltd.
Vanguard Centre, Coventry CV4 7EZ UK
A Sprue Brand
GN3563R1
SA700-AE-UK Optical Smoke Alarm
0086
0086-CPR-597993
Smoke alarm devices
EN 14604:2005
DOP:13/02
14
BS EN 14604: 2005
Licence No: KM597992
3
Features . . . . . . . . . . . . . . 4
Positioning . . . . . . . . . . . . 4
Installation. . . . . . . . . . . . .6
AlarmTest . . . . . . . . . . . . . 7
Alarm Pause . . . . . . . . . . . .8
Note: This user manual is also available in large text and other formats.
further information.
CONTENTS
Battery Replacement . . . . . . . 8
Troubleshooting. . . . . . . . . .9
Maintenance. . . . . . . . . . . 10
Disposal . . . . . . . . . . . . . 10
Warranty . . . . . . . . . . . . . 11
4
FEATURES
• Battery Operated.
• Operating Light (RED) - flashes
approximately every 45 seconds
confirming unit is powered.
• Low Battery Warning - unit ‘beeps‘
approximately every 45 seconds for at
least 30 days when the battery needs
replacing.
• Low Battery Warning Silence - silence
the low battery chirp for 10 hours.
• Alarm Pause - silence your smoke
alarm by momentarily pressing the test
button, ideal for nuisance alarms.
• SensitivityTest Button - test sensitivity,
circuitry, battery, horn.
• Loud 85 Decibel Piezo Electric Alarm -
automatically resets when hazardous
condition has passed.
• Easy Installation - fixings supplied.
POSITIONING
WARNING: Your AngelEye smoke alarm
can be installed into a new build property
as additional protection to an existing
smoke detection system only. It cannot be
used as a substitute for a hard wired system
as required in new build properties. In this
type of property the building regulations
require alarms to be interlinked. You can
obtain further information from your local
fire service or building control department
at your local council offices.These sources
generally provide advice on new builds or
projects that require planning permission.
Your smoke alarm typically meets the
minimum requirements for family living
units in existing buildings, as long as at
least one unit is installed on each floor/
level of your property. In order to achieve
the earliest fire warning, we recommend
that a smoke alarm is fitted in all rooms
where the temperature is normally
between 4°C (40°F) and 38°C (100°F).
LOUNGE
CELLAR
BEDROOMBEDROOM HALL
DINING ROOM
MINIMUM RECOMMENDATIONS
EXISTING HOMES
NOTE: Kitchens should be covered by a
self contained heat detector.
RECOMMENDED FOR ADDITIONAL
PROTECTION
WARNING: The alarm positions shown
are based on typical homes. Construction
and layout of individual dwellings will
vary, so this should be regarded only as a
guide. Check with your local fire station for
further guidance.
Multi-family or mixed occupant
residence (Tenancy building, student
accommodation)
Your smoke alarm can be used in
individual flats and bedsits, providing the
same conditions are met as for a single-
family residence. However, there must
already be a primary fire detection system
that meets regulatory requirements
for common areas such as lobbies and
hallways.
As a minimum, smoke alarms should
be located between sleeping areas and
potential sources of fire such as living
rooms and kitchens. In single storey
homes, a smoke alarm should be installed
in the hallway, as close as possible to the
living accommodation. In single storey
homes with two separate sleeping areas, a
minimum of two smoke alarms is required,
one outside each sleeping area. In multi-
level or split level homes, as a minimum
a smoke alarm should be installed on the
ground floor between the staircase and
any rooms in which a fire might start and
on each storey in circulation areas which
form part of the escape route (normally
hallways and landings).
Install smoke alarms in circulation areas
at a distance no greater than 7.5 m from
5
type of property the building regulations
require alarms to be interlinked. You can
obtain further information from your local
fire service or building control department
at your local council offices.These sources
generally provide advice on new builds or
projects that require planning permission.
Your smoke alarm typically meets the
minimum requirements for family living
units in existing buildings, as long as at
least one unit is installed on each floor/
level of your property. In order to achieve
the earliest fire warning, we recommend
that a smoke alarm is fitted in all rooms
where the temperature is normally
between 4°C (40°F) and 38°C (100°F).
LOUNGE
CELLAR
BEDROOMBEDROOM HALL
DINING ROOM
MINIMUM RECOMMENDATIONS
EXISTING HOMES
NOTE: Kitchens should be covered by a
self contained heat detector.
RECOMMENDED FOR ADDITIONAL
PROTECTION
WARNING: The alarm positions shown
are based on typical homes. Construction
and layout of individual dwellings will
vary, so this should be regarded only as a
guide. Check with your local fire station for
further guidance.
Multi-family or mixed occupant
residence (Tenancy building, student
accommodation)
Your smoke alarm can be used in
individual flats and bedsits, providing the
same conditions are met as for a single-
family residence. However, there must
already be a primary fire detection system
that meets regulatory requirements
for common areas such as lobbies and
hallways.
As a minimum, smoke alarms should
be located between sleeping areas and
potential sources of fire such as living
rooms and kitchens. In single storey
homes, a smoke alarm should be installed
in the hallway, as close as possible to the
living accommodation. In single storey
homes with two separate sleeping areas, a
minimum of two smoke alarms is required,
one outside each sleeping area. In multi-
level or split level homes, as a minimum
a smoke alarm should be installed on the
ground floor between the staircase and
any rooms in which a fire might start and
on each storey in circulation areas which
form part of the escape route (normally
hallways and landings).
Install smoke alarms in circulation areas
at a distance no greater than 7.5 m from
the farthest wall, no greater than 7.5m
from a door to any room in which a fire
might start and no greater than 7.5 m from
the next smoke alarm. If it is necessary
to place a smoke alarm on a wall, always
locate the detection element of the
alarm 150mm to 300 mm (6 to 12 inches)
below the ceiling, and the bottom of the
alarm above the level of doors and other
openings. In rooms with sloped ceilings
install smoke alarms 900 mm (3 feet) from
the highest point of the ceiling. ‘Dead air’
at the peak of a ceiling may prevent smoke
from reaching the alarm in time to provide
an early warning.
Institutions and Hotels
This includes motels, hospitals, day care
facilities, long-term health care facilities,
boarding houses and dormitories. Your
SA700-AE-UK smoke alarm can be used
in individual sleeping / resident rooms,
providing the same conditions are met as
for a single-family residence. However,
there must already be a primary fire
detection system that meets regulatory
requirements for common areas such
as lobbies and hallways. Use of the
SA700-AE-UK smoke alarm in common
areas may not provide sufficient fire
warning to residents or meet regulatory
requirements.
6
Commercial and Industrial Premises
This smoke alarm is not intended for any
non-residential, commercial or industrial
application, nor for any other purpose
than described above.
Mobile Homes and Caravans
This smoke alarm is suitable for
use in mobile homes and caravans.
In caravans:
1. The preferred position for fitting
the smoke alarm is horizontally on
the ceiling in the living area. Avoid
proximity to the kitchen.
2. An additional smoke alarm may be
fitted in one or more bedrooms.
3. DO NOT locate in kitchen or bathroom
area. Cooking fumes and high humidity
can trigger nuisance alarms.
4. DO NOT locate smoke alarms close to
exhaust fans or air conditioning units,
which could draw smoke away from
the alarm.
In mobile homes:
1. If only one smoke alarm is to be fitted,
it should be located horizontally on the
ceiling, either in the living room or the
hall, but not in the proximity of either
kitchen or bathroom.
2. Additional alarms can be fitted in
bedrooms.
3. DO NOT locate alarm close to exhaust
fans or air conditioning.
INSTALLATION
4. Separate the alarm from the mounting
plate.This may require you to turn the
alarm clockwise while holding the base
plate.
WARNING: do not screw the base plate
of the alarm to it’s mounting surface
with the alarm fitted to it. Dust from the
fitting process could contaminate this
very sensitive device.
5. Locate the base plate in your chosen
position and mark the position of the
mounting holes. Drill the holes using
a 4.75 mm drill. Insert the anchor plugs
and screw the base plate to the chosen
position. DO NOT OVER-TIGHTENTHE
SCREWS. this will distort the base
plate.
Test button Sounder
Alarm base
mounting hole
Operating light
Alarm base
mounting hole
6.
Fitting / Replacing the batteries:
a. Undo the screw and remove the
battery access door from the back of
the alarm.
When alarm is located on base unit,
twist in this direction to lock
Line up arrows
and insert
alarms into
base
Battery
cover
Fit two new AAA (LR03) batteries
(supplied with a new alarm) in the
battery bay making sure they are
fitted the correct way round by
referring to the diagram on the back
of the alarm. Allow ten seconds
before testing the alarm.
WARNING: USE ONLY DURACELL
MN2400 OR GP 24AU BATTERIES
OR ENERGIZER LROJ, OTHER
BATTERIES MAY BE INADEQUATE.
b. Refit the battery access door.
7.
Line up the arrow on the back of the
alarm with the arrow inside the base
plate and inset the alarm. Once the
7
INSTALLATION
4. Separate the alarm from the mounting
plate.This may require you to turn the
alarm clockwise while holding the base
plate.
WARNING: do not screw the base plate
of the alarm to it’s mounting surface
with the alarm fitted to it. Dust from the
fitting process could contaminate this
very sensitive device.
5. Locate the base plate in your chosen
position and mark the position of the
mounting holes. Drill the holes using
a 4.75 mm drill. Insert the anchor plugs
and screw the base plate to the chosen
position. DO NOT OVER-TIGHTENTHE
SCREWS. this will distort the base
plate.
Test button Sounder
Alarm base
mounting hole
Operating light
Alarm base
mounting hole
6. Fitting / Replacing the batteries:
a. Undo the screw and remove the
battery access door from the back of
the alarm.
When alarm is located on base unit,
twist in this direction to lock
Line up arrows
and insert
alarms into
base
Battery
cover
Fit two new AAA (LR03) batteries
(supplied with a new alarm) in the
battery bay making sure they are
fitted the correct way round by
referring to the diagram on the back
of the alarm. Allow ten seconds
before testing the alarm.
WARNING: USE ONLY DURACELL
MN2400 OR GP 24AU BATTERIES
OR ENERGIZER LROJ, OTHER
BATTERIES MAY BE INADEQUATE.
b. Refit the battery access door.
7. Line up the arrow on the back of the
alarm with the arrow inside the base
plate and inset the alarm. Once the
alarm is inside the base plate twist it
anti-clockwise to lock it into place.
8. Test the alarm.
ALARM TEST
1. Press and release the test button to
test alarm.The alarm should sound
three times.
2. After testing check that the red light
flashes approximately every 40
seconds.
3. Test the alarm once a week to ensure
correct operation.
Storage in low humidity, and certain
transportation conditions. may cause
electrostatic charges to build up in the
alarm system housing.Although harmless,
they may increase the length of time that
the horn sounds upon battery insertion or
test button operation. The condition may
be cleaned by gently wiping the outside of
the plastic cover with a clean, damp cloth.
8
WARNING: The electronic test button
provides a full test of the unit’s functionality.
DO NOT try to test the alarm with a naked
flame as this may present a potential fire
hazard in itself and contaminate the alarm.
Alarm Warning Sounds
1 SEC
Full smoke alarm with flashing LED.
45 SEC
One beep every 45 seconds indicates low
batteries.
45 SEC
Two beeps every 45 seconds indicates a
fault.
12 SEC
One beep every 12 seconds indicates that
the test button is jammed on.
ALARM PAUSE
Abnormal air conditions may cause the
highly sensitive smoke alarm to give
a ‘false’ alarm. Do not disconnect the
batteries. If no fire is apparent, ventilate
the room and operate the ‘Alarm Pause’
feature by pressing the test button.
TROUBLESHOOTING
Problem Solution
Your smoke alarm
does not sound during
testing
• If testing immediately after first activating the alarm or replacing the batteries,
you should allow a few seconds for the alarm to settle before testing.
• Make sure you push the centre of the test button firmly.
• If the alarm has been recently fitted and it still fails to self test
then contact Technical Support on: 0800 141 2561 or e-mail:
The operating light
remains steadily on
or off
• Inspect for obvious damage.
• Check the unit contains the recommended battery type and that it is properly
connected.
• If in doubt, contact Technical Support on: 0800 141 2561 or e-mail:
The alarm beeps twice
every 45 seconds
• This indicates a fault with the alarm.
• Inspect for obvious damage.
• Check the unit contains the recommended battery type and that it is properly
connected.
• If in doubt, contact Technical Support on: 0800 141 2561 or e-mail:
Your smoke alarm
beeps every 45 seconds
• This indicates that the battery is low and needs replacing.
• Refer to the ‘Battery Replacement’ section of this manual.
WARNING: If there is any question as to
the cause of an alarm, always assume that
this is due to an actual fire and follow your
fire emergency plans. Do not assume the
alarm is a nuisance alarm.
BATTERY
REPLACEMENT
Your alarm requires two AAA (LR03)
alkaline batteries. Under normal use, the
batteries should last approximately one
year.
• Low Battery Warning - alarm beeps
every 45 seconds for up to 30 days
when the battery needs replacing.
• Low Battery Waming Silence - low
battery warnings often start at night.
Silence the audible warning for ten
hours by pressing the test button,
thus avoiding removing the batteries.
Change the batteries the following
day. The red LED flashes twice every
45 seconds to remind you that the low
battery warning has been silenced.
IMPORTANT: Test alarm using test facility
whenever batteries are replaced.
9
TROUBLESHOOTING
Problem Solution
Your smoke alarm
does not sound during
testing
• If testing immediately after first activating the alarm or replacing the batteries,
you should allow a few seconds for the alarm to settle before testing.
• Make sure you push the centre of the test button firmly.
• If the alarm has been recently fitted and it still fails to self test
then contact Technical Support on: 0800 141 2561 or e-mail:
The operating light
remains steadily on
or off
• Inspect for obvious damage.
• Check the unit contains the recommended battery type and that it is properly
connected.
• If in doubt, contact Technical Support on: 0800 141 2561 or e-mail:
The alarm beeps twice
every 45 seconds
• This indicates a fault with the alarm.
• Inspect for obvious damage.
• Check the unit contains the recommended battery type and that it is properly
connected.
• If in doubt, contact Technical Support on: 0800 141 2561 or e-mail:
Your smoke alarm
beeps every 45 seconds
• This indicates that the battery is low and needs replacing.
• Refer to the ‘Battery Replacement’ section of this manual.
WARNING: If there is any question as to
the cause of an alarm, always assume that
this is due to an actual fire and follow your
fire emergency plans. Do not assume the
alarm is a nuisance alarm.
BATTERY
REPLACEMENT
Your alarm requires two AAA (LR03)
alkaline batteries. Under normal use, the
batteries should last approximately one
year.
• Low Battery Warning - alarm beeps
every 45 seconds for up to 30 days
when the battery needs replacing.
• Low Battery Waming Silence - low
battery warnings often start at night.
Silence the audible warning for ten
hours by pressing the test button,
thus avoiding removing the batteries.
Change the batteries the following
day. The red LED flashes twice every
45 seconds to remind you that the low
battery warning has been silenced.
IMPORTANT: Test alarm using test facility
whenever batteries are replaced.
10
MAINTENANCE
Your smoke alarm has been designed
to be as maintenance-free as possible,
however there are several things you
must do to keep it working properly.
CAUTION: Your smoke alarm is a sealed
electrical device and no attempt should
be made to open the case. Attempting
to open the case will invalidate your
warranty.
Testing
Test your smoke alarm once every week,
see ‘AlarmTest’.

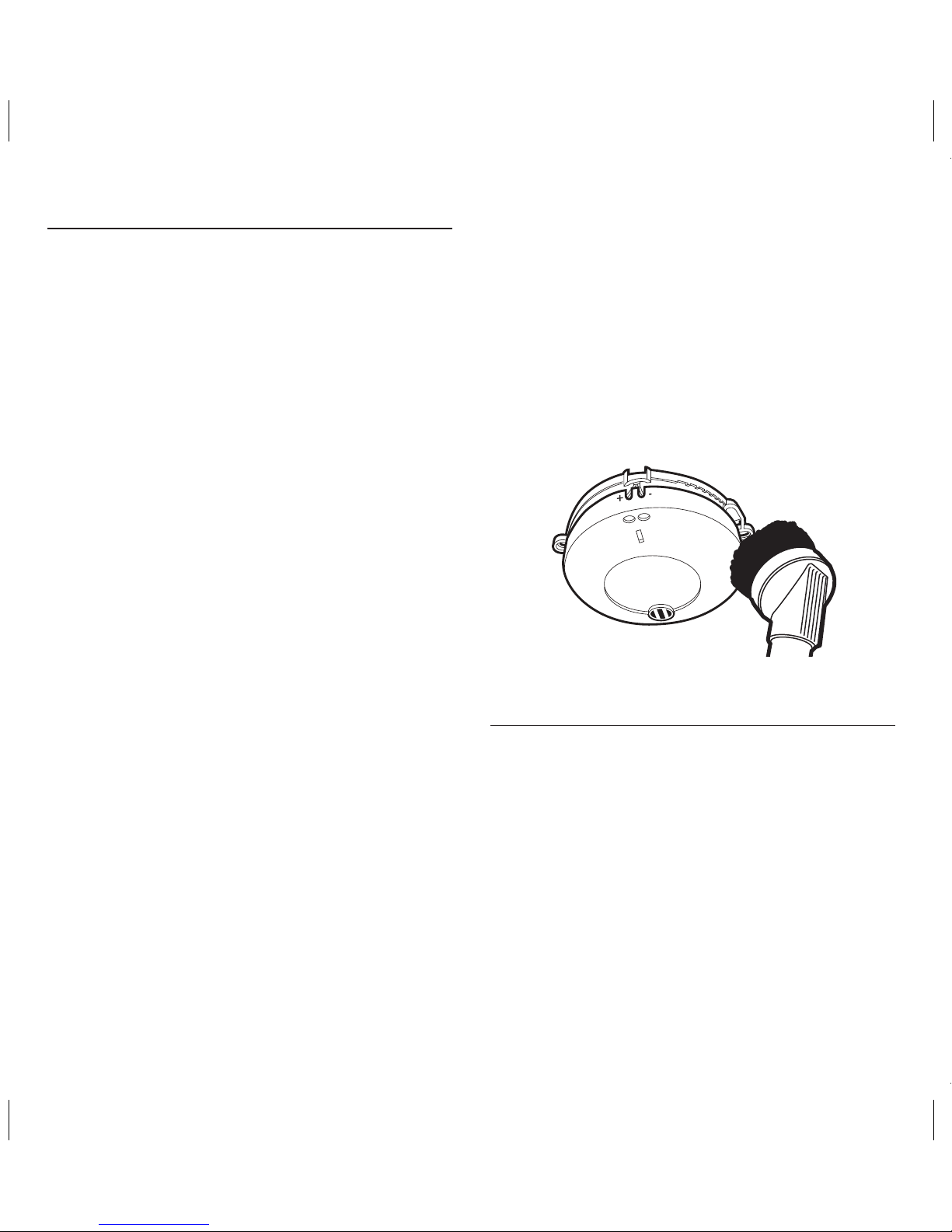

Cleaning
As a minimum your smoke alarm should
be cleaned once every 3 months using
your vacuum cleaner fitted with the soft
brush attachment.
WARNING: Your smoke alarm may false
alarm when it is being cleaned using a
vacuum cleaner.
IMPORTANT: Do not use solvents or
cleaners on your smoke alarm, as they
may cause damage to the sensor or
circuitry. The unit can be wiped with a
slightly damp cloth.
CAUTION: Do not paint the smoke
alarm as this may block the openings and
prevent smoke from entering the sensor.
Storage in low humidity, and certain
transportation conditions, may cause
electrostatic charges to build up in
the alarm system housing. Although
harmless, they may increase the length
of time that the horn sounds upon battery
insertion or test button operation. The
condition may be cleared by gently wiping
the inside and outside of the plastic cover
with a clean, damp cloth.
DISPOSAL
Waste electrical products should not be disposed
of with your other household waste. The alarm is
ideally suited for disposal within the waste electronic
and electrical equipment (WEEE) recycling scheme.
Please recycle where facilities exist. Check with
your local authority, retailer or contact our Technical
Support team for recycling/disposal advice, as
regional variations apply.
WARNING: Do not burn or dispose of
in fire.
WARNING: If your alarm is dropped or damaged, as
a precaution, it should be removed from the building.
WARRANTY
Sprue Safety Products Ltd warrants to the original
purchaser that its enclosed smoke alarm be free
from defects in materials and workmanship under
normal residential use and service for a period of 5
(five) years from the date of purchase. Provided it is
returned with postage prepaid and proof of purchase
date, Sprue Safety Products Ltd hereby warrants that
during the 5 (five) year period commencing from the
date of purchase Sprue Safety Products Ltd, at its
discretion, agrees to replace the unit free of charge.
The warranty on any replacement SA700 alarm, will
last for the remainder of the period of the original
warranty in respect of the alarm originally purchased
– that is from the date of original purchase and not
from the date of receipt of the replacement product.
Sprue Safety Products Ltd reserves the right to offer
an alternative product similar to that being replaced
if the original model is no longer available or in stock.
This warranty applies to the original retail purchaser
from the date of original retail purchase and is not
transferable. Proof of purchase is required.
This warranty does not cover damage resulting
from accident, misuse, disassembly, abuse or lack
of reasonable care of the product, or applications
not in accordance with the user manual. It does not
cover events and conditions outside of Sprue Safety
Products Ltd’s control, such as Acts of God (fire,
severe weather etc.). It does not apply to retail stores,
service centres or any distributors or agents. Sprue
Safety Products Ltd will not recognise any changes to
this warranty by third parties.
11
Storage in low humidity, and certain
transportation conditions, may cause
electrostatic charges to build up in
the alarm system housing. Although
harmless, they may increase the length
of time that the horn sounds upon battery
insertion or test button operation. The
condition may be cleared by gently wiping
the inside and outside of the plastic cover
with a clean, damp cloth.
DISPOSAL
Waste electrical products should not be disposed
of with your other household waste. The alarm is
ideally suited for disposal within the waste electronic
and electrical equipment (WEEE) recycling scheme.
Please recycle where facilities exist. Check with
your local authority, retailer or contact our Technical
Support team for recycling/disposal advice, as
regional variations apply.
WARNING: Do not burn or dispose of
in fire.
WARNING: If your alarm is dropped or damaged, as
a precaution, it should be removed from the building.
WARRANTY
Sprue Safety Products Ltd warrants to the original
purchaser that its enclosed smoke alarm be free
from defects in materials and workmanship under
normal residential use and service for a period of 5
(five) years from the date of purchase. Provided it is
returned with postage prepaid and proof of purchase
date, Sprue Safety Products Ltd hereby warrants that
during the 5 (five) year period commencing from the
date of purchase Sprue Safety Products Ltd, at its
discretion, agrees to replace the unit free of charge.
The warranty on any replacement SA700 alarm, will
last for the remainder of the period of the original
warranty in respect of the alarm originally purchased
– that is from the date of original purchase and not
from the date of receipt of the replacement product.
Sprue Safety Products Ltd reserves the right to offer
an alternative product similar to that being replaced
if the original model is no longer available or in stock.
This warranty applies to the original retail purchaser
from the date of original retail purchase and is not
transferable. Proof of purchase is required.
This warranty does not cover damage resulting
from accident, misuse, disassembly, abuse or lack
of reasonable care of the product, or applications
not in accordance with the user manual. It does not
cover events and conditions outside of Sprue Safety
Products Ltd’s control, such as Acts of God (fire,
severe weather etc.). It does not apply to retail stores,
service centres or any distributors or agents. Sprue
Safety Products Ltd will not recognise any changes to
this warranty by third parties.
Sprue Safety Products Ltd shall not be liable for any
incidental or consequential damages caused by the
breach of any expressed or implied warranty. Except
to the extent prohibited by applicable law, any
implied warranty of merchantability or fitness for a
particular purpose is limited in duration for 5 (five)
years.
This warranty does not affect your statutory rights.
Except for death or personal injury, Sprue Safety
Products Ltd shall not be liable for any loss of use,
damage, cost or expense relating to this product
or for any indirect, or consequential loss, damages
or costs incurred by you or any other user of this
product.
Table of contents
Other AngelEye Smoke Alarm manuals
