Anglecare AC327 User manual

Keep user’s guide for future reference. Please read the warnings and
safety instructions carefully before assembling & using the product.
Failure to follow the warnings and the instructions could result in serious
injury or death or damage to the product.
WARNING
USER MANUAL
IMPORTANT  INTENDED USE
is product is NOT intended and should NOT be used to prevent Sudden Infant Death Syndrome (SIDS).
is product is NOT intended to diagnose, treat, mitigate, cure or prevent any disease or condition.
is is a product to monitor the movement of healthy babies and is not a substitute for parental care.
Model AC327

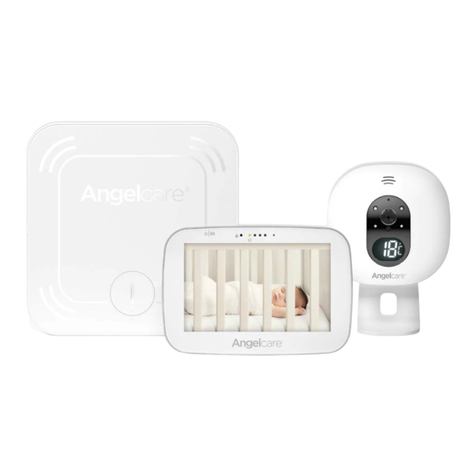

Baby Movement, Sound
and Video Monitor, 4.3 screen

3. DO NOT use a cot mobile and other cot
accessories that may produce movements or
vibrations.
4. Fans (including ceiling), washing machines, floor
boards, central heating or loud music are all forms
of movement and vibration and may interfere and
be detected by the Sensor Pad.
5. If an additional Nursery Unit is added then it
must be positioned at least 2 metres minimum
from Nursery Unit 1 and Sensor Pad as this could
interfere with performance.
6. DO NOT use with bedside cot touching parent’s/
carer’s bed as the Sensor Pad will detect your
movements.
7. DO NOT place the cot against a wall or skirting
board as vibrations may be detected.
8. Following removal of baby from the cot, some
mattresses may still detect mattress movement
due to it forming back into shape and alarm may
not sound.
9. Ensure cot is stable to eliminate any movement.
10. Cot should not be placed in reaching distance
of another cot or bed.
11. DO NOT use other wireless devices in the same
room as the monitor (including mobile phones,
microwaves...). ey may interfere with signal and
performance.
12. e Sensor Pad is made of plastic and does
not permit air to circulate. erefore, mildew
build up could develop underneath the mattress in
the Sensor Pad area.
We suggest rotating & airing /drying the mattress
regularly to prevent any mildew. AVOID CONTACT WITH
MOISTURE. Clean - wipe with a dry lint free cloth.
13. e Sensor Pad is not suitable for use
above age 24 months.
14. is product cannot replace responsible
adult supervision.
• is product is designed to aid in the monitoring
of your child. When using the monitor, you must
still provide the supervision necessary for the
continued safety of your child.
WARNING - MOVEMENT SENSOR PAD - NO ALARM
• Sources of vibration & movement, other than your baby’s, can be detected by
the Sensor Pad and interfere with the performance of your Angelcare monitor.
• e alarm will not sound if it detects movement other than your baby’s.
• High sensitivity settings can pick up other sources of vibration & movement -
please read instructions on sensitivity setting to adjust accordingly.
• Other active and older babies (toddlers) in the same room can be detected and
the alarm will not sound.
• Ensure the baby’s environment is FREE from any movements or vibrations when
using the Sensor Pad - see below warnings 3 to 11.
2
is baby monitor is compliant with all relevant standards regarding electromagnetic fields and is,
when handled as described in the User’s Guide, safe to use.
WARNINGS
1. Because of the serious strangulation risk to infant & toddlers, parents & caregivers should
note the following Warnings.
2.
WARNING - Strangulation Hazard –
Children have STRANGLED in cords
• KEEP the Nursery Unit and adaptor cords OUT of the
reach of children more than 1 metre away.
• NEVER use extension cords with adaptors. ONLY use
adaptors provided.
• is product is NOT a Toy. NEVER allow children to
play with it.
2

E
N
3
• Use this appliance ONLY for its intended use as
described in this manual.
15. e Sensor Pad is not intended to be used
to determine if a child is out of the cot.
16. ALWAYS be sure to immediately check on
baby whenever an alarm sounds.
17. Keep cords out of the reach of ANY children.
18. ONLY use the chargers and power adaptors
provided. Do not use other types as this
may damage the device and battery pack (if
included in your model).
19. Adult assembly required. Keep small parts
away from children when assembling.
20. Follow instructions and test this monitor
and its functions so you are familiar with it
prior to actual use. ALWAYS be sure that both the
transmitter and receiver are working properly and
are within range of each other – check periodically
and when changing location of the Nursery Unit.
21. DO NOT touch the plug contacts especially
with sharp or metal objects.
22. DO NOT use the baby monitor near water.
Care should be taken so that objects DO NOT fall
onto units and that liquids are not spilled into
either unit or Sensor Pad through its openings.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DO NOT EXPOSE TO RAIN OR MOISTURE
23. Keep monitor AWAY from heat sources
(such as stoves, radiators, etc.). Heat can
damage the case or electrical parts.
24. ALWAYS place both the Nursery Unit and
the Parent Unit on a flat solid surface in
an upright position that allows for proper
VENTILATION. DO NOT place on sofas, cushions,
beds, etc. which may block ventilation or anywhere
that would muffle the sound or interfere with the
normal flow of air.
25. e baby monitor can only be used
between 10°C and 40°C (50°F and 104°F) (50°F
and 104°F), max 75% RH. Do not exceed 28°C
(82,4°F) for long periods of use.
WARNINGS AND SAFETY
INSTRUCTIONS  BATTERY
SPECIFIC
WARNING
Do not ingest the battery, Chemical Burn Hazard.
is product contains a coin/button cell battery. If the
coin/button cell battery is swallowed, it can cause se-
vere internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children. If the
battery compartment does not close securely, stop using
the product and keep it away from children. If you think
batteries might have been swallowed or placed inside any
part of the body, seek immediate medical attention.
BATTERY WARNING
KEEP OUT OF REACH OF CHILDREN
Swallowing can lead to chemical
burns, perforation of soft tissue,
and death. Severe burns can occur
within 2 hours of ingestion. Seek
medical attention immediately.
WARNING
CONTAINS BUTTON CELLBATTERY. HAZARDOUS
IF SWALLOWED – SEE BELOW
BUTTON/COIN CELL BATTERIES ARE HAZARDOUS
AND MUST BE KEPT OUT OF REACH OF CHILDREN
AT ALL TIMES, WHETHER THE BATTERY IS
NEW OR USED. THESE BATTERIES CAN CAUSE
SEVERE OR FATAL INJURIES IN 2 HOURS OR
LESS IF SWALLOWED OR PLACED INSIDE ANY
PART OF THE BODY. IF YOU THINK BATTERIES
MIGHT HAVE BEEN SWALLOWED OR PLACED
INSIDE ANY PART OF THE BODY, SEEK MEDICAL
ATTENTION IMMEDIATELY OR (FOR AUSTRALIA
ONLY) CONTACT THE AUSTRALIAN POISONS
INFORMATION CENTRE ON 13 11 26 FOR 24/7
FAST, EXPERT ADVICE
IF THE BATTERY COMPARTMENT DOES NOT CLOSE
SECURELY, STOP USING THE PRODUCT AND KEEP
IT AWAY FROM CHILDREN.
26. Symptoms of battery ingestion and
insertion are difficult to diagnose.
No obvious symptoms
Unfortunately, it is not obvious when a button or coin
battery is stuck in a child’s oesophagus (food pipe).
ere are no specific symptoms associated with this.
e child might:
• cough, gag or drool a lot;
• appear to have a stomach upset or a virus;
• be sick;
• point to their throat or stomach;
• have a pain in their abdomen, chest or throat;
• be tired or lethargic;
• be quieter or more clingy than usual or otherwise
“not themselves”;
• lose their appetite or have a reduced appetite; and
• not want to eat solid food / be unable to eat solid food.
ese sorts of symptoms vary or fluctuate, with the
pain increasing and then subsiding.
A specific symptom to button and coin battery inges-
tion is vomiting fresh (bright red) blood. If the child
does this seek immediate medical help.
e lack of clear symptoms is why it is important to
be vigilant with “flat” or spare button or coin batter-
ies in the home and the products that contain them.
27. e Parent Unit battery is a replaceable
Li-Ion battery. e Wireless Sensor Pad uses a
replaceable Button Cell Lithium Battery. Only
use the Angelcare recommended replacement
E
N
3

battery (see Technical Specification).
• Danger of explosion if the wrong battery is used
or if replaced incorrectly. Refer to User’s Guide for
correct battery installation.
• DO NOT short circuit supply terminals.
28. DO NOT mix old and new batteries and only
use Angelcare recommended replacement
batteries (see Technical Specification).
29. e Button Cell Battery represents a small
part and a choking hazard – KEEP away from
children!
30. Exercise care in handling batteries in order
not to short out the batteries with conducting
materials such as rings, bracelets and keys.
31. Overcharging, short circuiting, reverse
charging, mutilation, or incineration of
batteries must be avoided to prevent one or
more of the following occurrences: release of toxic
materials, release of hydrogen and/or oxygen, gas
and rise in surface temperature.
32. DO NOT attempt to recharge batteries
provided with or identified for use with this
product that are not intended to be charged.
e batteries may leak corrosive electrolyte or
explode.
33. Incorrect polarity installation of the
batteries in the end product must be avoided.
Reverse insertion of batteries can cause charging,
and that may result in leakage or explosion.
34. Battery swelling can occur with the type of
battery used in the Parent Unit if not used or
stored correctly including but not limited to the
age, usage pattern, environmental conditions
(over heating),over-charging, over-discharging,
using incorrect chargers and physical abuse/
damage. Refer to Angelcare online Battery Warning
Statement:
https://angelcarebaby.com/battery-safety
35. Remove batteries from units if you store
the product over 30 days because the batteries
could leak and damage the product.
36. Discard ‘dead’ batteries as soon as possible
since ‘dead’ batteries are more likely to leak in a
product. If a battery has leaked or vented, discard
product responsibly.
37. DO NOT store this product, or the batteries
provided with or identified for use with this
product, in high-temperature & high humidity
environments and avoid direct sunlight –
this could lead to potential battery leakage,
swelling and potential harm and damage.
e parent Unit Lithium battery should be
stored at 23±5°C (73.4 ± 9°F) at ≤ 75% RH.
Always store the product with approximately
50% charge and do not store for more than 3
months without charging.
38. CAUTION
• Danger of explosion if battery is incorrectly re
placed. Replace only with the same or equivalent
type.
• Battery cannot be subjected to high or low
extreme temperatures, low air pressure at high
altitude during use, storage or transportation.
• Replacement of a battery with an incorrect
typcan result in an explosion or the leakage of
flammable liquid or gas.
• Disposal of a battery into fire or a hot oven, or
mechanically crushing or cutting of a battery,
can result in an explosion.
• Leaving a battery in an extremely high
temperature surrounding environment can result
in an explosion or the leakage of flammable liquid
or gas.
• A battery subjected to extremely low air pressure
may result in an explosion or the leakage of
flammable liquid or gas.
• e mounting height of the Nursery Unit should
be less than 2 meter.
• e applied nameplate is located at the product
rear enclosure.
IMPORTANT SAFETY INSTRUCTIONS
39. Sensor Pad –
• If your cot does not have a solid, stationary,
completely flat, firm surface including a spring or
slat base, place a hard board between the cot base
and the Sensor Pad, to ensure correct operation
(see specification on STEP 2).
• e Sensor Pad functions with standard cot
sprung and foam mattresses and not memory
foam (partial or full), hollow frame construction
mattresses and water beds. Please consult
Angelcare if unsure of mattress compatibility.
40. is monitor uses public airwaves to transmit
signals. e Parent Unit may pick up signals or
interference from other nursery monitors in your
area. Your monitor may even be picked up by other
households. To protect your privacy, make sure
both units are turned OFF when not in use.
41. Power cord protection - Protect the
Adaptor’s power cord from being walked on
or pinched by furniture or other items – Power
supply cords should be routed so that they are not
likely to be walked on or pinched by items upon or
against them, paying particular attention to cords
and plugs, convenience receptacle, and the point
where they exit from the product. e socket outlet
should be installed near the equipment and should
be easily accessible. Make sure to plug the adaptor
to the socket outlet nearest to the equipment and
that is easily accessible. To disconnect from mains,
unplug the adaptor. STOP using the Power Adaptor
if it gets damaged or broken in any way.
42. Only use attachments/accessories
and replacement parts specified by
the manufacturer. Any mounting of the
product should follow the manufacturer’s
instructions.
• DO NOT position this product on an unstable cart,
stand, tripod, bracket or table. e product may
fall, causing serious injury to a child or adult and
serious damage to the product.
• Use ONLY the stand sold with the product.
4

SET UP REQUIREMENTS
WHAT’S IN THE BOX
1Nursery Unit
2Tabletop stand/Wall Mount (for Nursery Unit)
32 x AC Adaptors
4Parent Unit
5Lithium Ion Battery Pack
(for Parent Unit)
6Sensor Pad
7CR2450 3V Battery (for Sensor Pad)
8Hardware (for wall mounting)
WHAT YOU NEED
Hardboard, if the cot does not have a firm surface
(see specification on STEP 2).
Drill or screwdriver (for wall mounting).
2X
1
6
2
7
3
82X
5
4
• Be sure replacement parts are supplied by
Angelcare and have the same characteristics as
original part. Unauthourised substitution may result
in fire, electric shock or fire.
43. Unplug this appliance during lightning
storms or when not used for long periods of
time.
44. Servicing - DO NOT attempt to service
this product yourself as opening or removing
covers (except battery door) may expose you
to dangerous voltage or other hazards.
• Power Supply – see Technical Specification within
this guide.
45. Overloading - DO NOT overload wall outlets,
extension cords or integral convenience
receptacles as this can result in a risk of fire or
electric shock.
46. Nursery Unit Antenna - e antenna used
for this transmitter must be installed to provide a
separation distance of at least 8’’ (20 cm) from all
persons and must not be collocated or operating in
conjunction with any other antenna or transmitter.
47. Cleaning - Disconnect all units before cleaning.
DO NOT immerse any part of the monitor in water.
Clean only with a dry cloth.
1 SETTING UP THE PARENT UNIT
Charge the Parent
Unit 8 hours
prior to first use.
Regular charging time
is 6 hours.
8H
1
3
2
E
N
5

2 SETTING UP THE SENSOR PAD
e Sensor Pad is designed to detect subtle baby movements on the surface of
the mattress. e alarm will only sound if NO movement is detected for 20 seconds.
1. Remove the tab from the
battery holder.
2. Use a coin to remove/replace
the battery cover and insert the
battery face with + face up.
3. Replace the battery cover, align
2 dots and click to secure.
Correct positioning
for slatted base
4
4. Remove the mattress from
the cot, place Sensor Pad
- Angelcare® logo side up -
on base in approximate centre
of mattress along the length.
It should be centred on the
hardboard if your cot requires
a hardboard support (see
‘IMPORTANT’ note below).
5. Replace the mattress.
1
2
3
6

• If your cot does not have a solid, stationary, completely flat, firm
surface including a spring or slat base, place a hardboard between
the cot base and the Sensor Pad, to ensure correct operation. e
hardboard support must measure at least 30 x 30 cm
and 6 mm thick. is hardboard support must be larger than
the Sensor Pad surface area.
• e Sensor Pad functions with standard cot sprung and foam
mattresses and not memory foam (partial or full), hollow frame
construction mattresses and water beds. Please consult Angelcare if
unsure of mattress compatibility. e hardboard maintains a constant
pressure on the Sensor Pad, enabling it to detect the baby’s movements
even when the baby is at the edges of the cot.
IMPORTANT
3SETTING UP THE NURSERY UNIT
Tabletop
Sensor Pad
Wall-Mounted
(e mounting
height of the
Nursery Unit
should be less
than 2 metres.)
Place the Nursery
Unit and Adaptor
cord at least
1 metre
from the cot.
1
2
WALLMOUNTED
NOTE: Before fixing to the wall, review both wall mounted options to achieve best view for you.
Option 1 - Close viewing range (Guide 1.0 to 1.5 meters - wall to cot)
1 2 3
Option 2 - Furher viewing range (Guide 1.5 meters or more - wall to cot)
TABLETOP
1 2 3
23
14
Do not thread the cord
through the bracket hole.
E
N
7

4TURNING ON YOUR MONITOR
e Movement Sensor Pad alarm will sound after a few seconds if the child is not in the cot.
NURSERY UNIT PARENT UNIT Note:
• Your Nursery Unit and Parent Unit
come pre-paired.
• Each time you power ON your
Nursery Unit, the internal
thermometer will need to
calibrate to ensure accuracy.
is automatic process will take
approximately 30 minutes.
PAUSING AND RESTARTING THE
SENSOR PAD
• Allows you to pause the Sensor Pad if you
remove baby from the cot, e.g. for feeding
or comforting. e button has a soft light so
easily seen. Ensure to un-pause the Sensor
Pad before putting baby in the cot.
NURSERY UNIT PARENT UNIT
TEST THE SENSOR PAD
1. Sources of vibration & movement other than your baby’s can be detected by the Sensor Pad and
interfere with the performance of your Angelcare monitor. e alarm will not sound if it detects
movement other than your baby’s.
2. ere are 4 sensitivity settings. e unit is set at level 3 (default) and can be adjusted
accordingly.
3. e Sensor Pad will detect false movements if you are touching the cot.
4. e monitor will produce a Rouse alarm single beep tone designed to stir baby if no movement.
has been detected for 15 seconds. If no further movement is detected, the main alarm will sound
at 20 seconds – a series of continuous beeps.
SENSOR PAD FOUR CORNER TEST
1. Place the Sensor Pad at the approximate centre of baby’s sleeping area and put the mattress
back in place.
2. Switch ON both Nursery & Parent Units – check both units are paired (connected).
3. Immediately pat your hand lightly and continuously on a corner of the mattress
twice for Sensor to detect movement. If movement is detected you will hear a
TIC sound every 5 seconds and PU will flash green for a single sensor pad.
4. Step away from the cot.
5. e alarm will sound from the Nursery and Parent Unit after 20 seconds.
If the Alarm does not sound, ensure everything is setup correctly and try
again; check battery levels on all units, follow the manual for ‘NO ALARMS’
– the sensitivity setting may require lowering by a single level due to other
vibrations/movements.
6. If the alarm sounds, pat your hand lightly on a corner of mattress twice for Sensor to detect
movement. It may take up to 8 seconds to recognise movement and for alarm to stop.
7. If the alarm continues, even after lightly patting the corner of your mattress twice, adjust the
sensitivity higher and repeat this test.
8

• Test your monitor before first use.
• Prior to use and on a regular basis (before placing your child in the cot) always check
the Sensor Pad is detecting no movements or vibrations in its environment.
• Test your monitor every time you move the Sensor Pad to a different place.
IMPORTANT
5GETTING TO KNOW YOUR MONITOR
NURSERY UNIT
1Speaker
2Microphone
3Camera Lens
4Power indicator
5Micro USB port
6Pause Sensor Pad / Pairing
button
7Power ON/OFF
8Magnet for tabletop stand
and wall mount
FRONT SIDE REAR SIDE
1
2
3
5
7
6
8
4
PARENT UNIT
1Power ON/OFF (Press & Hold)
/ Sleep mode (Quickly press & release)
2Talk-back / Return & save settings
3Menu / Select
4Zoom & pan feature / Navigate left
/ Switch Nursery Unit sound
5Movement indicator (TIC function)
6Power indicator
7Visual sound indicator
8Microphone
9Volume up / Navigate up
10 Volume down / Navigate down
11 Navigate right / View mode
12 Rechargeable battery
compartment
13 Micro USB charging port
14 Speaker
15 Folding stand
FRONT SIDE
1
2
3
4
5
6
7
8
9
10
11
REAR SIDE
12
13 15
14
E
N
9

TOP STATUS BAR
1
2
3
4
5
6
7
8
9
10 11 12
14
15
13
16
17
18 19 20
1Sensor Pad movement detection
is activated
2Sensor Pad alert
3Sensor Pad is connecting
4Sensor Pad lost link
5Sensor Pad movement detection
is OFF
6Sensor Pad is paused
7Sensor Pad is low battery
8Sensor Pad has never been paired
9Nursery Unit selected and
broadcasting sound
10 “TIC” function is activated
11 VOX Sound is activated
12 VOX Video is activated
13 Temperature alert is
activated
14 Temperature alert: too hot
15 Temperature alert: too cold
16 Night vision is activated
17 Second Sensor Pad is low
battery - only shown if you
have 2 Sensor Pads paired
18 Volume level indicators
19 Reception quality indicators
20 Parent Unit battery level
indicators
MAIN MENU
ON ON 42 3
1 2 3 4 5 6 7
1Movement Sensor Pad Activation:
ON: e Parent & Nursery Units will alarm if there
is no movement after 20 seconds.
PAUSE: Allows you to pause the Sensor Pad if
you remove baby from the cot, e.g. for feeding or
comforting.
• e Pause icon in the status bar will flash.
• e Nursery Unit Power indicator will slowly blink.
Ensure to un-pause the Sensor Pad before putting
baby in the cot (Turn movement detection ON).
OFF: When your baby gets older, allows you to turn
movement detection OFF and use your monitor for
video only.
2Tic Activation:
If movement detection is activated, allows you
to hear a Tic sound every 5 seconds. In the event
you have two Sensor Pads connected, the Tic
indication will flash green for Sensor Pad 1 and
blue for Sensor Pad 2.
3VOX Sound Set-Up: VOX Sound means that it
will transmit sounds only when it detects them,
based on the setting of the sensitivity level (level
4 being the most sensitive). To save power, after
10 seconds, the sound transmission will stop if
no sound is detected. VOX Sound OFF means the
sound monitoring is continuously transmitting,
picking up all sounds.
4VOX Video Set-Up: VOX Video means that when
Parent Unit is in sleep mode (black screen) the
screen will turn ON only when it detects sounds,
based on the setting of the sensitivity level (level
4 being the most sensitive). To save power, after
the set time, the sleep mode will be activated.
Video VOX OFF means the Parent Unit screen
will not turn ON if the Nursery Unit is picking up
sounds.
5Screen Brightness
6Temperature Settings
7General Settings
10

• To confirm your settings, you’ll always need to press the button. A confirmation icon will
then appear on the screen: Settings have been saved Settings have not been saved
• If you have 2 Nursery Units & 2 Sensor Pads paired with your monitor, you can only change
the settings of the viewing Nursery Unit.
• If a function icon appears in grey (grayed out) it means you are unable to use or adjust.
IMPORTANT
TEMPERATURE SETTINGS MENU
22 16 OFF
oC
1 2 3 4
1Set warmer temperature alarm
2Set colder temperature alarm
Note: e range between the minimum and
maximum temperature can not be less than
4°C / 7°F.
3Set Celsius or Fahrenheit display
4Activate the temperature alarm
GENERAL SETTINGS MENU
3 MIN
1 2 3 4
1Sleep Mode Set-Up
2Set Sensor Pad sensitivity:
To ensure adequate monitoring of your
child’s movements, you can adjust the
sensitivity of the Sensor Pad.
3Set Nursery Unit speaker volume
4Pairing Menu
PAIRING MENU
1 2 3
1Nursery Unit 1 Status
2Nursery Unit 2 Status
3Sensor Pad 1 Status
Nursery Unit and Sensor Pad Status
Icons:
Green: Connected/Paired.
Blue: Add a Nursery Unit or Sensor Pad.
Red: Remove Nursery Unit or Sensor Pad.
Confirmation process ON THE SCREEN:
Blue: ‘’Link’’ icon animation when
pairing (Linking timeout: 60s).
Green: Successful pairing.
Red: Failed pairing, please try again.
E
N
11

ALERTS ICONS
1 2 3 5 6 74
1 11 1 1 1
1Sensor Pad alert: If after 20 seconds
there is NO movement detected both the
Parent Unit and Nursery Unit speakers will
emit loud consecutive beeps - this is the
movement alarm.
2Sensor Pad is paused
3Sensor Pad lost link: Parent Unit and
Nursery Unit speakers will emit loud
consecutive beeps.
4Sensor Pad battery is low: Parent
Unit will emit 3 consecutive beeps, every
5 seconds.
5Parent Unit is out-of-range: Parent Unit will
emit 2 consecutive beeps, every 10 seconds.
6Temperature is too cold: Parent Unit will
emit 3 consecutive beeps, every 5 seconds.
7Temperature is too hot: Parent Unit will
emit 3 consecutive beeps, every 5 seconds.
Note: Press any key to stop alarm and make the alert icon disappear.
In the case of a Sensor Pad alarm, the monitor will Pause the Sensor Pad. In Pause mode, the
movement detection feature is disabled. To reactivate the Sensor Pad, simply un-pause the
Sensor Pad into the first menu.
12

6TROUBLESHOOTING
TAKING CARE OF YOUR RECHARGEABLE BATTERY
• Ensure that you fully charge your battery for 8 hours before its first use.
• To maintain maximum battery life, it is recommended that you fully discharge your battery periodically. If your
Parent Unit is not in use, please turn it OFF.
NO SOUND IS BEING TRANSMITTED
• Check the volume level on the Parent Unit and the Nursery Unit to ensure they are set to an appropriate level.
• Try bringing the Parent Unit closer to the Nursery Unit to see if you get sound.
• Charge the Parent Unit.
WEAK RECEPTION
• Bring units closer together.
• Change the position of one or both units.
• Place units on a flat surface away from baby’s reach.
• Recharge the Parent Unit.
STATIC, DISTORTION, INTERFERENCES FROM OTHER MONITORS, WIRELESS PHONES,
WALKIETALKIES, ETC.
• Rotate Parent Unit or move it away from source of interference.
FEEDBACK LOUD NOISES EMITTED FROM THE PARENT UNIT
• Move units further apart (at least 3 metres).
• Decrease volume on Parent Unit.
THE PARENT UNIT SCREEN IS BLACK PARENT UNIT IS OFF
• Turn the Parent Unit back ON by pushing and holding the POWER ON/OFF button for 2 seconds.
• Recharge the Parent Unit.
MOVEMENT SENSOR PAD  NO ALARM
• Sources of vibration & movement, other than your baby’s, can be detected by the Sensor Pad and the alarm will not sound.
• Refer to Warnings 3 to 11 and see STEP 4, TEST THE SENSOR PAD.
MOVEMENT SENSOR PAD  FALSE ALARMS
• Replace the Sensor Pad battery CR2450.
• Turn OFF the Nursery Unit.
• Sensor Pad False alarms may happen for several reasons, always be sure to immediately check on baby whenever
an alarm sounds:
- Nursery Unit has not been turned OFF after you have removed your baby from the cot.
- Make sure there is no bedding between the mattress and the Sensor Pad.
- Sensor Pad has not been placed under the mattress properly. Be sure the Sensor Pad is on a flat, firm surface
with the printed side facing up.
- e sensitivity level may also need to be adjusted.
• Refer to Warnings 3 to 11 and see STEP 4, TEST THE SENSOR PAD.
NO SOUND IS BEING TRANSMITTED:
• Check that both units are powered ON.
• Check that Parent Unit is not on MUTE.
HOW TO CHECK THE PARENT UNIT BATTERY:
• Unplug the adaptor from the Parent Unit and check the battery level indicator.
E
N
13

14
1. Turn ON the Parent Unit and keep the Nursery Unit OFF.
2. Press menu button.
3. It will directly jump to General setting menu. Select
the Pairing Icon and press menu button.
4. In the Pairing Menu, select Nursery Unit 1 Icon
and press menu button.
• If Nursery Unit 1 is marked as connected select
it to go the Nursery Unit 1 Pairing option. You will now
need to remove it by selecting the red icon.
e linking icon will appear on the screen until
Successful Pairing Icon appears on the screen.
You’ll now be able to proceed with step 4.
5. e Linking Icon will appear on the screen.
6. Turn ON the Nursery Unit and press and hold its
“pause/pairing” button until the power LED starts
blinking while pairing.
7. If the connection has been made, the Green
Successful Pairing Icon will appear on the screen
and the menu will show the OK Paired Icon.
8. Otherwise, the Red Failed Pairing Icon will appear
on the screen. You will need to try again.
6
3
4
3 MIN
LOSS OF CONNECTIVITY BETWEEN THE SENSOR PAD AND THE NURSERY UNIT
• If your Sensor Pad becomes un-paired from your Parent Unit, please follow the steps below to re-pair them. In
order to reconnect your Sensor Pad to your Nursery Unit, you need to make sure the Nursery Unit is paired with the
Parent Unit first.
1. Remove the battery of the Sensor Pad.
Note: If you have two Sensor Pads, you will need to
remove the battery from both of them first and then
follow the steps below.
2. Press menu button.
3. Select the General setting menu and press
menu button.
4. Select the Pairing Icon and press menu button.
5. In the Pairing Menu, select Sensor Pad 1 Icon
and press menu button.
• If Sensor Pad is marked as connected
select it to go the the Sensor Pad Pairing option.
You will now need to remove it by selecting the
red icon. e linking icon will appear on the
screen until Successful Pairing Icon appears
on the screen. You’ll now be able to proceed
with step 5.
6. Insert the battery into the Sensor Pad. It will
automatically activate it.
7. If the connection has been made, the Green
Successful Pairing Icon will appear on the screen
and the menu will show the OK Paired Icon.
8. Otherwise, the Red Failed Pairing Icon will
appear on the screen. You will need to try again.
4
5
3
3 MIN
O
N
O
N
4
2
3
6
LOSS OF CONNECTIVITY BETWEEN THE NURSERY UNIT AND PARENT UNIT
• If your Nursery Unit becomes un-paired from your Parent Unit, please follow the steps below to re-pair them.
14

Range:
Open field (Open area without obstructions):
• Between the Nursery Unit and the Parent Unit:
up to 250 metres.
• Between the Nursery Unit and the Sensor Pad:
up to 20 metres.
Number of Channels:
Europe: 19 channels.
ermometer Guidelines:
High Temperature Alarm: 22°C
Low Temperature Alarm: 16°C
Power Supply:
1 included Li-Ion battery (IS275) 1300 mAh 3.7V
(manufactured by Icon Energy System (Shenzhen) Co Ltd)
for the Parent Unit.
2 x 100-240 VAC/ 5V DC 0.6A Dongguan Guanjin
Electronics Technology Co., Ltd (EU: K05S050060G or
K05V050060G, UK: K05S050060B or K05B050060B,
AU: K05S050060A) Adaptors for the Parent Unit and the
Nursery Unit.
1 included CR2450 3V battery (Changzhou Jin Tan Chao
Chuang Battery Co., Ltd. model number: CR2450H, or
GP Batteries International Ltd. model number: CR2450)
(wireless Sensor Pad).
Caution: To reduce the risk of electric shock, do not
expose this product to rain or moisture.
Danger of explosion if batteries are incorrectly
replaced. e battery included for the Parent Unit is a
user replaceable Li-ion rechargeable battery. Only use
the Angelcare recommended replacement battery. e
battery for the Sensor Pad is a user replaceable Lithium
(not Li-Ion) battery and is NOT rechargeable. To obtain
information on replacement batteries please contact
Angelcare customer service: www.angelcarebaby.com
or contact your local distributor. Instructions will
be included with the replacement battery. Keep all
batteries away from children.
Batteries:
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
Transmission:
Transmission between the Parent Unit and the Nursery
Unit is made on 2.4 GHz frequency.
Transmission between the Nursery Unit and the Sensor
Pad is made on 2.4 GHz frequency.
Hereby, Angelcare Canada Inc., declares that this Baby
Monitor is in compliance with Directive 2014/53/EU. e
full text of the EU declaration of conformity is available at
the following internet address:
https://www.angelcarebaby.com/declaration-of-
conformity
RF Exposure - is device is designed and
manufactured to comply with Radio Frequency (RF)
radiation exposure limits for EU for an uncontrolled
environment. To maintain the compliance, human
exposure to the nursery unit shall not be less than
20 cm during normal operation.
PROTECT THE ENVIRONMENT
e wheelie bin symbols mean that according
to local laws and regulations your product and/
or its battery shall be disposed of separately
from household waste. When the product/battery
reaches its end of life take it to a collection point
designated by local authorities. e separate
disposal and recycling will help conserve natural
resources and protect human health and the
environment. Refer to User’s Guide for removal
of batteries.
ErP Compliance
USE ONLY THE FOLLOWING ANGELCARE® BRAND
POWER SUPPLY MODEL NUMBERS:
EU: K05S050060G or K05V050060G
UK: K05S050060B or K05B050060B,
AU: K05S050060A
TECHNICAL SPECIFICATIONS
See product for compliance marks specific to this device.
E
N
15

www.angelcarebaby.com
IM327-ROW-V16
Contact information
IMPORTANT! is Angelcare® monitor is a personal care product. Please do not return this product
to the store. If you have questions or need help, please call your distributor before returning this
product.
We, at Angelcare®, stand behind all of our products. If you are not completely satisfied
or have any questions, please contact your distributor before returning this product:
United States and Canada: Please contact us at: [e-mail]
Other countries: Find your local distributor by visiting our website:
angelcarebaby.com/distributeurs
TO LEARN MORE
To learn more, watch the set-up videos and other functionalities on our website.
https://angelcare.zendesk.com/hc/
Angelcare Canada Inc.
2000 McGill College Avenue, Suite 250
Montreal, Quebec, Canada, H3A 3H3
Angelcare® warrants to the original owner of this
product that Angelcare® monitor is free from any
material and workmanship defects for the term of
the warranty period (see warranty table below to
determine the warranty for your country). If this
monitoring system fails to function properly when used
as directed under normal conditions and during the
warranty period, Angelcare® will either repair or replace
the product, at our discretion, free of charge. Please
contact your local distributor to validate warranty and
warranty period.
e product must be accompanied by a proof of
purchase, either a bill of sale or other proof that the
monitoring system is within the warranty period.
Angelcare® will bear the cost of repairing or replacing
the product and shipping it back to you.
is warranty does not apply to a product which
has been damaged as a result of improper
maintenance, an accident, improper voltage
supply or any other form of misuse. e warranty
is also void if the owner repairs or modifies the
product in any way. Angelcare® is not liable
for any incidental or consequential damages
with regard to this product. e warranty also
excludes any liability other than what is stated
above. No other warranty is given.
is warranty does not cover products and accessories
which are not Angelcare®-branded, or any problems
that result from usage that is not in accordance with
product instructions, failure to follow the product
instructions, or problems caused by using accessories,
parts or components not supplied by Angelcare.
LEGAL RIGHTS VARY FROM COUNTRY TO COUNTRY.
SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
WE ARE NOT IN ANY WAY RESPONSIBLE FOR ANY OUTCOME
RESULTING FROM THE USE OF THIS PRODUCT.
IMPORTANT! is Angelcare® monitor is a personal
care product. Please do not return this product to the
store. If you have questions or need help, please call
your distributor before returning this product.
Please contact your local distributor for warranty
information. Find your local distributor by visiting our
website: https://international.angelcarebaby.com/
CUSTOMER CARE  LIMITED WARRANTY
Warranty term per country
North America, UK, South Africa, Russia 1 year
Other countries 2 years
