Anglecare AC527 User manual

Keep user’s guide for future reference. Please read the warnings and
safety instructions carefully before assembling & using the product.
Failure to follow the warnings and the instructions could result in serious
injury or death or damage to the product.
WARNING
Model AC527
Baby Movement Monitor,
with Video
OWNER’S MANUAL
IMPORTANT  INTENDED USE
is product is NOT intended and should NOT be used to prevent Sudden Infant Death Syndrome (SIDS).
is product is NOT intended to diagnose, treat, mitigate, cure or prevent any disease or condition.
is is a product to monitor the movement of healthy babies and is not a substitute for parental care.
CFO4C_ANGE_Manuel_AC527_ROW.indd 1 19-02-05 09:32

2
3. DO NOT use a cot mobile and other cot accessories
that may produce movements or vibrations
4. Fans (including ceiling), washing machines, floor
boards, central heating or loud music are all forms
of movement and vibration and may interfere and be
detected by the Sensor Pad
5. If an additional Nursery Unit is added then it
must be positioned at least 2 metres minimum from
Nursery Unit 1 and Sensor Pad as this could interfere
with performance
6. DO NOT use with bedside cot touching parent’s/
carer’s bed as the Sensor Pad will detect your
movements
7. DO NOT place the cot against a wall or skirting
board as vibrations may be detected
8. Following removal of baby from the cot, some
mattresses may still detect mattress movement
due to it forming back into shape and alarm may not
sound
9. Ensure cot is stable to eliminate any movement
10. Cot should not be placed in reaching distance of
another cot or bed
11. DO NOT use other wireless devices in the same
room as the monitor (including mobile phones,
microwaves...). ey may interfere with signal and
performance
12. e Sensor Pad is made of plastic and does
not permit air to circulate. erefore, mildew build
up could develop underneath the mattress in the
Sensor Pad area
We suggest rotating & airing /drying the mattress
regularly to prevent any mildew. AVOID CONTACT
WITH MOISTURE. Clean - wipe with a dry lint free
cloth
13. e Sensor Pad is not suitable for use above
age 24 months
14. is product cannot replace responsible
adult supervision
• is product is designed to aid in the monitoring of
your child. When using the monitor, you must still
2
is baby monitor is compliant with all relevant standards regarding electromagnetic fields and is, when
handled as described in the User’s Guide, safe to use
WARNINGS
1. Because of the serious strangulation risk to infant & toddlers, parents & caregivers should note
the following Warnings
2.
WARNING - Strangulation Hazard –
Children have STRANGLED in cords
• KEEP the Nursery Unit and adaptor cords OUT of the
reach of children more than 3 feet or 1 metre away
•NEVER use extension cords with adaptors. ONLY use
adaptors provided
•is product is NOT a Toy. NEVER allow children to
play with it
WARNING - MOVEMENT SENSOR PAD - NO ALARM
• Sources of vibration & movement, other than your baby’s, can be detected by
the Sensor Pad and interfere with the performance of your Angelcare monitor
• e alarm will not sound if it detects movement other than your baby’s
• High sensitivity settings can pick up other sources of vibration & movement -
please read instructions on sensitivity setting to adjust accordingly
• Other active and older babies (toddlers) in the same room can be detected and
the alarm will not sound
• Ensure the baby’s environment is FREE from any movements or vibrations when
using the Sensor Pad - see below warnings 3 to 11
CFO4C_ANGE_Manuel_AC527_ROW.indd 2 19-02-05 09:32

E
N
3
provide the supervision necessary for the continued
safety of your child
• Use this appliance ONLY for its intended use as
described in this manual
15. e Sensor Pad is not intended to be used
to determine if a child is out of the cot
16. ALWAYS be sure to immediately check on
baby whenever an alarm sounds
17. Keep cords out of the reach of ANY children
18. ONLY use the chargers and power adaptors
provided. Do not use other types as this
may damage the device and battery pack (if
included in your model)
19. Adult assembly required. Keep small parts
away from children when assembling
20. Follow instructions and test this monitor
and its functions so you are familiar with it
prior to actual use. ALWAYS be sure that both the
transmitter and receiver are working properly and
are within range of each other – check periodically
and when changing location of the Nursery Unit
21. DO NOT touch the plug contacts especially
with sharp or metal objects
22. DO NOT use the baby monitor near water
Care should be taken so that objects DO NOT fall
onto units and that liquids are not spilled into either
unit or Sensor Pad through its openings
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DO NOT EXPOSE TO RAIN OR MOISTURE
23. Keep monitor AWAY from heat sources
(such as stoves, radiators, etc.). Heat can
damage the case or electrical parts
24. ALWAYS place both the Nursery Unit and the
Parent Unit on a flat solid surface in an upright
position that allows for proper VENTILATION. DO
NOT place on sofas, cushions, beds, etc. which may
block ventilation or anywhere that would muffle the
sound or interfere with the normal flow of air
25. e baby monitor can only be used between
10°C and 40°C (50°F and 104°F)
WARNINGS AND SAFETY
INSTRUCTIONS  BATTERY SPECIFIC
26. ALWAYS keep all batteries away from children
27. e Parent Unit battery is a replaceable
Li-Ion battery. e Wireless Sensor Pad uses a
replaceable Button Cell Lithium Battery. Only
use the Angelcare recommended replacement
battery (see Technical Specification)
• Danger of explosion if the wrong battery is used
or if replaced incorrectly. Refer to User’s Guide for
correct battery installation
• DO NOT short circuit supply terminals
28. DO NOT mix old and new batteries and only
use Angelcare recommended replacement
batteries (see Technical Specification)
29. is product contains a Button Cell Battery
and if swallowed can cause internal chemical
burns in as little as two hours and lead to
death. Dispose of used batteries immediately.
Keep new and used batteries away from
children. If you think batteries might have
been swallowed or placed inside any of the
body, seek medical attention.
30. e Button Cell Battery represents a small
part and a choking hazard – KEEP away from
children!
31. Exercise care in handling batteries in order
not to short out the batteries with conducting
materials such as rings, bracelets and keys
32. Overcharging, short circuiting, reverse
charging, mutilation, or incineration of
batteries must be avoided to prevent one or
more of the following occurrences: release of toxic
materials, release of hydrogen and/or oxygen, gas
and rise in surface temperature
33. DO NOT attempt to recharge batteries
provided with or identified for use with this
product that are not intended to be charged
e batteries may leak corrosive electrolyte or
explode
34. Incorrect polarity installation of the
batteries in the end product must be avoided
Reverse insertion of batteries can cause charging,
and that may result in leakage or explosion
35. Remove batteries from units if you store
the product over 30 days because the batteries
could leak and damage the product
36. Discard ‘dead’ batteries as soon as possible
since ‘dead’ batteries are more likely to leak in a
product. If a battery has leaked or vented, discard
product responsibly
37. DO NOT store this product, or the batteries
provided with or identified for use with this
product, in high-temperature & high humidity
environments and avoid direct sunlight
IMPORTANT SAFETY INSTRUCTIONS
38. Sensor Pad –
• If your cot does not have a solid, stationary,
completely flat, firm surface including a spring or
slat base, place a hard board between the cot base
and the Sensor Pad, to ensure correct operation
(see specification on STEP 2)
• e Sensor Pad functions with standard cot sprung
and foam mattresses and not memory foam (partial
or full), hollow frame construction mattresses and
water beds. Please consult Angelcare if unsure of
mattress compatibility
39. is monitor uses public airwaves to transmit
signals. e Parent Unit may pick up signals or
interference from other nursery monitors in your
area. Your monitor may even be picked up by other
households. To protect your privacy, make sure both
units are turned OFF when not in use
40. Power cord protection - Protect the
Adaptor’s power cord from being walked on
or pinched by furniture or other items – Power
3
CFO4C_ANGE_Manuel_AC527_ROW.indd 3 19-02-05 09:32

4
supply cords should be routed so that they are not
likely to be walked on or pinched by items upon or
against them, paying particular attention to cords
and plugs, convenience receptacle, and the point
where they exit from the product. e socket outlet
should be installed near the equipment and should
be easily accessible. Make sure to plug the adaptor
to the socket outlet nearest to the equipment and
that is easily accessible. To disconnect from mains,
unplug the adaptor
41. Only use attachments/accessories
and replacement parts specified by the
manufacturer. Any mounting of the product
should follow the manufacturer’s instructions
• DO NOT position this product on an unstable cart,
stand, tripod, bracket or table. e product may fall,
causing serious injury to a child or adult and serious
damage to the product
• Use ONLY the stand sold with the product
• Be sure replacement parts are supplied by Angelcare
and have the same characteristics as original
part. Unauthourised substitution may result in fire,
electric shock or fire
42. Unplug this appliance during lightning storms
or when not used for long periods of time
43. Servicing - DO NOT attempt to service
this product yourself as opening or removing
covers (except battery door) may expose you
to dangerous voltage or other hazards
• Power Supply – see Technical Specification within
this guide
44. Overloading - DO NOT overload wall outlets,
extension cords or integral convenience
receptacles as this can result in a risk of fire or
electric shock
45. Nursery Unit Antenna - e antenna used
for this transmitter must be installed to provide a
separation distance of at least 8’’ (20 cm) from all
persons and must not be collocated or operating in
conjunction with any other antenna or transmitter
46. Cleaning - Disconnect all units before cleaning.
DO NOT immerse any part of the monitor in water.
Clean only with a dry cloth
SET UP REQUIREMENTS
WHAT’S IN THE BOX
1Nursery Unit
2Stand (for Nursery Unit)
32 x AC Adaptors
4Parent Unit
5Lithium Ion Battery Pack
(for Parent Unit)
6Sensor Pad
7CR2450 Battery (for Sensor Pad)
8Hardware (for wall mounting)
WHAT YOU NEED
Hardboard, if the cot does not have
a firm surface
(see specification on STEP 2)
2X
1
6
2
7
3
8
5
4
CFO4C_ANGE_Manuel_AC527_ROW.indd 4 19-02-05 09:32

E
N
5
1 SETTING UP THE PARENT UNIT
Charge the Parent
Unit 8 hours
prior to first use
Regular charging time
is 4 hours
8H
1
3
2
2 SETTING UP THE SENSOR PAD
e Sensor Pad is designed to detect subtle baby movements on the surface of the
mattress.e alarm will only sound if NO movement is detected for 20 seconds.
1
2
1. Remove the battery cover
and insert the battery face
with + face up
2. Replace the battery cover,
align 2 dots and click to secure
Correct positioning
for slatted base
3
3. Remove the mattress from
the cot, place Sensor Pad
- Angelcare® logo side
up - on base in approximate
centre of mattress. It should
be centred on the hardboard if
your cot requires a hardboard
support (see ‘IMPORTANT’ note
below)
4. Replace the mattress
CFO4C_ANGE_Manuel_AC527_ROW.indd 5 19-02-05 09:32

6
• If your cot does not have a solid, stationary, completely flat, firm
surface including a spring or slat base, place a hardboard between
the cot base and the Sensor Pad, to ensure correct operation. e
hardboard support must measure at least 30 x 30 cm (12” x 12”)
and 6 mm (1/4”) thick. is hardboard support must be larger than
the Sensor Pad surface area
• e Sensor Pad functions with standard cot sprung and foam
mattresses and not memory foam (partial or full), hollow frame
construction mattresses and water beds. Please consult Angelcare if
unsure of mattress compatibility. e hardboard maintains a constant
pressure on the Sensor Pad, enabling it to detect the baby’s movements
even when the baby is at the edges of the cot
IMPORTANT

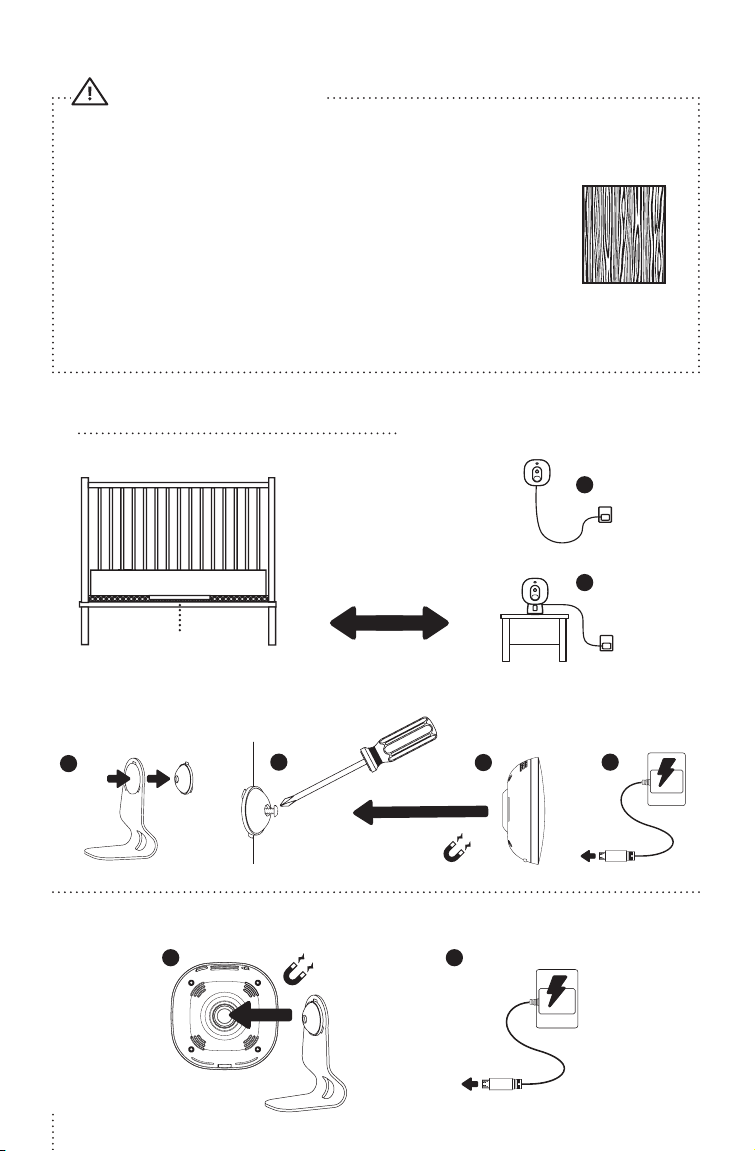

3SETTING UP THE NURSERY UNIT
Tabletop
Sensor Pad
Wall-Mounted
Place the Nursery
Unit and Adaptor cord
at least 1 metre
from the cot
1
2
WALLMOUNTED
3
12 4
TABLETOP
1 2
CFO4C_ANGE_Manuel_AC527_ROW.indd 6 19-02-05 09:32

E
N
7

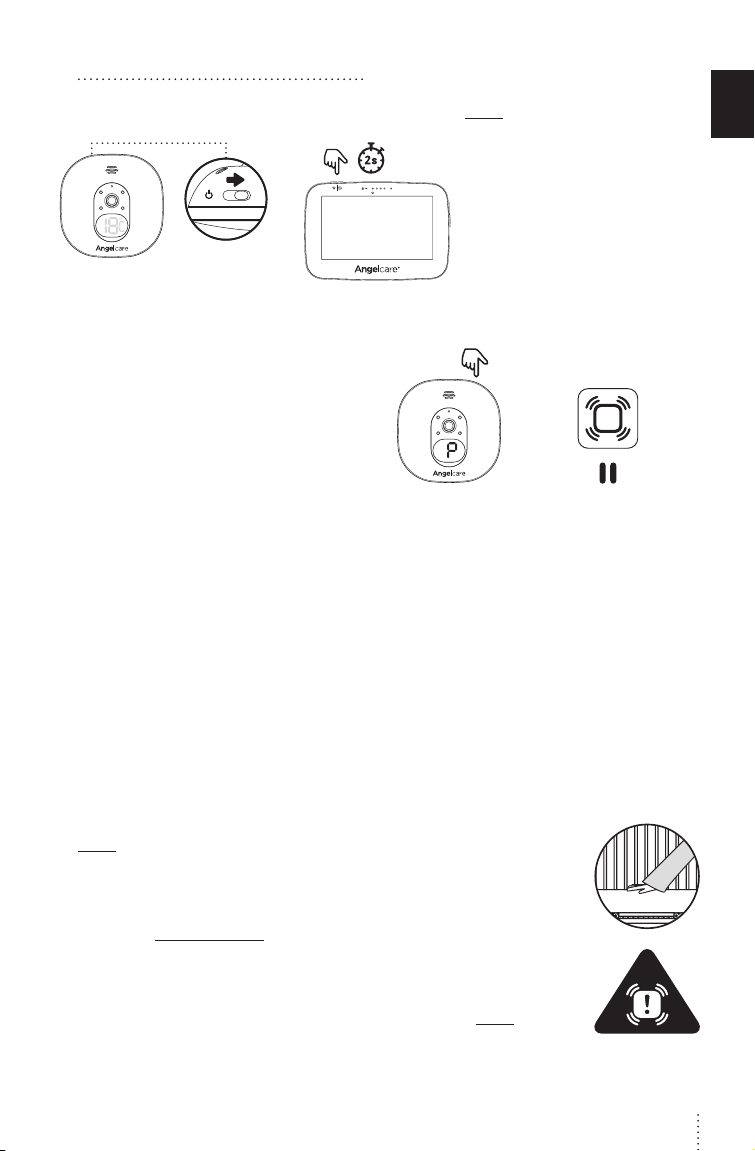

4TURNING ON YOUR MONITOR
NURSERY UNIT PARENT UNIT Note:
• Your Nursery Unit and Parent Unit
come pre-paired
• Each time you power ON your
Nursery Unit, the internal
thermometer will need to
calibrate to ensure accuracy.
is automatic process will take
approximately 30 minutes
PAUSING AND RESTARTING THE
SENSOR PAD
• Allows you to pause the Sensor Pad if you
remove baby from the cot, e.g. for feeding or
comforting. Ensure to un-pause the Sensor
Pad before putting baby in the cot
NURSERY UNIT PARENT UNIT
TEST THE SENSOR PAD
1. Sources of vibration & movement other than your baby’s can be detected by the Sensor Pad and
interfere with the performance of your Angelcare monitor. e alarm will not sound if it detects
movement other than your baby’s
2. ere are 4 sensitivity settings. e unit is set at level 3 (default) and can be adjusted accordingly
3. e Sensor Pad will detect false movements if you are touching the cot
4. e monitor will produce a Rouse alarm single beep tone designed to stir baby if no movement has
been detected for 15 seconds. If no further movement is detected, the main alarm will sound at
20 seconds – a series of continuous beeps
SENSOR PAD FOUR CORNER TEST
1. Place the Sensor Pad at the approximate centre of baby’s sleeping area and put the mattress
back in place
2. Switch ON both Nursery & Parent Units – check both units are paired (connected)
3. Immediately pat your hand lightly and continuously on a corner of the mattress
twice for Sensor to detect movement. If movement is detected you will hear a
TIC sound every 5 seconds and PU will flash green for a single sensor pad
4. Step away from the cot
5. e alarm will sound from the Nursery and Parent Unit after 20 seconds.
If the Alarm does not sound, ensure everything is setup correctly and try
again; check battery levels on all units, follow the manual for ‘NO ALARMS’
– the sensitivity setting may require lowering by a single level due to other
vibrations/movements
6. If the alarm sounds, pat your hand lightly on a corner of mattress twice for
Sensor to detect movement. It may take up to 8 seconds to recognise movement
and for alarm to stop.
7. If the alarm continues, even after lightly patting the corner of your mattress twice, adjust the
sensitivity higher and repeat this test
CFO4C_ANGE_Manuel_AC527_ROW.indd 7 19-02-05 09:32

8
• Test your monitor before first use
• Prior to use and on a regular basis (before placing your child in the cot) always check the
Sensor Pad is detecting no movements or vibrations in its environment
• Test your monitor every time you move the Sensor Pad to a different place
IMPORTANT

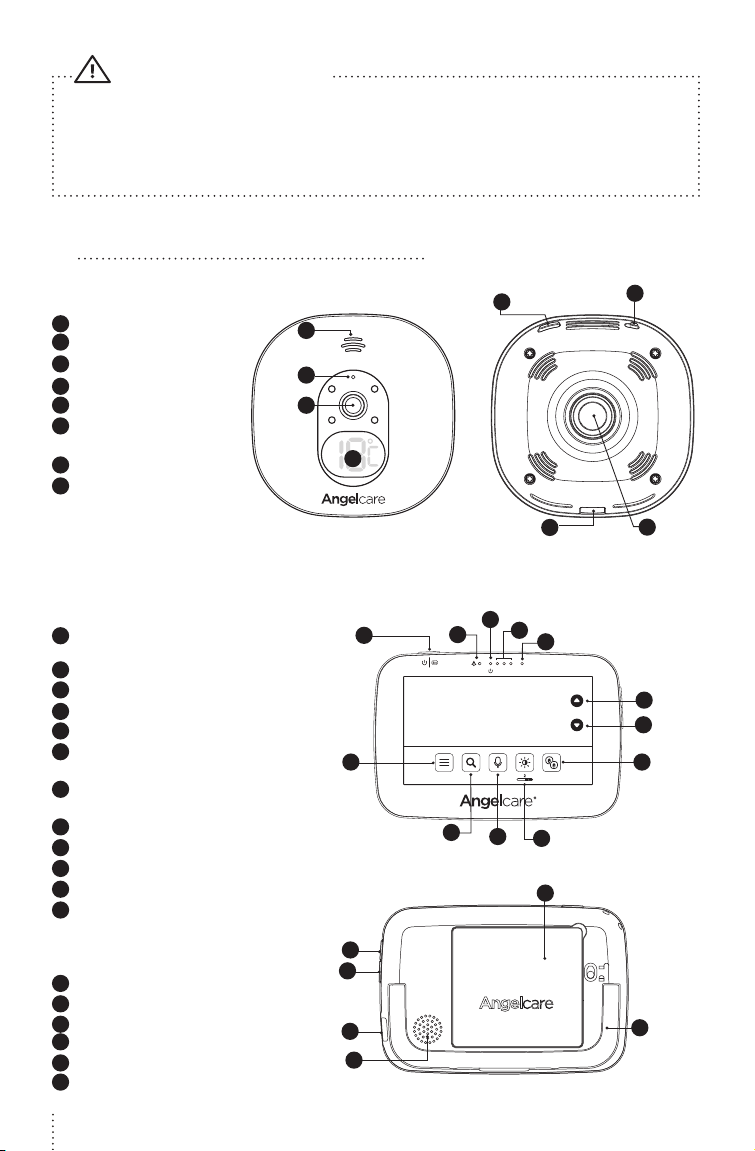

5GETTING TO KNOW YOUR MONITOR
NURSERY UNIT
1Speaker
2Microphone
3Camera Lens
4Temperature Indicator
5Micro USB port
6Pause Sensor Pad
/ Pairing button
7Power ON/OFF
8Magnet for tabletop stand
and wall mount
FRONT SIDE REAR SIDE
1
2
3
5
7
6
8
4
PARENT UNIT
1Power ON/OFF (Press & Hold)
/ Sleep mode (Quickly press & release)
2Movement indicator (TIC function)
3Power indicator
4Visual sound indicator
5Microphone
6Navigation up (appear only for
certain functions)
7Navigation down (appear only for
certain functions)
8Main Menu
9Zoom & pan feature
10 Talk-back
11 Screen brightness
12 View mode
(only if there are 2 Nursery Units
connected)
13 Volume up
14 Volume down
15 Micro USB charging port
16 Speaker
17 Rechargeable battery compartment
18 Folding stand
FRONT SIDE
VOLUME
+
-
AC410/AC417
PU
08/04/2016
REAR SIDE
17
15
14
13
18
16
12
3
10
911
8 12
4
5
6
7
CFO4C_ANGE_Manuel_AC527_ROW.indd 8 19-02-05 09:32

E
N
9

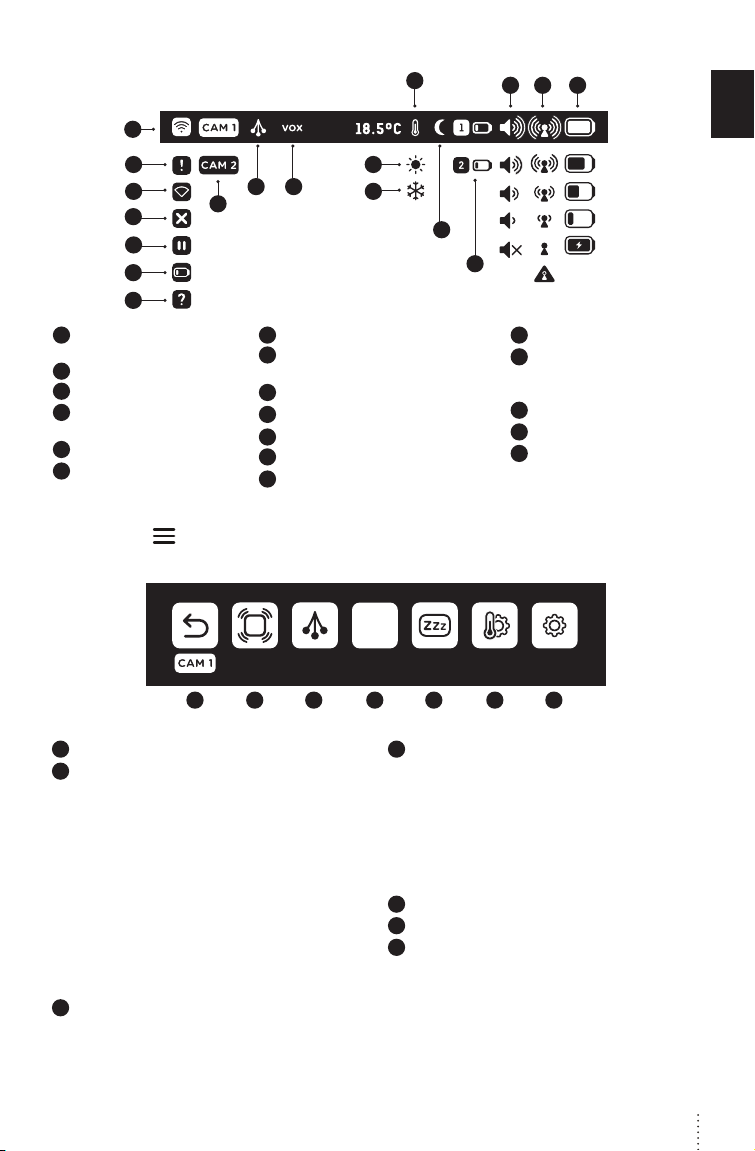

TOP STATUS BAR
1
2
3
4
5
6
7
8
9 10
12
13
11
14
15
16 17 18
1Sensor Pad movement
detection is activated
2Sensor Pad alert
3Sensor Pad lost link
4Sensor Pad movement
detection is OFF
5Sensor Pad is paused
6Sensor Pad is low battery
7Sensor Pad has never been paired
8Nursery Unit selected and
broadcasting sound
9“TIC” function is activated
10 “VOX” function is activated
11 Temperature alert is activated
12 Temperature alert: too hot
13 Temperature alert: too cold
14 Night vision is activated
15 Second Sensor Pad is low
battery (only shown if you
have 2 Sensor Pads paired)
16 Volume level indicators
17 Reception quality indicators
18 Parent Unit battery level
indicators
MAIN MENU
ON ON 3 MINOFF
VOX
21 3 4 5 6 7
1Confirm settings and go back to previous menu
2Movement Sensor Pad Activation:
ON: e Parent & Nursery Units will alarm if there
is no movement after 20 seconds
PAUSE: Allows you to pause the Sensor Pad if
you remove baby from the cot, e.g. for feeding or
comforting. e Pause icon in the status bar will
flash and the Nursery Unit temperature indicator
will show a pause “P” symbol. Ensure to un-pause
the Sensor Pad before putting baby in the cot (Turn
movement detection ON)
OFF: When your baby gets older, allows you to turn
movement detection OFF and use your monitor for
video only
3Tic Activation:
If movement detection is activated, allows you
to hear a Tic sound every 5 seconds. In the event
you have two Sensor Pads connected, the Tic
indication will flash green for Sensor Pad 1 and
blue for Sensor Pad 2
4VOX Activation: ‘Sound Activated’ (VOX ON)
means that it will transmit sounds only when
it detects them, based on the setting of the
sensitivity level. To save power, after 10 seconds,
the sound transmission will stop if no sound is
detected. Once sound is detected transmission
will automatically activate. ‘Continuous Sound’
(VOX OFF) means the sound monitoring is
continuously ON, picking up all sounds
5Sleep Mode Set-Up
6Temperature Settings
7General Settings
CFO4C_ANGE_Manuel_AC527_ROW.indd 9 19-02-05 09:32

10
• To confirm your settings, you’ll always need to press the icon. A confirmation icon will then
appear on the screen: Settings have been saved Settings have not been saved
• If you have 2 Nursery Units & 2 Sensor Pads paired with your monitor, you can only change the
settings of the viewing Nursery Unit
IMPORTANT

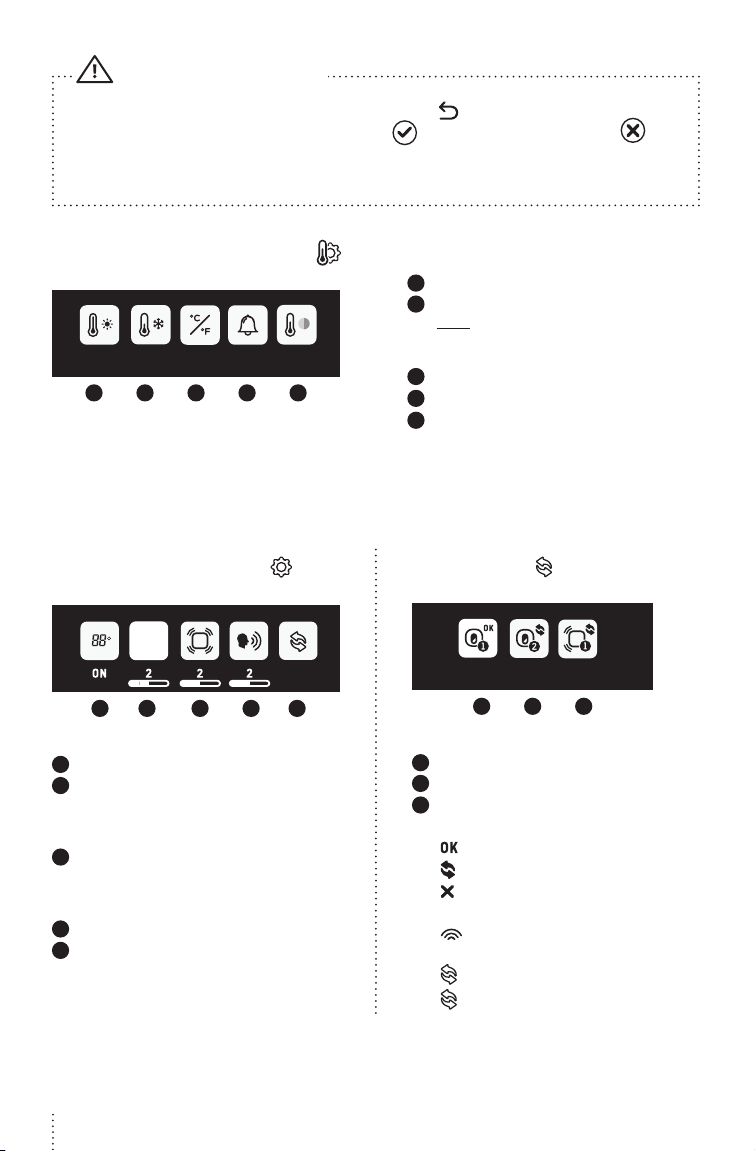

TEMPERATURE SETTINGS MENU
22 16 OFF ON
oC
1 2 3 4 5
1Set warmer temperature alarm
2Set colder temperature alarm
Note: e range between the minimum and
maximum temperature can not be less than
4°C / 7°F
3Set Celsius or Fahrenheit display
4Activate the temperature alarm
5Activate the Nursery temperature
colour code display
White: Temperature is normal
Red: Temperature is too hot
Blue: Temperature is too cold
GENERAL SETTINGS MENU
VOX
1 2 3 4 5
1Activate Nursery Unit display
2Set VOX sensitivity: e sensitivity of the
microphone is adjustable and has 4 levels (the
most sensitive is level 4). is means that sound
will only transmit based on the level that you set
3Set Sensor Pad sensitivity:
To ensure adequate monitoring of your child’s
movements, you can adjust the sensitivity of
the Sensor Pad
4Set Nursery Unit speaker volume
5Pairing Menu
PAIRING MENU
1 2 3
1Nursery Unit 1 Status
2Nursery Unit 2 Status
3Sensor Pad 1 Status
Nursery Unit and Sensor Pad Status Icons:
Green: Connected/Paired
Blue: Add a Nursery Unit or Sensor Pad
Red: Remove Nursery Unit or Sensor Pad
Confirmation process ON THE SCREEN:
Blue: ‘’Link’’ icon animation when pairing
(Linking timeout: 60s)
Green: Successful pairing
Red: Failed pairing, please try again
CFO4C_ANGE_Manuel_AC527_ROW.indd 10 19-02-05 09:32

E
N
11
ALERTS ICONS
1 2 3 5 6 74
1 11 1 1 1
1Sensor Pad alert: If after 20 seconds there is
NO movement detected both the Parent Unit and
Nursery Unit speakers will emit loud consecutive
beeps - this is the movement alarm
2Sensor Pad is paused
3Sensor Pad lost link: Parent Unit and Nursery
Unit speakers will emit loud consecutive beeps
4Sensor Pad battery is low: Parent Unit will
emit 3 consecutive beeps, every 5 seconds
5Parent Unit is out-of-range: Parent
Unit will emit 2 consecutive beeps, every
10 seconds
6Temperature is too hot: Parent Unit will
emit 3 consecutive beeps, every 5 seconds
7Temperature is too cold: Parent Unit will
emit 3 consecutive beeps, every 5 seconds
Note: Press any key to stop alarm and make the alert icon disappear
In the case of a Sensor Pad alarm, the monitor will Pause the Sensor Pad. In Pause mode, the
movement detection feature is disabled. To reactivate the Sensor Pad, simply un-pause the
Sensor Pad into the first menu
6ADDING ACCESSORIES
Your Angelcare monitor allows you to add an additional Nursery Unit and Sensor Pad. Please contact
your local distributor to see what is available in your country
IMPORTANT:
• When using two Nursery Units you will only be able to hear audio from one Nursery Unit at a
time (Nursery Unit sound transmitted is highlighted in the info bar). In split screen, the sound
transmitted from the Nursery Unit will be indicated on the screen by a speaker icon shown to
the right of the CAM icons
• When using two Sensor Pads with one Monitor, it is recommended that each Sensor Pad is
located in separate rooms
7 TROUBLESHOOTING
TAKING CARE OF YOUR RECHARGEABLE BATTERY
• Ensure that you fully charge your battery for 8 hours before its first use.
• To maintain maximum battery life, it is recommended that you fully discharge your battery periodically. If your
Parent Unit is not in use, please turn it OFF.
NO SOUND IS BEING TRANSMITTED
• Check the volume level on the Parent Unit and the Nursery Unit to ensure they are set to an appropriate level.
• Try bringing the Parent Unit closer to the Nursery Unit to see if you get sound.
CFO4C_ANGE_Manuel_AC527_ROW.indd 11 19-02-05 09:32

12
• Charge the Parent Unit.
WEAK RECEPTION
• Bring units closer together.
• Change the position of one or both units.
• Place units on a flat surface away from baby’s reach.
• Recharge the Parent Unit.
STATIC, DISTORTION, INTERFERENCES FROM OTHER MONITORS, WIRELESS PHONES,
WALKIETALKIES, ETC.
• Rotate Parent Unit or move it away from source of interference.
FEEDBACK LOUD NOISES EMITTED FROM THE PARENT UNIT
• Move units further apart (at least 3 metres).
• Decrease volume on Parent Unit.
THE PARENT UNIT SCREEN IS BLACK PARENT UNIT IS OFF
• Turn the Parent Unit back ON by pushing and holding the POWER ON/OFF button for 2 seconds.
• Recharge the Parent Unit.
MOVEMENT SENSOR PAD  NO ALARM
• Sources of vibration & movement other than your baby’s can be detected by the Sensor Pad and the alarm will not
sound.
• Refer to Warnings 3 to 11 and see STEP 4, TEST THE SENSOR PAD.
MOVEMENT SENSOR PAD  FALSE ALARMS
• Replace the Sensor Pad battery CR2450.
• Turn OFF the Nursery Unit.
• Sensor Pad False alarms may happen for several reasons, always be sure to immediately check on baby whenever an
alarm sounds:
- Nursery Unit has not been turned OFF after you have removed your baby from the cot
- Make sure there is no bedding between the mattress and the Sensor Pad
- Sensor Pad has not been placed under the mattress properly. Be sure the Sensor Pad is on a flat, firm surface
with the printed side facing up
- e sensitivity level may also need to be adjusted
• Refer to Warnings 3 to 11 and see STEP 4, TEST THE SENSOR PAD.
NO SOUND IS BEING TRANSMITTED:
• Check that both units are powered ON.
• Check that Parent Unit is not on MUTE.
HOW TO CHECK THE PARENT UNIT BATTERY:
• Unplug the adaptor from the Parent Unit and check the battery level indicator.
CFO4C_ANGE_Manuel_AC527_ROW.indd 12 19-02-05 09:32

E
N
13
LOSS OF CONNECTIVITY BETWEEN THE NURSERY UNIT AND PARENT UNIT
If your Nursery Unit becomes un-paired from your Parent Unit, please follow the steps below to re-pair them.
1. Turn ON the Parent Unit and keep the Nursery Unit
OFF
2. Press Main Menu button
3. It will directly jump to General setting menu. Press
the Pairing Icon
4. In the Pairing Menu, press Nursery Unit 1 Icon
• If Nursery Unit 1 is marked as connected press
it to go the Nursery Unit 1 Pairing option. You will now
need to remove it by pressing the red icon .
e linking icon will appear on the screen until
Successful Pairing Icon appears on the screen.
You’ll now be able to proceed with step 4
5. e Linking Icon will appear on the screen
6. Turn ON the Nursery Unit and press and hold its
“pause/pairing” button until the temperature
indicator starts blinking while pairing
7. If the connection has been made, the Green
Successful Pairing Icon will appear on the screen
and the menu will show the OK Paired Icon
8. Otherwise, the Red Failed Pairing Icon will appear
on the screen. You will need to try again
6
3
4
VOX
LOSS OF CONNECTIVITY BETWEEN THE SENSOR PAD AND THE NURSERY UNIT
If your Sensor Pad becomes un-paired from your Parent Unit, please follow the steps below to re-pair them. In order
to reconnect your Sensor Pad to your Nursery Unit, you need to make sure the Nursery Unit is paired with the Parent
Unit first.
1. Remove the battery of the Sensor Pad
Note: If you have two Sensor Pads, you will need to
remove the battery from both of them first and then
follow the steps below
2. Press Menu icon
3. Press the General setting menu
4. Press the Pairing Icon
5. In the Pairing Menu, press Sensor Pad 1 Icon
• If Sensor Pad is marked as connected
press it to go the the Sensor Pad Pairing option.
You will now need to remove it by pressing the
red icon . e linking icon will appear on the
screen until Successful Pairing Icon appears
on the screen. You’ll now be able to proceed
with step 5
6. Insert the battery into the Sensor Pad. It will
automatically activate it
7. If the connection has been made, the Green
Successful Pairing Icon will appear on the
screen and the menu will show the OK Paired
Icon
8. Otherwise, the Red Failed Pairing Icon will
appear on the screen. You will need to try again
4
5
3
VOX
ON ON 3 MINOFF
VOX
6
CFO4C_ANGE_Manuel_AC527_ROW.indd 13 19-02-05 09:32

14
Angelcare® warrants to the original owner of this
product that Angelcare® monitor is free from any
material and workmanship defects for the term of
the warranty period (see warranty table below to
determine the warranty for your country). If this
monitoring system fails to function properly when used
as directed under normal conditions and during the
warranty period, Angelcare® will either repair or replace
the product, at our discretion, free of charge. Please
contact your local distributor to validate warranty and
warranty period.
e product must be accompanied by a proof of
purchase, either a bill of sale or other proof that the
monitoring system is within the warranty period.
Angelcare® will bear the cost of repairing or replacing
the product and shipping it back to you.
is warranty does not apply to a product which
has been damaged as a result of improper
maintenance, an accident, improper voltage
supply or any other form of misuse. e warranty
is also void if the owner repairs or modifies the
product in any way. Angelcare® is not liable
for any incidental or consequential damages
with regard to this product. e warranty also
excludes any liability other than what is stated
above. No other warranty is given.
is warranty does not cover products and accessories
which are not Angelcare®-branded, or any problems
that result from usage that is not in accordance with
product instructions, failure to follow the product
instructions, or problems caused by using accessories,
parts or components not supplied by Angelcare.
LEGAL RIGHTS VARY FROM COUNTRY TO COUNTRY.
SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
WE ARE NOT IN ANY WAY RESPONSIBLE FOR ANY OUTCOME
RESULTING FROM THE USE OF THIS PRODUCT.
CUSTOMER CARE  LIMITED WARRANTY
Warranty term per country
North America, UK, South Africa, Russia 1 year
Other countries 2 years
14
CFO4C_ANGE_Manuel_AC527_ROW.indd 14 19-02-05 09:32

E
N
15
Range:
Open field (Open area without obstructions):
• Between the Nursery Unit and the Parent Unit:
up to 250 metres
• Between the Nursery Unit and the Sensor Pad:
up to 6 metres
Number of Channels:
Europe: 19 channels
ermometer Guidelines:
High Temperature Alarm: 22°C
Low Temperature Alarm: 16°C
Power Supply:
1 included Li-Ion battery 1300 mAh 3.7V (manufactured by
Icon Energy System (Shenzhen) Co Ltd) for the Parent Unit
2 x 100-240 V AC / 5V DC 0.6A Adaptors for the Parent
Unit and the Nursery Unit
1 included CR2450 3V battery (wireless Sensor Pad)
Caution: To reduce the risk of electric shock, do not
expose this product to rain or moisture.
Danger of explosion if batteries are incorrectly
replaced. e battery included for the Parent Unit is a
user replaceable Li-ion rechargeable battery. Only use
the Angelcare recommended replacement battery. e
battery for the Sensor Pad is a user replaceable Lithium
(not Li-Ion) battery and is NOT rechargeable. To obtain
information on replacement batteries please contact
Angelcare customer service: www.angelcarebaby.com
or contact your local distributor. Instructions will
be included with the replacement battery. Keep all
batteries away from children.
Batteries:
• CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE
Transmission:
Transmission between the Parent Unit and the Nursery
Unit is made on 2.4 GHz frequency.
Transmission between the Nursery Unit and the Sensor
Pad is made on 2.4 GHz frequency.
Maximum RF Power Transmitted:
• 20dBm (100mW) between Nursery Unit and
Parent Unit
• 4dBm (2.5mW) between Nursery Unit and
Sensor Pad
Hereby, Angelcare Monitors Inc., declares that this Baby
Monitor is in compliance with Directive 2014/53/EU. e
full text of the EU declaration of conformity is available at
the following internet address:
https://www.angelcarebaby.com/declaration-of-
conformity
RF Exposure - is device is designed and
manufactured to comply with Radio Frequency (RF)
radiation exposure limits for EU for an uncontrolled
environment. To maintain the compliance, human
exposure to the nursery unit shall not be less than
20 cm during normal operation.
PROTECT THE ENVIRONMENT
e wheelie bin symbols mean that according to
local laws and regulations your product and/or
its battery shall be disposed of separately from
household waste. When the product/battery
reaches its end of life take it to a collection point
designated by local authorities. e separate
disposal and recycling will help conserve natural
resources and protect human health and the
environment. Refer to User’s Guide for removal of
batteries.
ErP Compliance
USE ONLY THE FOLLOWING ANGELCARE® BRAND
POWER SUPPLY MODEL NUMBERS:
EU (INCLUDIG GERMANY) – MODEL NUMBER:
K05S050060G
UK – MODEL NUMBER: K05S050060B
TECHNICAL SPECIFICATIONS
See product for compliance marks specific to this device.
15
CFO4C_ANGE_Manuel_AC527_ROW.indd 15 19-02-05 09:32

www.angelcarebaby.com
IM527-ROW-28012019
Contact information
IMPORTANT! is Angelcare® monitor is a personal care product. Please do not return this product
to the store. If you have questions or need help, please call your distributor before returning this
product.
We, at Angelcare®, stand behind all of our products. If you are not completely satisfied or
have any questions, please contact your distributor before returning this product:
United States and Canada: Please contact us at: [e-mail]
Other countries: Find your local distributor by visiting our website:
angelcarebaby.com/distributeurs
TO LEARN MORE
To learn more, watch the set-up videos and other functionalities on our website.
https://angelcare.zendesk.com/hc/
Angelcare Monitors Inc.
201, boulevard de l’Industrie, local 104
Candiac (Quebec) J5R 6A6
Canada
CFO4C_ANGE_Manuel_AC527_ROW.indd 16 19-02-05 09:32
