TABLE OF CONTENTS
PREFACE.......................................................... 15
1. GENERAL DESCRIPTION WKTn ....................................... 16
1.1 Technical details
2. GENERALDESCRIPTIONWKT-Dn ..................................... 17
2.1 Technical details
3. INSTALLATION ..................................................... 18
3.1 Safety precautions
3.2 Users....................................................... 19
3.3 Unpacking................................................... 20
3.4 Placing the machine
3.5 Connection to the water supply system (model VA)
3.6 Connection to the electricity supply system.......................... 21
4. CONTROLS
5. FIRSTTIMEUSE&USE.............................................. 22
6. MAINTENANCE..................................................... 23
6.1. Descaling
7. TEMPERATURE PROTECTION ........................................ 24
8. TRANSPORT
DIMENSIONS
WKTn ............................................................ 48
WKT-Dn ........................................................... 49
2015/02 Rev. 5.0
WKTn / WKT-Dn
15 GB
PREFACE
Introduction
Congratulations on your purchase of one of our products. We hope that you will enjoy using it.
Models
This manual covers the following storage water heaters:
WKTn HA WKTn VA WKT-Dn HA WKT-Dn VA
Double walled Double walled
Manuallling Fixedwaterconnection Manuallling Fixedwaterconnection
Purpose of the appliance
The sole purpose of this appliance is to heat drinking water. The use of the appliance for other
purposes is not permitted and may be hazardous. The manufacturer cannot be held liable for losses
caused by using the appliance for purposes other than those indicated here or by incorrect use.
Guarantee conditions
The guarantee conditions applicable to this appliance form an integral part of the general terms of
delivery.
Appliances and the environment
The packing material
Your new coffee maker has been carefully packaged to protect it against damage. The packing is not
harmful to the environment and consists of the following materials:
• Corrugatedcardboard
• Fillerelementsmadeofpolyurethanefoam<PUR>coveredwithapolythenefilm(>PE-HD<).
The waste processing plant in your municipality will be pleased to inform you about where you
can dispose of the materials.
Discarding the appliance
No appliance lasts forever. When the time comes to discard your appliance it will
usually be possible to return it to your dealer. If this is not the case, ask your municipal
council about the alternatives for recycling the materials. All plastic parts have been
given standard codes. The parts of the appliance such as the printed circuit board and
accompanying parts form electrical and electronic waste. The metal pipes are made of
stainless steel and can be completely dismantled.
2015/02 Rev. 5.0
WKTn / WKT-Dn
16
GB
Read these instructions for use carefully, before using this appliance. This will protect
your safety and prevent damage being caused to the appliance. Perform the various
actions in the order given. Always keep this manual close by the appliance.

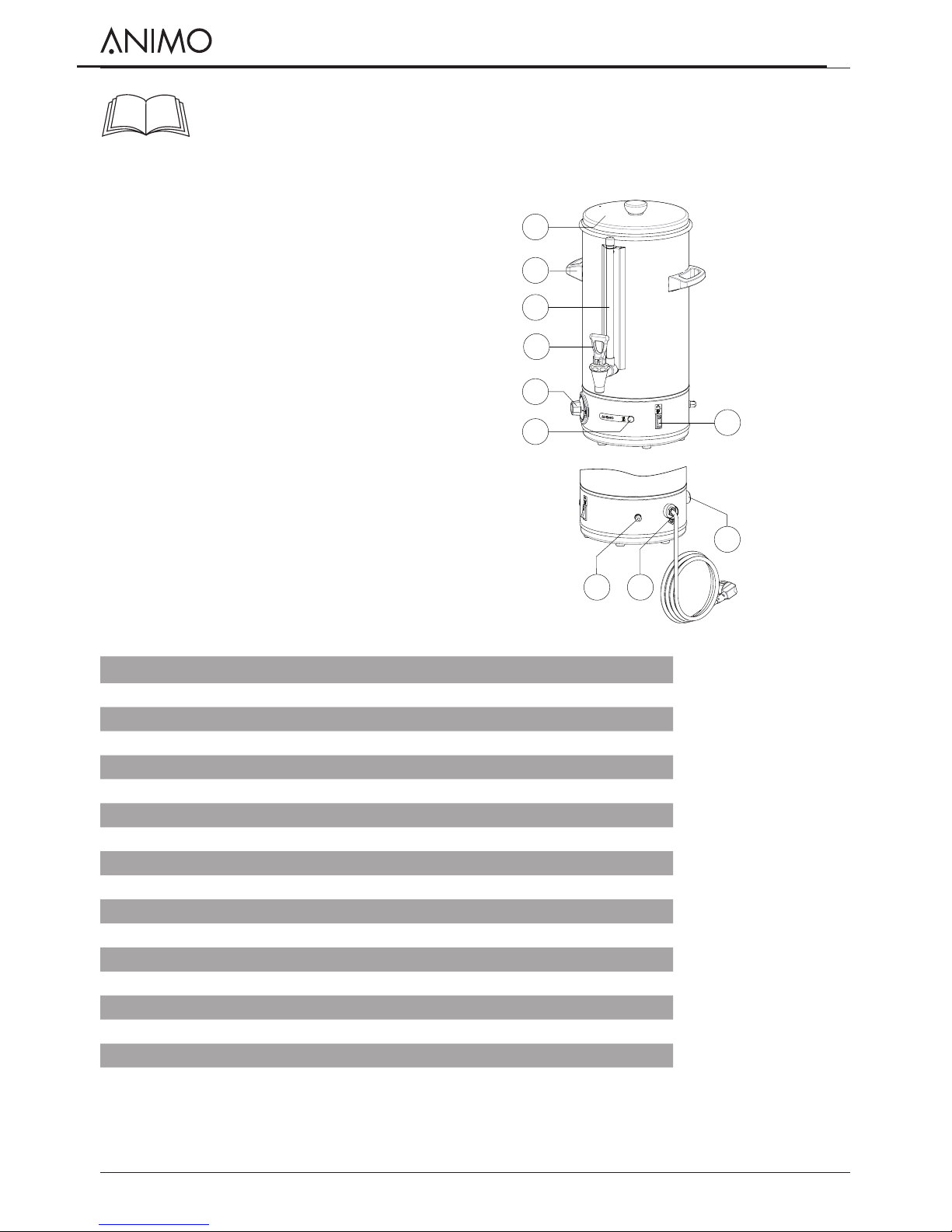

1. GENERAL DESCRIPTION WKTn
In fig. 1 the main parts are indicated.
1. Lid
2. Handle
3. Gauge with litre index scale
4. Hot water no-drip tap
5. Adjustable thermostat
6. Indicator light
7. Filling switch (model VA)
8. Dry-boil safety protection
9. Electrical supply
10. Water connection (model VA)
1.1 Technical details
Model WKTn 10 WKTn 20
Article number HA 30145 30155
Article number VA 30140 30150
Contents 10 litre 20 litre
Buffer stock hot water 8 litre 18 litre
Hour capacity (hot water) 30 liter 30 liter
Heating time (20-97°C) approx. 17 min. approx. 34 min.
Recovery time after 1,8L approx. 3,5 min approx. 3,5 min
Electrical connection* 1N~220-240V 1N~220-240V
Frequency 50-60 Cy 50-60 Cy
Power* 3200 W 3200 W
Dimensions g.7 g.8
Weight empty 5,5 kg 7,8 kg
Weightlled 15,5 kg 27,8 kg
Water system (model VA)
Water connection 3/4" outer thread 3/4" outer thread
Min. Water pressure 0,02 MPa (0,2 bar) 0,02 MPa (0,2 bar)
Max. water pressure 1 MPA (10 bar) 1 MPA (10 bar)
Technical alterations reserved
* CH / DK: 1N~220-240V / 2200W or 2N~400V 3200W
1
2
3
4
5
6 7
8 9
10
fig. 1
2015/02 Rev. 5.0
WKTn / WKT-Dn
17 GB
2. GENERAL DESCRIPTION WKT-Dn
In fig. 2 the main parts are indicated.
1. Insulated lid
2. Handle
3. Gauge with litre index scale
4. Hot water no-drip tap
5. Adjustable thermostat
6. Indicator light
7. Filling switch (model VA)
8. Dry-boil safety protection
9. Electrical supply
10. Water connection (model VA)
2.1 Technical details
Model WKT-Dn 5 WKT-Dn 10 WKT-Dn 20
Article number HA 30040 30045 30050
Article number VA 30055 30060 30065
Contents 5 litre 10 litre 20 litre
Buffer stock hot water 4 litre 8 litre 18 litre
Hour capacity (hot water) 30 liter 30 liter 30 litre
Heating time (20-97°C) approx. 9 min. approx. 17 min. approx. 34 min.
Recovery time after 1,8L approx. 3,5 min approx. 3,5 min approx. 3,5 min.
Elektrical connection* 1N~220-240V 1N~220-240V 1N~220-240V
Frequency 50-60 Cy 50-60 Cy 50-60 Cy
Power* 3200 W 3200 W 3200 W
Dimensions g.9 g.10 g.11
Weight empty 6 kg 8 kg 12 kg
Weightlled 11 kg 18 kg 32 kg
Water system (model VA)
Water connection 3/4" outer thread 3/4" outer thread 3/4" outer thread
Min. Water pressure 0,02 MPa (0,2 bar) 0,02 MPa (0,2 bar) 0,02 MPa (0,2 bar)
Max. water pressure 1 MPA (10 bar) 1 MPA (10 bar) 1 MPA (10 bar)
Technical alterations reserved
* CH / DK: 1N~220-240V / 2200W or 2N~400V 3200W
1
2
3
4
5
6 7
8 9 10
fig. 2
2015/02 Rev. 5.0
WKTn / WKT-Dn
18
GB
3. INSTALLATION
■ Onlysuitableforindooruse
■ Notsuitableforuseinhumidareas
■ Notsuitableforareaswithexplosionhazard
3.1 Safety precautions
General safety precautions
• Makesurethattheenvironmentaroundthemachineisdry,cleanandlitsufficientlywell.
• Keepawayfrommovingparts.
• Useanimoreplacementpartsonly.
• Useanimorecommendedproductsonly
During installation
• Placethemachineinhorizontalpositionatworktopheightonafirmandflatsurface.
• Keepsufficientspacearoundthemachineforventilation.
• Keepthefrontandbacksidesofthemachineaccessibleformaintenanceandrepairpurposes.
• Plugthemachineintoasafety-groundedpoweroutlet.
• Ifthemachineisdeliveredwithafixedsupplycord,incorporateameansfordisconnectioninthe
fixed wiring, in accordance with the wiring rules.
• Makesurethemachinedoesnotleak.
• Donotplacethemachineinanareawhereawaterjetcouldbeused.
• Observelocalregulationsanduseapprovedmaterialsandparts.
• Checkifthedetailsonthetypeplatecorrespondtothecountry.
• Donotplacethemachineinanareawithtemperaturesbelow0°c.theambienttemperaturefor
correct operation is between 0°c and 40°c.
During normal operation
• Inspectthemachinefordamagebeforeuse.
• Donottiltthemachine.
• Donotsubmergeorhosedownthemachine.
• Donotusesharpobjectstooperatethemachine.
• Keeptheoperatingcontrolsfreeofdirtandgrease.
• Ensuretheambienttemperatureisalwaysbetween0°cand40°c.
• Switchoffthemachineandunplugthewatersupplywhenthemachineisnotusedforalonger
period of time.
During maintenance and repair
• Performregularmaintenanceonthemachine.
• Donotcleanthemachineusingawaterjet.
• Theambienttemperatureforcorrectoperationisbetween0°Cand40°C.
Caution
If the machine is nevertheless frozen:
1. Switch off the machine.
2. Unplug the machine from mains power.
3. Unplug the water supply.
4. Contact the dealer or service engineer.
2015/02 Rev. 5.0
WKTn / WKT-Dn
19 GB
• Wearprotectivegloveswhenperformingmaintenance.
• Donotleavethemachineduringmaintenance.
• Makesurethattherepairsareperformedbytrainedandauthorisedpersonnelonly.
• Unplugthemachinetoperformmaintenanceregardingerrormessages.
WARNING
To entirely uncharge the machine, unplug the machine.
Replacement instructions
• Ifthepowersupplycordisdamaged:
- If a separate supply cord is delivered with the machine, replace it by a new supply cord in order
to avoid a hazard. Use Animo replacement parts only.
- If the machine is delivered with a fixed supply cord, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
• Alwaysusethenewhose-setsuppliedwiththemachine.Oldhose-setsorotherhose-setsshould
not be used.
WARNING
To entirely uncharge the machine, unplug the machine.
3.2 Users
Personnel qualifications
• Themachineisdesignedonlyforpersonnelbeing8yearsorolder.Considertherespectivenational
regulations for occupational safety and health.
• Themachinemustnotbeoperatedbychildrenorpersonswithreducedphysical,sensoryormental
capabilities, or lack of experience and knowledge, unless:
- they are under supervision, or
- they have been instructed how to use the machine in a safe way, and they understand the
hazards involved.
• Childrenmustnotplaywiththemachine.
• Cleaningandusermaintenanceshallnotbemadebychildrenwithoutsupervision.
• Onlypersonnelwhohavebeengivenpermissionareallowedtoworkwiththemachine.
• Allpersonnelmustonlycarryouttheworktheyhavebeentrainedtoperform.Thisappliestoboth
maintenance work and the normal machine operation.
• Allpersonnelworkingwiththemachinemusthavefreeaccesstotheapplicablemanuals.
• Theoperatorsmustbefamiliarwithallsituationsthatmayoccursothattheycanactrapidlyand
effectively in the event of emergencies.
2015/02 Rev. 5.0
WKTn / WKT-Dn
20
GB
Personal and food hygiene
The machine processes drinks for human consumption. So the highest standards of hygiene are to be
maintained within the process area.
Caution
As an operator, you should have received training in personal and food hygiene from your
employer(s). If you have not, do not use the machine or enter the process area.
Arrange training with your supervisor or training manager. Working in the process area
without a good understanding of hygiene can lead to contamination of drinks.
•Washyourhandsthoroughlybeforeenteringtheprocessarea.
•Removeyourwatchandanyloosejewellerybeforeenteringtheprocessarea.
•Makesurethatthemachineiscleanedregularly.
3.3 Unpacking
The machine has been carefully packed to prevent damage being caused to your new appliance.
Remove the packing carefully without using sharp objects. Check if the appliance is complete.
To protect the stainless steel parts from scratches these surfaces are temporary protected
by a foil. This foil must be removed during installation.
The appliance is delivered with the following accessories:
WKTn WKTn WKT-Dn WKT-Dn
HA VA HA VA
Lid 1 1 1 1
Transport disk - - 1 1
Water supply hose 1.5m (model VA) - 1 - 1
1 sachet scale remover 1 1 1 1
Spare gauge glass (integrated) - - 1 1
This manual 1 1 1 1
Please contact your dealer in case parts are missing or damaged.
3.4 Placing the machine
■ Placetheapplianceatbuffetheightonafirm,levelbasethatcanwithstandtheweight
of the machine when filled.
■ Makesurethattheapplianceislevelandplacedsomewherewhereitwillnotcause
damage should leakage occur.
■ Thepowerconnectionmustbewithinhalfametreofwherethemachineispositioned.
3.5 Connection to the water supply system (model VA)
■ Theappliancerequiresawaterstopvalvenearthemachine.
■ Connecttheprovidedwaterhosebetweenthecoldwatersupplyandthewaterconnectiononthe
back of the unit. The hose has a length of 1.5 m.
2015/02 Rev. 5.0
WKTn / WKT-Dn
21 GB
3.6 Connection to the electricity supply system
Depending on the model, the appliance should be connected according to the instructions in (fig. 3).
■ For240V1phasewithplugsocket.
■ For240V1phase(3-corecable).
The following remarks apply to fig. 3:
■ Iftheplugfittedontheelectriccabledoesnotfitinyoursocket,youhavetoreplaceit
with a suitable one.
■ Thereplacedplugshouldbethrownawayasitcanbedangerousifpluggedinasocket.
The following points should be observed when wiring a new plug:
1. The green/yellow-coloured wire (“EARTH”) should be connected to the terminal which is
either marked with the letter “E”, the “earth” symbol ( ), coloured green or green/yellow.
2. The blue-coloured wire (“NEUTRAL”) should be connected to the terminal which is either
marked with the letter “N” or coloured black.
3. The brown-coloured wire (“PHASE”) should be connected to the terminal which is either
marked with the letter “L” or coloured red.
IMPORTANT!
The 3 core main cable (fig. 3) has the
following wiring code:
4. CONTROLS
A. Adjustable thermostat /
ON/OFF
B. Heating indicator light
C. On/Off switch filling system
(model VA)
Green/yellow - Earth (E)
Blue - Neutral (N)
Brown - Phase (L)
fig. 3
A
B
C
fig. 4
2015/02 Rev. 5.0
WKTn / WKT-Dn
22
GB
5. FIRST TIME USE & USE
This chapter will explain the coffee brewing and hot water system process: when the appliance is
used for the first time. When the appliance has not been used for more than one week, for example
after a holiday period.
Model HA (manual filling)
1. Remove the cover of the storage water heater.
2. Fill the storage water heater with water, while reading out the litre index scale. Never overfill the
reservoir!
3. Always put the cover on the storage water heater.
4. Put the plug fitting in the wall socket and switch the machine on by turning the thermostat to the
required temperature (fig. 3A).
5. The indicator light (fig. 3B) will now be on until the water has reached the required temperature.
6. When the indicator light switches off, the storage water heater is ready for use. During use the
indicator light will regularly switch on and off, to show that the water is heating up.
7. Regularly check (after draining of hot water) if the water heater needs to be refilled.
Draw off an amount of hot water, when the machine is used for the first time.
Model VA (water connection)
1. Remove the cover of the storage water heater.
2. Fill the reservoir with a minimum of 4 litres water and put the cover back on the storage water
heater.
3. Connect one side of the water supply hose between the swivel joint at one side on the back of the
machine and the other side to a manually operated water stop valve.
4. Put the plug in the wall socket and switch the machine on by turning the thermostat to the required
temperature (fig. 3A).
5. The indicator light (fig. 3B) will now be on until the water has reached the required temperature.
6. Open the manually operated water stop valve and make sure that the swivel connections are not
leaking.
7. Activate the filling system by turning the switch (fig. 3C). The storage water heater starts to fill
and stops automatically when the reservoir is full.
8. When the indicator light switches off, the storage water heater is ready for use. During use the
indicator light will regularly switches on and off, to show that the water is heating up.
Draw off an amount of hot water, when the machine is used for the first time.
2015/02 Rev. 5.0
WKTn / WKT-Dn
23 GB
WARNING
• Staynearthemachinewhilemaintenanceisbeingcarriedout.
• Whendescaling,alwaysfollowtheinstructionsofthescaleremoverused.
• Itisadvisabletowearsafetyglassesandglovesduringdescaling.
• Allowthemachinetorunthroughatleastthreetimestorinsethesolutionfromthesystemafterit
has been descaled.
• Theapplianceshouldnotbesubmergedorhosedoff.
• Makesurealltherepairstotheappliancearecarriedoutbyaqualifiedtechnician.
6. MAINTENANCE
■ Cleanthemachinewithacleandampcloth.
■ Avoidusingabrasive.Itcancausescratchesanddimspots.
■ Removescaledepositsbyusingscaleremover.
6.1 Descaling
During operation scale will develop in the machine. Therefore the machine needs to be descaled
approx. once a month to guarantee the lowest energy consumption and proper functioning.
When to descale?
■ Dependingonthefrequencyofuseandhardnessofwaterused,weadvisetoinspectthe
unit regularly for scale formation.
■ Removethecoverofthestoragewaterheaterregularly.Ifthereisloosescaleonthebottom
or if there is severe scale formation on the walls, then the unit needs to be descaled.
■ Insomecasesitissufficienttoonlyremovetheloosescale.
1. Switch off the machine and remove the plug from the wall socket.
2. Remove the cover from the storage water heater.
3. Turn the machine upside down over the sink. The loose scale will come out.
4. If there isn’t any scale in the machine anymore, it taken into use again.
Consult section 5 “Preparation before use”.
To remove remaining scale use Animo scale remover.
5. Carefully read the caution notice and the directions on the sachet Animo scale remover.
6. Dissolve 1 sachets of 50 gram Animo scale remover into 2 litres of warm water.
7. Fill the hot water reservoir with the solution. This will now undergo a reaction with the scale
deposits.
8. Allow the solution to soak in for about 10 minutes until the frothing has stopped.
9. Tap some of the acid off and pour it back into the reservoir.
10. Turn the machine upside down above the sink. Rinse the reservoir and the hot water tap, clean
with hot water.
11. If there is no scale left in the machine anymore, it taken into use again. Consult section
5 “FIRST TIME USE & USE”.
2015/02 Rev. 5.0
WKTn / WKT-Dn
24
GB
7. TEMPERATURE PROTECTION

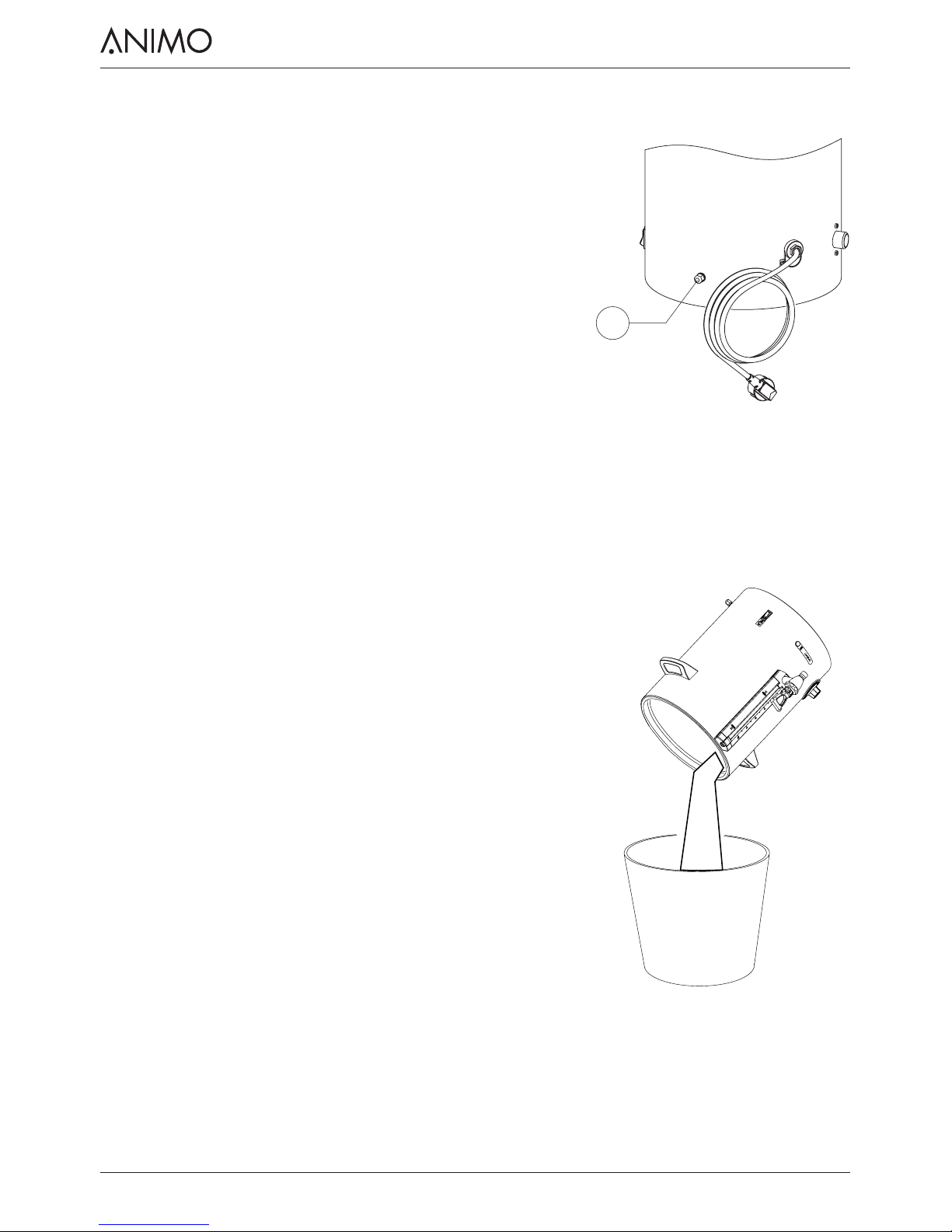

There is a temperature protection in the machine that can be
accessed from the outside of the machine. This protection is
located at the back of the machine (fig. 5A). It is activated when
the temperature gets too high. The most common cause for
activating the security is scale that has not been removed in time.
If the temperature protection is activated, you should proceed with
the following steps:
1. Let the unit cool down.
2. Unscrew the black protection cover.
3. Push the button that now appears, replace its black cover
and fasten it tightly.
If the dry-boil protection triggers owing to increased scale
deposits, descale the appliance. See chapter 6.1. Consult your
dealer if the fault was caused by a problem other than the dry-boil
protection being triggered.
8. TRANSPORT
The transport of the machine should be done as follows:
1. Switch the machine off and remove the plug from the wall socket.
2. Close the tap of the cold water supply and disconnect the water
hose (VA).
3. Remove the cover of the reservoir.
4. Turn the machine upside down to let the remaining water out
above the sink.
5. Place the cover again.
6. The machine is now ready for transportation.
7. Proceed with section 3 “INSTALLATION” to reinstall the machine.
fig. 6
A
fig. 5
2015/02 Rev. 5.0
WKTn / WKT-Dn
293
140
506
356
Ø224
385
4
20
137
Ø304
560
WKTn 10 HA/VA

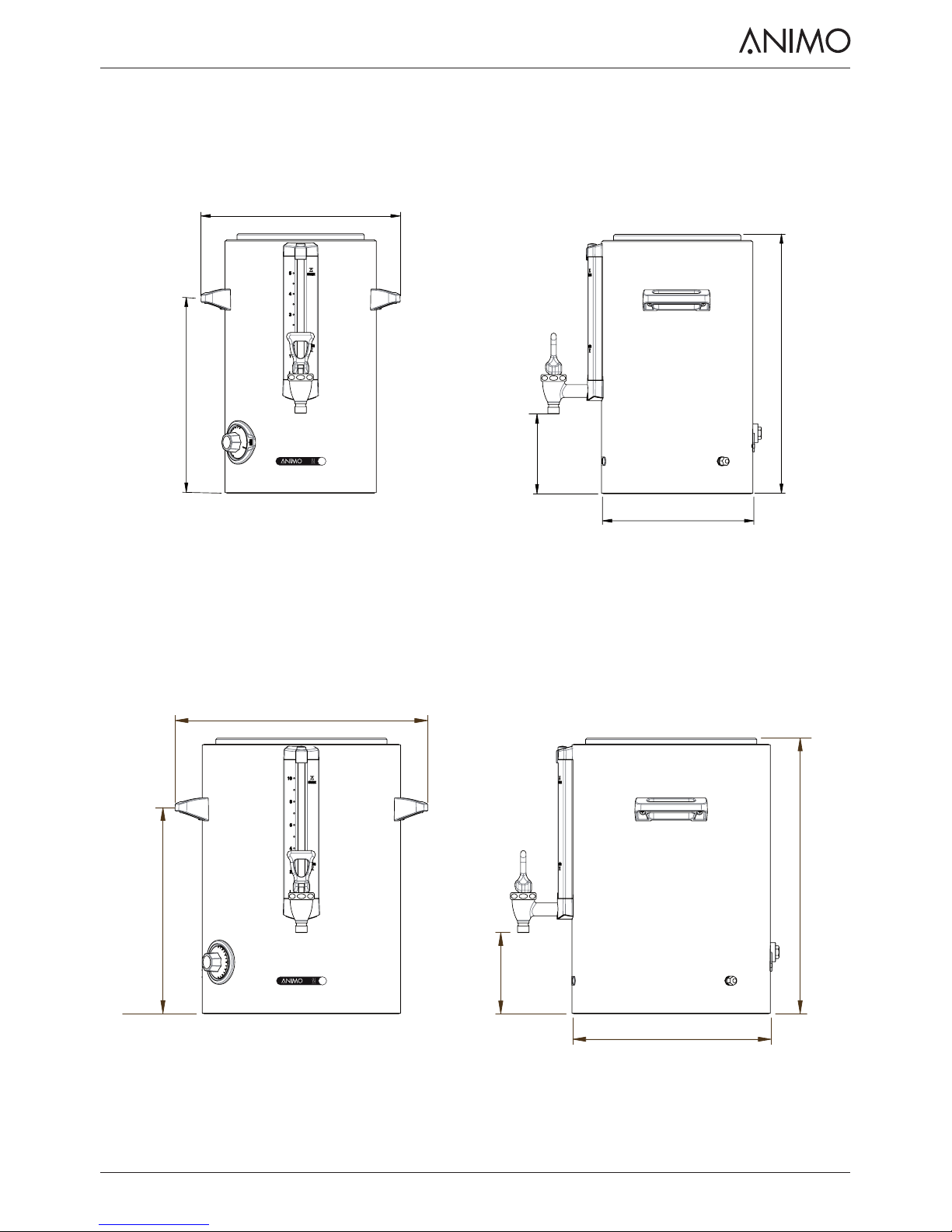

Afmetingen / Dimensions / Abmessungen / Dimensions
WKTn 20 HA/VA
293
140
506
356
Ø224
385
4
20
137
Ø304
560
fig./ Abb. 7
fig./ Abb. 8
48
2015/02 Rev. 5.0
WKTn / WKT-Dn
Ø237
125
305
312
125
390
515
Ø355
446
125
384
Ø306
425
321
407
Ø237
125
305
312
125
390
515
Ø355
446
125
384
Ø306
425
321
407

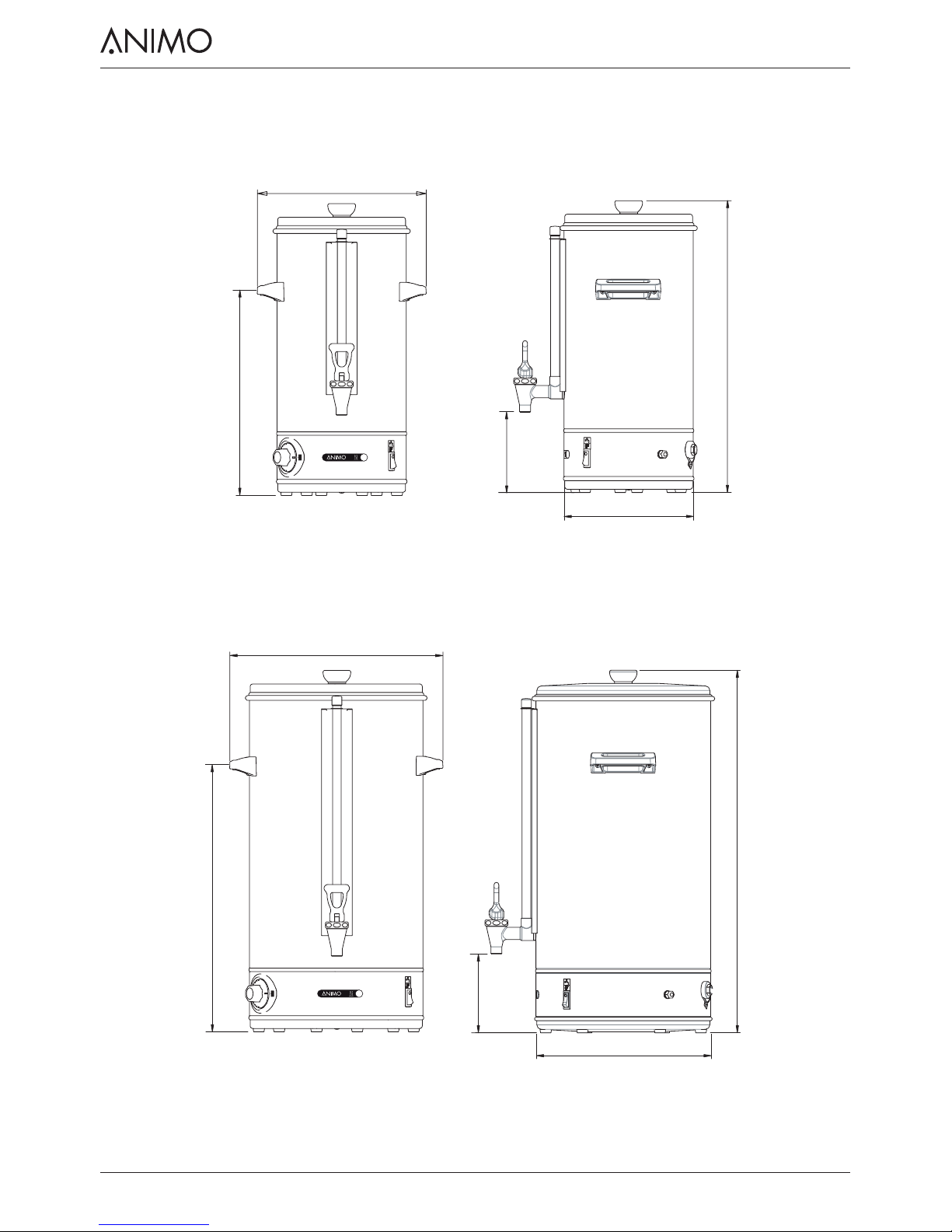

Afmetingen / Dimensions / Abmessungen / Dimensions
WKT-Dn 5 HA/VA
WKT-Dn 10 HA/VA
fig./ Abb. 9
fig./ Abb. 10
49
2015/02 Rev. 5.0
WKTn / WKT-Dn
Ø237
125
305
312
125
390
515
Ø355
446
125
384
Ø306
425
321
407
WKT-Dn 20 HA/VA fig./ Abb. 11
Afmetingen / Dimensions / Abmessungen / Dimensions
50
2015/02 Rev. 5.0
WKTn / WKT-Dn
51
Animo B.V.
Dr. A. F. Philipsweg 47
P.O. Box 71
9400 AB Assen
The Netherlands
Tel: +31 (0) 592 376376
Fax: +31 (0) 592 341751
E-mail: [email protected]
www.animo.eu
2015/02 Rev. 5.0 09798
This manual suits for next models
3
Table of contents
Other Animo Water Dispenser manuals
Popular Water Dispenser manuals by other brands
QualityWaterForLess.com
QualityWaterForLess.com Fleck 5600SXT Meter Installation & start-up instructions
Elkay
Elkay HTHBHVR8BL Series owner's manual
Alphacool
Alphacool Eisstation 40 DC-LT-Reservoir manual
Royal Sovereign
Royal Sovereign RWD-250W owner's manual
EOS Hitech
EOS Hitech Lydia 8080 user manual
ION
ION 901 owner's manual
