Anker PowerConf S3 User manual

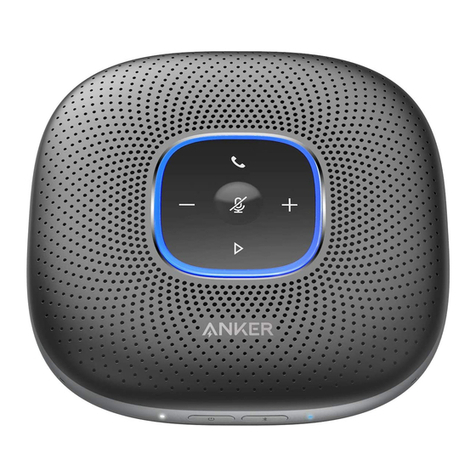

Anker PowerConf S3
User Manual
A3302 51005002332 V01

EN 01
At a Glance
4 6
8 9 107
2 31 5
131211
1Multi-function button 8Power button
2
Volume down button
9
Bluetooth button
3Mute button 10 Bluetooth LED
4Phone call button 11 USB port (Type-A) for charge-out
5Volume up button 12 Audio output port
6
Status LED
13
USB port (Type-C) for charge-in
7Power LED
English 01
Deutsch 09
Español 17
Français 25
Italiano 33
Português 41
Pусский 49
日本語 57
한국어 65
简体中文 73
繁體中文 81
89
97

EN 03
Connecting
a) Connect to your PC by using a USB-C cable
b) Connect to your PC or mobile device via Bluetooth
pairing
When powered on for the rst time, PowerConf S3 will automatically enter the
Bluetooth pairing mode.
Anker PowerConf S3
Flashes blue Bluetooth pairing
Steady blue Bluetooth connected
• Each time you power on PowerConf S3, it will automatically connect with
the last successfully connected device if available.
• To disconnect Bluetooth, press the Bluetoth button again.
Powering On/Off
Press and hold the power button for 2 seconds to power on. The status LED
will light on clockwise and then fade out.
To power off, press and hold the power button for 2 seconds.
2”

04 EN EN 05
• PowerConf S3 will automatically power on once connected to your PC.
• PowerConf S3 will automatically power off after 30 minutes of inactivity or
no source.
Button Controls
Press or press and hold Volume up/down
Press Answer/End a call
Press and hold for 2 seconds Reject a call
Press Mute or restore the
microphone
Press Play/Pause music
Status LED
Lights up white for 2 seconds Connected to power or PC
Breathes green Coming call
Partially lights up blue Sound direction detected
Lights up blue clockwise or
counterclockwise Increase/Decrease volume
Turns red Muted
Lights up green Press Power button to check the battery
level
Charging
a) Charging PowerConf S3

06 EN EN 07
b) Charging an external device
• When powered off or being charged, PowerConf S3 won’t charge out.
• When the remaining battery is less than 30%, the charge out current will
be 5V 1A; if less than 10%, PowerConf S3 won’t charge out.
Audio Output
Connect an external speaker to the AUX OUT port of PowerConf S3 by using
an AUX cable (not provided). The audio will be played through the speaker.
Soundcore App
Download the Soundcore App for software updates.
Soundcore
Apple and the Apple logo are trademarks
of Apple Inc.
Google Play and the Google Play logo are
trademarks of Google Inc.

DE 0908 EN
Specifications
Specications are subject to change without notice.
Charge input 5V 2A
Charge out 5V 2.1A
Rated output power 3W RMS
Battery capacity 6700 mAh
Charging time 4 hours
Talktime 24 hours
Driver size 1 x 1.75” (full range)
Frequency response 20 Hz - 20 kHz
Bluetooth version V 5.0
Bluetooth range 10 m / 33 ft
Auf einen Blick
4 6
8 9 107
2 31 5
131211
1Multifunktionstaste 8Ein-/Aus-Taste
2
Lautstärketaste (leiser)
9
Bluetooth-Taste
3Stummschalttaste 10 Bluetooth-LED
4Anruftaste 11 USB-Anschluss (Typ A) für Ausgang
5Lautstärketaste (lauter) 12 Audioausgang
6
Status-LED
13
USB-Stromanschluss (Typ C) für Eingang
7Betriebs-LED

10 DE DE 11
Verbinden
a) Verbinden mit Ihrem PC über ein USB-C Kabel
b)
Verbinden mit Ihrem PC oder Mobilgerät per Bluetooth-
Kopplung
Beim ersten Einschalten PowerConf S3 wechselt es automatisch in den
Bluetooth-Kopplungsmodus.
Anker PowerConf S3
Blinkt blau Bluetooth-Kopplung wird ausgeführt
Leuchtet blau Bluetooth verbunden
• Sobald PowerConf S3 eingeschaltet wird, verbindet es sich automatisch
mit dem zuletzt verbundenen Gerät, sofern verfügbar.
• Zum Trennen der Bluetooth-Verbindung drücken Sie erneut die
Bluetooth-Taste.
Ein-/Ausschalten
Zum Einschalten halten Sie die Ein-/Aus-Taste 2 Sekunden lang gedrückt. Die
Status -LED leuchtet im Uhrzeigersinn auf und erlischt dann langsam.
Zum Ausschalten halten Sie die Ein-/Aus-Taste 2 Sekunden lang gedrückt.
2”

12 DE DE 13
• Nachdem eine Verbindung zu Ihrem PC hergestellt wurde, schaltet sich
das Produkt automatisch ein.
• Nach 30 Minuten Inaktivität oder bei nicht vorhandener Stromquelle
schaltet es sich automatisch aus.
Bedienelemente
Drücken oder gedrückt halten Lauter/leiser
Drücken Anruf annehmen/beenden
2 Sekunden lang gedrückt halten
Anruf ablehnen
Drücken Mikrofon stummschalten oder
wiederherstellen
Drücken Wiedergabe/Pause
Status-LED
Leuchtet 2 Sekunden lang weiß An Strom oder PC angeschlossen
Blinkt grün Eingehender Anruf
Leuchtet teilweise blau Tonrichtung erkannt
Leuchtet blau im oder gegen
den Uhrzeigersinn Lauter oder leiser stellen
Rot Stummgeschaltet
Leuchtet grün
Ladevorgang
a) Auaden PowerConf S3

14 DE DE 15
b) Auaden eines externen Geräts
• Ist das Produkt ausgeschaltet oder wird es aufgeladen, können darüber
keine anderen Geräte geladen werden.
• Bei einer Akkurestladung von weniger als 30 % beträgt der Auadestrom
5V 1A; bei weniger als 10 % können darüber keine anderen Geräte
aufgeladen werden.
Audioausgang
Schließen Sie einen externen Lautsprecher mit einem AUX-Kabel (nicht
im Lieferumfang enthalten) an die AUX-Buchse dieses Produkts an.Die
Audiowiedergabe erfolgt über den Lautsprecher.
Soundcore App
Laden Sie die Soundcore App für die Software-Updates herunter.
Soundcore
Apple and the Apple logo are trademarks
of Apple Inc.
Google Play and the Google Play logo are
trademarks of Google Inc.

ES 1716 DE
Technische Daten
Änderungen der technischen Daten ohne Vorankündigung vorbehalten.
Eingang 5V 2A
Ausgang 5V 2.1A
Nennausgangsleistung 3 W RMS
Akkukapazität 6700 mAh
Ladedauer 4 Stunden
Gesprächszeit 24 Stunden
Driver-Größe 1 x 1,75" (Breitband)
Frequenzgang 20 Hz - 20 kHz
Bluetooth-Version V 5.0
Bluetooth-Reichweite 10 m
Vista general
4 6
8 9 107
2 31 5
131211
1Botón multifunción 8Botón de encendido
2
Botón para bajar el volumen
9
Botón Bluetooth
3Botón para silenciar 10 LED de Bluetooth
4Botón para llamadas
telefónicas 11 Puerto USB (Tipo A) para salida de
carga
5Botón para subir el volumen 12 Puerto de salida de audio
6
LED de estado
13
Puerto de alimentación USB (Tipo C)
para entrada de carga
7LED de encendido

18 ES ES 19
Conexión
a) Conexión con un ordenador a través de un cable USB-C
b) Conexión con un ordenador o dispositivo móvil
mediante emparejamiento Bluetooth
Al encender PowerConf S3 por primera vez, el modo de emparejamiento
Bluetooth se activará automáticamente.
Anker PowerConf S3
Azul intermitente Emparejamiento Bluetooth
Azul jo Bluetooth conectado
• Cada vez que encienda PowerConf S3, se conectará automáticamente al
último dispositivo conectado correctamente (si está disponible).
• Para desconectar el Bluetooth, pulse de nuevo el botón Bluetooth.
Encendido/Apagado
Mantenga pulsado el botón de encendido durante 2 segundos para encender el
producto. La LED de estado se iluminará en sentido horario y, a continuación, se
apagará.
Para apagar el producto, mantenga pulsado el botón de encendido durante
2 segundos.
2”

20 ES ES 21
• Tras establecer conexión con un ordenador, el producto se encenderá
automáticamente.
• El producto se apagará automáticamente después de 30 minutos de
inactividad o sin detectar una fuente.
Controles de botón
Subir/Bajar volumen Pulsar o mantener pulsado
Responder/Finalizar una
llamada Pulsar
Rechazar una llamada Mantener pulsado durante
2 segundos
Silenciar el micrófono o
restablecer el sonido Pulsar
Reproducir/Pausar la música Pulsar
LED de estado
Iluminada en blanco durante
2 segundos Conectado a la alimentación o PC
Verde intermitente Llamada entrante
Parcialmente iluminada en azul Dirección de sonido detectada
Iluminada en azul en sentido horario o
contrahorario Subir o bajar volumen
Rojo Silenciado
Carga
a) Carga del producto

22 ES ES 23
b) Carga de un dispositivo externo
• Cuando el producto esté apagado o cargándose, no suministrará salida
de carga.
• Cuando el nivel de batería restante sea inferior al 30 %, la corriente
de salida de carga será de 5 V 1 A; cuando sea inferior al 10 %, no
suministrará salida de carga.
Salida de audio
Se puede conectar un altavoz externo al puerto AUX de este producto
mediante el uso de un cable AUX (no incluido).El sonido se reproducirá a
través del altavoz.
Aplicación Soundcore
Descargue la aplicación Soundcore para las actualización de software.
Soundcore
Apple and the Apple logo are trademarks
of Apple Inc.
Google Play and the Google Play logo are
trademarks of Google Inc.

FR 2524 ES
Especificaciones
Las especicaciones están sujetas a cambios sin previo aviso.
Entrada de carga 5V 2A
Salida de carga 5V 2.1A
Valor nominal de la potencia de salida 3 W RMS
Capacidad de la batería 6700 mAh
Tiempo de carga 4 horas
Tiempo en llamada 24 horas
Tamaño del diafragma 1 × 1,75 pulg. (rango completo)
Respuesta de frecuencia 20 Hz - 20 kHz
Versión de Bluetooth V 5.0
Alcance de Bluetooth 10 m
Récapitulatif
4 6
8 9 107
2 31 5
131211
1Bouton multifonction 8Bouton d'alimentation
2
Bouton de volume bas
9
Bouton Bluetooth
3Bouton Muet 10 Voyant Bluetooth
4Bouton d'appel
téléphonique 11 Port USB (Type-A) pour la charge
d'appareils externes
5Bouton de volume haut 12 Port de sortie audio
6
LED d'état
13
Port de charge USB (Type-C)
7Voyant d'alimentation

26 FR FR 27
Connexion en cours
a) Connectez l'appareil à votre ordinateur à l'aide d'un câble
USB-C
b) Connectez l'appareil à votre ordinateur ou à votre
appareil mobile via le couplage Bluetooth
Mettez PowerConf S3 sous tension pour la première fois, il entrera
automatiquement en mode de couplage Bluetooth.
Anker PowerConf S3
Bleu clignotant Couplage Bluetooth
Bleu xe Bluetooth connecté
• Chaque fois que vous allumez PowerConf S3, il se connectera
automatiquement au dernier appareil connecté si ce dernier est
disponible.
• Pour déconnecter le Bluetooth, appuyez à nouveau sur le bouton
Bluetooth.
Mise sous/hors tension
Appuyez sur le bouton d'alimentation et maintenez-le enfoncé pendant
2 secondes pour allumer l'appareil. La LED d'état s'allumera dans le sens
des aiguilles d'une montre, puis s'éteindra progressivement. Pour éteindre
l'appareil, maintenez le bouton d'alimentation enfoncé pendant 2 secondes.
2”

28 FR FR 29
• Une fois connecté à votre ordinateur, l'appareil se met automatiquement
en marche.
• Il s'éteindra automatiquement après 30 minutes en cas d'inactivité ou en
l'absence d'une source.
Contrôles
Appuyez ou appuyez et
maintenez enfoncé Augmenter/diminuer le volume
Appuyez une fois Répondre/raccrocher un appel
Appuyez et maintenez
pendant 2 secondes Rejeter un appel
Appuyez une fois Désactiver ou réactiver le
microphone
Appuyez une fois
Lire/mettre en pause de la
musique
LED d'état
Blanc xe pendant 2 secondes Connecté à l'alimentation ou au PC
Vert clignotant Appel entrant
Partiellement bleu xe Direction du son détectée
Bleu xe dans le sens horaire ou
antihoraire Augmentation ou diminution du volume
Rouge Muet
Vert xe
En charge
a) Chargement de ce produit

30 FR FR 31
b) Chargement d'un appareil externe
• Lorsque l'appareil est éteint ou en charge, il ne permettra pas le
chargement d'un appareil externe.
• Le courant de charge sortant sera de 5 V 1 A lorsque la batterie est
inférieure à 30 % et la charge d'appareils externe n'est pas disponible si
elle est inférieure à 10 %.
Sortie audio
Branchez un haut-parleur externe à la prise AUX de ce produit à l'aide d'un
câble AUX (non fourni).Le son sera reproduit par le haut-parleur.
Application SoundCore
Téléchargez l'application SoundCore pour les mises à jour du rmware.
Soundcore
Apple and the Apple logo are trademarks
of Apple Inc.
Google Play and the Google Play logo are
trademarks of Google Inc.

IT 3332 FR
Spécifications
Les spécications sont susceptibles d'être modiées sans préavis.
Entrée de charge 5V 2A
Sortie chargement 5V 2.1A
Puissance de sortie nominale 3 W RMS
Capacité de la batterie 6700 mAh
Temps de charge 4 heures
Temps de conversation 24 heures
Taille du haut-parleur 1 x 1,75 po (plage complète)
Réponse de fréquence 20 Hz - 20 kHz
Version Bluetooth V 5.0
Portée Bluetooth 10 m/33 pi
Descrizione del prodotto
4 6
8 9 107
2 31 5
131211
1Pulsante multifunzione 8Tasto di accensione
2
Pulsante di riduzione del volume
9
Pulsante Bluetooth
3Pulsante di disattivazione audio 10 LED Bluetooth
4Pulsante chiamate telefoniche 11 Porta USB (Type-A) per
alimentazione in uscita
5Pulsante di aumento del volume 12 Porta uscita audio
6
LED di stato
13
Porta USB (Type-C) per
alimentazione in entrata
7LED alimentazione

34 IT IT 35
Connessione in corso
a) Collegare al computer utilizzando un cavo USB-C
b) Collegare al computer o al dispositivo mobiletramite
associazione Bluetooth
Quando si accende PowerConf S3 per la prima volta, entrerà
automaticamente in modalità di associazione Bluetooth.
Anker PowerConf S3
Blu lampeggiante Associazione Bluetooth in corso
Blu sso Bluetooth connesso
• Ogni volta che si accende PowerConf S3, si collegherà automaticamente
all’ultimo dispositivo collegato correttamente, se disponibile.
• Per scollegare il Bluetooth, premere di nuovo il pulsante Bluetooth.
Accensione/Spegnimento
Tenere premuto il pulsante di accensione per 2 secondi per accendere il
dispositivo. La LED di stato si accenderà e quindi diventerà più soffusa.
Per spegnere, tenere premuto il pulsante sugli auricolari per 2 secondi.
2”

36 IT IT 37
• Una volta collegato al computer si accenderà automticamente.
• Si spegnerà automaticamente dopo 30 minuti di inattività o se non viene
più fornita l’alimentazione.
Controlli pulsante
Premere o tenere premuto Aumento/Diminuzione del volume
Premere Rispondere a/Terminare una
chiamata
Tenere premuto per 2 secondi
Riutare una chiamata
Premere Disattiva o ripristina microfono
Premere Riproduzione/Pausa
LED di stato
Si accendono per 2 secondi Collegato all'alimentazione o al PC
Emissione luce verde Chiamata in arrivo
Emissione luce blu parziale Direzione audio rilevata
Emissione luce blu in senso orario o
antiorario Aumentare o diminuire il volume
Rosso Audio disattivato
Emissione luce verde
In carica
a) Ricarica del dispositivo
Other manuals for PowerConf S3
1
Table of contents
Languages:
Other Anker Telephone manuals

Anker
Anker PowerConf S330 User manual

Anker
Anker PowerConf User manual

Anker
Anker PowerConf+ User manual

Anker
Anker PowerConf S500 User manual

Anker
Anker PowerConf+ User manual

Anker
Anker PowerConf S500 User manual

Anker
Anker PowerConf User manual

Anker
Anker PowerConf S3 User manual

Anker
Anker PowerConf User manual

Anker
Anker A3301 User manual
