Ankhmaway iB001N User manual

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
User Guide V1.2
Ankhmaway Beacon iB001N & iB004N
With Eddystone Support
User Guide V1.2
Copyright © 2016 Ankhmaway all rights reserved.
Reproduction in whole or in part is prohibited without the prior written permission of the copyright holder.

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
User Guide V1.2
New features of the 3.3 version Beacon f i rmware
Improved Security
Add the brute force prevention measures of the password: Beacon would lock
automatically when the input password error consecutive for ten times. The default
lock time is half an hour, and the lock time can be dynamic configured up to ten
hours.
Add four ways to get the battery information
(1) Using the highest one of Minor value among the Beacon parameters, and
regarding the highest Minor value as the battery information. The battery
information is divided into 15 levels that is 1-15 (1-F).
(2) Using the highest two of Minor value among the Beacon parameters, and
regarding the highest two Minor value as the battery information. The battery
information is divided into 100 levels that is 1-100.
(3) Using the UUID, Major, Minor values of the Beacon parameters as the Key,
and broadcasting the key and the battery information to outside, which can be
received by scanning. The data can be broadcasted twice every 50 seconds.
(4) Using Beacon's own ID as the Key, and broadcasting the key and the battery
information to outside, which can be received by scanning. The data can be
broadcasted twice every 50 seconds.

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
User Guide V1.2
Connection Time Limit
Limiting the user's connection time, and the longest is within five minutes.
Introduct i on
Ankhmaway offers complete indoor Bluetooth BLE solutions for indoor navigation
with beacon tag hardware and open Interface to support any indoor navigation
deployment. We offer stand-alone tags and services or complete professional
services, engineering, and custom beacon tag designs. You can do everything you
want without any limit of us. For the development documents matters, please
contact us.
Product Deta il s
Ankhmaway iB004-N is developed and produced based on BLE 4.0 and iB004
has the same housing as iB004. The iB004-N module is a circuit board, a built-in
battery holder with a coin battery and housing.
It can work as an independent system. CR2450 batteries supply power for iB004-N.
Three different kinds of working modes make best use of the battery power. When
work in sleep mode, for example, it can standby for 16 years, longer than the life of
the battery itself. For developers, we provide the Android and IOS SDK, and our
hardware interface developed completely by us, so the developers can develop it
without using SDK. For iBeacon agreement, all of the parameters can be

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
User Guide V1.2
reconfigured, including Proximity UUID, Major, Minor and Power. In order to meet
different customers’needs, broadcast interval can also be set, which ranges from
100 ms to 10 s. Besides, hardware transmitted power can be configured,
configurable range is 4 dBm to -40 dBm. Low cost customizing housing would be
provided to potential customers.
Features
- Modes can be switched freely.
- Built-in Beacon firmware. Compatible with BLE.
- Built-in a coin battery (type: CR2450).
- Accurate digital RSSI. Excellent link budget (up to 97dB).
- Enable remote application, AES security coprocessor.
- High performance and low power, an available time for 5 years or more.
- Unique power management pattern, 16 years long standby time.
- Ultra wide range transmission power: 4dBm—-40dBm.
- Stable performance and controllable state.
- All hardware interface completely open. Developers do not need to rely on the
SDK for development. The requirement of hardware interface can be customized
(achieved a certain number).
- All the parameters can be configured (UUID, Major, Minor, Measured Power, TX
Power, etc.). Encrypted parameter, a password is needed when access to configure.
- Provide IOS and Android SDK.

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
User Guide V1.2
- Apple iBeacon certified.
- Support “SLEEP”and “WAKE-UP”.
- Support the background management of battery.
Ankhmaway iB004-N Parameter Default Sett i ng
-UUID: EBEFD083-70A2-47C8-9837-E7B5634DF524
-Major and minor identifier: 0x0001, 0x0001
-Default pairing password: 0x666666
-Power Value: 0xCB
-Broadcast Interval: 0x0A
-It can be rang when starting or wake-up.
-The default mode is sleep.
How to Start Us i ng
Step 1: Download the latest version eBeacon software (version 1.5.0) from apple
store
Step 2: Open the Bluetooth and eBeacon software.
Step 3: Tapping the Beacon for three to five times on hard things. Beacon can be
connected at this moment when you heard buzzing.

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
User Guide V1.2

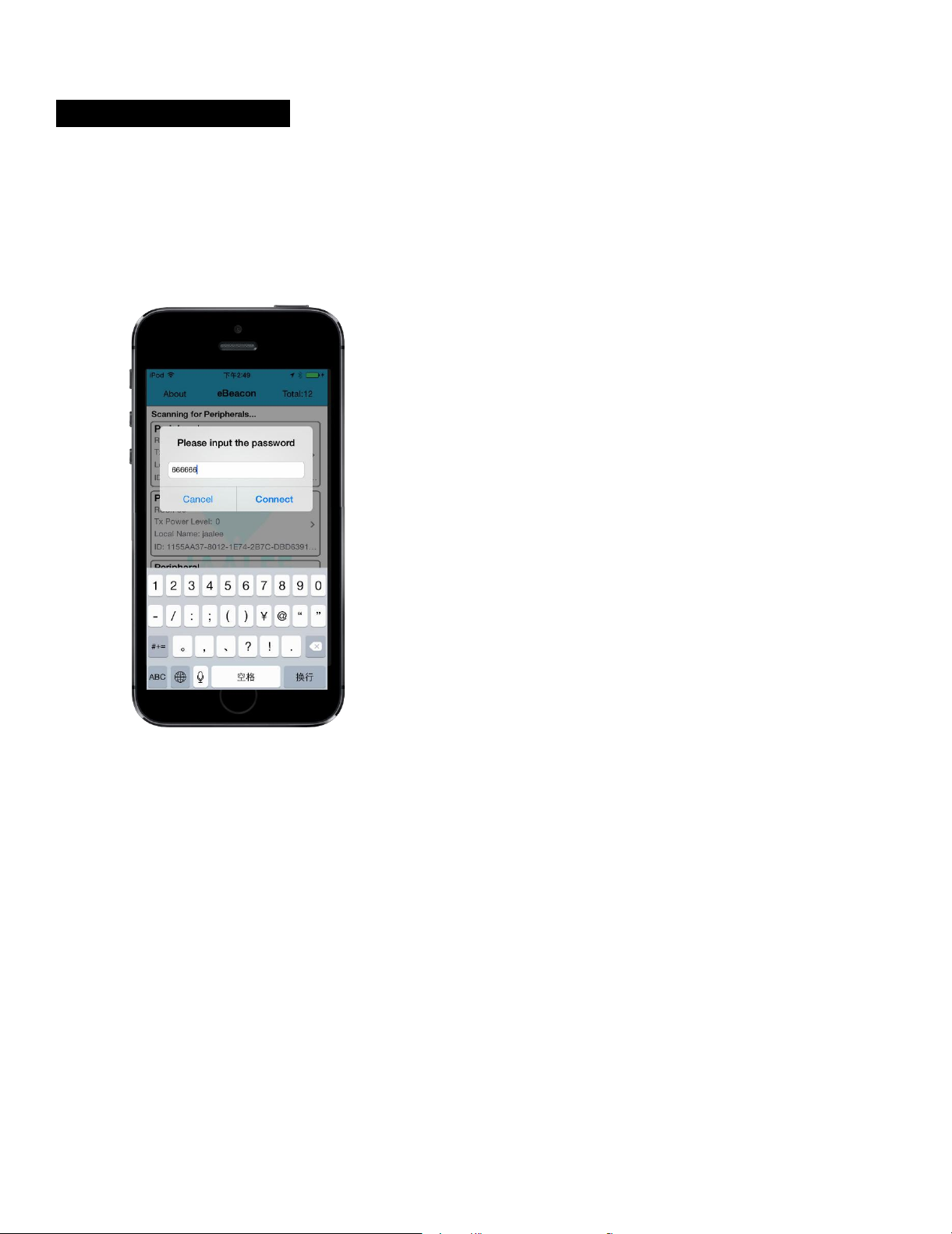

Step 4: Click on the Beacon in the eBeacon software that need to configure, and
enter the password to connect.
Step 5: Now, you can configure and use Ankhmaway Beacon normally.

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
User Guide V1.2
Working Mode Deta il
There are three types working mode of Ankhmaway Beacon. The first is sleep
mode, the second is connectable mode, and the third is non-connectable mode.
When hit Beacon will enter the connection mode, which can last for 45 seconds.
When timeout Beacon will enter the connection mode or sleep mode according to
the different configuration. After the disconnection Beacon will enter the
connection mode, last for 45 seconds. It will return to sleep mode or disconnected
mode after 45 seconds.

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
User Guide V1.2
Sleep Mode
When Beacon stays asleep, this mode will wait for being wake-up.
Connectable Mode
Beacon can only be connected in this mode, which needs triggered by tapping
Beacon, and it will last for 45 seconds. It means that Beacon can be connected in
45 seconds after being triggered. And Beacon will restore to sleep mode or non-
connectable mode if it is not connected in 45 seconds.
Non-ConnectableMode
Beacon can radio Beacon’s data properly in the non-connectable mode. Beacon
will begin to work normally when configured to this mode and it cannot be
connected. If you want connect it again, you must tap it five times, and it can be
connected within 45 seconds. Once timeout, it will restore to non-connectable
mode. If connection is needed, Beacon must be tapped again.
Services Introduct i on
Service 0xFFF0
Characteristic
Property
Value Length
Function
Write example
0xFFF1
Read/Write
2 Bytes
Input Password
0x666666

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
Us e r
0xFFF2
Read/Write
16Bytes
Configure UUID
0xEBEFD08370A247C8983
7
E7B5634DF52
4
0xFFF3
Read/Write
2Bytes
Configure Major
Value
0x0001
0xFFF4
Read/Write
2Bytes
Configure Minor
Value
0x0001
0xFFF5
Read/Write
1Byte
Configure
Power
Value
0xC5
0xFFF6
Read/Write
3Bytes
Configure
Broadcast
Interval
0x0A
0xFFF7
Read/Write
2Bytes
Configure Mfgr
0x0059
0xFFF8
Read/Write
3Bytes
Change
Password
0x123456
Guide V1.2
Note: The default configuration password is 0x666666, broadcast interval in units of
100 milliseconds, 0x0A is equivalent to 10 * 100 (ms) = 1(s). When connected, the user
must input the password to 0xfff1 port within 1 minute, otherwise the Beacon will disconnect
with your phone.
Service 0xFF80
Characteristic
Property
Value Length
Function
Write example
0x2A90
Read/Write
18 Bytes
Configure
Device
Name
0x6A61616C6565
Note: The value needs to be input the port should be converted to hexadecimal ASCII
characters. For example, the corresponding hexadecimal ASCII for Jaalee
is{0x6A,0x61,0x61,0x6C,0x65,0x65}, then the value should be input is
0x6A61616C6565.
Service
0x1804

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
Us e r
Characteristic
Property
Value Length
Function
Write example
0x2A07
Read/Write
1 Byte
Configure TX
Power
0x01
Guide V1.2
Note: The relationship between the value input and its corresponding TX Power is as the
following table.
Write Value
0x01
0x02
0x03
0x04
0x05
0x06
0x07
0x08
0x09
TX Power(dBm)
4
0
-4
-8
-12
-16
-20
-30
-40
Service 0xFF70
Characteristic
Property
Value Length
Function
Write example
0x2A80
Read/Write
1 Byte
Configure
Beacon
St
at
e
0x01:Disable
0x02:Always broadcast
iBeacon channel data.
0x08:Always broadcast
Self-Define channel data.
0x0A:Both
Note: When the state is disable, it will not broadcast Beacon’s data.

Ankhmaway Beacon
SIMPLIFY YOUR LIFE User Guide V1.2
Service 0xFFD0
Characteristic
Property
Value
Length
Function
Write example
0xFFD1
Read/Write
20 Bytes
the former 20 bytes of
UriBeacon data
0x0303d8fe0d16d8fe0021006a616
16c65
6500
0xFFD2
Read/Write
8Bytes
the latter 8 bytes of
UriBeacon data
0x0000000000000000
0xFFD3
Read
1Byte
the length of UriBeacon
data
0x12
Note: the data of UriBeacon is 28 bytes at the most. If the data is less than 20 bytes, user only
needs to write the data in channel 0xFFD1. If not, user needs to write the former 20 bytes
of the data in channel 0xFFD1 and write the latter bytes in channel 0xFFD2.
Service 0xFF60
Characteristic
Property
Value Length
Function
Write example
0x2A70
Read/Write
1 Byte
Control
Beacon
Audio State
0x01
Notes: When the value is 0x01, means allowing the Beacon buzzing when wake-up or reset.
0x01: Buzzing when starting or tapped (default state).
0x02: Buzzing when starting, not when tapped.
0x03: Buzzing when tapped, not when starting.
0x04: No buzzing when starting or tapped.

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
User Guide V1.2
Service 0x1802
Characteristic
Property
Value Length
Function
Write example
0x2A06
Read/Write
1 Byte
Call Beacon
0x01
Note: When put in value 0x01 to this port, it buzzing.
Characteristic
Property
Value Length
Function
Read Value
0x2A19
Read/Notify
1 Byte
Battery Level
0x64(100%)
Note: Read the battery level.
Service 0xFF50
Characteristic
Property
Value Length
Function
Write example
0x2A60
Read/Write
1 Byte
Configure
lock time
0x01
Note: The service is used to configure the lock time when the user input the wrong
password for 10 times. Can be configured: 0 x01-0 x14. The unit of the lock time is half
an hour that is 30 minutes to 10 hours.
Service 0xFF40
Characteristic
Property
Value Length
Function
Write example
0x2A50
Read/Write
1 Byte
Configure the type of
get battery level
0x01
Note: The service is used to configure the way to add data of the Beacon battery. The
following details:
0x01: Add the battery information at the end of the broadcast data. User can obtain it by
scanning.
0x02: Using the highest two Minor values to show the battery, and divide it into 15 levels.
0x03: Using the highest two Minor values to show the battery.

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
User Guide V1.2
0x04: Using UUID,Major,Minor of the Beacon parameters as the Key, and
broadcasting the key and the battery information to outside, which can be received by
scanning. The data can be broadcasted twice every 50 seconds.
0x05: Using Ankhmaway Beacon's own ID as the Key, and broadcasting the key and the
battery information to outside, which can be received by scanning. The data can be
broadcasted twice every 50 seconds.
Key Words
Power Value: This value represents the power value mobile scanned when the
distance between Beacon and phone is within a meter.
TX Power: This value represents the Beacon’s firmware Transmit Power
RSSI: The value is the signal strength of the scanned device which can be used to
measure the distance
Electronic Parameters
Item
Test Data
Remarks
Chip model
nRF51822
Nordic Semiconductor 256k
Battery model
CR2450
Coin battery, 3.0Vdc, 1pc
Operation Voltage
1.8-3.6V
DC
Operation Frequency
2400-2483.5MHz
Programmable
Frequency Error
+/- 20KHz
Null
Modulation
Q-QPSK
Null
Sleep current
3.6uA
Null
Output Power
4 dBm--40dBm
Programmable
Receiving Sensitivity
-93dBm
High gain mode
Transmission
distance
70meters
BER<0.1%, Open space
Antenna
50ohm
Onboard
Size
40 x 40 x 13.6mm
Null

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
User Guide V1.2
Operation State and Power Consumpt i on
State
Operation Current (μA)
Sleep Mode
3.6
Connectable Mode
142
Non-Connectable Mode(Broadcast Interval: 1s)
22.5

Ankhmaway Beacon
SIMPLIFY YOUR LIFE
User Guide V1.2
Contact Us
We have been trying to provide better services and products! Ankhmaway Beacon
makes life more simple and cheerful! If you are interested in our product, please
contact us in following ways. We will provide the best service wholeheartedly for
you!
Shenzhen AnkhMawayElectronics Technology Co., Ltd.
www.ankhmaway.com.cn
[e-mail]
[e-mail]
Tel: [phone]
Mob: [phone]
Address:
3rdFloor, Building 4, LiangtangIndustrial Area, NanwanStreet, Longgang, Shenzhen, China
518000
