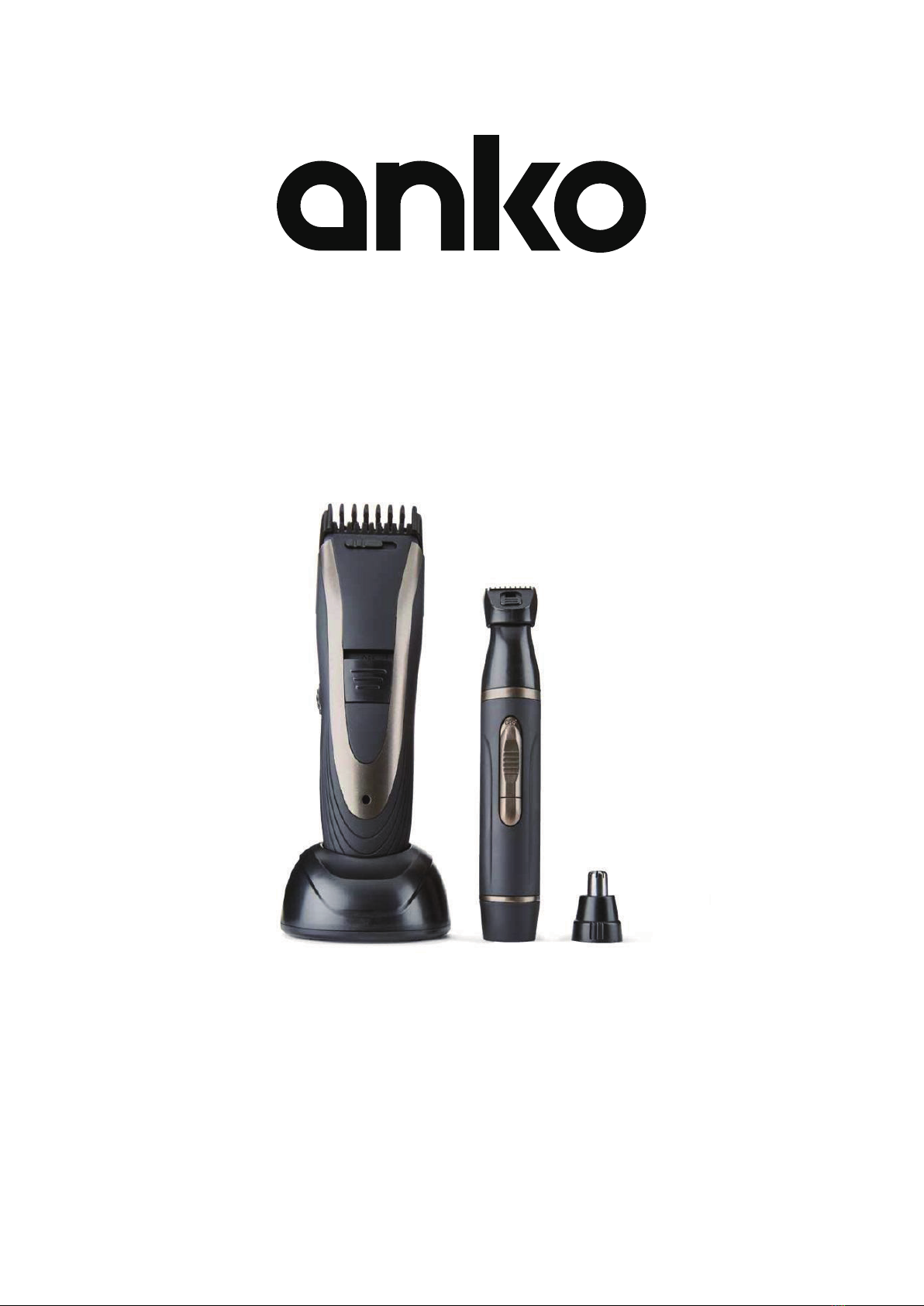

anko RFC-319 User manual

Grooming Pack
Instruction Manual
Model no.: RFC-319 & MS-011

SAFETY GUIDE - PLEASE READ CAREFULLY BEFORE USING THIS
APPLIANCE
Please follow all the precautions listed below for safety and to reduce the risk of injury
or electric shock.
WARNING: READ ALL INSTRUCTION. FAILURE TO FOLLOW ALL
INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC
SHOCK, OR SERIOUS PERSONAL INJURY.
SAVE THIS INSTRUCTION
1. Only use the appliance as described in this manual.
2. Do not immerse the appliance in water or any other liquid.
Warning: Keep the appliance dry
3. Do not allow the appliance to be exposed to rain or moisture during use or
storage.
4. Always check the appliance for damage prior to use. If any damage is observed,
do not use the appliance.
5. The appliance is intended for indoor use only.
6. Always switch the appliance OFF after use.
7. This appliance has no user serviceable parts.
8. This appliance is for personal use only, not designed for commercial use.
9. Do not use it outdoors.
10. Do not use the appliance if it is not working properly, if it has been dropped or if it
has been immersed in any liquid.
11. Before using the appliance, ensure that the clipper head/ trimmer head are
securely fitted.
12. Do not use the appliance on children.
13. The appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instructions concerning use of the
appliance by a person responsible for their safety.
14. Children being supervised to ensure that they do not play with the appliance.
15. Do not operate the AC charger if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged or dropped into water.
16. Use only the original AC charger supplied with the appliance.
17. Check that your supply voltage is the same as that stated on the charger.
18. When charging the appliance, the power switch must be set to OFF.
19. It is normal for the charger to become warm to touch when charging.
20. Use only attachments provided.
21. This product contains sharp blades, please take the utmost care in handling and
use.
22. Do not stretch, twist and curl the cable around the appliance.
23. Keep the cable away from hot surfaces.

24. Rechargeable battery is installed in the hair clipper. Do not replace the batteries
with non-rechargeable batteries.
25. To avoid personal injury, do not use the hair clipper if it has a damaged
blade or trimming head.
26. Detach the attachment heads for cleaning. Only the attachments can be washed
under tap water.
27. Do not submerge the appliance, nor make it flow under water-tap.
28. Do not use salt water or boiling water when cleaning.Also, do not use cleaning
products that are designed for toilets, bathrooms or kitchen appliances
29. The hair clipper must be used only with provided battery charger KH6-030060AU
WARNING: Do not recharge non-rechargeable batteries.
WARNING: Before charging the product, please make sure your hands
are dry.
WARNING: Please use the AC charger supplied with the product.
Other AC chargers may cause electrical failure and/or fire.

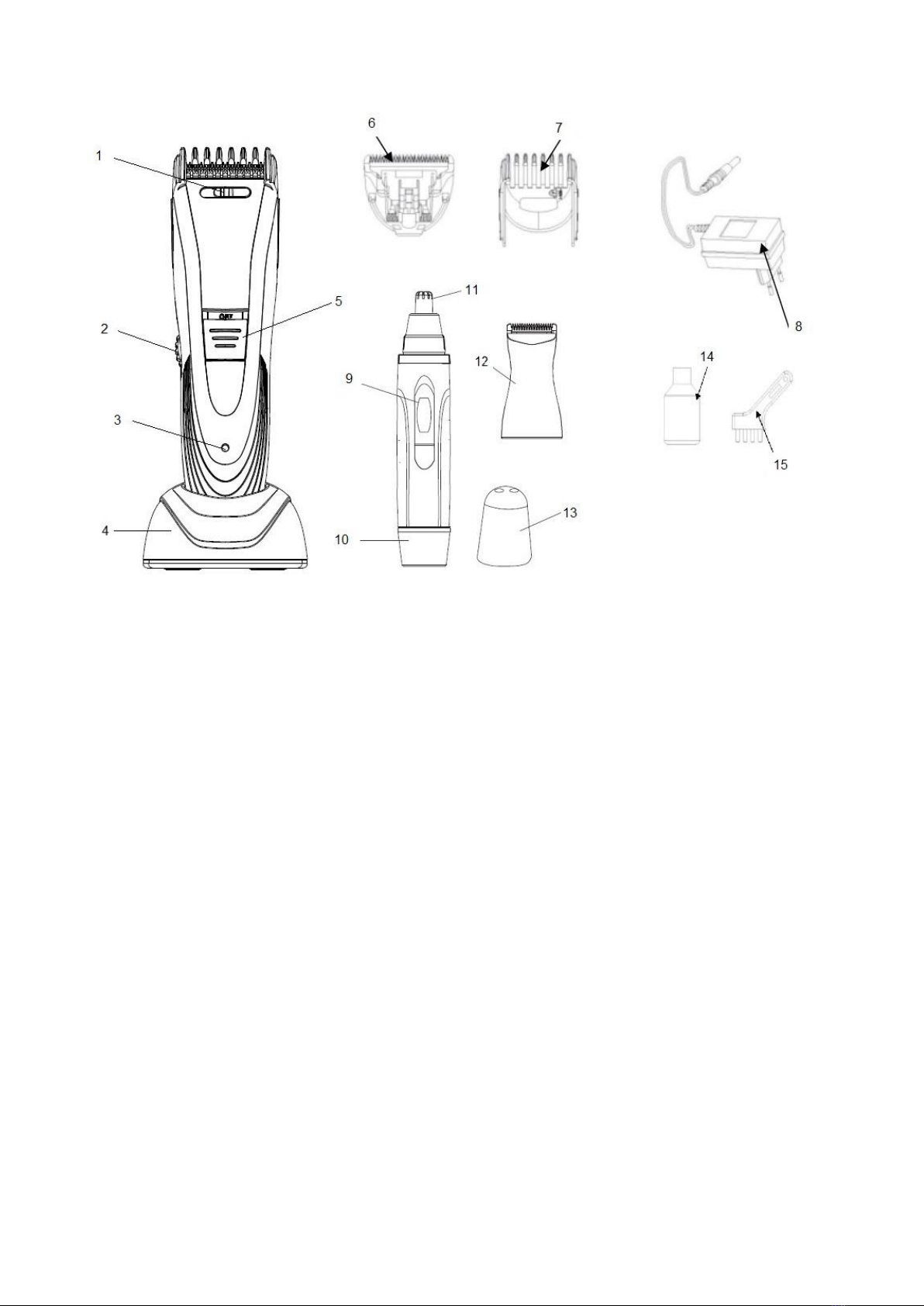

PARTS

Cordless Hair Clipper
1
Thin out adjustor
5
On/Off Switch
2
Comb length adjustor
6
Removable Blade
3
Power/ Charging indicator
7
3-15mm Comb attachment guide
4
Charging base
8
Charger KH6-030060AU
Ear and Nose Trimmer
9
On/Off switch
12
Hair trimmer attachment
10
Battery cover
13
Nose trimmer cap
11
Nose trimmer attachment
Accessories
14
Lubricant oil
15
Cleaning brush

BEFORE FIRST USE
Hair clipper
Before using your hair clipper for the first time, charge for 12 hours.
Ensure the product is switched OFF before charging.
Connect the charging adaptor to the product and then connect to mains power.
RED indicator light will illuminate to indicate the product is charging.
IMPORTANT! The RED battery charge indicator light will remain ON after
the battery is fully charged. To prevent damage to the battery never
charge the hair clipper for more than 24 hours.
This appliance can be charged directly or rest on the charging base when
charging.
It will take 8 hours to fully charge the batteries in the hair clipper.
IMPORTANT! Use only the provided charger KH6-030060AU.
BATTERY CARE
To ensure maximum life from the batteries in your rechargeable hair clipper, follow
these guidelines:
Do not recharge the hair clipper between sessions. Wait until the batteries are
exhausted before recharging.
Discharge the batteries completely twice a year (switch ON and run until the
shaver stops).
IMPORTANT! Do not use the hair clipper while charging.
Do not charge the hair clipper when the temperature is below 0°C or above 40°C
Avoid recharging the hair clipper in direct sunlight or near a radiating heat source.
Ear and Nose Trimmer
Require 1x 1.5V AA battery (included)
Remove battery cover by lightly turning it in anti-clockwise direction.
Insert battery and ensure battery polarify is correct. Insert positive (+) side first as
shown below.
Replace the battery cover and turn it in clockwise direction until it clicks into
place.
For the best reuslts, use alkaline battery.
Remove the battery if the trimmer is not used for a prolonged period.

OPERATING INSTRUCTIONS
Hair Clipper
WARNING:
Switch off the device before replacing or changing the attachments
NOTES:
The hair to be dressed must be dry.
NOTES:
The cutting length may deviate depending on the cutting angle. Please
start with a comb attachment with a longer cutting length and then, in the
course of cutting process, use shorter cutting lengths step by step.
1. Ensure the hair clipper is switch OFF.
2. Insert comb attachment. Line the comb rails up with the vertical channels on
boths sides of the clipper, slide the comb all the way until it stops. (Fig. 1)
3. Adjust the trim length. Rotate the comb length ajustor and the comb will
move up and down.(Fig. 2). There are 9 different comb position to adjust
trim length from 3mm - 15mm.
Comb Position
Comb length
1
3mm
2
4.5mm
3
6mm
4
7.5mm
5
9mm
6
10.5mm
7
12mm
8
13.5mm
9
15mm
4. 0.5mm is achieved without any combs and holding the blades perpendicular
to the skin.
5. Hold the device so the the comb attachment rests flat on the head. Move the
device evenly throught the hair.
NOTE: For even cutting, allow the comb attachment to cut is way through the
hair. Do not force it through quickly. If you are cutting for the frist time, start
with the longest comb length.

Nose/Ear Trimmer
1. Attach the required grooming head on the main unit by turning the
attachment head clockwise.
2. Push the switch up to turn on the unit.
3. Put the blade head in your nose or ear, gently move and trim hair.
4. Push the switch down to turn off the unit when finished.
CLEANING AND MAINTENANCE
Hair clipper
Turn off your hair clipper and wait until it is completely cool.
Before cleaning, remove the accessory and the used blade and make cleaning with
the aid of the cleaning brush that was equipped in the product.
The cutting blades should be lightly oiled with the oil provided once every few
haircuts.
Clean your hair clipper using a damp cloth and then dry it. After each use, follow the
instructions to retire the blades of your hair clipper.
Nose and Ear Trimmer
Turn off the trimmer.
Remove nose/ hair trimmer attachment from the main unit. Clean the blade head with
the small brush provided or rinse under running water. Wiped clean with a dry cloth.
Clean the main unit by wiping it with a damp cloth. Do not use detergents of any kind.
IMPORTANT! This product is not water resistant. Don’t wash it with water.
Allow to dry completely after cleaning and before storing.

BATTERY DISPOSAL
If the hair clipper is to be disposed of the batteries should be removed from the
appliance before it is scrapped. The hair clipper must be disconnected from
the mains power before removing the battery. The battery is to be disposed
safely. Used batteries should be taken to a recycling station and not disposed
of with normal household waste.
IMPORTANT: Always fully discharge the batteries before removal and
ensure the charger is disconnected from mains power.
TECHNICAL SPECIFICATIONS
Cordless Hair Clipper
Model no.
RFC-319
Working time
Approximately 45 minutes
Charging time
8hr
Battery Charger
KH6-030060AU
Input voltage
100-240V~50/60Hz
Output voltage
DC 3V, 600mA
Battery type
Ni-MH, 600mAh, 1.2V x2 cell
Nose & Ear Trimmer
Model no.
MS-011
Battery Type:
1.5V 1x AA (included)

12 Month Warranty
Thank you for your purchase from Kmart.
Kmart Australia Ltd warrants your new product to be free from defects in
materials and workmanship for the period stated above, from the date of
purchase, provided that the product is used in accordance with accompanying
recommendations or instructions where provided. This warranty is in addition
to your rights under the Australian Consumer Law.
Kmart will provide you with your choice of a refund, repair or exchange (where
possible) for this product if it becomes defective within the warranty period.
Kmart will bear the reasonable expense of claiming the warranty. This
warranty will no longer apply where the defect is a result of alteration, accident,
misuse, abuse or neglect.
Please retain your receipt as proof of purchase and contact our Customer
Service Centre on 1800 124 125 (Australia) or 0800 945 995 (New Zealand) or
alternatively, via Customer Help at Kmart.com.au for any difficulties with your
product. Warranty claims and claims for expense incurred in returning this
product can be addressed to our Customer Service Centre at 690 Springvale
Rd, Mulgrave Vic 3170.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a major failure.
For New Zealand customers, this warranty is in addition to statutory rights
observed under New Zealand legislation.
