ANKOVO JPD-FR100+ User manual

JPD-FR100+
Infrared Thermometer
Instruction Manual
Manual Ver.: 1.2
Issuing Date: 2018/01/29
0482

Introduction
Thank you for choosing the Dual mode Digital Infrared Thermometer of
ANKOVO Medical, Dual mode infrared thermometer for short.
With the unique technology, the Dual mode infrared thermometer
JPD-FR100+ of ANKOVO Medical can give the result with Dual mode,
stable measurement and without the interference from ambient
temperature. The product will self-test every time it starts up to make sure
the normal operation and accuracy.
The Dual mode infrared thermometer JPD-FR100+ can be used to read
the body temperature by measure the ear and forehead temperature,
which is suitable for adult and children(ear test mode only for the child
above 3 months).
Please read the instructions carefully before using the product, and put it
in a safe and secure place for reference.

Contents
1. The advantages of infrared thermometer JPD-FR100+...................... 1
2. Necessary safety instructions....................................................................2
3. Instructions for product designs................................................................ 3
4. How to measure the forehead temperature............................................. 3
5. How to measure the ear temperature....................................................... 4
6. Instructions for display and operation.......................................................5
7.Cleaning and Disinfection........................................................................... 9
8.Maintenance................................................................................................. 9
9.Troubleshooting..........................................................................................10
10. Technical specifications.......................................................................... 11
11. After-sale service.....................................................................................13
12. Security type............................................................................................13
13. Authorized European Representative:................................................. 13
14. Symbols................................................................................................... 13
15.Declaration............................................................................................... 14
16. Appendix A: EMC Information-Guidance and Manufacture’s
Declaration..................................................................................................... 14

1
1. The advantages of infrared thermometer JPD-FR100+
Multiple use (measurement of forehead temperature and ear temperature)
Thanks to dual mode design, you are free to take body temperature by
detecting the infrared heat given off by the forehead ,which is from 32℃to
42.2℃(from 89.6℉to 107.9℉) , and by the eardrum, which is from 0℃to
100.0℃（from 32.0℉to 212.0℉）.
The product consists of ABS plastics, temperature sensor, Infrared
temperature measuring element, microcomputer controlled circuit, LCD ,
backlight and buzzer.
Convenient for use
●Special ergonomic design to facilitate operation.
●No inconvenience would be caused to your daily life. It’s available for
measurement when your children’s sleeping.
●It provides comfortable user experience compared with anus
thermometer for children, rapid reading and simple operation compared
with mouth thermometer.
Memory recall
A maximum of 20 previous readings is available to help you track the
changes of your body temperature.
Safe and hygienic
●Compared to mercury thermometer, there is no danger of breaking the
glass or swallowing mercury.
●It is totally safe for children to use.
Fever warning
When the reading exceeds 37.5℃/99.5℉, this product shall warn the user
that he/she may have a fever by 7 rapid and short rings with LCD
flicker.(For normal forehead temperature, the signal is long ring with LCD
no flicker)
Extensive clinical data of hospital
The cooperation with designated hospitals is subjected to precise clinical
verification, with the support of extensive clinical data and professional
medical experts.
Application scope
The thermometer takes human body temperature for clinical or household
use. It applies to all age groups and those who are suffering from a fever.

2
2. Necessary safety instructions
●The device is not used for newborn baby.
●The device is not continuous monitoring device.
●JPD-FR100+ is not waterproof. Please do not douse it into water or other
liquids. Cleaning and disinfection procedure shall be in comply with the
instructions specified in [cleaning and storage]
●Please do not use the product if the temperature sensor or the Dual
mode infrared thermometer shows any sign of damage. Do not try to
repair the product if it is damaged. Please contact the nearest ANKOVO
Customer Service.
●JPD-FR100+ consists of precision parts with high quality. Please prevent
the product from falling off. Protection shall be provided for no intense
shock and vibration. Do not twist the Dual mode infrared thermometer and
the temperature sensor.
●Operating Conditions:
Temperature: 10C to 40C
Humidity: ≤80% RH, non-condensing
Atmospheric pressure: 860hPa to 1060hPa
●Storage and Shipping Conditions:
Temperature: - 20C to 55C
Humidity: ≤95% RH, non-condensing
Atmospheric pressure: 50hPa to 1060hPa
●Battery Installation:
Put the two AAA batteries into battery compartment in correct polarities.
Push the battery cover horizontally along the arrow.
Notes:
☆If you are the first time using the thermometer, please pull out the
Plastic sheet .
☆Battery polarities should be correctly installed. Otherwise, damage
may be caused to the device.
☆Please put in or remove batteries in right order, or may cause damage
to the device bracket.
☆Please remove the batteries if the thermometer will not be used for a
long time.
Warnings
●Please keep this Dual mode infrared thermometer out of children’s reach

3
●Medical assistance can’t be replaced by the use of infrared Dual mode
infrared thermometer
●The Dual mode infrared thermometer is not waterproof! Keep it away
from water.
3.Instructions for product designs
(1) Sensor (Take off the cover before detecting the eardrum temperature)
(2) Head: start detection of forehead temperature
(3) Ear: start detection of eardrum temperature
(4) LCD display
(5) Battery cover
4.How to measure the forehead temperature
（1）With the probe cover attached, point the thermometer at the center
of the forehead.
（2）Move the thermometer towards the forehead until the probe cover
touches the skin. The probe cover acts as a distance guide and ensures
that the measuring distance between the thermometer and the forehead is
correct.
（3）Press and release the Head button. The temperature will be
displayed on the screen instantly.
Note:
•You can take another measurement by pressing the Head button at any
time although it is recommended that you wait 10 seconds between
readings.
•Make sure that the forehead is free of hair and perspiration.
•The probe cover is attached out of the box.

4
5.How to measure the ear temperature
(1) Gently remove the probe cover to reveal the ear probe.
(2) Insert the ear probe into the ear canal.
(3) Press and release the Ear button. The temperature will be displayed
on the screen instantly.
Note:
•Do not press the Ear button for more than 3 seconds as you will
activate the memory recall mode.
Incorrect position Correct Position
Figure 1
For children older than 1 year old, gently pull the ear up to ensure that the
ear canal is straight (See Figure 1). Position the ear probe carefully so that
it is aligned with the eardrum to ensure accurate measurement readings.
This applies to adults as well.
For children younger than 1 year old, gently pull the ear straight back to
ensure that the ear canal is straight (see Figure 2).
Figure 2

5
In order to avoid the inaccuracy:
(1) The sensor is extremely sensitive. Any debris and/or grease on the
sensor lens may prevent an accurate measurement. For best result,
please check and clean the lens regularly. Please note that the sensor
lens can look deceptively “clean” when it is not. The lens of a clean sensor
should be reflective and gleaming. If it looks dull and lackluster, then it is
dirty. Please clean the lens with a cotton swab moistened with alcohol and
wait 5-10 mins for the alcohol to completely evaporate before using the
thermometer.
(2) Please use the thermometer indoor or in an environment where there
is no strong air draft.
(3) Do not move during measurement.
(4) Make sure there isn’t any sweat, water or condensation on the
forehead.
(5) If the thermometer is transferred from an environment where the
ambient temperature may be different, please wait at least 10 minutes and
follow rule number 2 before using the thermometer.
(6) Do not hold the thermometer for a long time as it is highly sensitive to
heat.
(7) Keep the infrared sensor probe clean to ensure accurate readings.
(8) Before measuring temperature from the ear, remove earwax, if any.
Keep the ear canal clean.
6. Instructions for display and operation

6
LCD
display
Operational method and
instruction for displays
Sound and backlit
1.Measurement of forehead
temperature:
Point the thermometer at the
center of the forehead. Move the
thermometer towards the
forehead until the probe cover
touches the skin. Press and
release the Head button. The
temperature will be displayed on
the LCD screen.
2.Measurement of ear
temperature:
Detach the probe cover. Insert
the ear probe into the ear canal.
Press and release the Ear button.
The temperature will be displayed
on the LCD screen.
3. To measure again, simply
press the Head/Ear button
accordingly.
When the temperature is
below 99.6°F/ 37.6°C
(32.0-99.5°F/ 0.0-37.5°C),
there will be a long beep
and a green backlit will be
displayed for 3 seconds.
When the temperature is
above 99.5°F/37.5°C
(99.6-212.0°F/
37.6-100.0°C), there will
be 7 short beeps and the
reading will flicker with a
red backlit for 3 seconds.
This indicates that the
subject may have a fever.
Please consult your
doctor if you are not sure.
Forehead measurement mode
Eardrum measurement mode
The measured value exceeds
212.0°F/100.0°C.
3 short beeps with a red
backlit for 3 seconds.

7

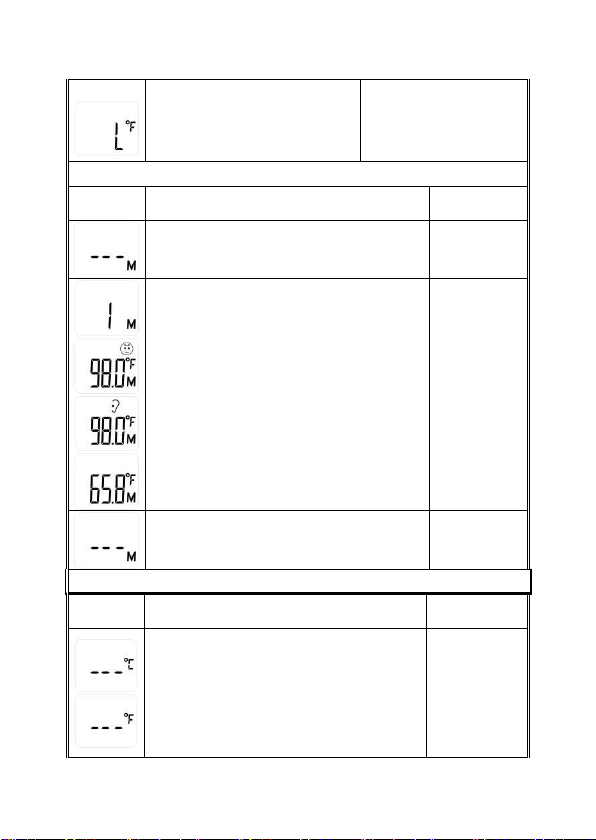

The measured value falls below
32.0°F/0.0°C.
3 short beeps with a red
backlit for 3 seconds.
Recalling recorded data – up to 20 readings
LCD
display
Operational method and instruction for
displays
Sound and
backlit
Press and hold the Ear button for 3-6
seconds and the LCD will display “- - -” with
the M signal blinking.
None
Press the Ear button again and the LCD will
display the number ‘1’ with the M signal. After
1 second, the recorded reading with the
mode of measurement icon will be displayed.
Note that this is the latest recorded reading.
To recall the next recorded reading, press
the Ear button again. The number ‘2’ with the
M signal will be displayed. After 1 second,
the recorded reading with the mode of
measurement icon will be displayed.
Repeat to recall earlier recorded data (up to
20 total readings) if necessary.
None
The LCD will display “- - -” with the M signal
blinking if there is no recorded data.
None
°C/°F conversion
LCD
display
Operational steps
Sound and
backlit
When the thermometer is off, press and hold
the Ear button for 6-9 seconds. The LCD
will display “- - - ” with “M” at the bottom right.
Continue to hold the button until “- - -°C/°F”
appears on the screen. Release the Ear
button and the “- - -°C/°F” temperature unit
will start to blink. Press the Ear button again
within 5 seconds to change the temperature
None

8
unit to your choice.
Error message
LCD screen will display “Er1” when ambient
temperature exceeds 104.0°F/40.0°C or
drops below 50.0°F/10.0°C.
3 short ticks
and green
backlit for 3
seconds.
LCD screen will display “ErC” if there is
EEPROM data reading error or the
calibrating process is not finished. Please
contact your supplier.
3 short ticks
and green
backlit for 3
seconds.
Low-voltage signal when the battery voltage
is below2.61V±2%. Please replace battery.
None
Power Off Mode
The thermometer will power off automatically if no activity is detected for
10 seconds.
Attention:
●Electromagnetic interference: JPD-FR100+ contains sensitive electronic
component and shall not use under the condition with electromagnetic
interference,( such as the place nearby the mobile phones and
microwaves )
●Please dispose the used products and batteries in accordance with local
regulation requirements when the products and batteries are not
available.
●Please take out the battery if the device unused for long time.

9
7.Cleaning and Disinfection
Cleaning
1) Clean the temperature probe with a soft cloth. Clean the lens of the
temperature probe with a cotton swab.
2) Wipe the thermometer body with a slightly damp soft cloth, and gently
dry the body with a piece of tissue paper.
Keep water off the lens during the cleaning process. Otherwise, the
lens may be damaged.
The lens may be scratched if it is cleaned with a piece of tissue
paper, resulting in inaccurate readings.
Do not clean the thermometer with corrosive cleansers. During the
cleaning process, do not touch the lens using hard objects, immerse any
part of the thermometer into liquid, or allow liquid to enter the
thermometer.
Disinfection
1) Disinfect the thermometer body and the area around the temperature
probe with a cloth slightly moistened with 75% medical alcohol.
Do not use hot steam or ultraviolet radiation for disinfection.
Otherwise, the thermometer may be damaged or quickly aged.
8.Maintenance
1) After each use, clean the temperature probe as described in
"Cleaning and Disinfection".
2) Store the thermometer in a dry, dust-free, and well-ventilated place.
Ensure that the thermometer is not exposed to sunlight. Ensure that
the storage and transportation environments meet the requirements
3) Check whether safety risks exist on a regular basis.
4) Remove the batteries if the thermometer will not be used for more
than two months.

10
9.Troubleshooting
Symptom
Possible Cause
Solution
The thermometer
fails to power on.
The battery level is
extremely low.
Use new batteries of
the same model or
specifications.
Polarities of the
batteries are reversed.
Ensure that the
batteries are correctly
installed according to
the polarity symbols in
the battery
compartment.
The thermometer is
faulty.
If the warranty period
does not expire,
contact ANKOVO or a
local distributor.
Only the battery
symbol is
displayed after the
thermometer
powers on.
The battery level is low.
Use new batteries of
the same model or
specifications.
"Er1" is displayed.
The ambient
temperature is lower
than 10°C (50.0°F) or
higher than 40°C
(104°F).
Take a measurement
under an ambient
temperature between
10°C (50.0°F) and
40°C (104°F).
"ErC" is displayed.
An error occurs when
data is being read from
or written into the
memory, or the
temperature correction
is not complete.
Contact ANKOVO
The temperature
reading is lower
The lens of the
temperature probe is
Clean the lens using a
cotton swab.

11
Symptom
Possible Cause
Solution
than the typical
body temperature
range.
dirty.
The distance between
the temperature probe
and the target is too
long.
Move the thermometer
closer to the target.
The thermometer is not
used within 30 minutes
after being taken from a
cold environment.
Wait for more than 30
minutes after the
thermometer is moved
into the measurement
environment.
The temperature
reading is higher
than the typical
body temperature
range.
The temperature probe
is faulty.
Contact ANKOVO.
10. Technical specifications
Items
Standards
models
Dual mode infrared thermometer JPD-FR100+
1.Applicable
regulations and
laws
ASTM 1965/EN12470-5
2.Temperature units
℃/℉, adjustable
3.Measurement
range
Forehead temperature mode:32.0℃-42.2℃/
89.6F – 107.9 F
ear temperature mode:0.0℃-100.0℃/32.0F –
212.0 F
4.Precision
±0.2℃/±0.4F
5.Display resolution
0.1℃/0.1℉
6.Latency Time
1 second

12
7.Abnormal state
display
LCD displays “L ℃” if the measured temperature is
below the minimum of measurement range.
LCD displays “H ℃” if the measured temperature is
below the minimum of measurement range.
LCD displays “Er1”if the temperature measurement
circuit is abnormal (fault of SENSOR or the
temperature measurement circuit), or the ambient
temperature exceed 10℃~40℃(50℉-104℉).
There shall be “ErC” if the calibration process is not
completed or EEPROM is abnormal.
8.Sound
volume≧50 db (the perpendicular distance from dB
Volume sensor to thermometer is 10cm )
9.Automatic
shutdown function
10s±1s
10.Low-voltage
display function
The product shall display low-voltage signal if the
voltage is below 2.51V±0.15V.
11.Memory function
Memorize 20 groups of measured temperature.
12.Current
consumption
Istand-by<2μA; Iworking<0.5mA; IBuzzer on<2mA；
Ibanklight<15mA
13.LED backlit
specifications
≧1.2cd/m2
15.Operational
conditions
ASTM 10℃-40℃(50℉-104℉)/15-95%RH
16.Type of
measuring
Applicable for forehead temperature and ear
temperature
17.battery
AAA×2
18.Battery life
More than 3000 times
19.Accuracy for
clinical test
The maximum allowable error for clinical test is
specified in the formula below:
≦0.3℃/0.6℉(for 95%)
Among which:
T1 and T2 represent temperature value for
thermometer under test respectively, Tref
represents the constant reference temperature
The date of
production
See the label
Terror =
T1-Tref
T2-Tref
+
2

13
Life
5 years
Statement:
1、There have some differences in the accuracy of measurements
obtained with IR thermometers versus contact thermometers (that is,
mercuryin- glass and electronic thermometers). these differences
include the following anticipated error sources:
*Use disposable probe covers can cause low temperature detected.
*The operators’measurement methods is not correct.
*The earwax buildups can cause low temperature detected.
*Subject cooperation, etc.
2、ASTM laboratory accuracy requirements in the display range of 37 to
39 ℃(98 to 102 ℉) for IR thermometers is 0.2 ℃( 0.4 ℉), whereas for
mercuryin-glass and electronic thermometers, the requirement per ASTM
Standards E 667-86 and E 1112-86 is 0.1℃.
11. After-sale service
The device is under warranty for two years since the date of acquisition.
Application for repairing should be presented during the warranty period.
The damage caused by improper use is not under warranty scope.
Batteries and packaging are not under warranty scope as well.
12. Security type
The signal indicates that the thermometer is a BF type device
with internal power supply.
13. Authorized European Representative:
Wellkang Ltd
Suite B, 29Harley Street, LONDON, W1G9QR,U.K.
14. Symbols
Symbol
Description
Type BF applied part.

14
Symbol
Description
Attention must be paid.
Information about a manufacturer, such as name and
address.
Please read the instructions carefully.
Waste electrical materials should be sent to a
dedicated collection point for recycling.
Warning
A personal injury or thermometer damage may occur
if the thermometer is not correctly used.
Attention
Inaccurate reading or thermometer damage may
occur if the thermometer is not correctly used.
15.Declaration
EMC of this product complies with IEC60601-1-2 standard.
The materials which the user can come into contact have no toxicity
and no action on tissues comply with ISO10993-1, ISO10993-5 and
ISO10993-10.
16. Appendix A: EMC Information-Guidance and
Manufacture’s Declaration
CAUTION:
● JPD-FR100+ Infrared Thermometer needs special precautions
regarding EMC and needs to be installed and put into service according to
the EMC information provided for in the ACCOMPANYING DOCUMENTS.
● Portable and mobile RF communications equipment can affect
JPD-FR100+ Infrared Thermometer
● The JPD-FR100+ Infrared Thermometer should not be used
adjacent to or stacked with other equipment.
Guidance and manufacturer´s declaration – electromagnetic
emission –for all EQUIPMENT AND SYSTEMS
Guidance and manufacturer´s declaration – electromagnetic emission
The JPD-FR100+ Infrared Thermometer is intended for use in the
electromagnetic environment specified below. The customer or the user of the

15
JPD-FR100+ Infrared Thermometer should assure that it is used in such an
environment.
Emissions
test
Compliance
Electromagnetic environment - guidance
RF emissions
CISPR 11
Group 1
The JPD-FR100+ Infrared Thermometer
uses RF energy only for its internal
function. Therefore, its RF emissions are
very low and are not likely to cause any
interference in nearby electronic
equipment.
RF emissions
CISPR 11
Class B
The JPD-FR100+ Infrared Thermometer is
suitabl e for use in all establishments,
including domestic establish ments and
those directly connected to the public
low-voltage powe r supply network that
supplies buildings used for domestic
purposes.
Guidance and manufacturer's declaration – electromagnetic
immunity –for all EQUIPMENT and SYSTEMS
Guidance and manufacturer´s declaration – electromagnetic immunity
The JPD-FR100+ Infrared Thermometer is intended for use in the
electromagnetic environment specified below. The customer or the user of the
JPD-FR100+ Infrared Thermometer should assure that it is used in such an
environment.
Immunity test
IEC
60601
test level
Compliance
level
Electromagnetic
environment- guidance
Electrostatic
discharge
(ESD)
IEC 61000-4-2
±6 kV
contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood,
concrete or ceramic tile. If
floors are covered with
synthetic material, the
relative humidity should be
at least 30 %.
Power
frequency
(50/60 Hz)
magnetic
field
IEC 61000-4-8
3 A/m
3 A/m
Power frequency magnetic
fields should be at levels
characteristic of a typical
location in a typical
commercial or hospital
environment.

16
Guidance and manufacturer´s declaration – electromagnetic
immunity –for EQUIPMENT and SYSTEM that are not
LIFE-SUPPORTING
Guidance and manufacturer´s declaration – electromagnetic immunity
The JPD-FR100+ Infrared Thermometer is intended for use in the
electromagnetic environment specified below. The customer or the user of the
JPD-FR100+ Infrared Thermometer should assure that it is used in such an
environment.
Immunity test
IEC
60601
test level
Compliance
level
Electromagnetic
environment -
guidance
Radiated RF
IEC 61000-4-3
3 V/m
80 MHz
to 2.5
GHz
3 V/m
Portable and mobile RF
communications quipment
should be used no closer to
any part of the JPDFR100+
Infrared Thermometer,
including cables, than the
recommended separation
distance calculated from the
equation applicable to the
frequency of the transmitter.
Recommended separation
distance
where p is the maximum
output power rating of the
transmitter in watts (W)
according to the transmitter
manufacturer and d is the
recommended separation
distance in metres (m).b
Field strengths from fixed
RF transmitters, as
determined by an
Electromagnetic site
