TaiDoc Technology Corporation Riester ri-thermo sensioPRO User manual

ri-thermo® sensioPRO
ri-thermo® sensioPRO+
Non-contact Thermometer / Berührungsloses Thermometer
Thermomètre sans contact / Termómetro sin contacto
Termometro senza contatto / Бесконтактный термометр
Operation Instructions / Bedienungsanleitung /
Mode d'emploi / Instrucciones de uso /
Istruzioni per l'uso / Инструкция по эксплуатации

EN-1
English
TABLE OF CONTENTS
INTRODUCTION 2
INTENDED USE 2
HOW DOES IT WORK 2
CONTENTS 2
IMPORTANT SAFETY INSTRUCTIONS 3
CAUTIONS AND WARNINGS 4
APPEARANCE AND KEY FUNCTIONS 5
HINTS ON TAKING TEMPERATURES 5
DISPLAY SCREEN 6
REPLACING THE BATTERY 7
CHANGING UNIT OF MEASUREMENT 8
SETTING THE THERMOMETER 8
USING THE DEVICE 9
RECALLING PAST READINGS 10
BLUETOOTH PAIRING (ri-thermo®sensioPRO+ ONLY) 11
ABOUT NORMAL BODY TEMPERATURE & FEVER 11
MAINTENANCE 12
TROUBLESHOOTING 12
SYMBOL INFORMATION 13
SPECIFICATIONS 13
REFERENCE STANDARDS 14

EN-2
INTRODUCTION
Thank you for choosing ri-thermo®sensioPRO / ri-thermo®sensioPRO+
non-contact thermometer.
Please read this instruction manual rst, so you can use this
thermometer safely and correctly. Please keep this instruction manual
for future reference. This innovative medical device uses advanced
infrared (IR) technology to measure temperature on the forehead
instantly and accurately. This thermometer delivers a body temperature
reading from the thermal radiation emitted from the forehead without
contact to the body.
Before using this product, please read the following contents thoroughly
and carefully.
INTENDED USE
ri-thermo®sensioPRO / ri-thermo®sensioPRO+ non-contact
thermometer is intended for the intermittent measurement and
monitoring of human body temperature from the forehead. The device
is intended for use of all ages for professional use by one with a good
understanding of the operation instruction.
HOW DOES IT WORK
The thermometer measures the infrared heat generated by the surface
of the skin over the vessel and its surrounding tissue.
The thermometer then converts it into a temperature value shown on
LCD.
NOTE:
The thermometer does not emit any infrared signal.
CONTENTS
• Meter
• Operation Instructions
• Batteries

EN-3
IMPORTANT SAFETY INSTRUCTIONS
READ THIS BEFORE USING AND KEEP THESE INSTRUCTIONS
The following basic safety precautions should always be taken.
1. Close supervision is necessary when the thermometer is used by,
on, or near children or handicapped persons.
2. Use the thermometer only for the intended use described in this
manual.
3. Do not use the thermometer if it is not working properly, or if it has
su󰀨ered any damage.
4. Keep the sensor end clean and free of debris. See Maintenance
section for instructions.
5. Do not use ethylene oxide gas, heat, autoclave, or any other harsh
methods to sterilize the device.
6. If coming from an environment of warmer or cooler temperature
or after a period of exertion, allow the user and the thermometer
to acclimate to room temperature for 20 minutes prior to taking a
measurement.
7. As the body site for measurement may be a󰀨ected by sweat, oil
and the surrounding temperature, the reading shall be taken as a
reference only.
8. Do not use in presence of ammable anesthetic mixtures.
9. Do not use accessories which are not supplied or recommended
by the manufacturer. Do not try to modify the device to prevent any
dangers.
10. Proper maintenance is essential to the longevity of your device.
This thermometer has been calibrated at the factory. If you follow
the instructions, you don't need to adjust it regularly. However, if
you are concerned about the accuracy of measurement, please
contact the local customer service or place of purchase for help.
11. Always contact the manufacturer or the manufacturer’s
representative to report unexpected operation or event. Do not try
to x it by yourself.
12. When using the thermometer, stay away from electromagnetic
radiation, such as the mobile in use.

EN-4
13. Do not expose the device to strong electrostatic elds or strong
magnetic elds to avoid a󰀨ecting the measurement accuracy.
14. Use of this device adjacent to or stacked with other device should
be avoided because it could result in improper operation.
15. Keep probe covers out of reach of children. The small parts
detached from the device may result children choking from inhaling
or swallowing.
16. Do not try to maintain the device while it is in use.
CAUTIONS AND WARNINGS
• Always operate the thermometer in an operating temperature range
10°C to 40°C (50°F to 104°F), and relative humidity between 30% to
85%.
• Always store the thermometer in a cool and dry place: temperature
between -20°C to 60°C (-4°F to 140°F) and relative humidity between
30% to 85%.
• Avoid direct sunlight.
• This thermometer is not intended to substitute for a consultation with
your physician.

EN-5

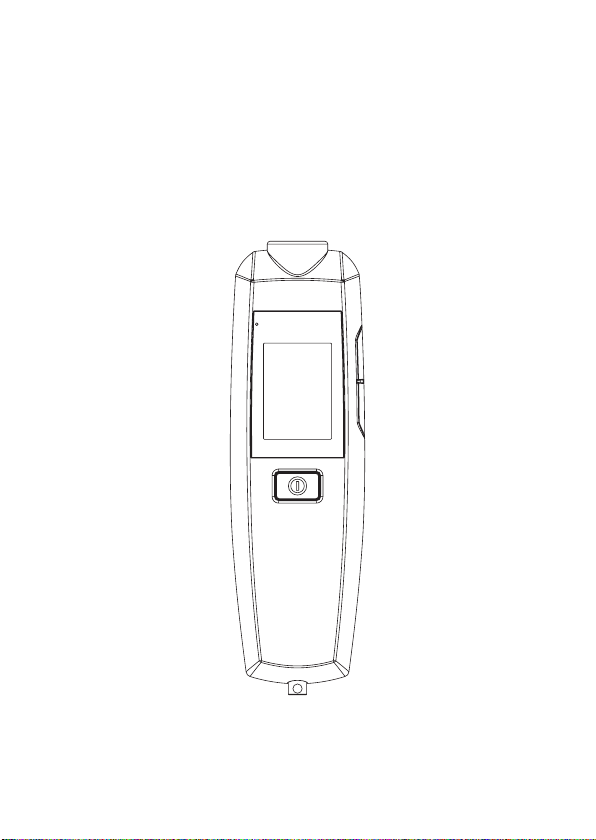

APPEARANCE AND KEY FUNCTIONS
1
2
3
4
5
6
7
8
Probe °C / °F Button
Bluetooth Indicator (ri-thermo®
sensioPRO+ only)
MEM Button
Display Screen Battery Cover
On / Scan Button Lug
HINTS ON TAKING TEMPERATURES
1. As with other thermometers, you may observe slight variations in
consecutive measurements. It is recommended that you take 3
temperature readings and use the highest one for the following
situations:
• Infants younger than 3 months old.
• Children younger than 3 years old and who have a compromised
immune system and the presence / absence of fever is critical.
• When you are learning to use the thermometer.

EN-6
2. Do not take a reading while the patient is moving and / or talking.
Wait 30 minutes after any of the following situations before taking a
measurement:
• When the body site for measurement has been covered.
• After the patient has been exercising, swimming, or taking a bath.
• When the patient has been exposed to extreme temperature.
DISPLAY SCREEN
89
4
2
3
1
5
6
7
Date / Time Temperature unit
Temperature reading Error warning
Body temperature indicator Low battery indicator
Bluetooth symbol
(ri-thermo®sensioPRO+ only)
Date indicator
Memory mode

EN-7
REPLACING THE BATTERY
The thermometer comes with two 1.5 V AA alkaline batteries. The
meter will display ” ” to alert you when the meter power is getting
low. If “ ” and “ ” appear both, please follow the steps below to
replace new batteries immediately.
1. Remove the battery cover as the arrow direction accordingly.
(Figure 1)
2. Remove the old batteries and replace with two 1.5V AA size alkaline
batteries. (Figure 2)
3. Close the battery cover. If the batteries are inserted correctly, you will
hear a “beep” afterwards.
(Figure 1) (Figure 2)
NOTE:
• Although the thermometer works when “ ” appears, we still
recommend that you change the batteries to obtain an accurate
result.
• Remove the batteries if stored for a long period of time.
• The batteries should be kept away out of child’s reach. If they are
swallowed, promptly see a doctor for help.

EN-8
CHANGING UNIT OF MEASUREMENT
This meter provides two measurement units used for indicating the
body temperature, °C or °F, for your preferred selection.
STEP 1. Press the to turn on the thermometer rst.
STEP 2. Press the °C / °F button to select. Press the to begin the
measurement or keep the meter in idle for 30 seconds to automatically
turn it o󰀨.
SETTING THE THERMOMETER
You will need to set time for rst-time use or after replacing the battery.
STEP 1. When the thermometer is o󰀨, press the MEM button for 2
seconds to enter the setting mode.
STEP 2. Set the date and time
• Press the MEM or °C / °F button to select the correct month.
• Press the to move on the next step.
• Press the MEM or °C / °F button to select the correct day / year / hour
/ minute.

EN-9
After the setting is completed, the meter will automatically turn it o󰀨.
NOTE:
If the meter is idle for 30 seconds during the setting mode, it will switch
o󰀨 automatically.
USING THE DEVICE
STEP 1. Move the probe close to the forehead.
Press and hold the .
Make sure the probe is at and close to the forehead, not at an angle.
Perform a forehead measurement with a distance within 3-7 cm.

EN-10

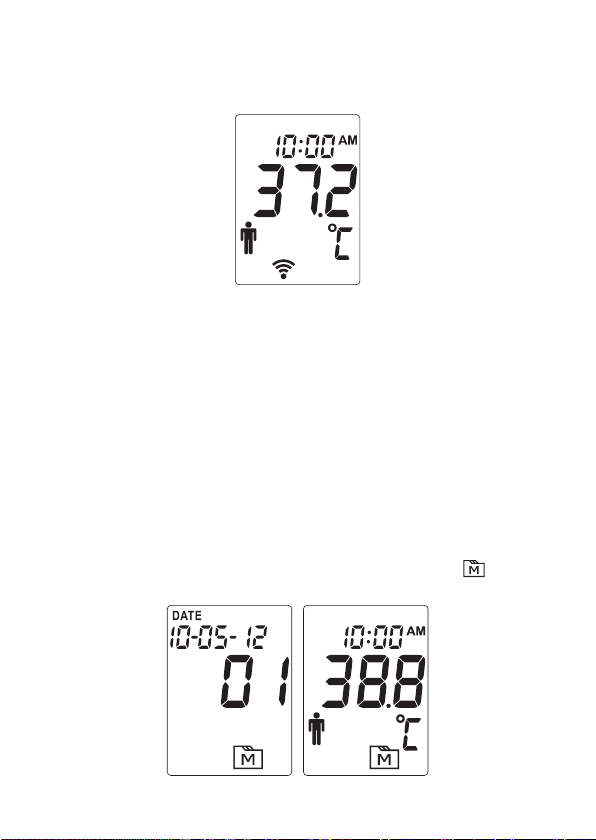

STEP 2. Read the result.
Release the button. The temperature reading will be displayed with a
short beep sound.
NOTE:
• As the forehead measurement temperature is likely to be a󰀨ected
by sweat, oil and the surroundings, the reading shall be taken as a
reference only.
• If the probe is placed at an angle close to the forehead measurement,
the reading will be a󰀨ected by surrounding temperature.
• The thermometer will automatically turn o󰀨 if left idle for 30 seconds.
RECALLING PAST READINGS
Your thermometer stores 30 most recent readings.
STEP 1. Press the MEM button to enter the memory mode.
Each time you press the MEM button, a result will be displayed in
the order of dates (latest result shown rst), together with “ ” and
number (from 1 to 30).

EN-11
When the memory is full, the oldest result is deleted as the new one
added. When the last record is displayed, press MEM button again to
return to the rst record.
STEP 2. Exit the memory.
Press button to return to the measurement mode or keep the
meter in idle for 30 seconds in the memory mode, it will switch o󰀨
automatically.
BLUETOOTH PAIRING (ri-thermo®
sensioPRO+ ONLY)
You can transmit your data from the thermometer to compatible devices
via bluetooth. Please note that you must complete the pairing between
the thermometer and the bluetooth receiver before transmitting data.
Pairing mode is automatically active when starting the device. Please
note the respective manual of the device you inted to pair.
ABOUT NORMAL BODY TEMPERATURE &
FEVER
Body temperature can vary from one individual / person to next. It
also varies by location on the body and time of day. Below shows the
statistical normal ranges from di󰀨erent sites. Please keep in mind that
temperatures measured from di󰀨erent sites, even at the same time,
should not be directly compared.
Fever indicates that the body temperature is higher than normal. This
symptom may be caused by infection, overdressing or immunization.
Some people may not experience fever even when they are ill. These
include, but are not limited to, infants younger than 3 months old,
persons with compromised immune systems, persons taking antibiotics,
steroids or antipyretics (aspirin, ibuprofen, acetaminophen), or persons
with certain chronic illnesses.

EN-12
Body Site Normal Temperature Range*1
Oral normal oral temperature is 37°C (98.6°F)
Rectal / Ear 0.3°C to 0.6°C (0.5°F to 1°F) higher than oral
temperature
Axillary /
Forehead
0.3°C to 0.6°C (0.5°F to 1°F) lower than oral
temperature
*1. https://wa.kaiserpermanente.org/kbase/topic.jhtml?docId=tw9223
MAINTENANCE
• The probe is not waterproof. Please wipe with a clean and dry cotton
swab to clean the probe on the inside.
• The body of the thermometer is not water-resistant. Never put the
thermometer under a running tap or submerge it into water. Use a soft
and dry cloth to clean it. Do not use abrasive cleaners.
• Store the thermometer in a cool and dry location. Free from dust and
away from direct sunlight.
TROUBLESHOOTING
The table below shows problems you may encounter. All error
messages below would be shown together with backlight. Please follow
“what to do” to resolve problems. If the problem still exists, please call
your local dealer for help.
MESSAGE WHAT IT MEANS WHAT TO DO
E-1
Appear when
environmental
temperature is below
system operation range.
Put the thermometer under
operating temperature
range of 10°C to 40°C
(50°F to 104°F).
E-2
Appear when
environmental
temperature is above
system operation range.

EN-13
Battery is low. Please replace batteries
as soon as possible.
Lo The temperature reading
is below 22°C (71.6°F).
Please follow this
instruction to take a
measurement again.
Hi The temperature reading
is above 44°C (111.2°F).
SYMBOL INFORMATION
SYMBOL REFERENT SYMBOL REFERENT
Consult instructions
for use Type BF applied part
Manufacturer Temperature limit
Serial number Humidity limitation
Caution Resistant to liquid
ingress
CE mark RoHS compliance
Authorized representative in the European Community
This device does not belong to household waste and
must be returned to a collection point for recycling
electric and electronic devices according to local laws.
If it contains batteries, the batteries should be removed
and disposed in accordance with locations for separate
collection of spent batteries.
SPECIFICATIONS
Model No.: TD-1241
Dimension & Weight: 161.2mm(L) x 36.1mm(W) x 47.8mm(H), 70.2g
(exclude 2 x1.5V AA batteries)
Battery: 2 x 1.5 V AA alkaline batteries

EN-14
Battery Life: 3000 times
Displayed Temperature Range: 22°C to 44°C (71.6°F to 111.2°F)
Display Resolution: 0.1°C / 0.1°F
Accuracy: Meet the accuracy requirement specied in ASTM E1965-98
• ±0.2°C (±0.4°F) for the range of 35°C to 42°C (95°F to
107.6°F)
• ±0.3°C (±0.5°F) for less than 35°C (42°F) and greater than
42°C (107.6°F)
Temperature Unit: °C (Default) or °F
System Operating Conditions: 10°C to 40°C (50°F to 104°F), 30% to
85% RH (non-condensing), 700 hPa to 1060 hPa
Storage / Transport Conditions: -20°C to 60°C (-4°F to 140°F), 30% to
85% RH (non-condensing)
Memory Capacity: 30 measurements
External Output: Bluetooth (ri-thermo®sensioPRO+ only); Frequency:
2.45GHz; Bandwidth: 170MHZ; Modulation: GFSK; ERP: 5.46 dBi
Expected Service Life: 3 years
IP Classication: IP22
REFERENCE STANDARDS
Device Standard:
Device Corresponds to the requirements of the standard for infrared
thermometers. ASTM E1965-98, EN ISO 80601-2-56:2017, EN 60601-
1-2:2015, EN 60601-1:2006+A12:2014, EN 60601-1-6:2010.
Electromagnetic Compatibility:
Device fullls the stipulations of the standard EN 60601-1-2.
The stipulations of EU-Directive 93/42/EEC for Medical Devices Class
lla have been fullled.

EN-15
Manufacturer’s declaration-electromagnetic emissions
The device is intended for use in the electromagnetic environment specified below.
The customer or the user of the device should assure that it is used in such an environment.
Emission test Compliance Electromagnetic environment-guidance
RF emissions CISPR 11 Group 1
The device uses RF energy only for its internal function. Therefore, its
RF emissions are very low and are not likely to cause any interference
in nearby electronic equipment.
RF emissions CISPR 11 Class B
The device is suitable for use in all establishments, including domestic
establishments and those directly connected to the public low-voltage
power supply network that supplies buildings used for domestic
purposes.
Harmonic emissions
IEC 61000-3-2 Not applicable
Voltage fluctuations / flicker emissions
IEC 61000-3-3 Not applicable
Manufacturer’s declaration-electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below.
The customer or the user of the device should assure that it is used in such an environment
Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance
Electrostatic
discharge(ESD) IEC
61000-4-2
Contact:±8 kV
Air±2 kV,±4 kV,±8 kV,±15
kV
Contact:±8 kV
Air±2 kV,±4 kV,±8 kV,±15
kV
Floors should be wood, concrete or ceramic tile.
If floors are covered with synthetic material, the
relative humidity should be at least 30%
Electrical fast transient/
burst IEC 61000-4-4
± 2kV for power supply
lines
± 1kV for input/output lines
Not applicable
Not applicable
Mains power quality should be that of a typical
home and professional environment.
Surge IEC 61000-4-5
± 0.5kV, ±1kV line(s) to
line(s)
± 0.5kV, ±1kV,±2kV line(s)
to earth
Not applicable
Not applicable
Mains power quality should be that of a typical
home and professional environment.
Voltage Dips, short
interruptions and voltage
variations on power supply
input lines IEC 61000-4-11
Voltage dips:
0 % UT; 0,5 cycle
0 % UT; 1 cycle
70 % UT; 25/30 cycles
Voltage interruptions:
0 % UT; 250/300 cycle
Voltage dips:
Not applicable
Not applicable
Not applicable
Voltage interruptions:
Not applicable
Mains power quality should be that of a typical
home and professional environment. If the user
of the device requires continued operation during
power mains interruptions, it is recommended that
the device be powered from an uninterruptible
power supply or a battery.
Power frequency(50, 60
Hz) magnetic field IEC
61000-4-8 U
30 A/m
50 Hz or 60 Hz
30 A/m
50 Hz and 60 Hz
The device power frequency magnetic fields
should be at levels characteristic of a typical
location in a typical home and professional
healthcare environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.

EN-16
Manufacturer’s declaration-electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below.
The customer or the user of the device should assure that it is used in such and environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms:
0,15 MHz – 80 MHz
6 Vrms:
in ISM and amateur
radio bands between
0,15 MHz and 80 MHz
80 % AM at 1 kHz
10 V/m
80 MHz – 2,7 GHz
80 % AM at 1 kHz
Not applicable
Not applicable
10 V/m
80 MHz – 2,7 GHz
80 % AM at 1 kHz
Portable and mobile RF communications
equipment should be used no closer to any part of
the device including cables, than the recommended
separation distance calculated from the equation
applicable to the frequency of the transmitter.
Recommended separation distance:
d = 1,2 √P
d = 1,2 √P 80MHz to 800 MHz
d = 2,3 √P 800MHz to 2,7 GHz
Where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and d is the recommended separation
distance in metres (m).
Interference may occur in the vicinity of equipment
marked with the following symbol:
NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from
structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur
radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the
location in which the device is used exceeds the applicable RF compliance level above, the device should be observed to verify normal
operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the device.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Recommended separation distance between
portable and mobile RF communications equipment and the device
The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or
the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile
RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the
communications equipment.
Rated maximum output power
of transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
d =1,2 √P
150 kHz to 80 MHz
d =1,2 √P
150 kHz to 80 MHz
d =1,2 √P
0,01 N/A N/A N/A
0,1 N/A N/A N/A
1 N/A N/A N/A
10 N/A N/A N/A
100 N/A N/A N/A
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated
using the equation applicable to the frequency of the transmitter, where p is the maximum output power rating of the transmitter in watts (W)
according to the transmitter manufacturer.
NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from
structures, objects and people.

EN-17
Manufacturer’s declaration-electromagnetic immunity
Test specifications for ENCLOSURE PORT IMMUNITY to RF wireless communications equipment
The device is intended for use in the electromagnetic environment specified below.
The customer or the user of the device should assure that it is used in such an environment.
Test
frequency
(MHz)
Band a)
(MHz) Service a) Modulation b) Maximum
power
(W)
Distance
(m)
IMMUNITY
TEST LEVEL
(V/m)
Compliance
LEVEL
(V/m)
385 380 –390 TETRA 400
Pulse
modulation b)
18 Hz
1,8 0,3 27 27
450 430 – 470 GMRS 460,
FRS 460
FM c)
±5 kHz
deviation
1 kHz sine
20,3 28 28
710
704 – 787 LTE Band 13,
17
Pulse
modulation b)
217 Hz
0,2 0,3 9 9745
780
810
800 – 960
GSM 800/900,
TETRA 800,
iDEN 820,
CDMA 850, LTE
Band 5
Pulse
modulation b)
18 Hz
20,3 28 28
870
930
1 720
1 700 –
1 990
GSM 1800;
CDMA 1900;
GSM 1900;
DECT; LTE
Band 1, 3, 4,
25; UMTS
Pulse
modulation b)
217 Hz
20,3 28 281 845
1 970
2 450 2 400 –
2 570
Bluetooth,
WLAN, 802.11
b/g/n, RFID
2450,
LTE Band 7
Pulse
modulation b)
217 Hz
20,3 28 28
5 240
5 100 –
5 800
WLAN 802.11 a/
n
Pulse
modulation b)
217 Hz
0,2 0,3 9 9
5 500
5 785
NOTE If necessary to achieve the IMMUNITY TEST LEVEL, the distance between the transmitting antenna and the ME EQUIPMENT or
ME SYSTEM may be reduced to 1 m. The 1 m test distance is permitted by IEC 61000-4-3.
a) For some services, only the uplink frequencies are included.
b) The carrier shall be modulated using a 50 % duty cycle square wave signal.
c) As an alternative to FM modulation, 50 % pulse modulation at 18 Hz may be used because while it does not represent actual modulation,
it would be worst case.

EN-18
