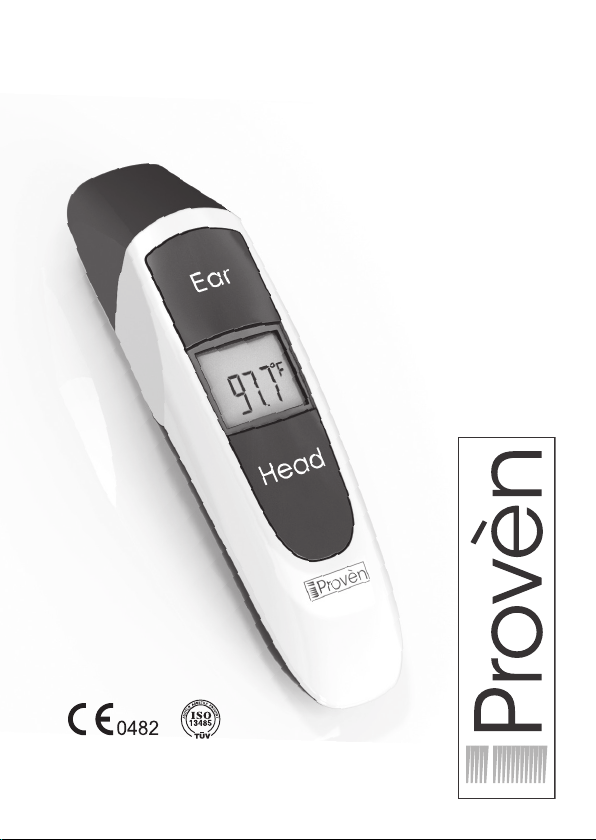

iProven DMT-316 User manual

Infrared Ear and Head Thermometer
Instruction Manual
DMT-316
Manual Ver.: 3.1
Issuing Date: 28/02/2018
©2017. All rights reserved.

- 2 -
Thank you for choosing the iProvèn Dual Mode Thermometer. The DMT-316 can be
used to measure body temperature by sensing heat radiated from the eardrum or from
the forehead. It can also be used to measure the room temperature. The Ear function
of this thermometer is appropriate for use on adults and for children older than six
months. The head function is also appropriate for children younger than six months.
Please read the instructions carefully in order to accurately utilize this equipment.
Temperature measurements may not be valid or accurate if they are not performed
in accordance with the instructions provided in this manual. Please keep these in-
structions handy for future reference. You can also nd the latest digital version of this
manual at www.iproven.com
It is our passion to develop high quality products for home use.
Our products are manufactured at the highest technical standards of professional
quality, durability, and consistency. They are also designed with elegant simplicity in
mind, making them easy to use at home.
To help you get the most from our products, we provide clear instructions with each
device. The manual also includes helpful information that contributes to your overall
health awareness.
In order to make sure that our products are tailored to your needs, we welcome your
feedback. If you have any issues, questions or recommendations, please share your
thoughts with us at www.iproven.com
iProvèn - Professional Care Brought Home
iProvèn is a Masena Invest Company

- 3 -
Contents
1. Safety Instructions and Precautions........................................4
2. Purpose of the Device.......................................................................5
2.1 Description of the Device............................................................5
2.2 Description of the Display ..........................................................5
3. Setup Instructions..............................................................................6
3.1 First use...............................................................................................6
3.2 Replacing the Batteries................................................................6
4. Operating Instructions....................................................................6
4.1 Precautions for Accurate Measurements..............................6
4.2 How to Correctly perform an Ear Measurement................6
4.3 How to Correctly perform a Head Measurement..............7
4.4 Memory Retrieval...........................................................................8
4.5 Switch between Fahrenheit and Celsius...............................8
4.6 Automatic Power-O ....................................................................8
5. Measurement Results.......................................................................8
5.1 Room Temperature Measurement ..........................................8
5.2 Out-of-Range Temperatures......................................................8
5.3 Interpreting the Measurement Results .................................9
6. Cleaning...................................................................................................9
7. Storage......................................................................................................9
8. Troubleshooting ................................................................................10
9. Technical Information......................................................................10
10. Warranty ...............................................................................................11
Electrical waste materials should be sent to dedicated
collection points for recycling.
Warning: device damage or injuries may be the result
of incorrect usage of this product. Please follow the
instructions of this manual carefully.
Important: incorrect usage or damage of the product
may lead to inaccurate readings.

- 4 -
1. Safety Instructions and Precautions
• The ear measuring function of this thermometer is not suitable for children
under 6 months of age. For children younger than 6 months we recommend
using the Forehead mode or a rectal digital thermometer such as the iProvèn
DT-R1221B.
• This device is not intended to serve as a continuous monitoring device.
• This device is not waterproof. Please keep it away from water or other liquids.
Carefully follow the instructions in the cleaning section when you need to
cleanse and disinfect your device.
• Please do not use the product if the temperature sensor of the thermometer
shows any sign of damage. Do not try to repair the product if it is damaged.
Instead, please contact our customer support at www.iproven.com.
• The use of this thermometer is not intended to take the place of appropriate
medical supervision.
• This thermometer consists of high quality, precision-made parts. It is not
designed to be impact- or shock-resistant. Avoid dropping the product or
subjecting it to intense shock or vibration.
• Do not twist the thermometer or the temperature sensor.
• Remove the batteries if the thermometer will not be used for more than three
months.
Warning!
This item is not intended to replace insight from a doctor, pharmacist, or other
licensed health-care professional. You should not utilize this item for self-diagnosis
or for independent treatment of an illness. Immediately contact your health-care
professional if you suspect that you have a clinical issue.
Attention:
Electromagnetic interference: this thermometer contains sensitive electronic
components and should not be used in the vicinity of electromagnetic interference
(such as mobile phones or microwaves).
Please dispose of used products and batteries in accordance with local
regulations and requirements.

- 5 -
2. Purpose of the Device
This thermometer is intended to be used to measure the body temperature of humans
who are a minimum of six months old when using the ear measuring function and
suitable for all ages when using the head function. It measures the body tempera-
ture based on heat radiating from the eardrum or from the forehead. Although this
thermometer has undergone extensive clinical tests and is considered safe and highly
accurate, it is intended for non- professional home use only.
2.1 Description of the Device
1. Sensor Cap
2. Ear Button
3. LCD Display
4. Head Button
5. Battery Cover
2.2 Description of the Display
1. Head Measurement
2. Ear Measurement
3. ˚F/ ˚C Sign
4. Low Battery
5. Memory
6. Temperature Reading
1
2
3
4
5
3
2
4
5
6
1HEAD EAR

- 6 -
3. Setup instructions
3.1 First use
Before using this product for the rst time, the battery protection tab must be removed.
Remove this plastic tab by gently pulling it out of the battery compartment.
3.2 Replacing the Batteries
1. Release the battery cover by gently sliding it down.
2. Remove the battery cover.
3. Replace both AAA- batteries according to the polarity marked on the battery
chamber.
4. Replace the battery cover and make sure all of the pins of the cover are aligned
with the gaps.
5. Close the battery cover by sliding it up until you hear a click.
4. Operating instructions
4.1 Precautions for Accurate Measurements
Carefully follow these instructions to ensure accurate temperature readings:
• Ensure that the thermometer lens is clean.
• If the thermometer is transferred to a new location with a dierent room tempe-
rature, wait at least 30 minutes before using it. This will allow the thermometer to
adjust to the new conditions and prepare it to give the most accurate readings.
• Ensure that the ears are clean. Earwax inuences the accuracy of the measurement.
• Utilize the thermometer in a closed room where there is no strong breeze or draft.
• Ear or head coverage by hair or a hat will make the ear warmer; ensure that the ear
or the head has not been covered for 5 minutes prior to the measurement.
• Please be aware that intense emotions and strenuous physical exertion before
taking a measurement can aect the accuracy of the reading.
• Avoid holding the thermometer in your hands any longer than necessary, since it is
highly sensitive to heat. Holding the unit for more than three minutes can result in
inaccurate measurements.
4.2 How to Correctly Perform an Ear Measurement
Image 1 Image 2 Image 3 Image 4

- 7 -
1. Remove the sensor cap to expose the sensor probe.
2. For adults, pull the ear backward and upward with your free hand to straighten the
ear canal (image 1).
3. Gently insert the sensor into the ear canal.
4. Ensure that the sensor is aimed directly toward the eardrum (image 2).
5. If the ear canal is not straightened, inaccurate readings may result (image 3).
6. For children between 6 and 12 months old, pull the outer ear straightbackward
(image 4).
7. Press the button once to take the measurement.
8. A beep indicates that the measurement has been taken and the thermometer may
be removed from the ear.
9. Look at the display to read the temperature.
10. Clean the sensor and cover it again with the sensor cap.
4.3 How to Correctly Perform a Head Measurement
NOTE: The forehead measurement is an indicative reading. The measured forehead
temperature can uctuate up to 1.0 ˚F/ 0,5˚C from your actual body temperature.
Please be aware of the factors that inuence the accuracy as described in the section
‘Precautions for Accurate Measurements’.
Always check if the lens is clean.
Always make sure the user and the thermometer will have been in the same
room for at least 30 minutes prior to the measurement.
To perform a head measurement:
1. Keep or put the sensor cap in place;
2. Aim the sensor at the temple and start holding the button;
3. Move the sensor across the forehead to the other temple.
4. Release the button as soon as the sensor is at the other temple.
Tip: Touch the skin lightly but do not press the sensor too hard to the skin as this may give
inaccurate measurement results. Visit www.iproven.com/pages/316 to watch the instruction
video.

- 8 -
4.4 Memory Retrieval
Each time a successful measurement is performed, the measurement data is stored
in the thermometer memory. The memory of this thermometer has a capacity of 20
measurements. To retrieve stored measurements follow these instructions:
1. Ensure that the thermometer is turned o. If the display is not dark, leave the
buttons untouched for 10 seconds.
2. Hold the Ear button for 3 seconds, and release the button when the display
shows“- - -M”
3. The last measurement will appear and the M sign will blink.
4. Press the ear button again to see the previous measurement; repeat as needed
to view earlier measurements.
5. The retrieved information includes the measured temperature and the type of
temperature taken (whether an ear or a head measurement).
4.5 Switch Between Fahrenheit and Celcius
1. Ensure that the thermometer is turned o. If the display is not completely dark,
leave the buttons untouched for 10 seconds.
2. Press and hold the ear button for 5 seconds until the display shows“- - - ˚C” or
“- -- ˚F”.
3. Release the ear button and immediately press it again to switch the temperature
scale.
4. Wait 5 seconds for the thermometer to save the settings and shut itself down
before you use it again.
4.6 Automatic Power-o
If the buttons are left untouched for 10 seconds, the thermometer will automatically
shut down.
5. Measurement Results
5.1 Room Temperature Measurement
This device may be used to measure room temperatures between 32 ˚F and 89.5 ˚F,
as well as 108 ˚F to 212 ˚F. This corresponds to 0.0 ˚C to 32 ˚C and 42.2 ˚C to 99.9 ˚C. To
measure the room temperature press the ear button once while remaining at least 3 ft
space between the sensor and any object.
5.2 Out-of-Range Temperatures
Temperature measurements that are outside the measurement ranges will result in
error codes L ˚ or H ˚ on the display, accompanied by beeps and the display lighting
red for three seconds. “L ˚”indicates that the measurement is below 32 ˚F, or 0 ˚C.
“H ˚” indicates a measurement exceeding 212 ˚F, or 100.0 ˚C.

- 9 -
5.3 Interpreting the Measurement Results
6. Cleaning
• Regularly clean the thermometer sensor with a damp cloth, moistened slightly
with water.
• If you desire disinfecting the sensor probe you can do so by using a disinfecting
wipe or a cotton ball damped with a disinfectant.
• You can prevent the sensor from getting stained by ensuring the ear canals are
clean.
Caution: This thermometer is not waterproof! Do not immerse or expose it to
water or any other liquid other than using a slightly damp cloth.
7. Storage
• Store this thermometer at room temperature. The most accurate temperature
measurement is obtained when the thermometer and the user have both been
exposed to the same ambient temperature for at least 30 minutes.
• Always store this thermometer in the enclosed soft case to prevent it from
collecting dust or being exposed to bacteria.
• If your thermometer is likely to remain idle for more than 90 days, we recommend
you remove the batteries and store them separately.
Display Color ėFėCIndication What to do
Red 86-95,7 30-35,4 Hypothermia Consult doctor immediately.
Orange 95.8-96.6 35,5-35,9 Decreased
temperature
Lower temperatures in the morning are
perfectly normal.
If you are feeling cold take a hot shower.
Green 96.7-99.3 36,0-37,4 Good
temperature Your body temperature is ne.
Orange 99.4-100.3 37,5-37,9 Increased
temperature If you are not feeling well, get some rest.
Red 100.4-101.3 38-38,5 Light fever
Check your temperature regularly and rest.
Consult a doctor if you get worse or if the
fever lasts for more than three days
For babies <6 months consult Doctor
immediately
Red 101.4-103.9 38,6-39,9 Fever Call the doctor, especially if the fever lasts
for more than one day
Red 104 and
higher
40 and
higher High fever Consult doctor immediately or go to the emergency ward!

- 10 -
8. Troubleshooting
• Error: Display shows“ ER1” + backlight is red + 3 beeps sound
Meaning: The room temperature has dropped below 10 ˚C/ 50 ˚F or exceeded 40
˚C/ 104˚ ˚F. Desired action: Store the thermometer at room temperature.
• Error: Display shows“ ERC” + backlight is red + 3 beeps sound
Meaning: EEPROM data reading error or the correcting process is not nished.
Desired action: Contact your supplier.
• Error: Display shows low-voltage signal (not blinking) Meaning: The battery
voltage is below 2.61V±2%. Desired action: Replace the batteries according to the
instructions.
• “L ˚”: Measurement is below 0 ˚C or 32 ˚ F. Desired action: Check that you are
following the instructions for taking accurate measurements.
• “H ˚“: Measurement exceeds 99,9 ˚C or 212 ˚F. Desired action: Make sure you are
following the instructions for taking accurate measurements.
9. Technical Information
• Model: Dual Mode Thermometer DMT-316
• Applicable regulations and laws: ASTM 1965/EN12470BS EN ISO 80601-2-56:2012
• Temperature units: ˚C/ ˚F, adjustable
• Measurement range 0.0 ˚C-100.0 ˚C / 32.0 ˚F-212.0 Precision: ±0.2 ˚C /±0.4 ˚F
• Display resolution: 0.1 ˚C/0.1 ˚F
• Latency Time: 1 second
• Sound: Volume 50 dB (Distance from dB Volume sensor to thermometer is 10cm)
• Automatic shutdown function: ±10s
• Low-voltage display function: low-voltage sign shows when the voltage is below
2.51V±0.15V
• Memory function: capacity of 20 data sets
• Current consumption: I stand-by<2μA; I Buzzer on<2mA;
I working<0.5mA; I backlight<15mA
• LED backlight specications: 1.2cd/m2
• Operational conditions: ASTM 10 ˚C-40 ˚C (50 ˚F-104 ˚F)/15-95%RH
• Operational atmospheric pressure range: 860hPa to 1060hPa
• Battery: Two 1.5V AAA type batteries
• Battery life: 3000 measurements
• Accuracy (for clinical test): maximum allowable error for clinical test = Terror = T1-
Tref+ T2-Tref 2 0.3 ˚C/0.6 ˚F (for 95%) (T1 and T2 represent temperature value for
thermometer under test; Tref represents the constant reference temperature.)
• ASTM laboratory accuracy requirements in the display range of 37 to 39˚C
(98 to 102˚F) for IR thermometers is +/- 0.2˚C (+/- 0.4˚F), whereas for mercury-
in-glass and electronic thermometers, the requirement per ASTM Standards
E667-86 and E1112-86 is +/- 0.1˚C (+/- 0.2˚F).
