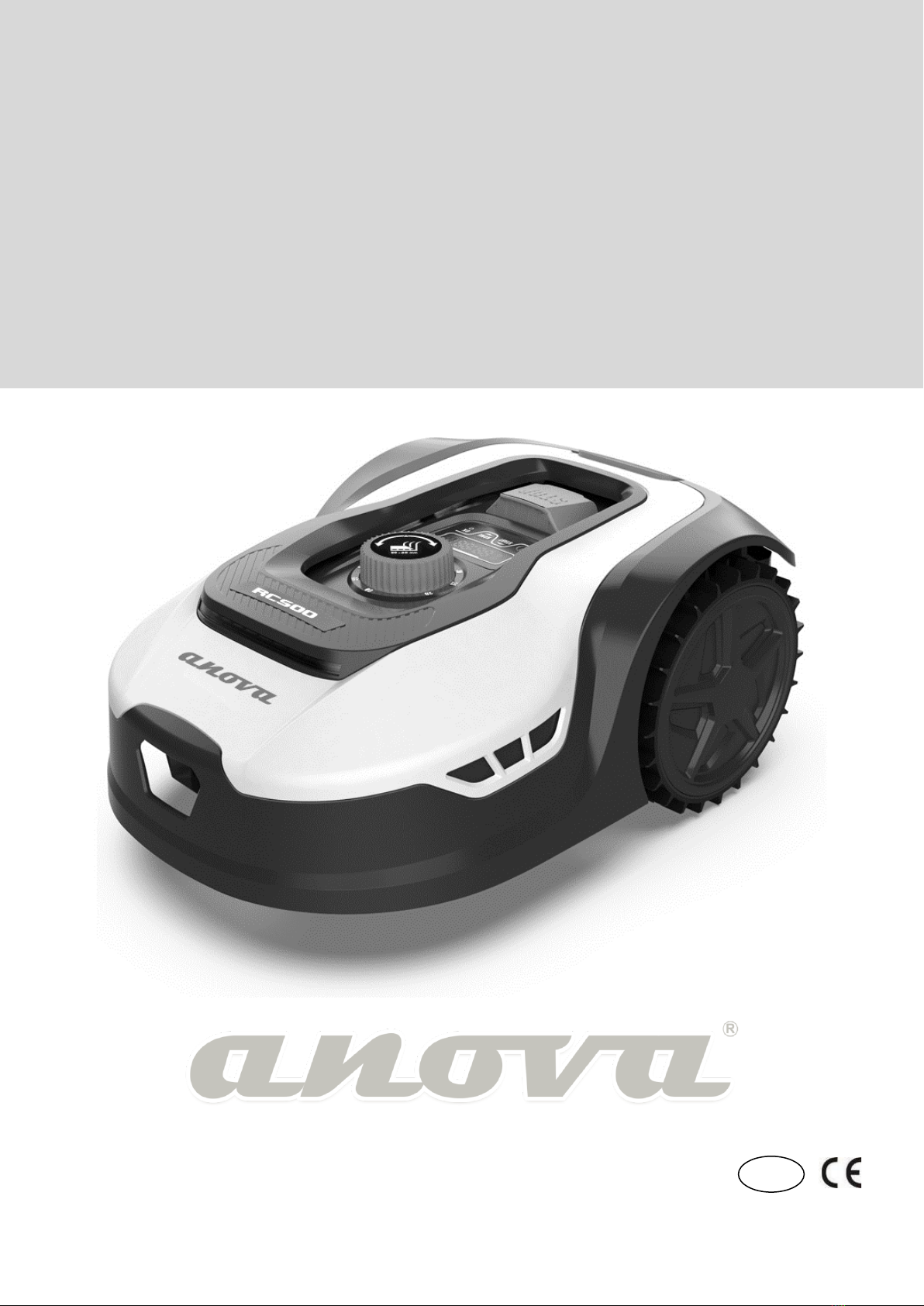

Anova RC500 User manual

Instructions - User Manual
ROBOT LAWNMOWER
RC500
Millasur, SL.
Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro
15688 - Oroso - A Coruña - 981 696 465 - www.millasur.com
EN

2
ANOVA thanks you for choosing one of our products and guarantees
the assistance and cooperation that has always distinguished our brand
over time.
This machine is designed to last for many years and to be of great use
if used in accordance with the instructions contained in the user
manual. We therefore recommend that you read this instruction manual
carefully and follow all our recommendations.
For more information or doubts, you can contact us through our web
supports such as www.anova.es
INFORMATION ABOUT THIS MANUAL
Please pay attention to the information provided in this manual and on
the appliance for your safety and that of others.
•This manual contains instructions for use and maintenance.
•Take this manual with you when you go to work with the machine.
•The contents are correct at the time of printing.
•The rights to make changes at any time are reserved without
affecting our legal responsibilities.
•This manual is considered an integral part of the product and must
remain with it in case of loan or resale.
•Ask your dealer for a new manual in case of loss or damage.
READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE
To ensure that your machine provides the best results, please
read the usage and safety regulations carefully before using it.
OTHER WARNINGS:
Incorrect use could cause damage to the machine or other objects.
The adaptation of the machine to new technical requirements could
cause differences between the content of this manual and the
purchased product.
Read and follow all instructions in this manual. Failure to follow these
instructions could result in personal injury

3
INDEX CONTENT
1. SAFETY RULES AND PRECAUTIONS
2. SAFETY SYMBOLS
3. PRODUCT DESCRIPTION
4. TECHNICAL DATA
5. INSTALLATION
6. SETTINGS
7. TROUBLESHOOTING - ERROR CODES
8. SOFTWARE UPDATE
9. MAINTENANCE
10.CONNECT APP
11. ENVIRONMENT
12. WARRANTY CONDITIONS
13. EXPLODING
14.CE CERTIFICATE

4
1. SAFETY RULES AND PRECAUTIONS
General
•This annex presents safe operating practices for this type of machines which comply with
the regulations.
•It should also include information on noise levels and necessary warnings, along with the
following points.
Important: Please read the manual carefully before using the machine. Keep these
instructions for future reference. Due to our ongoing R&D&I program, the specifications in
this document are subject to change without notice.
Safe operating practices
Training
•Read the instructions carefully. Become familiar with the controls and the proper use of
the machine.
•Never allow people who are not familiar with these instructions or children to use the
machine. Local regulations may restrict the age of the operator.
•The operator and/or user is responsible for accidents or dangers that occur to other
people or their property.
Preparation
•Make sure to correctly perform the installation of the automatic perimeter delimitation
system according to the instructions.
•Make sure your grass is no longer than 4" or 100mm, if it is longer use a regular lawn
mower or grass trimmer to cut it.
•Periodically inspect the area where the machine will be used and remove all stones,
sticks, wires and other foreign objects.
•Periodically inspect the blades, blade bolts and components of the robotic lawnmower for
wear and damage. Replace worn or damaged blades and bolts in sets to preserve
balance.
•On multi-spindle machines, be careful as turning one blade can cause other blades to
rotate.
Operation and commissioning
General
•Never use the machine with faulty guards or without safety devices.
•Do not put hands or feet near or under rotating parts. Stay clear of discharge opening at
all times.
•Never lift or carry a machine while the engine is running.
•Shut down and stop the machine completely:
oBefore removing any jam
oBefore repairing or adjusting the machine
•Do not leave the machine running unattended if you know there are pets, children or
people in the vicinity.
Maintenance and storage
•Keep all nuts, bolts, and screws tight to ensure the machine is in safe operating

5
condition.
•Check the robotic lawnmower frequently to see if it is worn or damaged.
•Replace worn or damaged parts for safety.
•Be sure to charge the battery with the correct charger recommended by the
manufacturer. Improper use may lead to electric shock, overheating, or leakage of
corrosive liquid from the battery.
•Maintenance of the machine must be carried out in accordance with the manufacturer's
instructions.
Battery pack and charger
Before charging, please read the instructions.
•Please make sure your charger matches the outlet, make sure the connection between
battery charger and battery pack is correct model.
•Longer life and better performance can be obtained if the battery pack is charged when
the air temperature is between 18°C and 25°C.
•Do not charge the battery in ambient temperatures below 5°C or above 40°C. This is
important as it can prevent serious damage to the battery.
•Be careful with batteries. In case of electrolyte leakage, rinse with water/neutralizing
agent, and also seek medical help if it comes into contact with eyes, etc.
Battery Pack Safety Warnings
•Do not disassemble, open or crush the battery pack.
•Do not short circuit the battery pack.
•Do not store battery packs haphazardly in a box or drawer where they can short-circuit
each other or be caused by conductive materials.
When the battery pack is not in use, keep it away from other metal objects, such as
paper clips, coins, keys, nails, screws, or other small metal objects, that can make a
connection from one terminal to another. Shorting the battery terminals can cause burns
or fire.
•Do not expose the battery pack to heat or fire. Avoid storage in direct sunlight or high
temperatures.
•Do not subject the battery pack to mechanical shock.
•In the event of battery leakage, do not allow the liquid to come into contact with skin or
eyes. If contact has been made, flush affected area with plenty of water and seek
medical advice.
•Keep the battery clean and dry.
•The battery pack offers its best performance when operating at normal room temperature
(20°C ± 5°C).
•Do not use modified or damaged batteries.
•Recharge only with the charger specified by the manufacturer. Do not use any charger
other than the one provided specifically for use with this machine. A charger not
approved by the manufacturer for this battery pack may create a risk of fire and related
injury.
•Do not use any battery pack that is not designed for use with the equipment.
•Keep the battery pack out of the reach of children.
•Please retain the original product documentation for future reference.
•Properly dispose of the battery pack and charger following environmental safety
regulations.
•If the appliance is to be stored unused for a long period of time, the batteries should be
removed.

6

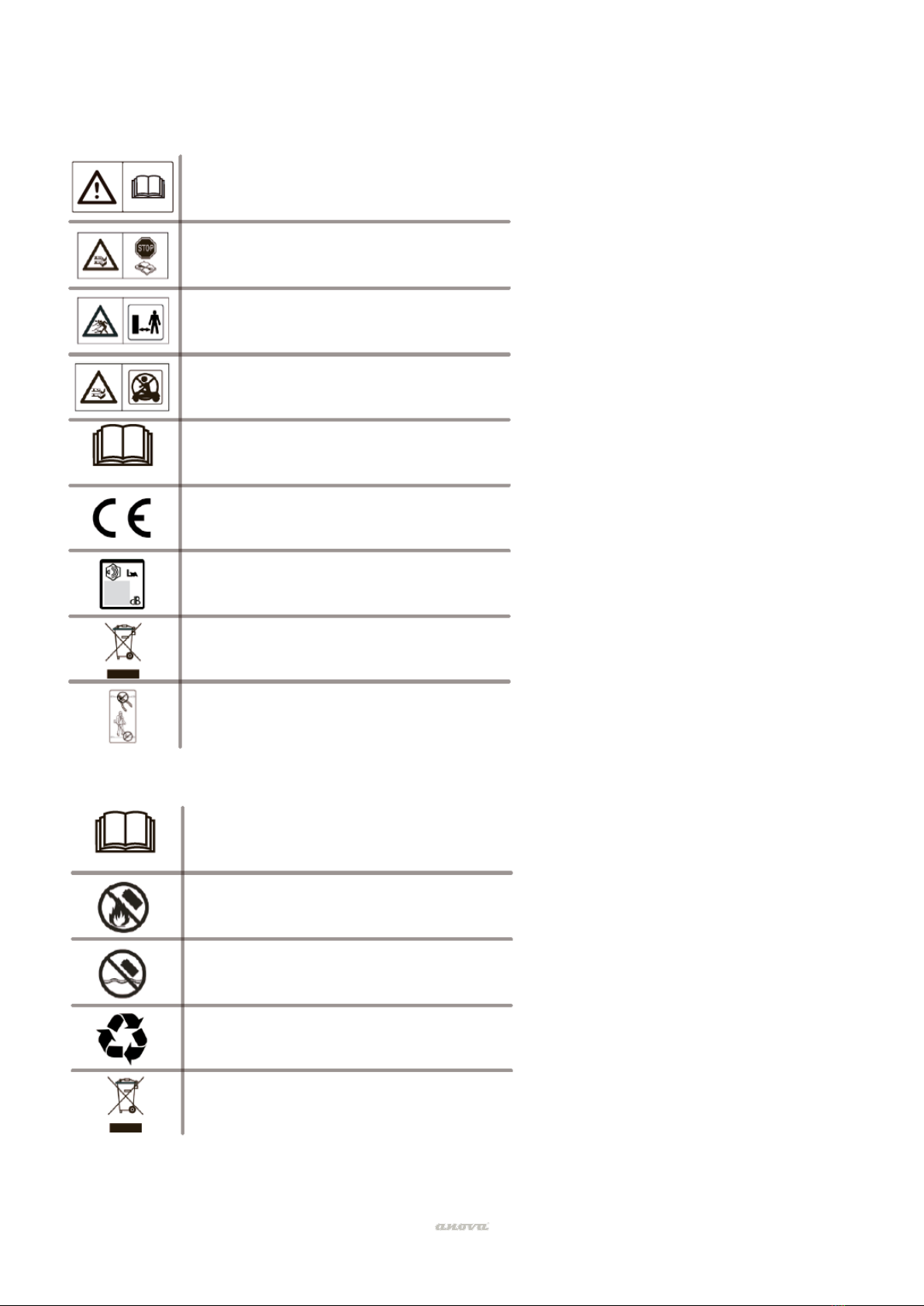

2. SAFETY SYMBOLS
General
Symbols on the battery pack
Warning: Read the user instructions before using the product.
Warning: Deactivate the product before working or lifting the machine.
Warning: Keep a safe distance from the machine when it is in operation. Keep
hands and feet away from rotating blades.
Warning: Do not climb on the machine. Never put your hands or feet near or
under the machine.
Use a detachable power supply as defined on the rating label next to the
symbol.
CE conformity mark.
Noise emission to the environment. The emissions of the product are indicated
in the Technical data and on the nameplate.
Disposal of this product as normal household waste is not permitted. Make
sure the product is recycled in accordance with local legal requirements.
The low voltage cable must not be shortened, lengthened or spliced. Do not
use the robotic lawnmower near the low voltage cable.
Take care when trimming the edges where the cables are placed.
Read the user instructions.
Do not throw the battery into a fire and do not expose it to a heat source.
Do not immerse the battery in water.
Recyclable brand.
Disposal of this battery pack as normal household waste is not permitted.
Make sure the battery is recycled in accordance with local legal requirements.

7
Symbols on the charger
Warning: Read all safety warnings and instructions. Failure to follow the warnings and
instructions may result in electric shock, fire, and/or serious injury.
Please read the instructions for the safe operation of the machine carefully, save all warnings
and instructions for future reference.
3. PRODUCT DESCRIPTION
You will also need:
Read the user instructions.
SMPS (Switch Power Supply Unit)
Double insulation.
SMPS (power supply unitswitched) that incorporates a switching power supply with
short-circuit proof safety isolation.
Disposal of this battery pack as normal household waste is not permitted. Make sure
the battery is recycled in accordance with local legal requirements.
Robotic lawnmower
Charging cradle
Base Fastening
Nails
Spare blades
Perimeter cable reel
Pegs
No load speed
Guide
away

8
4. TECHNICAL DATA
Model RC500 (RMA501M20V)
Cutting area 500m2
Voltage 20V max.
No load speed 2800rpm±100rpm
Cutting diameter 180mm
Cutting height 20-60mm
Height-of-cut positions 9
Maximum angle for the work area 36% (20°)
Narrowest passage possible 0.8m
Battery type/model 2.5Ah Li-Ion
Charger time 120-140min
Charger Rating
Input: 100-240V 50/60Hz, 28W
Output:20.5V--1.1A(IP67)
Noise (sound power)
(2000/14/EC modified by 2005/88/EC, Annex V)
<62dB
Weight 8kg
Perimeter wire 130m
Wire pegs 180pcs
Blades 3pcs
Charging cradle 1 (RC500-01 / CB03A)
Batteries 1 (LBF2025)
Charger 1 (CGF251)
Robot protection IPX5
Charging station protection IPX4
Power supply protection IP67
Apps Wi-Fi 2.4G + Bluetooth 4.0
Clarifications:
•Not all accessories that are described in this manual have to be included in the final
delivery of the product due to product updates.
•Measured no-load voltage: The initial battery voltage reaches a maximum voltage of 20
volts. The nominal voltage is 18 volts.
•We recommend that you purchase the original accessories from the same store that sold

9
you the tool. See the accessory packaging for details. The store staff can help you and
offer advice.

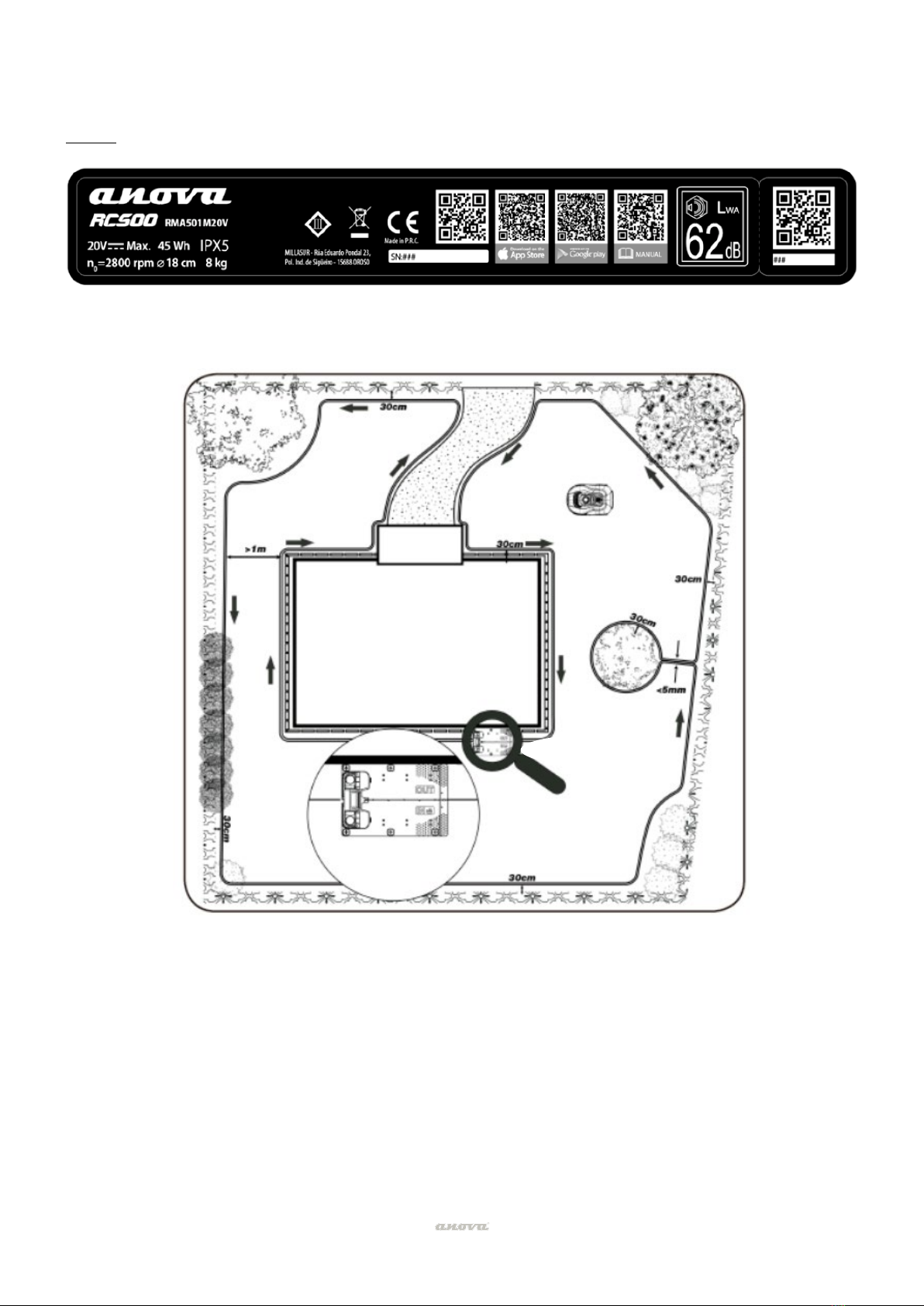

Label:
5. INSTALLATION
charging cradle
charging
cradle

10
Installation of the charging base
•The charging base can be placed near the house. When laying the perimeter wire, leave
at least 1m of straight wire without obstacles in front of the charging base.
Note: The front of the perimeter wire of the charging base must be straight for 1m without
corners or obstacles to ensure proper docking of the product.
•The charging base must be placed on level ground. It should not be placed on a slanted
surface or anywhere that will cause your plate to bend.
•The charging station must be placed on relatively level ground. It should not be placed on
a slanted surface or anywhere that will cause your plate to bend.
•We recommend that the power supply is placed on the wall at a minimum height of 30
cm and that the power cable is outside the working area of the robotic lawnmower. If not,
you can bury it if you wish.
•The perimeter wire should be stripped about 10mm at one end.
•Insert the perimeter wire terminal (RED) into the OUT side, then the perimeter wire
through the slot under the charging base plate.
•When laying the perimeter wire in the work area, cut off the unnecessary wire, strip the
perimeter wire about 10mm at the other end, insert the other wire terminal (black) to the
IN side.

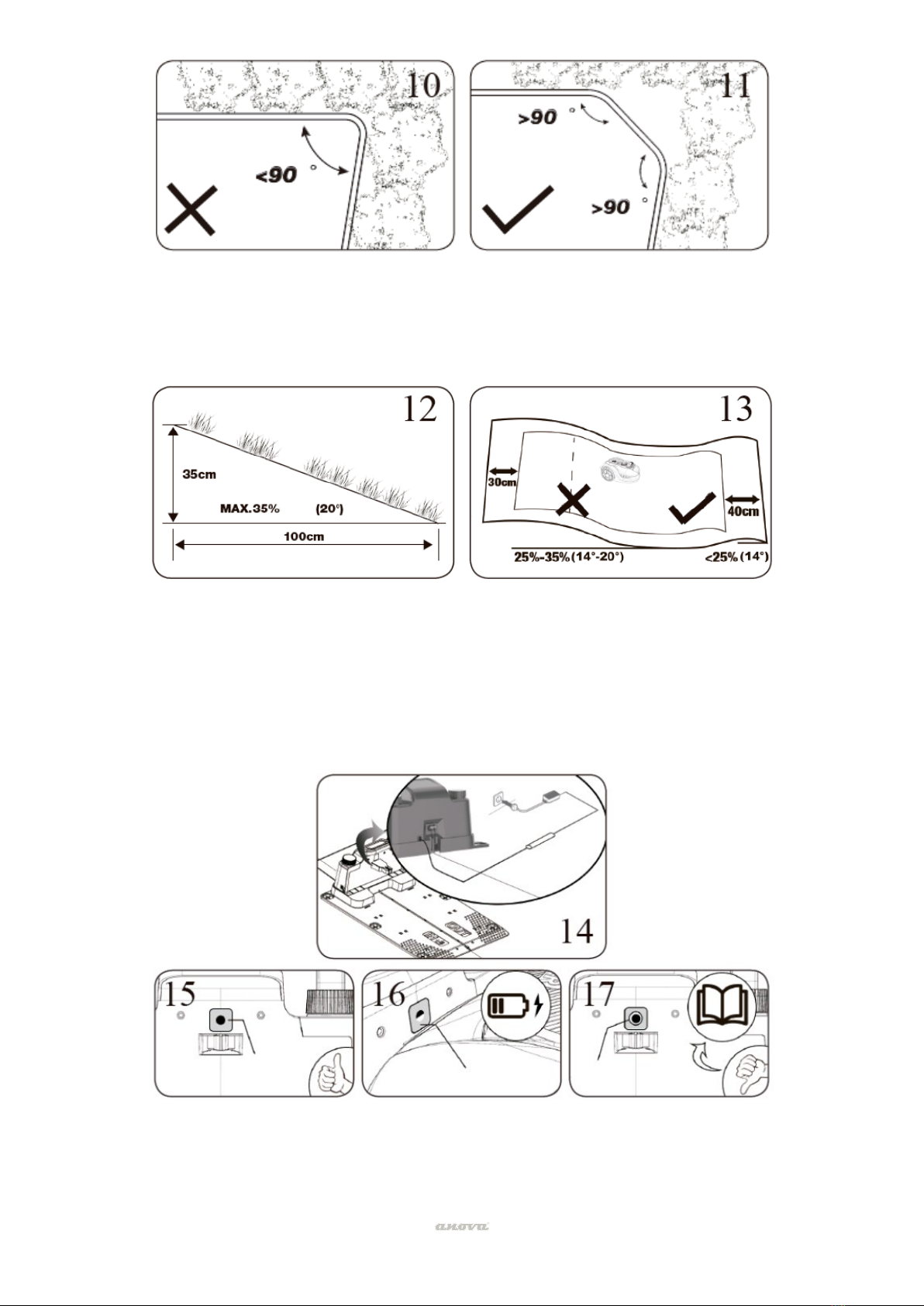

Perimeter Wire Installation
•When laying the perimeter wire, use the distance gauge to keep a 30cm gap between the
wire and the perimeter. Each peg should be placed about 80cm apart, use the gauge to
ensure proper installation. The work surface is usually an irregular area, the distance
between pegs can be reduced as appropriate for the type of perimeter and terrain.
NOTE: The maximum length allowed for the perimeter wire is 300 m.
black
terminal
red
terminal
