Anritsu MT1810A User manual

Document No.: M-W2746AE-7.0
ANRITSU CORPORATION
MT1810A
4Slot Chassis
Operation Manual
Seventh Edition
•For safety and warning information, please read this
manual before attempting to use the equipment.
•
Additional safety and warning information is provided
within the MT1810A 4 Slot Chassis Installation Guide
.
Please also refer
to this document before using the
equipment.
•
Keep this manual with the equipment.

ii
Safety Symbols
To prevent the risk of personal injury or loss related to equipment malfunction, Anritsu Corporation uses the
following safety symbols to indicate safety-related information. Ensure that you clearly understand the meanings of
the symbols BEFORE using the equipment. Some or all of the following symbols may be used on all Anritsu
equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in this
manual.
Symbols used in manual
This indicates a very dangerous procedure that could result in serious injury or
death if not performed properly.
This indicates a hazardous procedure that could result in serious injury or death if
not performed properly.
This indicates a hazardous procedure or danger that could result in light-to-severe
injury, or loss related to equipment malfunction, if proper precautions are not taken.
Safety Symbols Used on Equipment and in Manual
The following safety symbols are used inside or on the equipment near operation locations to provide information
about safety items and operation precautions. Ensure that you clearly understand the meanings of the symbols and
take the necessary precautions BEFORE using the equipment.
This indicates a prohibited operation. The prohibited operation is indicated
symbolically in or near the barred circle.
This indicates an obligatory safety precaution. The obligatory operation is
indicated symbolically in or near the circle.
This indicates a warning or caution. The contents are indicated symbolically in or
near the triangle.
This indicates a note. The contents are described in the box.
These indicate that the marked part should be recycled.
MT1810A
4 Slot Chassis
Operation Manual
27 November 2006 (First Edition)
10 October 2014 (Seventh Edition)
Copyright © 2006-2014, ANRITSU CORPORATION.
All rights reserved. No part of this manual may be reproduced without the prior written permission of the
publisher.
The contents of this manual may be changed without prior notice.
Printed in Japan
DANGER
WARNING
CAUTION

iii
Notes On Export Management
This product and its manuals may require an Export License/Approval by
the Government of the product's country of origin for re
-
export from your
country.
Before re
-exp
orting the product or manuals, please contact us to confirm
whet
her they are export-controlled items or not.
When you dispose of export
-
controlled items, the products/manuals need
to be broken/shredded so as not to be unlawfully used for military purpose.

iv

I
About This Manual
A testing system combining an MP1800A Signal Quality Analyzer or
MT1810A 4 Slot Chassis mainframe, module(s), and control software is
called the Signal Quality Analyzer Series. The operation manuals of the
Signal Quality Analyzer Series consist of separate documents for the
installation guide, the mainframe, remote control operation, module(s),
and control software, as shown below.
Installation guide, from module installation
to the start of use. The Installation Guide
varies depending on the mainframe used.
Configuration of Signal Quality
Analyzer Series Operation Manual
Mainframe Operation Manual
indicates this document.
Installation Guide
Describes basic operations of the
mainframe. The Mainframe
Operation Manual varies depending
on the mainframe used.
Remote Control Operation Manual
Control Software Operation Manual
Module Operation Manual
Describes remote control using the GPIB
interface and LAN interface.
Operation manual for the module. The
Module Operation Manual varies
depending on the module(s) used.
Operation manual of the software that
controls the Signal Quality Analyzer Series.
MT1810A 4 Slot Chassis Operation Manual
Describes panels and their maintenance.

II.
Table of Contents
About This Manual ........................................ I
Chapter 1 Overview .................................... 1-1
1.1 Product Overview ....................................................... 1-2
1.2 Product Composition................................................... 1-3
1.3 Specifications ............................................................. 1-5
Chapter 2 Preparations .............................. 2-1
2.1 Measures Against EOS and ESD................................ 2-2
Chapter3 Panels and Connections .......... 3-1
3.1 Front Panel................................................................. 3-2
3.2 Rear Panel.................................................................. 3-3
Chapter 4 Maintenance............................... 4-1
4.1 Daily Maintenance ...................................................... 4-2
4.2 Cautions on Storage ................................................... 4-2
4.3 Transportation ............................................................ 4-3
4.4 Calibration .................................................................. 4-3
4.5 Disposal...................................................................... 4-4

Chapter 1 Overview
1-1
This Chapter provides an overview and the specifications of the
MT1810A 4 Slot Chassis (hereinafter, referred to as “MT1810A”).
1.1 Product Overview ......................................................... 1-2
1.2 Product Composition .................................................... 1-3
1.2.1 Standard composition....................................... 1-3
1.2.2 Options ............................................................. 1-3
1.2.3 Application parts ............................................... 1-4
1.3 Specifications................................................................ 1-5

Chapter 1 Overview
1-2
1.1 Product Overview
Various plug-in modules (hereinafter, referred to as “module”) can be
installed into the MT1810A, to support research, development and
production of module devices for the optical communication market or
interconnection within a Gbit/s class high-speed device. The MT1810A
is also useful for research and development for the next-generation
communication market, including optical packet transmission.
Up to 4 modules can be installed into the MT1810A. For the
MU181020A 12.5 Gbit/s PPG and MU181040A 12.5 Gbit/s ED, among the
installable modules, the number of controllable modules can be increased
to 2 or 4 by selecting an optimal option to the MT1810A. As a way of
reducing cost, the display and control parts have been omitted from the
MT1810A, which is then controlled by the MX180000A Signal Quality
Analyzer Control Software installed in the external control PC. Remote
control by the control PC can also be performed via the GPIB or LAN
interface.
For the latest information on the modules that can be mounted on the
main unit, refer to the Anritsu homepage (http://www.anritsu.com).

1.2 Product Composition
1-3
1.2 Product Composition
1.2.1 Standard composition
Table 1.2.1-1 shows the standard composition of the MT1810A. For the
latest information, refer to the Anritsu homepage
(http://www.anritsu.com/en-us/products-solutions/products/mp1800a.aspx
).
Table 1.2.1-1 Standard composition of MT1810A
Item Model Product Q’ty Remarks
Main unit MT1810A 4-Slot Chassis 1
Accessories Z0306A Wrist strap 1
Z0897A Operation Manual 1 CD-ROM
Z0918A MX180000A Software CD 1 CD-ROM
- Power Code (13A) 1
J1109B LAN cable 1 CAT5, Crossover, 5 m
B0575A MT1810A protective cover 1
G0342A ESD Discharger 1
J1627A GND connection cable 1
1.2.2 Options
Table 1.2.2-1 shows the options for the MT1810A. All options are sold
separately.
Table 1.2.2-1 Options installed at shipment
Model Product Remarks
MT1810A-x14 2-slot for PPG and/or ED Enables control of 2 units of the MU181020A 12.5
Gbit/s PPG or MU181040A 12.5 Gbit/s ED in total.
MT1810A-x15 4-slot for PPG and/or ED Enables control of 4 units of the MU181020A 12.5
Gbit/s PPG or MU181040A 12.5 Gbit/s ED in total.
MT1810A-032 32Gbit/s PPG and/or ED
Support
Enables control of 4 units of the MU183020A
28G/32Gbit/s PPG, MU183021A 28G/32Gbit/s 4ch PPG,
MU183040A 28G/32Gbit/s ED,
or
MU183041A 28G/32Gbit/s 4ch ED in total.

Chapter 1 Overview
1-4
1.2.3 Application parts
Table 1.2.3-1 shows the application parts for the MT1810A. All
application parts are sold separately.
Table 1.2.3-1 Application parts
Model Product Remarks
J0008 GPIB connection cable, 2.0 m 2 m
W2746AE MT1810A 4 Slot Chassis Operation Manual Printed version
W2748AE MT1810A 4 Slot Chassis Installation Guide Printed version
J1109B LAN cable CAT5, crossover, 5 m
B0593A Blank panel
B0587A Rack mount kit

1.3 Specifications
1-5
1.3 Specifications
Table 1.3-1 MT1810A specifications
No. Item Specifications
1
1.1
1.2
1.3
1.4
1.5
Electrical performance
Functions
Remote interface
Mainframe ID
GPIO
Maintenance
Buzzer which sounds during measurement
10 BASE-T, 100 BASE-TX Ethernet (dedicated port for
external control PC)
Used to identify the MT1810A units when multiple (up to 4)
MT1810A units are connected.
Reserved connectors. This function is currently not
available
Connector for maintenance. Do not connect this connector.
2 Environmental performance
Power supply* AC 100 to 120 V, 200 to 240 V (automatic switching between
100- and 200-V systems), 50 to 60 Hz
Power consumption 450 Vac or less
Operating temperature range +5 to +40C (without condensation)
Operating humidity range 20 to 80%
Storage temperature range 20 to +60C (Recommended storage temperature range: +5
to +30C)
Storage humidity range 20 to 80% (Recommended storage humidity range: 40 to 75%)
3 Mechanical measurements
Dimensions 350 mm (W) 132.5 mm (H) 400 mm (D) (Protrusions
excluded)
Mass 13.0 kg (excluding modules and blank panels)
*: Operating voltage: within the range of +10% to –15% from the rated
voltage
Refer to the Anritsu homepage (http://www.anritsu.com), for information
on options and application parts which can be installed into the
MT1810A.

Chapter 1 Overview
1-6.

2-1
Chapter 2 Preparations
This chapter describes preparations for using MT1810A.
2.1 Measures Against EOS and ESD................................2-2
2.1.1 How to use the GND connection cable ............2-2
2.1.2 How to use the ESD Discharger ......................2-3

Chapter 2 Preparations
2-2
2.1 Measures Against EOS and ESD
This section describes how to prevent MT1810A from being damaged by
electrical over-stress (EOS) or electrostatic discharge (ESD).
2.1.1 How to use the GND connection cable
There is a risk of damaging MT1810A due to EOS if MT1810A and other
peripheral equipment (including experimental circuits) are not connected
to the common ground.
When connecting MT1810A and other peripheral (including experimental
circuits), connect other peripheral equipment to the ground terminal of
MT1810A’s chassis with the GND connection cable before connecting the
I/O connectors.

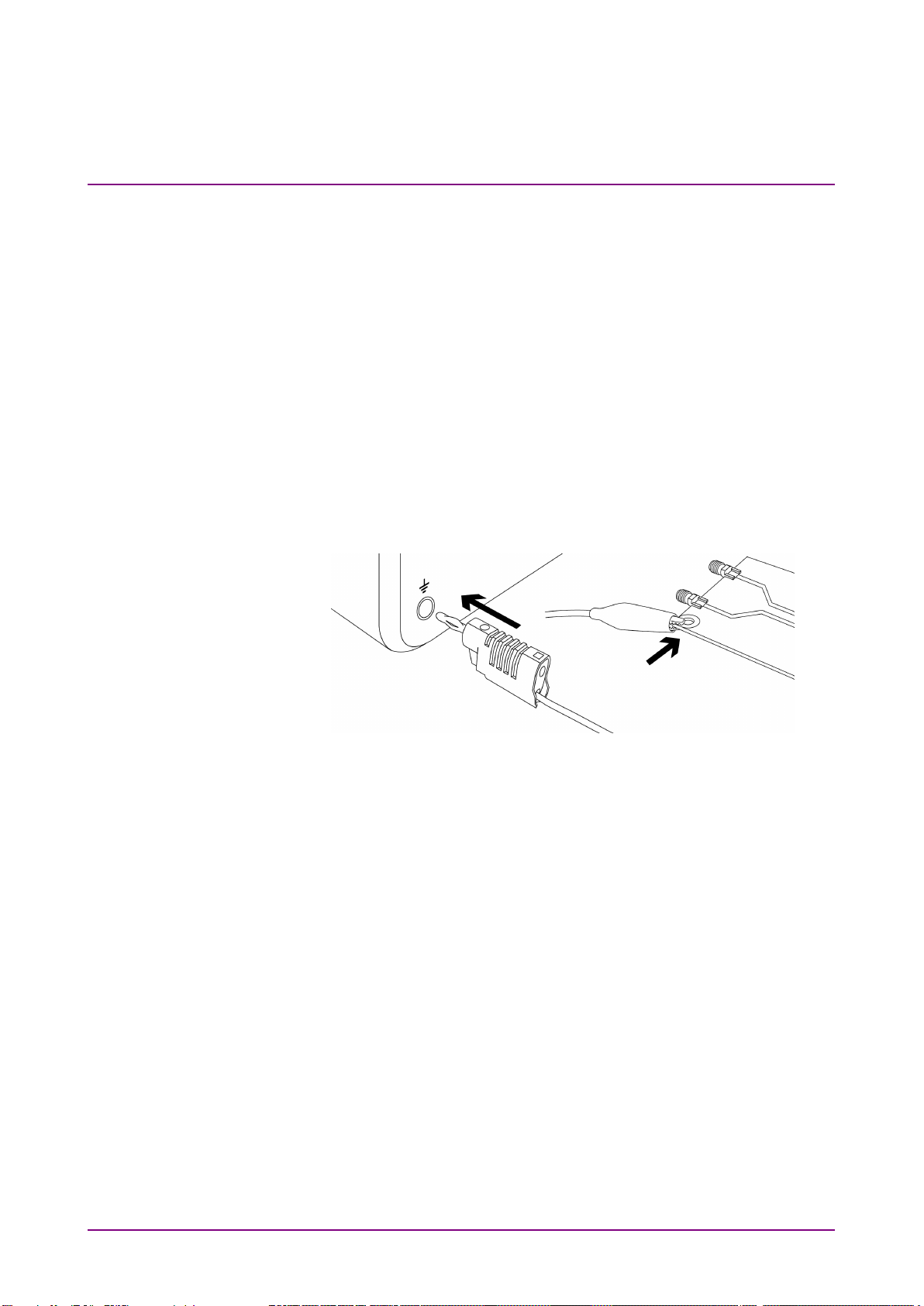

Figure 2.1.1-1 How to Use the GND Connection Cable
MT1810A
Other
Peripheral
Equipment

2.1 Measures Against EOS and ESD
2-3
2.1.2 How to use the ESD Discharger
There is a risk of damaging MT1810A if the coaxial cable you connect to
MT1810A is charged electrostatically.
To prevent MT1810A from being damaged by ESD, remove electrostatic
charges from the cable by using the ESD Discharger before cabling the
connectors.
The ESD Discharger can be used with one of SMA connector (and its
compatible connector) and V connector (and its compatible connector).
Figure 2.1.2-1 How to Use the ESD Discharger

Chapter 2 Preparations
2-4.

Chapter 3 Panels and Connections
3-1
This Chapter describes panels and connections of the MT1810A.
3.1 Front Panel ..............................................................3-2
3.2 Rear Panel...............................................................3-3

Chapter 3 Panels and Connections
3-2
3.1 Front Panel
2
1
5
6
3
4
Fig. 3.1-1 Front panel
Table 3.1-1 Front panel
No. Name Function
1
Power switch
Turns the power to the MT1810A on/off. When this switch is turned
on, power is turned on and the Power LED above the switch lights.
2
Earth jack
Connects to the wrist strap during operation, as a countermeasure
against static electricity. Be sure to use the wrist strap when using
the MT1810A.
3
Module slots
Up to 4 modules can be installed into the MT1810A. See “MT1810A
4 Slot Chassis Installation Guide” for how to in
stall/remove the
modules to/from the slots.
4
Mainframe ID
Used to identify the MT1810A units when multiple (up to 4) MT1810A
units are connected. Refer to “MT1810A 4 Slot Chassis Installation
Guide” for details on 4-unit serial connection.
5
Volume
Volume for measurement error sound
6
Ethernet connectors
Two RJ45 Ethernet connectors are provided. A 10 BASE-T or a 100
BASE-
TX cable can be used. The internal hub provides the same
function to the two connectors. In addition to direct connection, the
control PC can be connected to the MT1810A via an Ethernet interface
device. Note that the IP address for the MT1810A is fixed, so it
cannot be directly connected to a network.
Each connector has two LEDs. Th
e left one indicates the Link/Act
status. The connector is in Link status when the left LED is on, No
Link status when it is off, and Act status when it blinks. The right
LED indicates the collision status. When it is off, collision is not
detected. It blinks when collision is detected.

3.2 Rear Panel
3-3
3.2 Rear Panel
1
2
3
Fig. 3.2-1 Rear panel
Table 3.2-1 Rear panel
No. Name Function
1
GPIO
Reserved connector. Currently not available.
2
Maintenance
Maintenance connector. Do not use.
3
Inlet
Connect to a 100 to 120 Vac or to a 200 to 240 Vac power supply via
the 3-pin power cord.

Chapter 3 Panels and Connections
3-4.
