Anritsu MG3700A MG3700A User manual

MX370x series software
MG3700A Vector Signal Generator
Superior Expandability Supporting A Wide Variety Of Communication Systems
MX3700xxA Waveform pattern
MX3701xxA IQproducer
*MX370X_E_050127 1/28/05 8:50 AM Page 1

The MG3700A Vector Signal Generator (hereafter referred to as “MG3700A”) is a signal generator that integrates
a 160-MHz high-speed ARB baseband generator.With features that include a broadband vector modulation
bandwidth and large-capacity ARB memory, it supports digital modulation signals for a variety of communication
systems.The MG3700A provides optimal performance for generating signals for new wireless communications
in advancing broadband technology, as well as for major mobile telecommunication systems such as mobile
phones and wireless LANs.
Since the standard MG3700A comes equipped with an ARB generator, modulation signals can be output simply
by selecting a waveform pattern that conforms to each supported communication system.The following four
categories of waveform patterns are available for the MG3700A:
•Standard waveform patterns
•Waveform patterns generated by the optional waveform pattern option (Model: MX3700xxA)
•
Waveform patterns generated by the optional waveform generation software IQproducer (Model: MX3701xxA)
•Waveform patterns converted from data generated by commonly-used signal generation software, so
as to be available for the MG3700A.
Each waveform category above contains multiple waveform pattern files in which parameters conforming to
each communication system are set in advance.The default waveform patterns are saved on the MG3700A hard
disk, allowing users to make free use of them. In addition, optional waveform patterns are also available.

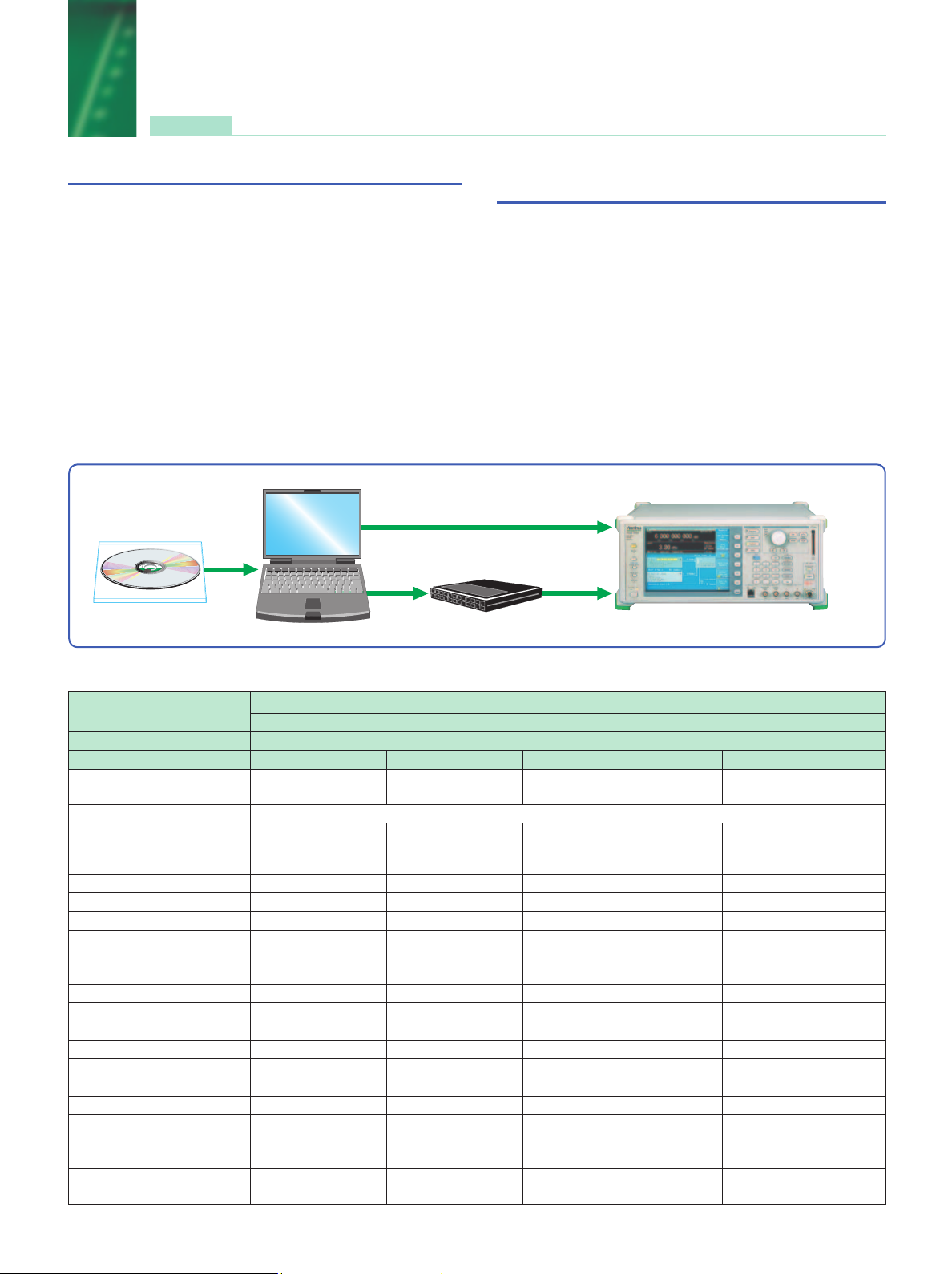

The waveform generation software IQproducer is provided with the system to support various communication
methods. Parameter setting for the waveform data of a corresponding communication system can generate an
arbitrary waveform pattern file that can be used by MG3700A.
MG3700A can output signals by choosing a waveform pattern when the generated arbitrary waveform pattern
file is downloaded to MG3700A via LAN or a CompactFlash (CF) card.
Furthermore, an IQ sample file in ASCII format, generated by common EDA (Electronic Design Automation)
software such as MATLAB®,can be converted into a waveform pattern file for MG3700A.Thus, a user can
arbitrarily generate a custom waveform pattern file.
2
MX370x series software
Waveform pattern IQproducer
Communication system Page MX370001A MX370002A MX370101A MX370102A MX370103A
Standard TD-SCDMA Public Radio HSDPA TDMA CDMA2000®
System 1xEV-DO
W-CDMA 4 ✓✓
HSDPA 24 ✓✓
GSM 11 ✓
EDGE 11 ✓
CDMA2000 10 ✓
CDMA2000 1xEV-DO 8, 31 ✓ ✓
TD-SCDMA 18 ✓
PDC 13, 14, 28 ✓✓
PHS 12, 28 ✓✓
WLAN IEEE802.11a 15 ✓
WLAN IEEE802.11b 15 ✓
WLAN IEEE802.11g 15 ✓
RCR STD-39 21 ✓
ARIB STD-T61 21, 28 ✓✓
ARIB STD-T79 21, 28 ✓✓
ARIB STD-T86 21, 28 ✓✓
AWGN 16 ✓
Selection guide
CDMA2000®is a registered trademark of the Telecommunications Industry Association (TIA-USA).
*MX370X_E_050127 1/28/05 8:50 AM Page 2

3

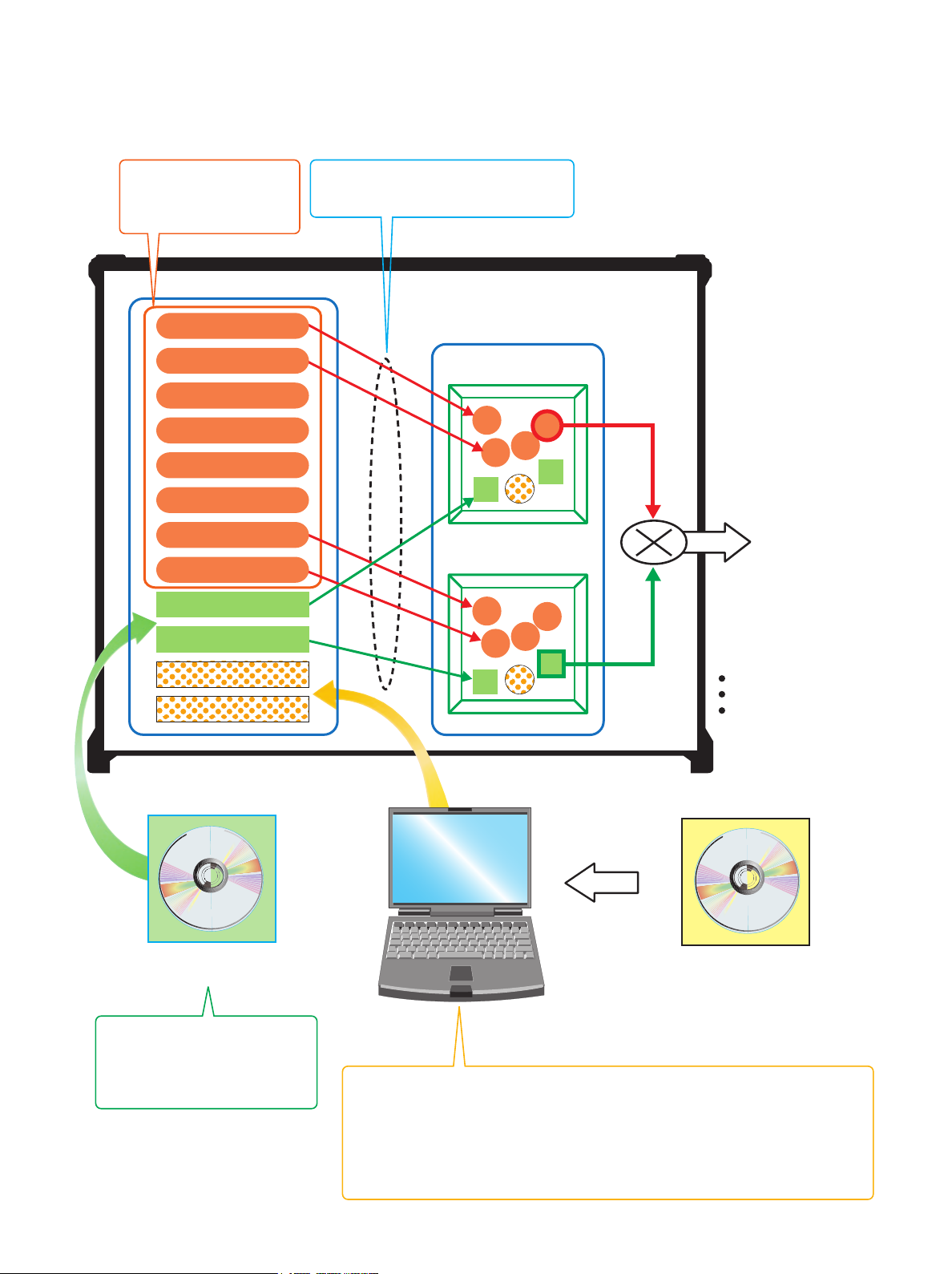

Memory A
Memory B
HDD 40GB
Output signal
Waveform patterns can be
selected from both ARB
memories A and B, and
one of the following
methods can be selected
for output:
A only
B only
Addition of A and B
MX370101A
HSDPA IQproducer
MX370102A
TDMA IQproducer
MX370103A
CDMA2000 1xEV-DO IQproducer
IQproducer is PC application software.
The waveform patterns available with the MG3700A can be generated by editing
the parameters for the modulation signals according to the appropriate
communication systems.
The generated waveform patterns are saved in the MG3700A once and then
loaded to the waveform memory for use.
Optional waveform patterns are
saved in the MG3700A once
and then loaded to the
waveform memory for use.
MX370001A TD-SCDMA
MX370002A Public radio system
From IQproducer
From IQproducer
TD-SCDMA
Public radio system
AWGN
WLAN
PHS
PDC
CDMA2000 1xEV-DO
CDMA2000
GSM/EDGE
W-CDMA
ARB memory
1 GB = 256 M samples (Std)
2 GB = 512 M samples (Opt)
Waveform patterns are transferred from
the HDD to ARB memory.
MG3700A Vector Signal Generator
The standard waveform
patterns are saved on the
MG3700A hard disk.
Download
Install
Download
*MX370X_E_050127 1/28/05 8:50 AM Page 3

4
W-CDMA waveform pattern
Standard
■W-CDMA waveform pattern:
The W-CDMA waveform patterns listed below are provided on
the MG3700A internal hard disk as standard (see the next page
for details):
•For evaluating transmitter device of BS
(TS 25.141 Test Model 1 to 4)
TestModel_1_16DPCH
TestModel_1_32DPCH
TestModel_1_64DPCH
TestModel_1_64x2_10M
TestModel_1_64x2_15M
TestModel_2
TestModel_3_16DPCH
TestModel_3_32DPCH
TestModel_4
TestModel_5_2HSPDSCH
TestModel_5_4HSPDSCH
TestModel_5_8HSPDSCH
TestModel_1_64DPCHx2
TestModel_1_64DPCHx3
TestModel_1_64DPCHx4
•For testing receivers and performance of BS and
evaluating transmitter devices of UE
(TS 25.101/ 25.104 UL RMC 12.2 to 384 kbps)
UL_RMC_12_2kbps
UL_RMC_12_2kbps_ACS
UL_RMC_64kbps
UL_RMC_144kbps
UL_RMC_384kbps
UL_AMR_TFCS1
UL_AMR_TFCS2
UL_AMR_TFCS3
UL_ISDN
UL_64kbps_Packet
UL_Interfere
UL_RMC_12_2kbps_TX
Uplink/downlink W-CDMA modulation signals conforming to the
3GPP (FDD) standards can be output simply by selecting a
waveform pattern loaded from the MG3700A internal hard disk
to the large-capacity ARB memory, without setting any complex
3GPP-compliant parameters.

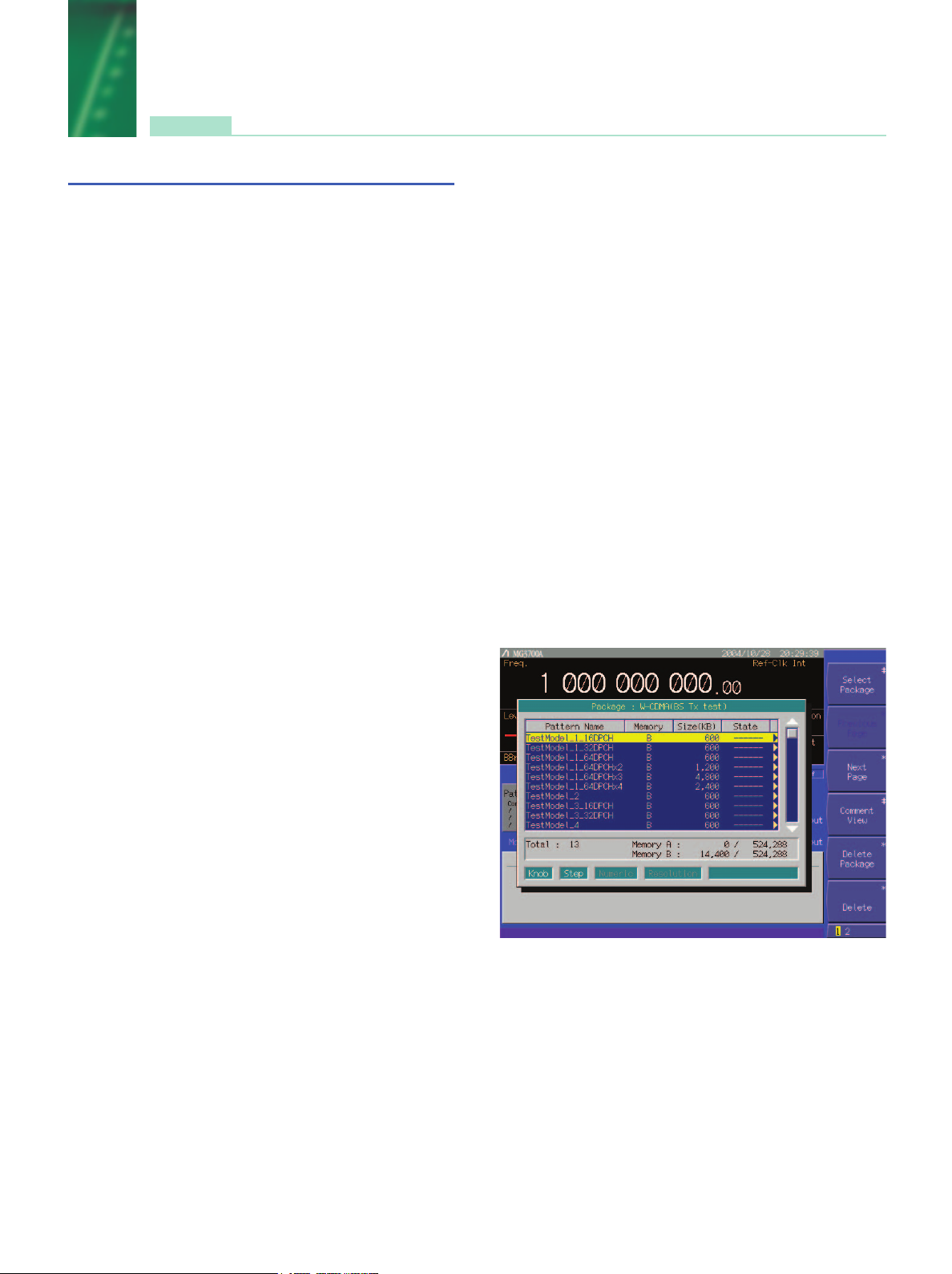

Example of selecting a waveform pattern
•For testing receivers and performance of UE
(TS 25.101 DL RMC 12.2 to 384 kbps)
DL_RMC_12_2kbps_RX
DL_RMC_12_2kbps
DL_RMC_12_2kbps_MIL
DL_RMC_12_2kbps_ACS
DL_RMC_64kbps
DL_RMC_144kbps
DL_RMC_384kbps
DL_AMR_TFCS1
DL_AMR_TFCS2
DL_AMR_TFCS3
DL_ISDN
DL_384kbps_Packet
DL_Interfere
P_CCPCH
DL_CPICH
*MX370X_E_050127 1/28/05 8:50 AM Page 4

5
W-CDMA waveform pattern
Standard
Waveform pattern UL/DL Channel 3GPP (Release1999) Evaluation
UL_RMC_12_2kbps DPCCH, DPDCH TS25.104 A.2
UL_RMC_12_2kbps_ACS DPCCH, DPDCH
UL_RMC_64kbps ∗1DPCCH, DPDCH TS25.104 A.3
UL_RMC_144kbps ∗1DPCCH, DPDCH TS25.104 A.4
UL_RMC_384kbps ∗1DPCCH, DPDCH TS25.104 A.5
UL_AMR_TFCS1 DPCCH, DPDCH BS RX test
UL_AMR_TFCS2 DPCCH, DPDCH
UL_AMR_TFCS3 DPCCH, DPDCH TS25.944 4.1.2
UL_ISDN ∗1DPCCH, DPDCH
UL_64kbps_Packet DPCCH, DPDCH
UL_Interfere DPCCH, DPDCH TS25.141 I
UL_RMC_12_2kbps_TX DPCCH, DPDCH TS25.101 A.2.1 UE TX device test
P_CCPCH P_CCPCH TS25.944 4.1.1∗3
DL_RMC_12_2kbps_RX ∗2P-CPICH, SCH, PICH, DPCH TS25.101 A.3.1
TS25.101 C.3.1
DL_RMC_12_2kbps_ACS P-CPICH, P-CCPCH, SCH, PICH, DPCH
DL_RMC_12_2kbps ∗2P-CCPCH, SCH, PICH, DPCH, OCNS
DL_RMC_12_2kbps_MIL ∗2P-CCPCH, SCH, PICH, DPCH, OCNS
DL_RMC_64kbps ∗2P-CCPCH, SCH, PICH, DPCH, OCNS TS25.101 A.3.1
DL_RMC_144kbps ∗2P-CCPCH, SCH, PICH, DPCH, OCNS TS25.101 C.3.2
DL_RMC_384kbps ∗2P-CCPCH, SCH, PICH, DPCH, OCNS UE RX test
DL_AMR_TFCS1 ∗2P-CCPCH, SCH, PICH, DPCH, OCNS
DL_AMR_TFCS2 ∗2P-CCPCH, SCH, PICH, DPCH, OCNS TS25.944 4.1.1.3
DL_AMR_TFCS3 ∗2P-CCPCH, SCH, PICH, DPCH, OCNS
DL_ISDN ∗2P-CCPCH, SCH, PICH, DPCH, OCNS TS25.101 C.3.2
DL_384kbps_Packet ∗2P-CCPCH, SCH, PICH, DPCH, OCNS
DL_Interfere P-CPICH, P-CCPCH, SCH, PICH, DPCH, OCNS TS25.101 C.4
DL_CPICH P-CPICH —
TestModel_1_16DPCH P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH, 16 DPCH
TestModel_1_32DPCH P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH, 32 DPCH
TestModel_1_64DPCH P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH, 64 DPCH
TestModel_2 P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH, DPCH
TestModel_3_16DPCH P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH, 16 DPCH
TestModel_3_32DPCH P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH, 32 DPCH
TestModel_4 P-CCPCH, SCH
TestModel_5_2HSPSDCH P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH,
6DPCH, HS-SCCH, 2HS-PDSCH BS TX
TestModel_5_4HSPSDCH P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH, TS25.141 6.1.1 device test
14DPCH, HS-SCCH, 4HS-PDSCH
TestModel_5_8HSPSDCH P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH,
30DPCH, HS-SCCH, 8HS-PDSCH
TestModel_1_64DPCHx2 ∗4
P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH, 64 DPCH
TestModel_1_64DPCHx3 ∗4
P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH, 64 DPCH
TestModel_1_64DPCHx4 ∗4
P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH, 64 DPCH
TestModel_1_64x2_10M
P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH, 64 DPCH
TestModel_1_64x2_15M
P-CPICH, P-CCPCH, SCH, PICH, S-CCPCH, 64 DPCH
UL
DL
•W-CDMA waveform pattern list
∗1: UL_ISDN can be combined with AWGN that is a standard waveform pattern only when Option 021/121 ARB Memory Upgrade 512M samples is installed.
∗2: P-CCPCH is not included in the waveform patterns such as RMC for UE RX test. They must be used in combination with P-CCPCH waveform patterns.
∗3: 12-bit SFN is added to the head of the BCH transport block.
∗4: x2, x3, and x4 represent the number of multi-carrier signals 2, 3, and 4, respectively.
*MX370X_E_050127 1/28/05 8:50 AM Page 5

6
W-CDMA waveform pattern
Standard
■ACPR:
The adjacent channel leakage power ratio of a Vector Signal Generator is an important factor in device distortion testing and receiver
interference testing.
■CCDF:
W-CDMA ACPR (Test Model 1, 64 DPCH, 1carrier)
Waveform pattern [Test_Model_1_64DPCH] W-CDMA ACPR (Test Model 1, 64 DPCH, 4carrier) Waveform pattern [Test_Model_1_64DPCH x4]
CCDF (Test Model 1, 64 DPCH, 1carrier)
Waveform pattern [Test_Model_1_64DPCH] CCDF (Test Model 1, 64 DPCH, 4carrier) Waveform pattern [Test_Model_1_64DPCH x4]
*MX370X_E_050127 1/28/05 8:50 AM Page 6

7
■AWGN (Additive White Gaussian Noise) Supports Dynamic Range Test
When performing the receiver dynamic range test specified by 3GPP, AWGN with a W-CDMA modulation signal is required.
Either of the AWGN waveform patterns AWGN_3_84MHz_x2 or AWGN_3_84MHz_x1_5, which are stored on the MG3700A internal
hard disk, can be used for an AWGN signal.
Since a single MG3700A can add a W-CDMA uplink modulation signal and AWGN signal internally and output them as a combined
signal, it is useful for a simple dynamic range test for base station receivers.
W-CDMA waveform pattern
Standard

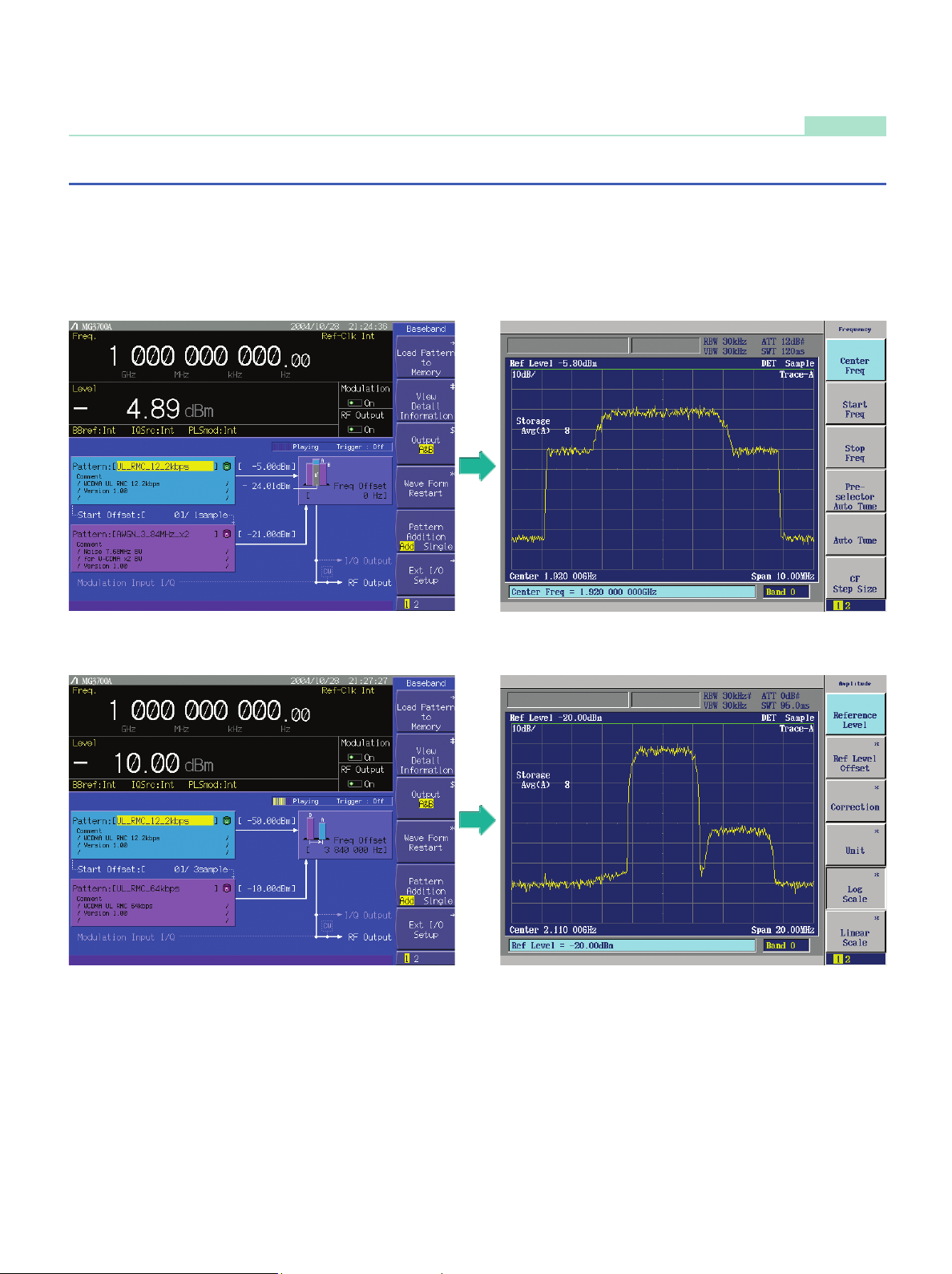

Wanted signal + AWGN screen Output waveform screen of Wanted signal + AWGN
Wanted signal + Interfering signal screen Output waveform screen of Wanted signal + Interfering signal
*MX370X_E_050127 1/28/05 8:50 AM Page 7

8
CDMA2000 1xEV-DO waveform pattern
Standard
■CDMA2000 1xEV-DO waveform pattern:
The CDMA2000 1xEV-DO waveform patterns listed on the right
are provided on the MG3700A internal hard disk.
The signals for testing the receiver and transmitter of the
CDMA2000 1xEV-DO access network (base station) and
access terminal (mobile station), which are specified in 3GPP2,
can be output by selecting one of these CDMA2000 1xEV-DO
waveform patterns. Thirteen forward and ten reverse data rate
waveform patterns are available.
When multi-carrier signals, mixed signals of idle and active,
and/or multi-user signals are required, parameter setting and
waveform pattern generation are available using the optional
MX370103A CDMA2000 1xEV-DO IQproducer.

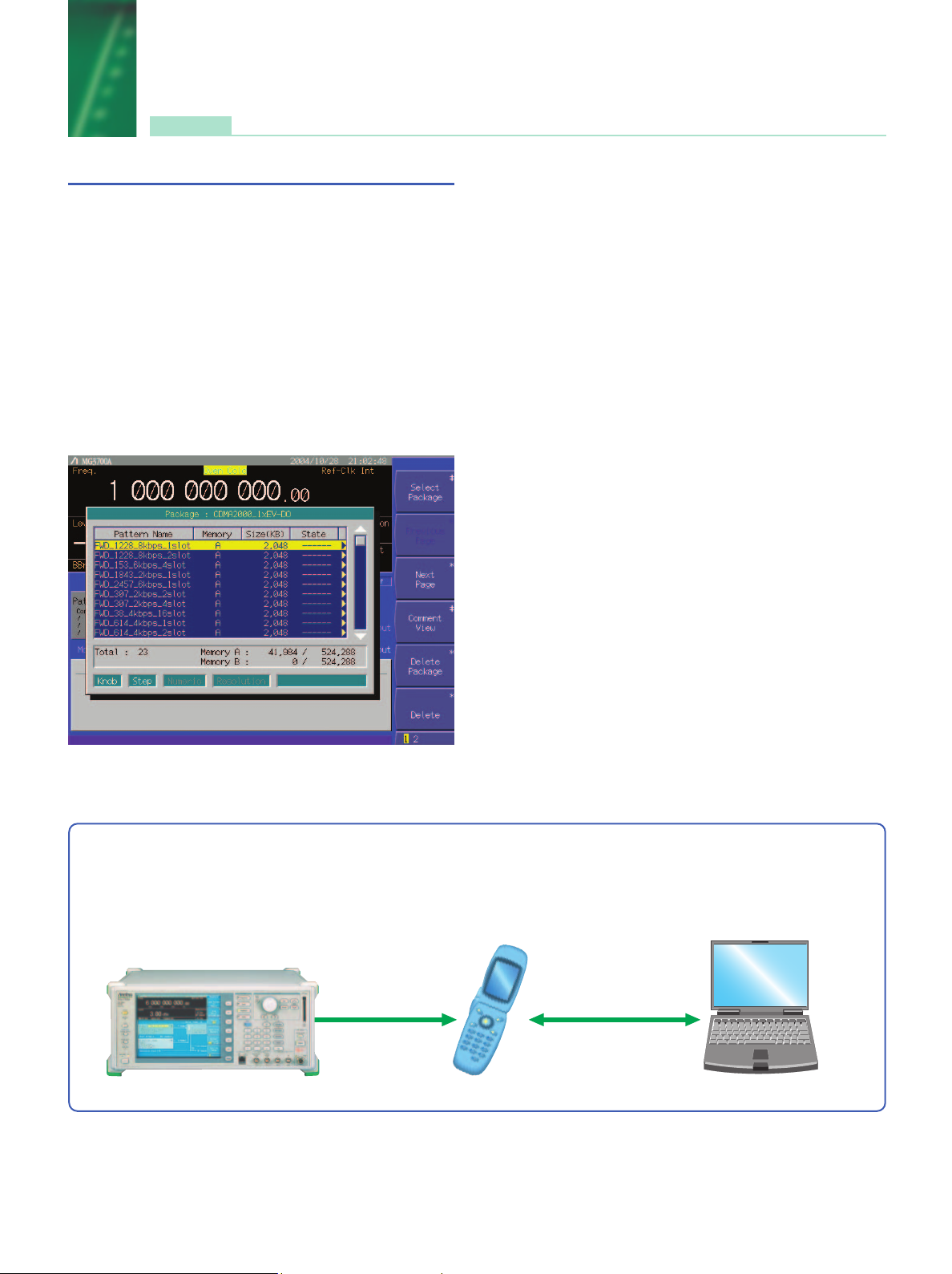

Example of selecting a waveform pattern
•Access terminal (AT) receiver test
CDMA2000 1xEV-DO forward
Base band filter: IS-95SPEC +EQ
Data: PN15fix∗(excluding FWD-Idle)
FWD_38_4kbps_16slot
FWD_76_8kbps_8slot
FWD_153_6kbps_4slot
FWD_307_2kbps_2slot
FWD_614_4kbps_1slot
FWD_307_2kbps_4slot
FWD_614_4kbps_2slot
FWD_1228_8kbps_1slot
FWD_921_6kbps_2slot
FWD_1843_2kbps_1slot
FWD_1228_8kbps_2slot
FWD_2457_6kbps_1slot
FWD_Idle
•Access network (AN) receiver test
CDMA2000 1xEV-DO Reverse
Base band filter: IS-95SPEC
Data: PN9fix∗
RVS_9_6kbps_RX
RVS_19_2kbps_RX
RVS_38_4kbps_RX
RVS_76_8kbps_RX
RVS_153_6kbps_RX
RVS_9_6kbps_TX
RVS_19_2kbps_TX
RVS_38_4kbps_TX
RVS_76_8kbps_RT
RVS_153_6kbps_RT
∗This is a PN sequence delimited for each packet. Therefore, the PN
sequence is discontinuous between the end data of a packet and the
start data of the next packet.
MG3700A Vector Signal Generator
AT control, PER calculation
AT
Modulation signal
(Downlink)
•Access terminal (AT) receiver test
3GPP2 C.S0033 standard receiver tests (PER: Packet Error Rate) can be performed by selecting a forward signal pattern
required for testing the AT. No protocol is supported for the access network simulator. In addition, all the transmission channels
are traffic, and all the other channels (e.g., Sync) are unsupported; it is necessary to calculate the PER by controlling the AT
using an external controller.
*MX370X_E_050127 1/28/05 8:50 AM Page 8

9
CDMA2000 1xEV-DO waveform pattern
Standard
MG3700A Vector Signal Generator
Trigger∗, Clock∗
Modulation signal (Uplink)
AN control, PER calculation
AN
•Access network (AN) receiver test
GPP2 C.S0032 standard receiver tests (PER: Packet Error Rate) can be performed by selecting a reverse signal pattern required
for testing the AN. Since access terminal simulator protocols are not supported, an external controller must be used to control the
AN and calculate PER.
∗ Trigger: Timing for synchronizing the start of frame (frame trigger)
∗ Clock: Clock for synchronizing the chip rate 1.2288 Mcps (11 x 1.2288 MHz or 5MHz/10 MHz)
■AWGN Supports Dynamic Range Test
(AWGN: Additive White Gaussian Noise)
When performing the receiver dynamic range test specified by
3GPP2, a 1xEV-DO modulation signal with AWGN is required.
Either of the AWGN waveform patterns AWGN_1.23MHz_x2 or
AWGN_1.23MHz_x1_5, which are stored on the MG3700A
internal hard disk, can be used for an AWGN signal.
Since a single MG3700A can add a CDMA2000 uplink
modulation signal and an AWGN signal internally and output
them as a combined signal, it is useful for a simple dynamic
range test for an AN receiver.
Wanted signal + AWGN screen Output waveform screen of wanted signal + AWGN
*MX370X_E_050127 1/28/05 8:50 AM Page 9

10

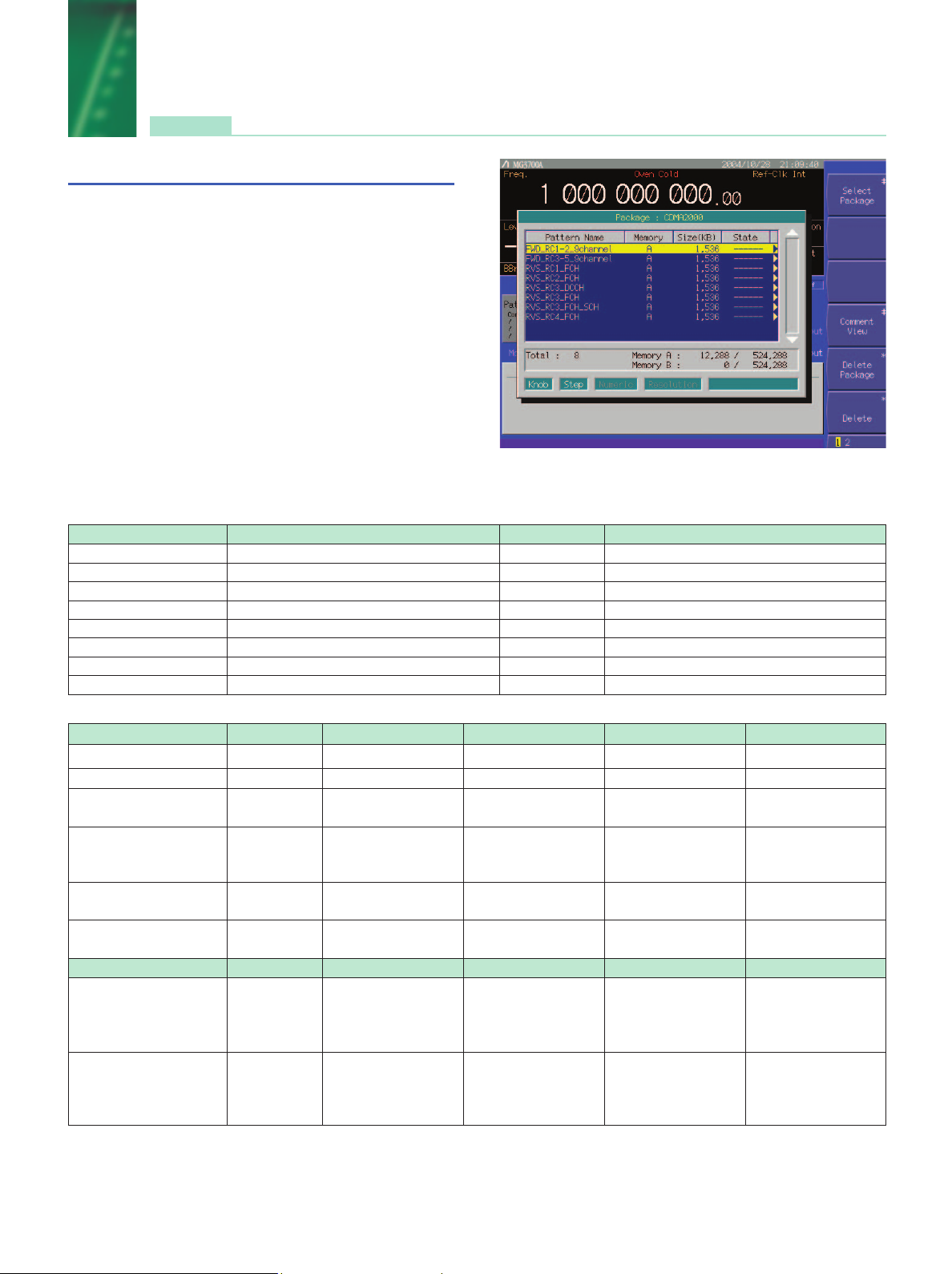

CDMA2000 waveform pattern
Standard
■CDMA2000 waveform pattern:
The CDMA2000 waveform patterns listed in the table below are
provided on the MG3700A internal hard disk.
CDMA2000 modulation signals specified in 3GPP2 C.S0002-0-2
can be output by selecting one of these CDMA2000 waveform
patterns.
Since reverse channel signals are output by channel coding
(convolutional coding, etc.) 4-frame length PN9 fix∗1data, it is
useful for Frame Error Rate (FER) measurement∗2of the base
station, as well as device evaluation.
∗1: The data length is not an integer multiple of the PN sequence
length (511 bits for PN9), and the PN sequence becomes
discontinuous at the end.
∗2: This is the case where the timing signal and 1.2288 Mcps x 11
clock signal (or 5 or 10 MHz reference clock) can be input from the
test target base station to the MG3700A in order to provide
synchronization of the frame start point and chip clock.
Waveform pattern System Frame coding Symbol data
RVS_RC1_FCH CDMA2000 1xRTT RC1 Reverse Coded FCH 9.6 kbps
RVS_RC2_FCH CDMA2000 1xRTT RC2 Reverse Coded FCH 14.4 kbps
RVS_RC3_FCH CDMA2000 1xRTT RC3 Reverse Coded PICH, FCH 9.6 kbps
RVS_RC3_FCH/SCH CDMA2000 1xRTT RC3 Reverse Coded PICH, FCH 9.6 kbps, SCH 9.6 kbps
RVS_RC3_DCCH CDMA2000 1xRTT RC3 Reverse Coded PICH, DCCH 9.6 kbps
RVS_RC4_FCH CDMA2000 1xRTT RC4 Reverse Coded PICH, FCH 14.4 kbps
FWD_RC1-2_9channel CDMA2000 1xRTT RC1, RC2 Forward spreading only PICH, SyncCH, PagingCH, FCH19.2 ksps x 6
FWD_RC3-5_9channel CDMA2000 1xRTT RC3, RC4, RC5 Forward spreading only PICH, SyncCH, PagingCH, FCH 38.4 ksps x 6
Waveform pattern Walsh Code Code Power Data Rate Data
RVS_RC1_FCH R-FCH 9.6 kbps PN9fix∗
RVS_RC2_FCH R-FCH 14.4 kbps PN9fix∗
RVS_RC3_FCH R-PICH 0 –5.278 dB N/A All "0"
R-FCH 4 –1.528 dB 9.6 kbps PN9fix∗
R-PICH 0 –7.5912 dB N/A All"0"
RVS_RC3_FCH/SCH R-FCH 4 –3.8412 dB 9.6 kbps PN9fix∗
R-SCH 2 –3.8412 dB 9.6 kbps PN9fix∗
RVS_RC3_DCCH R-PICH 0 –5.278 dB N/A All"0"
R-DCCH 8 –1.528 dB 9.6 kbps PN9fix∗
RVS_RC4_FCH R-PICH 0 –5.278 dB N/A All"0"
R-FCH 4 –1.528 dB 14.4 kbps PN9fix∗
Waveform pattern Walsh Code Code Power Symbol Rate Symbol Data
F-PICH 0 –7.0 dB N/A All"0"
FWD_RC1-2_9channel F-SyncCH 32 –13.3 dB 4.8 kbps PN9fix∗
PagingCH 1 –7.3 dB 19.2 kbps PN9fix∗
F-FCH x6 8-13 –10.3 dB 19.2 kbps PN9fix∗
F-PICH 0 –7.0 dB N/A All"0"
FWD_RC3-5_9channel F-SyncCH 32 –13.3 dB 4.8 kbps PN9fix∗
PagingCH 1 –7.3 dB 19.2 kbps PN9fix∗
F-FCH x6 8-13 –10.3 dB 38.4 kbps PN9fix∗
R-PICH (Reverse Pilot Channel),
R-FCH (Reverse Fundamental Channel)
R-SCH (Reverse Supplemental Channel)
R-DCCH (Reverse Dedicated Control Channel)
Example of selecting waveform pattern
F-PICH (Forward Pilot Channel),
F-SyncCH (Forward Sync Channel),
PagingCH (Paging Channel),
F-FCH (Forward Fundamental Channel)
*MX370X_E_050127 1/28/05 8:50 AM Page 10

Waveform pattern Uplink / Downlink Data Output slot Communications
GMSK_PN9 Uplink / Downlink ––
8PSK_PN9 Uplink / Downlink
––
GMSK_TN0 Uplink / Downlink TN0
–
8PSK_TN0 Uplink / Downlink TN0 –
NB_TN0 Uplink / Downlink TN0
NB_ALL Uplink / Downlink All slot
TCH_FS Uplink / Downlink TN0 GSM
CS-1_1SLOT Uplink / Downlink TN0
CS-4_1SLOT Uplink / Downlink TN0
DL_MCS-1_1SLOT Uplink / Downlink TN0
UL_MCS-1_1SLOT Uplink / Downlink TN0 GPRS
DL_MCS-5_1SLOT Uplink / Downlink TN0
UL_MCS-5_1SLOT Uplink / Downlink TN0
DL_MCS-9_1SLOT Uplink / Downlink TN0 EDGE
UL_MCS-9_1SLOT Uplink / Downlink TN0
DL_MCS-9_4SLOT Uplink / Downlink TN0, 1, 2, 3
UL_MCS-9_4SLOT Uplink / Downlink TN0, 1, 2, 3
11
GSM/EDGE waveform pattern
Standard
■GSM/EDGE waveform pattern:
The GSM/EDGE waveform patterns listed in the table below
are provided on the MG3700A internal hard disk.
The signals suitable for testing receivers and for managing
device evaluation in a GSM/EDGE system can be output by
selecting one of these GSM/EDGE waveform patterns.
•GMSK_PN9, 8PSK_PN9
PN9 data is inserted into the entire area of the slots, except the
guard. The PN9 data in each slot are continuous.
•GMSK_TN0, 8PSK_TN0
PN9 data is inserted into the entire area of the slots, except the
guard. The PN9 data in each slot are continuous.
•NB_TN0, NB_ALL
PN9 data is inserted into the normal burst encrypted bit area.
The PN9 data in the slots are continuous.
•TCH_FS
Supports the Speech channel at the full rate (TCH/FS) specified
in Section 3.1 of 3GPP TS05.03.
•CS-1_1 (4)_SLOT (_4SLOT )
Supports the packet data block type 1 (CS-4) and 4 (CS-1)
specified in Section 5.1 of 3GPP TS05.03.
•DL (UL)_MCS-1 (5, 9)_1SLOT (_4SLOT)
Supports the packet data block types 5(MCS-1), 9(MCS-5), and
13 (MCS-9) specified in Section 5.1 of 3GPP TS05.03.
∗1: PN9 data is inserted into the entire area that does not have the slot format.
∗2: PN9 data is inserted into the entire area of the slots, except the guard.
∗3: PN9 is inserted into the normal burst encrypted bit area.
∗4: The bit string channel-coded for PN9 data is inserted into the normal burst encrypted bit area.
Example of selecting waveform pattern
PN9 ∗3
PN9 ∗4
PN9 ∗1
PN9 ∗2
*MX370X_E_050127 1/28/05 8:50 AM Page 11

Waveform pattern Uplink / Downlink Scramble Output slot
PI_4_DQPSK_PN9 — OFF No frame
PI_4_DQPSK_PN15 — OFF No frame
PI_4_DQPSK_ALL0 — OFF No frame
DL_TCH_Slot_1 Uplink / Downlink OFF Slot1: TCH
Slot 2 to 4: off
UL_TCH_Slot_1 Uplink / Downlink OFF Slot1: TCH
Slot 2 to 4: off
12

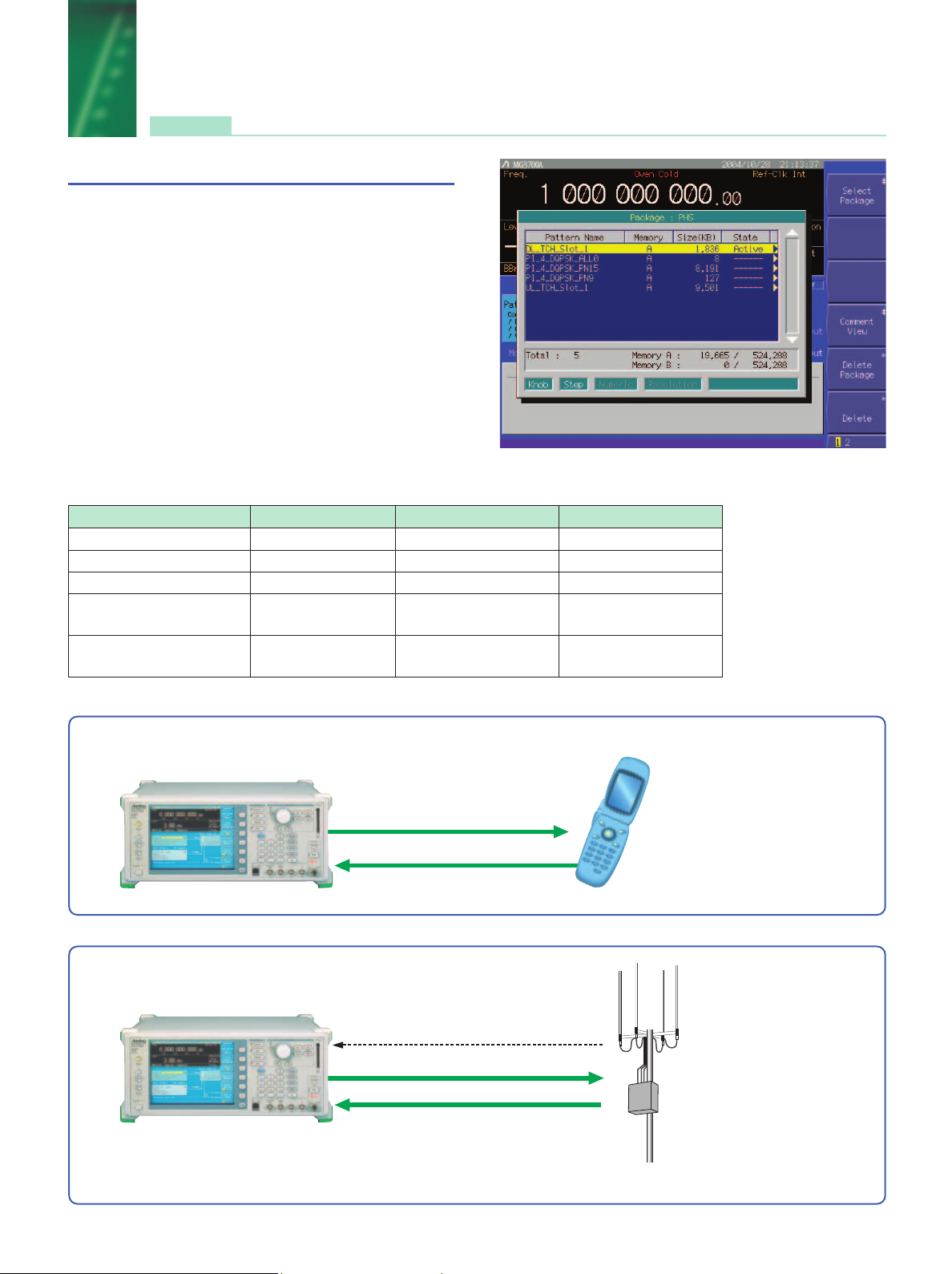

PHS waveform pattern
Standard
■PHS waveform pattern:
The PHS waveform patterns listed in the table below are
provided on the MG3700A internal hard disk.
The signals for testing CS (base station) and PS (mobile station)
receivers, which are specified in RCR STD-28, can be output
by selecting one of these PHS waveform patterns, without
setting any complex RCR STD-28 parameters.
When a signal that has parameters different from those of the
provided waveform patterns are required, parameter setting
and waveform pattern generation are available using the
optional MX370102A TDMA IQproducer.
Example of selecting waveform pattern
•PS receiver test
MG3700A Vector Signal Generator
Modulation signal (Downlink)
Data, Clock
BER analyzer is built in. PS
CS
•PS receiver test
MG3700A Vector Signal Generator
BER analyzer is built in.
Modulation signal (Uplink)
Data, Clock
Trigger∗
∗Trigger: Timing for synchronizing frames (frame trigger)
*MX370X_E_050127 1/28/05 8:51 AM Page 12

13
PDC waveform pattern
Standard
■PDC waveform pattern:
The waveform patterns for the wanted signals/interfering signals
required to execute transmission/reception tests as specified in
ARIB STD-27 are provided on the MG3700A internal hard disk.
Modulation signals conforming to the standard can be output
without any options (Note: Check the parameters listed on the
next page in advance).
The waveform pattern to output uplink/downlink Slot 0 data
only and the unframed waveform pattern for interfering signals
are provided for full rate and half rate, respectively.
When a signal is required that has parameters different from
those of the provided waveform patterns, parameter setting and
waveform pattern generation are available using the optional
MX370102A TDMA IQproducer.
Example of selecting waveform pattern
Waveform pattern Uplink / Downlink Half rate / Fill rate Output slot Evaluation
PI_4_DQPSK_PN9 —— No frame TX device test
PI_4_DQPSK_PN15 —— No frame Interfering signal
DL_Full_Rate_Slot0 Uplink / Downlink Full rate Slot 0 only
DL_Half_Rate_Slot0 Uplink / Downlink Half rate Slot 0 only Wanted signal for
UL_Full_Rate_Slot0 Uplink / Downlink Full rate Slot 0 only receiver test
UL_Half_Rate_Slot0 Uplink / Downlink Half rate Slot 0 only
*MX370X_E_050127 1/28/05 8:51 AM Page 13

14
PDC Packet waveform pattern
Standard
■PDC Packet waveform pattern:
The four types of waveform patterns listed in the table below
are provided on the MG3700A internal hard disk.
The signals for testing base station and mobile station
receivers for UPCH communications, which are specified in
RCR STD-27, can be output by selecting one of these
waveform patterns, without setting any complex RCR STD-27
parameters. Also, the Downlink3 data rate UPHC pattern and
Uplink1 UPHC pattern can be switched.
When a signal is required that has parameters different from
those of the provided waveform patterns, parameter setting and
waveform pattern generation are available using the optional
MX370102A TDMA IQproducer.
Example of selecting waveform pattern
Waveform pattern Uplink / Downlink Output slot
Slot 0 = UPCH
DL_Packet_Slot_0 Uplink / Downlink Slot 1 = IDLE (all "1")
Slot 2 = IDLE (all "1")
Slot 0 = UPCH
DL_Packet_Slot_01 Uplink / Downlink Slot 1 = UPCH
Slot 2 = IDLE (all "1")
Slot 0 = UPCH
DL_Packet_Slot_all Uplink / Downlink Slot 1 = UPCH
Slot 2 = UPCH
Slot 0 = UPCH
UL_Packet_Slot_0 Uplink / Downlink Slot 1 = Transmit off
Slot 2 = Transmit off
•Mobile station test
MG3700A Vector Signal Generator
Modulation signal (Downlink)
Data, Clock
BER analyzer is built in. Mobile device
Base station
•Base station test
MG3700A Vector Signal Generator
BER analyzer is built in.
Modulation signal (Uplink)
Data, Clock
Trigger∗
∗Trigger: Timing for synchronizing sub frames (frame trigger)
*MX370X_E_050127 1/28/05 8:51 AM Page 14

15
WLAN waveform pattern
Standard
■WLAN waveform pattern:
The WLAN (IEEE802.11a/b/g) waveform patterns listed in the
table below are provided on the MG3700A internal hard disk.
The signals for testing the receiver/transmitter of a terminal or
module can be output by selecting one of these WLAN
waveform patterns.
Example of selecting waveform pattern
Waveform pattern Data rate Modulation Coding rate
Coding bits per Coding bits per Data bits per
(Mbits/s) sub-carrier OFDM symbol OFDM symbol
11a_OFDM_6Mbps 6 BPSK 1/2 1 48 24
11a_OFDM_9Mbps 9 BPSK 3/4 1 48 36
11a_OFDM_12Mbps 12 QPSK 1/2 2 96 48
11a_OFDM_18Mbps 18 QPSK 3/4 2 96 72
11a_OFDM_24Mbps 24 16-QAM 1/2 4 192 96
11a_OFDM_36Mbps 36 16-QAM 3/4 4 192 144
11a_OFDM_48Mbps 48 64-QAM 2/3 6 288 192
11a_OFDM_54Mbps 54 64-QAM 3/4 6 288 216
Waveform pattern Spreading, Coding Modulation
11b_DSSS_1Mbps DSSS, 11 chip Barker Code DBPSK
11b_DSSS_2Mbps DSSS, 11 chip Barker Code DQPSK
11b_CCK_5_5Mbps CCK DQPSK
11b_CCK_11Mbps CCK DQPSK
Waveform pattern Data rate Modulation Coding rate
Coding bits per Coding bits per Data bits per
(Mbits/s) sub-carrier OFDM symbol OFDM symbol
11g_DSSS_OFDM_6Mbps 6 BPSK 1/2 1 48 24
11g_DSSS_OFDM_9Mbps 9 BPSK 3/4 1 48 36
11g_DSSS_OFDM_12Mbps 12 QPSK 1/2 2 96 48
11g_DSSS_OFDM_18Mbps 18 QPSK 3/4 2 96 72
11g_DSSS_OFDM_24Mbps 24 16-QAM 1/2 4 192 96
11g_DSSS_OFDM_36Mbps 36 16-QAM 3/4 4 192 144
11g_DSSS_OFDM_48Mbps 48 64-QAM 2/3 6 288 192
11g_DSSS_OFDM_54Mbps 54 64-QAM 3/4 6 288 216
•IEEE_802.11a waveform pattern list
•IEEE_802.11b waveform pattern list
•IEEE_802.11g waveform pattern list
*MX370X_E_050127 1/28/05 8:51 AM Page 15

16
AWGN waveform pattern
Standard
■AWGN waveform pattern:
The Additive White Gaussian Noise (AWGN) waveform pat-
terns listed in the table below are provided on the MG3700A
internal hard disk.
The signals for testing the receiver/transmitter of a terminal or
module can be output by selecting one of these AWGN
waveform patterns.
Example of selecting a waveform pattern
Waveform pattern MAX peak/RMS 3dB bandwidth In-band power Evaluation
ratio (MHz) conversion ratio (dB)∗
AWGN_3_84MHz_x2 >12 dB 7.68 3.01 Added with the W-CDMA UL signal to
perform a dynamic range test.
AWGN_3_84MHz_x1_5 >12 dB 5.76 1.76 Added with the W-CDMA UL signal to
perform a dynamic range test.
Added with the reverse signals of
AWGN_1.23MHz_x2 >12 dB 2.46 3.01 CDMA2000 or CDMA2000 1xEV-DO to
perform a dynamic range test.
Added with the reverse signals of
AWGN_1.23MHz_x1_5 >12 dB 3.69 1.76 CDMA2000 or CDMA2000 1xEV-DO to
perform a dynamic range test.
∗In-band power conversion ratio is the ratio of the system bandwidth of each communication system to the total power of the MG3700A output measured with a
power meter or another equivalent device.
AWGNWGN
AWGN
AWGN band width
System band width
Wanted signal
In-band
AWGN
power
In-band AWGN power
*MX370X_E_050127 1/28/05 8:51 AM Page 16

17
■With the waveform combine function, a single MG3700A outputs a signal that is the addition (such
as modulation signal + AWGN) of the wanted signal and interfering signal:
The MG3700A has ARB memory that consists of two memory areas, each allowing one waveform pattern to be set. The addition of
the signals from the two memories, as well as the signal for either one, can be output.
For example, if a wanted signal (W-CDMA, CDMA2000) waveform pattern is selected for one memory and an interfering signal
(AWGN) waveform pattern for the other, a signal that is the addition of the wanted signal and interfering signal (AWGN) shown in the
upper figures below can be output with a single MG3700A.
Also, if a modulation signal is selected as the interfering signal, the addition of the wanted signal and interfering signal (modulation
signal) shown in the lower figures below can also be output with a single MG3700A.
Furthermore, the accuracy of the level ratio is superior since the S/N adjustment and calculation are performed by digital processing.
AWGN waveform pattern
Standard
Wanted signal + AWGN screen
Wanted signal + interfering signal screen
Output waveform screen of wanted signal + AWGN
Output waveform screen of wanted signal + interfering signal
*MX370X_E_050127 1/28/05 8:51 AM Page 17

18
MX370001A TD-SCDMA waveform pattern
Optional
■TD-SCDMA waveform pattern:
The signals corresponding to the 3GPP 1.28Mcps TDD options
can be output by installing the MX370001A TD-SCDMA
waveform pattern on the MG3700A.
•For evaluating transmitter of BS
(TS 25.141 Test Model 1 to 4)
BS_DL RMC 1Code
BS_DL RMC 1Code+P-CCPCH
BS_DL RMC 8Code
BS_DL RMC 10Code
•For evaluating receiver of BS
BS_UL RMC 12.2k(Single)
BS_UL RMC 12.2k+OCNS
BS_UL RMC 64k+OCNS
BS_UL RMC 144k+OCNS
BS_UL RMC 384
MG3700A Vector Signal Generator
LAN or Compact Flash
PC
MX370001A
Target of test BS Transmitter Test (DL)
BS
Test signal BS-DL RMC
Waveform pattern rmc_1 code_bs_dl rmc_P-CCPCH_bs_dl rmc_8 code_bs_dl rmc_10 code_bs_dl
Test Freq / Power Ctrlr / PCCPCH Pw OBW / On Off Ratio / Max Pwr / EVM /
Minimum Pwr spurious / ACLR / TxIM Peak code domain err
Standard TS25.142
DwPTS/UpPTS SYNC_DL #0 SYNC_DL #0 SYNC_DL #0 SYNC_DL #0
SYNC_DL/UL (S1) (S1) (S1) (S1)
NUMBER (quadruples)
P-CCPCH — add — —
Scrambling Code 0 0 0 0
midamble ID 0 0 0 0
Maximum User
(user number) 2 (1) 8 (1) 2 (1) 2 (1)
Spread Factor 16 16 16 16
Time Slot Number 4, 5, 6 0 4, 5, 6 4, 5, 6
Number of DPCH0 — — 0 0
DPCH Channelization Codes C (i, 16), i = 1 C (i, 16), i = 1, 2 C (i, 16), 1 ≤i ≤8C(i, 16), 1 ≤i ≤10
DPCH0 Channelization Codes — — — —
Data:DPCH0 PN9 — PN9 PN9
Data: other channel — P-CCPCH:All 0 — —
∑DPCH_Ec/Ior [dB] 0 — 0 0
DPCH0_Ec/Ior [dB] — — — —
DPCH Channelization
Codes Power [dB]/1 ch 0 — –9 –10
DPCH0 Channelization
Codes Power [dB]/1 ch —— — —
•Waveform patterns for evaluating BS transmitters
•For evaluating receiver of UE
UE_DL RMC 12.2k
UE_DL RMC 12.2k+OCNS
UE_DL RMC 64k+OCNS
UE_DL RMC 144k+OCNS
UE_DL RMC 384
■Simple operation and high speed signal
pattern change:
Typical waveforms specified in 3GPP, such as the reference
management channel, can be output simply by selecting the
waveform pattern loaded from the MG3700A internal hard disk
to the large-capacity ARB memory, without setting any complex
TD-SCDMA parameters.
*MX370X_E_050127 1/28/05 8:51 AM Page 18

19
Target of test BS Receive Test (UL)
BS
Test signal BS-UL RMC
Waveform patterns rmc12_2k_bs_ul rmc12k_ocns_bs_ul rmc64k_ocns_bs_ul rmc144k_bs_ul rmc384k_bs_ul
RS /Min. Input Lev./
Test Dynamic range/ACS/ Performance Req. Performance Req. Performance Req. Performance Req.
Blocking /Rx IM
Standard TS25.142
DwPTS/UpPTS/SYNC_DL/UL
NUMBER (quadruples) —————
P-CCPCH —————
Scrambling Code 0 0 0 0 0
midamble ID 0 0 0 0 0
Maximum User (user number) 2 (1) 2 (1) 2 (1) 2 (1) 2 (1)
Spread Factor 8 8 2, 8 2, 8 8, 2
Time Slot Number 1 1 1 1, 2 1, 2, 3, 4
Number of DPCH 0 4 1 1 0
DPCH Channelization Codes C (i, 8), i = 1 C (i, 8), i = 1 C (i, 2), i = 1 C (i, 2), i = 1 C (i, 2) i = 1
C (i, 8) i = 5
DPCH0 Channelization Codes — C (i, 8), 2≤i ≤5C(i, 8), i = 5 C (i, 8), i = 5 —
Data: DPCH0 PN9 PN9 PN9 PN9 PN9
Data: other channel — PN9 PN9 PN9 —
∑DPCH_Ec/Ior [dB] 0 — — — 0
DPCH0_Ec/Ior [dB] — –7 –7 –7 —
DPCH Channelization Codes 0–7–0.97 –0.97 C (i, 2) = –6.99
Power [dB] / 1 ch C (i, 8) = –0.97
DPCH0 Channelization Codes
Power [dB] / 1 ch —–7–7–7—
•Waveform patterns for evaluating BS receivers
Target of test UE Receiver Test (DL)
UE
Test signal UE-DL RMC
Waveform pattern rmc12_2k_ue_dl rmc12k_ocns_ue_dl rmc64k_ocns_ue_dl
rmc144k_ocns_ue_dl rmc384k_ue_dl
RS / Min. Input Lev. / Maximum input level
Test ACS / Blocking / test / RMC 12.2k Performance Req. Performance Req. Performance Req.
Spur.Resp./Inter Mod
Standard TS25.102
DwPTS/UpPTS SYNC_DL/UL SYNC_DL #0 SYNC_DL #0 SYNC_DL #0 SYNC_DL #0 SYNC_DL #0
NUMBER (quadruples) (S1) (S1) (S1) (S1) (S1)
P-CCPCH Add Add Add Add Add
Scrambling Code 0 0 0 0 0
midamble ID 0 0 0 0 0
Maximum User (user number) 8 (1) 8 (1) 8 (1) 8 (1) 8 (1)
Spread Factor 16 16 16 16 16
Time Slot Number 4 4 4 4, 5 3, 4, 5, 6
Number of DPCH0 0 8 2 2 0
DPCH Channelization Codes C (i, 16), i = 1, 2 C (i, 16), i = 1, 2 C (i, 16), i = 1,…, 8 C (i, 16), i = 1,…, 8 C (i, 16)i =1,…, 10
DPCH0 Channelization Codes — C (i, 16) C (i, 16) C (i, 16) —
3≤i ≤10 9≤i ≤10 9≤i ≤10
Data:DPCH0 PN9 PN9 PN9 PN9 PN9
Data: other channel — PN9 PN9 PN9 —
∑DPCH_Ec/Ior [dB] 0 –7 — — —
DPCH0_Ec/Ior [dB] — –10 –10 –10 0
DPCH Channelization Codes
Power [dB] / 1ch –3.01 –10.00 –10.00 –10.00 –10
DPCH0 Channelization Codes
Power [dB / 1 ch —–10.00 –10.00 –10.00 —
•Waveform patterns for evaluating receiver of UE
MX370001A TD-SCDMA waveform pattern
Optional
*MX370X_E_050127 1/28/05 8:51 AM Page 19

20
MX370001A TD-SCDMA waveform pattern
Optional

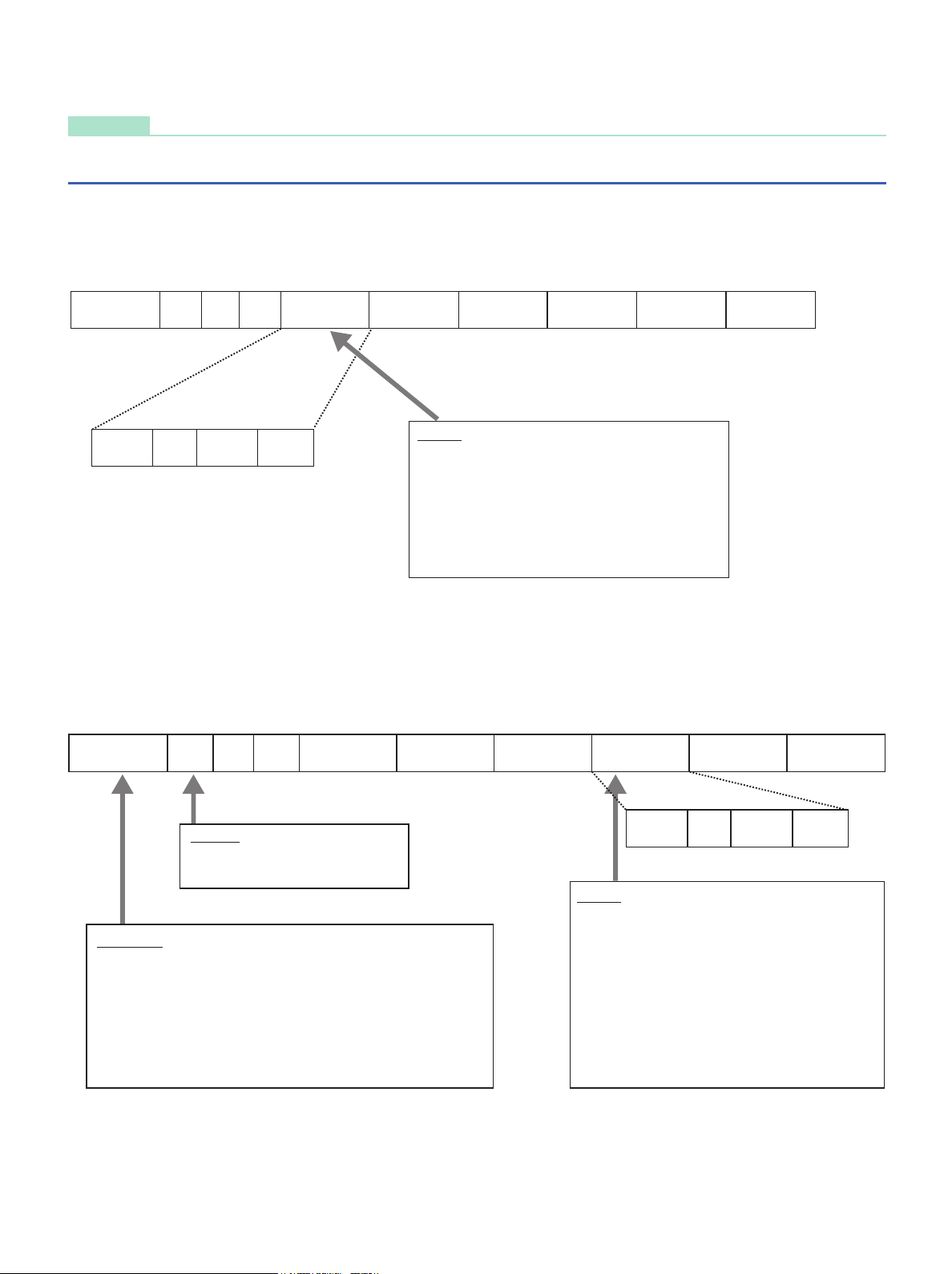

■Frame configuration
•UL-RMC12.2 kbps: For BS receiver test (Uplink):
TS-25.142: BS UL reference measurement channel p132, A2.1.2, 1.28 MCps, SF = 8
Test items: 7.2 Reference sensitivity level / 7.3 Dynamic range / 7.4 Adjacent Channel Selectivity (ACS) / 7.5 Blocking characteristics /
7.6 Inter modulation characteristics
(DPCH)
#0 Dw GP
#1 #2 #3
#4 #5 #6
Up
PT
Time slot Time slot Time slot Time slot Time slot Time slot Time slot
PTS
DPCH
1) DTCH information bits: PN9
2) TFCI (4bits): 0
3) TPC (4bits): 0101: No power control
4) SS (4bits): 0101: No shift
5) Scrambling Code: 0
6) Midamble Code: MID=0, K=2, k=1
7) Channelization Code: C (8, 1)
C (8,1) m (1) C (8,1) GP (ts)
16 chip Time Slot
GP
P-CCPCH (P-CCPCH1, P-CCPCH2)
1) Information bits: data (246 bit):
Frame Number/2 is inserted to the first 11 bits, and 0s
are stored in the remaining bits. The frame number is a
repeated value of 0, 1, 2, and 3.
2) Scrambling Code: 0
3) Midamble Code: MID= 0, K =8, k =1
4) Channelization Code: C(16, 1), C(16, 2)
1) DTCH information bits: PN9
2) DCCH information bits: ALL0
3) TFCI (4bits): 0
4) TPC (4bits): 0101: No power control
5) SS (4bits): 0101: No shift
6) Scrambling Code: 0
7) Midamble Code: MID=0, K=2, k=1
Default midamble
8) Channelization Code: C(16, 1), C(16, 2)
DPCH ( DPCH1, DPCH2)
Time slot
#0 Dw
PTS Up
PT Time slot
#1 Time slot #2 Time slot #3 Time slot #4
Time slot
#5 Time slot #6
Time
Slot
GP (ts)
16 chip
C1, C2C1, C2 m (1)
DwPTS
SYNC-DL ID: 0
Phase quadruple: S1: P-CCPCH
•UL-RMC12.2 kbps: For UE receiver test (Uplink):
TS-25.102: UE DL reference measurement channel p58, A.2.2.2.1, 1.28 MCps, 12.2 kbps, SF = 16
Test items: 7.3 Reference sensitivity level / 7.4 Maximum input level / 7.5 Adjacent Channel selectivity (ACS) / 7.6 Blocking
characteristics / 7.7 Spurious response / 7.8 Inter modulation characteristics
*MX370X_E_050127 1/28/05 8:51 AM Page 20
