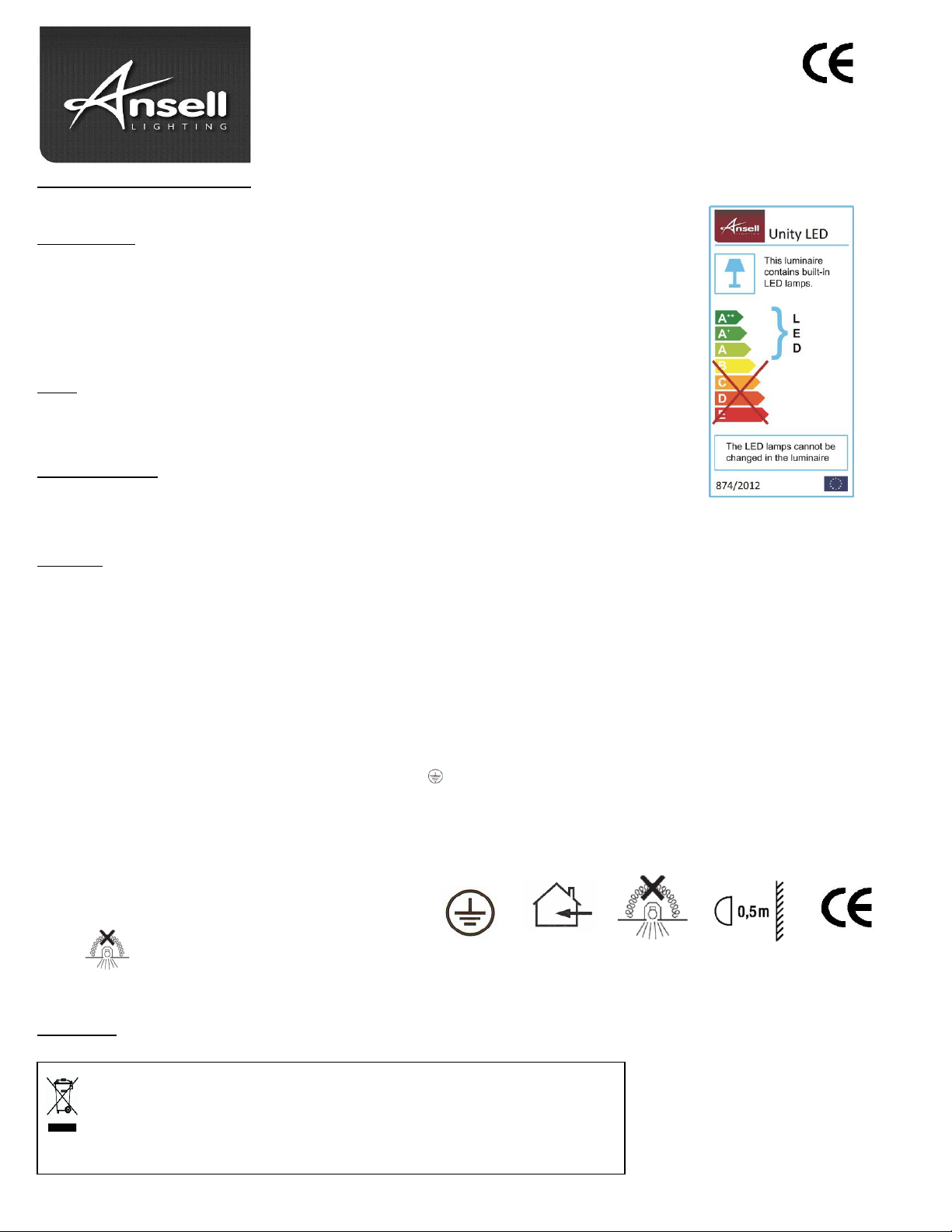

Ansell AULED125D/M3 User manual

Description –Unity LED Downlight - Emergency
Installation Instructions
Luminaire Code(s) –AULED125D/M3, AULED150D/M3
General Installation Instructions
These instructions should be read carefully prior to any installation and retained after completion for further reference and
maintenance. Please give these instructions to the building owner/occupier after installation.
Important Safety
1. Before installation, maintenance or lamp replacement, ensure that the mains supply to the luminaire is switched off and
the circuit supply fuses are removed or the circuit breaker is turned off.
2. It is recommended that only a qualified electrical contractor carries out the installation of this luminaire and that the
luminaire is installed in compliance with the current edition of the IEE Wiring Regulations.
3. The person carrying out the installation is to check and verify that the total load on the circuit, including that of this
luminaire does not exceed the rating of the circuit cable, fuse or circuit breaker.
4. Where a luminaire incorporates discharge control gear (inductive load), the circuit capacity and ratings require careful
sizing to avoid nuisance tripping of the protective device used in the installation.
5. Where applicable, careful consideration should be taken during installation to ensure that all fixings and/or suspensions
are of a suitable size for the luminaire being installed.
Ratings
1. All luminaires are manufactured & tested in compliance with the requirement contained within BS EN 60598 and are CE marked.
2. All luminaires that are of Class 1 construction and that are marked accordingly, MUST be earthed.
3. All luminaires are designed to operate at 230Volts AC -6%/+10% = 216Volts to 252Volts. Do not operate outside these voltages.
4. All luminaires are only suitable for applications within their rated Ingress Protection limits as stated.
5. This luminaire is designed for internal use only.
Exclusions to Warranty
Please Note - The limited warranty shall be null and void in the following circumstances:-
Failure by the installer, end user or any third party to exercise caution to protect any covered product or part from outside damage, adverse temperature (normal operating
ambient temperature 0 - 25°C), humidity conditions, fluctuations in the electrical system or physical abuse as well as failure related to workmanship in the installation of
the products or parts.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Maintenance:
1. This luminaire LED contains no serviceable parts.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
www.anselluk.com
Disposal of Electronic Equipment WEEE Directive 2002/96/EC
This product falls within the scope of the Waste Electrical & Electronic Equipment Directive
(WEEE), which means the product should not be disposed of as normal household waste.
Ensure that this luminaire and lamp is disposed of in accordance with the WEEE Directive.
Contact a local Council Waste Dept. LocalAmenity Site, or the Environment Agency for
further information. RoHS - All components and materials used in this product are RoHS
2002/95/EC compliant.
Installation
Select a suitable mounting location to install luminaire. Check that sufficient depth is available in the ceiling void and there is adequate free air
ventilation around the luminaire.
Luminaire should not be mounted facing any combustible material within 500mm.
Cut a125mm forAULED125D or 150mm for AULED150D diameter aperture in ceiling material. If required, maintain any fire barrier by
installation of suitable fire hood available from Ansell Lighting.
Connected to supply cable to the Wieland connector (supplied), taking care to observe the correct polarity (please see electrical connections
below). This fitting is Class I and does require an earth connection.
During connection of the remote gear to the luminaire the supply must only be initiated after the connection of the male and female connectors.
Do not connect the luminaire to the driver if the driver has an incoming supply. This can damage the LED.
Do NOT cover the remote control gear with thermal insulation or any other material.
Connect as follows:- PERMANENT LIVE (L2) BROWN OR RED
SWITCHED LIVE (L1) BLUE OR BLACK
NEUTRAL (N) BLUE OR BLACK
EARTH GREEN / YELLOW
Plug high-tension cable and plug into the corresponding socket on the fitting, ensuring the plug is pushed fully home. Do not install the luminaire
onto new plaster or wet paint.
Offer the remote gear fitting through the aperture and bend back the two spring tabs. Release tabs and allow fitting to be drawn into place.
Angle the head into the desired position for version
Restore mains supply, switch on and test for satisfactory operation.
IP44
-Luminaire not suitable for covering with thermally insulating material.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Maintenance:
1. This luminaire LED contains no serviceable parts.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
www.anselluk.com
Disposal of Electronic Equipment WEEE Directive 2002/96/EC
This product falls within the scope of the Waste Electrical & Electronic Equipment Directive
(WEEE), which means the product should not be disposed of as normal household waste.
Ensure that this luminaire and lamp is disposed of in accordance with the WEEE Directive.
Contact a local Council Waste Dept. Local Amenity Site, or the EnvironmentAgency for
further information. RoHS - All components and materials used in this product are RoHS
2002/95/EC compliant.
Warning
Failure to comply with these instructions may result in irreparable damage to the emergency control gear.
This product must not be modified in any way as this will negate any Safety approvals, and may render the product inoperable or unsafe. The
product must be installed in accordance with the instructions.
Operating and recommended Routine Test Procedure
Follow these instructions carefully to ensure safe and reliable operation of this emergency luminaire. The following testing is designed to ensure the
continued protection of your premises and occupants, in the event of the possibility of a failure of the normal lighting supply.
Testing should be carried out in accordance with the recommendations of BS5266-8:2004 Clause 7.2.
A daily check –check LED charge indicator is illuminated
A monthly functional test –simulate a mains supply failure for approx. 30 seconds by operation of key switch or switching off circuit breaker.
Ensure normal supply is restored after test and ensure charge indicator is illuminated.
One annual full three hour duration test - simulate a mains supply failure for a one hour continuous test by operation of key switch or
switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator is illuminated.
To assist with this testing, a test record is included. If the luminaire fails any of the above tests, please contact a qualified electrician.
TEST RECORD SHEET
IP44
-Luminaire not suitable for covering with thermally insulating material.
MONTH TEST
Signed Date Signed Date Signed Date Signed Date Signed Date
1FUNCTIONAL
2FUNCTIONAL
3FUNCTIONAL
4FUNCTIONAL
5FUNCTIONAL
6FUNCTIONAL
7FUNCTIONAL
8FUNCTIONAL
9FUNCTIONAL
10 FUNCTIONAL
11 FUNCTIONAL
12 3 HOUR
FIFTH YEAR
FIRST YEAR
SECOND YEAR
THIRD YEAR
FORTH YEAR
