ANTAI Installation Manual
Pitched Roof Solution
(Solar mounting system)

Pitched roof mount installation manual –Version 2018 1.0 to AS/NZS1170.2.2011(R 2016) 1
CONTENTS
General Introduction……………………………………………………………………………………………………………..……..…2
Technical Specification …………………………………………………………………………………………………………..….…3
Safety and Installer Responsibilities …………………………………….…………………………………………..….……4
Components List………………………………………………………………………………………….………………………………….…5
Before Installing…………………………………………………………………………………………….……………………….….……6
Receipt of Goods………………………………………………………………………………………………………………………….……6
Tools Required for Installation……………………………………………………………………………………………………….…6
Installation Planning……………………………………………………………………………………………………………….………7
Determining Wind Terrain Category…………………………………………………………………………………………..……7
Determining Wind Region…………………………………………………………………………………………………………………8
Planning the Module Area…………………………………………………………………………………………………………………9
Determine the Height of The Installation Site………………………………………………………………………….……10
etermine Roof Slope………………………………………………………………………………………………………………..………10
Determine the Maximum Rail Support Spacing……………………………………………………………………..……..10
Installation Instruction………………………………………………………………………………………………………….……..10
Warranty…………………………………………………………………………………………………………………………………….…….15
Maintenance and Cleaning……………………………………………………………………………………………………….…..18
References………………………………………………………………………………………………………………………………….…….18
Contact Details………………………………………………………………………………………………………………………….…….18
Appendixes………………………………………………………………………………………………………………………………….……18
GENERAL INTRODUCTION

Pitched roof mount installation manual –Version 2018 1.0 to AS/NZS1170.2.2011(R 2016) 2
ANTAISOLAR Roof Mounted solutions, accommodating a wide range of modules, are suitable for most
types of roofs. With innovative ANTAISOLAR Rail and T module, ANTAISOLAR Roof Mount enables
significantly faster, easier installations, which have been developed into one of the most versatile
mounting solutions in the world, delivering time and cost-effective experience to solar system
installers.
Rail II Rail III
Rail IV
Easy to be installed
ANTAISOLAR features series of highly engineered new innovative product, designed with experienced
engineers to the speed of installation.
ANTAISOLAR pitched roof solar mounting system is backed by a 10-year warranty and is compliant
with AS/NZS1170.2.2011(R2016)
Benefits of ANTAISOLAR/ANTAI Pitched Roof Mounting System
● Easy Installation
● Diversified Application
● High Accuracy
● Choice Quality
● Engineered to highest standards
● Maximum Lifespan
● Guaranteed durability
TECHNICAL SPECIFICATIONS

Pitched roof mount installation manual –Version 2018 1.0 to AS/NZS1170.2.2011(R 2016) 3
Applications
⚫Commercial and residential buildings
⚫Marine applications and remote areas
Features
⚫Anodized 6005-T6 aluminum extrusion
⚫Innovated designed of the Tilt-in modules, which can be pre-assembly with the clamp, make the
installation easy and quick.
⚫Suitable for difference conditions and the most solar panels at present market.
⚫Significantly higher strength-to-weight ratio than other framing products, providing improved
efficiency due to greater frame spans, inherent corrosion resistance resulting in low ongoing
maintenance and an extended product life.
⚫Complies with Australian/New Zealand Standard on Wind Actions, AS/NZS1170.2.2011(R2016)
⚫10 years limited warranty backed up by parent company Antai Aluminum
Material
Material
Tensile strength
Tensile
Yield
6005 T6 aluminum
extruded
≥260Mpa
≥225Mpa
Stainless steel 304
625.55Mpa
263.8Mpa
Stainless steel A2-70
700MPa
450Mpa
Installation condition
Roof slope
Up to 60°
Building height
Up to 20m
Mounting structure
Timber/ steel
Roof types
Tile/Tin/Klip-Lok® roof
System angle
Flush with roof
Note: If the condition is beyond the table list, please contact us to confirm

Pitched roof mount installation manual –Version 2018 1.0 to AS/NZS1170.2.2011(R2016) 4
SAFETY AND INSTALLER RESPONSIBILITIES
Handling and Installing ANTAISOLAR
It is critically important that safety practices are observed when installing
⚫Do not throw or roughly handle any ANTAISOLAR components.
⚫Do not bring ANTAISOLAR system into contact with sharp or heavy objects.
⚫Do not modify ANTAISOLAR components in any way. The exchange of bolts, drilling of holes, bending or
any other physical changes not described in standard installation procedure will void the warranty.
⚫It is the installer’s responsibility to verify the integrity of the structure to which ANTAISOLAR components
is fixed. Roofs or structures with rotten/rusted bearers, undersized bearers, excessively spaced bearers,
or any other unsuitable substructure cannot be used with ANTAISOLAR components, and installation on
such structures will void the warranty, and could result in death or serious injury.
CAUTION: INSTALLATION OF THIS PRODUCT IS TO BE PERFORMED ONLY BY PROFESSIONALLY TRAINED
INSTALLERS. ANY ATTEMPT BY AN UNQUALIFIED PERSON TO INSTALL THIS PRODUCT COULD RESULT IN
DEATH OR SERIOUS INJURY.

Pitched roof mount installation manual –Version 2018 1.0 to AS/NZS1170.2.2011(R2016) 5
COMPONENTS LIST
Overview of system components
Part name
Part name
Rail VI TYN-355
Rail splice
Rail clamp
(L connector)
L Bracket
(L Foot)
Inter Clamp
(with T-module)
End Clamp
(with T-module)
Tile Roof hook
Hexagon socket
bolt
M8*30/45/50/55/6
0
Klip-Lok 700
Klip-Lok 406
Standing Seam
Clamp
Longline 305 clamp
Note: The quantity of requested components depends on the system you ordered.

Pitched roof mount installation manual –Version 2018 1.0 to AS/NZS1170.2.2011(R2016) 6
BEFORE INSTALLING
Receipt of goods
Check that the ANTAISOLAR/ANTAI equipment is undamaged and that the order is complete. Check for
correct quantities of the items.

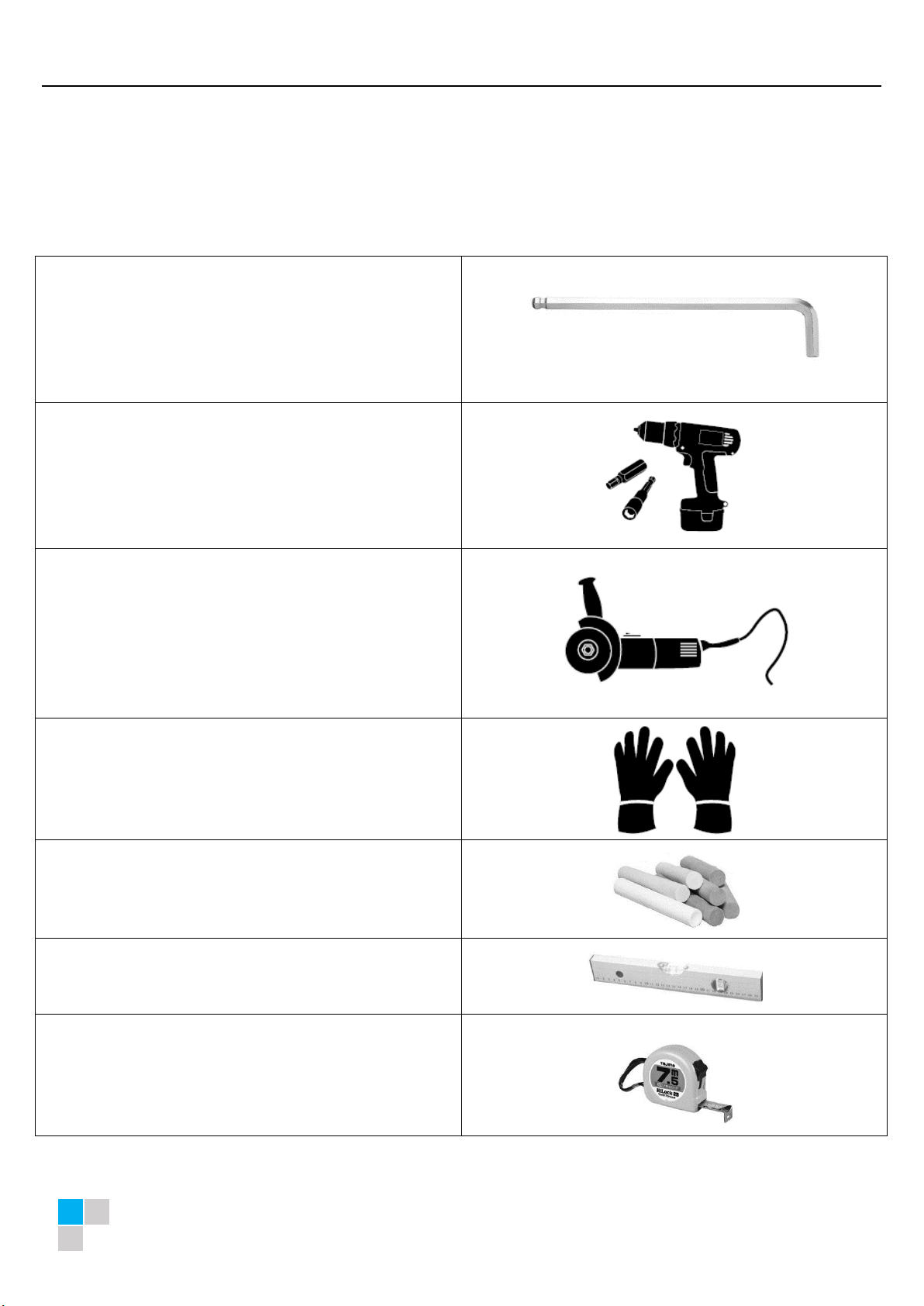

Tools required for installation
6 mm Allen key or hexagonal driver bit.
If using a 6mm driver bit, make sure the cordless
power tool used for the driving has a hand-tight
clutch setting a fine (soft) impact drive to prevent
damage to the fragile glass panels and threads on the
structure.
Cordless drill.
Drill or impact driver for driving roof material
fixings
Angle grinder.
For terracotta tile roof installation, and angle
grinder fitted with a continuous edge diamond
tipped tile cutting blade; gloves, hearing
protection, a face protection mask, and a suitably
rated breathing protection mask for all people in
proximity of grinding
Gloves.
Protect the hazard of the sharp corners.
Cord or color pen.
Mark the installation position.
Spirit level
Measuring tape
*If necessary, timber to shim the roof hook

Pitched roof mount installation manual –Version 2018 1.0 to AS/NZS1170.2.2011(R2016) 7

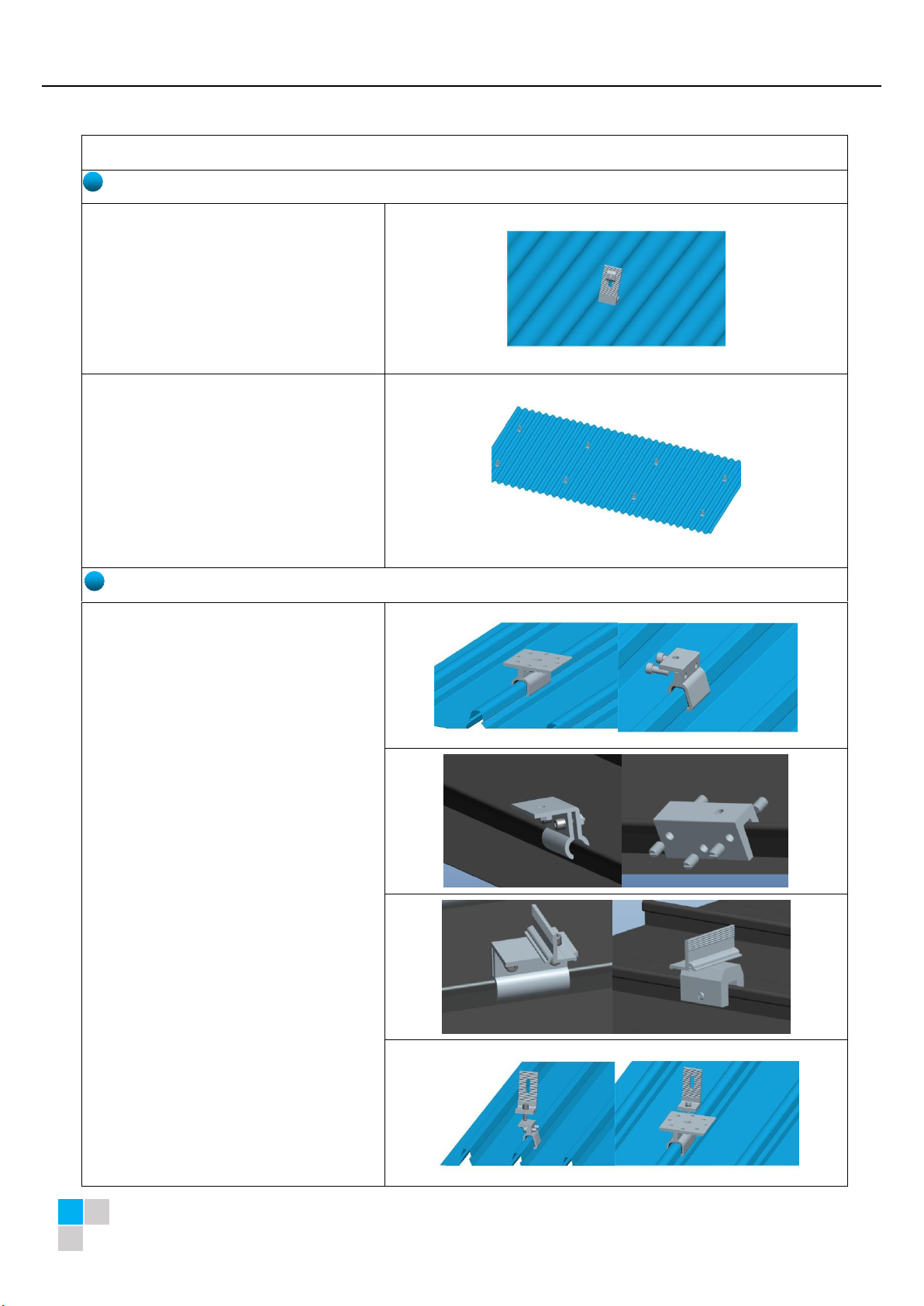

INSTALLATION INSTRUCTION
1. INSTALL FOUNDATION TO ROOFTOP
A. Installation of L-bracket on Metal Roof
Determine the positions of the
L-bracket according to your plans.
then, Fix the L bracket (together with
Rubber Pad) to the rafter using SUS
410 Screw, fix other L brackets to the
rafter according to your plans.
Note: The rubber pad plays the role
of waterproof.
B. Installation of Klip-Lok on Metal Roof
Use roof clamp to clip the metal roof
tightly, then place L-Bracket on the
roof clamp and connect them by
tightening M8 Bolt.

Pitched roof mount installation manual –Version 2018 1.0 to AS/NZS1170.2.2011(R2016) 8

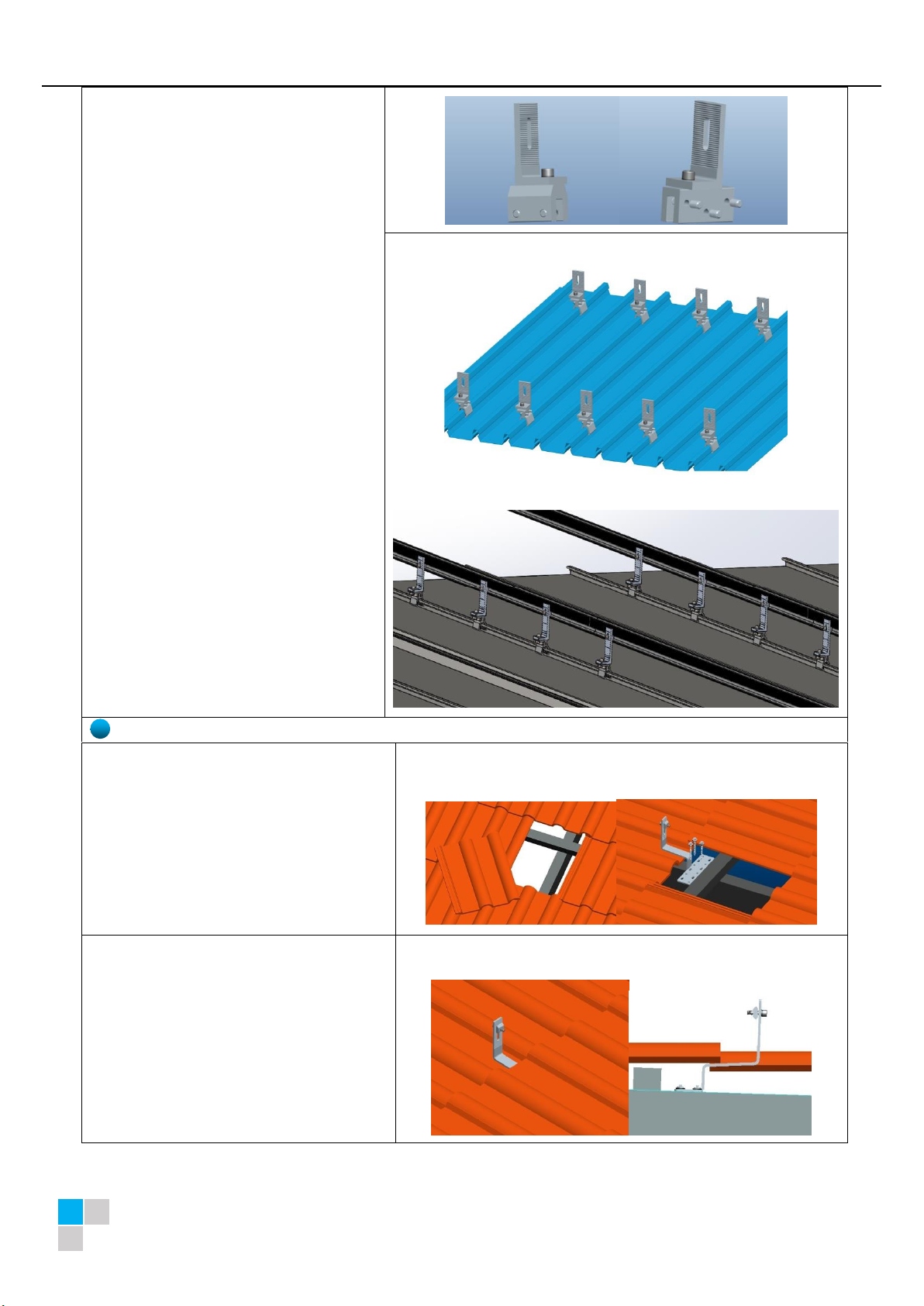

C. Installation of Tile Hook on Tile Roof
Remove the roof tiles at the marked
positions or simply lift them up slightly
then input the roof hook to the wooden
beam. Fix the roof hooks with 3x
self-tapping screws. Minimum 2 pcs
Cover the hooks by the removed tile

Pitched roof mount installation manual –Version 2018 1.0 to AS/NZS1170.2.2011(R2016) 9
Connect the roof hook with the rail.
a. Insert the tilt-in module into the
side channel of the rail as the step 9
shown.
b. Adjust the rail to be level.
c. Fasten the bolt.
Note: If necessary, use an angle
grinder or hammer to cut a concavity
in the tile that covers the roof hook at
the point where the roof hook comes
through. (Caution! Must not use fixed
roof hook as a ladder, as this extreme
point load could damage the tile
below.

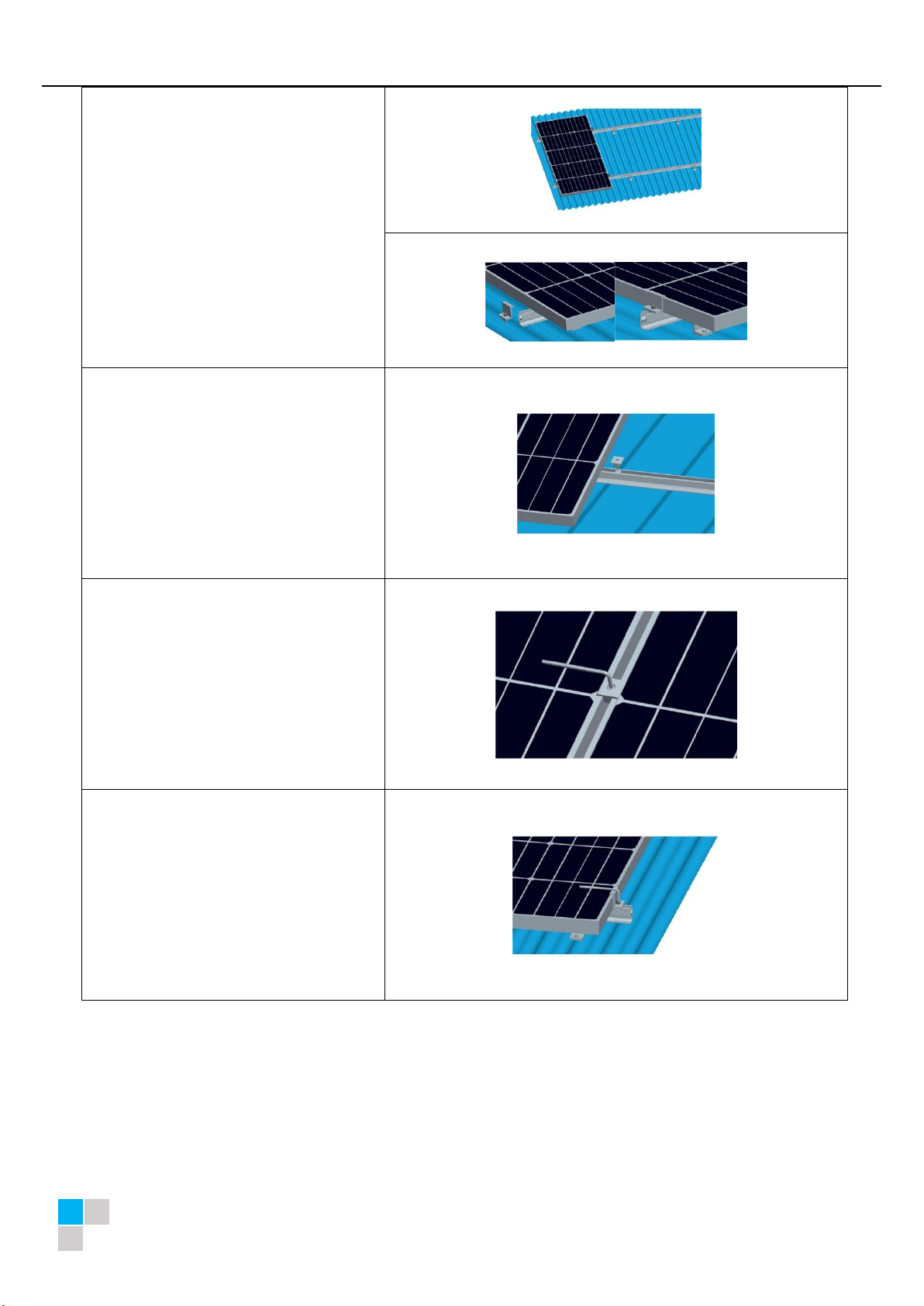

2. Connect the L bracket with rail by
T-module and tighten the bolt.
3. If you need, to connect multiple
rails together, slide the splices on the
rear side of the pre-assembled rails
halfway to the side. Fasten the first
M8 bolt firmly using the Allen key.
Now slide the next rail segment into
the splice. Tighten the second M8
bolt .The connection is finished.
