ANTAIRA AMY-5133-AC-PD User manual
AMY-5133-AC-PD
Industrial IEEE 802.11 AC 5GHz Wireless AP/Client Bridge
Hardware Manual
Version 1.0
(June 2023)
Antaira Technologies - Industrial Wireless Access Points
AMY-5133-AC-PD - Hardware Manual - v1.0
© Copyright 2023 Antaira Technologies, LLC
All rights reserved
This document contains information, which is protected by copyright. Reproduction, adaptation, or translation without
prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC. Microsoft Windows and the Windows logo are the
trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered
trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered trademarks of their
respective owners.
Notice: Copyrights © 2023 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or translation
without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the copyright laws.
Disclaimer
Antaira Technologies, LLC provides this manual without warranty of any kind, expressed, or implied, including but not
limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies, LLC may
make improvements and/or changes to the product and/or specifications of the product described in this manual, without
prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this
guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of
the manual. The information contained is subject to change without prior notice.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause harmful interference to
radio communications if the equipment is not installed and used in accordance with the instructions. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
Antaira Technologies - Industrial Wireless Access Points
AMY-5133-AC-PD - Hardware Manual - v1.0
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority
to operate the equipment.
Avertissement FCC
Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la
partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences
nuisibles dans une installation résidentielle. Cet équipement génère, utilise et peut émettre de l'énergie radiofréquence.
Cela peut provoquer des interférences nuisibles aux communications radio si l'équipement n'est pas installé et utilisé
conformément aux instructions. Cependant, il n'y a aucune garantie qu'aucune interférence ne se produira dans une
installation particulière. Si cet équipement provoque des interférences nuisibles à la réception radio ou télévision, ce qui
peut être déterminé en éteignant puis en rallumant l'équipement, l'utilisateur est encouragé à essayer de corriger les
interférences par une ou plusieurs des mesures suivantes:
●Réorientez ou déplacez l'antenne de réception.
●Augmentez la distance entre l'équipement et le récepteur.
●Connectez l'équipement à une prise sur un circuit différent de celui auquel le récepteur est connecté.
●Consultez le revendeur ou un technicien radio / TV expérimenté pour obtenir de l'aide.
CE Mark Warning
This is a Class-A product. In a domestic environment, this product may cause radio interference in which case the user
may be required to take adequate measures.
Avertissement de marque CE
Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut provoquer des interférences radio,
auquel cas l'utilisateur peut être amené à prendre des mesures adéquates.
Industrial Wireless Access Points
Industrial-Grade Wireless Access Points
Hardware Manual
Version 1.0 (June 2023)
The manual supports the following models:
●AMY-5133-AC-PD
Antaira Technologies - Industrial Wireless Access Points
AMY-5133-AC-PD - Hardware Manual - v1.0
Table of Contents
1 Overview 1
1.1 Product Hardware Features 1
1.2 Package Contents 1
1.3 Safety Precaution 1
2 Hardware Description 3
2.1 Physical Dimensions 3
2.2 Inside View Panel 4
2.3 LED Indicators 4
2.4 Reset Button 5
2.5 Ethernet Ports 5
2.7 Cabling 6
2.8 Wireless Antenna 6
3 Mounting Installation 7
3.1 Pole Mounting 7
3.2 Wall Mounting 7
4 Hardware Installation 8
4.1 Installation Steps 8
4.2 Maintenance and Service 8
4.3 Troubleshooting 9
Antaira Technologies - Industrial Wireless Access Points
AMY-5133-AC-PD - Hardware Manual - v1.0
1 Overview
Antaira Technologies’ AMY-5133-AC-PD is a simple point to point or point to multipoint IEEE 802.11 radio with a gigabit
PoE wired interface. The gigabit Ethernet IEEE 802.3af/at interface provides a means to power and deliver data making
setup fast and clean. Alternatively an external power supply may also be used to power the device, power supply sold
separately. Industrial Switches on the device make it possible to set up a bridging pair without having to access the
software for simple solutions. This product is ideal for applications where a quick and easy wireless bridge is required.
1.1 Product Hardware Features
System Interface and Performance
- All RJ45 ports support the auto MDI/MDI-X function
- Embedded 2*10/100/1000Tx RJ45 ports with 1*PoE+/PD Port (30W)
- WLAN supports 5GHz Wi-Fi
Power Requirements
- 48VDC IN, 0.5A, IEEE 802.3at PoE+, OR
- 12VDC IN, 1.0A from DC Jack
Operating Temperature
- Standard operating temperature model: -30°C to 45°C
Case / Installation
- Plastic housing
- Pole / Wall mount design
1.2 Package Contents
- AMY-5133-AC-PD
- Quick Installation Guide
- Pole Mounting Bracket Set
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input.
The industrial wireless access point’s hardware specs, ports, cabling information, and wiring installation will be described
within this hardware manual.
1
Antaira Technologies - Industrial Wireless Access Points
AMY-5133-AC-PD - Hardware Manual - v1.0
Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur l'entrée
d'alimentation. Les spécifications matérielles, les ports, les informations de câblage et l'installation du câblage du point
d'accès sans fil industriel seront décrits dans ce manuel du matériel.
Warning Labels
The caution label means that you should check certain information on the user manual when working with the device.
(Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations du manuel d'utilisation lorsque vous
travaillez avec l'appareil. (Illustré à la figure 1.1)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude
2
Antaira Technologies - Industrial Wireless Access Points
AMY-5133-AC-PD - Hardware Manual - v1.0
2 Hardware Description
2.1 Physical Dimensions

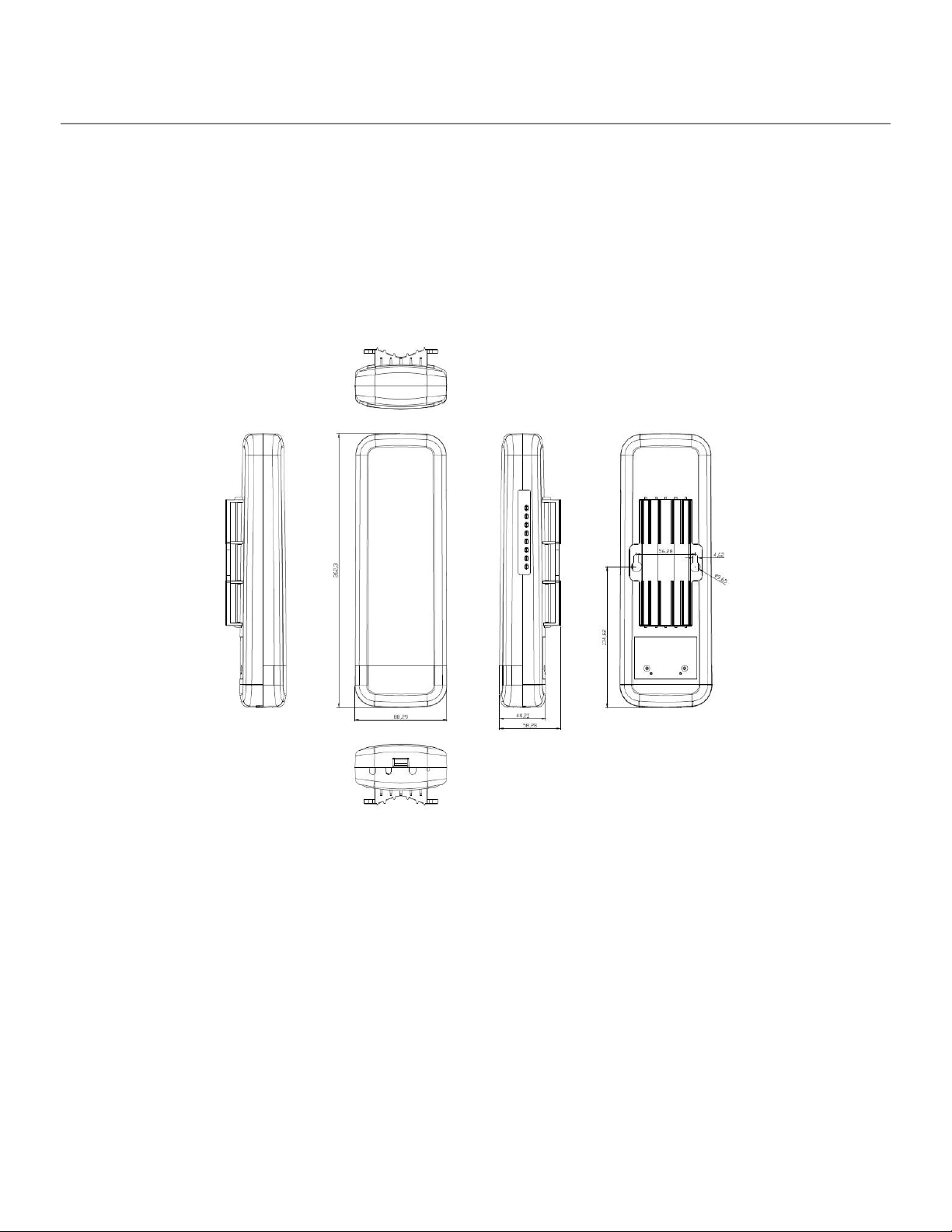

Figure 2.1, below, shows the physical dimensions of this product:
(W x D x H) is 87mm x 38mm x 260mm
Figure 2.1 - Physical Dimensions
3
Antaira Technologies - Industrial Wireless Access Points
AMY-5133-AC-PD - Hardware Manual - v1.0
2.2 Inside View Panel

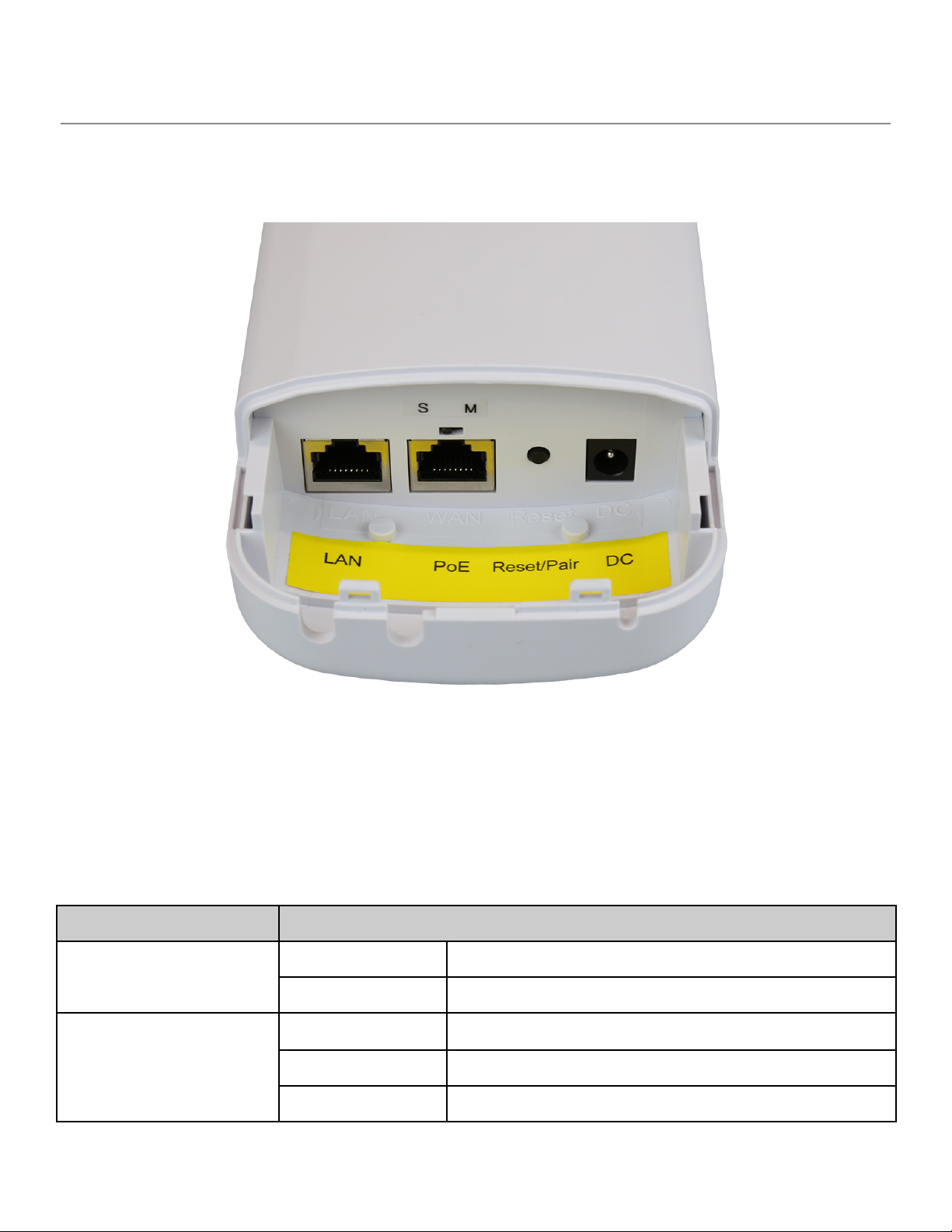

Figure 2.2, below, shows the inside panel of the product:
Figure 2.2 - Inside View Panel
2.3 LED Indicators
There are LED light indicators located on the front panel of the industrial wireless access point that display the power
status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table
2.1.
LED
Description
Power
On
The device is powered on
Off
The device is powered off
WAN Port
On
Port linked
Blinking
Data is transmitting or receiving data
Off
No link
4
Antaira Technologies - Industrial Wireless Access Points
AMY-5133-AC-PD - Hardware Manual - v1.0
LAN Port
On
Port linked
Blinking
Data is transmitting or receiving data
Off
No link
WLAN
On
The wireless radio is on
Blinking
Data is transmitting or receiving over wireless
Off
The wireless radio is off
2.4 Reset Button
Press and hold the reset button on the device for over 15 seconds to return to the factory default setting.
2.5 Ethernet Ports
●RJ45 Ports
RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections.
Auto MDI means that the switch can connect to another switch or workstation without changing the straight-through or
crossover cabling. See the figures below for straight-through and crossover cabling schematics.
●RJ45 Pin Assignments
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
Table 2.2 - 10/100Base-T(X) RJ45 Pin Assignments
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
5
Antaira Technologies - Industrial Wireless Access Points
AMY-5133-AC-PD - Hardware Manual - v1.0
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
Table 2.3 - 1000Base-T RJ45 Pin Assignments
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
2.7 Cabling
Twisted-pair segments can be connected with an Unshielded Twisted Pair (UTP) or Shielded Twisted Pair (STP) cable. The
cable between the wireless access point and the link partner (wireless AP, switch, hub, workstation, etc.) must be less
than 100 meters (328 ft.) in length.
2.8 Wireless Antenna
This device has a Built-in 14dBi MIMO panel antenna.
6
Antaira Technologies - Industrial Wireless Access Points
AMY-5133-AC-PD - Hardware Manual - v1.0
3 Mounting Installation
3.1 Pole Mounting

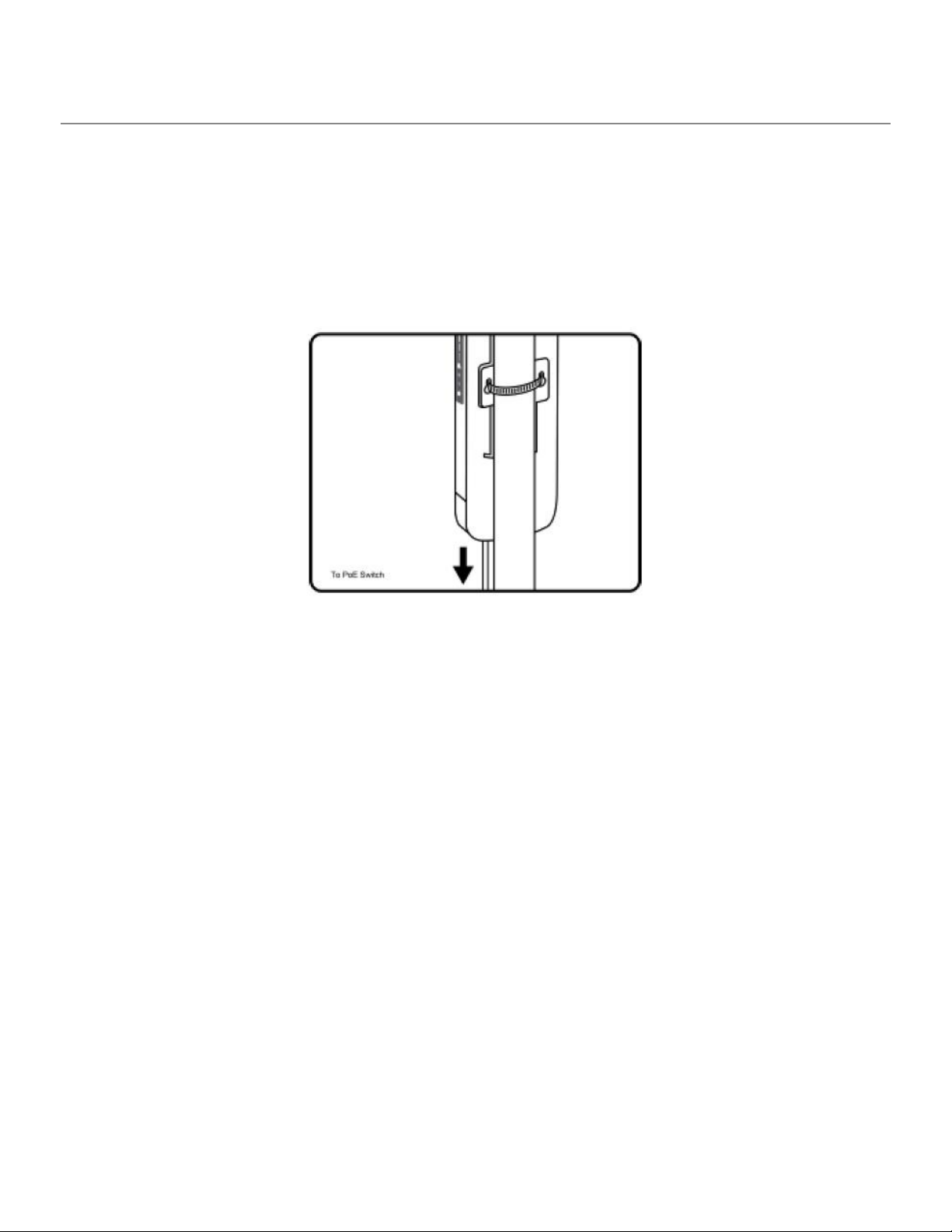

This unit has a pole mounting strap in the box. Place the mounting strap through the slot on the back of the device and
then around the pole as shown on Figure 3.1. Tighten the mounting strap to secure the device.
Figure 3.1 - Example of Mounting the Device on the Pole
3.2 Wall Mounting
This device has a built-in wall mount bracket. Use the screws to screw the wall and then line the device with the bracket to
the screws and push down to mount.
To remove the device from the wall, push up to unmount.
7
Antaira Technologies - Industrial Wireless Access Points
AMY-5133-AC-PD - Hardware Manual - v1.0
4 Hardware Installation
4.1 Installation Steps
This section will explain how to install the industrial wireless access point:
Installation Steps
1. Unpack the industrial wireless access point from the original packing box.
2. Check if the pole mount bracket is included in the original packing box..
●If the pole mount bracket is not screwed on the industrial wireless access point, please refer to the Pole
Mounting section for pole mount installation.
3. To hang the industrial wireless access point on a pole, please refer to the Mounting Installation section.
4. Power on the industrial wireless access point and then the power LED light will turn on.
●Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ45 cable into the wireless access point’s Ethernet port and on the other side into the
networking device’s Ethernet port, e.g. switch PC or server.
●The Ethernet port’s (RJ45) LED on the industrial wireless access point will turn on when the cable is
connected to the networking device.
●Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.
4.2 Maintenance and Service
●If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting.
The initial installation should be done in a way that makes this as convenient as possible.
●Voltage / Power lines should be properly insulated as well as other cables. Be careful when handling them so as
to not trip over.
●Do not under any circumstance insert foreign objects of any kind into the heat dissipation holes located in
the different faces of the device. This may not only harm the internal layout, but might cause harm to users
as well.
●Do not under any circumstance open the device for any reason. Please contact your dealer for any repair
needed or follow the instructions within the manual.
8
Antaira Technologies - Industrial Wireless Access Points
AMY-5133-AC-PD - Hardware Manual - v1.0
●Clean the device with dry soft cloth.
4.3 Troubleshooting
●Always verify the right power cord or adapter is being used. Never use a power supply or adapter with a
non-compliant DC output voltage or it will burn the equipment.
●Select the proper UTP or STP cable in order to construct the network. Use an unshielded twisted-pair (UTP) or
shield twisted-pair (STP) cable for RJ45 connections: 100Ω Category 5e for 10/100Mbps. Also be sure that the
length of any twisted-pair connection does not exceed 100 meters (328 feet).
●Diagnosing LED Indicators: To assist in identifying problems, the switch can be easily monitored with the LED
indicators which help to identify if any problems exist.
○Please refer to the LED Indicators section for LED light indication.
●If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with
the power cord. Check for loose power connections, power losses, or surges at the power outlet.
○Please contact Antaira for technical support service if the problem still cannot be resolved.
●If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot
transmit, please check the system’s Ethernet devices’ configuration or status.
Antaira Customer Service and Support
(Antaira US Headquarter) + 844-268-2472
(Antaira Europe Office) +48-22-862-88-81
(Antaira Asia Office) +886-2-2218-9733
Please report any problems to Antaira:
Any changes to this material will be announced on the Antaira website.
9
Other manuals for AMY-5133-AC-PD
1
Table of contents
Other ANTAIRA Network Hardware manuals
