1
User Manual
1. Introduction
Please read all the user manual before operating the machine, and place the manual where the user can refer to it at
all time. The manual includes how to install and operate the machine under safe condition and explain all the labels
printed on the machine. If you encounter any problem, contact your local Antari dealer for assistant immediately.
2. Safety Information
DANGER
If the danger is not avoided, it will cause death or serious injury
WARNING
If the warning is not heeded, it can cause death or serious injury.
CAUTION
If the precaution is not taken, it may cause minor or moderate injury.
Must connect the machine to the correct rated voltage or it might lead to an electrical shock or a burn and may
cause serious consequences.
Must connect the machine to a protected circuit and ensure it is properly grounded to avoid the risk of
electrocution. For grounding instruction, please refer to Appendix I on page 9.
Do not operate the machine with a bundled power cord, it could lead to a fire hazard.
When operating the machine, do not point at people, animals, or fire.
WARNING
Please operate the machine on a flat, level hard and well ventilated surface area, reserve at least 50cm space
around the machine and make sure there is no flammable gas or material nearby.
Do not disassemble, repair or modify the machine, it may cause damages, malfunction, risk of electrical shock
or result in fire.
The machine can only be operated by adults or professionals, is not intended for use by person with reduced
physical sensory, mental capabilities, or lack of experience and knowledge including children.
Do not leave the machine running unattended, make sure all powers are off when leaving.
Children should be supervised to ensure that they do not play with the machine.
Do not use the machine upside down or tilt it, it might cause damages or malfunction.
Please store the fluid inside in a well ventilated area without direct sunlight and keep out of reach of children.
In case of eye contact or accidentally swallow the fluid, please seek medical attention immediately.
CAUTION
Keep the machine dry at all time. The machine is not waterproof, do not expose the machine to water, rain, or
moisture environment.
Please make sure the power outlet is not damaged or loose before plug in the power cord.
If the power cord is damaged, it must be replaced by Antari or its local dealers, otherwise the warranty will be
void.
Before operating the machine, please sure the fluid is filled in the fluid tank to avoid the pump in idling state
which could lead to overheat or malfunction.
Before transporting the machine, please make sure the fluid is drained and tank is empty. (Recommend using
original package)
The machine is for indoor use only.
Do not operate the machine in any area with unstable voltage.
If you experience strange sound or malfunction, turn off the power and unplug the power cord immediately
and contact your local Antari dealer for assistant.
DANGER

2
Do not contact any moving part.
Only use accessories recommended or sold by Antari.
Please make sure the power is off when not using the machine and unplug the power cord if not intend to use
for a long period of time.
To disconnect, turn all controls to the off position, then remove plug from outlet.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Unplug from outlet before servicing or cleaning.
Do not operate the machine with a damaged cord or plug, or after the machine malfunctions or is dropped or
damaged in any manner. Return machine to the nearest authorized service facility for examination, repair, or
electrical or mechanical adjustment.
Before operating the machine, please read all warning labels on the machine, description as below:
Front Cover Printing
WARNING!
PLEASE USE ANTARI FLUID ONLY.
NEVER ADD FLAMMABLE SUBSTANCE.
3. Package Contents & Inspection
Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure it is the correct
model and all parts are included. If any part appears to be damaged or missing during transportation, please contact
your local dealer and return in original package for inspection.
3.1 Package Contents
1 x S-120 Foam Machine
1 x 5 Liters Fluid Tank
1 x IEC Power Cable
1 x Hanging Bracket
1 x User Manual or Scan QR Code on the Machine
3.2 Optional Accessories
Item Code
Description
N/A
N/A
4. Machine Details

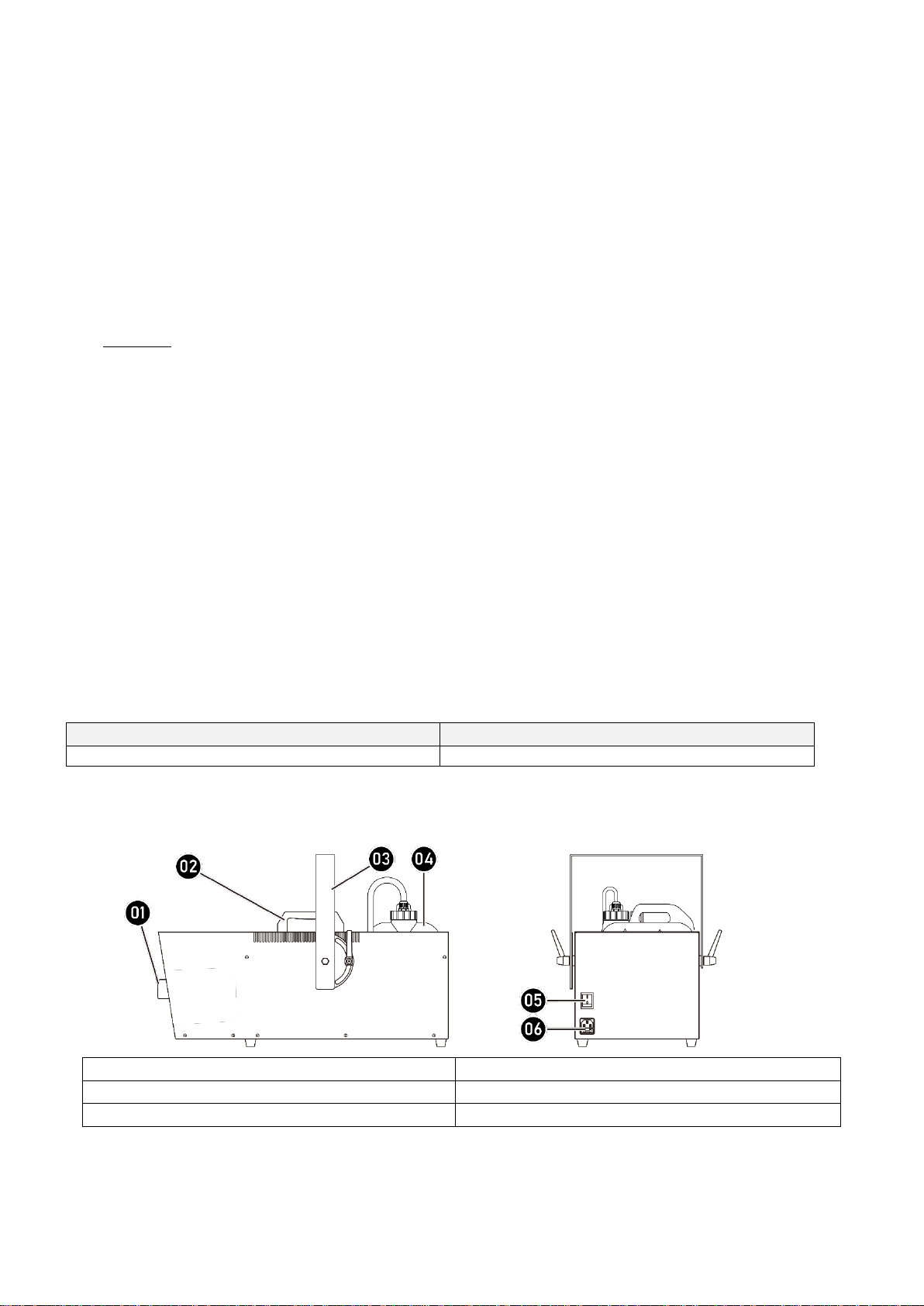

01. Nozzle
04. 5 Liters Fluid Tank
02. Handle
05. Power Switch
03. Hanging Bracket
06. IEC Connector
5. Technical Label Information
Please read the technical label information on the back of the machine before operating it.

3
1. Model Name
5. Breaker/Fuse
2. Input Voltage
6. QR CODE for User Manual
3. Frequency
7. Serial No.
4. Rated Power
6. Snow Fluid
CAUTION
Always turn off the power before filling the fluid tank. Do not add flammable
liquid to the fluid tank. If fluid gets inside the machine, please contact your local
Antari dealer for assistant.
Only the snow fluid manufactured by Antari can be used, do not mix or dilute the snow fluid.
The machine is tested and calibrated with the specific snow fluid to get the best performance.
Please empty the fluid in the tank before switching to another fluid to avoid mixing.
The warranty on your foam machine will be void if you use snow fluid not manufactured by Antari.
7. Setting and Manual Operation
WARNING
Machine falling off might cause serious injury, please make sure it is secure
and firm on the overhead.
Step 1. Place the machine on a flat, level hard and well ventilated surface area and reserve at least 50cm open
space around the machine, and make sure there is no flammable gas or material nearby;
Step 2. Fill the fluid tank with Antari approved snow fluid;
Step 3. Plug the machine to the power outlet. Please read the technical label on the back of the machine and make
sure the power outlet has the correct rated voltage for the machine;
Step 4. Turn the power switch “ON”, the machine will start producing foam;
Step 5. Turn the power switch “OFF”, the machine will stop producing foam;
Step 6. To turn off the machine, please make sure the machine is not operating then turn of the power. If you will
not use the machine a long period of time, please remove the power cord.
8. Control Settings
S-120 Foam Machine can be operated in manual mode only.
Manual
9. Service and Maintenance
DANGER
Disconnect the power cord before starting maintenance operation!
Always keep the machine clean and dry.
Can use an air compressor, a vacuum or a soft brush to remove the dust on the machine.
Can use a slightly damp cloth to clean the casing.
Before store or after each use of the machine, pump pure water through the system for at least 1-2 minutes,
this will help clean the snow fluid residue and extend the lifespan on the pump and the machine.

4
It is recommended to run the machine at least once a month in order to maintain its best performance and
output condition.
Excessive dust and build up liquid residue will reduce the performance and cause overheat.
10. Technical Specifications
S-120
Rated Voltage
US Model: AC 100-120V, 50/60Hz 7.5A
EU Model: AC 220-240V, 50/60Hz 4.0A
Rated Power
880W
Fluid Consumption
350 ml/min (100% output)
Fluid Tank Capacity
5 Liters (1.32 Gallon)
Compatible Fluid
Antari SL Snow Fluid
Ambient Temp. Range
5°C – 40°C (41°F – 104°F)
Control Methods
Manual
Interface
IEC Connector (Power)
DMX Channels
N/A
Included Accessories
Hanging Bracket
Optional Accessories
N/A
Dimension
L 600 W 260 H 280 mm (L 23.62 W 10.24 H 11.02 inch)
Weight
12.0 kg (26.46 lbs.)
11. Warranty Disclaimer
We guarantee the merchandise manufactured by us to be free from defect in material and workmanship for a period
of one year. Our obligation and liability under this warranty shall be restricted to repair or replacement at our
factory or local authorized dealer. We assume no liability of the products that are improperly used or used for any
purpose other than that for which they are specially designed. This warranty shall not apply to any merchandise
which has been repaired, altered or assembled outside our factory in any way so as in our judgment to affect its
performance, nor which has been subjected to misuse, negligence, or accident nor to any merchandise operated
contrary to our printed instructions. We will not allow or be liable of any loss or any damages of any kind in
connection with the use, sale, or repair of any merchandise purchased from us.
12. Machine Dimension

5
User Manual
1. 前言
在操作本機器之前,請務必仔細詳閱本說明書然後請將本說明書放置在機器使用者可隨時查閱之處存放。
此說明書包含如何安全的安裝及操作本機器以及說明所有在機器上的標示。如果您有任何操作上的問題,
請立即聯繫當地的 Antari 經銷商尋求協助。
2. 安全注意事項
危險
若不確實避免這些指示,可能導致嚴重人身傷害甚至死亡。
警告
若不確實遵循這些指示,可能導致嚴重人身傷害甚至死亡。
注意
若不確實注意這些指示,可能導致人身傷害甚至死亡,嚴重程度視情況而定。
危險
請務必使用正確電壓。如果使用錯誤電壓,可能會遭受危險的電擊燒傷或更嚴重的後果。
請務必將機器連結到有保護的電路,並確保有正確的接地,以避免觸電的危險。關於接地方式請參考
第9頁附錄 I。
請勿在捆綁電源線的情況下使用,可能會發熱導致火災。
操作機器時請 勿 將 機 器 對 著 人 體 、動物或火 焰使用。
警告
請於堅固、平坦、穩定且通風良好的表面上使用機器。請勿遮蓋機器散熱部份,機器周邊至少應保留
50 公分的空間並確認附近沒有易燃性物質或可揮發性氣體。
請勿隨意拆卸、修理或改造機器,這可能會導致機器故障、損壞、觸電危險或造成火災。
本機器僅限有行為能力之成人或專業人員操作,不預期提供生理、感知、心智能力、經驗或知識不足
者之使用者(包含孩童)使用本機器。
請勿在無人看管時讓機器運作,並 於 外 出 離 去 時 確 實關閉 電 源 。
孩童應受監督,以確保孩童不能操作或嬉戲玩本機器。
請勿將機器放倒或傾斜使用,可能導致機器動作不正常或損壞。
請將液體存放在室內孩童無法取得之處,保持通風及避免陽光直射。如果有觸碰眼睛或誤食機器,請
立即尋求醫生的協助。
注意
本機器無防水設計,請隨時保持機器乾燥,嚴禁將其潑水、浸水、淋雨或放在潮溼的環境。
在插 入 電 源 插 座前 ,請確認電 源 插 座無損壞或鬆動。
若電源線損壞,必須使用原廠電源線或組件進行更換,否則將導致保固無效。
請在使用機器之前,先填裝好雪花水,避免機器幫浦空轉過熱造成損害。機器在搬運前或使用完畢
後,請清空油桶。
在運輸本機器前,請確認機器的油桶已清空並且包裝完整。(建議使用原廠包裝)
本產品僅限室內使用。
請勿在電壓不穩定的地區使用本機器。
如果機器出現異常聲音或有任何不正常現象時,請立即停止工作,將電源關閉及拔下機器電源線,並
請聯繫當地的 Antari 經銷商尋求協助。
請勿觸碰機器內部運轉零件。

6
只能使用原廠建議或販售之配件。
請確認機器不在使用的狀態下電源已關。如果長時間不使用機器,請拔掉電源線。
關閉機器時,將控制開關轉到關閉的位置,然後再將插頭從插座拔除。
拔除電源線時,請抓住插頭不是電線。
在保養及清潔前,請把電源線從插座拔除。
在電線或插座有損毀、機器故障或有掉落或損壞的情形發生時,請勿操作機器。請將機器送回最近的
維修站,做檢查、維修及電源或機械的調整。
為確保機器的使用壽命,請使用 Antari 原廠製造之雪花水,勿使用其它非 Antari 原廠製造雪花水或添
加劑,否則可能會導致故障。
在使用本機之前,請詳細閱讀機器上的警語標示,說明如下:
上蓋印刷
WARNING! 警告!
PLEASE USE ANTARI FLUID ONLY. 只能使用 Antari 雪花水
NEVER ADD FLAMMABLE SUBSTANCE. 禁止添加易燃物品
3. 包裝內容與檢查
在收到機器後,請立即小心地打開包裝紙箱,檢查所有內容,確認您所購買的機型及配件。如果有任何部
件因運輸過程出現損壞或缺少,請立即連絡經銷商,並以原包裝退回檢查。
3.1 包裝內容
1 x S-120 泡沫機
1 x 5 公升油桶
1 x IEC 電源線
1 x 吊架
1 x 說明書或掃描機身 QR CODE
3.2 選配說明
品項
描述
N/A
N/A
4. 機器訊息
01. 噴嘴
04. 5 公升油桶
02. 把手
05. 電源開關
03. 吊架
06. IEC 電源連接頭
5. 技術標籤資訊
使用本機器前,請詳閱技術標籤上的訊息

7
1. 機器型號
5. 斷路器/保險絲
2. 工作電壓
6. 說明書 QR CODE
3. 頻率
7. 機器流水序號
4. 瓦特數
6. 雪花水
危險
將液體加入機器之前,請務必先拔除電源線。請勿添加易燃液體。如果發現液體
流入機器內部,請洽 Antari 原廠或其經銷商尋求協助。
僅能使用 Antari 原廠製造之雪花水,不可混用或稀釋。
本機器是使用專屬的雪花水做測試與校正來取得最佳的效能。
如需更換另一種液體,請在使用前,先將油桶中的液體清空,以避免混合。
如果使用非原廠製造之雪花水而導致雪花機損壞將不在保固範圍內。
7. 設定與手動操作說明
警告
機台掉落可能會造成嚴重傷害,請確保本機台安裝牢固且不會掉落。
步驟1. 將機器平放在堅固、平坦、穩定且通風良好的表面上,機器周圍至少應保留 50 公分的空間並確
認附近沒有易燃性物質或可揮發性氣體;
步驟2. 將ANTARI 原廠雪花水倒入油桶;
步驟3. 將機器連接電源,連接之前,確認機器背後技術標籤上所標示要求功率,是否與電源插座相符;
步驟4. 將電源開關切到”ON”開始製造泡沫;
步驟5. 將電源開關切到”OFF”停止製造泡沫;
步驟6. 需關閉本機時,請確認機器已停止運轉,再將電源開關關閉即可,長時間不使用時請移除電源
線。
8. 控制設定
S-120 泡沫機只可以使用手動控制。
手動控制
9. 維護和保養
危險
維修保養之前,請務必拔除電源線!
隨時保持機器清潔及乾燥。
可以使用空氣壓縮機、吸塵器或軟刷除去機器上的灰塵。
機殼可使用濕布擦拭。

8
儲藏前或使用完畢後,請在油桶內倒入清水,讓機器運行 1-2 分鐘,清潔機器內的殘餘雪花水,延長
機器使用的壽命。
建議每月至少讓機器運轉一次,以保持機器處於最佳的性能和輸出條件。
機器上過多的灰塵、液體殘餘累積的髒污會降低機器工作性能,導至散熱不良。
10. 技術規格
S-120
電壓
美規:AC 100 - 120V, 50 / 60 Hz 7.5A
歐規:AC 220 - 240V, 50 / 60 Hz 4.0A
額定功率
880 瓦
耗油量
350 毫升/分鐘 (100%輸出)
油桶容量
5公升 (1.32 加侖)
適用雪花水
Antari SL 雪花水
適用環境溫度
5°C – 40°C (41°F – 104°F)
控制方式
手動控制
連接座
IEC 連接頭(主電源)
DMX 512 通道
N/A
隨附配件
吊架
選購配件
N/A
尺寸
長600 寬260 高280 公釐 (長23.62 寬10.24 高11.02 英寸)
重量
12.0 公斤 (26.46 磅)
11. 保固聲明
本公司保證我們的商品在一年內沒有材料和製作缺陷。我們在本保證下的義務和責任僅限於在原廠或當地
授權經銷商進行的維修或更換。我們對不當使用或用於非專門設計目的以外之用途不承擔任何責任。本保
固不適用於以任何方式在原廠或當地授權經銷商外修理、改動或組裝的任何商品,以便我們判斷影響其性
能,沒有受到誤用、疏忽或事故的影響,也沒有違反我們的任何商品操作印刷說明。本公司對於從我們這
邊購買的商品不會允許也不對於使用、銷售或修理任何產品有關的任何類型的任何損失或損害承擔責任。
12. 機器尺寸圖

9
Appendix I –Grounding Instruction
This appliance must be grounded. In the event of malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The
conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment-
grounding conductor. If repair or replacement of the cord or plug is necessary, do not connect the equipment-
grounding conductor to a live terminal. Check with a qualified electrician or serviceman if the grounding
instructions are not completely understood, or if in doubt as to whether the appliance is properly grounded. Do not
modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
This appliance is for use on a nominal 120V circuit, and has a grounding plug that looks like the plug illustrated in
sketch A in Figure. A temporary adaptor, which looks like the adaptor illustrated in sketches B and C, may be used
to connect this plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available. The
temporary adaptor should be used only until a properly grounded outlet can be installed by a qualified electrician.
The green colored rigid ear, lug, and the like, extending from the adaptor must be connected to a permanent ground
such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be held in place by the metal
screw.

C08S10004
Other manuals for S-120
1
Table of contents
