TurfTracker 3301 User manual

TurfTracker 3301
Foam Marking System
--- Versatile Mounting Options
--- Easy-Fill 2.0 Quart Container
--- 25-foot of Durable Vinyl Tubing
--- Fits Most Applicators Up to 8’Wide
--- Easy Mounting
--- 30 Minute Run Time
--- Uses Ordinary Liquid Dishwashing Soap
--- Durable, Rust Proof Parts
--- Made in U.S.A.
Thank you for purchasing a Richway
TurfTracker foam marking system.
Please read and follow all directions
carefully to ensure proper mounting
of the system and longevity of the
product. With its rustproof parts, the
TurfTracker is designed to give you
great results for many years to come.
Assembly and Use Instructions Inside
Save for Future Reference
WHAT TO EXPECT WITH YOUR TURFTRACKER:
After about 30 seconds, your foam output should become
more consistent, with a drop of foam coming out of each
drop hose every 1-3 seconds. Foam output will become
sporadic after approximately 25-30 minutes of continuous
running. Once the foam solution level drops below 2” in
the tank, stop and refill the container. Performance of the
foam marking system will greatly decrease once the liquid
level drops below 2” in the tank. Normally, the foam will
stay on the ground from 10-30 minutes, depending on
weather conditions. The foam shouldn’t harm your lawn
or plants, but it is advisable to first test the foam in an
inconspicuous space to determine if your plants are
susceptible to any adverse effects from the foam.
CAUTION:
DO NOT GET FOAM IN YOUR EYES.
MAINTENANCE AFTER EACH USE:
Fill the tank with hot water and run for approximately
one minute. Thoroughly rinse the tank out with hot water.
Disconnect from battery. Make certain all components,
especially the tubing, are dry before storing in freezing
temperatures.
TROUBLE-SHOOTING:
Inadequate Foam Output-
** Check Airline Connections- Make certain air is not
leaking at the pump fitting and external and internal cap
assembly fittings
** Check Cap Assembly- Cap should be fitting tightly on
bottle
** Check Airline Tubing- Be sure that airline tubing is not
plugged from the pump to the bottom of the foam genera-
tion tube
** Check Foam Tubing- Make certain foam tubing is free
of any obstructions
** Use distilled water
** Try another brand of liquid dishwashing soap
** Increase the amount of liquid dishwashing soap used
in each batch
Runny Foam-
** Use less liquid dishwashing soap in each batch
** Only fill tank 3/4 full
Foam Going Into Air Pump-
** Replace check valve
Takes Too Long to Produce Good Foam-
** Use less liquid dishwashing soap
** Only fill tank 3/4 full
Questions, Comments, Information
Visit the Turf Tracker website:
www.turftrackernow.com
**Turf Tracker is a trademark of
Richway Industries, Ltd.
**Patent Pending
** TurfTracker is a trademark of
Richway Industries, Ltd.
** Patent Pending

Before you get started, check to see that you have
all the parts listed below. Read all directions before
starting any assembly.
Parts Shown in Figure 1:
-Switchbox Power Unit w/10’ Battery Cable, 1 ea.
-Tank Stand, 1 ea.
-2 qt. Tank, 1 ea.
-Cap Assembly, 1 ea.
-Foam Tubing Elbows, 2 ea.
-Collector Heads, 2 ea.
Parts Not Shown in Figure 1:
* Foam Tubing Tee, 1 ea.
* 1” Sections of Velcro, 4 ea.
*15’ Section of Vinyl Foam Tubing, 1 ea.
*10’ Section of Air Tubing, 1 ea.
* Cable Ties, 12 ea.
1. Attach the Tank Stands
Determine a convenient location to bolt the tank stand,
keeping in mind that the tank should be mounted near
the back of the applicator and be kept in a perpendicular
position. The stand is designed to facilitate many different
mounting configurations. Often times, the bracket will
easily mount on a horizontal frame member on the applica-
tor. Attach the tank stand to the applicator using U-bolts
or hex-head bolts as needed (not supplied).
2. Set Tank in Stand
Place the tank in the tank stand and secure the cap
assembly.
3. Attach Power Unit Switchbox
Determine a convenient location to place the power
unit switchbox for ease of turning on and off. Either bolt
the box down or attach using the 1” velcro strips provided.
Secure firmly in place as needed. Route the battery cable
to the battery and secure the red wire to the positive (+)
battery post. Secure the white wire to the negative (-)
battery post.
4. Install Air Tubing
Using the smaller diameter air tubing, connect the tubing
to the outlet on the back of the switchbox assembly and
route back to the tank. Connect to the small inlet on the
top of the cap assembly. Secure tubing as needed with the
cable ties provided.

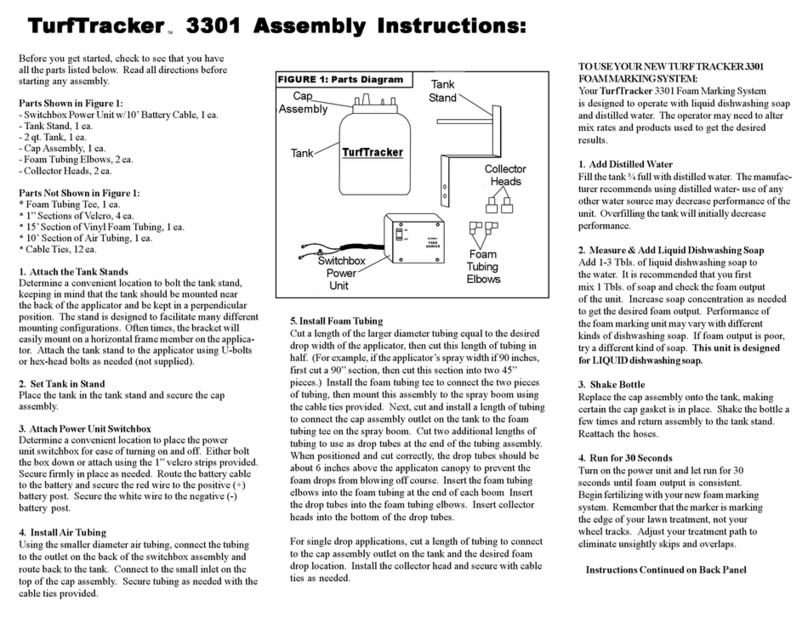

FIGURE 1: Parts Diagram
5. Install Foam Tubing
Cut a length of the larger diameter tubing equal to the desired
drop width of the applicator, then cut this length of tubing in
half. (For example, if the applicator’s spray width if 90 inches,
first cut a 90” section, then cut this section into two 45”
pieces.) Install the foam tubing tee to connect the two pieces
of tubing, then mount this assembly to the spray boom using
the cable ties provided. Next, cut and install a length of tubing
to connect the cap assembly outlet on the tank to the foam
tubing tee on the spray boom. Cut two additional lengths of
tubing to use as drop tubes at the end of the tubing assembly.
When positioned and cut correctly, the drop tubes should be
about 6 inches above the applicaton canopy to prevent the
foam drops from blowing off course. Insert the foam tubing
elbows into the foam tubing at the end of each boom Insert
the drop tubes into the foam tubing elbows. Insert collector
heads into the bottom of the drop tubes.
For single drop applications, cut a length of tubing to connect
to the cap assembly outlet on the tank and the desired foam
drop location. Install the collector head and secure with cable
ties as needed.
TT
TT
TurfTurfT
urfTurfT
urfTrr
rr
racac
acac
ackk
kk
ker 3301er 3301
er 3301er 3301
er 3301 AssembAssemb
AssembAssemb
Assembll
ll
ly Instry Instr
y Instry Instr
y Instructions:uctions:
uctions:uctions:
uctions:
TM
FOAM
MARKER
ON
OFF
LEFT
RIGHT
RICHWAY
ON
OFF
TurfTracker
Switchbox
Power
Unit
Foam
Tubing
Elbows
Collector
Heads
T
an
k
Stand
Cap
A
ssembl
y
Tank
TO USE YOUR NEW TURF TRACKER 3301
FOAM MARKING SYSTEM:
Your TurfTracker 3301 Foam Marking System
is designed to operate with liquid dishwashing soap
and distilled water. The operator may need to alter
mix rates and products used to get the desired
results.
1. Add Distilled Water
Fill the tank ¾ full with distilled water. The manufac-
turer recommends using distilled water- use of any
other water source may decrease performance of the
unit. Overfilling the tank will initially decrease
performance.
2. Measure & Add Liquid Dishwashing Soap
Add 1-3 Tbls. of liquid dishwashing soap to
the water. It is recommended that you first
mix 1 Tbls. of soap and check the foam output
of the unit. Increase soap concentration as needed
to get the desired foam output. Performance of
the foam marking unit may vary with different
kinds of dishwashing soap. If foam output is poor,
try a different kind of soap. This unit is designed
for LIQUID dishwashing soap.
3. Shake Bottle
Replace the cap assembly onto the tank, making
certain the cap gasket is in place. Shake the bottle a
few times and return assembly to the tank stand.
Reattach the hoses.
4. Run for 30 Seconds
Turn on the power unit and let run for 30
seconds until foam output is consistent.
Begin fertilizing with your new foam marking
system. Remember that the marker is marking
the edge of your lawn treatment, not your
wheel tracks. Adjust your treatment path to
eliminate unsightly skips and overlaps.
Instructions Continued on Back Panel
Tank
Stand
Assembly
